Sectional garage doors made of steel

Would you like a large number of patterns and colours to choose from? At an attractive price? Superb quality, easy to use, enormously safe and energy efficient?

Then opt for sectional garage doors with 20 mm insulation, made by Novoferm.

Your advantages at a glance

For private garages up to 3 m in width
Smooth running and stable, with double-skinned, galvanized steel sections
High degree of safety with anti-pinch feature inside and out (as per EN 12604) as well as interferenceprotected multiple safety tension spring assemblies
Good heat insulation with 20 mm rigid PUR foam core (heat insulation value U(p) = 1.0 W/m²K)
Inside door leaf: Polyester based primer, grey white, similar to RAL 9002
Outside door leaf (standard): Traffic white, similar to RAL 9016 (prime coated)
Outside door leaf: Super-Color/ preferred colour at additional cost (top coated)

Superb thermal and acoustic insulation

Our iso 20 sectional garage doors with vertical tension spring system are fitted with multiple safety tension spring assemblies.

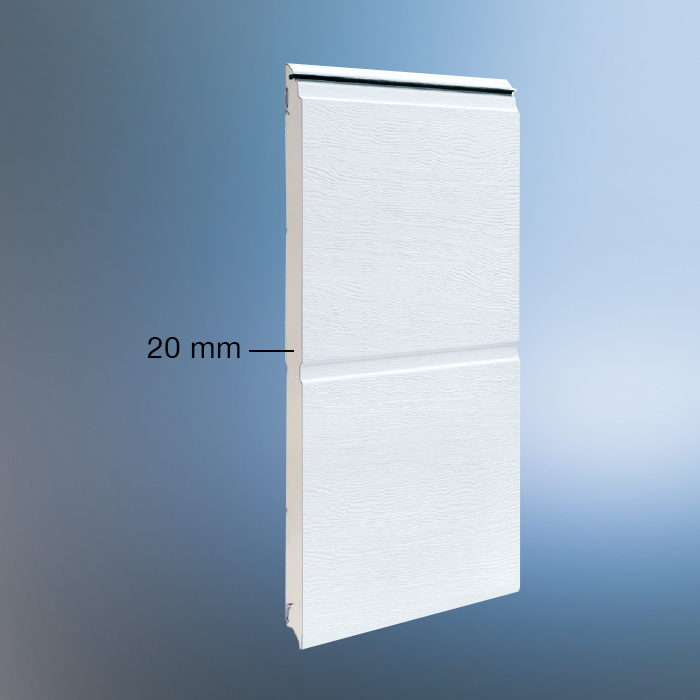

iso 20 is filled with a 20 mm rigid foam core, which provides good heat and sound insulation.

Wide range of models and equipment

Garage door patterns for single garages

Horizontal rib

Illustration shows garage door leaf size 2,500 x 2,125 mm. Other garage door sizes can deviate from the illustration shown.

Large rib

Flush

Door leaf

Inside door leaf:	Polyester-based prime coat, grey white, similar to RAL 9002
Outside door leaf (standard):	Traffic white, similar to RAL 9016 (prime coated)
Outside door leaf:	Super Color or RAL of your choice at additional cost (top coated)

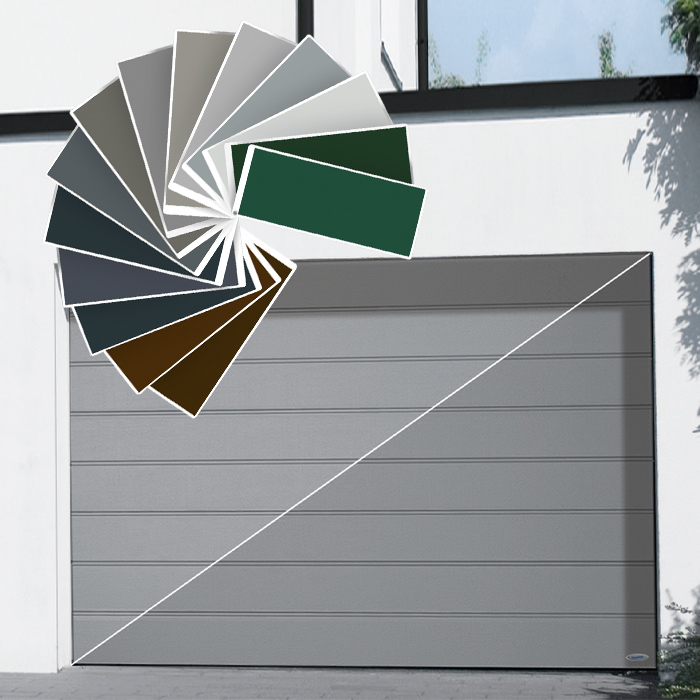

Sectional garage doors that match the architecture of your home!

… in two surface finishes with numerous preferred colours

Surface finishes

Woodgrain
(horizontal rib and large rib only)

Noblesse
(smooth)
(flush only)

Colour

Traffic white
similar to RAL 9016

Super Colors/preferred colours of your choice

Moss green
similar to RAL 6005

White aluminium
similar to RAL 9006

Basalt grey
similar to RAL 7012

Nut brown
similar to RAL 8011

Fir green
similar to RAL 6009

Stone grey
similar to RAL 7030

Dark grey
similar to DB 703

Sepia brown
similar to RAL 8014

Light grey
similar to RAL 7035

Grey aluminium
similar to RAL 9007

Slate grey
similar to RAL 7015

Window grey
similar to RAL 7040

Quartz grey
similar to RAL 7039

Anthracite grey
similar to RAL 7016

... with numerous glazing options

From classic to modern glazing styles

You’ve already envisaged a garage door with a certain pattern and colour, but it’s still not individual enough for you? Then take a look at our attractive glazing variants. They not only make a feature of your garage, but also let the light in as well. And that’s especially appealing if you also use your garage as a hobby room or workshop. All Novoferm glazing panels are made of weather-resistant acrylic glass or impact-resistant polycarbonate and offer outstanding light permeability.

Window

Variante 1
Standard window

Variante 2
Elegant rhombus look

Variante 3
Classic cross bar window

Dimensions:
Inside: approx. 392 x 192 mm
Outside: approx. 460 x 260 mm

Window thickness:

Large rib pattern: 16 mm double acrylic glazing, transparent or crystal

… plastic handles

Door handles

Plastic handle
black (optional)

You can find additional handles on iso 45.

... lighting kit

The LED lighting kit

The LED lighting kit is recommended for showing off the best features of your garage door after sunset – and for helping keep trespassers off your property, too. It blends in with other sources of light e.g. illuminated windows and therefore stylishly showcases the architecture of your house. The lighting kit comprises four, six or eight LEDs depending on the garage door width, which are evenly distributed over the overall garage door width in a U-shaped rail. You can either remote control both it and your operator, or use a separate timer or movement detector.

Saves space and energy

The flat lighting kit is designed to be space-saving when mounted underneath the header so that nearly all the passage height is maintained. Long-life LEDs provide very bright illumination yet consume very little power. The lighting units can be easily shortened to size on both sides depending on the width of the garage door to attain precise, symmetrical illumination of the garage door.

Your advantages at a glance

Anodized aluminium
Available lengths: 3 m, 4 m and 5 m - can be shortened!
Door and light can be controlled with a remote.
Lighting control either linked to door movements or not.
Weather-protected lighting
Space-saving assembly under the header
2-channel remote control
Can be switched on and off separately, independent of operator function
Very bright, low power consumption
Long service life thanks to LED technology
Incl. mains transformer 230 V/12 V

… garage door operators and accessories

Select your garage door operator!

NovoPort® premium operating system for flexible installation at the side

Novomatic design operators for ceiling installation

Accessories

tension spring

Our iso 20 sectional garage doors with vertical tension spring system are fitted with multiple safety tension spring assemblies.

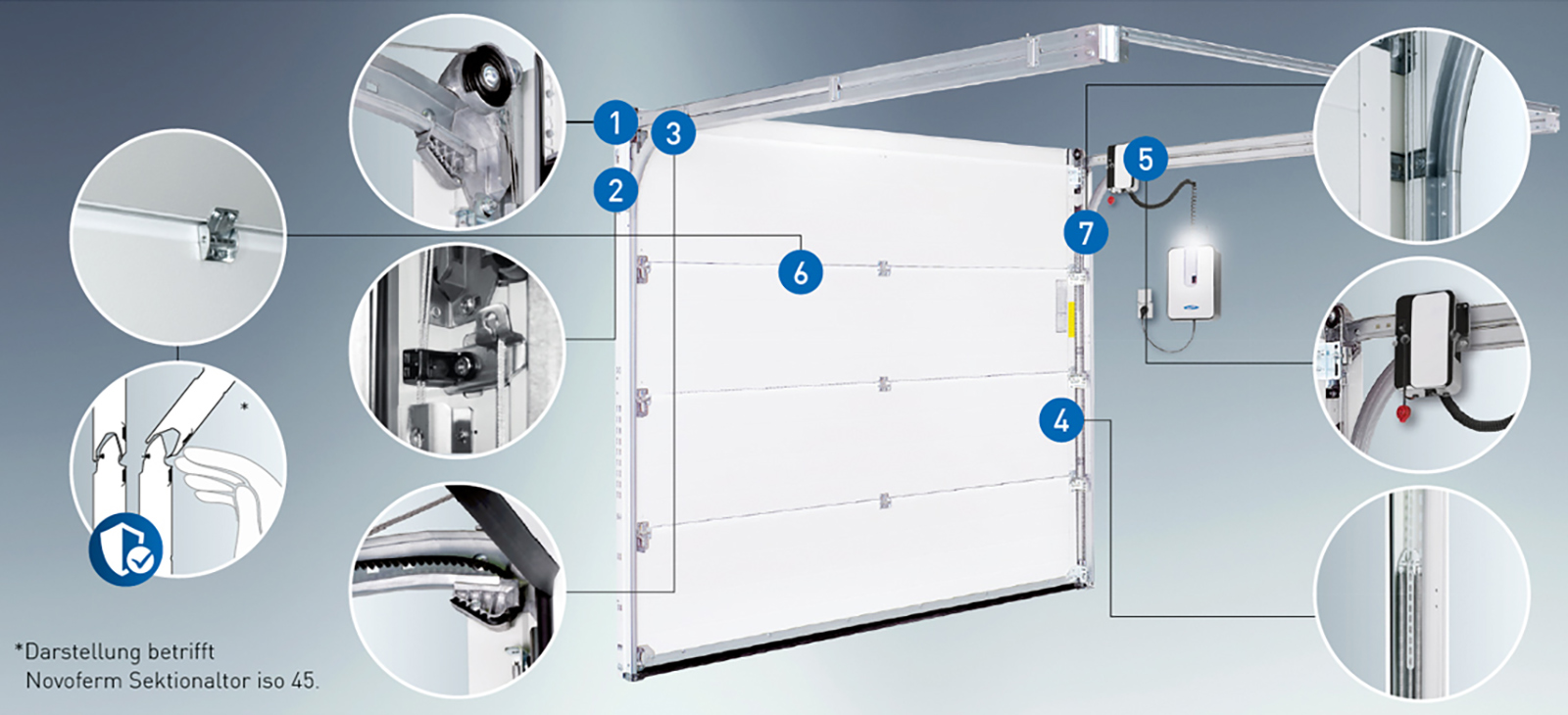

Vertical tension spring: the details

Sectional garage doors with 20 mm insulation made by Novoferm are standard supplied with a vertical tension spring system.

1. Interference-protected deflection pulley
The steel cables run vertically into the angular frame on interference-protected deflection pulleys mounted on ball bearings with U-shaped roller holders. This reduces the height requirement compared to a front-mounted torsion spring.

2. New cable mount
Together with the new steel cable holder, the newly designed cable mount with integrated door guide keeps the steel cables running smoothly in the angular frame without them touching the sections.

3. Integrated belt fastening
The newly designed moulded end piece contains an integrated fastener for the NovoPort® belt. The maintenance-free belt is fastened securely in the holder.

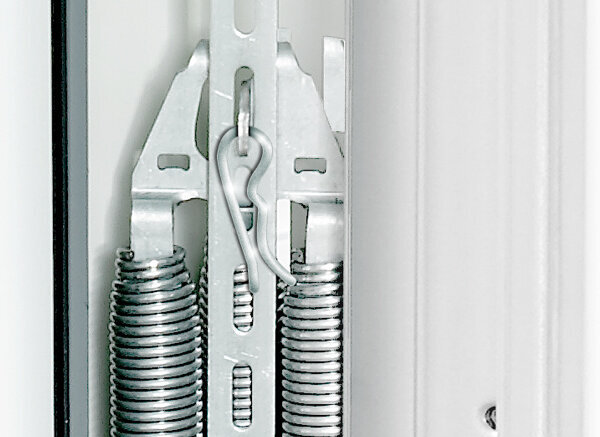

4. Multiple tension spring assemblies
The tension spring garage doors are equipped with sturdy multiple tension spring assemblies. The springs are adjusted at the top end of the assembly. The vertical tension springs require less installation depth and open up new possibilities when space is confined.

5. NovoPort® - unique & flexible
The NovoPort® operator system not only offers maximum convenience during operation, but also during installation. After all, the motor is not fixed to the ceiling like conventional operators, but simply integrated into the side garage door track – either on the left or the right depending on the structural conditions. Therefore no ceiling assembly is required.

6. Anti-pinch inside and out
The special design of the sections and hinges prevents pinching on the door leaf from the outset. Pinching is not a risk on the inside of Novoferm doors either.

7. Interference protection and cables channelled down the inside
The angular frames make it almost impossible to reach between the door leaf and the frame. Suspension cables arranged inside minimize the risk of injury and guarantee maximum operational reliability.

The advantages at a glance

Easy to install; low installation height
The spring is easy to adjust
The horizontal tracks are shorter (require less space)
NovoPort® is easy and fast to install
Lower standard headroom requirement
Added to which, the vertical tension spring system on iso 45 sectional garage doors is cheaper than the torsion spring version
