Sliding fire and smokeproof doors

Novoferm fire seals are self closing and prevent fire penetrating through wall openings. All models are officially tested as per DIN 4102 and have been issued general building code approval by Deutsches Institut für Bautechnik (DIBt) in Berlin.

Novoferm sliding fire doors are suitable for low headers or butt ceiling installation. They offer outstanding operational performance and look good with their smooth surface finish. A free swing function is optionally available.

The modular design is easy to transport and assemble, so even large door sizes are possible.

Novoferm sliding doors are available in both T30 and T90 smokeproof and fireproof versions. See for yourself!

Your advantages at a glance

Fireproof and smokeproof version available
Available with one or two leaves
Optional integrated sill-free pass door
Wall and ceiling flaps for integration into the building architecture
Safety braking strip protects against trapping and crushing
Innovative free swing function enables sliding fire doors to be moved to any position with just light pressure
Numerous features – building code approved, of course – enable enhancement of the single and double sliding fire door units to suit the specific property.

Highlights

Click on the link on the left to watch a video explaining the highlights of our Novoferm sliding fire and smokeproof doors. This video focuses particularly on the sliding door features: safety braking strip, free swing function and wall and ceiling flaps.

Numerous other animations / videos can be found on the Novoferm YouTube channel:

https://www.youtube.com/NovofermVideos/

Why opt for sliding fire doors made by Novoferm?

Numerous features – building code approved, of course – enable enhancement of the single and double sliding fire door units to suit the specific property.

A hold open system with release mechanism, for example, can keep the doors mainly open and only close them reliably in the event of fire.

The free swing function enables the doors to be fixed in any position. Pass doors enable convenient passage when the door is closed.

Novoferm is working hard to further improve its combined fire and smokeproofing. Floor structure permitting, for example, sills are not necessary in the entire opening and storage area.

Both the sliding door panels and the pass doors can be fitted with T30 or T90 fire resistant glazing. Single leaf T90 doors are also available in stainless steel finish.

Novoferm offers approved inlet/outlet and ceiling flaps.

When the door is open, they seal off the side and ceiling openings – making the door invisible.

Novoferm banks on a sustainable ecological future
Novoferm sliding fire doors meet the requirements for environmental product declaration (EPD). This ISO 14025 and EN 15804 certification is issued under the programme for environmental product declarations managed by the Institute for Construction and Environment (IBU) based on standard EN 15804.

EPD as per ISO 14025 and EN 15804
Life cycle assessment as per DIN ISO 14040 / 14044
Product Category Rules (PCR) for Doors

Certified by:

ISO 9001 Quality Management
ISO 14001 Environmental Protection Management
OHSAS 18001 Occupational Health and Safety Management

Our fire seals are officially tested to DIN regulations and have been issued general building code approval by Deutsches Institut für Bautechnik (DIBt) in Berlin. This proof of compliance is noted on the embossed boilerplate, together with identification of the model, approval number, manufacturer and year of manufacture.

Steel sliding doors without technical approval can be equipped with fireproofing in special instances, albeit without approval.

Doors are supplied in individual segments for ease of transportation. We are authorized to perform all fire protection and accident prevention tests and inspections, and can assume responsibility for looking after all of your doors and seals.

Sliding doors: the details

Technical description

Approval:

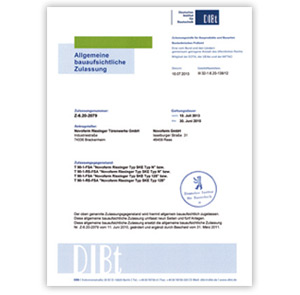

All models are officially tested as per DIN 4102 and have been issued general building code approval by Deutsches Institut für Bautechnik (DIBt) in Berlin.

Installation:
The wall that is going to accommodate the fire seal must comply with the approval requirements, as must the fastening of the seal. The floor in the door area must be non-flammable (A1).

Note:
If the storage area of a sliding door is clad on site, inspection openings must be provided to enable maintenance.

Header designs:

Standard model for normal headers requires about 250 mm headroom height
Customized models for ceiling installation with low headers require at least 125 mm headroom height
Header panel for butt ceiling installation is 115 mm high

Door panel:
Made of 0.75 mm galvanized and specially machined thin sheet metal with fireproof insulation. Door panel made of individual full-height units joined together, with smooth surface finish achieved by bonding the sheet metal jacket with the fireproof insulation (supplied as individual panels).

Seal:
On three sides, with labyrinth profiles.

Hardware:
Tubular track system at the top with double pairs of rollers, dimensions appropriate for the weight of the panel to ensure the door runs smoothly, with continuous fastening bracket complete with hydraulic damper, closing weight in galvanized casing, floor guide, and handle and recessed grip (also available in stainless steel).

Closing brake (radial damper):
Controls the closing speed, infinitely adjustable between 0.08 and 0.2 m/sec.

Approved variant / Special equipment

Hold open system – Hold open and release mechanism:
For doors that have to mainly remain open, consisting of:
Fire detectors (number as specified in the approval), hold open magnet, power pack, reset and release key (24 V DC operation). The door closes automatically in the event of fire, and otherwise by pressing the release key.

Note:
Once installed, owners must ensure at their own expense that the hold open system is approved and thereafter inspected at regular intervals by a certified expert (as per confirmation of approval of the hold open system). We offer appropriate service agreements.

T30 or T90 pass door (as per approval), and smokeproof pass door with special sealing profiles, positioned between two units in the door panel, standard without floor sill, max. clear passage of pass door: 1000 x 2000 mm.
A sill-free pass door may only be installed if the clear passage is at least 1875 mm and the sliding door height at least 2100 mm. Hardware: 2x three-part hinges with ball bearings, 1 door closer as per EN 1154, 1 mortice lock as per DIN 18250 with drawback-latch for profile cylinder, optional panic function, stainless steel handle set with short plates (optional rosette plates).

Hook lock:
To secure the door when closed, with spring-mounted catch, key operated, designed for profile cylinders.

Flush inlet panel at the side:
For single leaf doors: no rebate on the door inlet side, counterweight deflected.

Butt ceiling installation:
With header panel (115 mm high).

Electrical operator:
Surface mounted keypad to “Open” the door with dead man control. The door is closed by pressing the release key on the hold open system (recommended for larger doors if manual opening requires quite a lot of force). The operator is deactivated in the event of fire and the door is automatically closed.

Note:

Owners must arrange at their own expense for experts to perform the necessary inspections of doors with electrical operators (as per rules governing power operated doors).

Fire resistant glazing (dimensions as per approval):

In one or more panel sections: Standard glazing 270 x 630 mm, customized glazing up to 325 x 1100 mm, necessary frieze width on 3 sides of each panel section: 190 mm, pedestal height: 1150 mm.
In pass doors (without floor sill): T30/T90 standard glazing 460 x 610 mm

Door panel surface:
Optionally primed, coated, edge profile galvanized

Stainless steel finish:
Single leaf T90 doors only

Niche flaps:
For tracks and in storage/parking areas (see page 18: also available in stainless steel)

Free swing function:
For doors with normal headers (optional)

Safety braking strip:
(optional) For single leaf doors (optional)

Features

Safety braking strip for sliding fire doors

Available only from Novoferm: Anti pinch protection is finally available.

Enhanced safety and tangible protection against property damage and injury thanks to self-closing sliding fire doors. In the event of fire, sliding fire doors must close automatically,

which poses the risk of people or objects becoming trapped or crushed. The new mechanical safety braking strip made by Novoferm protects against this risk by reducing the closing force to a level that is even lower than that specified by EN 12453.

Your advantages at a glance

Offers protection against jammed or crushed fingers
Building code approved for single leaf sliding fire doors (T30 / T90) made by Novoferm
Closing forces are less than required by EN 12453
Purely mechanical function, works even in power outages
No additional testing required
Can be combined with Novoferm’s free swing function
Self-closing ability of fire seal remains assured
Can be retrofitted on single leaf SKE sliding fire doors made by Novoferm

The “emergency brake” for sliding fire doors made by Novoferm
Sliding fire doors have to shut automatically to ensure active fire protection and comply with the law. If someone or something is in the way when a heavy door is closing, injuries and damages may occur.

Novoferm has successfully closed this safety gap – which was underestimated for a long time – with its new safety braking strip for sliding fire doors. This brake is purely mechanical and provides genuine protection from people or things getting trapped and injured or damaged.

If the brake is activated, the braking force subsides automatically after a brief period and the door can be moved again. Once the area has been cleared, the door closes automatically and independently of course.

Collision brake
The mechanical safety braking strip on the sliding fire door compensates – even in a power failure.

Automatic release
The braking function activates itself. Once the sliding fire door has come to a halt, the brake disengages and the door can be moved again.

Video about the safety braking strip

Click on the video on the left to learn more about the Novoferm safety braking strip on Novoferm sliding fire doors. The Novoferm safety braking strip offers tangible protection against damages and injuries. The function is purely mechanical and thus reliably assured even in power failures. The closing forces are less than required by EN 12453

Numerous other animations / videos can be found on the Novoferm YouTube channel:

https://www.youtube.com/NovofermVideos/

Free swing function for sliding fire doors

Using force to open doors is a thing of the past – now all it takes is light pressure. The innovative free swing function enables sliding fire doors to be moved to any position with just light pressure. The free swing function can also be retrofitted on T30 and T90 sliding doors (App. no. Z-6.20-2079/2080).

Your advantages at a glance

Particularly easy to open and close. Eliminates the need for a pass door or electrical operator in many cases
Can be opened to any position
Building code approved for single and double SKE sliding fire door units
Free swing function approved for all door sizes with normal header
Existing doors can be easily retrofitted
Purely mechanical solution. No additional wiring, no additional testing required

Thanks to their free swing function, sliding fire doors only need to be lightly pushed to move virtually on their own. They can be opened to any position.
Sliding fire doors are indispensable in industrial or commercial buildings. They reliably seal off fire sections without inhibiting internal logistics processes. Previously, however, their heavy weight and specified automatic closing mechanism made sliding fire doors hard to move.

This has now changed with the optional free swing function. From now on, sliding doors made by Novoferm can be moved without the need for force once they have been initially opened – they glide open easily. And: the doors can be partially opened or closed as well – just as needed. The requisite self-closing mechanism in the event of fire is still guaranteed.

Freely positionable
The free swing function means you can slide the door to any position you need.

For single or double doors
The free swing function is approved for single or double door units up to a maximum size of 8500 x 6000 mm – and can easily be retrofitted.

Video about the free swing function

Click on the video on the left to learn more about the free swing function on Novoferm sliding fire doors. It makes sliding fire doors particularly easy to open and close although they are normally hard to move because of their heavy weight and specified automatic closing mechanism. The doors can also be opened to any intermediate position. The requisite self-closing mechanism in the event of fire is still guaranteed.

Numerous other animations / videos can be found on the Novoferm YouTube channel:

https://www.youtube.com/NovofermVideos/

Ceiling flaps

Ceiling flap for cladding the track

The horizontally suspended ceiling flap is fixed at two suspension points with pivot bearings and held closed by two magnets.

The flap is closed manually.

The opening process (using gravity) is performed at reduced speed by two damping cylinders at an extension speed of about 0.04 m/sec.

Your advantages at a glance

Ceiling flaps for door widths up to 8500 mm:
1 part up to a clear passage width of 3000 mm
2 parts up to a clear passage width of 6000 mm
3 parts up to a clear passage width of 8500 mm
Flap widths from 280 – 400 mm
Ceiling flaps are only possible on normal headers with a height of at least 280 mm; if combined with smoke protection, the headroom height must be at least 300 mm.
Min. clear passage height when combined with a pass door: 2380 mm
Plastic/veneer laminates can be glued on
The purely mechanical necessity dictating the sequence of the opening procedure in combinations of ceiling and wall flaps means that the otherwise necessary battery buffered separate control can be dispensed with – this only applies to Novoferm solutions

Video about ceiling and wall flaps

Click on the video on the left to learn more about Novoferm ceiling and wall flaps on Novoferm sliding fire doors. Novoferm wall and ceiling flaps are an attractive option for virtually “invisible” design by cladding the wall niche, track and door storage area of sliding fire doors that are specified by fire regulations, especially in properties with a sophisticated interior architecture.

Numerous other animations / videos can be found on the Novoferm YouTube channel:

https://www.youtube.com/NovofermVideos/

Ceiling flap closed

Ceiling flap open

Wall flaps

Wall flaps for cladding the storage area

(Wall niche) and/or storage area
The upright wall flap is fixed statically and dynamically in place by a ball bearing in the upper section of the pivoting mechanism and by a polyamide bushing in the lower section, together with a bearing bolt plugged into the floor, and held closed by magnets. The flap is closed manually; a spring mechanism opens the storage area.

Your advantages at a glance

Wall flaps for door heights up to 4500 mm (larger sizes on request)
Flap widths from 280 – 400 mm
Wall flaps are possible for normal headers with a height of at least 250 mm and low headers with a height of at least 125 mm
Plastic/veneer laminates can be glued on
Combining wall flap and sliding door only requires a stronger power unit

Video about ceiling and wall flaps

Numerous other animations / videos can be found on the Novoferm YouTube channel:

https://www.youtube.com/NovofermVideos/

Technical data

... for T30 fire resistance

T30 SKE 1 sliding fire door
1 leaf

T30 SKE 2 sliding fire door
2 leaf

		T30 SKE 1	T30 SKE 2
Characteristics
1 leaf		•	–
2 leaf		–	•
Full panel, modular design		•	•
Galvanized panel and edge profiles		•	•
Approval		No. Z-6.20-2080	No. Z-6.20-2115 T90 model

Versions
Fire retardant as per DIN 4102		•	–
Fireproof as per DIN 4102		–	•
Smokeproof as per DIN 18095 Part 3		º	º
With closing brake (radial damper)		•	•
Optional hold open system		º	º

Description
Approved dimensions		LD from upper edge of finished floor 1000 x 2000 to 8500 x 6000	LD from upper edge of finished floor 2000 x 2000 to 8500 x 6000
Door panel approx. 67 mm thick, 0.75 mm sheet metal, unit weight approx. 50 kg/m²		•	•
Necessary overlap of clear passage opening by door leaf	on each side	≥ 100	≥ 150
	at the header	≥ 75	≥ 75
	with low header	≥ 85	≥ 85
Storage area for open door		LD +250 (low header: additional +150)	per leaf half of the LD +300 (low header: additional +150) plus box for closing weight (symmetric door panels)
Requisite headroom height	Normal header, wall installation	approx. 250	approx. 250
	Low header, ceiling installation	≥ 125	≥ 125
	Butt ceiling installation: Header panel	115	115
for supports in storage area, requisite distance from firewall	Without pass door	200	200
	With pass door	250	250
Sill for opening and storage area		–	–

Additional features
Also available with pass door incl. door closer		Standard without lower sill, door size max. 1000 x 2000 LD. A sill-free pass door may only be installed from a clear passage of 1875 and a door height of 2100	Standard without lower sill, door size max. 1000 x 2000 LD. A sill-free pass door may only be installed if the clear passage is at least 1875 and the sliding door height at least 2100
		Optional two pass doors	Max. one sill-free pass door (emergency exit) per leaf permitted
Optional pass door in the reveal (from LD height of 2175 mm)		º	º
Optional hook lock		º	º
Optional butt side panel		º	–
Optional low header		º	º
Optional butt ceiling installation		º	º
Optional electrical opening assistance		º	º
Optional glazing		T30 fire resistant glass in one or several panel sections: Standard glazing 270 x 630, customized glazing up to 325 x 1100 mm, necessary frieze width on 3 sides of each panel section: 190 mm, pedestal height: 1150 mm In pass doors (without floor sill): Standard and max. glazing 460 x 610	T30 fire resistant glass in one or several panel sections: Standard glazing 270 x 630, customized glazing up to 325 x 1100 mm, necessary frieze width on 3 sides of each panel section: 190 mm, pedestal height: 1150 mm In pass doors (without floor sill): Standard and max. glazing 460 x 610
Optional stainless steel		–	–
Optional free swing function (doors with normal headers)		º	º
Optional track panel		º	º
Optional niche flaps for tracks and in the storage area (also available in stainless steel)		º	º
Optional safety braking strip		º	º

Key:

All sizes in mm	LD = Clear passage dimensions,	OKF = Upper edge of finished floor
• Standard	º Optional	– Not possible
Operating aids and special equipment on request
*Note: The upper horizontal smoke seal protrudes about 30 mm into the clear passage opening

... for T90 fire resistance

T90 SKE 1 sliding fire door
1 leaf

T90 SKE 2 sliding fire door
2 leaf

		T90 SKE 1	T90 SKE 2
Characteristics
1 leaf		•	–
2 leaf		–	•
Full panel, modular design		•	•
Galvanized panel and edge profiles		•	•
Approval		No. Z-6.20-2079	No. Z-6.20-2115

Versions
Fire retardant as per DIN 4102		–	–
Fireproof as per DIN 4102		•	•
Smokeproof as per DIN 18095 Part 3		º	º
With closing brake (radial damper)		•	•
Optional hold open system		º	º

Description
Approved dimensions		LD from upper edge of finished floor 1000 x 2000 to 8500 x 6000	LD from upper edge of finished floor 2000 x 2000 to 8500 x 6000
Door panel approx. 67 mm thick, 0.75 mm sheet metal, unit weight approx. 50 kg/m²		•	•
Necessary overlap of clear passage opening by door leaf	on each side	≥ 150	≥ 150
	at the header	≥ 75	≥ 75
	with low header	≥ 85	≥ 85
Storage area for open door		LD +350 (low header: additional +150)	per leaf half of the LD +300 (low header: additional +150) plus box for closing weight (symmetric door panels)
Requisite headroom height	Normal header, wall installation	approx. 250	approx. 250
	Low header, ceiling installation	≥ 125	≥ 125
	Butt ceiling installation: Header panel	115	115
for supports in storage area, requisite distance from firewall	Without pass door	200	200
	With pass door	250	250
Sill for opening and storage area		–	–

Additional features
Also available with pass door incl. door closer		Standard without lower sill, door size max. 1000 x 2000 LD. A sill-free pass door may only be installed from a clear passage of 1875 and a door height of 2100	Standard without lower sill, door size max. 1000 x 2000 LD. A sill-free pass door may only be installed if the clear passage is at least 1875 and the sliding door height at least 2100
		Optional two pass doors	Max. one sill-free pass door (emergency exit) per leaf permitted
Optional pass door in the reveal (from LD height of 2175 mm)		º	º
Optional hook lock		º	º
Optional butt side panel		º	–
Optional low header		º	º
Optional butt ceiling installation		º	º
Optional electrical opening assistance		º	º
Optional glazing		T30 fire resistant glass in one or several panel sections: Standard glazing 270 x 630, customized glazing up to 325 x 1100 mm, necessary frieze width on 3 sides of each panel section: 190 mm, pedestal height: 1150 mm In pass doors (without floor sill): Standard and max. glazing 460 x 610	T30 fire resistant glass in one or several panel sections: Standard glazing 270 x 630, customized glazing up to 325 x 1100 mm, necessary frieze width on 3 sides of each panel section: 190 mm, pedestal height: 1150 mm In pass doors (without floor sill): Standard and max. glazing 460 x 610
Optional stainless steel		º	–
Optional free swing function (doors with normal headers)		º	º
Optional track panel		º	º
Optional niche flaps for tracks and in the storage area (also available in stainless steel)		º	º
Optional safety braking strip		º	º

Key:

All sizes in mm	LD = Clear passage dimensions,	OKF = Upper edge of finished floor
• Standard	º Optional	– Not possible
Operating aids and special equipment on request
*Note: The upper horizontal smoke seal protrudes about 30 mm into the clear passage opening

... for smokeproof models

Rd SKE 1 sliding smokeproof door
1 leaf

Rd SKE 2 sliding smokeproof door
2 leaf

		Rd SKE 1	Rd SKE 2
Characteristics
1 leaf		•	–
2 leaf		–	•
Full panel, modular design		•	•
Galvanized panel and edge profiles		•	•
Approval		No. Z-6.20-2080 for single leaf T30/T30-Rd model No. Z-6.20-2079 for single leaf T90/T90-Rd model	No. Z-6.20-2115 for 2 leaf T90/T90-Rd model

Versions
Fire retardant as per DIN 4102		º	º
Fireproof as per DIN 4102		º	º
Smokeproof as per DIN 18095 Part 3		•	•
With closing brake (radial damper)		•	•
Optional hold open system		º	º

Description
Approved dimensions		max. height 4500 max. width 7000 up to approx. 24 m² LD with flexible centre butt joint up to approx. 13.5 m² LD with two pass doors up to approx. 14.5 m² LD	max. height 4,500 max. width 7000 up to approx. 13.5 m² LD
Door panel approx. 67 mm thick, 0.75 mm sheet metal, unit weight approx. 50 kg/m²		•	•
Necessary overlap of clear passage opening by door leaf	on each side	T30-1 ≥ 100	T30-2 ≥ 150
		T90-1 ≥ 150	T90-2 ≥ 150
	At the header	≥ 75	≥ 75
	with low header	≥ 85	≥ 85
Storage area for open door		LD +350 (low header: additional +150 with closing weight on inlet)	LD +350 (low header: additional +150 with closing weight on inlet)
Requisite headroom height	Normal header, wall installation	approx. 250	approx. 250
	Low header, ceiling installation	≥ 125	≥ 125
	Butt ceiling installation: Header panel	–	–
for supports in storage area, requisite distance from firewall	Without pass door	–	–
With pass door	–	–
Sill for opening and storage area		Recessed: Preparation by client for sill recessed in the floor. Floor sill marked with sill brackets, aligned and filled (by client) prior to installation of the door Surface mounted: Flatness tolerance of finished floors with surface mounted sills in opening and storage areas as per DIN 18202, Table 3, Line 4 Optional omission of the floor sill if the floor is flat, smooth and without joints in the opening and storage area	Recessed: Preparation by client for sill recessed in the floor. Floor sill marked with sill brackets, aligned and filled (by client) prior to installation of the door Surface mounted: Flatness tolerance of finished floors with surface mounted sills in opening and storage areas as per DIN 18202, Table 3, Line 4 Optional omission of the floor sill if the floor is flat, smooth and without joints in the opening and storage area

Additional features
Optional pass door incl. door closer		º Smokeproof pass door 1000 x 2000 without sill in combination with T30 or T90 fire resistance	–
Optional pass door in the reveal (from LD height of 2175 mm)		–	–
Optional hook lock		–	–
Optional butt side panel		–	–
Optional low header		º Optional inlet and/or header panel	º Optional inlet and/or header panel
Optional butt ceiling installation		–	–
Optional electrical opening assistance		º	º
Optional glazing		º in one or several panel sections: Standard glazing 270 x 630, customized glazing up to 325 x 1100 mm, necessary frieze width on 3 sides of each panel section: 190 mm, pedestal height: 1150 mm In pass doors (without floor sill): Standard and max. glazing 460 x 610	º in one or several panel sections: Standard glazing 270 x 630, customized glazing up to 325 x 1100 mm, necessary frieze width on 3 sides of each panel section: 190 mm, pedestal height: 1150 mm In pass doors (without floor sill): Standard and max. glazing 460 x 610
Optional stainless steel		–	–
Optional free swing function (doors with normal headers)		º	º
Optional track panel		º	º
Optional niche flaps for tracks and in the storage area (also available in stainless steel)		–	–
Optional safety braking strip		º	–

Key:

All sizes in mm	LD = Clear passage dimensions,	OKF = Upper edge of finished floor
• Standard	º Optional	– Not possible
Operating aids and special equipment on request
*Note: The upper horizontal smoke seal protrudes about 30 mm into the clear passage opening

Would you like to know more?
