In the following references, we present examples of stadiums and other sports buildings in which high-quality Novoferm products have been installed. Sometimes unusual, sometimes impressive, the range of possible applications is very broad.

PROJECT
Emsland Arena

PROJECT LOCATION Lingen

CONSTRUCTION MANAGER City of Lingen

ARCHITECT
pbr Planungsbüro Rohling AG

REQUIREMENTS PROFILE
High demands on fire protection, quality, functionality and individuality

COMPLETION
November 2013

NOVOFERM PRODUCTS
Fire protection, sheet steel and aluminium tubular frame doors

PROJECT
ISS-DOME Düsseldorf

PROJECT LOCATION Düsseldorf

CONSTRUCTION MANAGER
Industrieterrains Düsseldorf-Reisholz AG

ARCHITECT
RKW Rhode, Kellermann Wawrowsky

REQUIREMENTS PROFILE
High demands on fire protection, quality, functionality and individuality

COMPLETION By the end of August 2006

NOVOFERM PRODUCTS
284x fire doors, 32x roller shutters and 58x special doors

Requirements and solutions

Emsland Arena

SAFE ALL-ROUNDER IN EMSLAND

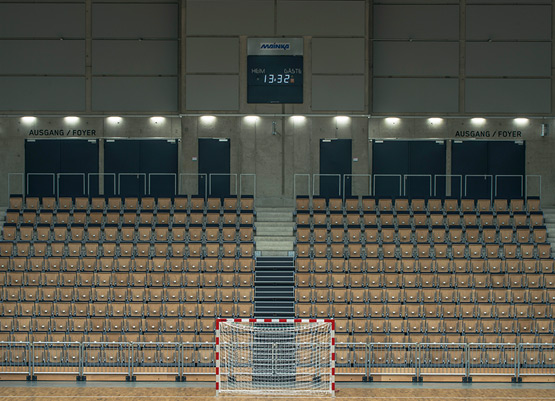

The arena is a solid construction with reinforced concrete ceilings, load-bearing walls and columns. It consists of the event hall, an upstream foyer and the service areas.

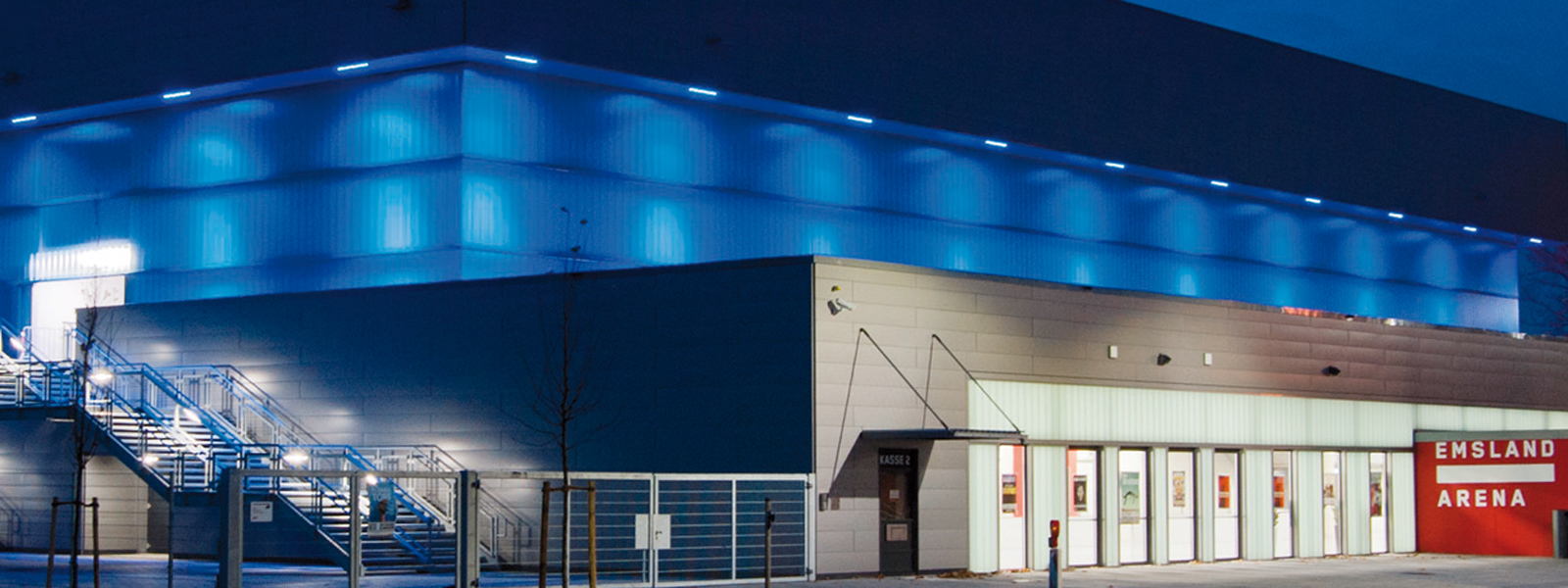

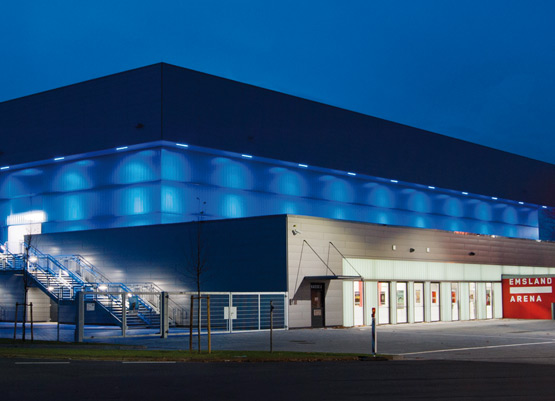

With a floor area of 5,500 m², it offers multiple utilisation options. The stage can be freely positioned and adapted in size as required. LED strips mounted under the cantilevered roof and grazing light on the façade give the hall a glowing appearance in the dark.

ProjectEmsland Arena
Property developerCity of Lingen
Architectpbr Planungsbüro Rohling AG
Completion date2013
Requirements profile

High demands on fire protection, quality,

functionality and individuality

Novoferm productsFire protection doors, sheet steel doors and aluminium tubular frame doors

SPECIAL SOLUTION: ALUMINIUM TUBULAR FRAME DOORS

The construction of the arena called for maximum safety and functionality. The variety of possible uses required a customised fire protection concept.

One of the particular challenges here was the special solutions for the fire protection doors in the outdoor area. Where thousands of people come together, escape and rescue routes must fulfil high requirements.

All fire protection doors were originally to be made entirely of sheet steel. In practice, this was not possible due to the unfavourable width/height ratio of the door format. The experienced system provider Novoferm solved the problem individually and convinced the client with a customised aluminium tubular frame door. With this, the problematic door format could be solved safely and with completely identical functionality.

Emsland Arena, Lingen

Fire protection doors with dual function

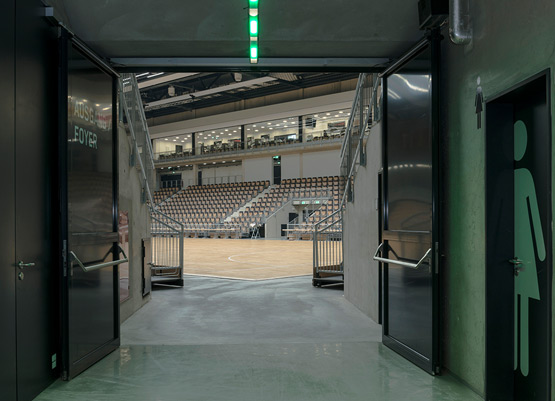

All external doors in the escape tunnels were equipped with a dual function. Equipped with a swing door drive and smoke detector, they can be opened with the smoke extraction function if smoke develops in the event of a fire - automatically and centrally controlled. To ensure that this also works in the event of a fire when the power is switched off, they are equipped with their own separate battery and a panic function. The combination of these sophisticated special solutions makes the innovative Arena fire protection concept a success.

Novoferm, one of Europe's leading system suppliers for doors, gates, frames and operators, presented itself at the Emsland Arena as a complete supplier of fire protection and multifunctional doors.

A total of 392 Novoferm doors were installed. Novoferm not only impressed with its customised, integrated property solutions, but also with innovative detailed solutions for this challenging project.

FIRE PROTECTION WITH DOOR AND GATE

The EmslandArena, designed by pbr Planungsbüro Rohling AG, Osnabrück, as a multifunctional event hall, is a supra-regional lighthouse project that sustainably strengthens the importance of the Lingen/Ems location and expands the cultural offerings in the region in many ways.

Among other things

  • 8 aluminium exterior doors
  • 8 NovoFire smoke protection doors
  • 27 sheet steel doors T90
  • 293 sheet steel doors T30 and
  • 56 multi-purpose sheet steel doors

installed.

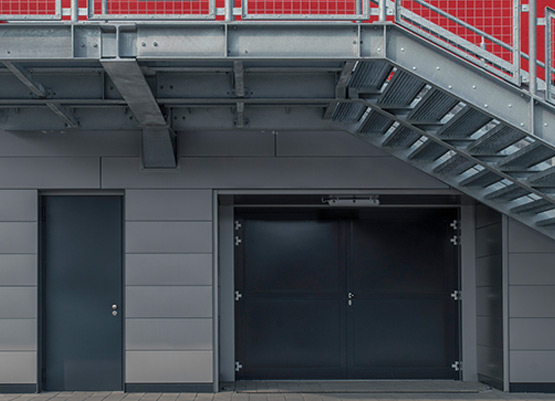

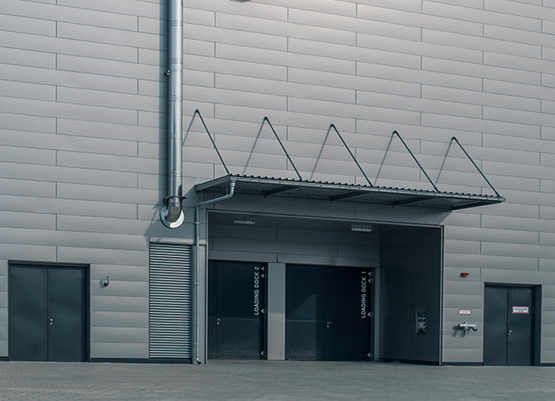

Aluminium external door for logistics in the stage area. Dual function as escape door DIN EN 1125 and SHEVS (dimensions 3150 x 3100 mm).

OUR PRODUCTS

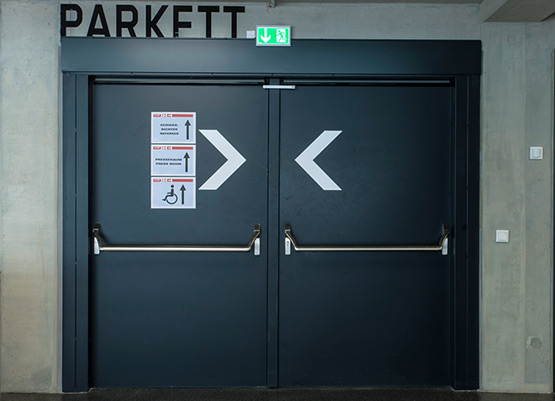

2-leaf T30 smoke protection door T30-2 N22 with full panic function to DIN EN 112S with handle bars

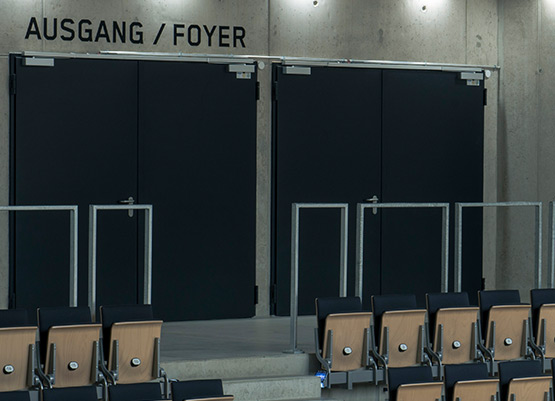

2-leaf T30 smoke and soundproof doors T30-2 N22/50

Aluminium external door as escape door and SHEVS (dimensions 3150 x 2200 mm)

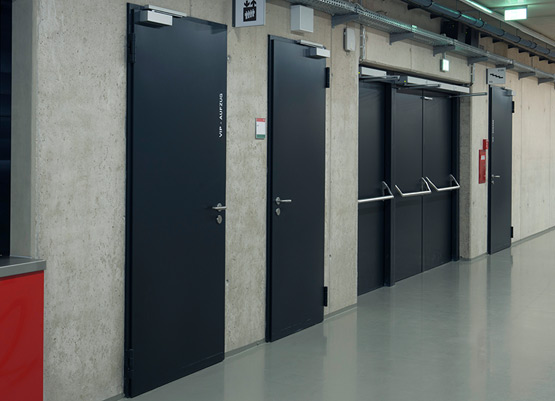

Numerous T30 and T90 steel doors with functional features

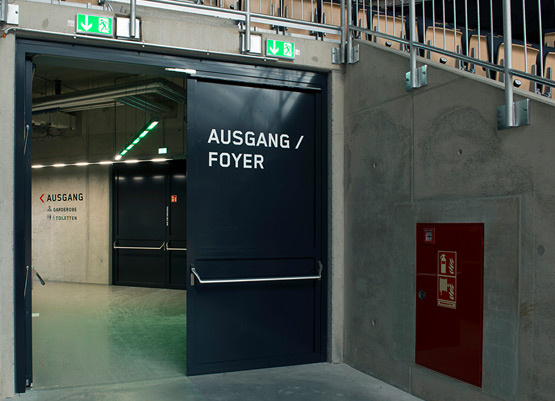

NovoFire smoke protection door as an escape door in accordance with DIN EN 1125 and SHEVS

NovoFire smoke protection door with panel infill and escape door function

T30-1 N2/50 technical room doors or, as a special solution, a combination of several T30 smoke protection doors as escape doors suitable for the disabled in accordance with DIN EN 1125 in combination with automatic swing door drives

ISS-DOME Düsseldorf

DÜSSELDORF'S NEW MULTIFUNCTIONAL HALL IN A CLASS OF ITS OWN

Building description

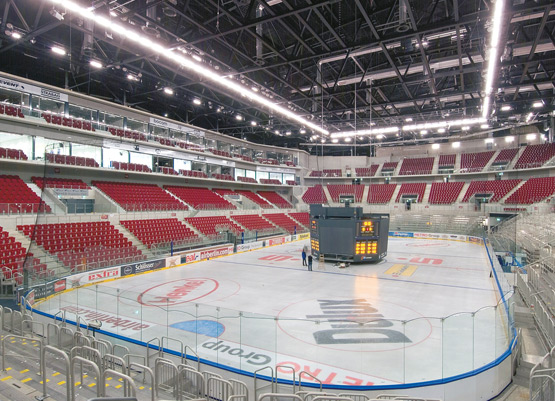

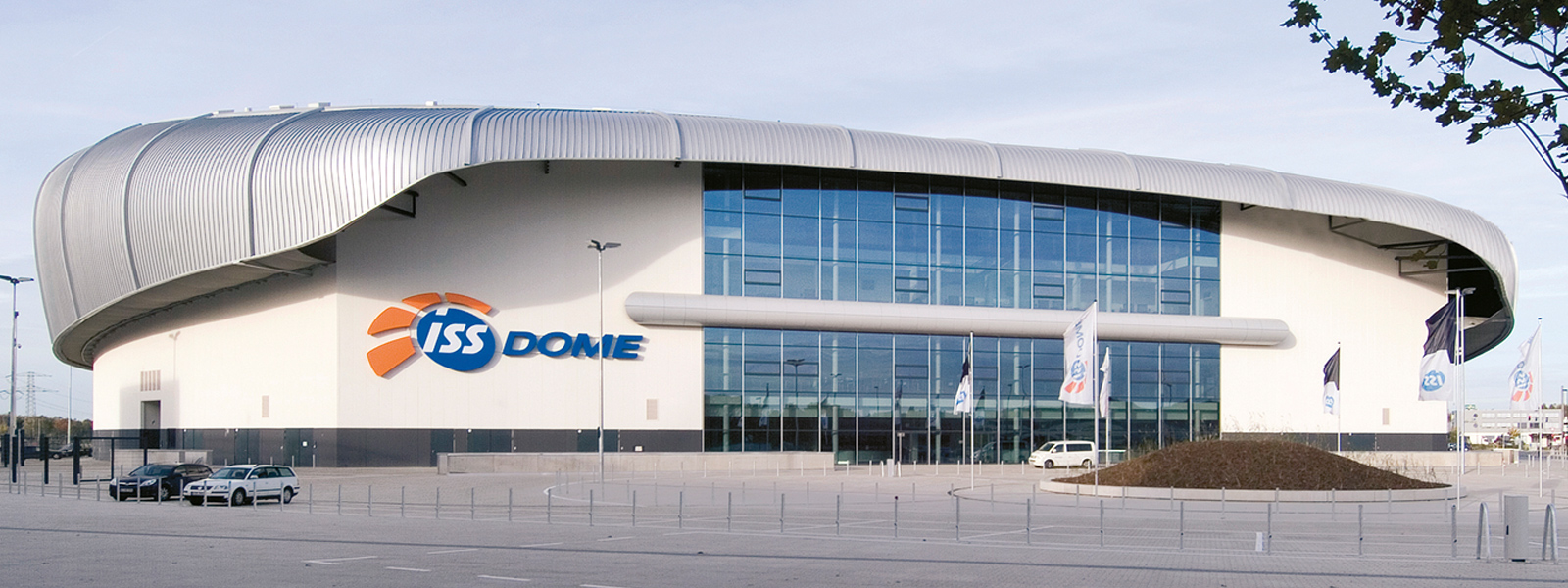

A venue of superlatives - that is the new ISS Dome. The futuristic-looking structure is impressive, the technical equipment (especially air conditioning and lighting) is innovative and the utilisation is highly flexible. At 1,800 square metres, the event area meets international requirements for sports competitions. The interior can be converted for cultural or business events within eight hours. The ISS Dome, which has excellent transport connections, can accommodate up to 13,400 visitors.

Construction

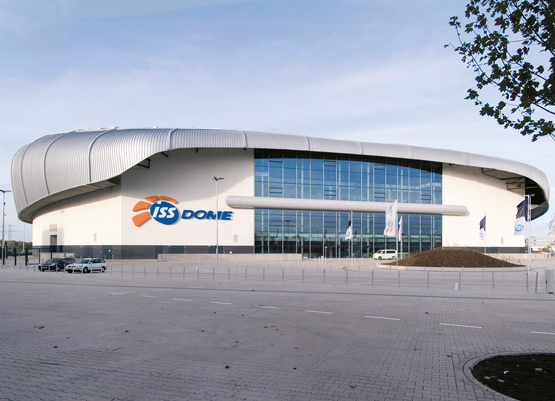

The ISS Dome combines modern architecture with maximum practicality. The majority of the hall is clad in a metal façade that follows the organic shape of the building.

Parts of the façade are semi-transparent, while additional louvre sections create striking accents. Foil roofs provide pleasant lighting conditions. A glass construction was chosen for the entrance façades. For the aluminium-clad roof alone, 1,000 tonnes of lattice girders were used.

ClientIndustrieterrains Düsseldorf-Reisholz AG
Architects (design)

RKW Rhode, Kellermann

Wawrowsky

General contractorWiemer & Trachte AG
Length/width/height144 / 106 / 36,20 m
Converted space491.000 m3
Plot size42.775m2
Spectator capacity

12,500 in standard situation

13,400 for ice hockey matches

(4,000 standing room)

10,700 for concerts (seated)

12,000 for concerts (partially seated)

Business area624 seats
Interior1.800m2
Car parksmulti-storey car park 1,514, underground car park 422
Construction costsaround 72 million euros incl. development
Completed in 2008, 2006 and 2004
Contract value400,000 euros
Installation perioduntil the end of August 2006
Fire doors284
Roller shutters32
2-panel "single-hole doors" with panic
push bars and hold-open systems,
all doors with GEZE door closers
58

ISS Dome, Düsseldorf

Roller shutters

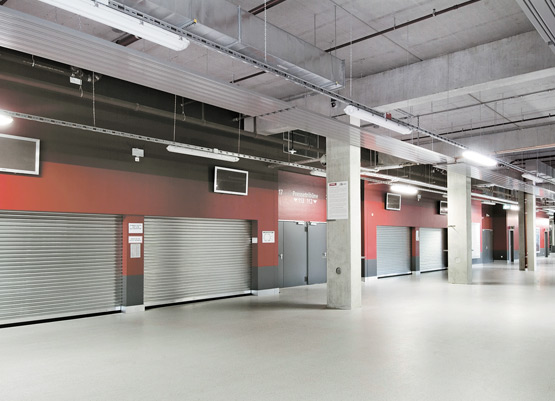

Roller shutters hermetically seal off the catering and sales areas after business hours. TH80 roller shutters with double-walled, heat-insulating foam-filled slats made of natural aluminium with a clear lacquer coating were used for this project. Novoferm Riexinger offers the entire range of modern roller shutters tailored to the intended use: optionally made of aluminium or steel, single or double-walled, with glazing or ventilation slots.

High-speed roller shutters made of PVC or aluminium with opening speeds of up to 2.0 m/sec. are also available.

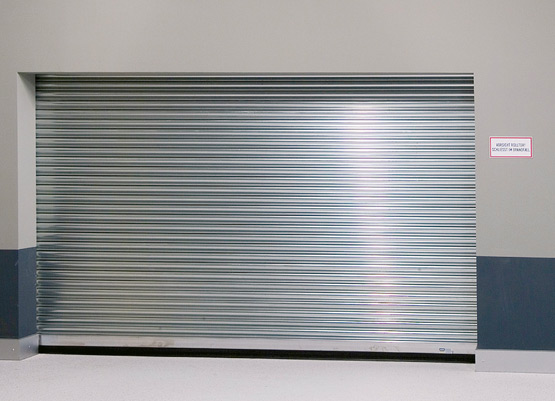

TH80 roller shutter doors with double-walled, thermally insulating foamed aluminium slats

FIRE DOORS

Standard fire doors:
Novoferm Riexinger offers a wide range of approved single and double-leaf doors in both T30 and T90 designs.
The galvanised and powder-coated corner frame is part of the standard package. Of course, other frame and threshold designs are also available.

Special designs are possible at any time in accordance with the structural requirements, e.g: Fire-resistant glazing, burglar-resistant equipment, panic locks, door closer systems, fixed upper section, electric strike, hold-open systems and much more.

NOVOFERM PRODUCTS IN THE REFERENCE PROPERTY

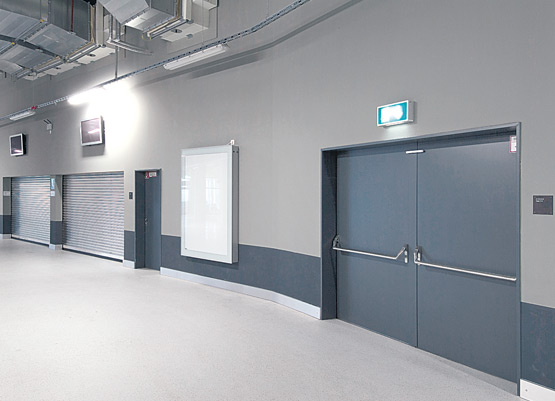

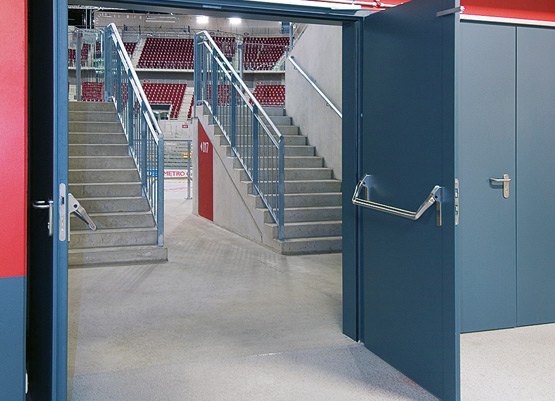

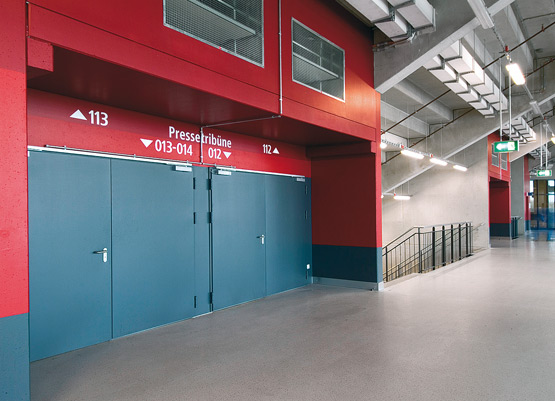

A total of 58 double-leaf fire doors separate the interior from the surrounding business area.

Up to 13,400 spectators can pass through these so-called "mouthhole doors" in a very short time.

They were equipped with quick-opening panic bars on the inside for possible emergency situations.

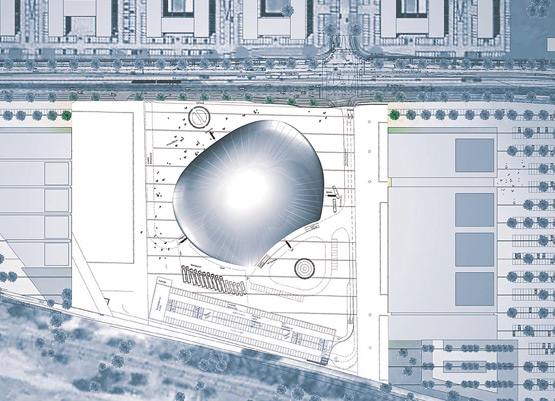

Düsseldorf's new multifunctional hall ISS Dome - in the immediate vicinity of other crowd-pullers - naturally has excellent transport connections. Some local transport facilities such as motorways and the underground have been relocated or converted especially for this property.

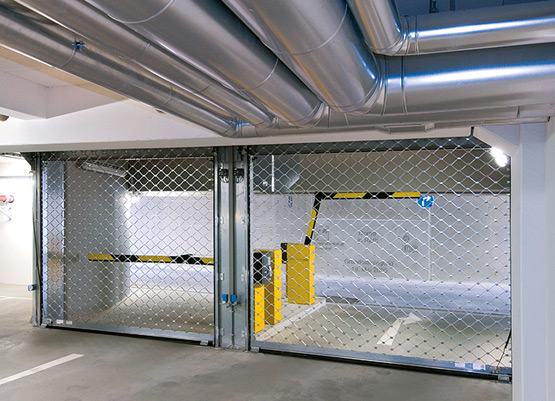

Roller grilles provide a secure and transparent closure of the access routes to the car park areas. Naturally, all modern control systems are available.

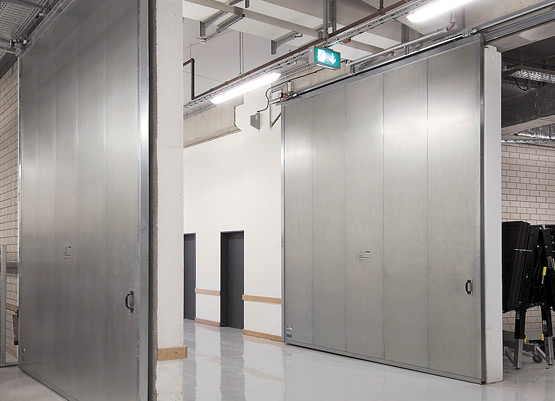

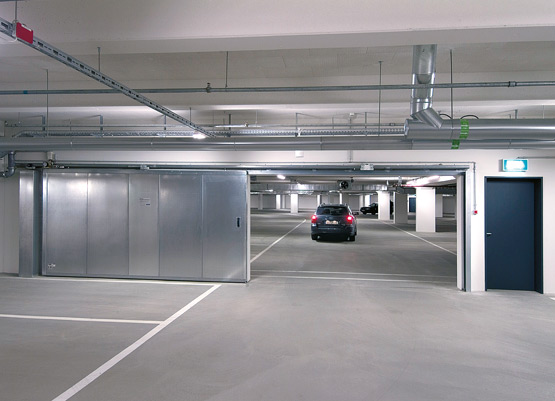

Sliding fire protection doors:

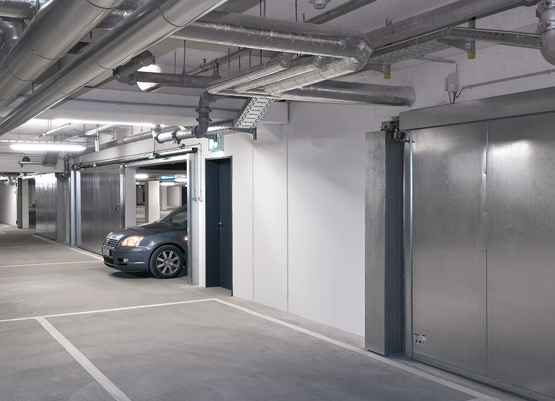

T90 sliding doors were installed at all relevant entrances and passages in the basement storeys. Thanks to their hold-open system with release device, they remain open during normal operation but close automatically in the event of a fire.

Both the sliding door panels and any required wicket doors can be supplied with fire-resistant glazing. Numerous equipment variants allow the single or double-leaf sliding fire doors to be customised to suit the specific project.

Thanks to its wide product range and vertical integration, Novoferm Riexinger is guaranteed to offer the ideal closure for every property.
