MULTIFUNCTIONAL STEEL DOORS

STEEL DOORS BASED ON A PLATFORM

Our NovoPorta Premio steel door series with high-quality thick rebate and the flush-fitting NovoPorta Plano with flush design are based on a new platform approach for doors. Where it makes sense, you therefore benefit from synergy effects; where desired, you can choose customised features. In addition to a standardised door leaf thickness and the stable and torsion-resistant bonded box/cover connection, our door series score points with a number of other advantages.

There are also optimum solutions for drywall construction, where a major advantage is the quick frame backfilling with Novoferm fire protection foam or loose mineral wool. Only the corner frame is backfilled, the counter frame can remain free.

WHY MULTIFUNCTIONAL STEEL DOORS FROM NOVOFERM?

Fire protection

As a specialist for commercial doors, Novoferm offers a wide range of building authority approved fire protection doors in classes T30 (EI 30), T60 (EI 60) and T90 (EI 90). The sheet steel doors are available with high-quality thick rebate or flush butt-jointed, for internal and external use, as a basic model or with high-quality special equipment and accessories. They were developed specifically for the European market and therefore already fulfil the European product standard EN 16034.

Smoke protection

Smoke protection systems with Novoferm doors provide effective protection against smoke. Our smoke protection doors are already approved in accordance with DIN 18095 and the European EN 1634-3 standard. The testing of steel doors with additional equipment can be carried out in accordance with EN 1634-3 at room temperature as tight-closing doors or at a temperature of 200 °C as smoke protection doors. Even at high temperatures and the associated stress on the door elements, Novoferm doors remain tightly sealed. Novoferm doors are supplied as standard with overhead door closers, special sealing systems including a lowerable smoke-tight floor seal (RS1) or, on request, a hump threshold (RS2).

Security

Novoferm security doors fulfil the performance characteristics of the Europe-wide test standards for security doors in accordance with DIN EN 1627. Depending on the type, our security doors offer tested security from resistance class RC 2 (WK 2) to RC4 (WK 4); depending on the door type, also available in combination with fire protection T30 (EI 30), T60 (EI 60) or T90 (EI 90). There are also many options for creative door design, e.g. our glazing in the door leaf and for top panels and fanlights - naturally with the same security performance. There are also numerous accessories and special fittings for that extra safety.

Sound insulation

With Novoferm sound insulation equipment, all elements of the door system (door leaf, frame and high-quality seals) are specially matched to each other. Our soundproof doors have been proven to reduce noise pollution in buildings with just one lowerable threshold-free floor seal. Novoferm soundproof doors in the NovoPorta Premio DB-1 type 50 version with a stable steel door leaf, special sound insulation and a special lowerable floor seal have been developed for particularly high requirements. These result in a tested and threshold-free sound insulation value of up to Rw = 50 dB; in conjunction with an additional threshold of up to Rw = 53 dB.

Environmental protection

Many of our products are sustainable - including, for example, steel multifunctional doors, aluminium/steel tubular frame doors and fire-resistant sliding doors. Not only the environment but also our partners benefit from the evidence we have provided by being awarded certificates. Architects and planners can therefore include these products in the ecological assessment of buildings over their entire life cycle.

Design

An exclusive look with sophisticated Novoferm technology - the result is certainly a harmonious overall picture that impresses the observer. Doors can be almost visually integrated into the wall, with a huge variety of design options.

The high-quality Novoferm primer in traffic white (similar to RAL 9016) already has a very pleasant appearance on delivery. Of course, almost all RAL colours are available on request. At Novoferm, this variety consists of the door leaf, frame look and the hinges, which can be designed as a unit or in different designs.

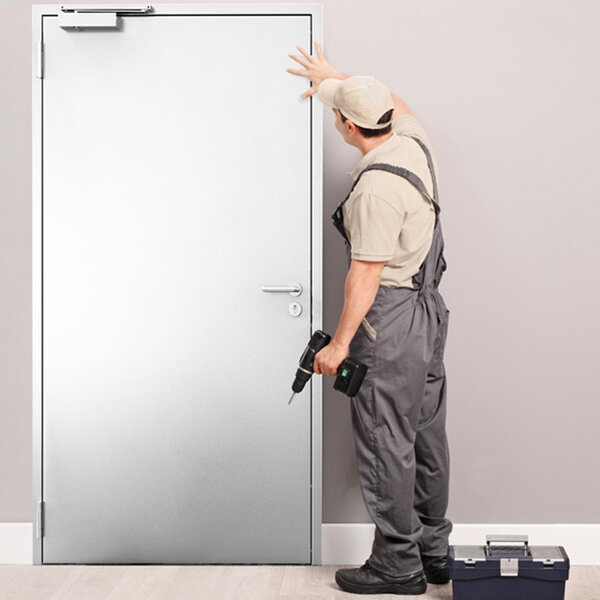

Montage

NovoPorta Premio and Plano offer standardised installation methods - e.g. the popular rebate screw installation for corner frames or the two-part 2140B/2240B surround frames. Installation methods for all wall types and eventualities: That's what we mean by frames for all situations!

Flexible options for backfilling with Novoferm fire protection foam, loose mineral wool, plasterboard strips or mortar or now also with factory-fitted EasyFit fire protection without further backfilling complete the picture.

Selection of multifunctional steel doors

Choose your multifunctional steel door:

NovoPorta Premio steel doors in thick rebate design can be combined as fire protection (up to EI2 90), smoke protection, security (up to RC 4) and multi-purpose doors.

NovoPorta Plano steel doors in flush-mounted design can be combined as fire protection (up to EI2 30), smoke protection, security (up to RC 3) and multi-purpose doors.

Door comparison and properties

Comparison of multifunctional steel doors
Door seriesRebate type

Fire protection

Safety and securityBullet-resistantRSSound insulationHeatinsulatingDoor designAlso forexterioruseDIN EN 14351-1
NovoPorta Premio

Thick rebate

T30 (EI2 30)

T60 (EI2 60)

T90 (EI2 90)

RC 2
RC 3
RC 4

FB 4
VPAM 6

-

up to RW= 53 dB

min. 1.4 W / (m2*K)

Wall flap
Door, 1-leaf
Door, 2-leaf

-

-

NovoPorta Plano

butt-jointed

T30 (EI2 30)

RC 2

-

-

up to RW= 42 dB

min. 1.5 W / (m2*K)

Door, 1-leaf
Door, 2-leaf

-

-

DOOR SERIES IN COMPARISON (REBATE TYPE)

Door series in comparison (rebate type)

Novoferm multifunctional steel doors are available with a cosy thick rebate and flush-fitting with flush design.

NEWPORT PREMIUM

NEW FLAT DOOR

With a flush-fitting module, the NovoPorta Plano door is installed flush with the frame in the wall.

With a rebated NovoPorta Premio door, on the other hand, the door leaf rests on the frame.

Functionality and designs

THE DOOR PLATFORM FOR ALL REQUIREMENTS

IF YOU HAVE A CHOICE, CHOOSE NOVOPORTA STABLE DOORS FROM NOVOFERM
Novoferm's platform concept follows a very simple approach: a single, 64 mm thick door series
for equipping your entire property - regardless of performance features and equipment requirements.

You are therefore opting for a uniform door look, regardless of whether

  • Wall flap or door, 1- or 2-leaf
  • Fire protection up to EI2 90
  • Smoke protection Sa and S200
  • Security up to RC4 or bullet-resistant
  • Sound insulation up to 50 dB without threshold stops

or tested performance characteristics are required.

With the two platform models "NovoPorta Premio = high-quality thick rebate" or "NovoPorta Plano = butt-jointed", it really is the door platform that can do it all ...

Variety and possibilities

COUNTLESS VARIATIONS OF THE DOOR FOR EUROPE

NovoPorta Premio and Plano doors are tested in accordance with German and European standards. In sizes of up to 3,000 x 3,000 mm, they offer the right fittings for every requirement - right up to the corporate design of the door leaf, frame and hinges.

HIGH-QUALITY PRIMER, IN RAL COLOUR OR INDIVIDUAL DESIGN

Colour opens up scope. This is why Novoferm attaches great importance to a high-quality impression even with the traffic white powder primer. Optional RAL colours can also be selected for frames and door leaves on request.

HIGH-QUALITY THICK REBATE OR FLUSH-FITTING

High-quality thick rebate or would you prefer a flush-hinged door?

The choice is yours with our platform doors - modern design and flush centre hinge always included.

MULTIFUNCTIONAL FRAMES FOR ALL APPROVED WALL TYPES

NovoPorta Premio and Plano offer standardised installation methods - e.g. the popular rebate screw installation for corner frames or the two-part 2140B/ 2240B frames.

Installation methods for all wall types and eventualities:
This is what we mean by FRAMES FOR ALL CASES!

FLEXIBLE BACKFILLINGS

Flexible options for backfilling with Novoferm fire protection foam, loose mineral wool, plasterboard strips or mortar or now also with factory-fitted EasyFit fire protection without further backfilling complete the picture.

With NovoPorta Plano wall connections to plasterboard stud walls, backfilling can even be completely dispensed with in some cases - with approval, of course.

Highlights Multifunctional steel doors

This animation shows the highlights and possibilities of Novoferm multifunctionalsteel doorsare presented in a visually appealing and condensed form.

You can find further animations at

https://www.youtube.com/NovofermVideos

Your plus points at a glance

  • Versatile and highly configurable property door
  • Available in fire protection classes EI 30, EI 60 or EI 90 as well as smoke protection, multi-purpose, sound insulation and security doors
  • Consistently sophisticated appearance thanks to high-quality thick rebate and for flush-fitting for sophisticated architecture
  • Wide range of design variants, decors and colours available
  • High stability thanks to an additional innovative glued box/cover connection

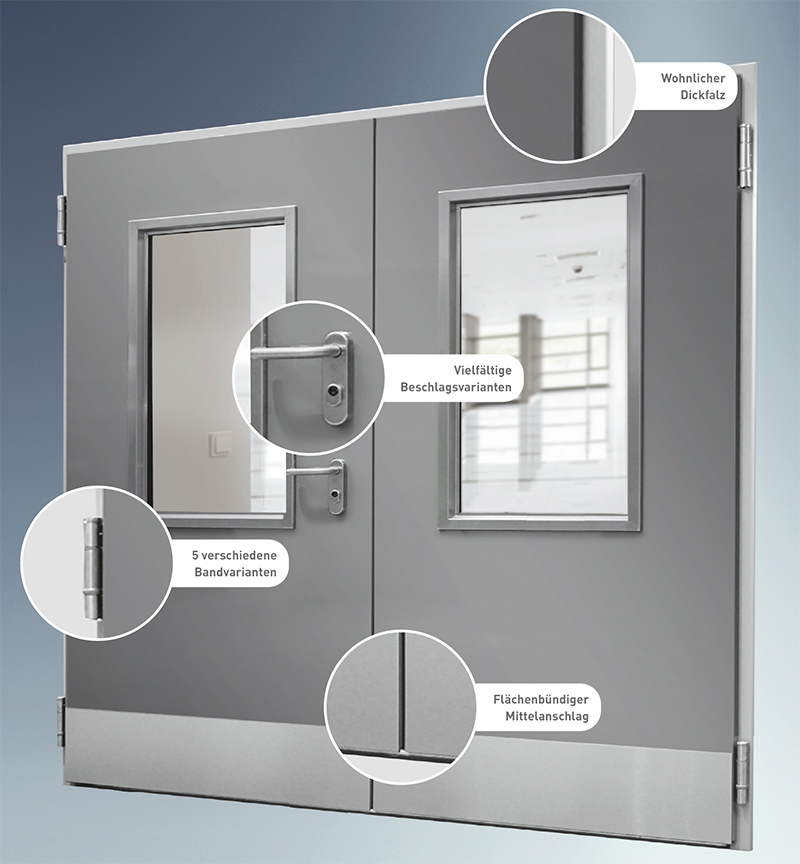

  • Flush centre stop with integrated centre muntin bar for all double-leaf doors up to fire protection class T90
  • Subsequently replaceable door leaves while retaining the frame up to a height of 2125 mm
  • Installation advantages with many frame variants, e.g. approved backfilling with loose mineral wool or Novoferm fire protection foam
  • Rebate screw installation for corner frame also approved for T90 fire protection class
  • The new two-part universal frame 2140 B is the ideal solution for all wall types
  • Five different hinge types in steel or stainless steel, also as 3D hinges and a slimline 3D object hinge in stainless steel, all easy to install and smooth-running
