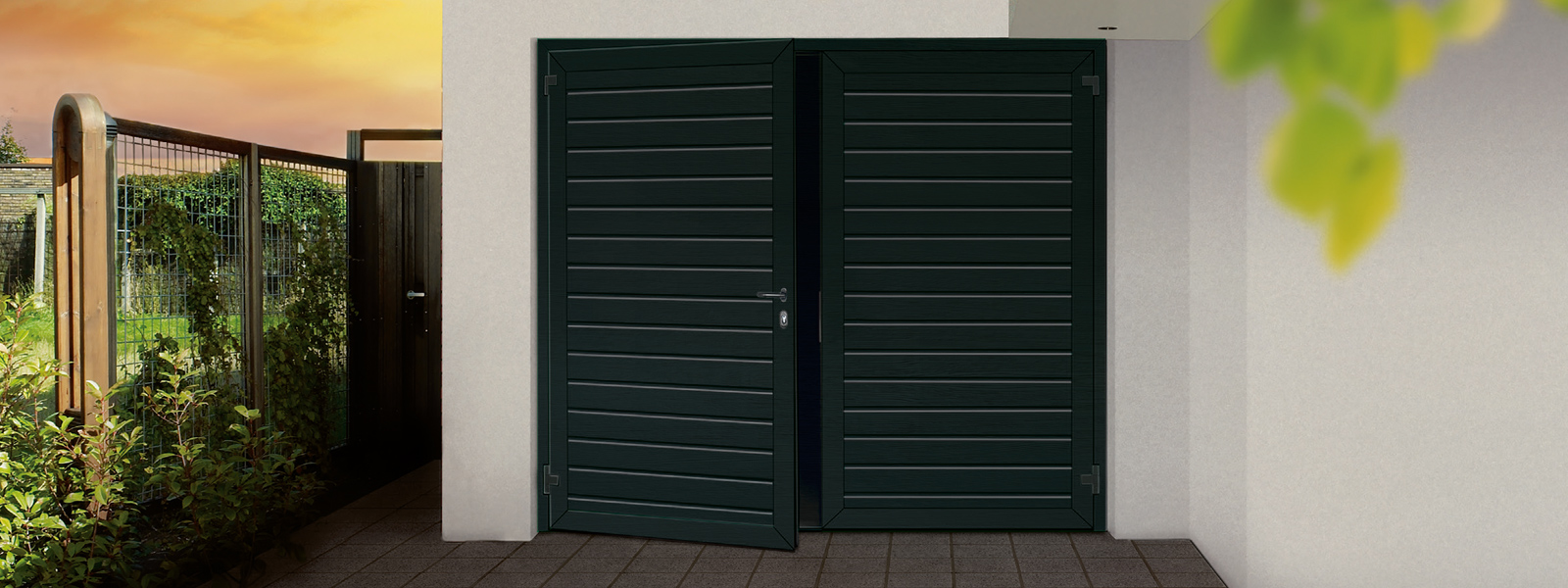

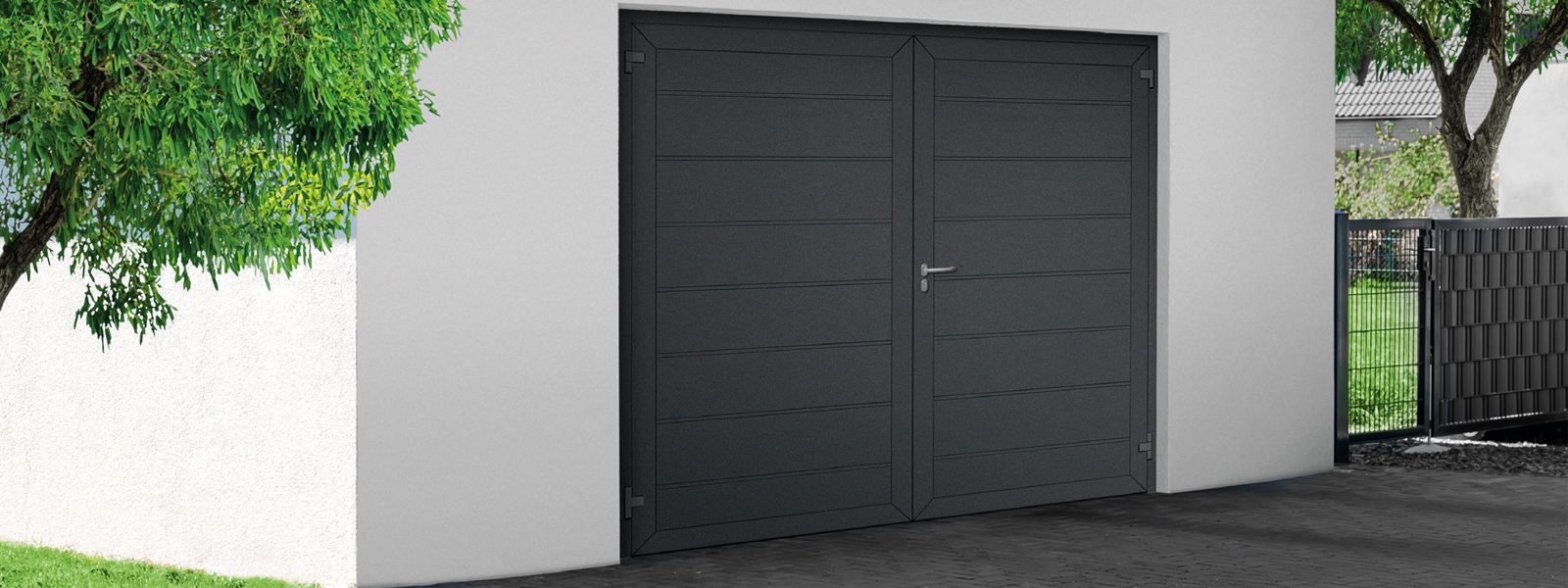

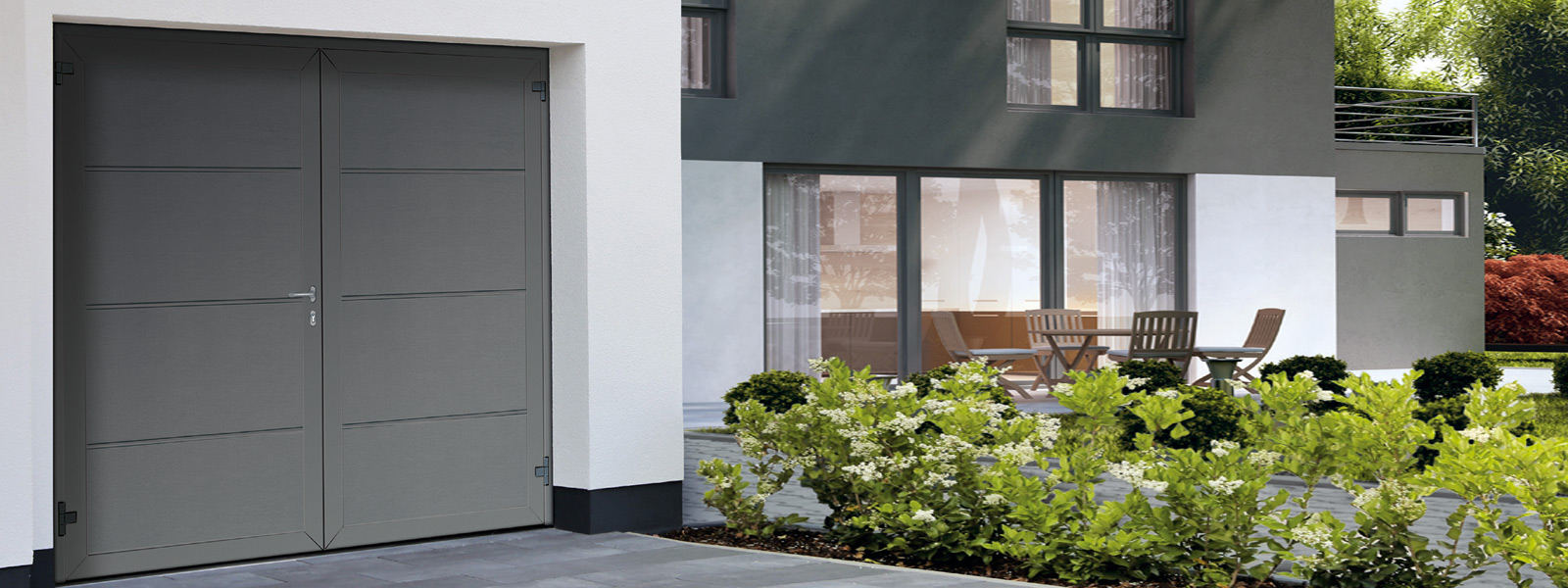

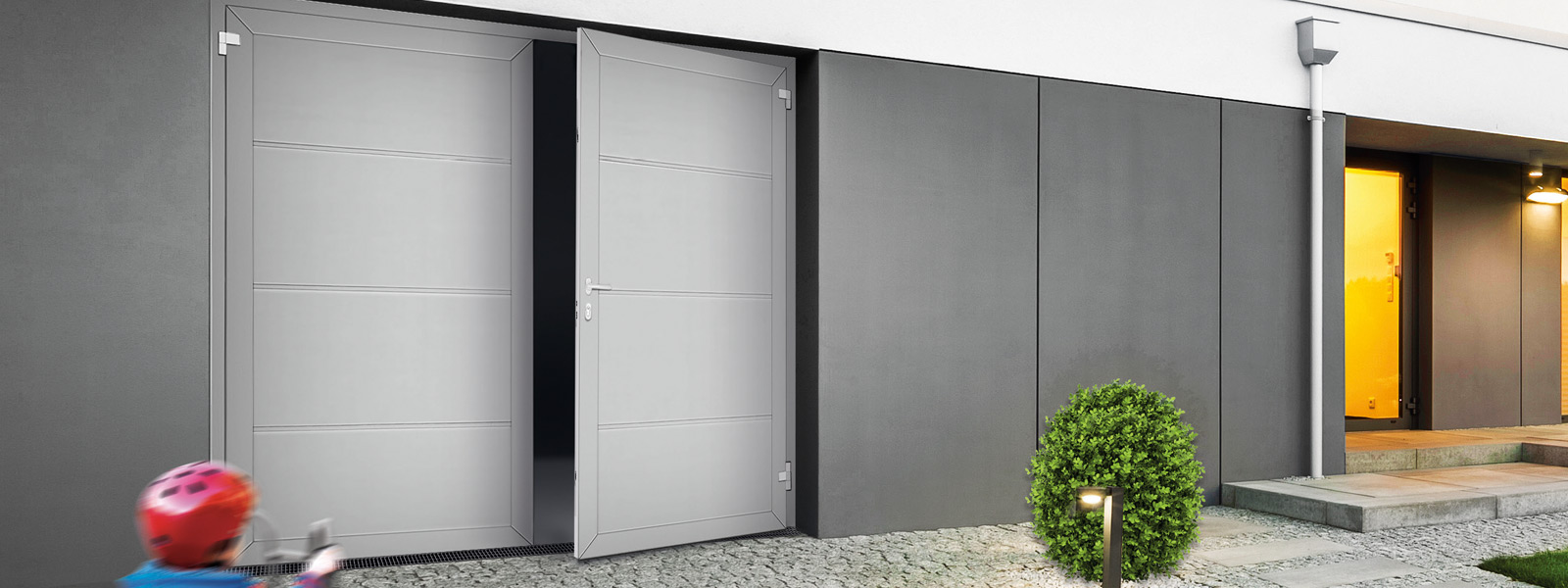

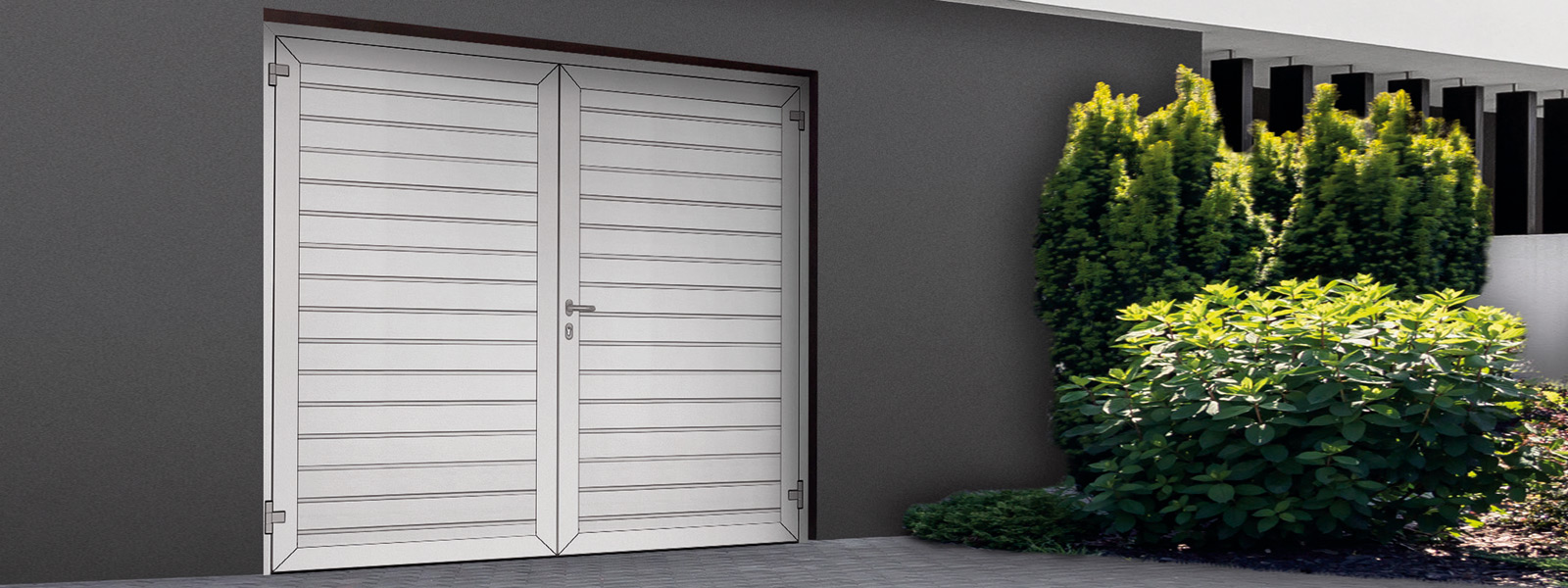

HINGED GARAGE DOORS

Optimum utilisation of your garage

In addition to high thermal insulation and thermally separated profiles, our insulated DuoPort swing doors offer you the opportunity to optimise the use of your garage for storage, hobbies or leisure.

This door solution can be opened and closed with two outward-swinging swing doors.
You can choose to open both leaves or just the active leaf - according to your individual requirements!

The use of high-quality, sustainable materials, the excellent workmanship and the wide range of options give your garage a timeless look that matches the style of your home and your personal taste.

SWING GATE FUNCTION

Click on the animation on the left to view an animated version of how swing garage doors work.

Detailed animations / videos on the advantages, installation and programming of Novoferm swing garage doors can be found on the Novoferm YouTube channel:

https://www.youtube.com/NovofermVideos

How swing gates work

THE SWING GATE PRINCIPLE

THE SWING GATE PRINCIPLE

Swing garage doors can be opened and closed with two swing doors that swing inwards or outwards. Either both leaves or just the active leaf can be opened.

Due to the flexible opening method, they are often used in garages that are used to park garden tools, as storage space or for hobby and leisure activities. They are also used as a second door solution as a transition from the garage to the garden.

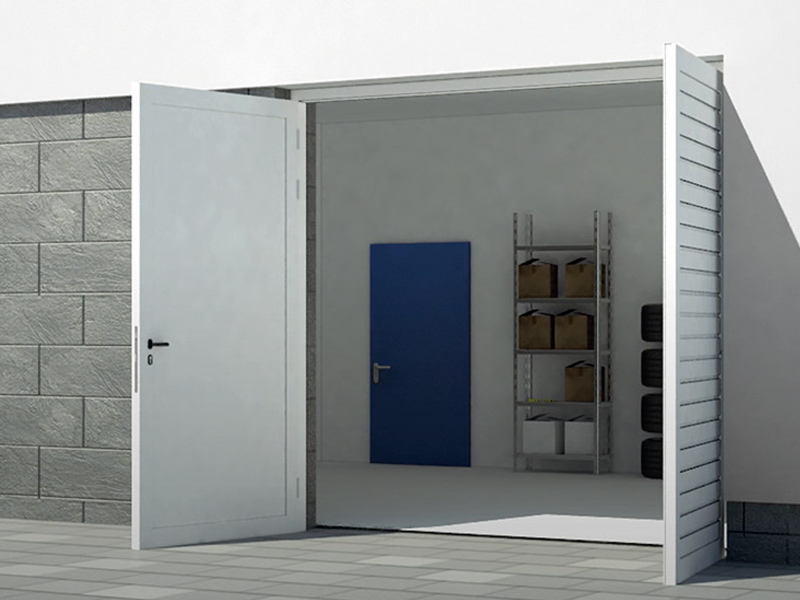

SPACE REQUIREMENT IN FRONT OF AND IN THE GARAGE

SPACE REQUIREMENT IN FRONT OF AND IN THE GARAGE

Swing doors are particularly suitable for properties that offer sufficient space in front of the garage.

If the side-hung leaves open outwards, there must be sufficient room to manoeuvre.

Conversely, if the swing doors open inwards, the garage interior must be kept clear within the movement radius of the leaves.

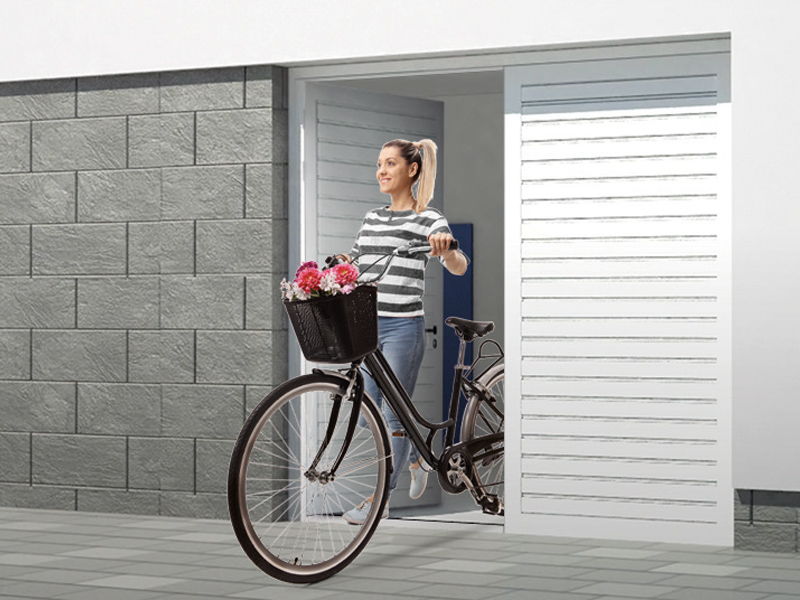

HIGH FLEXIBILITY DURING OPENING

HIGH FLEXIBILITY DURING OPENING

You can choose to open both leaves or just the active leaf.

If, for example, you only want to get the lawn mower or bicycle out of the garage, you can only open one door leaf.

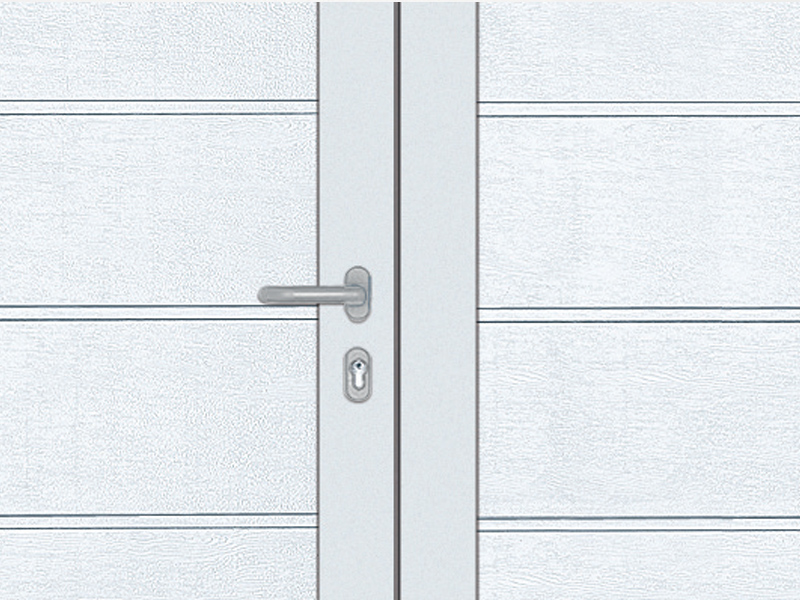

MANUALLY OPERATED (WITHOUT DRIVE)

MANUALLY OPERATED (WITHOUT DRIVE)

Due to their special construction and double-leaf design, swing garage doors can only be operated manually.

You have the choice of moving only the active leaf or both leaves.

Why swing garage doors from Novoferm?

VALUE AND DURABILITY OF OUR SURFACES

All hinged garage doors with lacquered (Super-Color or RAL of your choice) and foiled surfaces (Golden oak, Dark oak, Mahogany, Winchester and Night oak) as well as our textured surfaces (Satin white, Satin grey, Satin Dark grey and Satin brown) are top-coated at Novoferm.

The high-quality surfaces are less sensitive to external influences and give your garage an elegant look, so that you can enjoy your garage door for a long time.

INSULATION AND ENERGY EFFICIENCY

Our swing doors are insulated and have a 45 mm thick PUR rigid foam core for high thermal insulation.

PRECISE WORKMANSHIP - SAFE FUNCTION

All door leaf frames are made of aluminum and guarantee maximum weather resistance, while sturdily crafted 3D hinges ensure precise opening and closing over the long term.

Our hinged garage doors can be fitted with a burglar-resistant triple locking system with hinge protection.

EXPERIENCE MORE COLOR AND INDIVIDUALITY

With hinged garage doors, you can choose from a wide range of designs, surfaces, attractively priced preferred colors and almost all RAL colors as well as additional features such as glazing for your individual design requirements.

PRICE COMPASS - HINGED GARAGE DOORS

Swing gates from Novoferm are available for as little as approx. 2,600 euros* (manufacturer's RRP).

*Price incl. VAT, without installation

NOVOFERM PARTNER NETWORK

Novoferm works with a broad network of specialist dealers in Germany - in your area. Our authorized Novoferm dealers offer professional advice, sales, measurements, installation, dismantling and environmentally friendly disposal of your garage door at competitive all-inclusive prices.

Simply use our online forms at www.novoferm.de to contact us directly. We will forward your inquiry to a Novoferm sales partner in your area for processing.

Your plus points at a glance

  • For private garages up to 3,000 mm wide
  • High thermal insulation thanks to 45 mm thick PUR rigid foam core
  • Thermally separated profile and floor track
  • Gas pressure damper to secure the end positions or overhead door closer with latching mechanism
  • Large selection of end-coated surfaces and colours
  • Door leaf optionally opening outwards or inwards
  • Active leaf can be positioned either to the right or left
  • Position in front of gas pressure damper
  • Simple adjustment thanks to stable 3D hinges as standard

Doors with very high insulation
Novoferm "DuoPort" swing doors have a 45 mm thick insulating hard foam core and thermally separated profiles for particularly high thermal insulation. This door solution can be opened and closed with two hinged doors that swing outwards.

Largest selection of motifs / colours
Novoferm DuoPort swing doors are available in 4 door embossings, many surfaces and in almost all modern and end-coated RAL colours. Aluminium profiles are finished in a corresponding colour for timber looks and satin surfaces.

Many equipment extras
The door solution offers many equipment extras for flexible use. For example, an edge bolt to lock the passive leaf, a gas pressure damper to secure the end position or a triple locking mechanism with hinge safety catch.

Door comparison and properties

Comparison with other garage door types

Comparison with other garage door types

Swing gates

Sectional doors

Up-and-over doors

Roller shutters

Functional principle

Swing doors can be opened with two swing doors that swing inwards or outwards

Sectional door consists of sections that are connected to each other and are pushed vertically under the ceiling

Up-and-over door consists of a door leaf as a unit, supported by two lateral lever arms

Door slats roll into the roller shutter box provided in a space-saving manner, similar to the window roller blinds used in domestic applications

Space in front of the garage

If the hinged doors swing outwards, the space required in front of the garage must be taken into account

Space in front of the garage can be used for parking a car, for example (no swinging space in front of the garage)

Compared to sectional or roller doors, the door leaf swings outwards when opened

Space in front of the garage can be used for parking a car, for example (no swing space in front of the garage)

Construction dimension

Up to 3 m wide

Up to 5.50 m wide

Up to 5 m wide

Up to 5 m wide

Insulation

45 mm insulation

20 mm, 45 mm, 67 mm insulation

Low insulation

Low insulation

Thermal separation

-

-

-

-

TÜV tested burglar resistance

-

-

-

-

Tested security according to resistance class RC 2

-

-

-

-

Surface finish

- Woodgrain

- Smooth surface

- Wood optics

- Satin surface

- Woodgrain

- Smooth surface

- Wood optics

- Satin surface

- Microline

- Smooth surface

- Smooth surface

- Wood looks

Embossing/ motif

- Horizontal bead

- Large bead

- Large lamella

- Cassette

- Horizontal bead

- Large bead

- Large lamella

- Cassette

- Bead (vertical or horizontal)

- Slat (vertical or horizontal)

- Cassette (vertical, square, rectangular)

- Door leaf frame for on-site infill

- Aluminium slats

Colours

- 16 attractively priced preferred colours

- RAL colours of your choice

- 4 wood finishes

- 6 satin surfaces

- 16 attractively priced preferred colours

- RAL colours of your choice

- 4 wood finishes

- 6 satin finishes

- 8 attractively priced preferred colours

- RAL colours of your choice

- 10 attractively priced preferred colours

- 1 wood look

Glazing

-

-

-

- (whole slats only)

Spring technology

-

- Tension spring

- Torsion spring (in front)

- Torsion spring (rear)

Tension spring

-

Wicket door

-

- Without wicket door

- With wicket door (opening outwards)

- With wicket door (opening inwards)

- Without wicket door

- With wicket door (opening outwards)

-

Opening method

- Manually operated (with handle)

Manually operated (with handle)

Electric (with drive)

Electric (with app)

- Manually operated (with handle)

- Electric (with drive)

- Electric (with drive)

- Yes - No
INSULATION AND ENERGY EFFICIENCY

INSULATION AND ENERGY EFFICIENCY

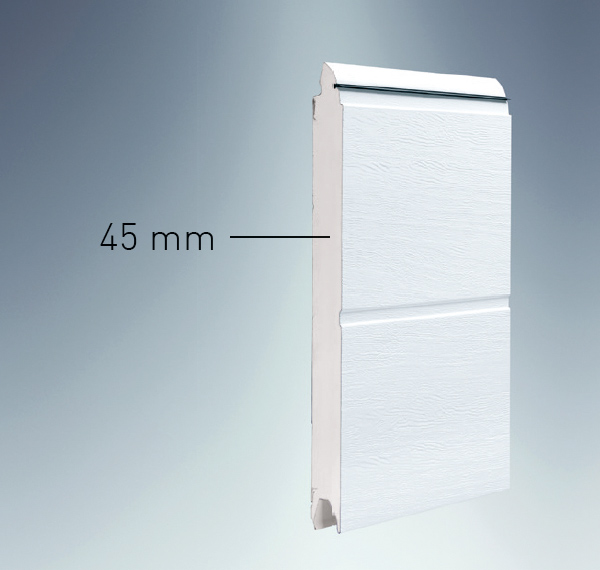

HIGH INSULATION

The hinged garage doors are insulated and have a 45 mm thick PUR rigid foam core for high thermal insulation.

They therefore not only offer a variable and convenient entrance, but also protect the garage from temperature fluctuations.

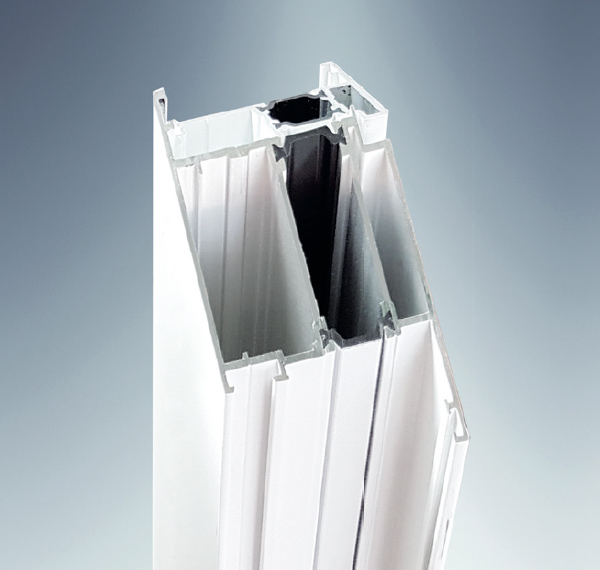

THERMALLY SEPARATED PROFILES

No chance for thermal bridges!

This is ensured by slim profiles that are available in many colours and require virtually no maintenance.

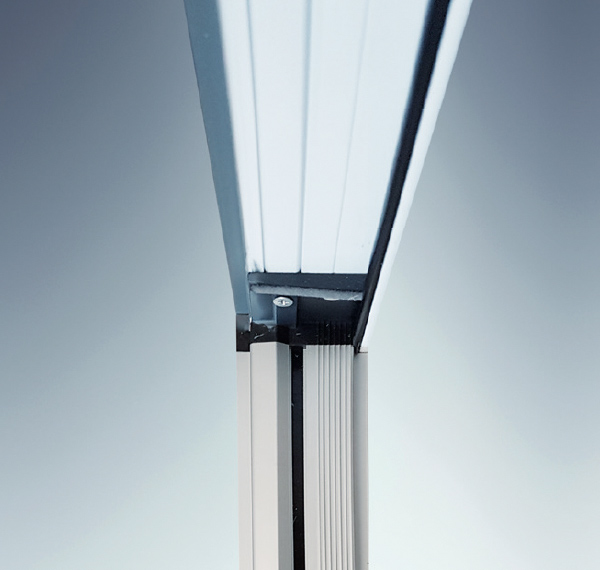

THERMALLY SEPARATED BOTTOM RAIL

It reduces the risk of condensation and on-site moisture damage.

At the same time, it increases the thermal insulation of your garage.

SECURITY AND BURGLAR RESISTANCE

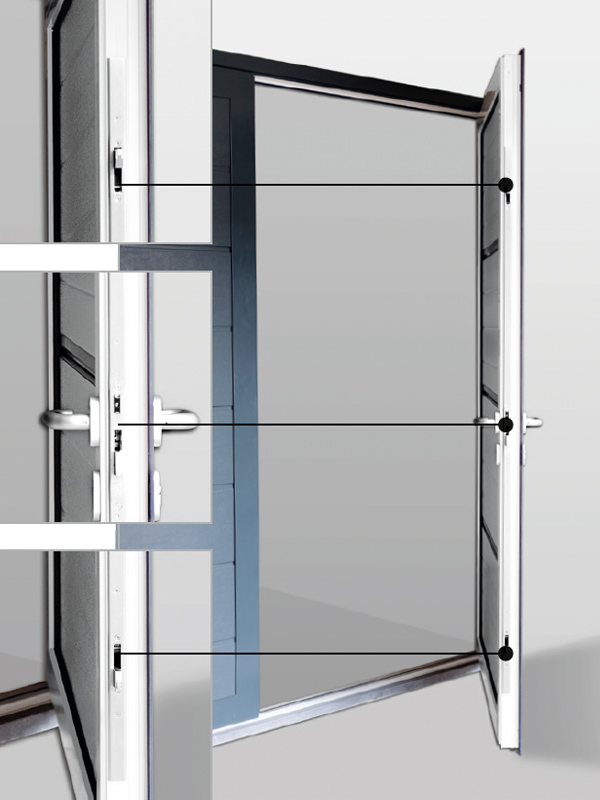

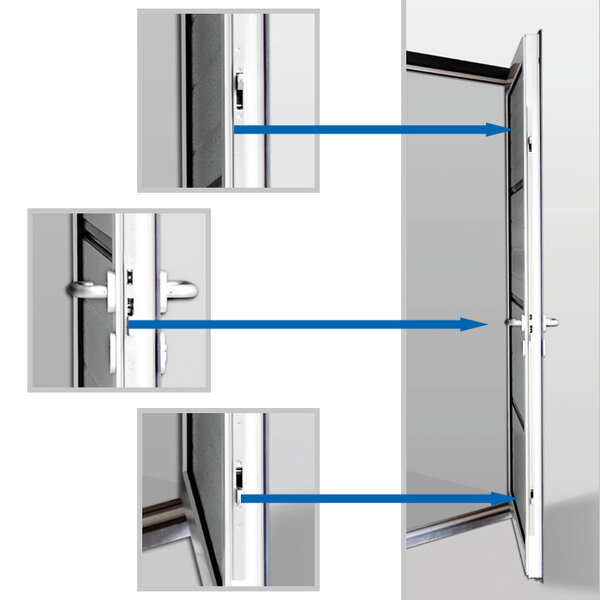

3-WAY LOCKING WITH HINGE LOCK

Novoferm swing garage doors can be fitted with a burglar-resistant triple locking system with hinge protection. This provides additional security and ensures that the door cannot be levered out or pushed away.

Precise workmanship - reliable function
Door leaf:

  • Inside:
    Polyester-based base coat, grey-white similar to RAL 9002
  • Outside standard:
    Traffic white similar to RAL 9016 (primed)
  • Outside:
    Super-Color or RAL of your choice at an extra charge (final coating)

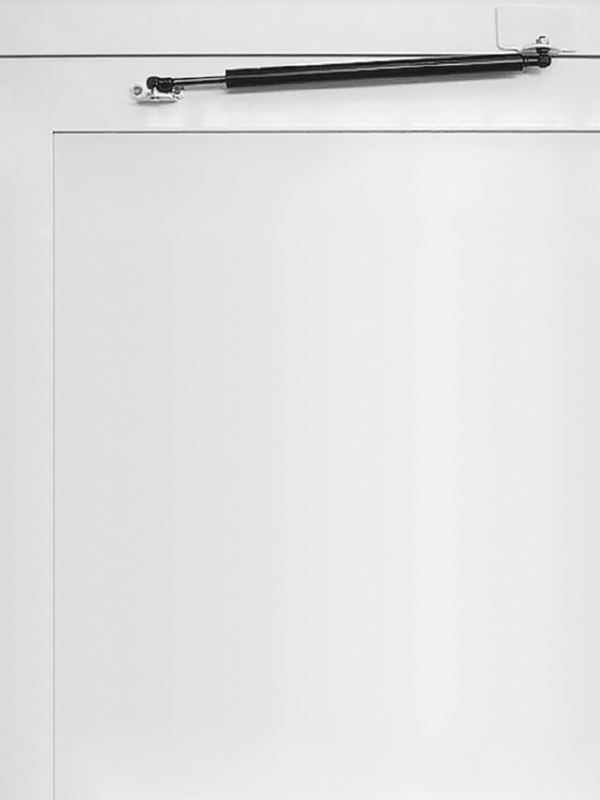

GAS PRESSURE DAMPER FOR END POSITION LOCKING

The optional gas pressure damper ensures that the swing garage door closes gently and reliably, as well as securing it in the end positions.

The overhead door closer with latching action is a good alternative to securing the door in the end position.

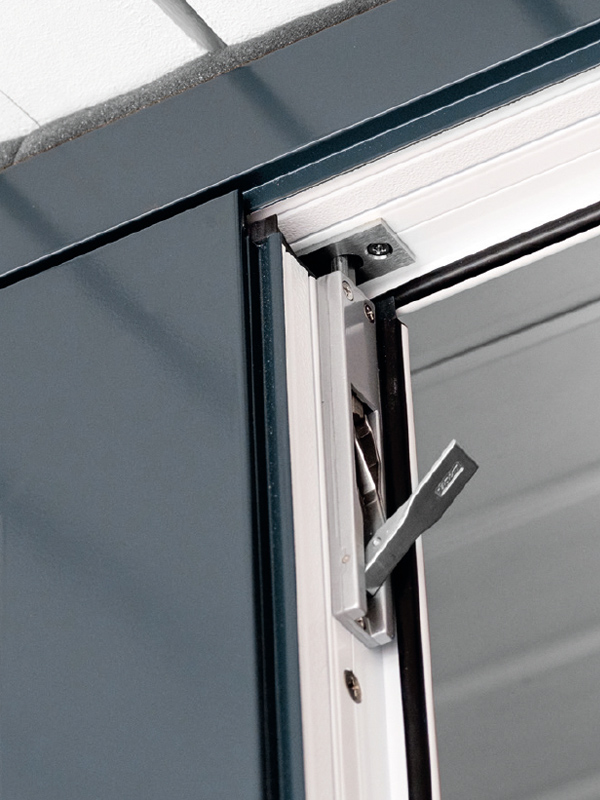

EDGE BOLT FOR LOCKING THE PASSIVE LEAF

The edge bolt is used to lock the passive leaf (top and bottom).

The security-relevant edge bolt can optionally be fitted at the top and/or bottom.

It closes with its locking bolt in a striking plate, which is embedded in the top of the door frame or in the floor.

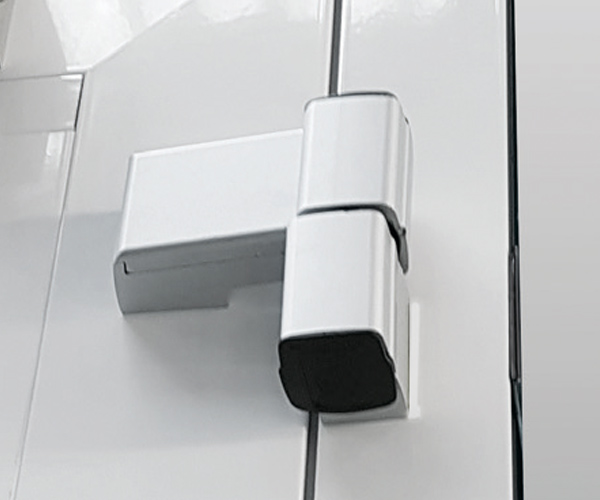

Stable 3D belts

Sturdy 3D hinges for easy adjustment, also available in gate colour at extra cost

SURFACES, COLOURS AND EQUIPMENT

TOR-PRÄGUNGEN

TOR-PRÄGUNGEN

Add the finishing touch to the look of your home. Be it with modern, functional lines in beading or large slat embossing or a traditional design in an elegant cassette look.

You can choose from four different door designs.

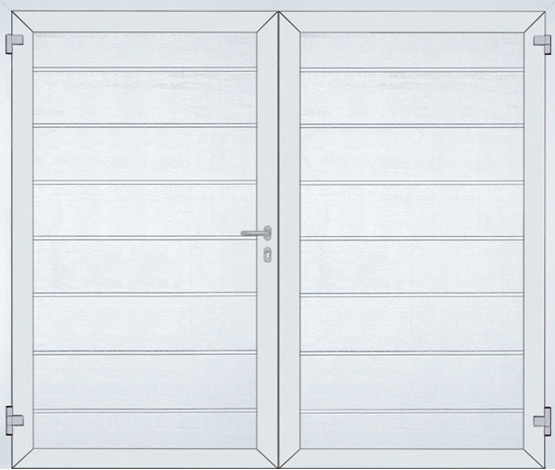

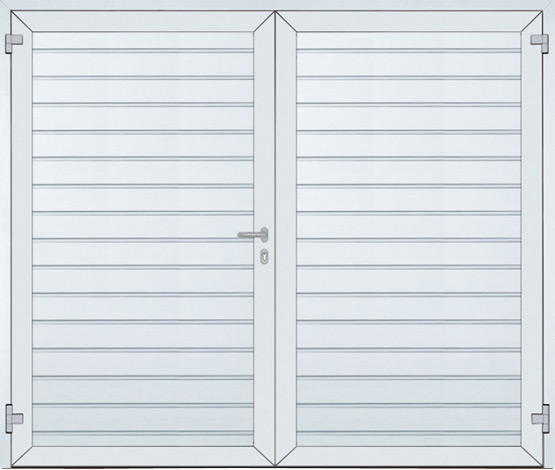

Horizontal bead

Large bead

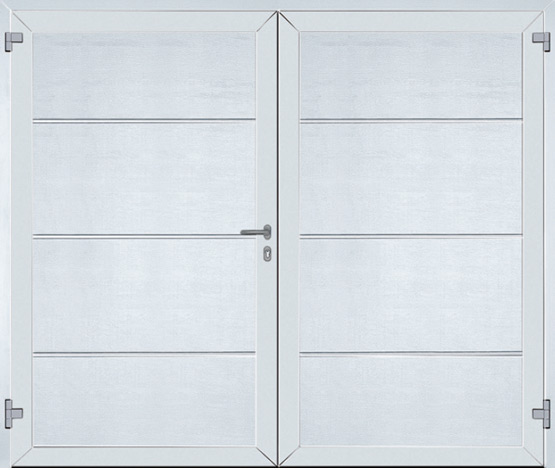

Large louvre

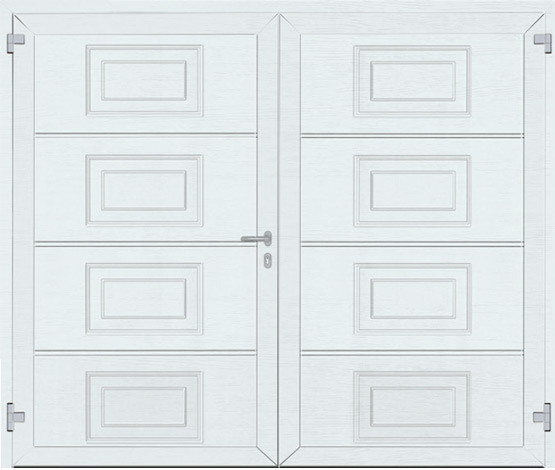

Cassette optics

SURFACES

SURFACES

Our hinged garage doors are available on request in a discreetly grained woodgrain wood texture or in the elegantly smooth Noblesse surface, which simply repels dirt and moisture. For further customisation, you can choose from 14 attractively priced Super-Color finishes/preferred colours and almost all RAL colours.

Woodgrain

Noblesse (smooth)

WOOD FINISHES (SMOOTH)

Our hinged garage doors are available with four different weather-resistant, end-coated surfaces in an authentic rustic timber look. In addition to the large bead door motif, you can also order all timber finishes in large lamella and some in cassette (not for Winchester and Night oak).

Golden oak (smooth)

Dark oak (smooth)

Winchester (smooth)

Night oak (glatt)

SATIN SURFACES

Our hinged garage doors are available in six decorative, end-coated, silk-matt satin surfaces with low soiling tendency, special weather resistance and reversible end coating.

Satin white,
similar to RAL 9016

Satin window grey,
similar to RAL 7040

Satin grey,
(mixed colour)

Satin Dark grey,
similar to RAL 7016

Satin brown,
similar to RAL 8014

Satin black,
(mixed colour)

MICROLINE EMBOSSING (LARGE LAMELLA)

The popular and expressive industrial door embossing for the private sector. Only available in satin surfaces satin white (similar to RAL 9016), satin window grey (similar to RAL 7040), satin grey (similar to DB703) and satin dark grey (similar to RAL 7016).

Microline
Satin white,
ähnlich RAL 9016

Microline
Satin Window grey,
similar to RAL 7040

Microline
Satin grey,
(similar to DB703)

Microline
Satin Dark grey,
similar to RAL 7016

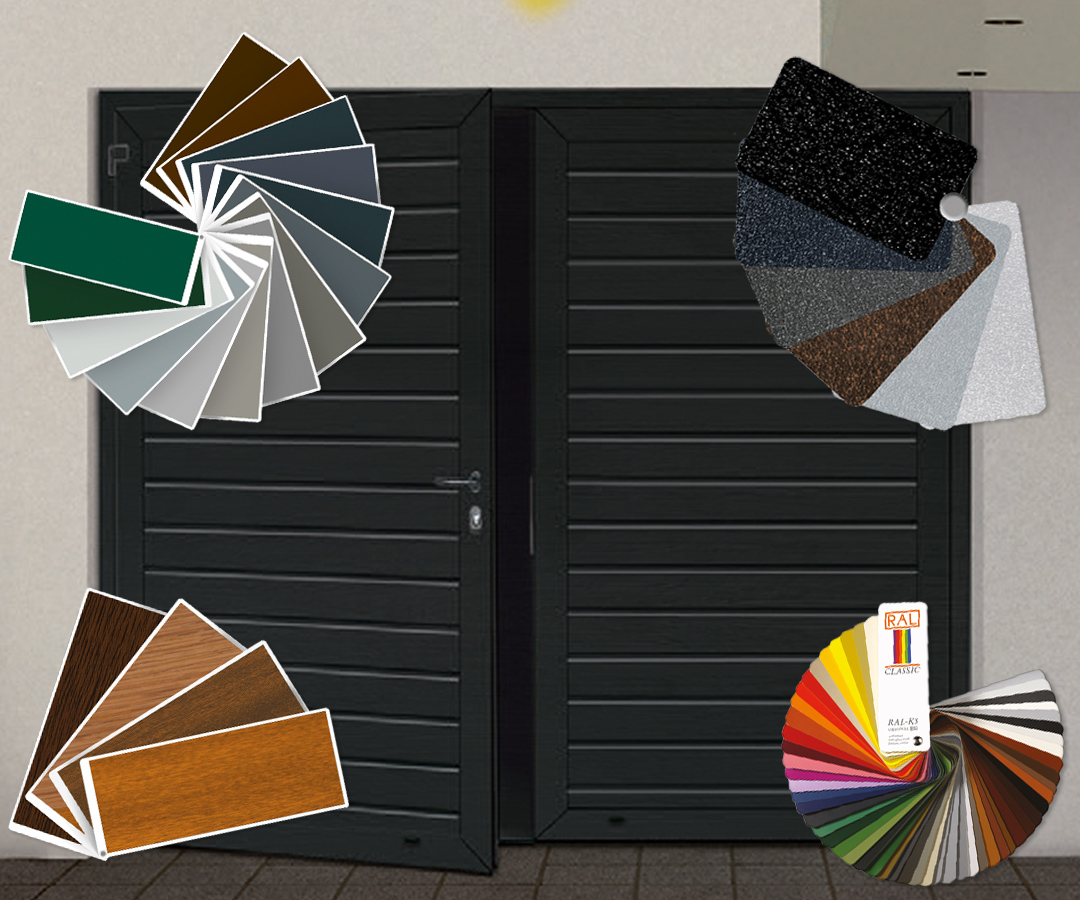

COLOURS

SUPER-COLOR COLOURS/ PREFERRED COLOURS AND RAL OF YOUR CHOICE

Moss green,
similar to RAL 6005

Grey aluminium,
similar to RAL 9007

Walnut brown,
similar to RAL 8011

Fir green,
similar to RAL 6009

Quartz grey,
similar to RAL 7039

Sepia brown,
similar to RAL 8014

Light grey,
similar to RAL 7035

Basalt grey,
similar to RAL 7012

RAL of your choice

Window grey,
similar to RAL 7040

Dark grey,
DB703

White aluminium,
similar to RAL 9006

Slate grey,
similar to RAL 7015

Stone grey,
similar to RAL 7030

Anthracite grey,
similar to RAL 7016

GLAZING AND WINDOWS

GLAZING AND WINDOWS

DO YOU WANT MORE LIGHT IN YOUR GARAGE?
LET LIGHT INTO YOUR GARAGE
Novoferm offers you numerous options to further customise your garage door. In addition to colours and door motifs, you can also equip your door with glazing elements. Our windows, light strips and light openings bring daylight into the garage. Depending on the door type, there are various designs and versions to choose from. Choose between different models and find lighting solutions that harmonise perfectly with your garage door.

Windows

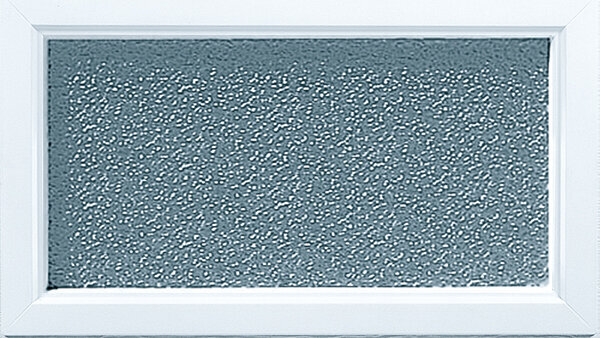

Standard window

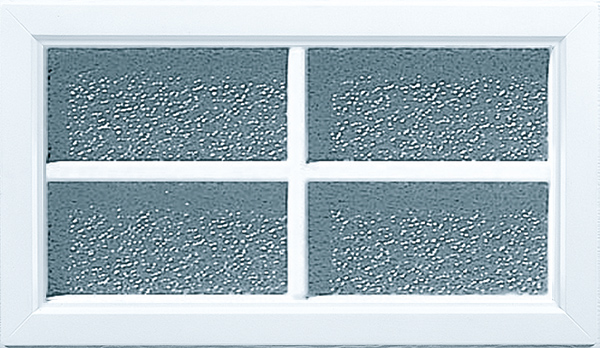

Cross window look

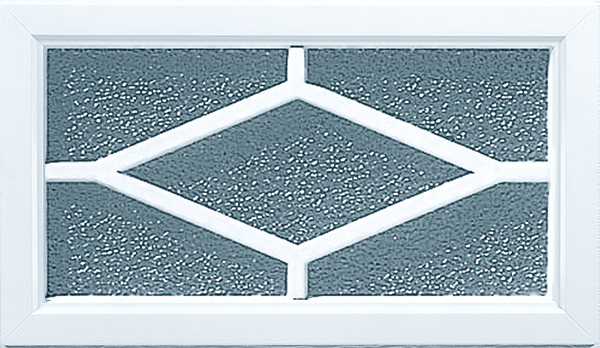

Diamond look

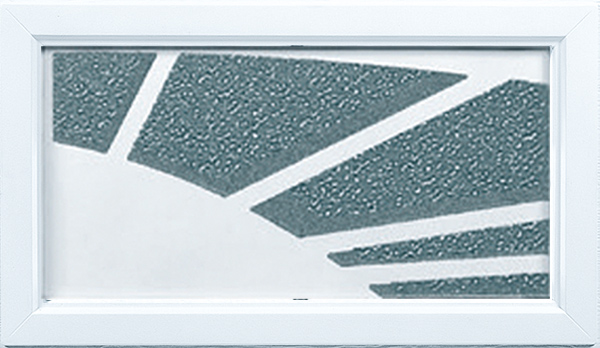

Sunrise motif

Dimensions:

  • Inside: approx. 392 x 192 mm
  • Outside: approx. 460 x 260 mm

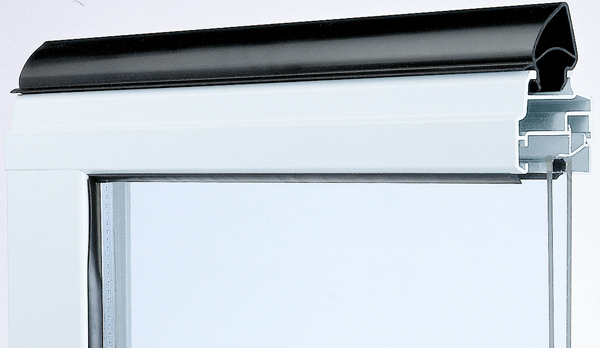

Window thicknesses:

  • For the horizontal bead, large bead and large slat door motifs:
    Clear or crystal-clear 25 mm acrylic glass multiple glazing, for the Sunrise motif 20 mm acrylic glass multiple glazing
  • For the cassette door motif:
    Clear or crystal-clear 20 mm acrylic glass double glazing

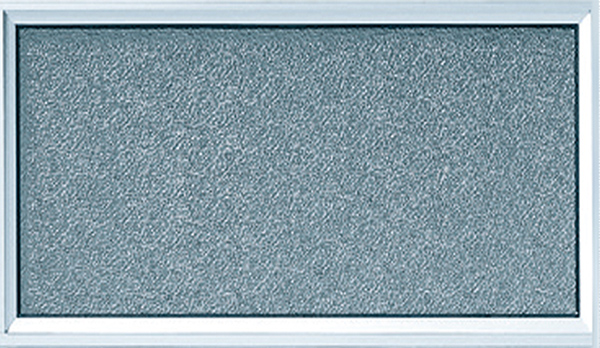

LIGHT BAND

Disc thickness 16 mm

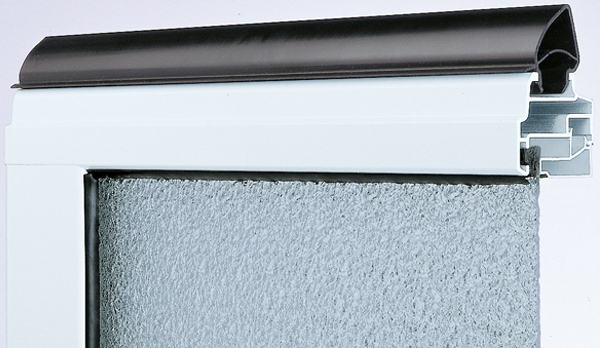

Acrylic glass with crystal structure

Double pane acrylic glass

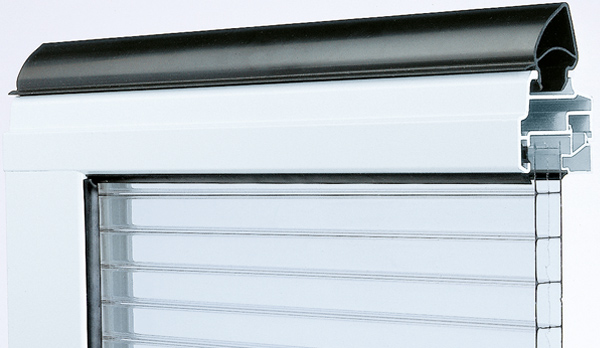

Double-skin polycarbonate sheet

The continuous rooflight is also available as a plastic-coated expanded metal.

Note:
Windows and continuous rooflights are finished in a corresponding colour for wood looks and satin surfaces.

LIGHT OPENINGS

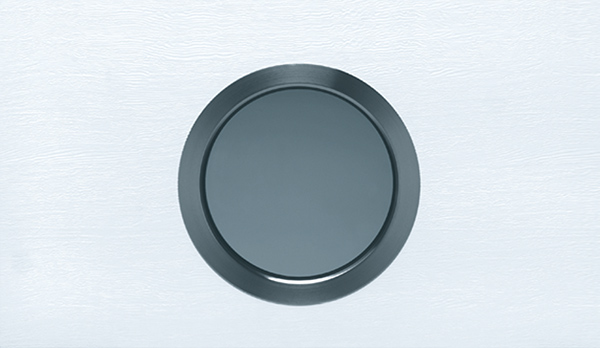

Stainless steel-framed porthole,
with 10 mm acrylic glass multi-glazing*

Dimensions:

  • Inside: approx. ø 290 mm
  • Outside: approx. ø 350 mm

* Only for door motifs large bead and large slat

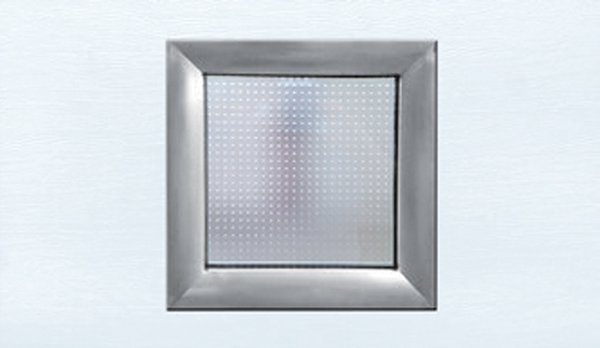

Rectangular window painted in RAL 9006**

Dimensions:

  • Inside: approx. 235 x 235 mm
  • Outside: approx. 320 x 320 mm

** Only for sectional doors

GATE GRIPS

Plastic-
coated, in preferred or RAL colour

Plastic-
coated, in preferred or RAL colour

Plastic-
coated, in preferred or RAL colour, traffic white

Stainless steel

Aluminium
silver anodised

Matching door handles are available in all fourteen Super-Color colours and RAL of your choice

STAINLESS STEEL LEVER HANDLE SETS

Lever handle set
for profile cylinder

Interchangeable set
for profile cylinder

Interchangeable set
for profile cylinder
(flat lever handle)

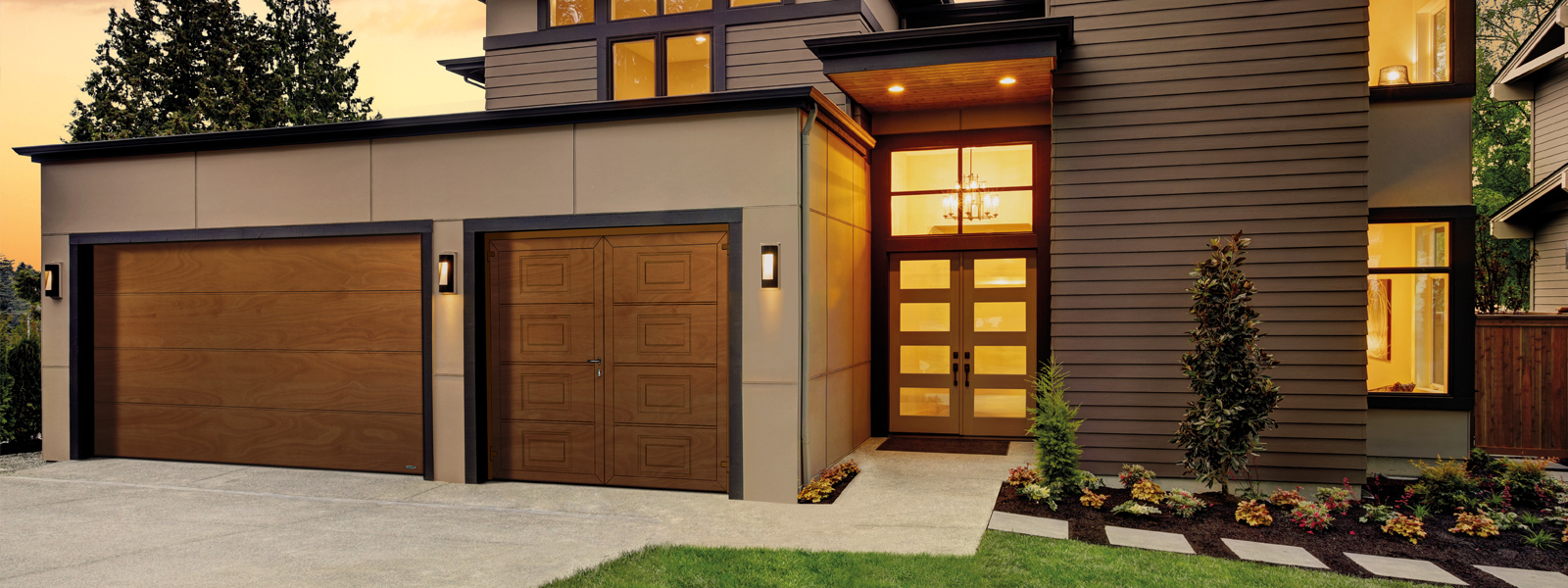

Inspirationen

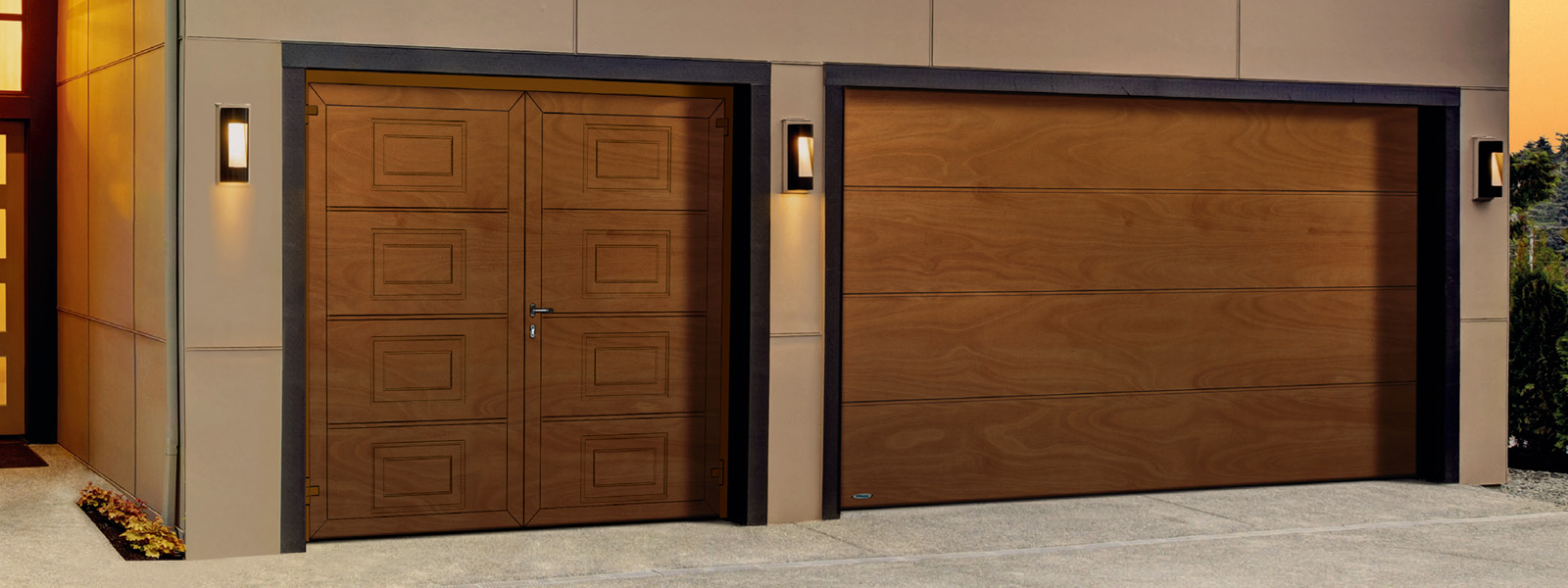

Hinged steelgarage door
"DuoPort" double-leaf door solution

Door embossing: Cassette look
Surface: Golden oak (smooth)

Right: Sectional door in large louvre / Golden oak

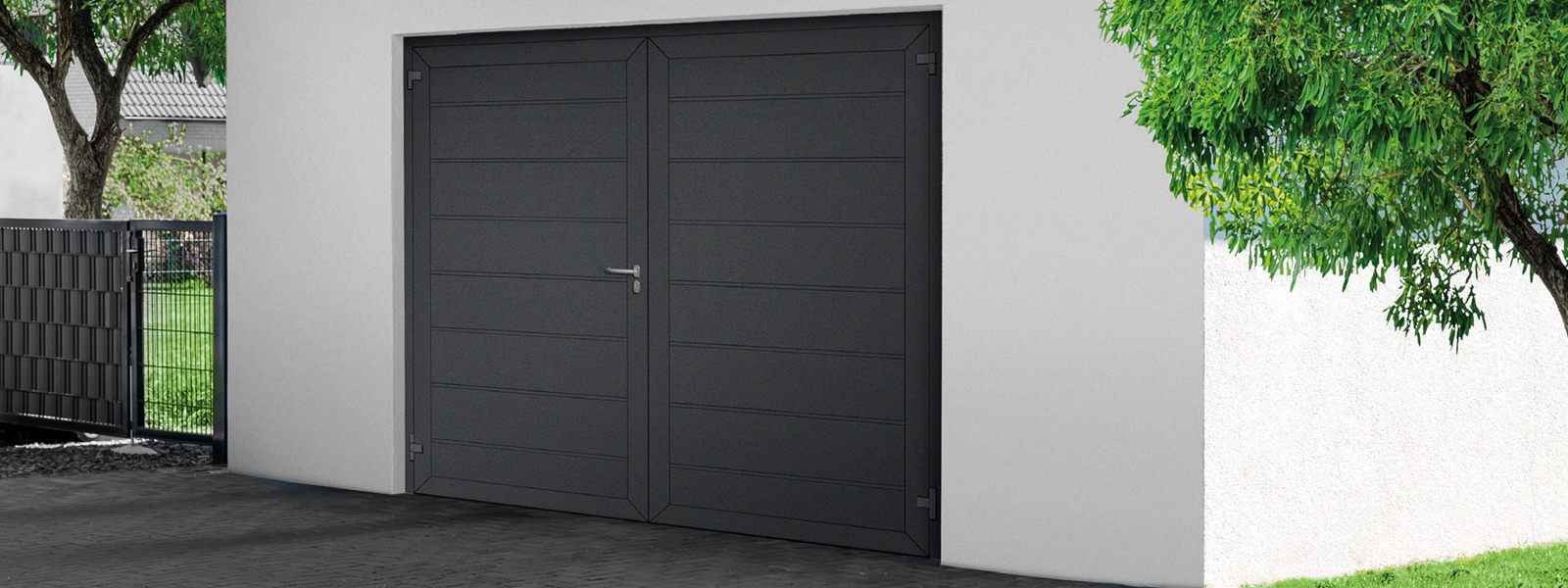

Hinged steelgarage door
"DuoPort" double-leaf door solution

Door embossing: Attractive large beading
Surface: Satin grey
Colour: Mixed shade

Hinged steelgarage door
"DuoPort" double-leaf door solution

Door embossing: Elegant large louvre
Surface: Noblesse (smooth)
Colour: Grey aluminium, similar to RAL 9007

Hinged steelgarage door
"DuoPort" double-leaf door solution

Door embossing: Horizontal beading
Surface: Woodgrain (discreetly grained)
Colour: Traffic white, similar to RAL 9016

Hinged steelgarage door
"DuoPort" double-leaf door solution

Door embossing: Elegant large louvre
Surface: Noblesse (smooth)
Colour: Light grey, similar to RAL 7035
