DEALERS AND PROCESSORS
YOUR RELIABLE PARTNER AT EYE LEVEL
For over 65 years, the Novoferm brand has stood for high-quality, comprehensive solutions for garage door systems, commercial doors and frames as well as industrial door and loading systems. We offer dealers and fabricators a comprehensive service - from targeted pre-sales support, planning and advice on product selection, to simple and fast installation solutions.
We see ourselves as an equal partner and look forward to working with you.
YOUR NOVOFERM TEAM, GERMANY

ARGUMENTS IN FAVOUR OF FIRST-CLASS COOPERATION
- Expertise and know-how from over 65 years of experience
- Professional and effective advertising
- Support in consulting and sales

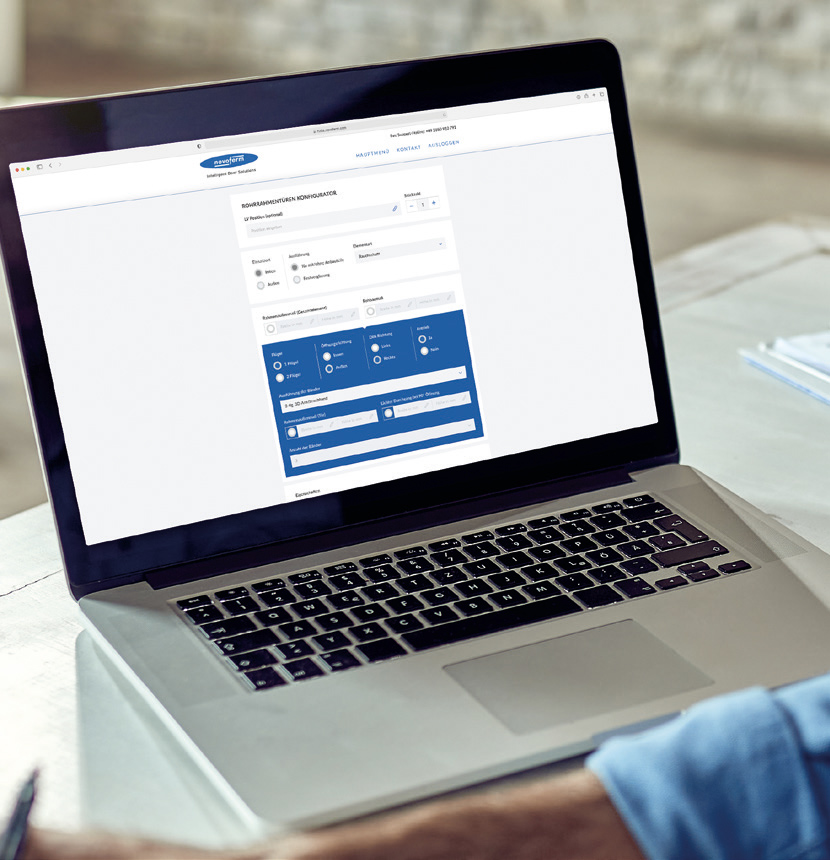

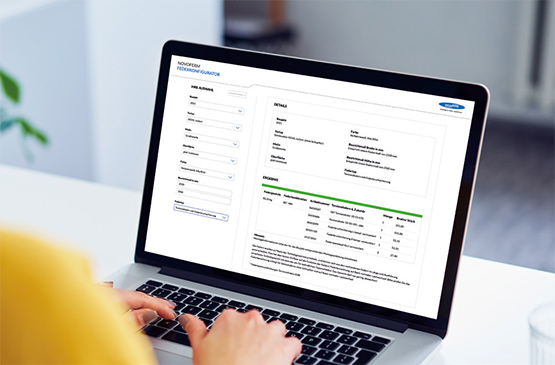

- Quick and easy product configuration with our "NovoSales" ordering and quotation system
- Practical work and installation aids
- Specialist and renovation solutions
- Innovative product solutions and unique selling points
- Joint market development with our partners
- Comprehensive sales and service network
- Fast delivery programmes and stock availability
- Easy contact with your contact person
- Qualified further training programmes
SELECTION OF GARAGE DOOR SYSTEMS AND DOORS
Choose your garage door, operator or door:
Comparison of garage door systems and doors
Door types compared
Garage door systems
Sectional doors | Up-and-over doors | Swing gates | Roller shutters | |
Functional principle | Sectional door consists of sections that are connected to each other and are pushed vertically under the ceiling | Up-and-over door consists of a door leaf as a unit, supported by two lateral lever arms | Swing gates can be opened with two swing doors that swing inwards or outwards | Door slats roll into the roller shutter box provided to save space, similar to the window roller blinds used in domestic applications |
Space in front of the garage | Space in front of the garage can be used for parking a car, for example (no swinging space in front of the garage) | Compared to sectional or roller doors, the door leaf swings outwards when opened | The space required in front of the garage must be taken into account when swing doors swing outwards | Space in front of the garage can be used for parking a car, for example (no swinging space in front of the garage) |
Overall dimensions | Up to 5.50 m wide | Up to 5 m wide | Up to 3 m wide | Up to 5 m wide |
Insulation | 20 mm, 45 mm, 67 mm insulation | Low insulation | 45 mm insulation | Low insulation |
Thermal separation | - | - | - | - |
TÜV tested burglar resistance | - | - | - | - |
Tested security according to resistance class RC 2 | - | - | - | - |
Surface finish | - Woodgrain - Smooth surface - Wood optics - Satin surface - Microline | - Smooth surface | - Woodgrain - Smooth surface - Wood optics - Satin surface | - Smooth surface - Wood optics |
Embossing/ motif | - Horizontal bead - Large bead - Large lamella - Cassette | - Bead (vertical or horizontal) - Slat (vertical or horizontal) - Cassette (vertical, square, rectangular) - Door leaf frame for on-site infill | - Horizontal bead - Large bead - Large slat - Cassette | - Aluminium slats |
Colours | - 16 attractively priced preferred colours - RAL colours of your choice - 4 wood finishes - 6 satin surfaces | - 8 attractively priced preferred colours - RAL colours of your choice | - 16 attractively priced preferred colours - RAL colours of your choice - 4 wood finishes - 6 satin finishes | - 10 attractively priced preferred colours - 1 wood look |
Glazing | - | - | - | - (whole slats only) |
Spring technology | - Tension spring - Torsion spring (in front) - Torsion spring (rear) | Tension spring | - | - |
Wicket door | - Without wicket door - With wicket door (opening outwards) - With wicket door (opening inwards) | - Without wicket door - With wicket door (opening outwards) | - | - |
Opening method | Manually operated (with handle) Electric (with drive) Electric (with app) | - Manually operated (with handle) - Electric (with drive) | - Manually operated (with handle) | - Electric (with drive) |
- Yes - No |
Garage door functions
Sectional garage doors
Up-and-over garage doors
Hinged garage doors

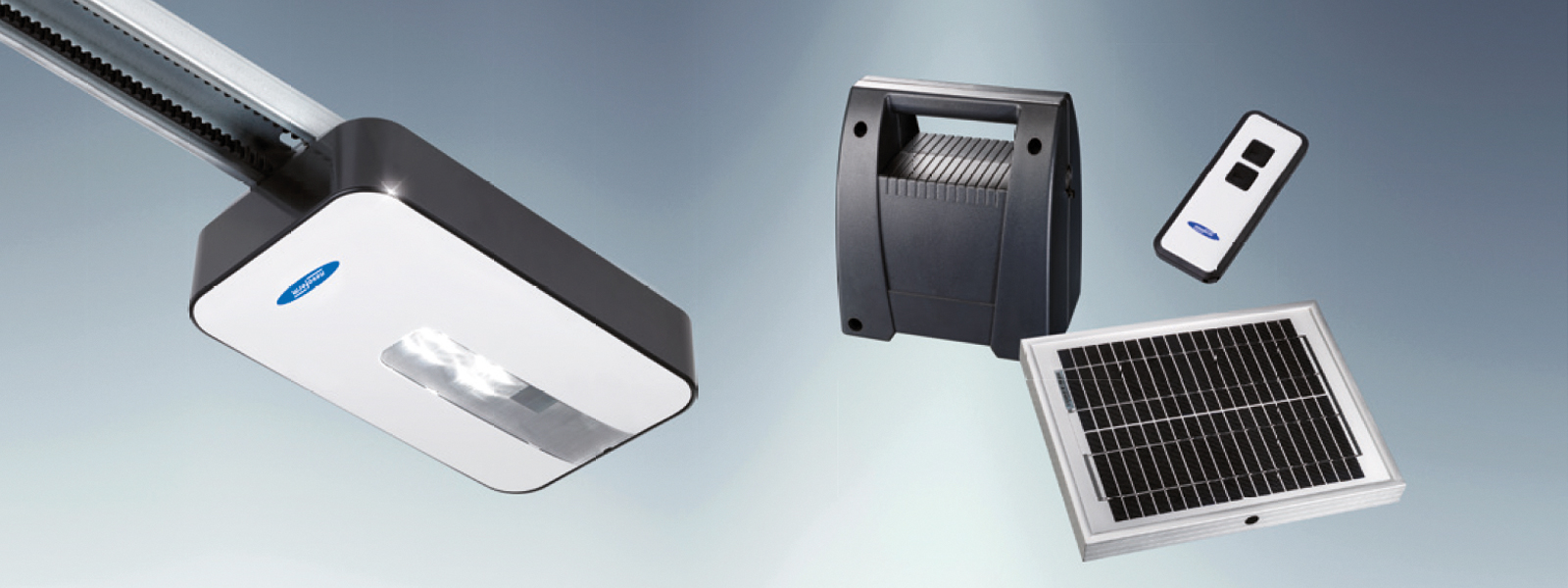

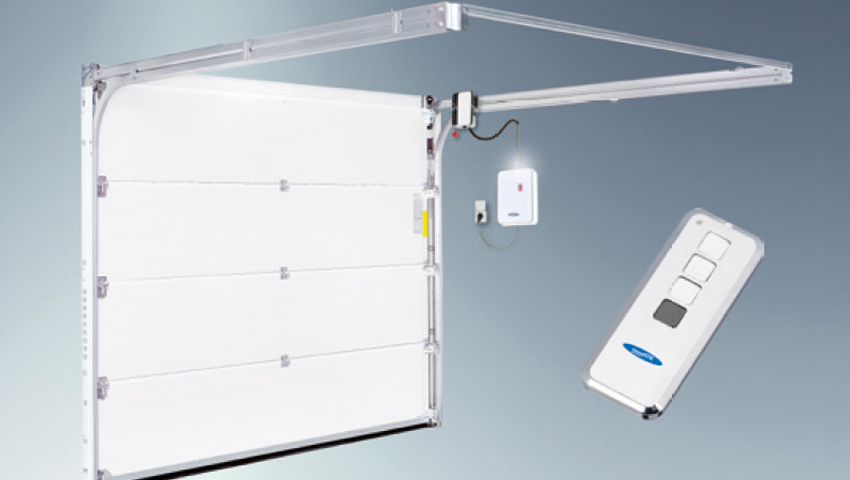

COMPARISON OF DRIVE TYPES
Garage door openers in comparison

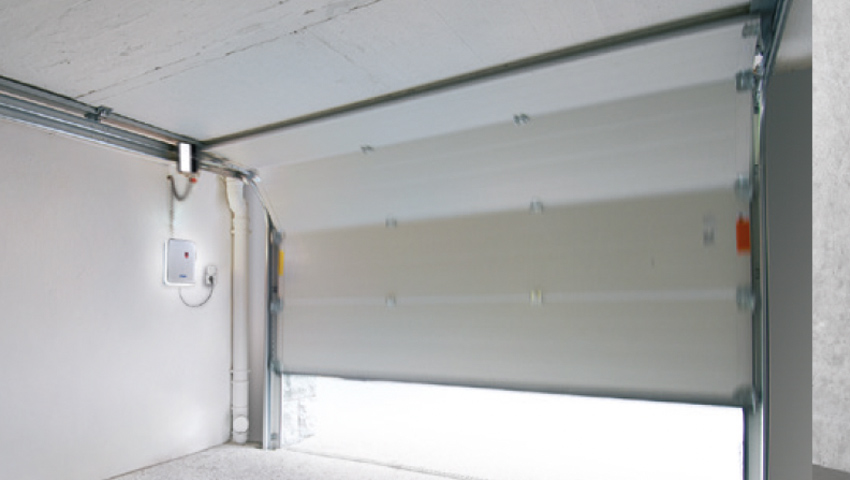

Garage door opener | NovoPort® Speed operator system | Novomatic 443 | Novomatic 573 S | Novomatic 823 S | Control unit for roller shutters |
---|---|---|---|---|---|
Mounting position Operator | Side mounting | Ceiling mounting | Ceiling mounting | Ceiling mounting | Side mounting |
Compatible with door types |
|
|
|
|
|
Compatible with SmartHome- System (only for sectional doors) |
|
|
|
|
|
Special features |
|
|
|
|
|
Notes:
Due to their heavy weight, roller garage doors are equipped and supplied with a special operator as standard. Due to their special construction and double-leaf design, up-and-over garage doors can only be operated manually.
Side garage doors in comparison
Side garage doors with the same appearance
Door type | Sectional door side door | Overhead door side door | Steel multi-purpose door Universal MZ |
---|---|---|---|
Equal view | To the sectional garage door | To the up-and-over garage door | Same colour as the door only |
Locking system |
|
|
|
Hinge lock |
|
| - |
Material |
|
|
|
Surface finish |
|
|
|
Embossing/ motif |
|
| |
Colours |
|
|
|
Glazing possible | - | - | - |
- Yes - No

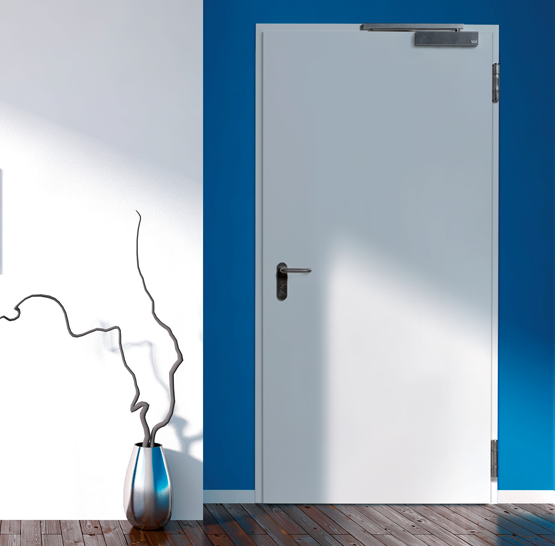

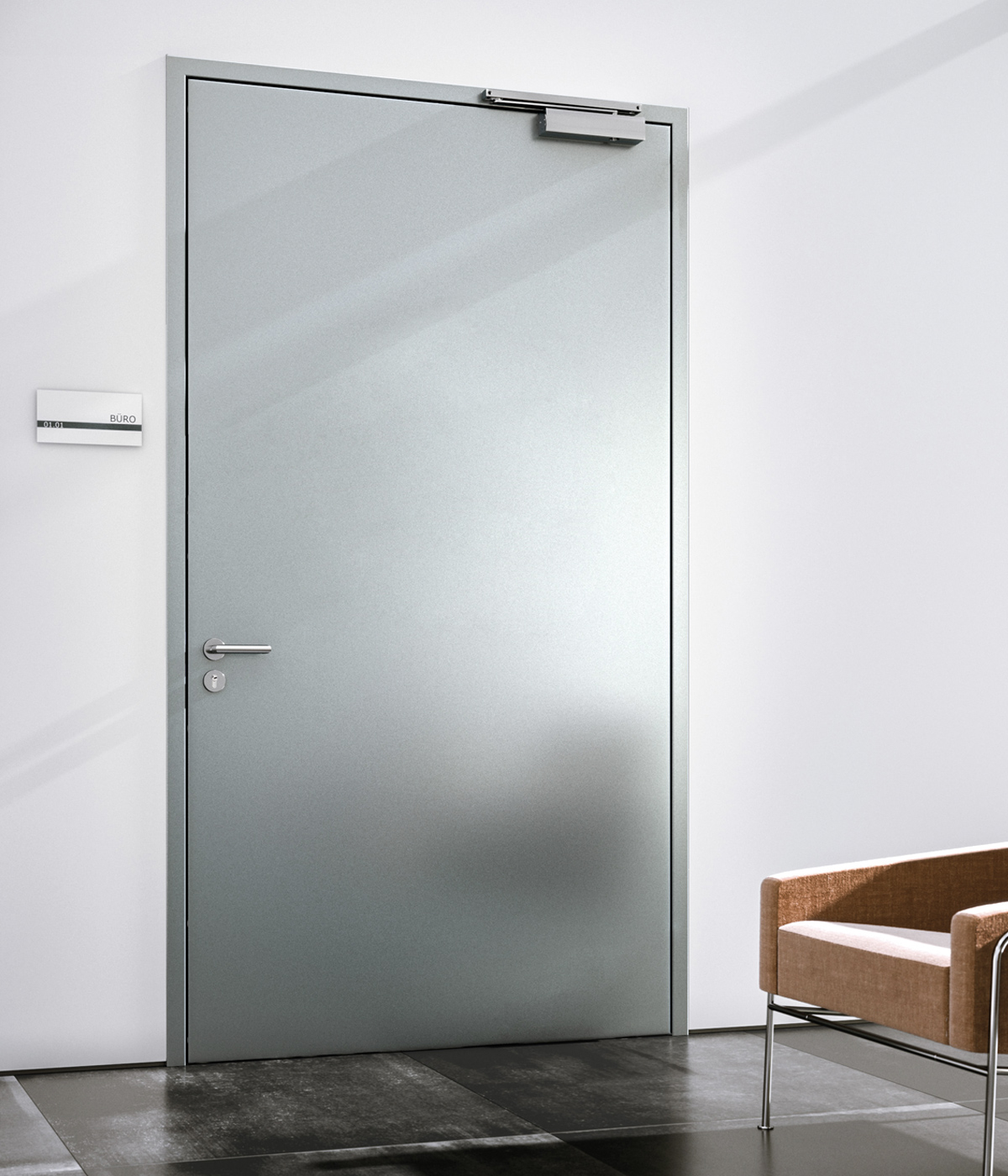

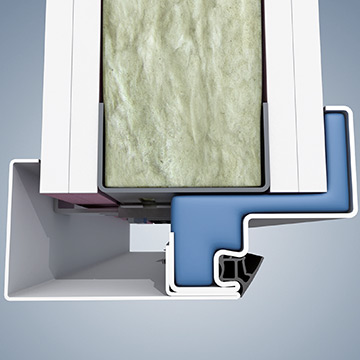

COMPARISON SECURITY DOORS

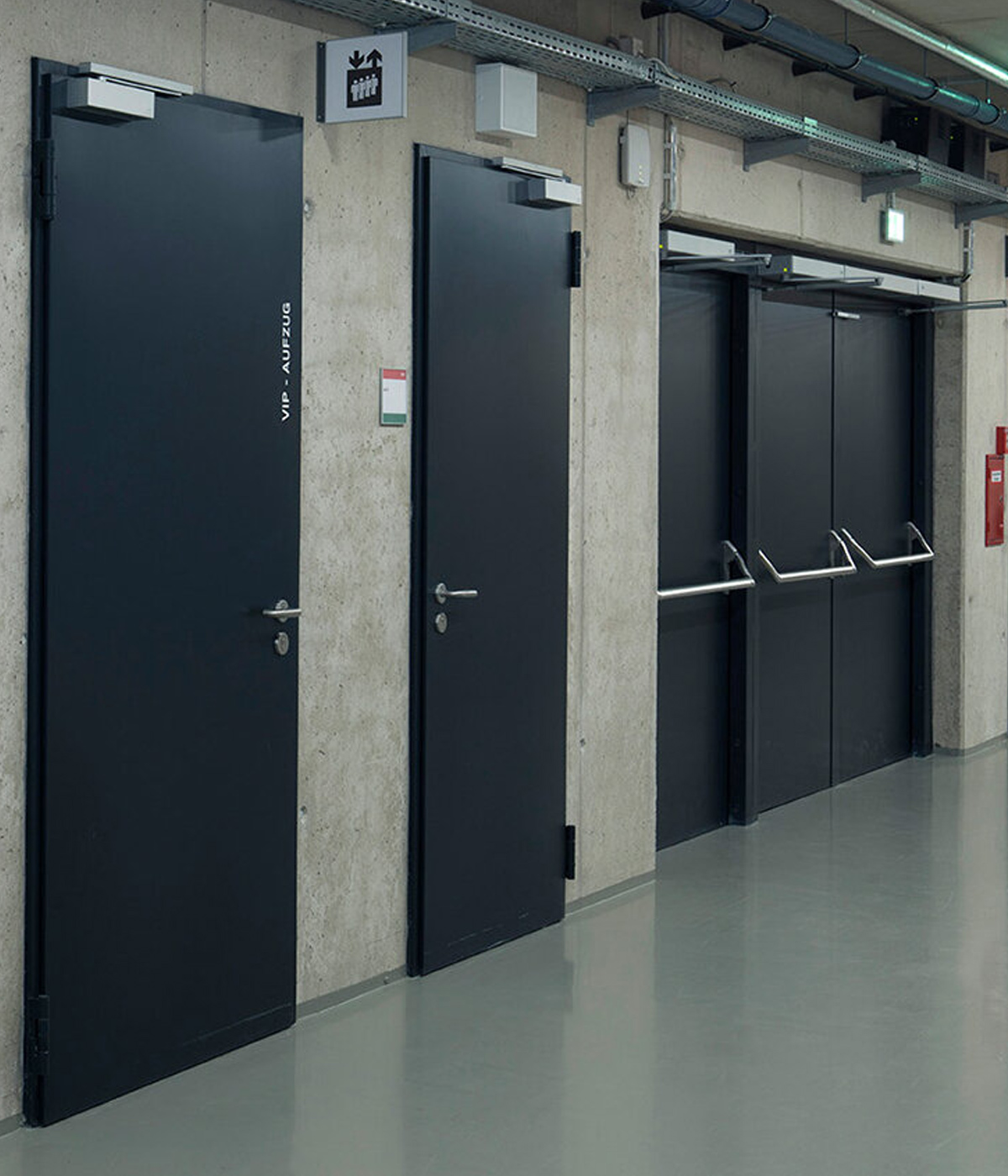

Steel security doors in comparison
Resistance class in accordance with standard DIN EN 1627 | RC 2 (WK2) | RC 3 (WK3) | RC 4 (WK 4) | RC 3 (WK 3)/ FB 4 | RC (WK 3)/ VPAM P6 |
---|---|---|---|---|---|
Resistance time according to standard DIN EN 1627 | 3 minutes | 5 minutes | 10 minutes | 5 minutes | 5 minutes |
Perpetrator according to standard DIN EN 1627 | Occasional offender | Perpetrator | Experienced offender | Perpetrator | Perpetrator |
Perpetrator behaviour and Tools according to standard DIN EN 1627 | Simple tools such as screwdrivers, pliers and wedges | Attempt by the perpetrator to break open with a second screwdriver and cow foot | Also has sawing and striking tools (axe, chisel, hammer, chisel, cordless drill) | Attempted break-in by the perpetrator with a second screwdriver and cow foot. Additional bullet resistance for handguns up to calibre 44 Rem. Magnum, 357 Magnum | Attempted break-in by the perpetrator with a second screwdriver and cow foot. Additional bullet resistance up to assault rifle calibre (AK-47) 7.62 x 39 mm (FJ/PB/ SC) |
Fire protection in accordance with standards DIN 4102-5/ DIN EN 13501-2 |
|
|
|
|
|
Smoke tightness (4-sided sealing system) | - With smoke protection - Without smoke protection | ||||
Sound-insulating | 23 - 44 dB | 23 - 45 dB | 22 - 47 dB | 21 - 38 dB | 21 - 38 dB |
Thermal transmittance coefficient U-value | 1.5 W/m2K | 1.8 W/m2K | 1.8 W/m2K | 1.8 W/m2K | 1.8 W/m2K |
Tested performance properties for External doors | Yes | ||||
Appearance | As standard: | ||||
Glazing possible | - | - | - | - | - |
- Yes - No
MODERNISING GARAGES WITH SECTIONAL GARAGE DOORS
RENOVATION SOLUTIONS FOR ALL INSTALLATION SITUATIONS
OLD DOOR OUT, NEW SECTIONAL DOOR IN. THIS MAKES RENOVATION EASY.
Many garages today are still equipped with old up-and-over doors. Modern sectional doors from Novoferm offer a convenient and affordable replacement. Thanks to standardised sizes that exactly match the previous up-and-over door dimensions and specific accessories that compensate for difficult installation situations, sectional doors enable quick and clean renovations. You will find the different installation options on the following pages.

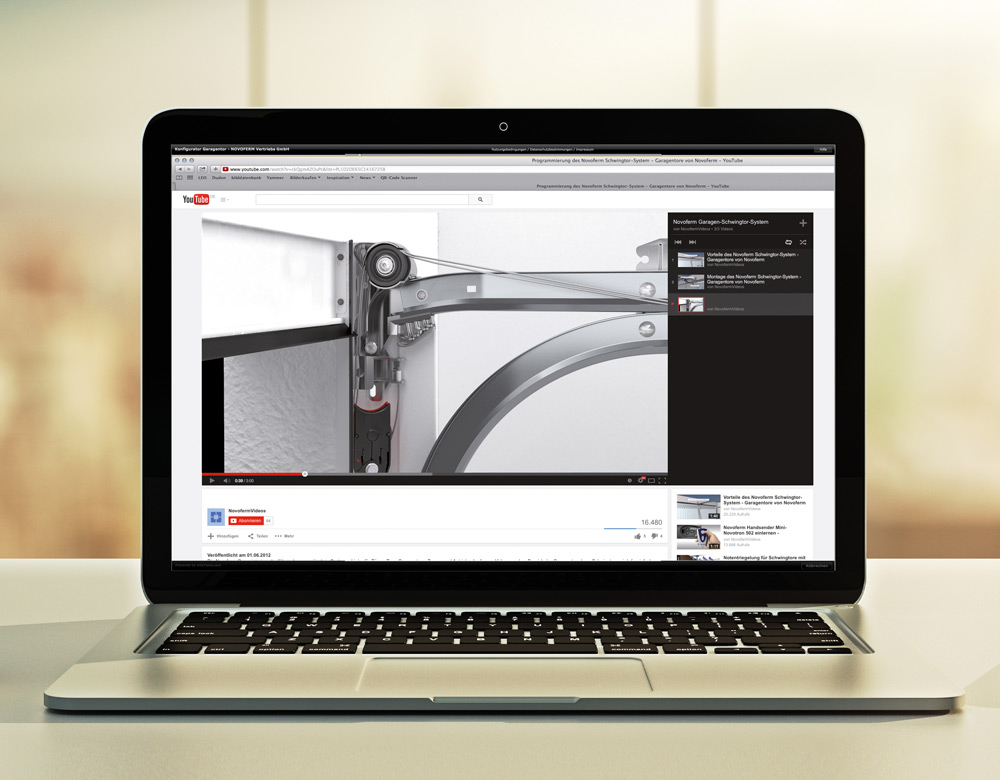

See for yourself how easy it can be to replace a garage door.
Comparison of renovation solutions
SELECTION TABLE FOR MODERNISATION SOLUTIONS
Installation Auxiliary Means | Installation | Installation | Installation in | Installation in front of |
---|---|---|---|---|
ANGLED FRAME CLADDING PROFILE 20.5 X 50 MM | Yes | Yes | - | - |
ANGLE FRAME- PANELLING PROFILE 20.5 X 80 MM | - | - | Yes | - |
REINFORCED ANGLE FRAME | - | Yes | (Yes) | - |
LINTEL PANEL SAWN, 20 MM | Yes | Yes | Yes | - |
LINTEL COVER EDGED, 45 MM | Yes | Yes | Yes | - |
ANTI-GLARE FRAME SET | - | - | - | Yes |
RENOVATION PANELS | - | - | Yes | Yes |
S-ANKER | - | Yes | Yes | - |
VARIABLE FRAME ANCHOR SET | - | Yes | Yes | As standard |
3D MOUNTING ANCHOR | Yes | Yes | Yes | - |
PLASTIC SPECIAL ANCHOR | Yes | Yes | Yes | - |

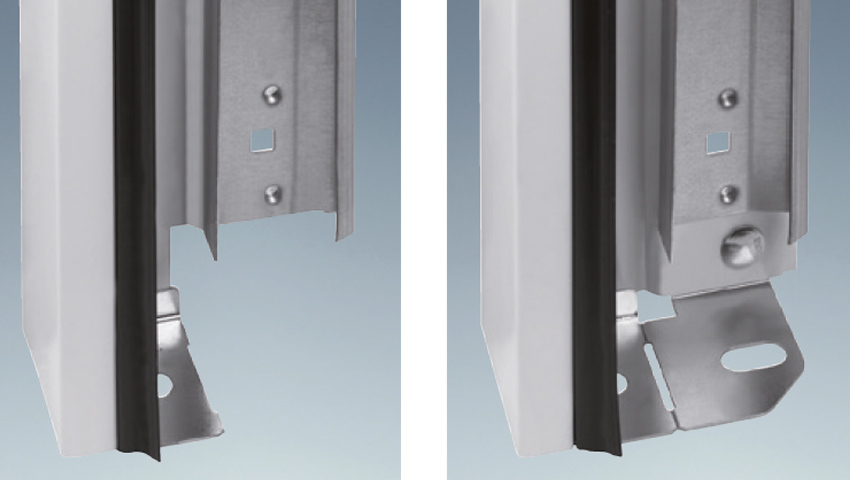

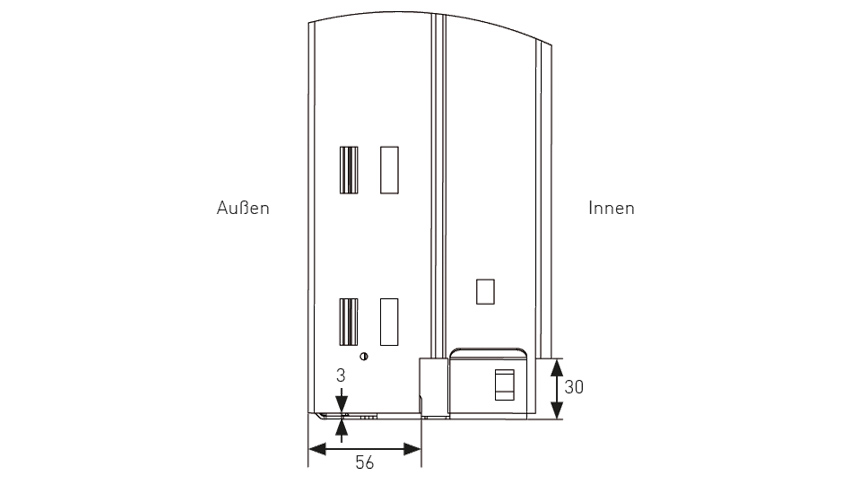

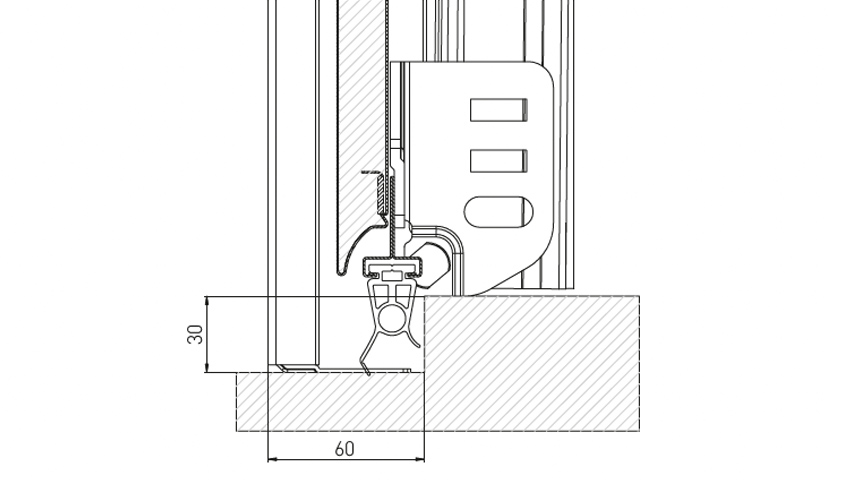

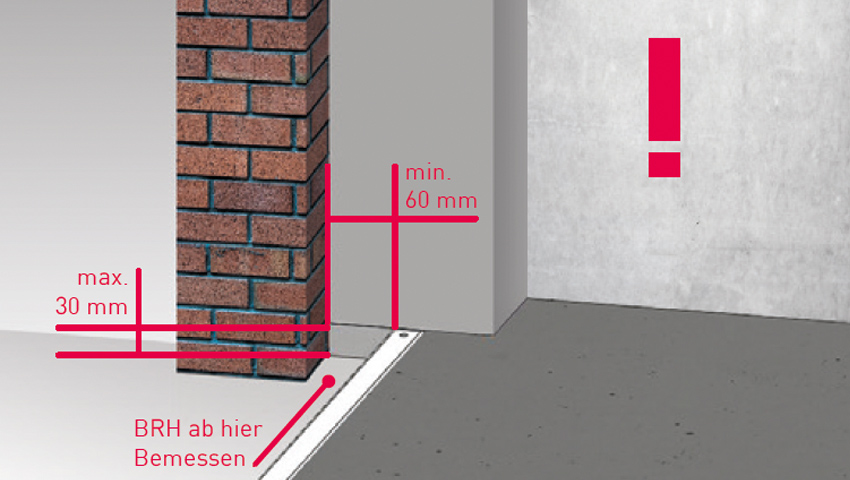

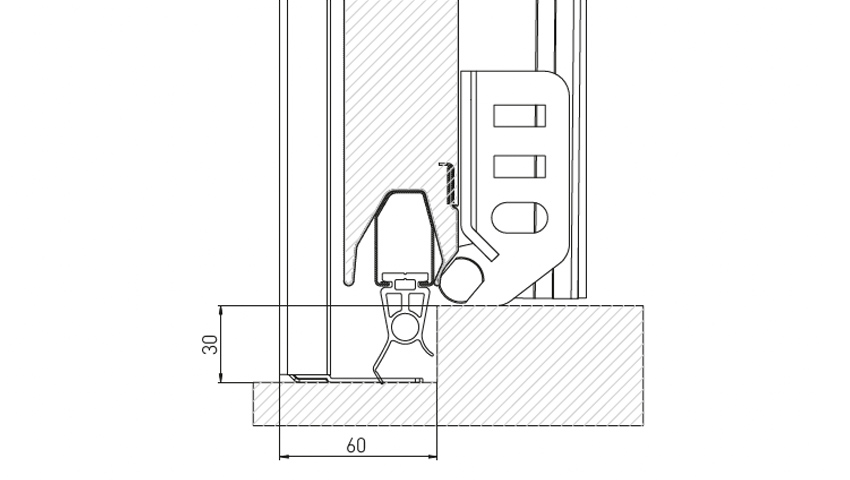

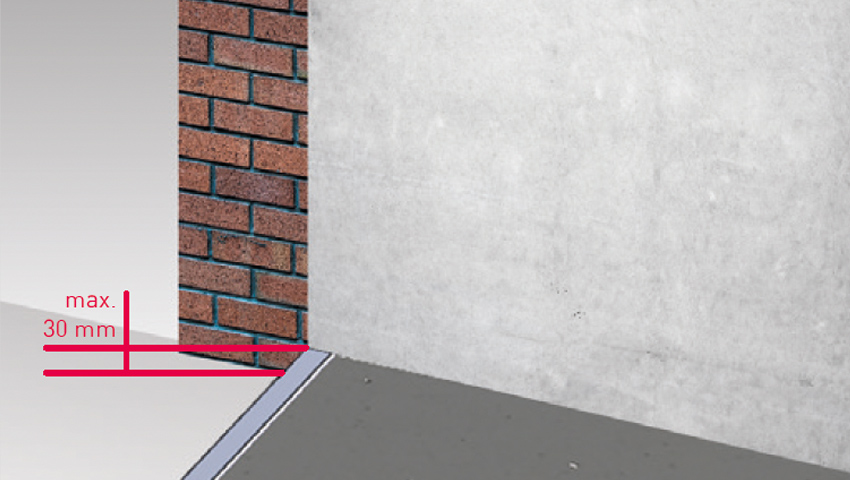

STEPPED RENOVATION FRAME | Yes | Yes | Yes | Yes |
VARIABLE FLOOR PROFILE ISO 20 AND ISO 45 EVO | Yes | Yes | Yes | Yes |

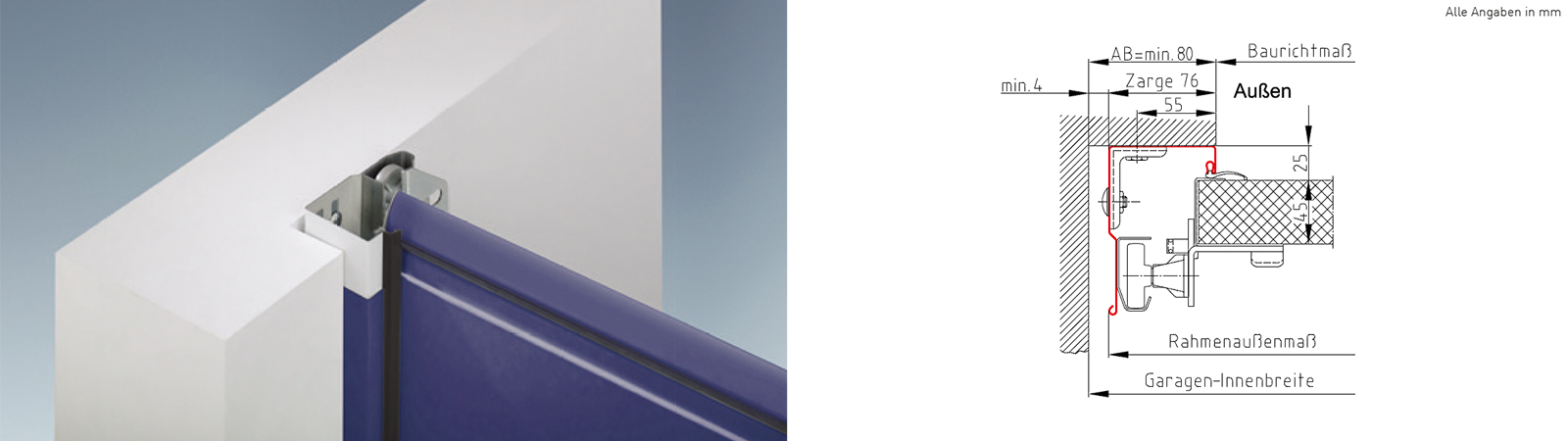

Installation behind the opening
... ALS STANDARDSITUATION

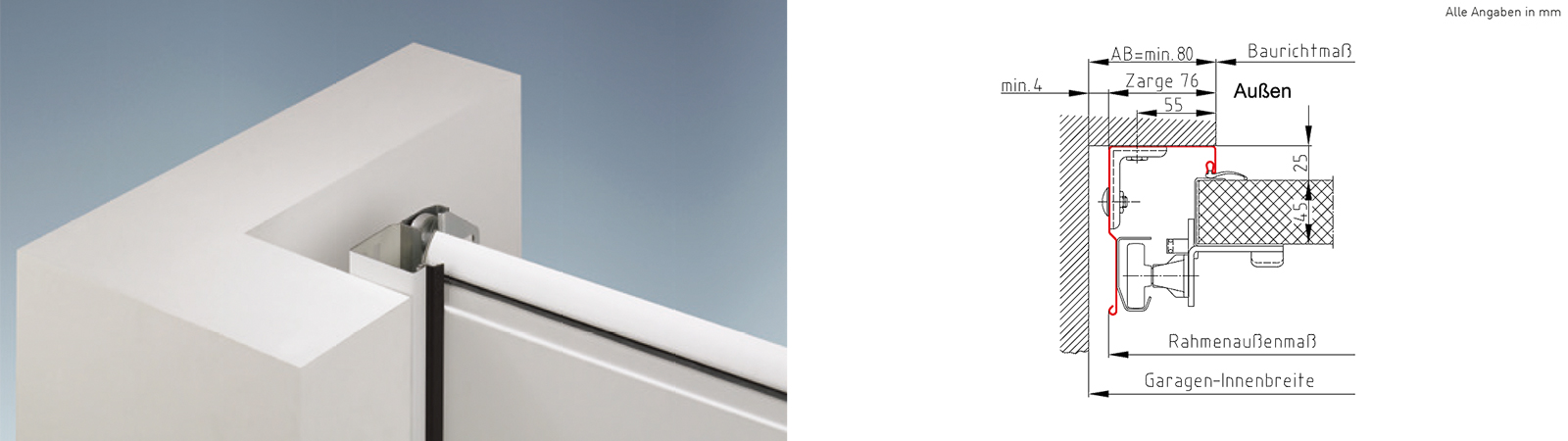

SIDE MOUNTING
Installation situation
The space required for standard installation is at least 80 mm for the side frame and - depending on the door type - 115 to 213 mm for the lintel.
Solution
The frame parts are screwed flush to the masonry behind the door opening. However, the side frame must not be visible more than 45 mm per side in the opening. The fixing material required for this installation situation is supplied as standard. Special anchors may be required if the building has special characteristics (e.g. lightweight concrete).

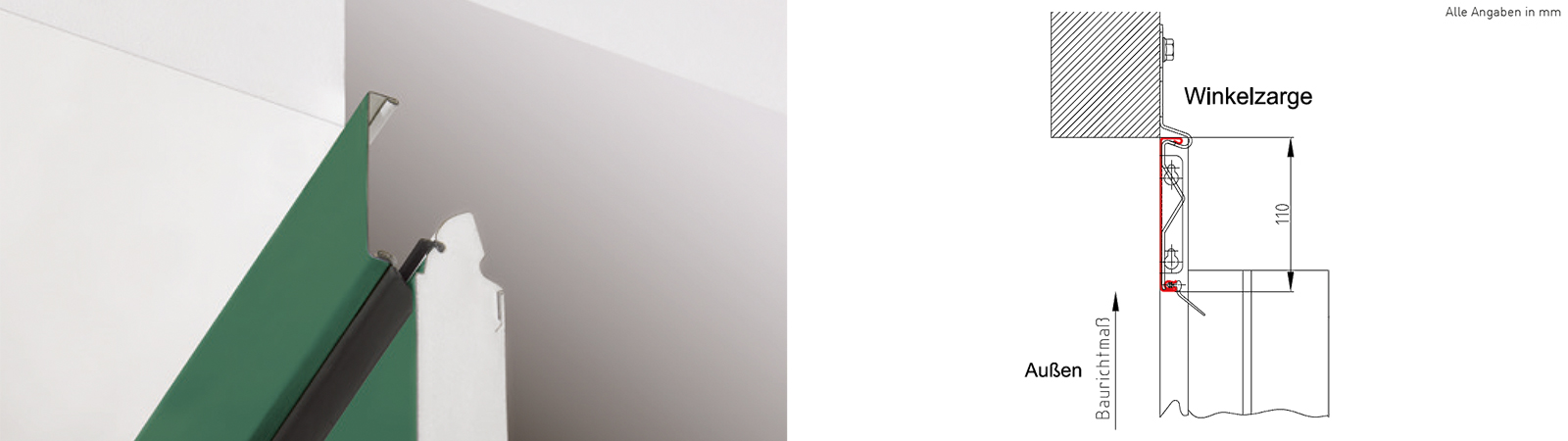

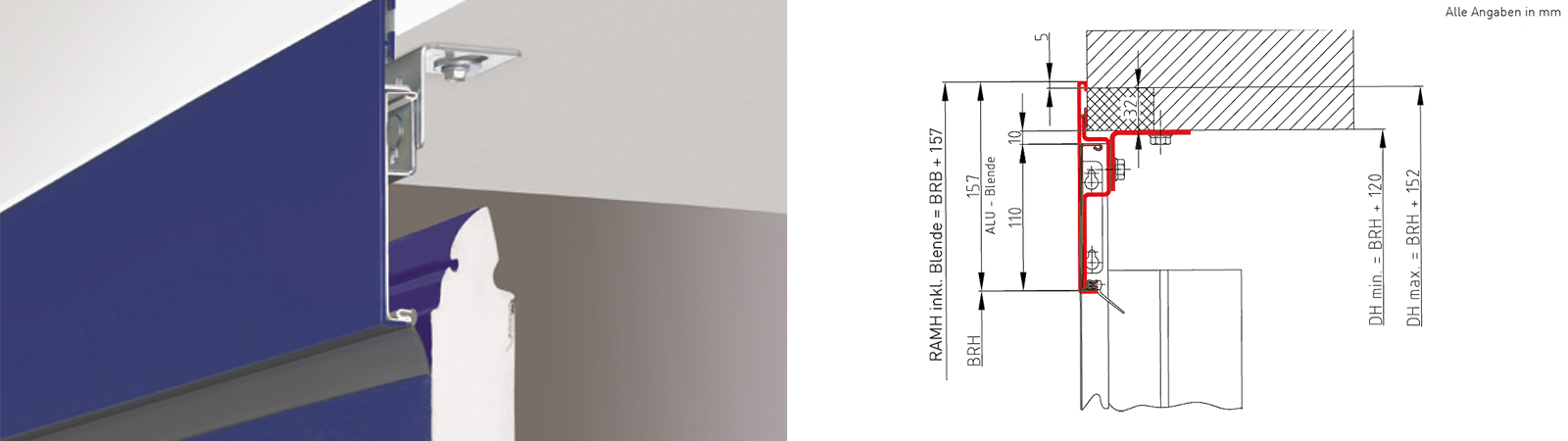

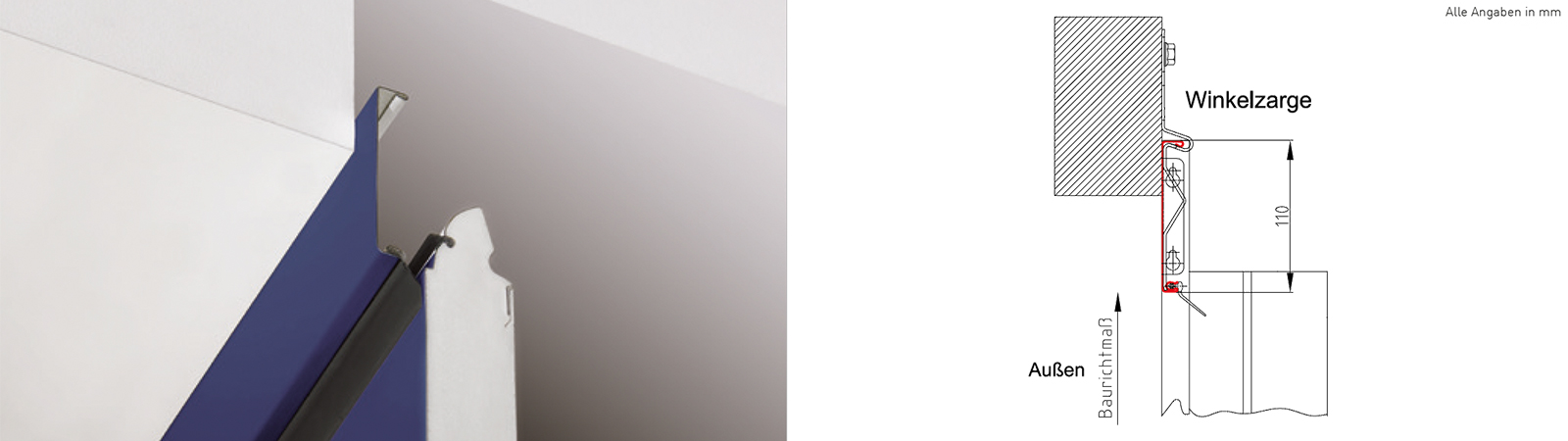

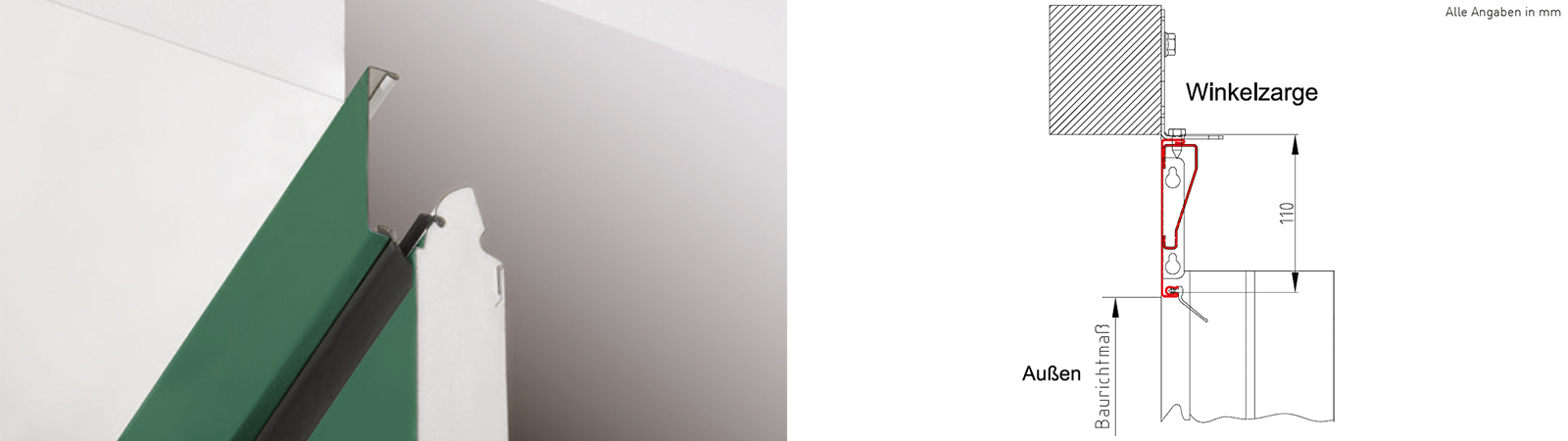

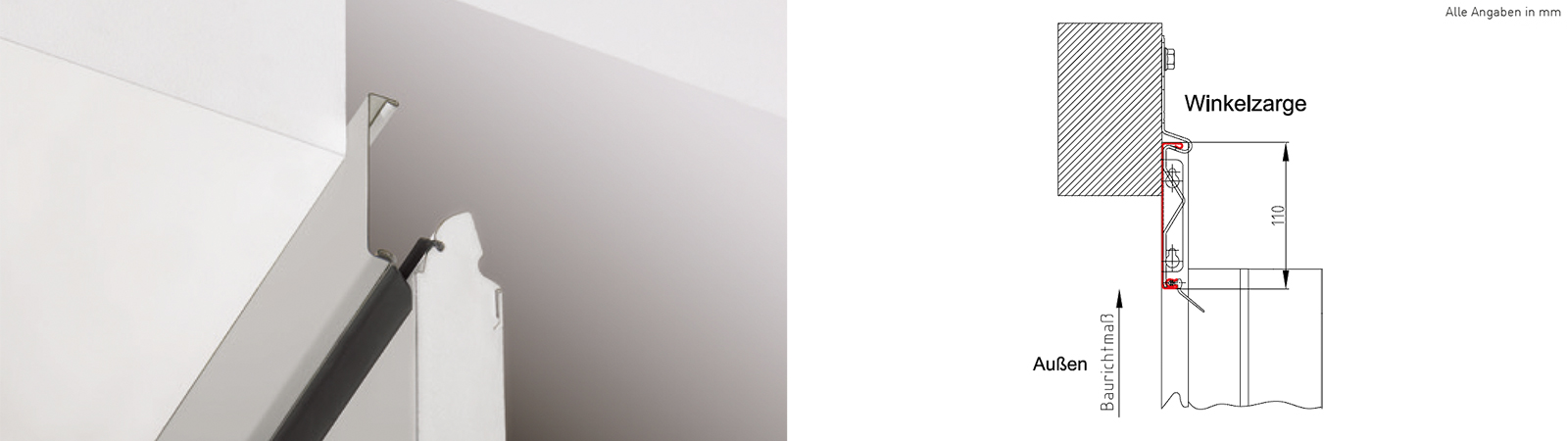

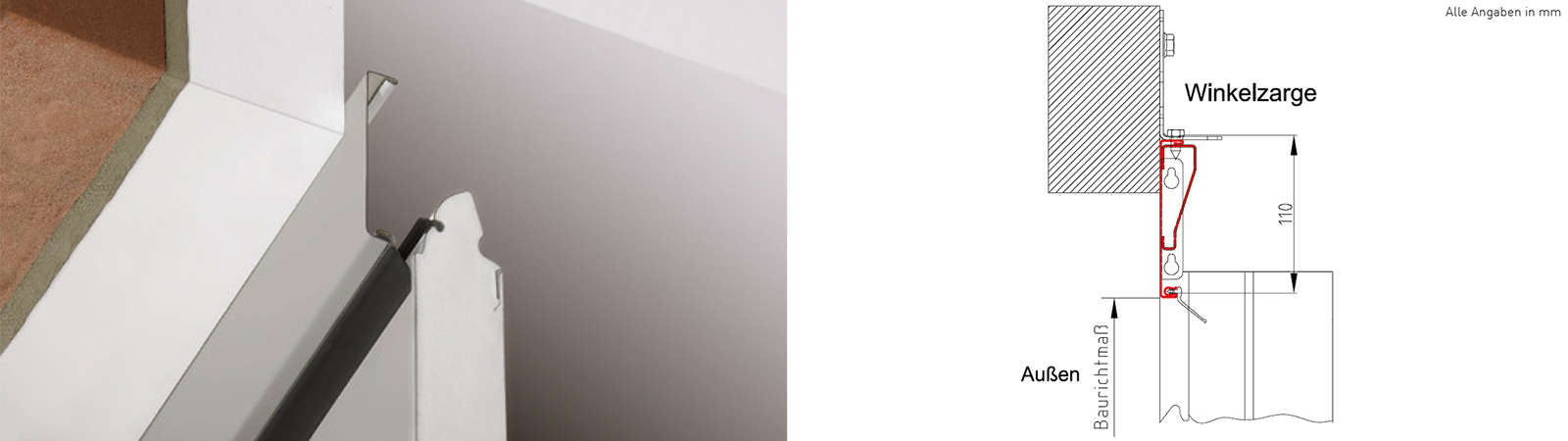

CRASH MOUNTING
Installation situation
The height of the lintel is less than required for standard installation or the outer frame dimension is less than the lintel height.
Solution
The missing lintel height can be compensated for with the standard frame cover, which always matches the colour of the door leaf.
The cover (height: 110 mm) can be visible in the opening by up to 100 mm.
HIGHLIGHTS
- The use of standard or renovation sizes is often possible
- No further accessories required if the side frame is not visible in the opening

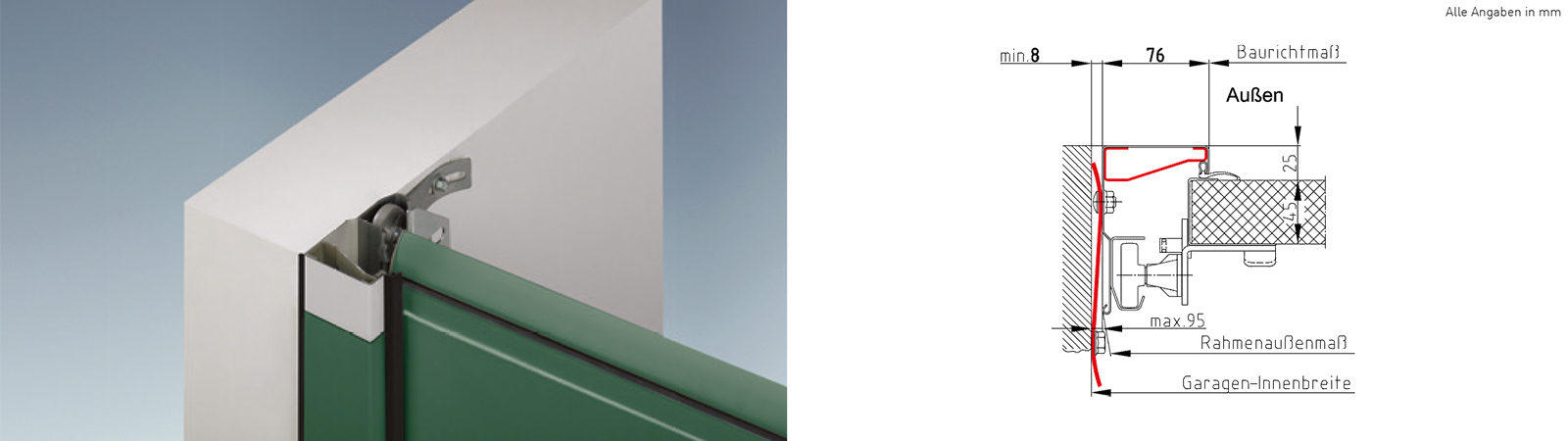

... IF THE SIDE STOP IS TOO LOW
SIDE MOUNTING
Installation situation
If the side stop is less than 80 mm, but at least 45 mm, the white side frames would be partially visible in the opening with a coloured or coated door.
Solution
An angled frame cladding profile (20.5 x 50 mm) available as an accessory is used.
The head frame is always supplied in the colour or coating of the door leaf from the factory.
CRASH MOUNTING
Installation situation
The height of the lintel is less than required for standard installation or the outer frame dimension is less than the lintel height.
Solution
The missing lintel height can be compensated for with the standard frame cover, which always matches the colour of the door leaf.
The cover (height: 110 mm) can be visible in the opening by up to 100 mm.
HIGHLIGHTS
- Visually harmonious impression of the door, as all visible parts have identical colours
- Quick and easy installation, as the panelling profiles are screwed to the side frames
- No further auxiliary constructions required on site
- Inexpensive standard and renovation sizes can be used in many cases

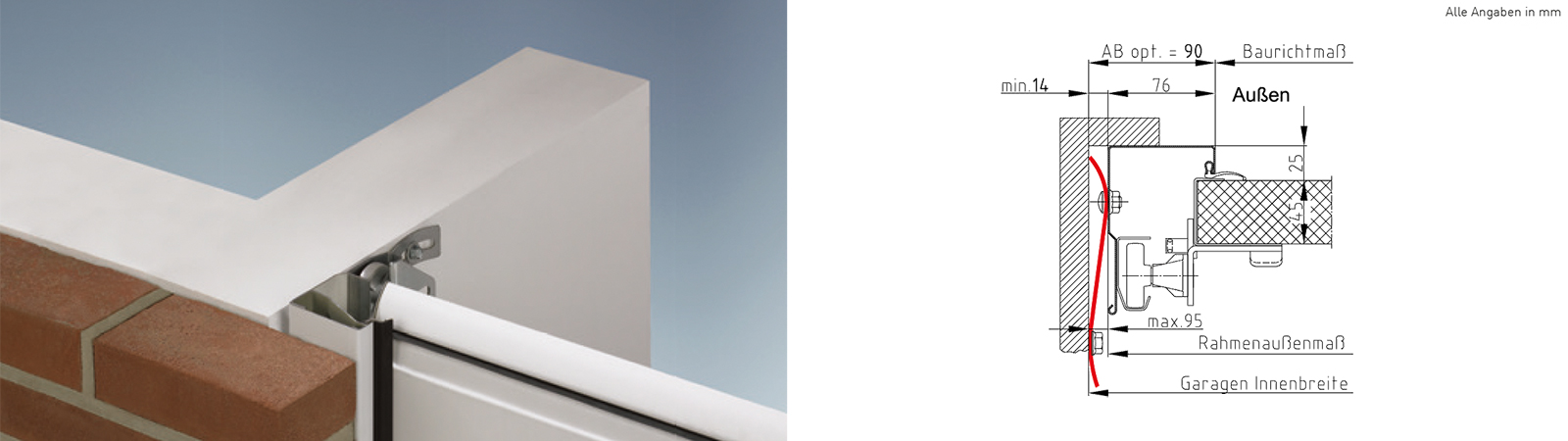

... FOR CLINKER BRICKWORK (S-ANCHOR SET)
SIDE MOUNTING
Installation situation
It is not possible to securely fasten the frame parts as the side walls and lintel are made of clinker brickwork or insulating layers need to be bridged.
Solution
With special S-shaped anchors (see page 11 for more information), unevenness in the brickwork can be levelled out and insulating layers bridged. Stable fixing is therefore possible without damaging the clinker bricks. The door frames can be installed without torsion. The stop width (AB) should be 90 mm on each side.
CRASH MOUNTING
Installation situation
The height of the lintel is less than required for standard installation or the outer frame dimension is less than the lintel height.
Solution
The missing lintel height can be compensated for with the standard frame cover, which always matches the colour of the door leaf.
The cover can be visible in the opening by up to 100 mm.
HIGHLIGHTS
- Quick and easy installation thanks to cost-effective special anchors
- Flexible levelling of wall unevenness
- The use of standard or renovation sizes is often possible
- Suitable for sectional garage doors
Installation in the opening

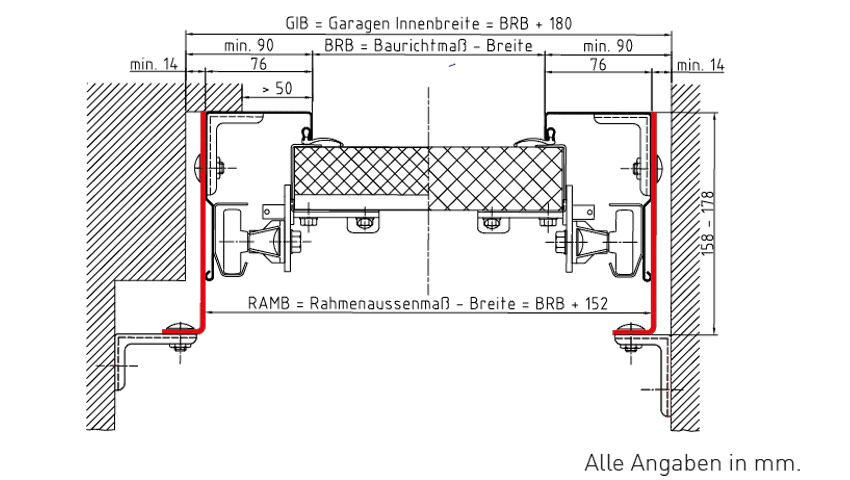

... WITHOUT SIDE STOP (S-ANCHOR-SET)
SIDE MOUNTING
Installation situation
The door opening has no side stops behind which the frame construction could be fixed.
Solution
The door is supplied in a special size to fit the opening. The width is accurate to the millimetre, the height in 25 mm increments. A special, reinforced angle frame with standard S-anchors (see page 11 for more information) enables torsion-free installation. Installation is carried out using the installation material supplied. Cladding profiles (20.5 x 80 mm) in the same colour or coating as the door leaf are available to cover the white standard frame. The joint between the frame and the garage wall is covered with permanently elastic silicone.
CRASH MOUNTING
Installation situation
The height of the lintel is less than required for standard installation or the outer frame dimension is less than the lintel height.
Solution
The missing lintel height can be compensated for with the standard frame cover, which always matches the colour of the door leaf.
The reinforced cover can be completely visible in the opening.
HIGHLIGHTS
- Visually harmonious impression of the door, as all visible parts have identical colours
- Variable S-anchors compensate for wall unevenness
- Quick and easy installation without additional aids
- Suitable for sectional garage doors

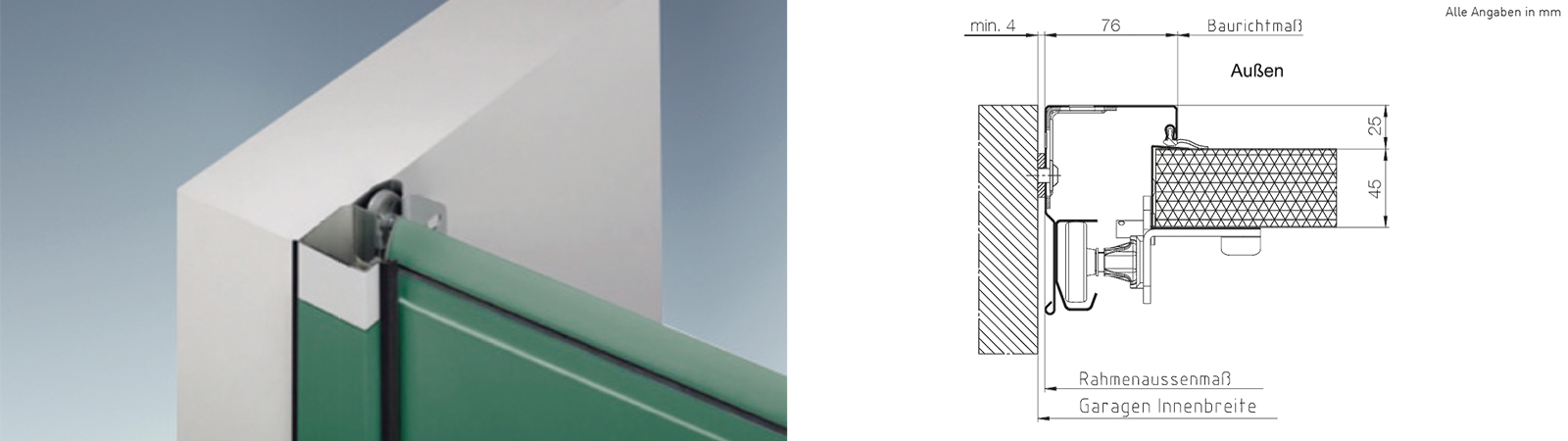

... WITHOUT SIDE STOP (80 MM SIDE STOP)
SIDE MOUNTING
Installation situation
The door opening has no side stops behind which the frame construction could be fixed.
Solution
The door is supplied in a special size, accurate to the millimetre in width, to fit the opening. With Novoferm sectional doors, the frame can simply be fixed to the masonry. To cover the angled frame at the front, optional angled frame cladding profiles (20.5 x 80 mm) in the same colour as the door can be attached. This allows the entire frame, including the 4 mm joint, to be covered.
CRASH MOUNTING
Installation situation
The height of the lintel is less than required for standard installation or the external frame dimension is less than the lintel height.
Solution
The missing lintel height can be compensated for with the standard frame cover, which always matches the colour of the door leaf.
The cover can be completely visible in the opening.
HIGHLIGHTS
- Visually harmonious impression of the door, as all visible parts have identical colours
- Quick and easy installation without additional aids
- Suitable for ISO 20, ISO 45 EVO and ISO 70 Novoferm sectional garage doors

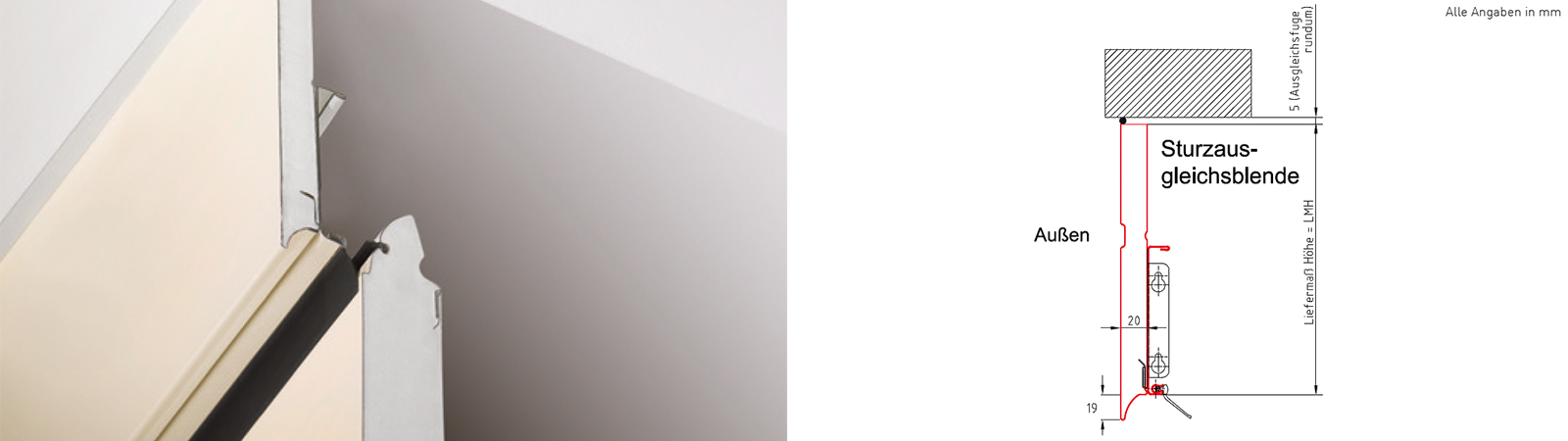

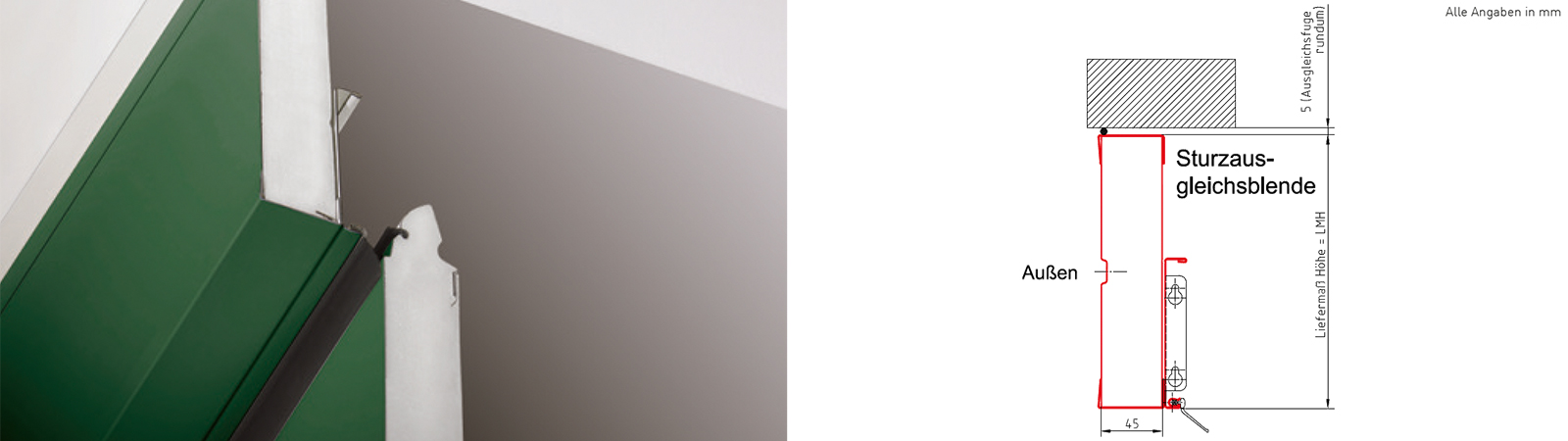

... WITH CRASH COMPENSATION PANEL
CRASH MOUNTING
WITH 20 MM CRASH COMPENSATION PANEL
Installation situation
A standard or renovation size in width can be used for the existing opening. However, the lintel height is too low or there would be a gap in height to the ceiling or to the lower edge of the lintel.
Solution
A lintel compensation panel, which matches the colour or coating of the door leaf, covers the standard header panel and compensates for the gap to the ceiling or lintel.
CRASH MOUNTING
WITH 45 MM CRASH COMPENSATION PANEL
Installation situation
A standard or renovation size in width can be used for the existing opening. However, the lintel height is too low or there would be a gap in height to the ceiling or to the lower edge of the lintel.
Solution
A lintel compensation panel, which matches the colour or coating of the door leaf, covers the standard header panel and compensates for the gap to the ceiling or lintel.
HIGHLIGHTS
- Harmonious appearance thanks to uniform colour and surface design of the entire garage door
- Available as a foamed 20 mm profile or as a 45 mm profile framed on 4 sides
- Lintel levelling panel as a thermally insulated element
INSTALLATION BEFORE OPENING...

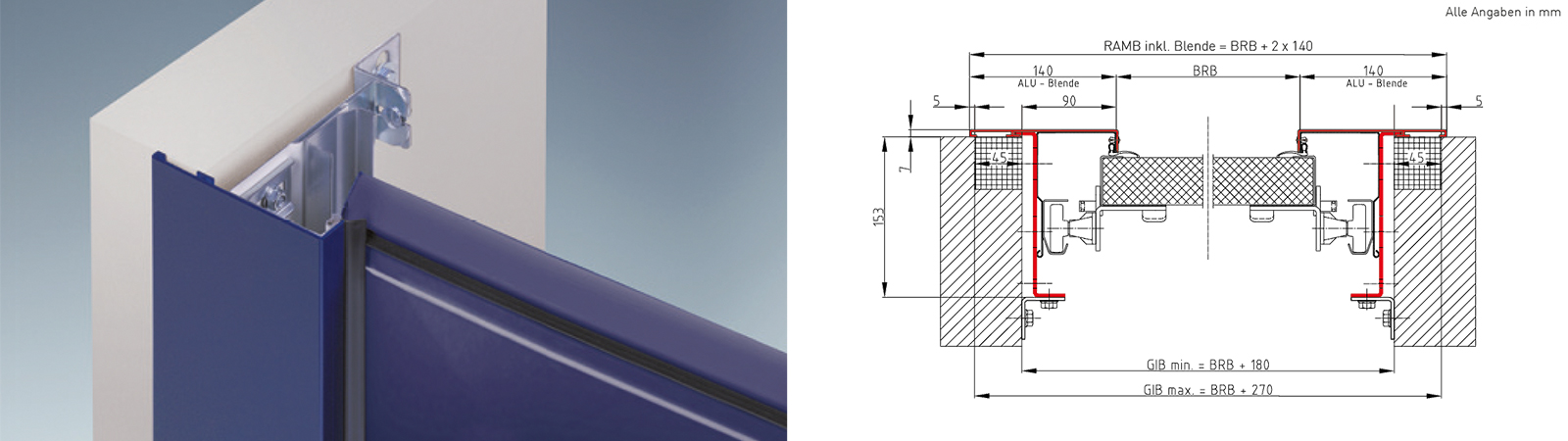

... (E.G. PREFABRICATED CONCRETE GARAGES) ALUMINIUM FRAME SET
PAGE ASSEMBLY
Installation situation
Prefabricated concrete garages often have bevelled corners in the lintel area or broken wall edges from the removal of the old garage door, which can only be repaired with extensive brickwork.
Solution
All Novoferm sectional garage doors can be used as external rebate doors with a special aluminium frame set, which is fitted to the frame parts of the door. The frame is supplied from the factory in traffic white, similar to RAL 9016, and can be matched to any colour or coating of the door leaf. The side frame is available in 140 mm or 120 mm. The variable frame anchor set is supplied for fixing the frame construction.
Lintel mounting
Installation situation
Prefabricated concrete garages often lack the lintel required for installation.
Solution
All Novoferm sectional doors can be used as external stop doors without a reinforced header/angle frame using a special aluminium frame set that is fitted to the door frame. The frame is factory-matched to all colours or coatings of the door leaf. The top of the frame is available in 145 mm or 157 mm. The variable frame anchor set is supplied for fixing the frame construction.
HIGHLIGHTS
- All Novoferm sectional doors can be used for the aluminium frame set
- Can be used for all door widths up to BRB 5,500 mm (BRH max. = 2,625 mm)

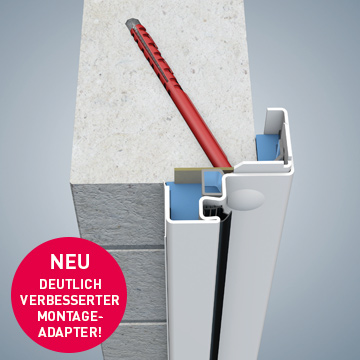

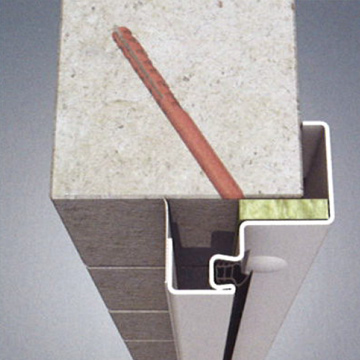

ANCHOR FASTENINGS FOR EVERY APPLICATION

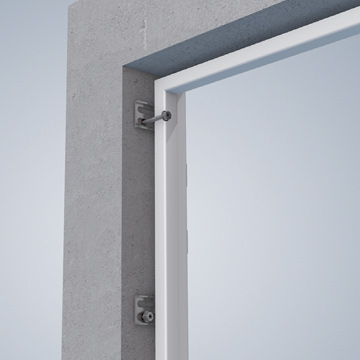

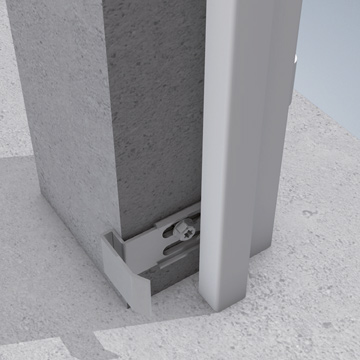

VARIABLES ZARGEN-ANKER-SET

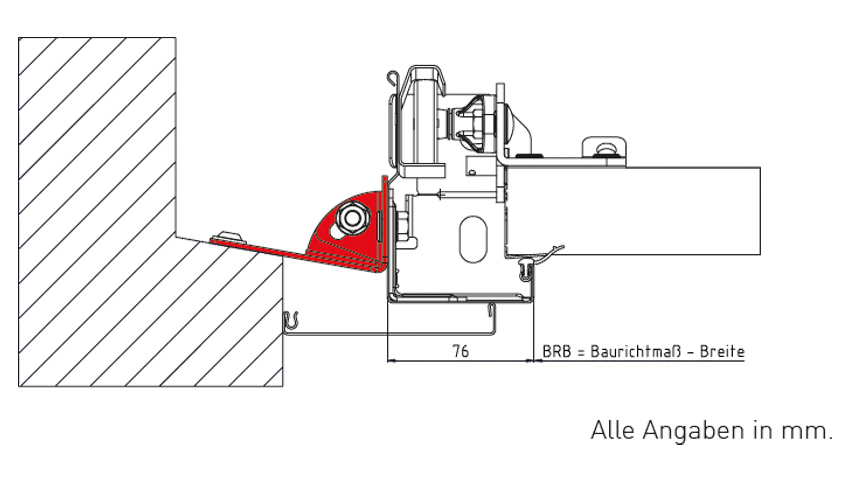

3D-MONTAGEANKER
- Can be used if the side stop is too low or non-existent
- Bridges facing bricks or insulating layers
- Supplied in a set of 10 pieces
- Optimum fastening of angled frames for sloping side walls, frequently used for prefabricated garages
- Angle adjustable from 70 - 110
- Supplied in a set of 10 pieces

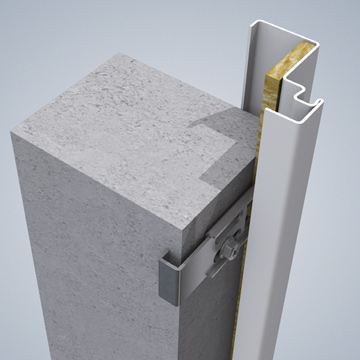

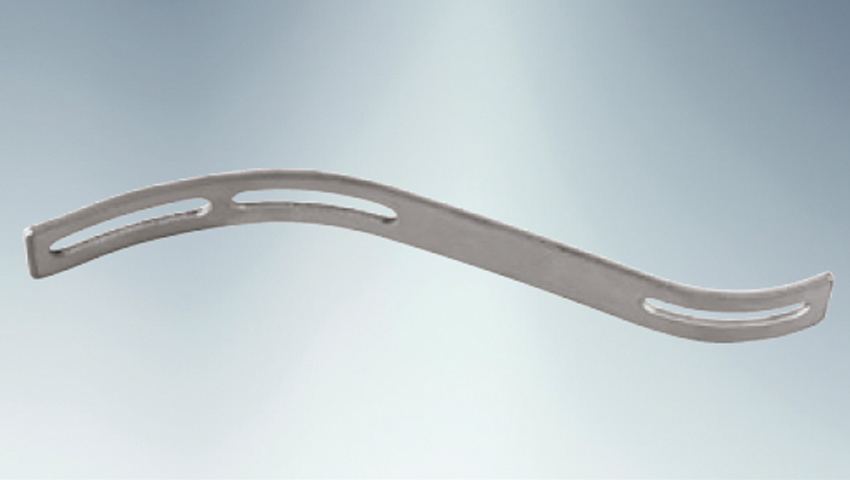

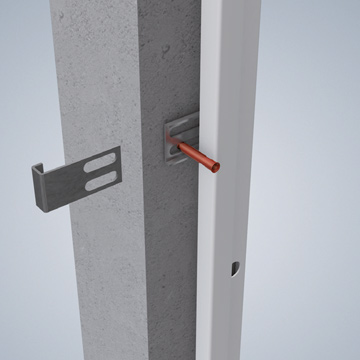

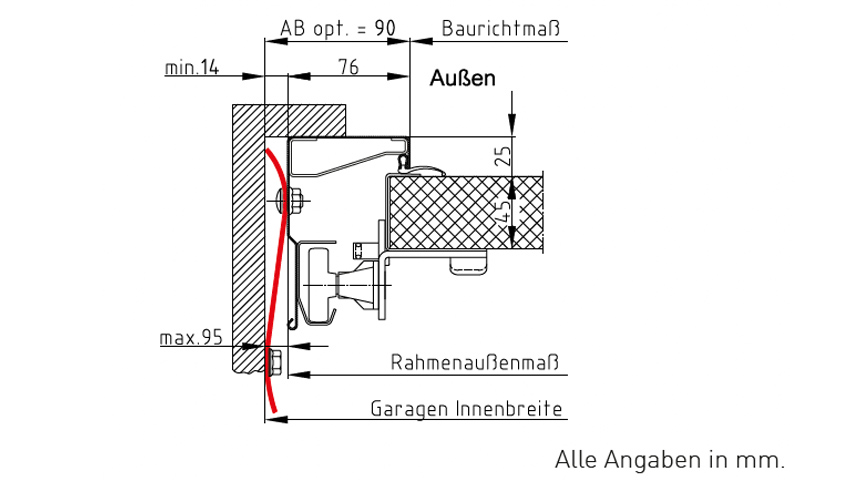

S-ANKER-SET
- Enables stable fastening of angled frames if there are insufficient fastening options in the immediate area of the frames
- Bridges facing bricks or insulating layers
- Distance to the wall min. 14 mm, max. 95 mm (mouldable)
- Supplied in a set of 10 pieces

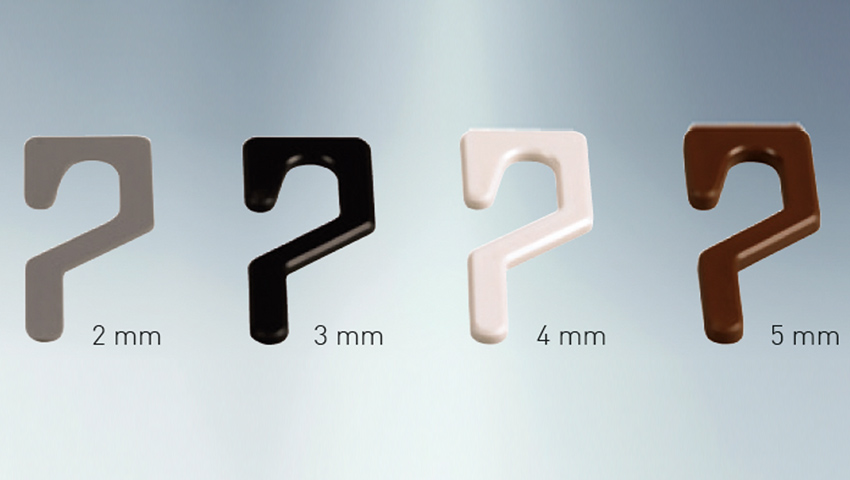

SPECIAL PLASTIC ANCHORS
RENOVATION SOLUTIONS IN DETAIL

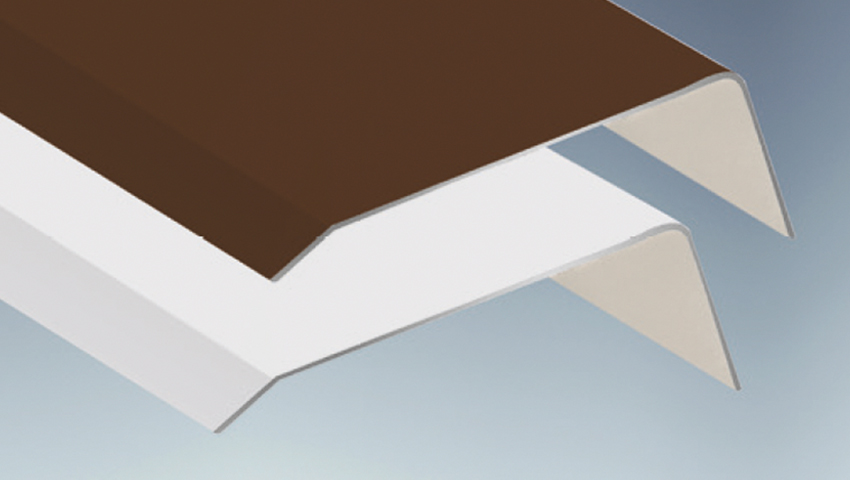

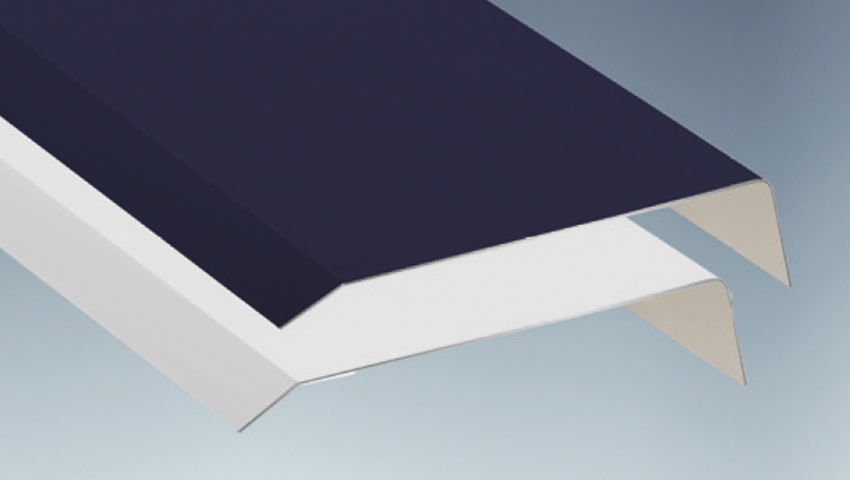

ANGLE FRAME PANELLING PROFILES
ANGLE FRAME PANELLING PROFILES
- Standard white coated angle frames are covered
- Uniform colour appearance for coloured and coated door leaves
- Panelling profile l 20.5 x 50 mm for partially visible angled frame
- Cladding profile 20.5 x 80 mm for fully visible angled frame (e.g. installation in the opening)
- Above notch for complete covering of the frame
- Cannot be used in conjunction with the aluminium frame set or thermal frame set

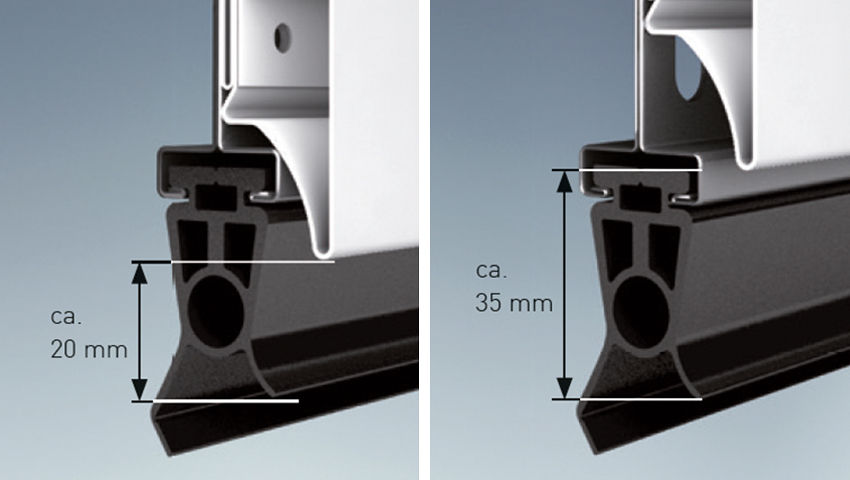

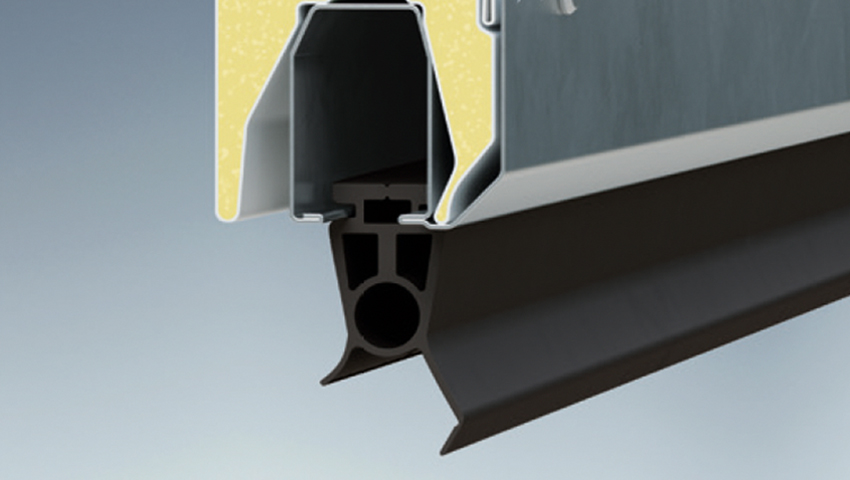

BODENPROFIL ISO 20 / ISO 45 EVO VARIABLES
VARIABLES BODENPROFIL ISO 20
- Compensates for sloping floors on one side up to 15 mm
- Adjustable via slotted holes in the rail of the rubber end profile
- Standard for all ISO 20 sectional doors
VARIABLES BODENPROFIL ISO 45 EVO
- Compensates for sloping floors on one side up to 10 mm
- Adjustable via slotted holes in the rail of the rubber end profile
- Standard for all ISO 45 EVO sectional doors

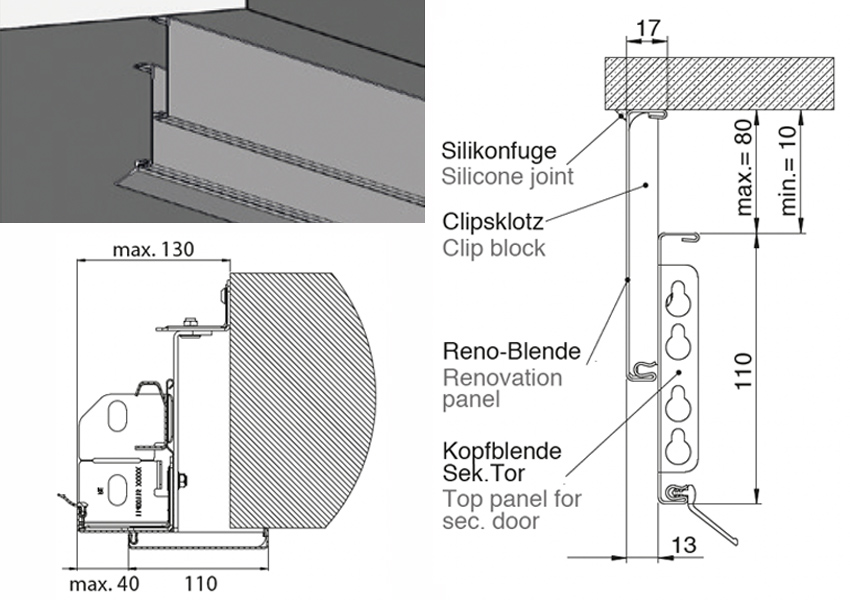

RENOVATION PANELS
The (standard) end panels (height 110 mm) are used as renovation panels. The standard head panel can be "doubled" using a clip block.
A minimum of 10 to a maximum of 80 mm can be covered in the lintel area.
These renovation panels can also be used for the side panelling of the frames.
Up to 70 mm can be covered at the side (installation in the opening).

STEPPED RENOVATION FRAME
STEPPED RENOVATION FRAME
- Ideal renovation solution when replacing an up-and-over door with a sectional door
- Screed rail does not need to be removed
- Sectional door leaf completely seals the door opening
- Standard with ISO 20 and ISO 45 EVO Novoferm sectional doors
ISO 20 RENO
ISO 45 EVO RENO


SOLUTION FOR GARAGES WITHOUT POWER SUPPLY
Novoferm Garagentorantrieb NOVOMATIC 423 ACCU

The Novomatic 423 Accu has an innovative design and is a flexible solution for garages without a power connection.
The operator is therefore ideal for retrofitting automation when replacing old garage doors. A battery pack, which can also be extended with a solar module, serves as the energy supplier. However, the operator can also be connected to the mains supply using a charge controller without damaging the battery.
In the event of a power failure, the operator opens and closes as usual as long as the battery is charged.
SOLUTION FOR GARAGES WITH LOW CEILINGS
Novoferm garage door operator NovoPort® Speed system


Anyone renovating their garage today not only wants it to look better, they also want it to open more easily and not consume too much energy during operation. With the combined NovoPort® Speed system consisting of door, operator and hand-held transmitter, you can raise the comfort level at the touch of a button and eliminate inconvenience: No more getting out in the rain or cold and laboriously opening and closing the door by hand! The door and operator are perfectly matched and do not require any additional lintel.
If the door fits, so does the operator!
SELECTION OF DOORS AND FRAMES
CHOOSE YOUR FAVOURITE DOOR OR FRAME:
COMPARISON DOORS
Comparison of multifunctional steel doors
Door series | Rebate type | Fire protection | Safety and security | Bullet-resistant | RS | Sound insulation | Heatinsulating | Door design | Also forexterioruse | DIN EN 14351-1 |
NovoPorta Premio | Thick rebate | T30 (EI2 30) T60 (EI2 60) T90 (EI2 90) | RC 2 | FB 4 | - | up to RW= 53 dB | min. 1.4 W / (m2*K) | Wall flap | - | - |
NovoPorta Plano | butt-jointed | T30 (EI2 30) | RC 2 | - | - | up to RW= 42 dB | min. 1.5 W / (m2*K) | Door, 1-leaf | - | - |
DOOR SERIES IN COMPARISON (REBATE TYPE)
Door series in comparison (rebate type)
Novoferm multifunctional steel doors are available with a cosy thick rebate and flush-fitting with flush design.
NEWPORT PREMIUM
NEW FLAT DOOR


With a flush-fitting module, the NovoPorta Plano door is installed flush with the frame in the wall.
With a rebated NovoPorta Premio door, on the other hand, the door leaf rests on the frame.
Comparison of tubular frame doors
Door designation | Approval / | Frame | T30 | T90 | Smoke | RC 2 | RC 3 | Heat |
NovoFire RS | P-120003623-10 | aluminium | - | |||||
NovoFire T30 | Z-6.20-1845 | aluminium | - | - | - | - | ||
NovoFire F30 | Z-19.14-1769 | aluminium | - | |||||
NovoFire Thermo EI30 | Performance | aluminium | - | - | - | |||
NovoFire Glass 30 F30 | Z-19.14-2393 | aluminium | - | |||||
NovoFire T90 | Z-6.20-1836 | aluminium | - | - | ||||
NovoFire F90 | Z-19.14-1771 | aluminium | - | |||||
aluminium Outer door | - | Aluminium | - | - | - | |||
NovoFire Steel RS | P-5022 DMT DO | Steel | - | |||||
NovoFire Steel T30 | - | Steel | - | - | ||||
NovoFire Steel F30 | - | Steel | - | |||||
Forster presto RS | P-120004378-10 | Steel | - | - | - | |||
Forster fuego T30 | Z-6.20-1873 | steel | - | - | - | - | ||
Forster fuego Sliding door T30 | Z-6.20-2181 | steel | - | - | ||||
Forster fuego F30 | Z-19.14-1382 | steel | - | |||||
Forster fuego T90 | Z-6.20-1881 | steel | - | - | ||||
Forster fuego F90 | Z-19.14-1973 | steel | - | |||||
Forster unico | - | steel | - | - | - | |||
Forster unico EI30 | Performance | steel | - | - | - |
Montage
Simple assembly process and fast frame backfilling
ATTRACTIVE IN EVERY ENVIRONMENT, FIXED IN MANY WALLS!
Depending on the door type, Novoferm doors offer you a choice of different, consistently fast, simple and clean installation methods and options for frame backfilling.
NOVOPORTA PREMIO FRAMES WITH FACTORY-FITTED FIRE PROTECTION
NOVOPORTA PREMIO FRAMES WITH FACTORY-FITTED FIRE PROTECTION
ONE FRAME - ALL POSSIBILITIES.
YOUR BENEFITS AT A GLANCE!
- No frame backfilling during installation, therefore no setting or drying times
- Suitable for 1- and 2-leaf Premio EI30 / EI2 30 doors up to the maximum BRM sizes of 1,375 x 2,500 mm/ 2,500 x 2,500 mm
- No preparation work for backfilling (e.g. lugging mortar bags, water connection, no mixing, no masking, etc.)
- Independent of ambient site temperature
- Ideal for doors and frames that are coated in RAL colour and are installed in a later construction phase
- Tested to EN 1634 with European Technical Assessment to ETA-17/0443
- Particularly environmentally friendly, as no residual materials need to be disposed of Highly economical and maximum safety: the error rate for the frame backfilling, which is important in terms of fire protection, is zero. The frame can be installed with the usual fixing materials and tolerances. No special features during installation!

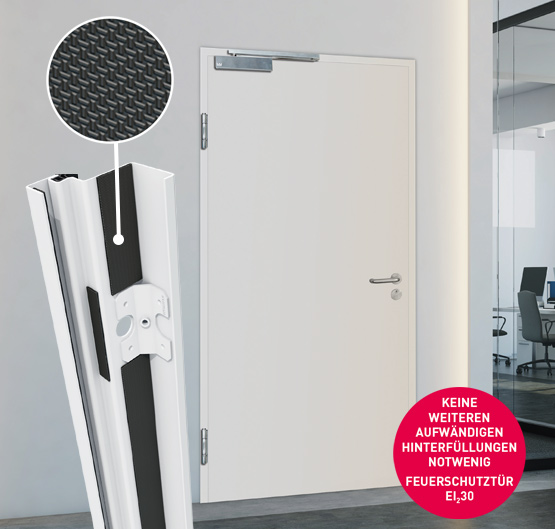

NOW ALSO WITH FIRE PROTECTION EX WORKS
Only available from Novoferm.
Installing doors without time-consuming frame backfilling on site. Who wouldn't want that?
With the EasyFit system from Novoferm, it's now very easy. For this purpose, the standard corner frame is prepared with factory-fitted special foamers that expand in the event of a fire in such a way that the gap between the frame and wall is reliably sealed. This guarantees a 30-minute fire resistance time. All the usual backfilling work, which is always associated with additional expense, can be omitted. This is particularly noticeable in drywall construction, where time and speed are more important than ever. With EasyFit corner frames, you are not dependent on additional materials, ambient temperatures, drying times or water connections.
And most importantly:
The error rate is reduced to a minimum. Incorrect or incorrectly inserted material is impossible with EasyFit. And as the EasyFit system is an addition to the familiar and universally applicable NovoPorta Premio frame construction kit, there is nothing new or special to consider during installation - it couldn't be safer!
Just screw it on and you're done. That's EasyFit from Novoferm.
GOOD IN MASONRY AND CONCRETE. EXCELLENT IN DRY CONSTRUCTION.
NovoPorta Premio fire protection doors with EasyFit corner frames are particularly suitable for dry construction with steel stud walls min. F30-A incl. 2-part 2140B surround frame and overhead door closer. The EasyFit system with rebate screw installation, incl. installation set (screws, dowels, overhead door closer and self-adhesive plastic cover profile) also simplifies installation in exposed brickwork and exposed concrete. The addition of the counter frame 2140B to form a 2-part surrounding frame is optional. The product range includes variants for single and double-leaf doors in the entire Premio size range up to 1,375 x 2,500 mm/ 2,500 x 2,500 mm, also in combination with smoke protection and sound insulation.

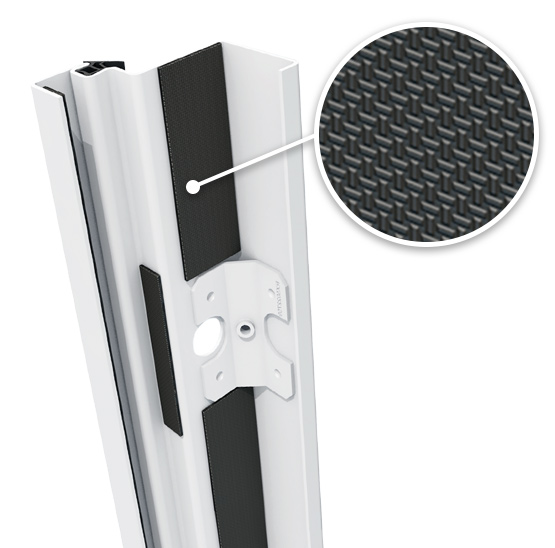

This is how EasyFit works:
strips of intumescent fire protection material are inserted into the frames at the factory. It expands from 200 °C up to 10 to 40 times its original volume and remains extremely dimensionally stable. In the event of fire, a 30-minute fire resistance time is guaranteed. EasyFit is tested in accordance with EN 1634, approved by the building authorities via European Technical Assessment ETA-17/0443 and classified as EI2 30-1 or EI2 30-2.
Element consisting of:
- Premio door leaf with standard corner frame
- Rebate screw installation incl. complete installation set
- Plastic cover profile
- Overhead door closer
- Factory-fitted EasyFit back panel
Element consisting of:
- Premio door leaf with 2-part surround frame 2140B for wall thicknesses standard 100 / 125 / 150 mm (for special wall thicknesses 100 - 300 mm please note longer delivery time)
- Overhead door closer
- Factory-fitted EasyFit back panel

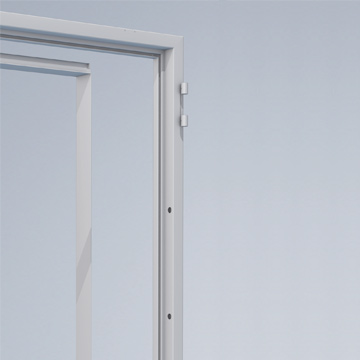

THE UNIVERSAL FRAME PROFILE 2140B
THE UNIVERSAL FRAME PROFILE 2140B: ONE FOR ALL INSTALLATION CASES
The corner frame is standard, while the supplementary universal profile, which does not need to be backfilled, is special. Together, this clever combination of front and counter frame results in a two-part 2140B surround frame. And it has a lot to offer, because even corner frames that have already been installed can be subsequently supplemented - or rather: refined - with the counter frame.
Further advantages:
According to the approval, only the frame front shell needs to be backfilled - the counter shell can remain empty. Various backfilling methods make installation easier, as do the installation sets available for practically all wall types (see pictures).
It goes without saying that the NovoPorta Premio together with the universal frame profile 2140B is approved as a complete system - with smoke, sound and fire protection (EI2 30, EI2 60, EI2 90) as well as burglar-resistant features.
With the 2140B frame profile, you can realise practically any idea, because it not only looks impressively good:
With the available installation sets for all wall types, it can also be quickly fixed and neatly backfilled.
Depending on the installation team and installation situation on the construction site, several approved types of backfilling are flexibly available.
The clever combination of front and counter shells means that installation is always impressively quick and clean.

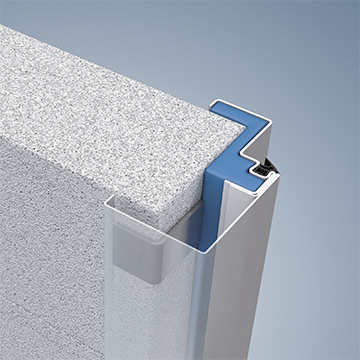

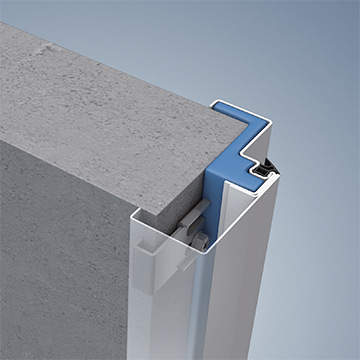

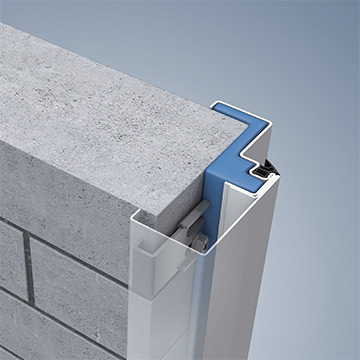

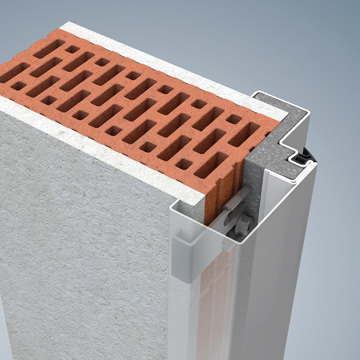

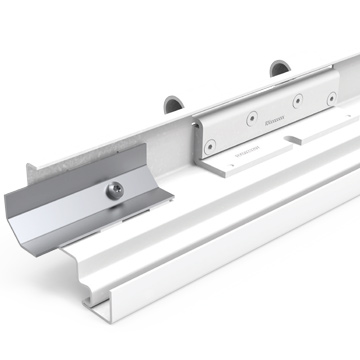

QUICKLY MOUNTED WITH SLIDING ANCHORS
QUICKLY MOUNTED WITH SLIDING ANCHORS
Available for masonry and concrete up to a wall thickness of 300 mm.
For EI2 30 now also with factory-fitted EasyFit backfill.
* Minimum density 40 kg/m3, melting point > 1,000 °C, building material class A1 or Euroclass A1

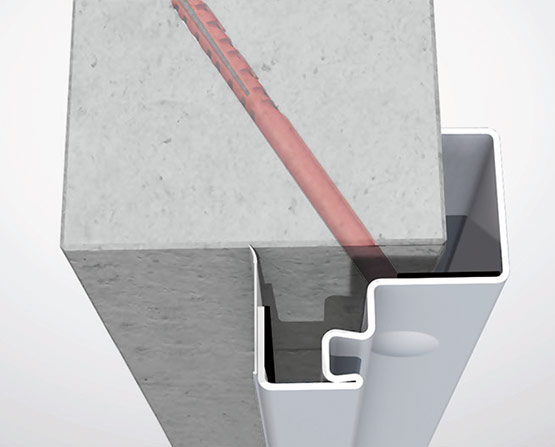

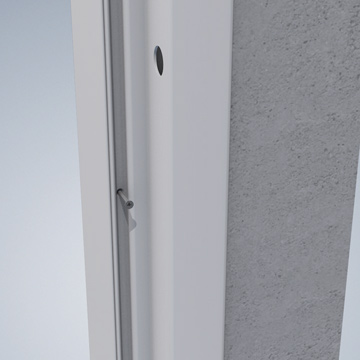

REBATE SCREW MOUNTING
THE PREMIO GENERATION ALSO SCORES HIGHLY WHEN IT COMES TO INSTALLATION:
With just one screw per fixing point!
Whether with a normal corner frame or as a two-part surround frame 2140B:
Novoferm rebate screw assembly is the quick and clean method for the attractive assembly of frames.
The ingenious thing about it is that only one screw per fixing point is needed to guarantee maximum stability. As only half the number of screws is required, installation is considerably faster. It also looks very good, as the drill holes concealed in the frame rebate are fitted with paintable cover caps and are completely invisible when the door is closed. The process is approved by the building authorities for EI2 30, EI2 60 and EI2 90, smoke protection or multi-purpose doors as well as for doors with burglar-resistant features. It can be used on exposed concrete and masonry walls (for EI2 30 also on plastered walls), but also on plasterboard installation walls with timber studs of category F30-B or higher (or classified with at least EI 30). If the finished floor is not yet in place, the corner frame can also be extended by 20 mm using the optionally available floor spacer adapter.

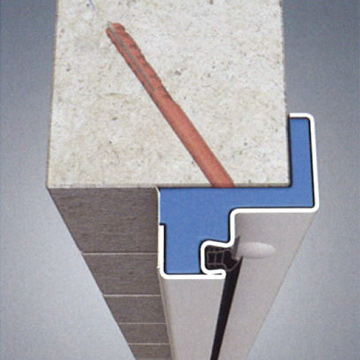

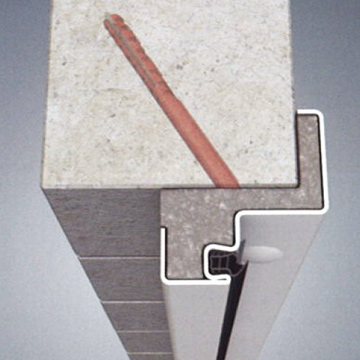

CONCEALED SCREW CONNECTION, QUICKLY BACKFILLED
THE IDEAL DRY CONSTRUCTION SOLUTION - THE NOVOPORTA PREMIO EI2 30 WITH EASY-TO-BACKFILL FRAME PROFILE 2140B
THE IDEAL DRY CONSTRUCTION SOLUTION - THE NOVOPORTA PREMIO EI2 30 WITH EASY-TO-BACKFILL FRAME PROFILE 2140B

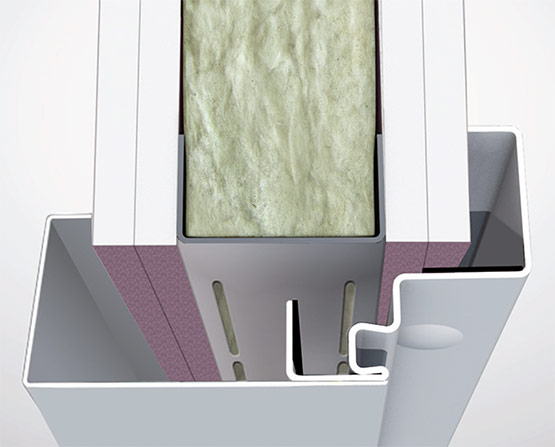

Lightweight partition walls in the F30-A category and above or with the classification EI 30 or higher have proven to be a quick, clean and flexible fire protection solution in interior construction. With the NovoPorta Premio EI2 30 door system, specially designed for installation walls, doors and frames can be installed just as quickly, easily and cleanly. The system consists of the attractive, high-quality NovoPorta Premio steel door and the two-part 2140B frame profile.
The approved frame backfillings with Novoferm fire protection foam and loose mineral wool* are a major advantage. According to the approval, only the rebate area of the front shell needs to be backfilled, while the special 2140B counter shell can remain free. The required mineral wool is usually already present at the installation site. Traditionally backfilled with plasterboard strips, the 2140B frame profile can also be used for Premio variants with EI2 60 and EI2 90 approval. The complete system is tested in accordance with EN 1634-1 and -3 and also fulfils the requirements of the European product standard EN 16034 or is covered by the ETA. The special installation sets for EI 30-EI 90 walls (or for walls from F30-A) with the practical sliding anchors and self-tapping screws for UA profiles measurably reduce the installation time.
* Minimum density 40 kg/m3, melting point > 1,000 °C, building material class A1 or Euroclass A1

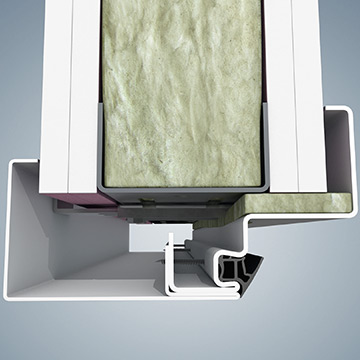

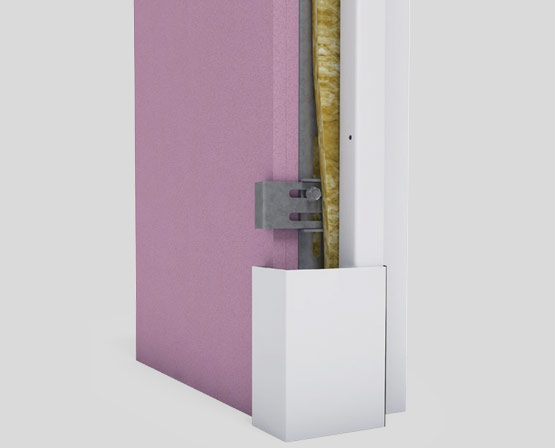

FRAME BACKFILLING WITH COMMERCIALLY AVAILABLE MINERAL WOOL
- Mineral fibre insulation material, bulk density ≥ 40 kg/m3, melting point > 1,000 °C, building material class A1 or Euroclass A1
- The required mineral wool - as loose wool or in strip form - can be easily obtained from specialist dealers
- Cost-effective and user-friendly, as it is easy to transport, has short set-up times and can be processed cleanly and quickly
- Time-saving, as only the rebate area in the front part of the 2140B frame is backfilled with loose mineral wool, while the rear part can remain empty Tested in accordance with EN 1634-1 and -3
- Approved for Premio EI2 30 up to BRM size 1-leaf 1,375 x 2,500 mm, 2-leaf up to 2,500 x 2,500 mm

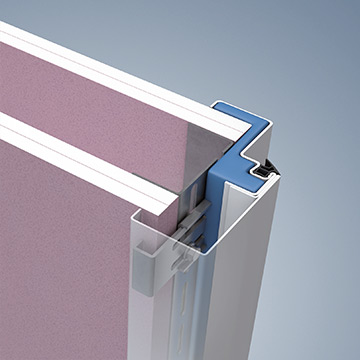

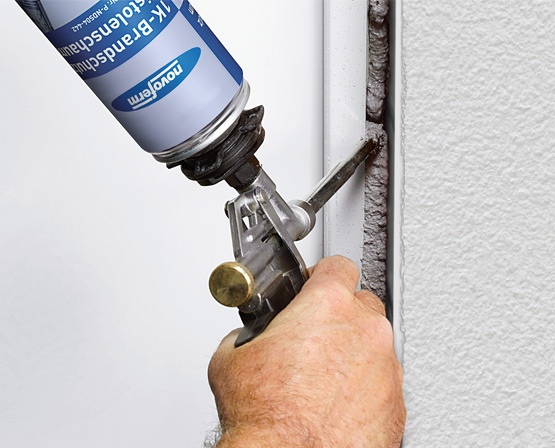

BACKFILLING WITH FIRE PROTECTION FOAM
- Only with Novoferm 1C fire protection gun foam (no other over-the-counter foams may be used!)
- Significantly reduces noise emissions when closing doors
- Cost-effective and user-friendly as it is easy to transport, short set-up times, clean and quick to apply
- Time-saving, as only the rebate area in the front part of the 2140B frame is backfilled with fire protection foam, while the rear part can remain empty. (Protruding foam is covered by the rear section and therefore does not need to be cut off or removed).
- Cost-effective, as the yield is approx. 12 running metres per can of fire protection foam - so there is enough foam available for at least two single-leaf door elements
- Tested in accordance with EN 1634-1 and -3
- Approved for Premio EI2 30 up to BRM size 1-leaf 1,375 x 2,500 mm, 2-leaf up to 2,500 x 2,500 mm
Note on REACH Regulation (EC) No 1907/2006 with restriction entry No 74 on the use and placing on the market of diisocyanates
Diisocyanates are used in the production of polyurethane foams, among other things, but are also used in sealants, coatings and other applications. This restriction entry is intended to minimise the health risk to industrial and professional users due to possible inhalation and/or dermal exposure when using diisocyanates - in the uncured state.
The aim of the restriction is to avoid unsafe uses, but not to reduce the availability of the corresponding products. Due to the unique properties of PU foams, these products are expected to remain widely available.
Like all PU foams, our fire protection foam is also affected by this regulation. It stipulates that from 24 August 2023, all commercial processors will only be allowed to use PU foams if they can provide proof of safety training in advance.
These training courses have been prepared by the industry associations of diisocyanate manufacturers in all languages of the European Union in accordance with the legal requirements. These training materials are made available via an e-learning platform. All processors can find this platform at www.safeusediisocyanates.eu.
The labelling of our fire protection foam is provided with a corresponding note indicating the need for this training.
FRAME ADVANTAGES DRY CONSTRUCTION
FRAME ADVANTAGES DRY CONSTRUCTION

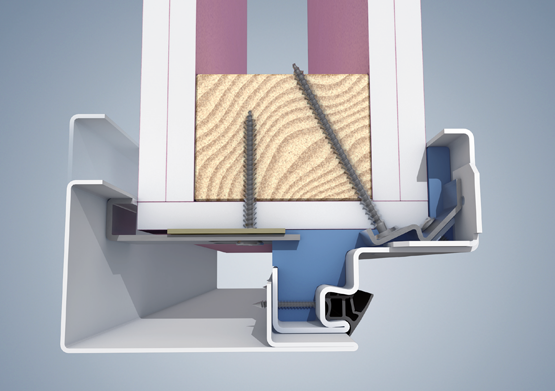

IF YOU LIKE WOOD, YOU WILL LOVE THE NOVOPORTA PREMIO
Carpenters and environmentally conscious builders like to work with wood as a renewable raw material. Their tools are designed for this and not for working with metal.
When designing the NovoPorta Premio, it was therefore important to us that the simple and quick rebate screw method of the 2140B frame profile can also be used for installation on timber stud walls.
The EI2 30 Premio classification now also includes EI 30 (or higher) assembly walls with timber studs (or assembly walls from F30-B) as well as a large number of other clad timber supports and beams (at least EI 30 or R 30).

THE CHOICE IS YOURS - WE OFFER EVERYTHING YOU NEED FOR FAST AND CLEAN WORK!
If you only have to backfill half of it, you can work twice as fast - especially if even the material can be selected flexibly. As the counter shell can remain completely free with the EI2 30 frame profile 2140B, you can backfill the rebate area of the front shell with loose mineral wool, for example. As a popular filling material for at least F30-A or EI 30 walls, this is usually already present at the installation site. For EI 30 stud walls, please always observe the minimum panelling thickness of 25 mm per wall side. This guarantees that you do not have to make any recesses/notches in the 3-sided UA profile, even when using 3D door hinges or electrical installation parts, for example. Time savings are guaranteed!
The details at a glance:
* Minimum density 40 kg/m3
Melting point > 1,000 °C
Building material class A1 or Euroclass A1

Your specialist portal for dealers and processors
Now even more powerful: The Novoferm specialist portal
A powerful and user-orientated range of services is now available to you, which you can use and compile according to your personal requirements. Regardless of whether you need professional installation instructions or a guide for a sales pitch - our portal will become your toolbox on the Internet. Thanks to the simple and clear user interface, you can find your way around and get started in no time at all.
WHAT CAN I EXPECT IN THE SPECIALIST PORTAL?
SUPPORT FOR YOUR DAY-TO-DAY WORK
Highlights of the specialist portal at a glance
SPECIALIST PORTALS
Your powerful online portal with all services and information!
- Sales promotions at TOP purchase prices for your margin
- Complete documentation on all Novoferm products
- Your personal dashboard & your own favourites area
- Comprehensive seminar programme for products, services and installation
- Digital sales support
- Configurator / quotation and ordering system
- BIM models, CAD drawings & technical details
- Holistic product solutions based on 3D buildings
- Practical work and assembly aids
- Easy contact with your sales team, product specialists and support

Where can I find the Novoferm Extranet?
www.novoferm-extranet.de
Here you can register for the Novoferm Extranet and use it free of charge.
Advance booking and advertising
Advance booking and advertising
We for you - your path to success
Professional, effective advertising is essential for a successful company. This is why Novoferm supports its customers and partners with a marketing programme tailored to their needs and target groups.
From the design of your salesroom and support in the area of outdoor advertising to the provision of small give-aways and an attractive online offer through to professional seminars and a wide range of advertising templates.
We have compiled our successful service programme for you under the motto "We for you".
Find out here how you can actively promote your sales.

Where can I find further information?
Further information can be found on the Novoferm Extranet or the Novoferm specialist portal:
WWW.NOVOFERM-EXTRANET.DE

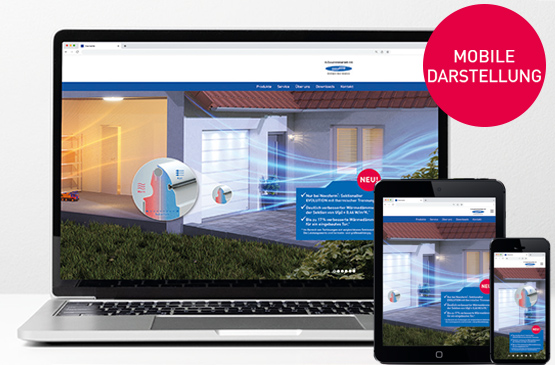

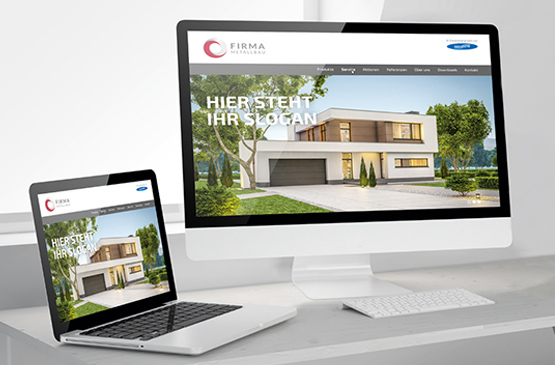

YOUR NEW WEBSITE WITH NOVOFERM
YOUR NEW WEBSITE WITH NOVOFERM


Novoferm supports you in creating your new website - with the Novoferm modular system.
Modern design, up-to-date content, maintenance without IT knowledge and more regional awareness.
Where can I find further information?
Further information can be found on the Novoferm Extranet or the Novoferm specialist portal:
WWW.NOVOFERM-EXTRANET.DE
Comprehensive advice
Comprehensive advice
Sales support!
Are your customers looking for a new garage door or do they want to retrofit their door with automation?
Are your customers looking for affordable garage doors or premium doors with maximum features?
In the Success Portal, we offer you valuable argumentation aids to make it easier for you to advise customers face-to-face.
Where can I find further information?
Further information can be found on the Novoferm Extranet or the Novoferm specialist portal:
WWW.NOVOFERM-EXTRANET.DE
Novoferm specialist seminars and further training
EXPERIENCE NOVOFERM SEMINARS LIVE
Novoferm you can touch - and specialist seminars that focus on customer benefits
To immerse our customers even more deeply in the Novoferm product world, we offer them a state-of-the-art training centre with an attractive showroom and adjacent test and technology areas, centrally located in Dortmund, Germany. Here, visitors are given a comprehensive overview of the entire product and service range of the entire Novoferm Group. The focus is on highly qualified training programmes for our partners, held in a modern learning environment. In addition to a training room with state-of-the-art media technology, the spacious showroom provides an insight into the entire product and service range of the Novoferm Group. Innovative and economical solutions take centre stage.

Particularly attractive:
The lively showroom architecture, which stages the products in different, concrete theme worlds. This turns the showroom itself into a stage. Visitors can experience the actual added value directly in real installation situations.
Another centrepiece is the workshop area. Under the guidance of professional trainers, training participants learn how to professionally assemble, install and dismantle doors, gates, frames and operators. In addition to these comprehensive product training courses - in theory and practice - interested parties can also look forward to targeted seminars on management and organisational topics, etc.
Of course, we also regularly present our solutions and products at relevant trade fairs and events. For example, you will find us every two years at BAU in Munich, Security in Essen, Feuertrutz in Nuremberg, ARCHITECT@WORK and many other specialist forums and events.

Further information on the Novoferm showroom, our specialist seminars, topics and dates, as well as trade fairs where you can visit us, can be found on the Novoferm specialist portal at:
www.novoferm-EXTRANET.de
Generate product solutions for your construction project
NOVOFERM SOLUTION GENERATOR
Support in the initial planning phase
The planning and realisation of construction projects place complex and ever new demands on architects, planners and construction companies. The solution generator supports planners and architects in various ways, particularly in the early planning phase:
Based on your construction project, the solution generator helps you to find suitable products, keep an eye on all relevant requirements and create a rough cost estimate.
The solution generator makes it possible to make an initial product selection and concretise the requirements without having to immediately consider all the technical details in depth.
This ensures a pleasant and productive start to the planning process.

Where can I find the solution generator?
WWW.NOVOFERM-EXTRANET.DE To the solution generator
You can find the solution generator in the Novoferm specialist portal / extranet with all other information or as a direct call-up.
NOVOSALES QUOTATION AND ORDERING SYSTEM
Your online configurator for doors, gates and more sales!
- Easy and intuitive configuration of garage doors, multifunctional steel doors, tubular frame doors and standard frames.
- Intelligent configurator with plausibility check to avoid errors
- Modern and clear appearance for even easier user guidance
- Mobile design for use via tablet and smartphone
- Product configuration in real time - 7 days a week, around the clock
- Convenient change from "Offer to your customers" to "Order from Novoferm"
- Quick and detailed creation of CAD drawings
- Extension of the connected spare parts catalogue to include spare parts for older series for sectional garage doors
- Automatic generation of a door list containing all relevant information in a structured form

Where can I find NovoSales?
novosales.novoferm.com
If you are interested, please get in touch with your Novoferm sales contact.

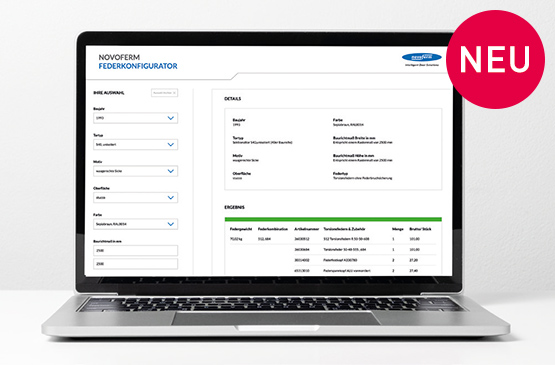

NOVOFERM SPRING CONFIGURATOR
NOVOFERM SPRING CONFIGURATOR


Do you need replacement springs for sectional garage doors ISO 20, 45, 70 or older series?
Then the Novoferm spring configurator will help you to identify and price replacement springs.
Where can I find the application?
Further information can be found on the Novoferm Extranet or the Novoferm specialist portal:
WWW.NOVOFERM-EXTRANET.DE

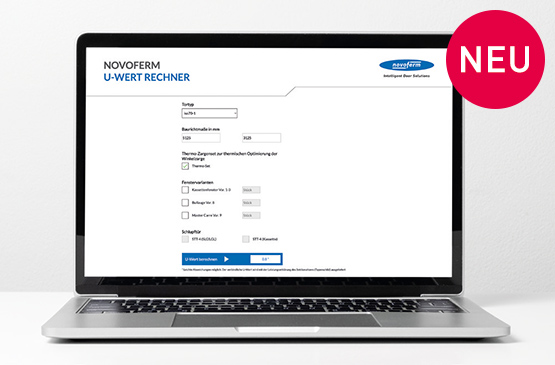

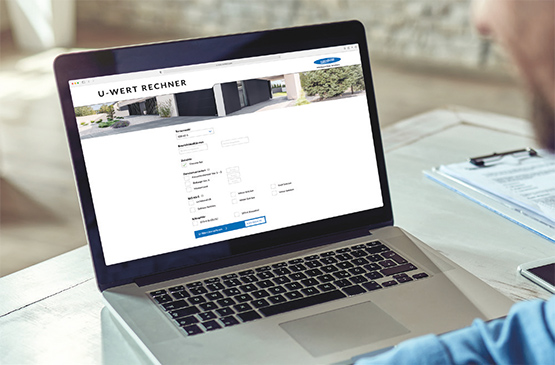

NOVOFERM U-VALUE CALCULATOR
NOVOFERM U-VALUE CALCULATOR


With the Novoferm U-value calculator, you can quickly and easily determine the heat transfer coefficient of Novoferm sectional garage doors installed in the opening.
Where can I find the application?
Further information can be found on the Novoferm Extranet or the Novoferm specialist portal:
WWW.NOVOFERM-EXTRANET.DE
Quick and easy installation
Solutions for all installation situations
In practice, the ideal structural conditions are rarely found. Standard installation is therefore not always possible. Novoferm has developed suitable installation methods and accessories for all conceivable cases, which we describe in detail in our specialised portal.
We also explain the installation, adjustment or programming of our products step by step in our installation instructions and visualised installation animations.
Where can I find solutions for all installation situations?
WWW.NOVOFERM-EXTRANET.DE
Here you can register for the Novoferm Extranet and use it free of charge.

NOVOFERM APP SOLUTIONS
DOCUMENTEN-APP "NOVODOC"
Complete documentation for all Novoferm products!
- Quick help on the go - on the building site, in a customer meeting or at a trade fair
- Mobile, fast access to all Novoferm documents
- Find all documents quickly and share them with other people via a link via WhatsApp or email
- NEW: Quick access to Novoferm documents as well as documents from our partners GEZE, dormakaba, ECO Schulte and KIWI
- The app is suitable for Apple and Android systems
- Simple log-in with your existing user data from the Novoferm specialist portals for dealers or fabricators (extranet)

Clarification app "NovoSite"
The app is used to easily prepare a technical clarification including plan management, digital measurement, integrated measurement check and measurement export. This significantly simplifies the work of site managers, project managers, technicians and measurement technicians.
- Import order from an existing commission (door list from NovoSales)
- NovoSite automatically creates the order, commission and item table
- NovoSite searches the plans and items can be confirmed or reassigned based on suggestions
- Measurement route or route on the construction site can be planned
- Simple comparison of different revision or plan statuses
- Digital measurement with measuring device including measurement transfer, measurement check directly in the app

INSTALLATION APP "NOVOINSTALL"
The NovoInstall app can be used to scan QR codes on Novoferm products - initially steel doors from 2023.
As a result, customers and installers in property construction can quickly view the basic data for the order and configuration details for the product.

Where can I find the apps?
You can find the apps for free use under the respective search term "NovoDocu", "NovoSite" or "NovoInstall" in the App Store or Google Play Store.
For the "NovoDocu app", you can simply use your existing access data from the Novoferm extranet (novoferm-extranet.de).
For the "NovoSite" and "NovoInstall" app, simply get in touch with your sales contact for access.
Novoferm in dialogue with customers
FAST CONTACT WITH SALES, PRODUCT EXPERTS AND TECHNICAL SUPPORT
Whether sales aids, high product quality, delivery times, installation benefits and competitive prices - Novoferm knows from over 65 years of experience what is important to dealers and fabricators. That's why we not only offer a comprehensive product range, but also the services you would expect from a leading supplier.
In our specialist portal you will find quick and easy ways to contact our telephone support team as well as our sales advisors and product experts
WWW.NOVOFERM-EXTRANET.DE
Here you can register for the Novoferm Extranet and use it free of charge.

NOVOFERM NEWSLETTER SERVICE FOR PROFESSIONAL CUSTOMERS
NOVOFERM NEWSLETTER SERVICE FOR PROFESSIONAL CUSTOMERS
Simply stay up to date!
- Continuous information on new products, services and tools
- Sales aids and advice
- Garage door and price promotions at TOP prices for your margin
- Specialist and environmental knowledge
- Practical work and installation aids
- Specialist and renovation solutions
- Qualified further training programmes
- Digital sales aids & tools
- BIM models, approvals, CAD details
- ...

Where can I register for the newsletter service?
www.newsletter.novoferm-loesungen.de
