STEEL FRAMES

COMFORTABLE. RELIABLE. INDIVIDUAL.

Strong frames that can withstand anything.
Being able to rely on quality in the long term is not only a reassuring feeling, it also saves a lot of money in the long term!

As with other key aspects of building services (heating, plumbing, electrics), quality is the measure of all things when it comes to door frames.

A good steel frame is dimensionally stable, keeps the door leaf securely in place and can remain in place even if the door leaf is changed. At Novoferm, "a good frame" means: it fits once and for all, is robust and stable and can really take on anything in everyday life!

Why steel frames from Novoferm?

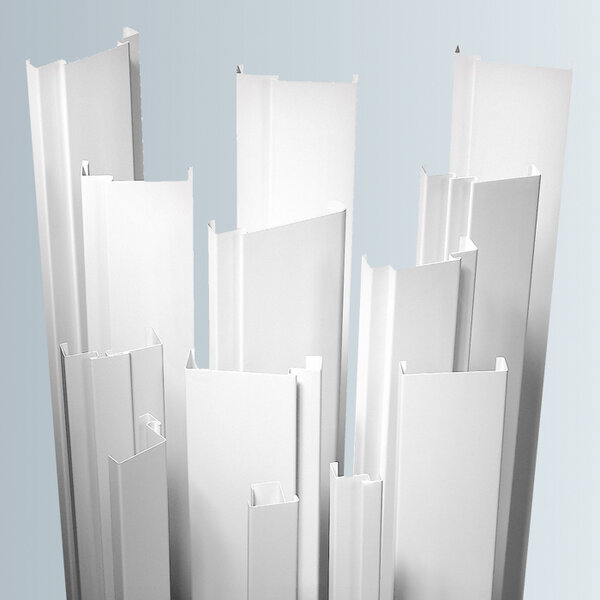

DIVERSITY AND RESILIENCE

Novoferm offers you frames for all installation situations for stud frames, masonry and special cases. They are robust, dimensionally stable and corrosion-protected thanks to hot-dip galvanised sheet metal to DIN EN 10142, sheet thickness 1.5 or 2.0 mm, with high-quality primer as an ideal base for the final coat of paint.

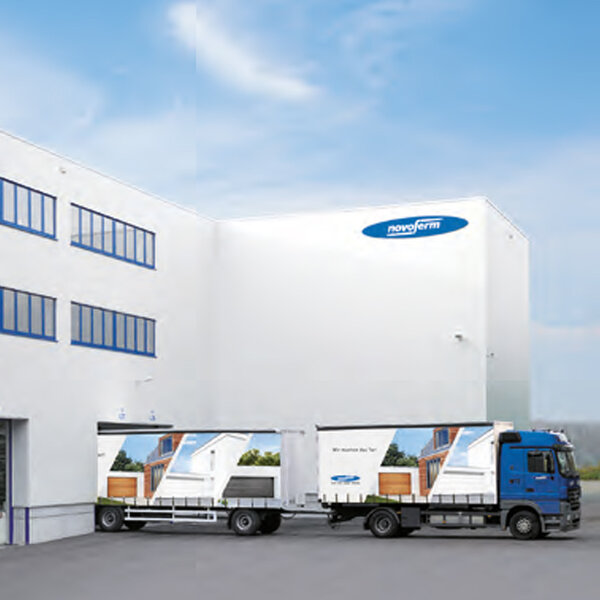

DOORS, GATES, FRAMES DIRECT FROM STOCK

More than 1,000 products are available in our new logistics centre, all manufactured in four German production facilities.

DIMENSIONAL ACCURACY

Novoferm frames are characterised by exact profile geometry and dimensional accuracy by adhering to the narrowest tolerance limits (EN DIN standards / Novoferm factory standards).

FAST DELIVERY PROGRAMMES

Take advantage of our fast delivery programmes for many frame variants and designs.

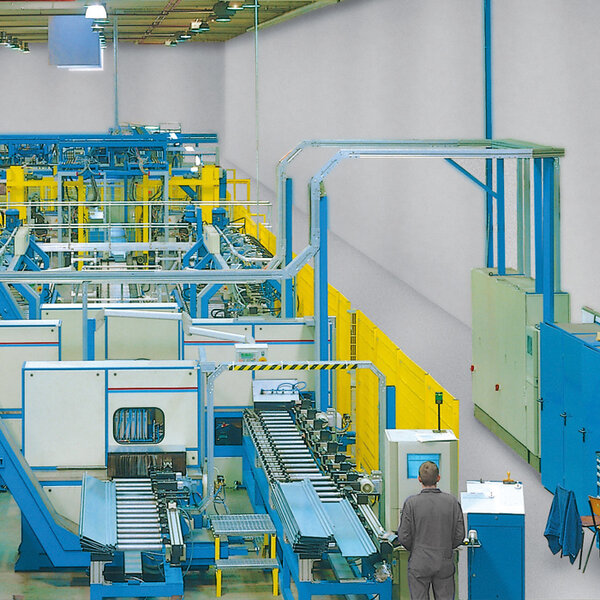

HIGH-TECH FRAME PRODUCTION

1. unmistakable data selection via barcode
2. product labelling by laser printer
3. fully automatic insertion of the die-cuts
4. absolute accuracy of fit

NOVOFERM ZARGEN-COMPENDIUM

You can find the complete Novoferm frame programme on the extranet. There you will find a wealth of free and effective tools with which you can positively influence your customers' purchasing decisions.

THE FRAME OF YOUR CHOICE

Novoferm not only offers a wide range of frames, but also exactly the right product for all required wall types. In addition, our high quality standards guarantee fast installation, high stability and durability. The robust Novoferm frames will outlast several generations of doors.

FOR A SUSTAINABLE FUTURE

Our products meet the requirements for an Environmental Product Declaration (EPD) in accordance with ISO 14025 and EN 15804 of the Programme for Environmental Product Declarations of the Institut Bauen und Umwelt e.V. (IBU) based on the EN 15804 standard.

EPD according to ISO 14025 and EN 15804 Life cycle assessment according to DIN ISO 14040/ 14044I / Product Category Rules (PCR) Doors

NOBLE IN STEEL

Stainless steel frames round off the Novoferm frame programme. These frames are available in exclusive cross-sections and have a sheet thickness of between 1.5 mm and 2 mm, depending on the version. Ask your Novoferm specialist dealer about all the equipment details and possible applications.

SHOW INDIVIDUALITY

A door frame and the door associated with it are like a business card. And should therefore also match the respective house, room and user. Novoferm therefore offers all RAL colours of your choice, RAL design, metallic colours and others for special protection. Anti-graffiti powder possible.
The coloured frames offer the following advantages:
- Powder coating of the highest approval with GSB approval
- Excellent weather resistance
- High gloss and colour stability
- Very good adhesion
- Good corrosion properties
- High surface hardness with good mechanical values
- excellent abrasion resistance
- Stoving temperature 195° C

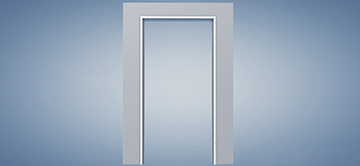

Overview of frame types

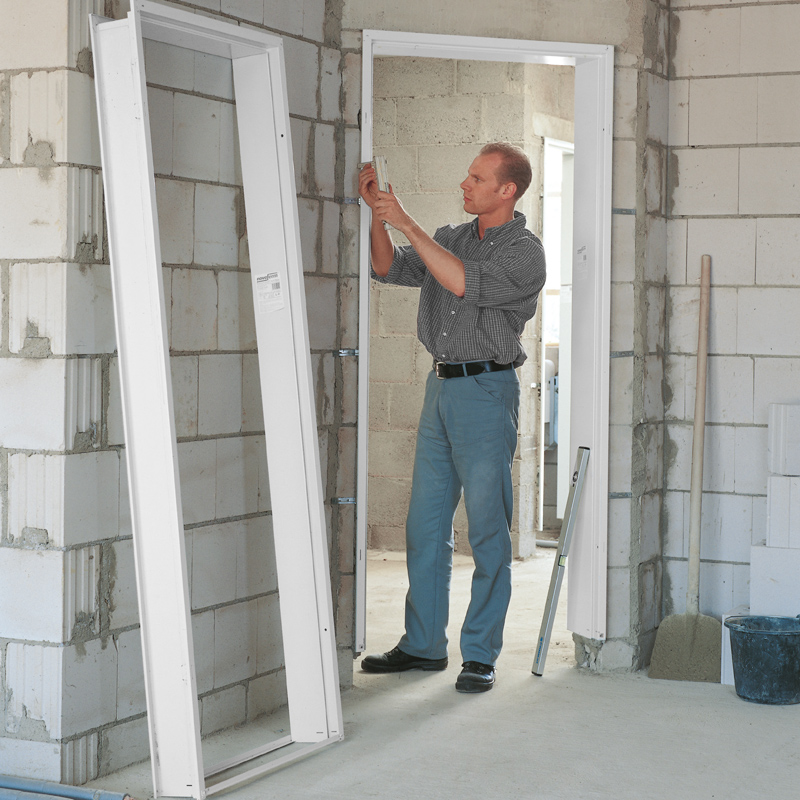

Masonryframes, rock-solid and stable in value - that is the traditional, solid construction method. Modern steel masonry frames from Novoferm are just as stable - ideal for all doors.

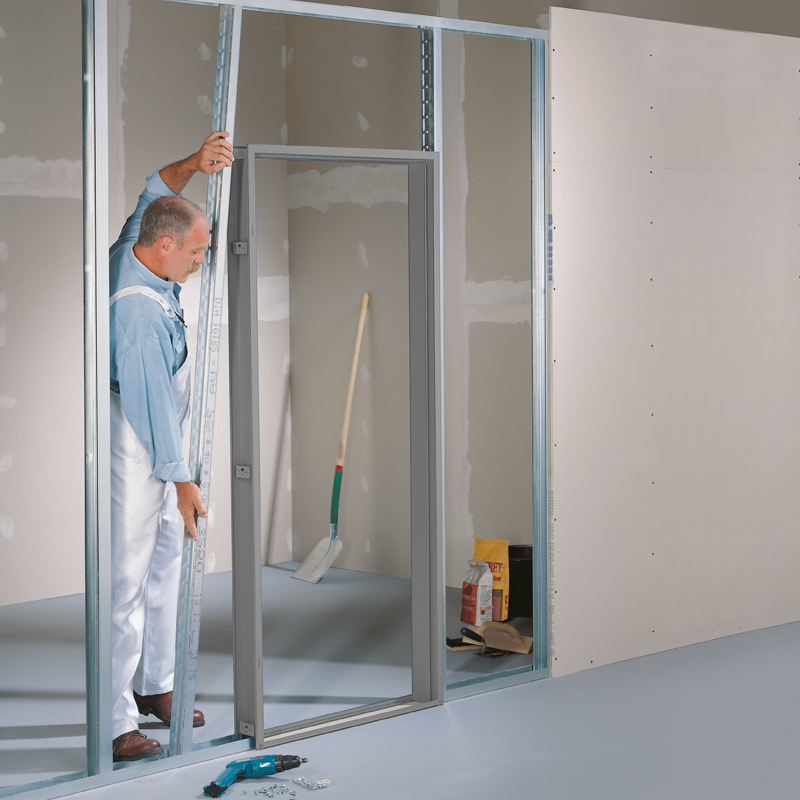

Stud frame frames can be used quickly and easily in drywall construction or in lightweight stud walls. This makes it easy to fulfil the requirements of new living or working spaces.

Dismantled frames for all wall types, many Novoferm frames are also available dismantled on request. The frame variants in stock can be delivered directly to the consignee by parcel service within a very short time.

Highlights Dismantled frames

This video from the area of frames illustrates the advantages of "dismantled frames" in terms of transport, handling and assembly.

You can find further animations at

https://www.youtube.com/NovofermVideos

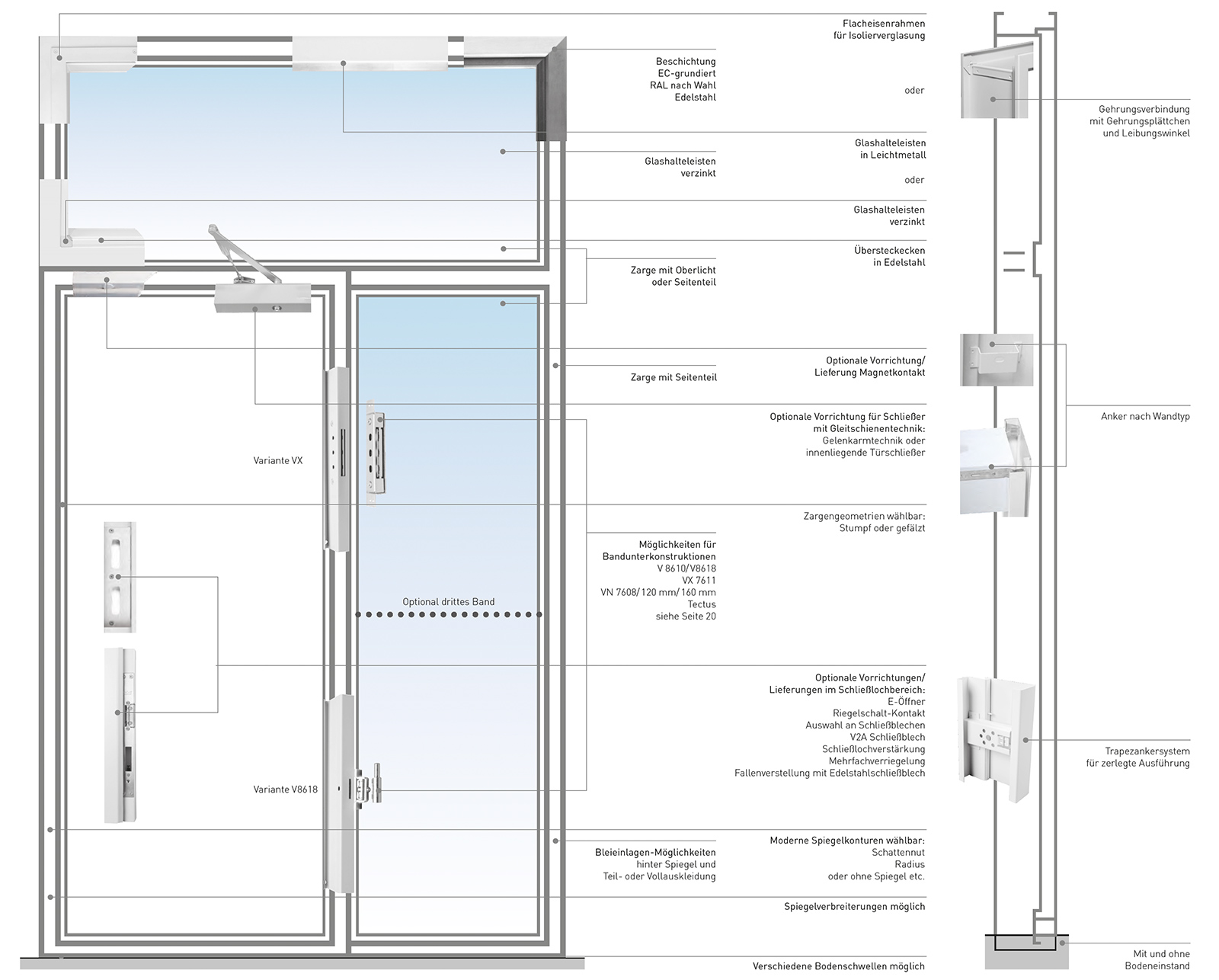

HIGHLIGHTS AND FEATURES

Perfection around the Novoferm frame

Fast delivery programmes

STANDARDISED FRAMES

Available are:
Special frames with standard profile in standard widths

as corner frames
as masonry frames
as stud frame in one- and two-part design

Design:
Rebated, sheet thickness 1.5 mm, galvanised and primed
Express surcharge: 10 % on gross list price
Express delivery: Up to 20 frames, larger quantities on request

Choose from the following optional extras:

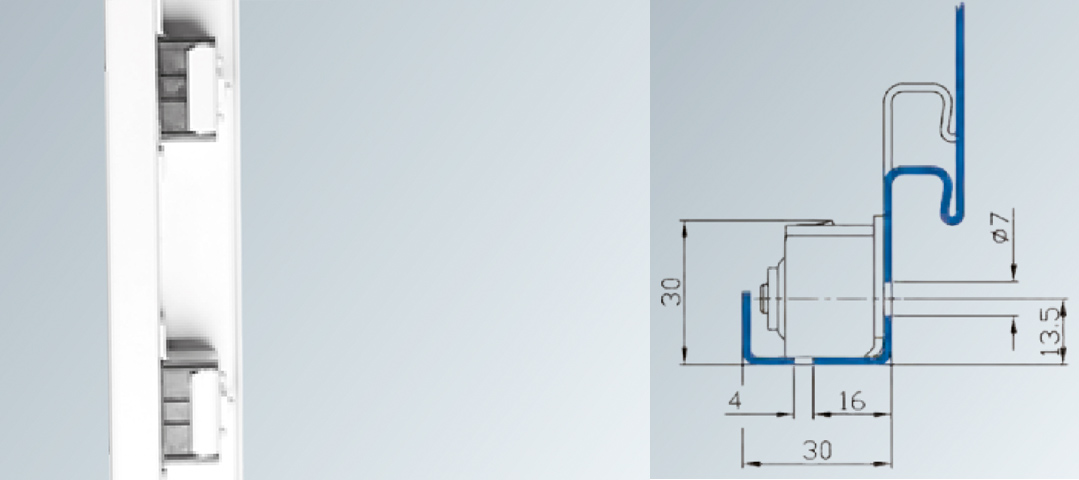

Alternative hinge substructures (VNGR, VNKL, VS 8939, VX)
Locking hole reinforcement MSK 412
Variable lever handle height
Multi-point locking 15 x 20 mm, slotted hole
(Attention: Please specify type when ordering)
Variable floor recess
BRM width up to 1,375 mm
Frame up to 2,250 mm height BRM
Fixture for OTS standard

Customised logistics:
Order by 9.00 a.m. - production time 3 days.
On the 4th day after ordering in the regional warehouse.
Delivery from regional warehouse according to known route plan.
Direct delivery ex works on the 4th day after ordering:
Can be combined with standard items from one loading metre.

Dismantled frame direct to consignee + 3 days.

SPECIAL ZARGEN

Available are:
Special frames in single rebate, double rebate, through and connecting frames

as corner frames
as masonry frames in single and two-part design
As stud frame in single and two-part design

Design:
Rebated and butt-jointed, sheet thickness 1.5 and 2.0 mm possible, galvanised and primed

Express surcharge: 10 % on gross list price
Express delivery: Up to 20 frames, larger quantities on request

Choose from the following optional extras:

- Alternative hinge substructures (VNGR, VNKL, VS 8939, VX)
Locking hole reinforcement MSK 412
Variable lever handle height
Multi-point locking 15 x 20 mm, slotted hole
(Attention: Please specify type when ordering)
Variable floor recess
Width BRM up to 2125 mm
Frame up to 2550 mm height BRM for high door leaf
Width of 60-500 mm infinitely variable in 5 mm increments possible
Mouth width edge of 10-20 mm possible

Customised logistics:
Order by 9.00 a.m. - production time 6 days.
On the 7th day after ordering in the regional warehouse.
Delivery from regional warehouse according to known route plan.
Direct delivery possible on the 7th day after ordering ex works:
Can be combined with standard items from one loading metre.

Dismantled frame direct to consignee + 3 days.

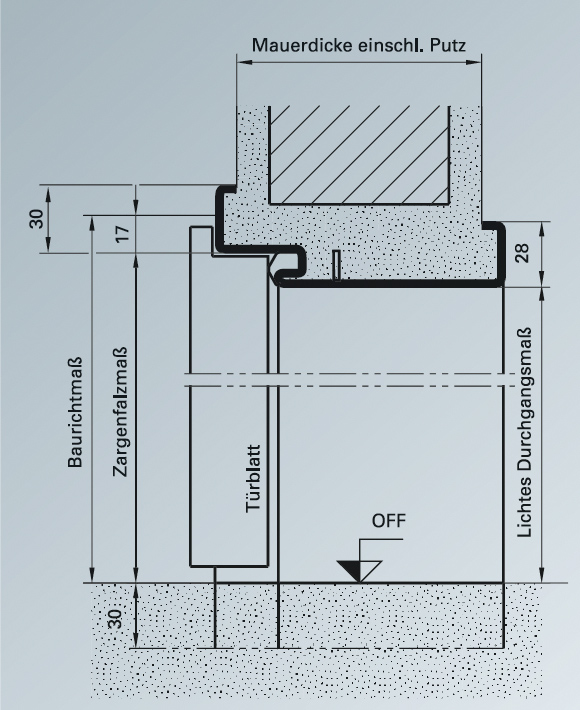

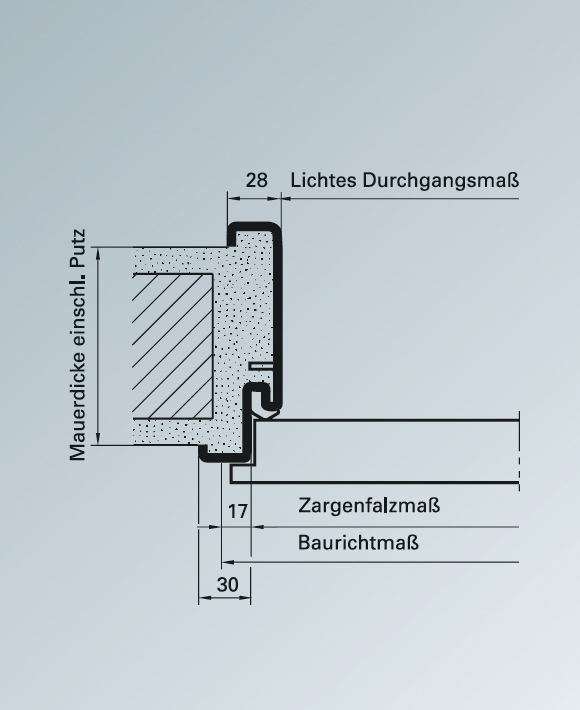

Details of masonry frames

Solid and stable in value - that is the traditional, solid construction method. Modern steel masonry frames from Novoferm are just as stable - ideal for all doors. The Novoferm standard frames (to DIN 18111) are available in many variants, equipped with special systems to accommodate a wide range of hinges.

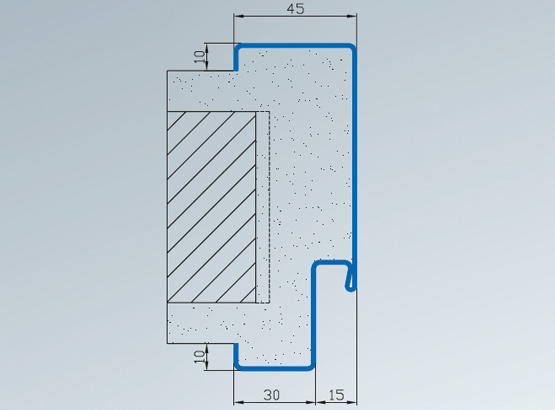

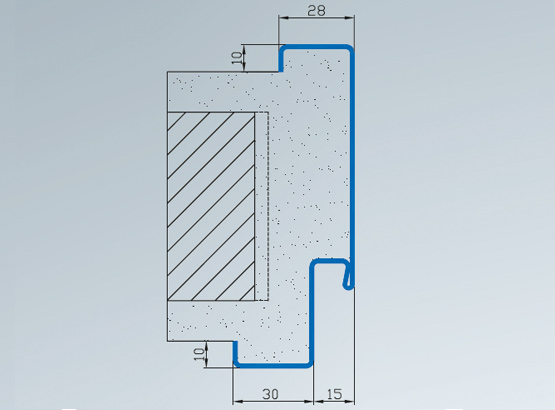

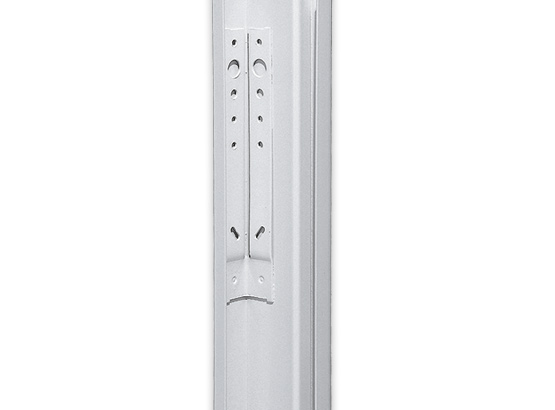

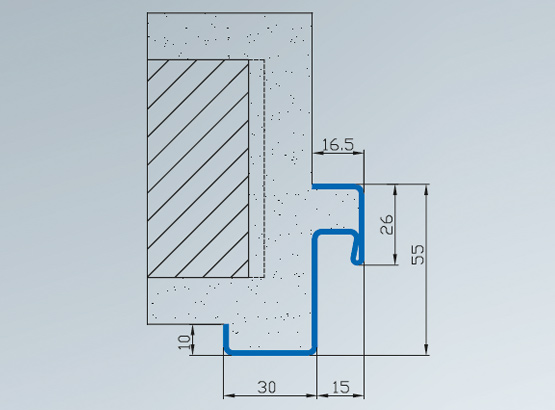

ECKZARGE (EZS) PROFILE 21

For rebated doors
With 30 mm floor recess
Can be used with welded-in hinge pockets mortar-tight V 8610 L/ R
With 6 welded corner anchors
Simple installation
Stock item

ECKZARGE (EZS) PROFILE 21

Delivery condition

Mounting condition

PERIMETER FRAME (UZS) PROFILE 23

For rebated doors
With 30 mm floor recess
Can be used with welded-in hinge pockets mortar-tight V 8610 L/ R
Versatile application possibilities
Stock item

PERIMETER FRAME (UZS) PROFILE 23

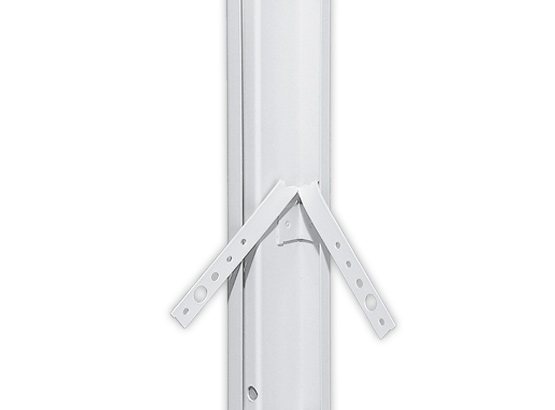

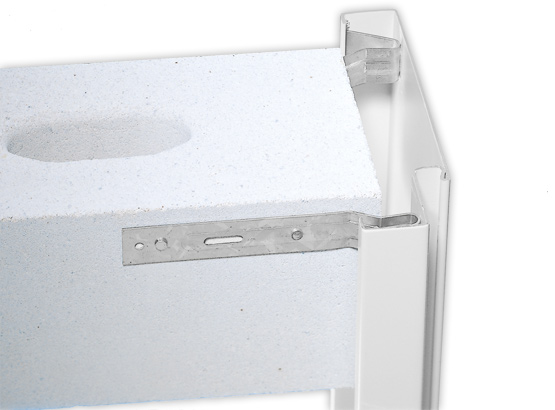

Ruck-Zuck anchor

8 pieces supplied loose
Also available as a joint anchor
Fast, stable installation
Technically sophisticated
Can be individually positioned (observe DIN!)

GIPSWANDZARGE (ZG) PROFIL 23/ 0045

For rebated doors
With 30 mm floor recess
Can be used with welded-in hinge pockets mortar-tight V 8610 L/ R
With maximum corrosion protection against aggressive plaster

GIPSWANDZARGE (ZG) PROFIL 23/ 0045

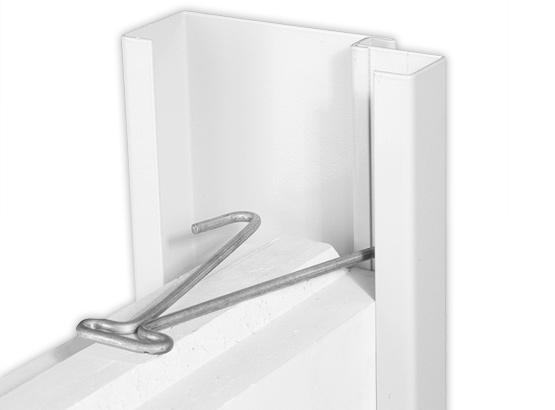

Wire anchors

6 pieces supplied loose
Wall-mounted installation
Simple, stable installation
Practical and rational

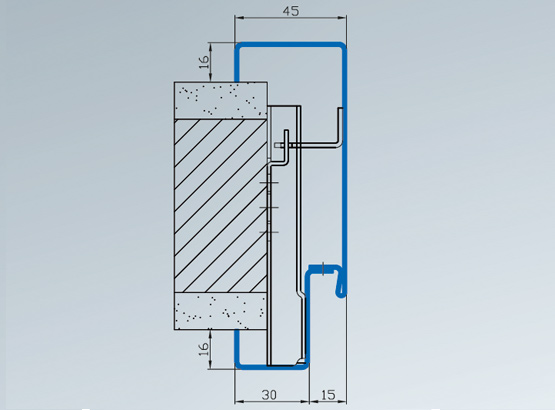

2-SCHALIGE ZARGE (ZNG) ZUM NACHTRÄGLICHEN EINBAU PROFILE 2140/ 1645

For rebated doors
Without floor recess
Can be used with welded-in hinge pockets V 8618 L/ R
Clean, quick installation
For retrofitting
Screwed concealed in the sealing groove
Can be reused thanks to easy removal
Stock item

2-SCHALIGE ZARGE (ZNG) ZUM NACHTRÄGLICHEN EINBAU PROFILE 2140/ 1645

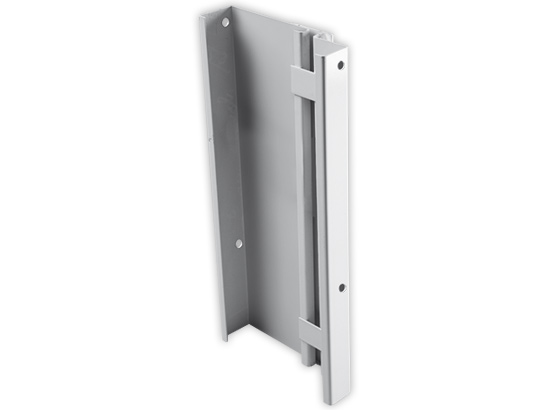

Fixing anchor

Welded-in trapezoidal anchor for fastening the front shell
For all wall types
High stability of the trapezoidal anchor
Simple installation with integrated anchor bracket
High torsional rigidity due to the special geometry of the anchor system

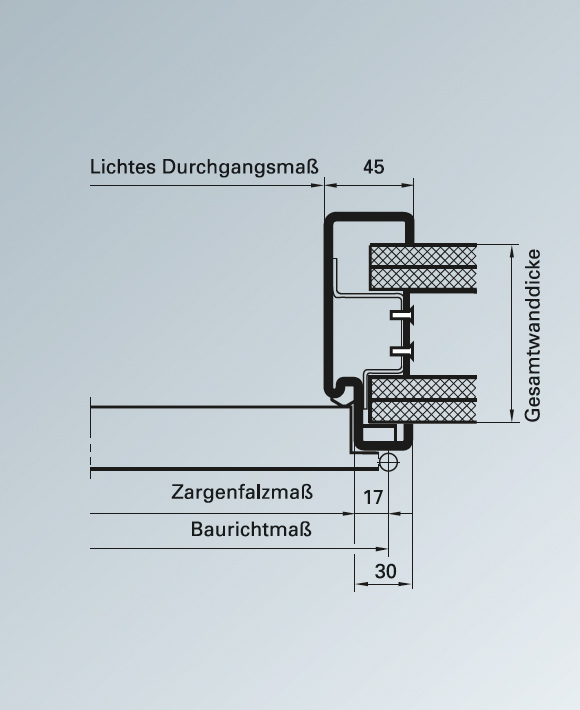

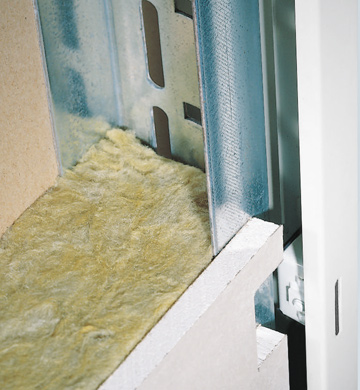

Details of stud frames

Life changes - and with it the demands on living or working space. New rooms need to be created and further developed. No problem with Novoferm stud frames, because they can be installed quickly and easily in a unique way.

Novoferm frames are classically strong, innovatively modern and particularly secure.

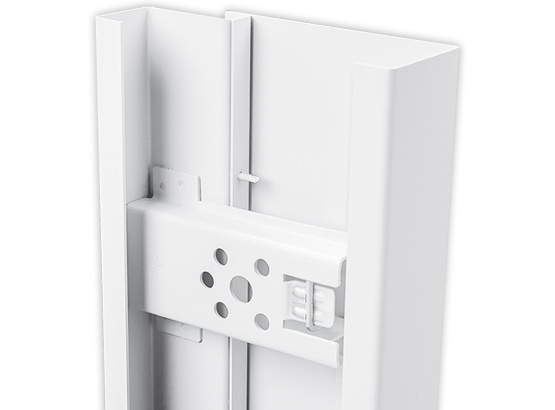

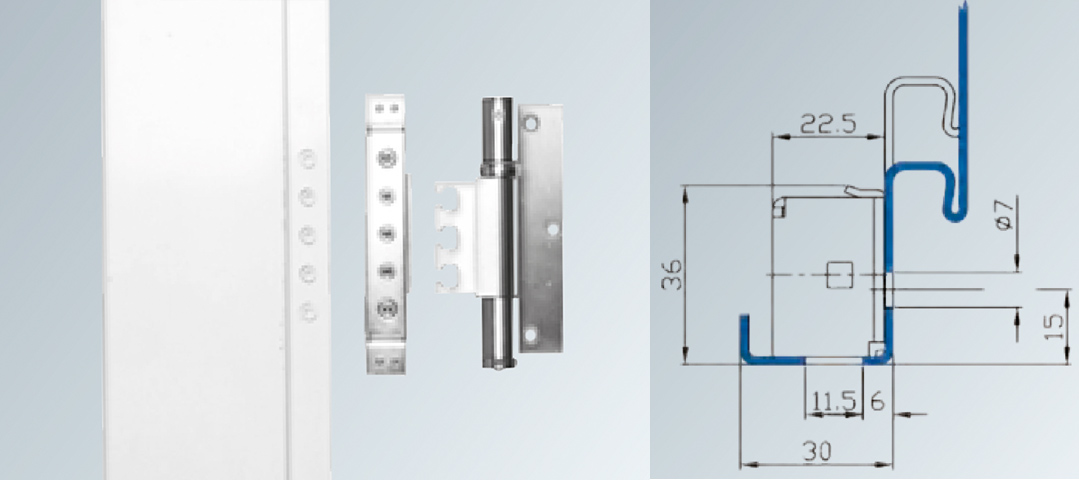

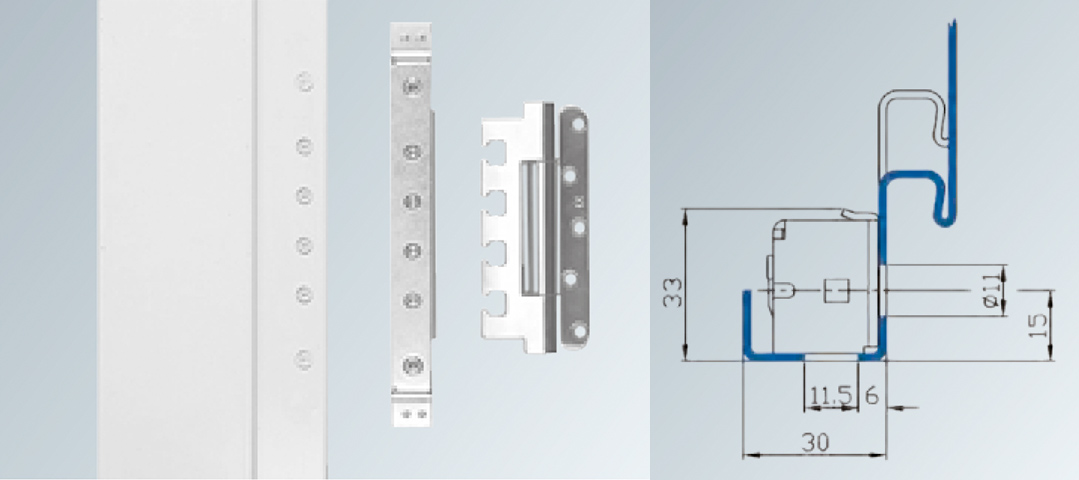

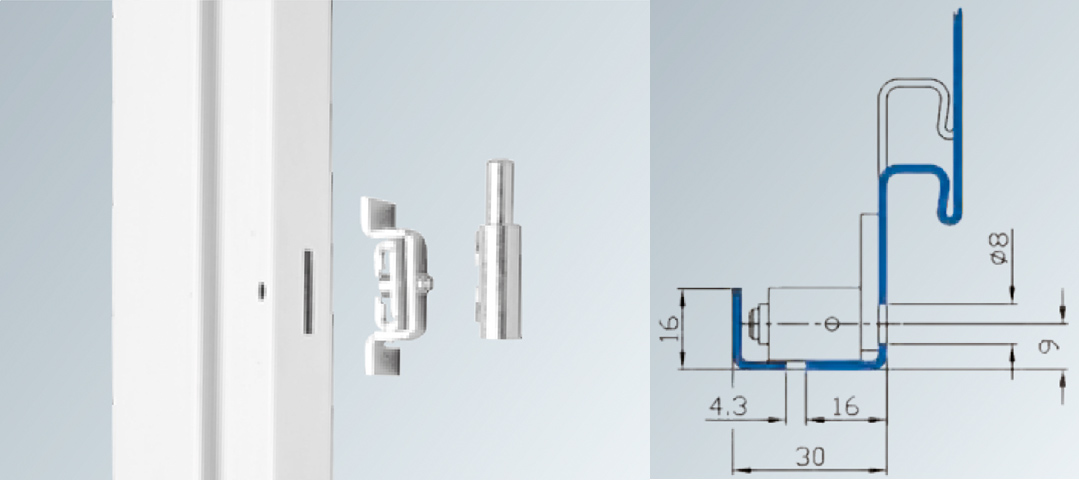

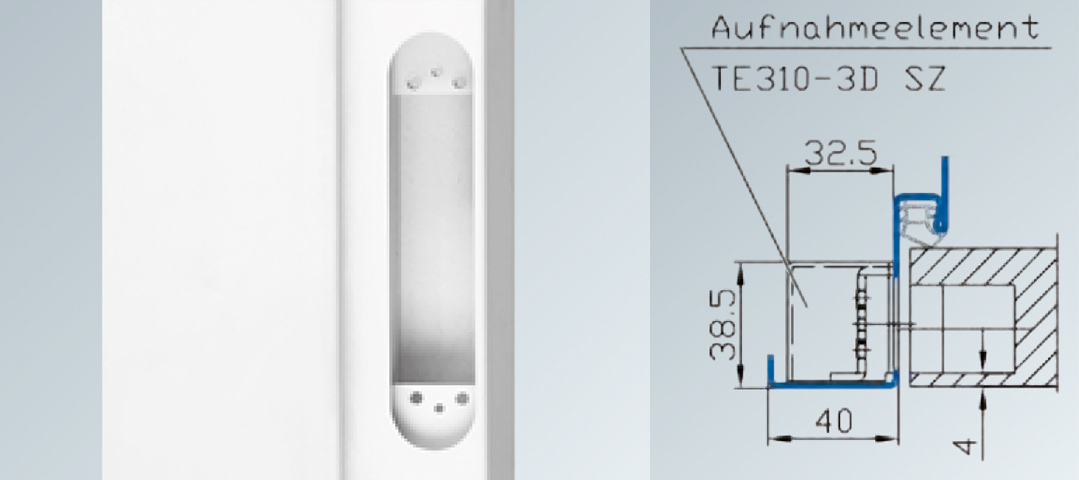

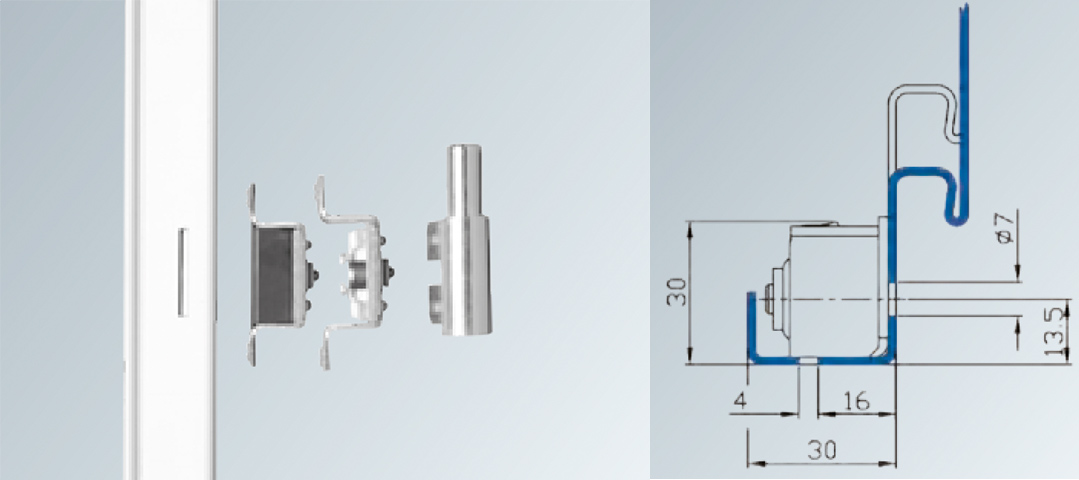

HINGE REINFORCEMENT MOUNTING PLATE FOR HEAVY DOOR LEAVES

In modern property construction, the number of functional doors with a high door leaf weight is constantly increasing. At the same time, internal partition walls are being built as slim as possible. 100 mm or 125 mm slim stud frame walls have become very popular. In order to ensure the long-term functionality of the door elements, it is particularly important that the load of the door leaf is optimally transferred to the substructure of the wall. This is precisely what the new factory-fitted mounting and reinforcement plate for hinge substructures of the VX system ensures. This optional special reinforcement plate is welded directly to the hinge substructure and then firmly connected to the UA profile of the stud frame wall.

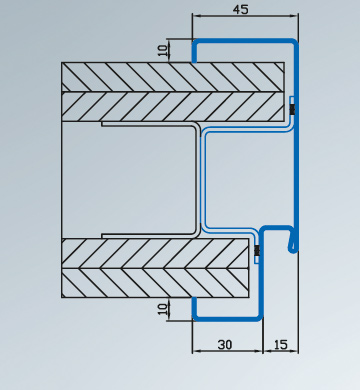

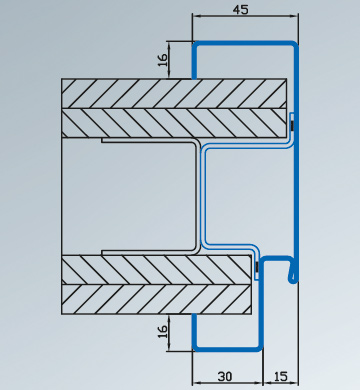

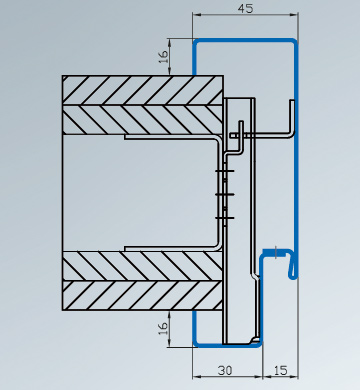

STÄNDERWANDZARGE (ZGK)
PROFILE 23/ 1645

STÄNDERWANDZARGE (ZGK) PROFILE 23/ 1645

For rebated doors
Standard version with 16 mm rebate
Without floor recess
Hinge substructure V 8618 L/ R can be used
With specially matched frame parts V 8100/ 18 (not included in the scope of delivery)
No recessing of the plasterboard panels
With welded cap anchors, single or double panelling possible
Stock item

UPRIGHT WALL FRAME (ZGK)
PROFIL 23/ 0045

STÄNDERWANDZARGE (ZGK) PROFILE 23/ 0045

For rebated doors
Conventional rebate of 10 mm, visually the same design as the masonry frames
Without floor recess
Hinge substructure V 8610 L/ R can be used
Notching required for hinge pockets and wall protection boxes
With welded cap anchors, single or double panelling possible

2-SHELL FRAME FOR
RETROFITTING
PROFILE 2140/ 1645

2-SCHALIGE ZARGE ZUM NACHTRÄGLICHEN EINBAU PROFILE 2140/ 1645

For rebated doors
Without floor recess
Hinge substructure V 8618 L/ R can be used
Clean, quick installation
For retrofitting
Screwed concealed in the sealing groove
Reusable due to easy removal
High stability
Stock item

ANCHOR FOR STÄNDERWERK

Tube anchor

Standard sizes single-row
Larger jaw widths arranged in double rows offset or side by side

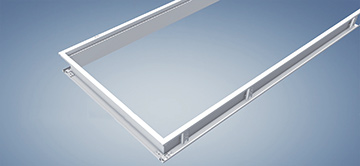

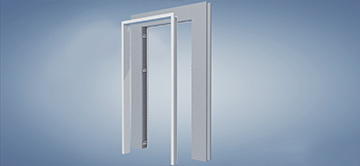

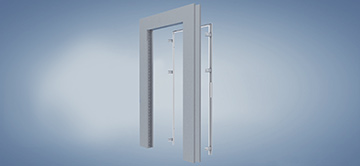

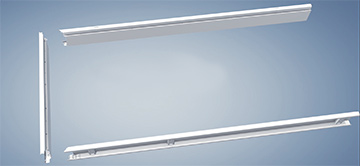

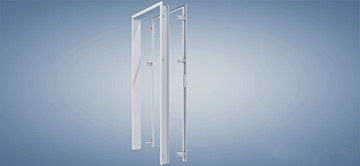

Details Disassembled frames

DISASSEMBLED FRAMES FOR ALL WALL TYPES

On request, many Novoferm frame variants are also available disassembled for fast delivery and particularly easy and safe transport. The frame variants in stock can be delivered directly to the recipient within a very short time by parcel service. If ordered before 10:00 a.m., this is usually the next working day. With the new trapezoidal anchor, the installation of double-shell profile variants is also very simple, quick and safe.

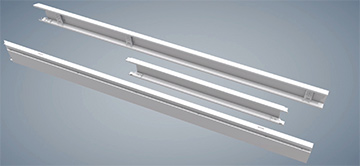

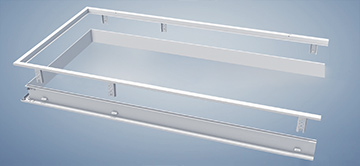

Disassembled into three handy individual parts
Supplied as a compact package
Optimum protection against transport damage
Particularly easy to store
Easy to transport by car
Quick and inexpensive to ship
Easy handling on the construction site

IDEAL FOR RETROFITTING

PROFILE 2140

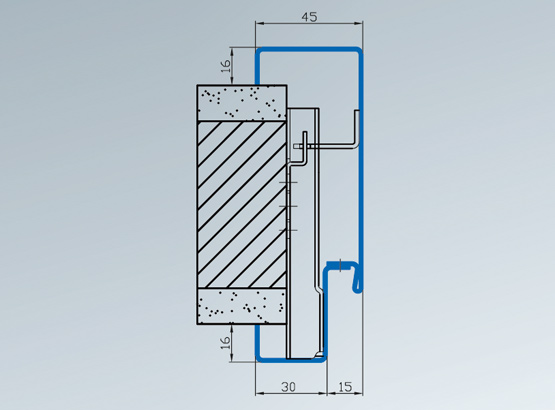

PROFILE 2140: 2-PART FRAME - SCREWED INTO THE SEALING GROOVE - FOR ALL WALL TYPES

For rebated doors and unrebated doors
Well suited for finished rooms
Easy installation thanks to special anchors, also for the counter frame
Screwed concealed in the sealing groove
Reusable frame

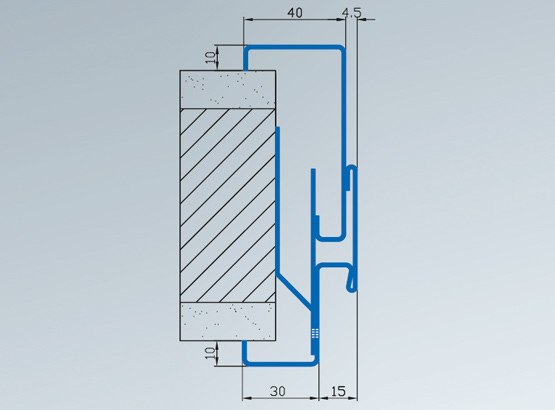

PROFILE 2150

PROFILE 2150: 2-PART FRAME - WITH FACE WIDTH TOLERANCE FOR MASONRY

Variable jaw widths -8 / +10 mm

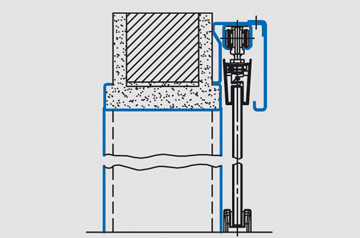

All profile geometries possible (e.g. sliding door frames in front of the wall)
With visible separating joint
With corner anchors in the reveal

PROFILE 2150

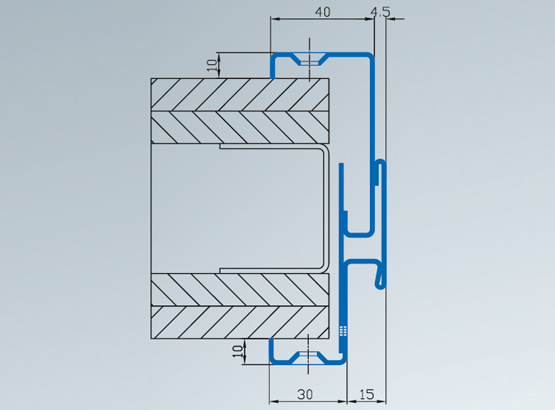

PROFILE 2150: 2-PART FRAME - WITH FACE WIDTH TOLERANCE FOR UPRIGHTS

Variable jaw widths -8 / +10 mm
All profile geometries possible (e.g. sliding door frames in front of the wall)
With visible parting line
Screw mounting in the transom

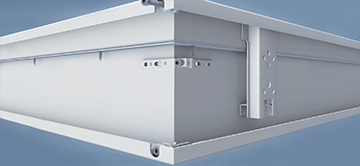

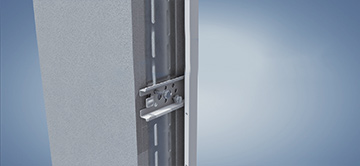

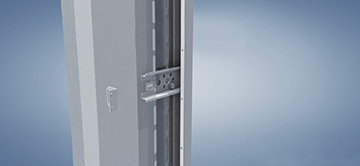

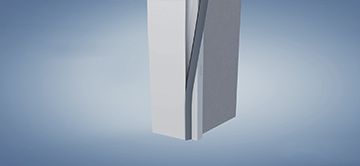

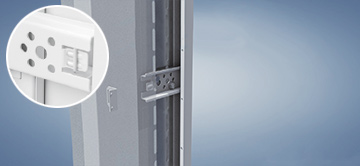

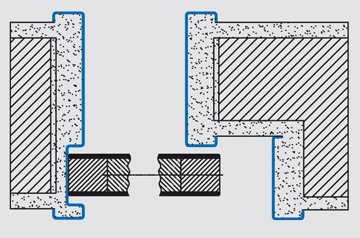

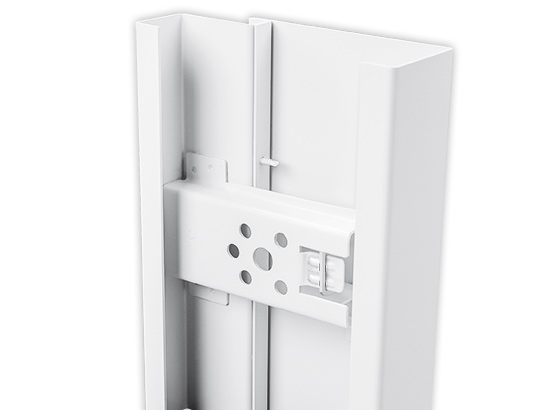

DISASSEMBLED FRAME DESIGN AND TRAPEZOIDAL ANCHOR SYSTEM

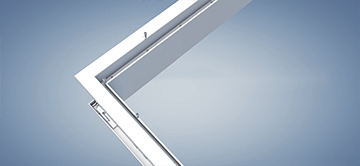

Precisely fitting frame corner joints installed at the factory
Stable trapezoidal anchors in the frame front shell
Easy installation of the counter shell thanks to the special geometry of the anchor system
Special counter anchor, dotted in the reveal of the counter shell
No relining of the trapezoidal anchors required for dimensionally accurate stud frame openings

Special frames and surfaces

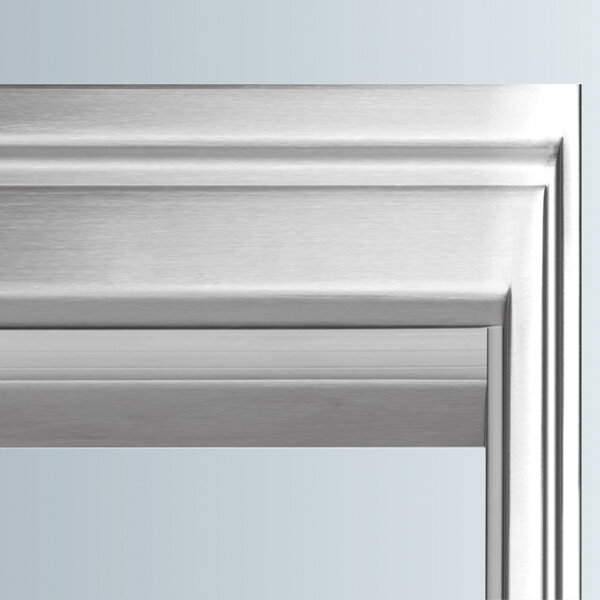

FRAMES FOR EVERY APPLICATION

Stainless steel frames not only score points for their attractive appearance, but also for their resistance to moisture. As a rule, stainless steel frames are used in environments where a high level of cleanliness is required.

Material: V2A = WST 1.4301 / V4A = WST 1.4571 (only 1.5 mm)
Sheet thickness: 1.5 or 2 mm

Stainless steel framesin steel
Stainless steel frames round off the Novoferm frame programme. These frames are available in exclusive cross-sections and have a sheet thickness of between 1.5 mm and 2 mm, depending on the version.

Ask your Novoferm specialist dealer about all the equipment details and possible applications.

SHOW INDIVIDUALITY

Novoferm frames are characterised by exact profile geometry and dimensional accuracy by adhering to the narrowest tolerance limits (EN DIN standards / Novoferm factory standards). A frame and the associated door is like a business card. And should therefore also correspond to the respective house, room and user. Novoferm therefore offers all RAL colours of your choice, RAL design, metallic colours and others for special protection. Anti-graffiti powder possible.

The coloured frames offer the following advantages:

Powder coating of the highest approval with GSB approval
Excellent weather resistance
High gloss and colour stability
Very good adhesion
Good corrosion properties
High surface hardness with good mechanical values
excellent abrasion resistance
Stoving temperature 195° C

FOR A SUSTAINABLE FUTURE

Our products meet the requirements for an Environmental Product Declaration (EPD) in accordance with ISO 14025 and EN 15804 of the Programme for Environmental Product Declarations of the Institut Bauen und Umwelt e.V. (IBU) based on the EN 15804 standard.

EPD according to ISO 14025 and EN 15804
Life cycle assessment according to DIN ISO 14040/ 14044
Product Category Rules (PCR) Doors

Your plus points at a glance

High stability and durability
Wide range of frames for all installation situations

Stud frame, masonry and special cases
Almost all frame variants also available disassembled

TECHNOLOGY AND DETAILS

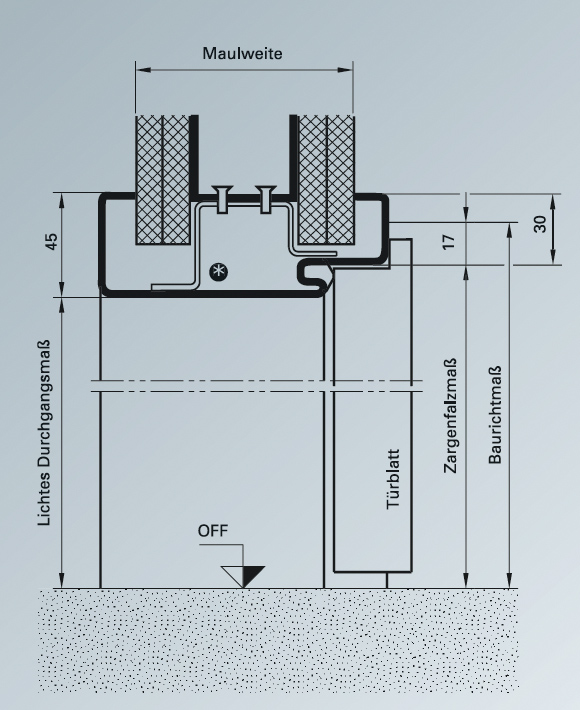

TECHNICAL DATA FRAMES FOR MASONRY AND CONCRETE

Dimension table for Novoferm steel frames			Standard frames for masonry, plaster wall and Ytong stone	Standard frames for masonry, plaster wall and Ytong stone
Overall dimensions (see DIN 18100)	Frame rebate dimensions (see DIN 18111)	Clear frame clearance dimensions (see DIN 18111)	Nominal size of the wall opening Shell dimension (RBM)	Nominal size of the wall opening Shell dimension (RBM)
Width x height	Width x height	Width x height	Width x height	Width x height
750 x 1.875 1^{) 2)}	716 x 1.858	686 x 1.843	760 x 1.880	760 x 1.880
875 x 1.875 2⁾	841 x 1.858	811 x 1.843	885 x 1.880	885 x 1.880
1000 x 1.875 1^{) 2)}	966 x 1.858	936 x 1.843	1.010 x 1.880	1.010 x 1.880
625 x 2.000	591 x 1.983	561 x 1.968	635 x 2.005	635 x 2.005
750 x 2.000	716 x 1.983	686 x 1.968	760 x 2.005	760 x 2.005
875 x 2.000	841 x 1.983	811 x 1.968	885 x 2.005	885 x 2.005
1.000 x 2.000	966 x 1.983	936 x 1.968	1.010 x 2.005	1.010 x 2.005
625 x 2.125 1⁾	591 x 2.108	561 x 2.093	635 x 2.130	635 x 2.130
750 x 2125	716 x 2.108	686 x 2.093	760 x 2.130	760 x 2.130
875 x 2.125	841 x 2.108	811 x 2.093	885 x 2.130	885 x 2.130
1.000 x 2.125	966 x 2.108	936 x 2.093	1.010 x 2.130	1.010 x 2.130
1.125 x 2.125 1^{) 3)}	1.091 x 2.108	1.061 x 2.093	1.135 x 2.130	1.135 x 2.130
1.250 x 2.125 1^{) 3)}	1.216 x 2.108	1.188 x 2.093	1.260 x 2.130	1.260 x 2.130

¹⁾Overall dimensions and associated dimensions not included in DIN 18111 ²⁾ Standard only for corner frames ³⁾ Not in stock

MASONRY FRAMES

Mouth widths
Novoferm standard frames
	For masonry	For plaster walls
80	-	-
90	-	-
100	-	-
130	-	-
145	-	-
160	-	-
175	-	-
205	-	-
270	-	-
290	-	-
330	-	-

Vertical section
Frame with lintel

Horizontal section
Frame with wall Masonry

TECHNICAL DATA FRAMES FOR DRY CONSTRUCTION

Standard frames for stud frames, Profile 23/1645	2-part in groove screwed Profile 2140/1645	2-piece with parting line Profile 2150/0040
Anchor position Caution! Installation along the wall	Nominal dimension of the (= installation dimension)	Nominal size of the wall opening	Door leaf outer dimensions (type dimension, see DIN 18101)
Width x height	Width x height	Width x height	Width x height
769 x 1.885	750 x 1875	730 x 1.865	730 x 1.865
894 x 1.885	875 x 1875	855 x 1.865	855 x 1.865
1.019 x 1.885	1.000 x 1.875	980 x 1.865	980 x 1.865
644 x 2.010	625 x 2.000	605 x 1.990	605 x 1.990
769 x 2.010	750 x 2.000	730 x 1.990	730 x 1.990
894 x 2.010	875 x 2.000	855 x 1.990	855 x 1.990
1.019 x 2.010	1.000 x 2.000	980 x 1.990	980 x 1.990
644 x 2.135	625 x 2.125	605 x 2.115	605 x 2.115
769 x 2.135	750 x 2.125	730 x 2.115	730 x 2.115
894 x 2.135	875 x 2.125	855 x 2.115	855 x 2.115
1.019 x 2.135	1.000 x 2.125	980 x 2.115	980 x 2.115
1.144 x 2.135	1.125 x 2.125	1.105 x 2.115	1.105 x 2.115
1.269 x 2.135	1.250 x 2.125	1.230 x 2.115	1.230 x 2.115

Mouth widths

Novoferm standard frames

For stud frame walls

75

100

125

150

Horizontal section
Frame with wall stud frame

Vertical section
Frame with lintel

Options and solutions

Eckzarge

Corner frame with radius

Double rebate corner frame

Double rebate corner frame
with shadow groove

Gym corner frame

Surrounding frame

Surround frame
with radius

Surround frame
with shadow groove

Decorative rebate frame
with shadow groove

Double door frame
with radius

Double rebate frame

Double rebate frame
with 1-sided shadow groove

Pendulum door frame

Passage frame
with shadow groove

Expansion joint frame

Surrounding frame
with lead insert
(radiation protection)

Sliding door frame
Running in the wall
(vertical section)

Sliding door frame
Running in the wall
(horizontal section)

Sliding door frame
running in front of the wall
(vertical section)

Sliding door frame
Running in front of the wall
(horizontal section)

Sliding door frame
running in front of the wall with glass door leaf
(vertical section)

Sliding door frame
running in the recess (horizontal section)

Sliding door frame
with installation box (horizontal section)

Sliding door frame
running in front of the wall 2-part design (vertical section)

2-part frame
for all wall types

2-part frame
with radius

Frame
without mirror

2-part frame
with jaw width tolerance

2-part frame
with jaw width tolerance and shadow groove

Window frame
for 1-sided glazing

Window frame
for double glazing

Possible installation situations

Corner frame
Dowel installation with corner frame anchor on wall and reveal

Corner frame
Dowel installation with corner frame anchor only in the reveal area (exposed brickwork)

Corner frame
with dowel punching in the groove area (renovation)

Corner frame
Weld-on installation on dowel bracket

Surround frame
Weld-on installation on dowel bracket (exposed brickwork)

Surrounding frame
Installation with a quick-release anchor (standard) or joint anchor (exposed brickwork)

Surround frame
Grouting installation with corrugated anchors

Surround frame
for plasterboards, installation with wire anchor

Surround frame
Installation with welded-on flat bar anchor using the concrete casting method

Surrounding frame
Installation with loose propeller anchor (concrete walls)

Surround frame
with dowel hole punching in the reveal

2-part surround frame
No RAL coating possible

Corner and counter frame
Weld-on installation on dowel bracket (exposed brickwork)

GK stud frame
Screw mounting on U-anchors

GK stud frame
Screw mounting through transom

2-part surround frame
Screw installation in the reveal (suitable for all wall types)

2-part surround frame
with jaw width tolerance, screw mounting with mirror

Telescopic frame
for universal adaptation on site, suitable for all wall types

Surrounding frame
Installation with loose propeller anchor (concrete walls)

Surrounding frame with lead insert (radiation protection)

Belt substructures

NOT 3-D ADJUSTABLE

Type	Type Description	Belt type	Load capacity
V 8610	Galvanised (optional V2A)	V 8000	60 kg
	DIN right and left	V 8100	80 kg
	Mortar-tight	VN 8939/100	100 kg
	More than 200 possible combinations

Type	Type Description	Belt type	Load capacity
V 8618	Galvanised (optional V2A)	V 8000/18	60 kg
	DIN right and left	V 8100/ 18	80 kg
	More than 200 possible combinations

Type	Type Description	Belt type	Load capacity
Double- belt- pocket	Mounting element VARIANT V 8600 or V 8610	VN 8938/ 160	150 kg
	Can be used on the left or right
	Functional area: Fire protection, smoke protection
	Galvanised

3-D ADJUSTABLE

Type	Type Description	Belt type	Load capacity
VX 7611	With high load capacity	VX 7729/ 100	100 kg
	For rebated and non-rebated doors	VX 7939/ 100	100 kg
	Mortar-tight	VX 7729/ 120	120 kg
	Three-dimensionally infinitely adjustable side +/- 3.0 mm, height +/- 3.0 mm, pressure +/- 3.0 mm	VX 7939/ 120	120 kg
		VX 7729/ 160	160 kg
		VX 7939/ 160	160 kg

Type	Type Description	Belt type	Load capacity
VN 7608/120	For rebated and non-rebated doors	VN 7748/ 100	100 kg
	Mortar-tight	VN 7938/ 100	100 kg
	Galvanised	VN 7728/ 120	100 kg
	Three-dimensional infinitely adjustable side +/- 3.0 mm, height +/- 3.0 mm, pressure +/- 2.0 mm	VN 7729/ 120	120 kg
		VN 7939/ 120	120 kg
		VN 7939/ 120	160 kg

Type	Type Description	Belt type	Load capacity
VN 7608/160	For rebated and non-rebated doors	VN 7729/160	160 kg
	Mortar-tight	VN 7939/160	160 kg
	Mortar-tight	VN 7939/160 FD	160 kg
	Three-dimensionally infinitely adjustable side +/- 3.0 mm, height +/- 3.0 mm, pressure +/- 3.0 mm	VN 7939/160s	160 kg
		VN 7939/160 FDs	160 kg

Type	Type Description	Belt type	Load capacity
Tectus	Completely concealed	Tectus 305	60 kg
	For unrebated doors	Tectus 310	60 kg
	Three-dimensionally adjustable	Tectus 340	80 kg
	CE-certified	Tectus 510	100 kg
	Opening angle up to 180	Tectus 526	120 kg
	Total length 140/ 141 mm	Tectus 527	120 kg
	DIN right or left usable	Tectus 540	120 kg
	Maintenance-free plain bearing technology Side +/- 3.0 mm Height +/- 3.0 mm Pressure +/- 1.0 mm	Tectus 630	200 kg
		Tectus 640	200 kg
		Tectus 645	300 kg

* Load capacity for exemplary belt combinations, depending on the belt system. Refers to the application with two hinges. When using a third hinge, the door weight can be increased by approx. 30 %. The door leaf weight should not exceed 70 % of the load values.

Sound-absorbing seals

IT ALL DEPENDS ON THE PERFECT SEAL

Novoferm sealing profiles ensure that there are no draughts or noise. The lip profile for widening the closing surface ensures silent closing. Thanks to optimum sound insulation and excellent closing damping, only low closing pressure is required.

Permanently elastic
Dimensionally stable
High resilience
Resistant to ageing
Paint-different

Easy to process
Sound-absorbing
Tolerance levelling
Environmentally friendly (no PVC)

PROFILVARIANTEN

Name	Material*	Colour	Characteristics
C 190	NTK	Grey	Standard profile
		White	Tolerance compensation ± 2.5 mm
		Brown	Sound-absorbing ± 2.5 mm
		Black
* Materials NTK: Novoferm Thermo Rubber / APTK: Aethylene propylene terpolymer rubber (synthetic rubber) EPDM: International designation for APTK

Name	Material*	Colour	Characteristics
C 260	NTK	Grey	2 mm higher thanC190
* Materials NTK: Novoferm Thermo Rubber / APTK: Aethylene propylene terpolymer rubber (synthetic rubber) EPDM: International designation for APTK

Name	Material*	Colour	Characteristics
C 197	NTK	Grey	4 mm higher than C 190
* Materials NTK: Novoferm Thermo Rubber / APTK: Aethylene propylene terpolymer rubber (synthetic rubber) EPDM: International designation for APTK

Name	Material*	Colour	Characteristics
C 205	NTK	Grey	2 mm lower than C 190
* Materials NTK: Novoferm Thermo Rubber / APTK: Aethylene propylene terpolymer rubber (synthetic rubber) EPDM: International designation for APTK

Name	Material*	Colour	Characteristics
C 210	NTK	Grey	4 mm lower than C 190
* Materials NTK: Novoferm Thermo Rubber / APTK: Aethylene propylene terpolymer rubber (synthetic rubber) EPDM: International designation for APTK

Name	Material*	Colour	Characteristics
11089	APTK (EPDM)	grey	Standard profile
			Tolerance compensation ± 2.5 mm
			Sound-absorbing active ± 2.5 mm
* Materials NTK: Novoferm Thermo Rubber / APTK: Aethylene propylene terpolymer rubber (synthetic rubber) EPDM: International designation for APTK

Montage

using the example of dismantled frames for stud frame walls

Novoferm frames can be installed particularly quickly. Below you will find step-by-step preparation and installation of disassembled frames for stud frame walls. All details can be found in the detailed installation instructions.

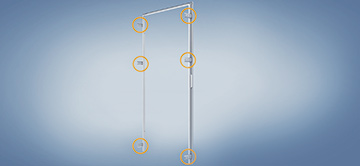

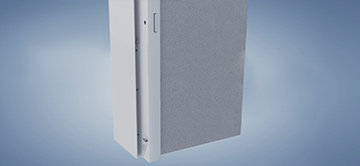

Preparation for assembly
