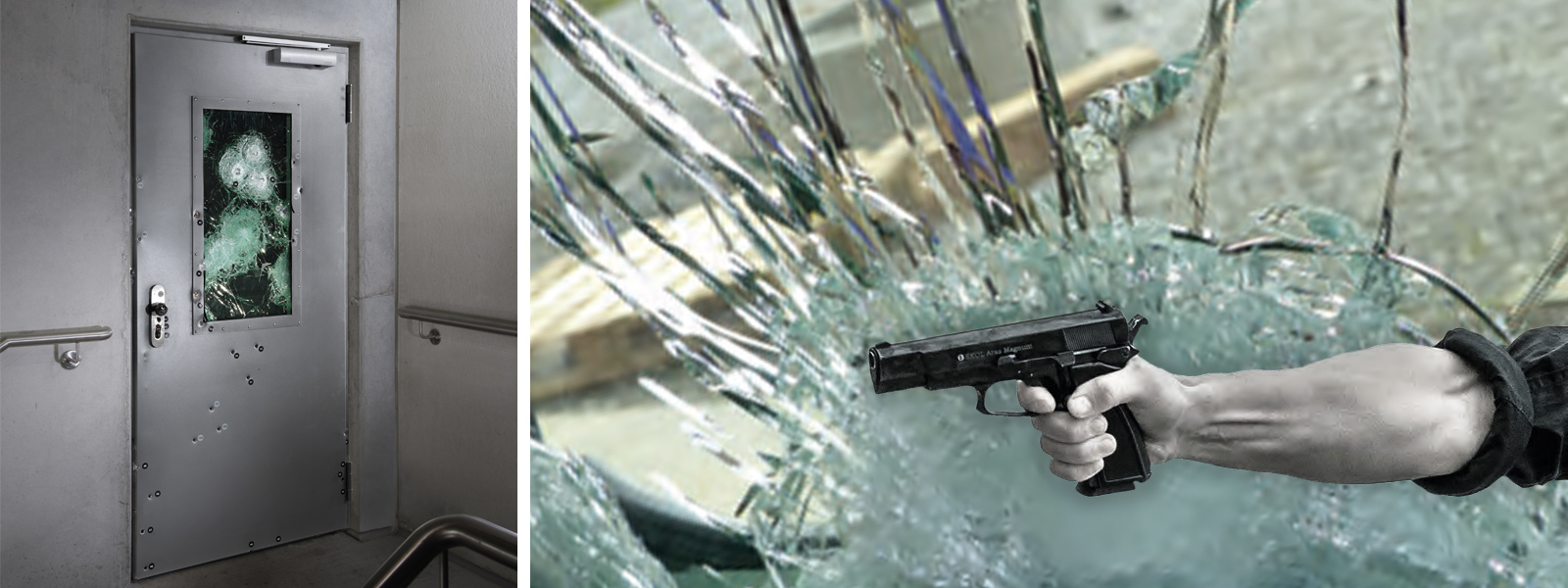

Bullet-resistant doors
Safety even in tricky situations with the NovoPorta Premio S-D-1 and S-D-2
Increasing danger from attacks with great force
There are many sensitive areas that need to be protected in the event of attacks of any kind. The threat posed by the use of handguns and assault rifles is becoming increasingly real, not only in the military sector, but also in the public and civilian sectors. This affects, for example, security areas in airports, railway stations or event venues, but also security-relevant areas in police and judicial buildings.
Often overlooked in the age of international business relationships:
A failure here would lead to immense economic damage, as well as damaging the reputation of the company. The same applies to banks and research institutions, where considerable assets also need to be protected.
In the aforementioned threat situations, the use of large-calibre handguns or assault rifles is generally assumed. The NovoPorta Premio has passed the tests in accordance with DIN EN 1522/1523 bullet resistance class FB 4 NS in single and double-leaf versions, as well as in VPAM* APR 2006 test level 6 NS as a single-leaf element. In the tests for firing class FB 4, the Premio was loaded with projectiles in handgun calibre .44 Rem. Magnum, 357 Magnum. The tests according to VPAM test level P6 were carried out with ammunition in assault rifle calibre (AK-47) 7.62 x 39 mm (FJ/PB/SC) in accordance with DIN EN 1522/1523. This is a special class that is not classified in DIN EN 1522/1523 and was inserted by VPAM.
All doors have successfully passed the tests in classes FB 4 and VPAM P6. They were tested for weak points and certified accordingly by an independent testing institute. As no splinters enter the interior, the Premio is labelled "NS = splinter-free" for maximum security.
Security against firearms
NovoPorta Premio bullet-resistant doors are approved in accordance with DIN EN 1522/1523 bullet resistance class FB 4 NS and VPAM APR 2006 test level 6 NS. This makes them suitable for threat situations in which the use of large-calibre handguns or assault rifles is assumed. These include, for example, security areas in airports, railway stations or event venues, but also security-relevant areas in police and judicial buildings.
High functionality
Bullet-resistant S-D-1 doors are available with fire protection class T30, with smoke protection classification in accordance with DIN 4102 and as RC3 burglar-resistant in accordance with DIN EN 1627. On request, the doors are also available with special bullet-resistant glazing including reinforced special steel and stainless steel glazing beads.
Design despite function
The bullet-resistant NovoPorta Premio doors - based on a modular platform approach - impress with their uniform door appearance throughout the building. Whether a door is bullet-resistant, fire-resistant or burglar-resistant cannot be recognised at first glance - a clear advantage in commercial construction.
Door comparison and properties
Comparison of bullet-resistant doors
| Door designation | Thick rebate | T30 (EI2 30) | RS | Sound-insulating | RC2 | RC3 | RC4 | Thermally insulating | Also for exterior use | DIN EN 14351-1 |
S-D-1 FB4 NS1) Door 1-leaf | - | - | - | - | - | - | - | - | ||
S-D-2 FB4 NS1) Door 2-leaf | - | - | - | - | - | |||||
| 1) Bullet-resistant in accordance with DIN EN 1522 FB4. Alternatively also available as 1-leaf door S-D-1 as special bullet resistance class VPAM APR 2006 test level P6. | ||||||||||
Overview of firing classes, weapon types and calibres
Overview of firing classes, weapon types and calibres
| Proofing classes according to DIN EN 1522 and VPAM (extract) | ||||||||
Class | Weapon type | Calibre | Bullet | |||||
Type | Mass in g | Manufacturer / type | Speed in m/s * | Energy in J. * | ||||
DIN EN 1522 | FB 1 | Rifle | .22 lr | L/RN | 2,60 ± 0,1 | Winchester | 360 ± 10 | 168 |
FB 2 | Fist- | 9 mm Luger | FJ(1)/RN/SC | 8,00 ± 0,1 | DAG DM 41 | 400 ± 10 | 518 | |
FB 3 | Fist- | .357 Mag. | FJ(1)/CB/SC | 10,20 ± 0,1 | Geco | 430 ± 10 | 943 | |
FB 4 | Fist- | .357 Mag. | FJ(1)/CB/SC | 10,20 ± 0,1 | Geco | 430 ± 10 | 943 | |
.44 Rem. Mag. | FJ(2)/FN/SC | 15,60 ± 0,1 | 440 ± 10 | 1.510 | ||||
VPAM | P 4 | Handgun | .357 Mag. | FMJ/CB/SC | 10,20 ± 0,1 | Geco | 430 ± 10 | 943 |
.44 Rem. Mag. | FMJ*/FN/SC | 15,60 ± 0,1 | Javelin | 440 ± 10 | 1.510 | |||
P 5 | .357 Mag. | FMs/CB | 7,1 ± 0,1 | DAG Special | 580 ± 10 | 1.194 | ||
P 6 | Rifle | 7,62 x 39 | FMJ/PB/FeC | 8.0 ± 0.1 | M 43 | 720 ± 10 | 2.074 | |
L = lead, CB = cone nose, FJ(1) = full metal jacket bullet, steel, FJ(2) = full metal jacket bullet, copper * on impact | ||||||||
Our signs for your safety
Security even in tricky situations with the Novoferm steel door NovoPorta Premio with bullet resistance; also available in combination with T30 / EI 30 fire protection.
You can find further animations at
Your plus points at a glance
- With bullet and burglar-resistant effect
- Tested in accordance with DIN EN 1522 / 1523 bullet resistance class FB 4 NS
- The door was fired at with projectiles in handgun calibre .44 Rem. Magnum, 357 Magnum handgun calibre. The tests according to VPAM test level P6 were carried out with ammunition in assault rifle calibre (AK-47) 7.62 x 39 mm (FJ/PB/SC) in accordance with DIN EN 1522/1523.
- As a single-leaf element in VPAM* APR 2006 test level 6 NS
- Can be used e.g. for security areas in airports, large railway stations or event venues, but also exposed areas in police and judicial buildings
- As no splinters enter the interior, the Premio is labelled "NS = splinter-free" for maximum security
Technology and details
TECHNICAL DATES PREMIO S-D
Technical data Premio S-D-1 and S-D-2
| Models | S-D-1 | S-D-2 | |
| Resistance class | RC3 | RC3 | |
| Approved dimensions | |||
| Construction dimension (BR) Width min. - max. | 625 - 1,375 | 1,375 - 2,500 | |
| Clear passage (LD) (BR) Height min. - max. | 1,750 - 2,500 | 1,750 - 2,500 | |
| Construction dimension (BR) (BRM) Flap width min. - max. | 500 - 1,000 | - | |
| Clear passage (LD) Height min. - max. | 715 - 1,750 | - | |
| Safety equipment | |||
| Number of safety pins per sash | 2 (3) | 2 (3) | |
| PZ security mortise lock with special deadbolt | - | - | |
| Inactive leaf locking (faceplate edge bolt) (with locking upwards and downwards) | - | - | |
| Anti-drill security profile cylinder | - | - | |
| Door leaf | |||
| Door leaf thickness approx. | 64 | 64 | |
| Sheet thickness | 1,5 | 1,5 | |
| Thick fold (3-sided) | - | - | |
| Opening type, according to DIN |
|
| |
| Heat transfer coefficient to DIN EN ISO 10 077-1 | Ud = 1.8 W/m2K | Ud = 1.9 W/m2K | |
| Walls | |||
| Masonry (stone compressive strength ≥ 12) | ≥ 115 | ≥ 115 | |
| Concrete (strength class ≥ 12/15) | ≥ 120 | ≥ 120 | |
| Aerated concrete blocks/blocks (strength class 4 / bonded) | ≥ 240 | ≥ 240 | |
| Reinforced aerated concrete wall panels (strength class 4 / bonded) | ≥ 240 | ≥ 240 | |
| F90-A/EI90 burglary protection installation walls as a steel stud wall (in accordance with DIN 4.102, Part 4, Table 10.2) or EN 13501-2 | ≥ 100 | ≥ 100 | |
| Steel construction (minimum wall thickness of the steel profiles 4 mm) | - | - | |
| Option | |||
| Also with smoke protection | - | - | |
| Also sound-insulating | 23 - 45 dB* | 22 - 43 dB* | |
| Also with glazing | - | - | |
| Also with top panel | - | - | |
| Also with fanlight | - | - | |
| Test report no. | 45-53/18 | 45-53/18 | |
| All dimensions in mm - possible - not possible BR = construction dimension, RAM = external frame dimension, LD = clear opening dimension * The specified sound reduction values are laboratory values for full-leaf doors only. The laboratory value - 5 dB applies to the sound reduction value achievable on the building. | |||
