ACCESSORIES FOR OPERATORS

Customised equipment also includes the right accessories.

Because people have different wishes and because the structural conditions of a garage or sliding door are not always the same, we offer a comprehensive range of accessories that you can use to equip our systems to suit your individual requirements.

OVERVIEW ACCESSORIES

Large selection of remote controls / hand-held transmitters with two, three or four buttons for programming various door functions (door open/closed, light, ventilation).

Push-button and scanner versions with push-button, multi-digit code, key, transponder card or fingerprint scanner.

SmartHome components for integration into various SmartHome systems and for operating the door with APP or voice command.

LED light strip for stylish illumination of the garage entrance for installation under the garage lintel.

Safety light barriers, which stop your door automatically when closing, even if there are obstacles.

In the event of a power failure, you can also open your garage door with an emergency release.

Battery versions and solar modules for controlling garages without electricity with drive

Accessories in detail

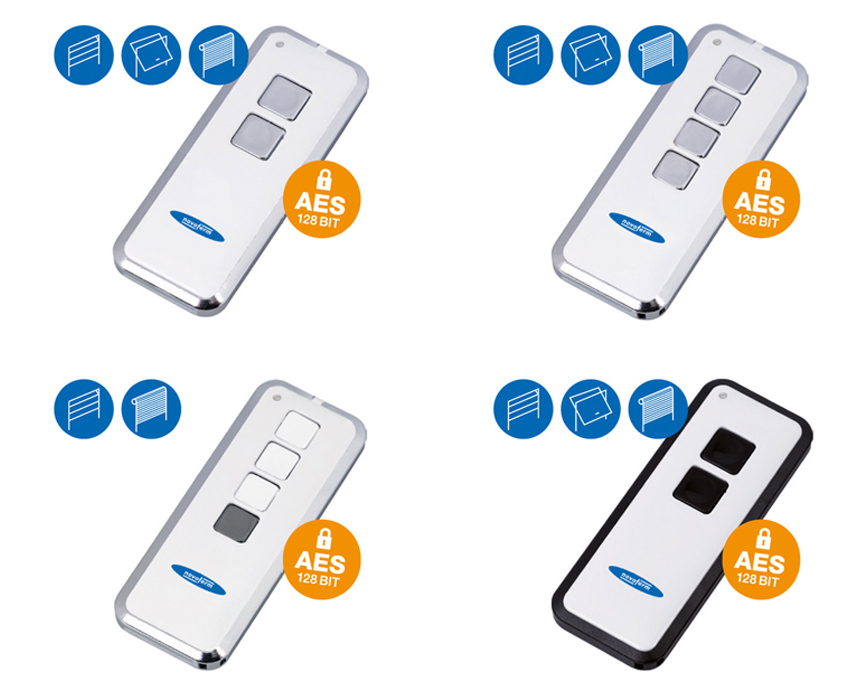

HANDHELD TRANSMITTERS AND REMOTE CONTROLS

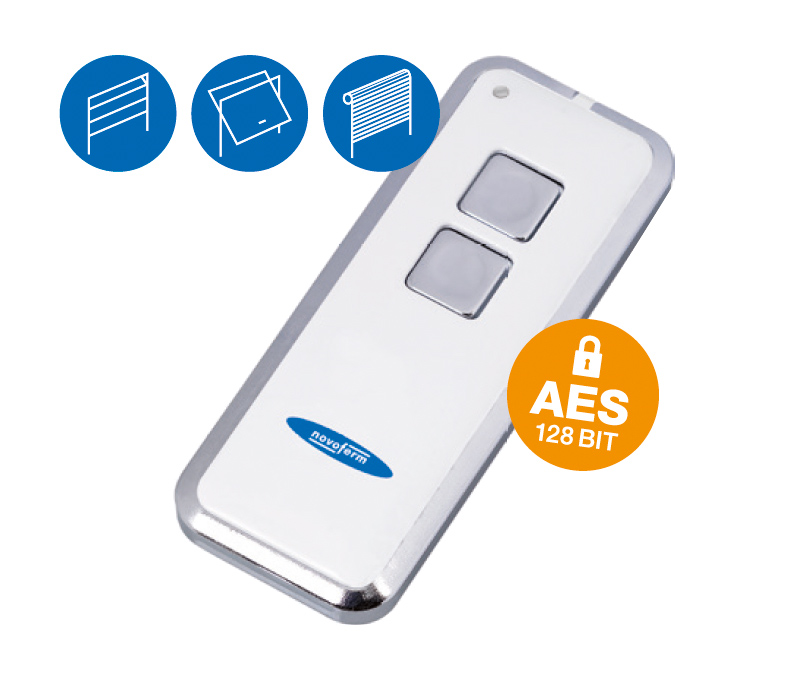

Mini-Novotron 522 Design*
2-channel, 433 MHz,
KeeLoq exchangeable code

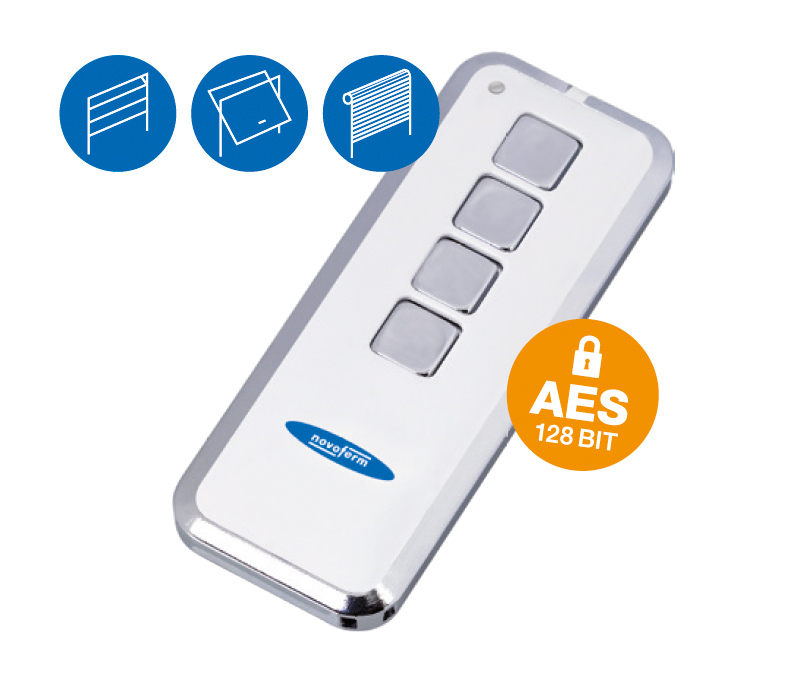

Mini-Novotron 524 Design*
4-channel, 433 MHz,
KeeLoq exchangeable code

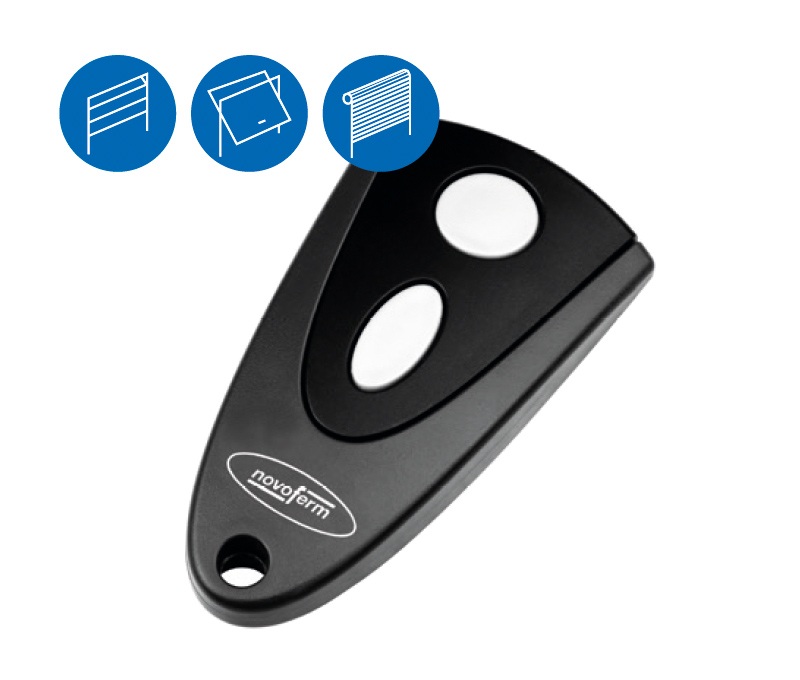

Mini-Novotron 502
2-channel, 433 MHz,
KeeLoq exchangeable code

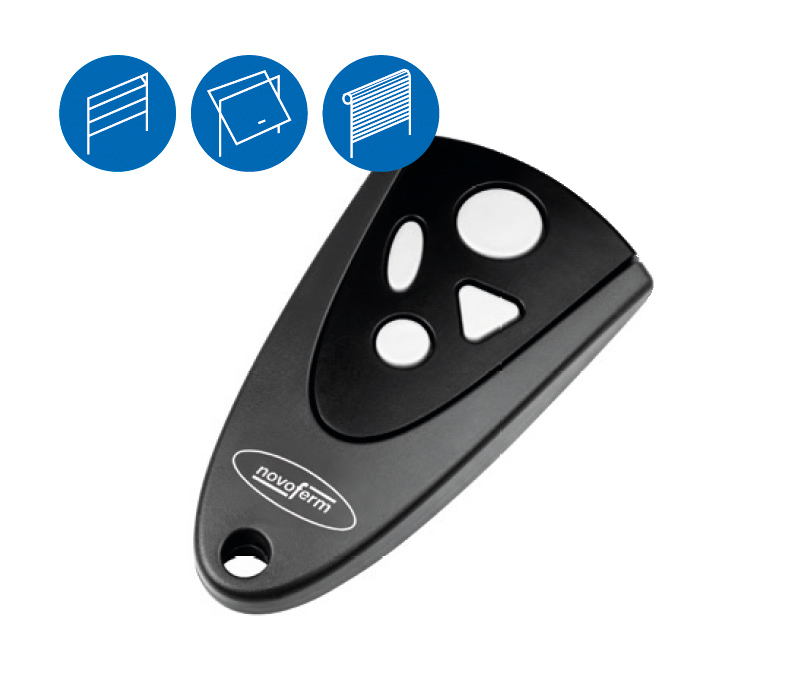

Mini-Novotron 504
4-channel, 433 MHz,
KeeLoq exchangeable code

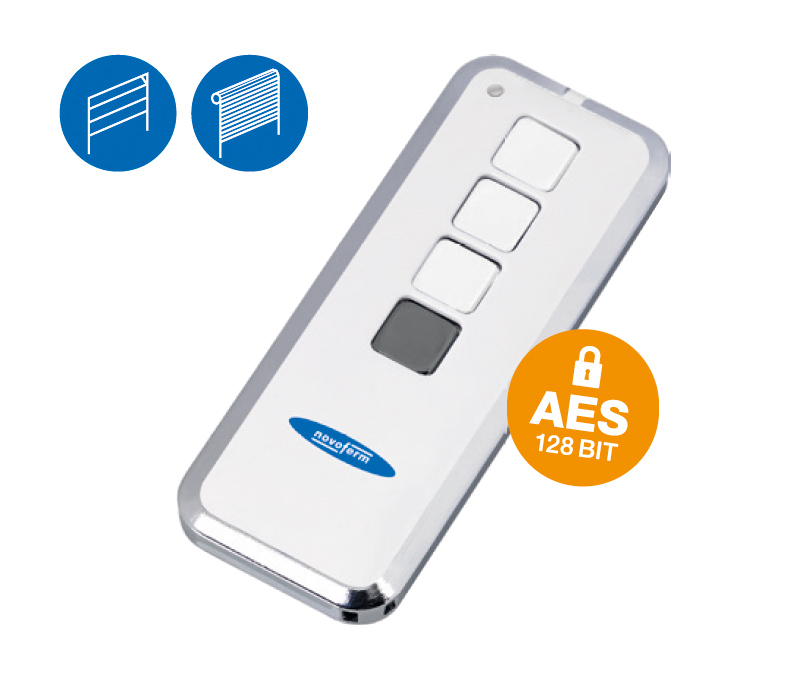

Mini-Novotron 523 Protect*
3-channel, 433 MHz,
in combination with the NovoPort® actuator

Mini-Novotron 522*
2-channel, 433 MHz,
KeeLoq exchangeable code

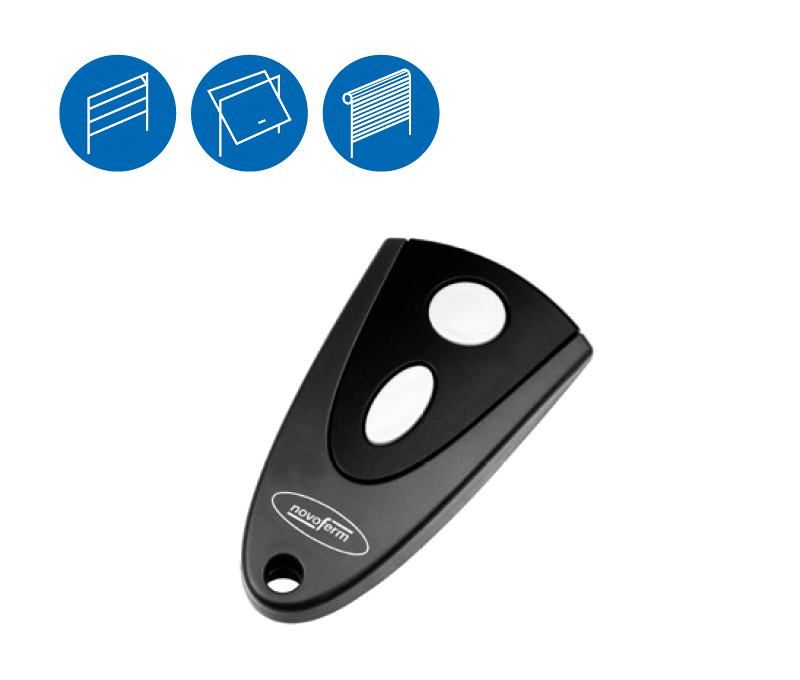

Micro-Novotron 512
2-channel, 433 MHz,
KeeLoq exchangeable code

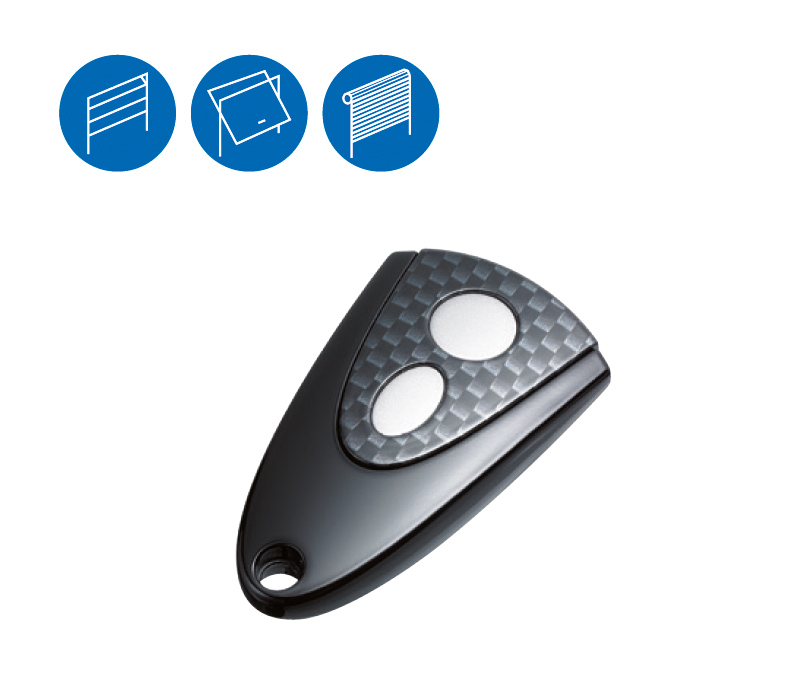

Micro-Novotron 512 Design
2-channel, 433 MHz,
KeeLoq exchangeable code

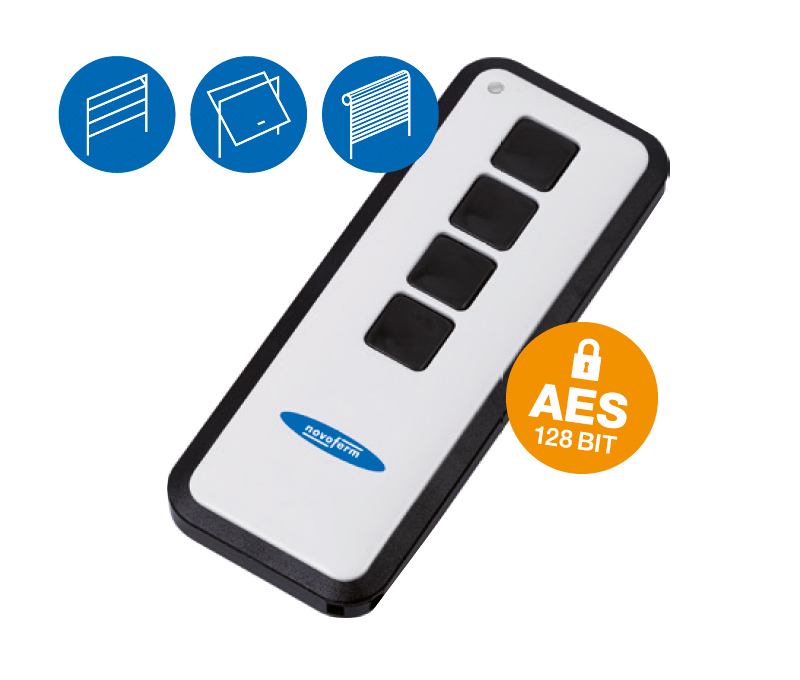

Mini-Novotron 524*
4-channel, 433 MHz,
KeeLoq exchangeable code

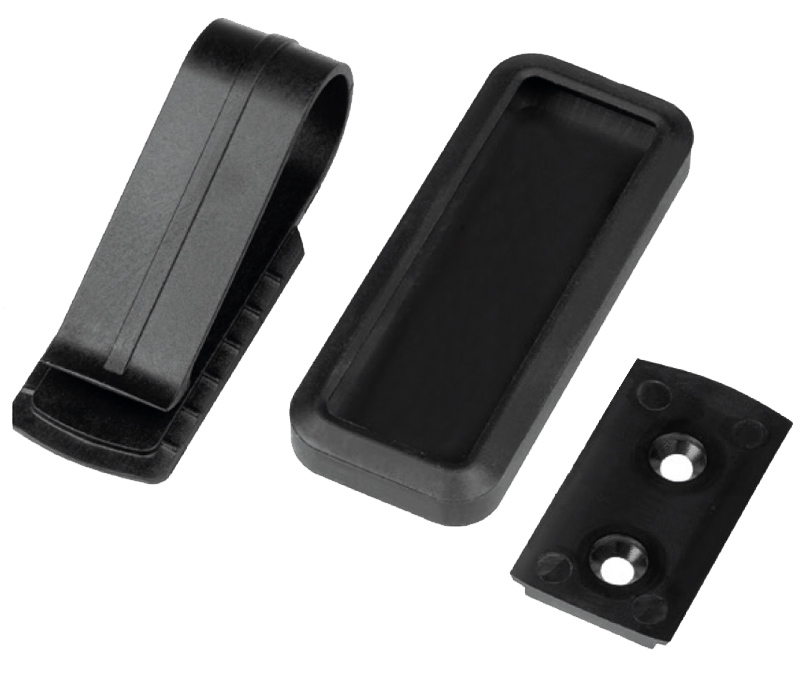

Clip/ silicone cover/ wall mount
Suitable for use as a clip, cover and wall mount for

  • Mini-Novotron 522 Design
  • Mini-Novotron 524 Design
  • Mini-Novotron 522
  • Mini-Novotron 524
  • Mini-Novotron Protect 523

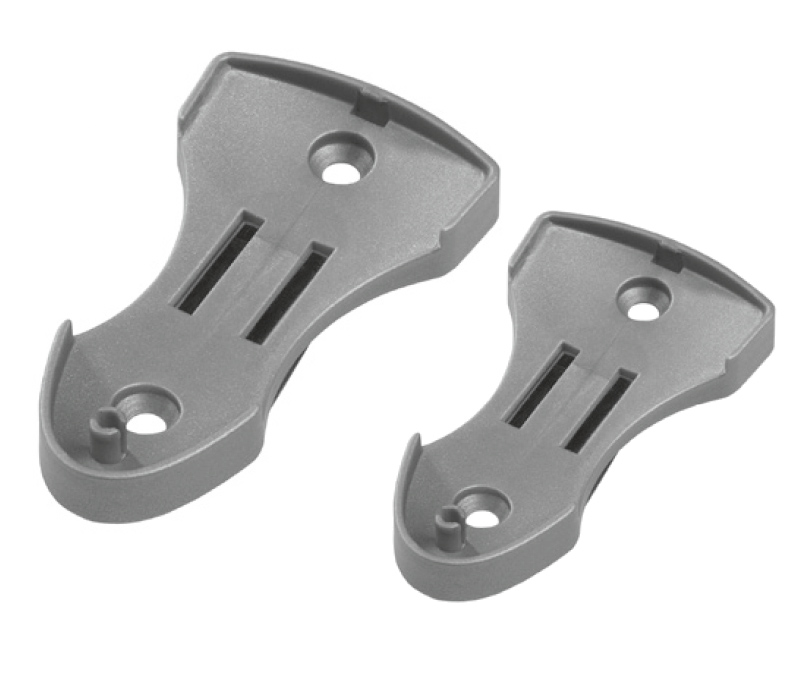

Wall bracket HS
with sun visor clip for

  • Mini-Novotron 502
  • Mini-Novotron 504
  • Micro-Novotron 512
  • Micro-Novotron 512 Design
Button and scanner

Radio button

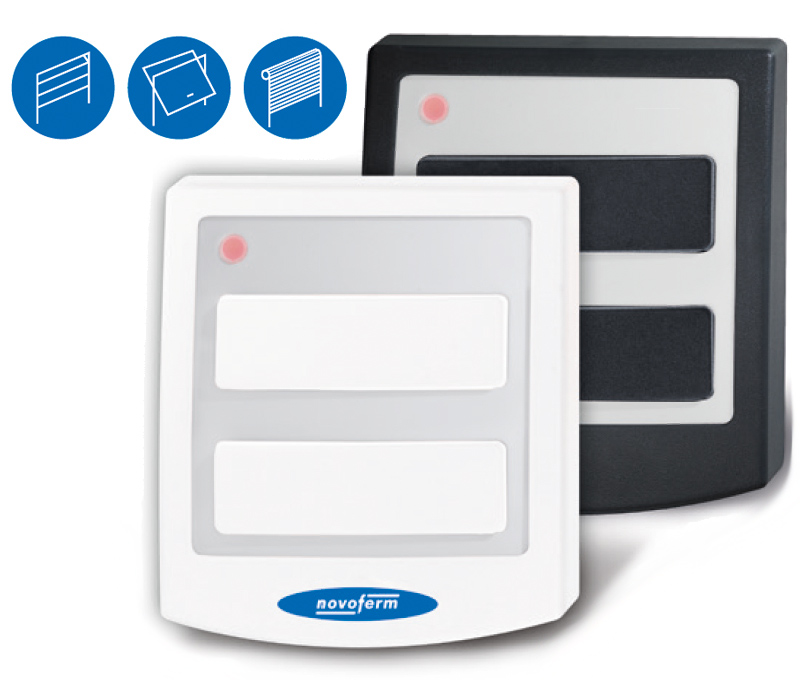

Radio indoor push-button Signal 111
2-channel, 433 MHz, KeeLoq changeover code for controlling 2 drives or 1 drive and 1 outdoor light, made of UV-resistant material, optionally in white or black

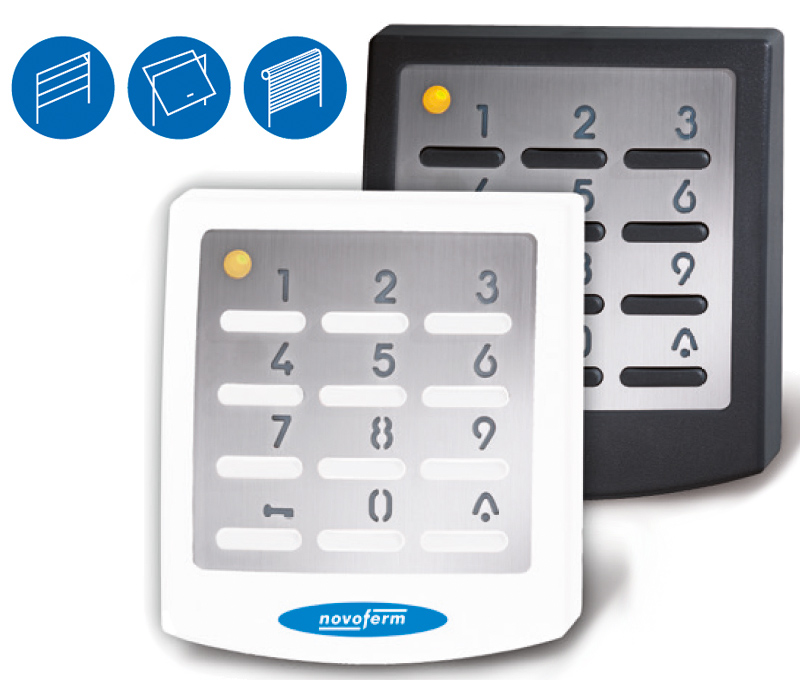

Wireless code switch Signal 218
10 codes, 433 MHz, KeeLoq exchangeable code with stainless steel bezel, backlit, made of UV-resistant material, optionally in white or black

TASTER

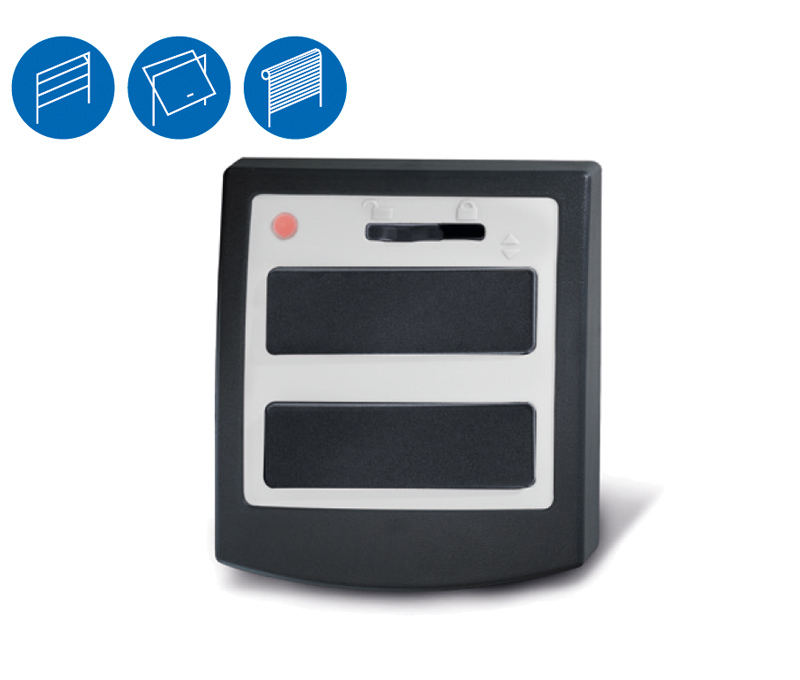

Indoor push-button Signal 112
Start button, holiday switch, permanent light (on/off), 24 V connection on operator, made of UV-resistant material

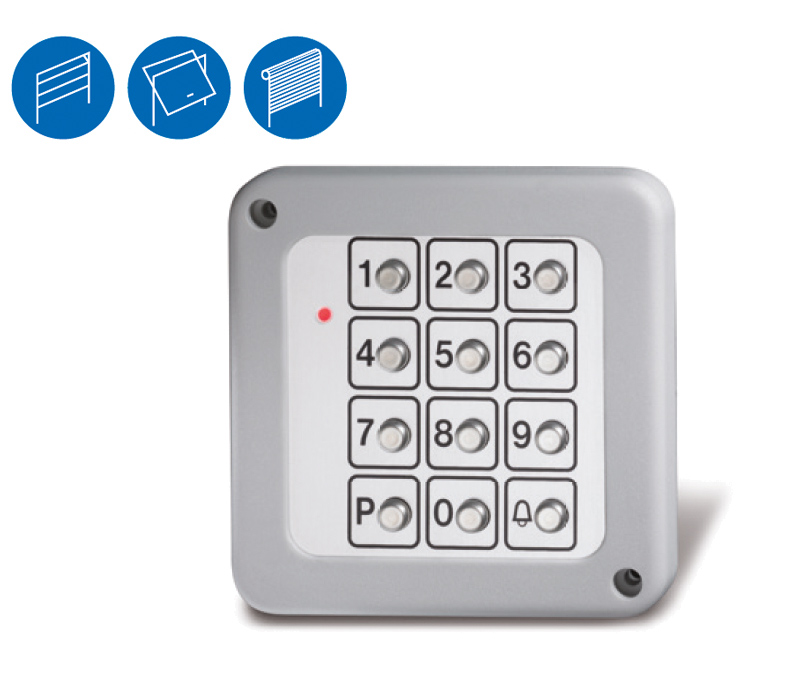

Code switch Signal 213
3 signals, metal keypad, 230 V connection

TRANSPONDERSET

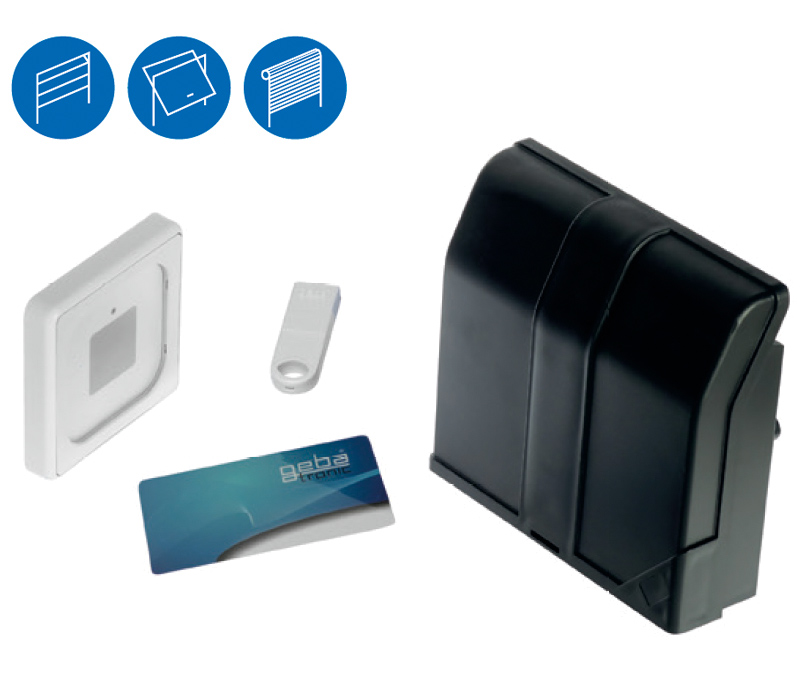

Transponder set

  • 24-240 V
  • Reader unit with coding switch unit
  • 1x transponder card
  • 1x transponder key
  • Suitable for: NovoPort® Speed, Novomatic, NovoGate®/NovoSwing®, NovoRol®, Trafimatic® Plus, Novomatic 423 Accu

FINGERPRINT

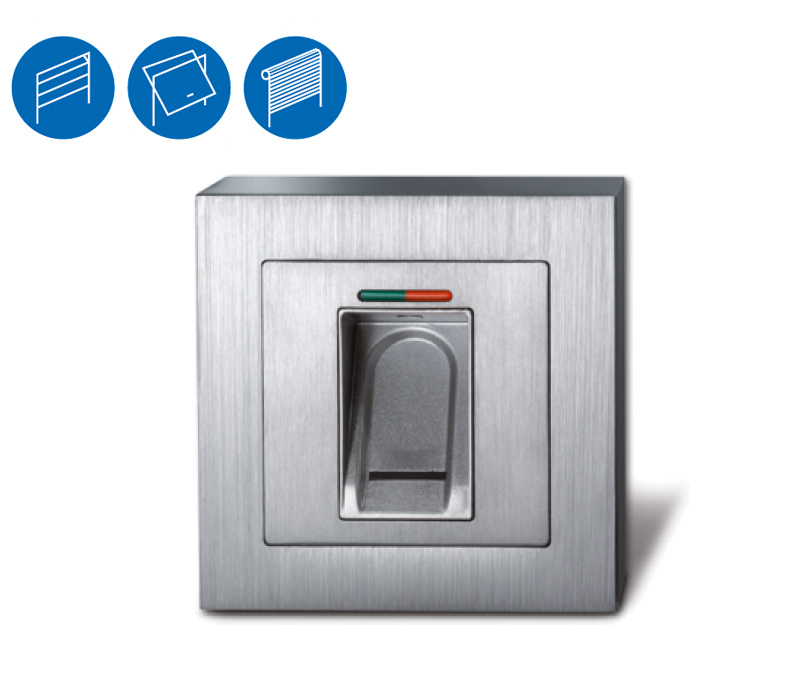

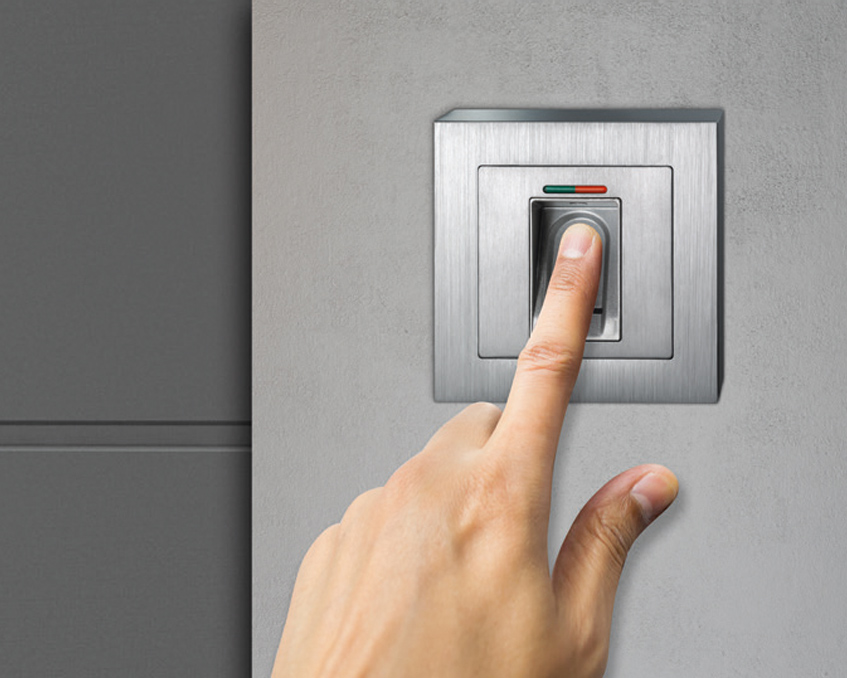

Fingerprint Scanner Signal 601
Pulse output via taught-in fingerprint, up to 150 signals can be taught in, protection class IP 65

KEY SWITCH

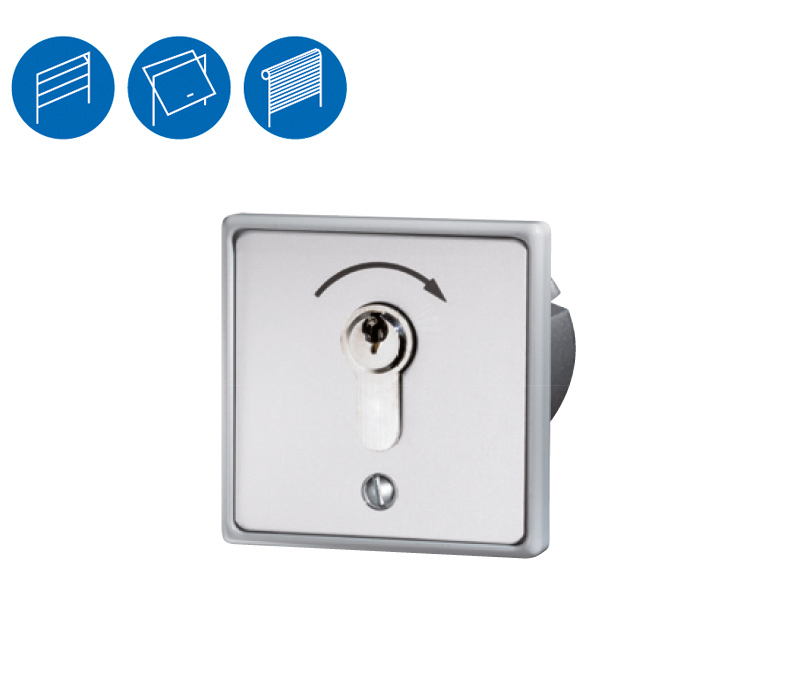

Signal 312
Flush-mounted,
1-fold switching impulse
(1 door)

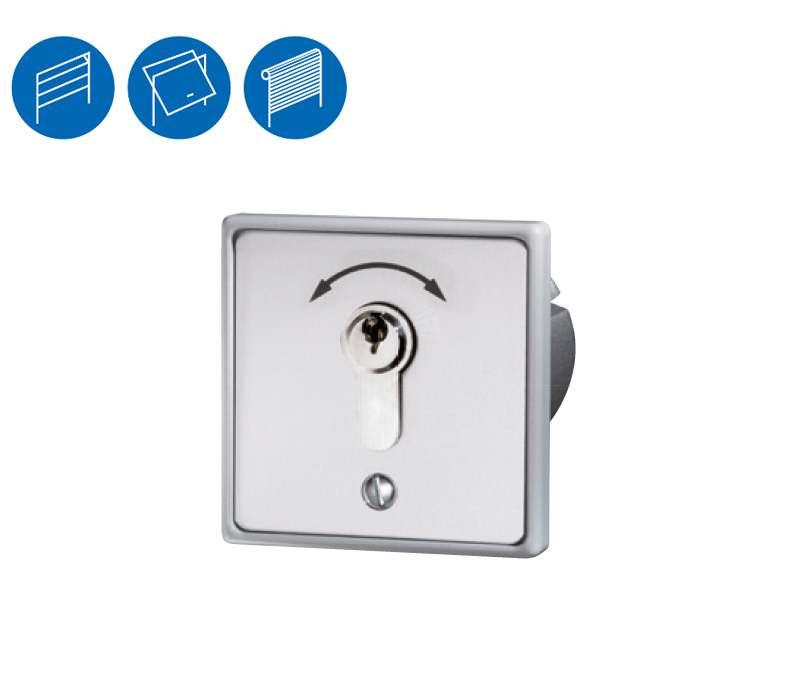

Signal 313
Flush-mounted
2-fold switching impulse
(2 gates)

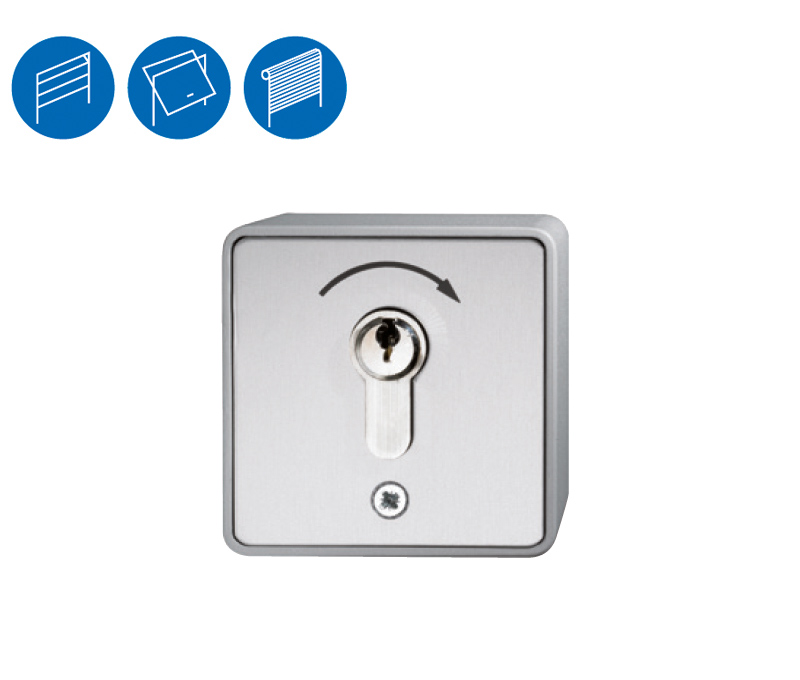

Signal 412
Surface-mounted
1-fold switching pulse
(1 door)

Signal 413
Surface-mounted
2-fold switching impulse
(2 gates)

SMARTHOME COMPONENTS

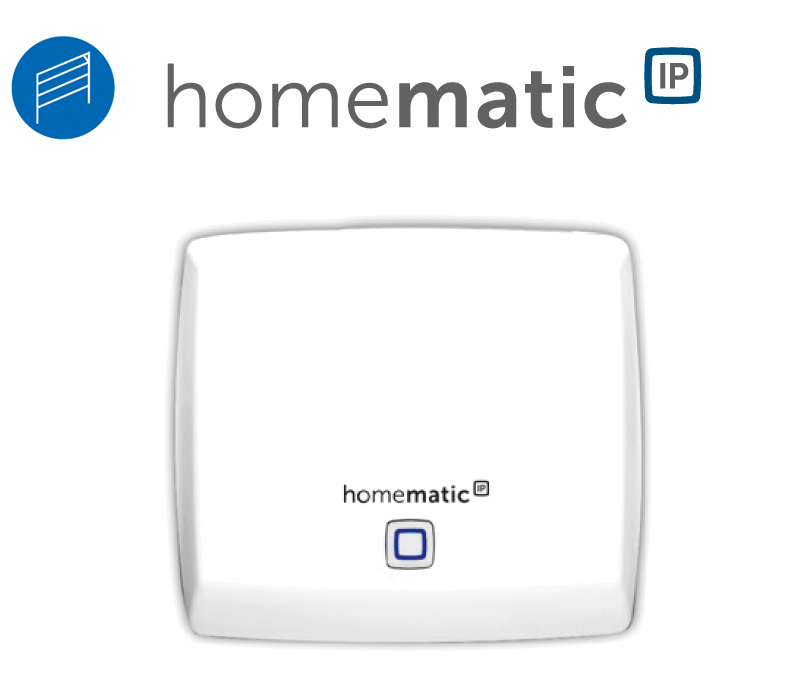

Homematic IP
Access Point

  • Geeignet für:
    NovoPort® Speed,
    Novomatic 443, 573 S und 823 S

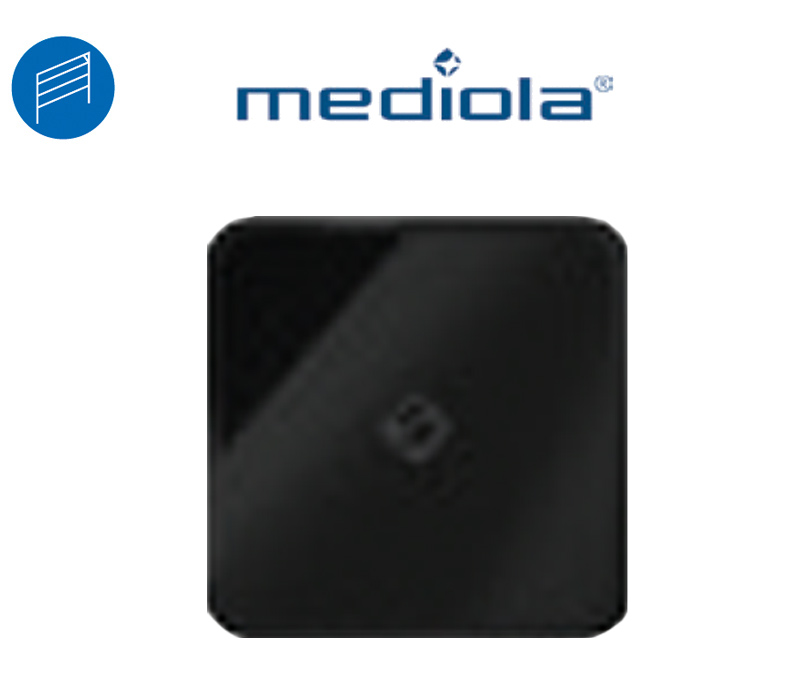

mediola®
AIO Gateway

  • Geeignet für:
    NovoPort® Speed,
    Novomatic 443, 573 S und 823 S

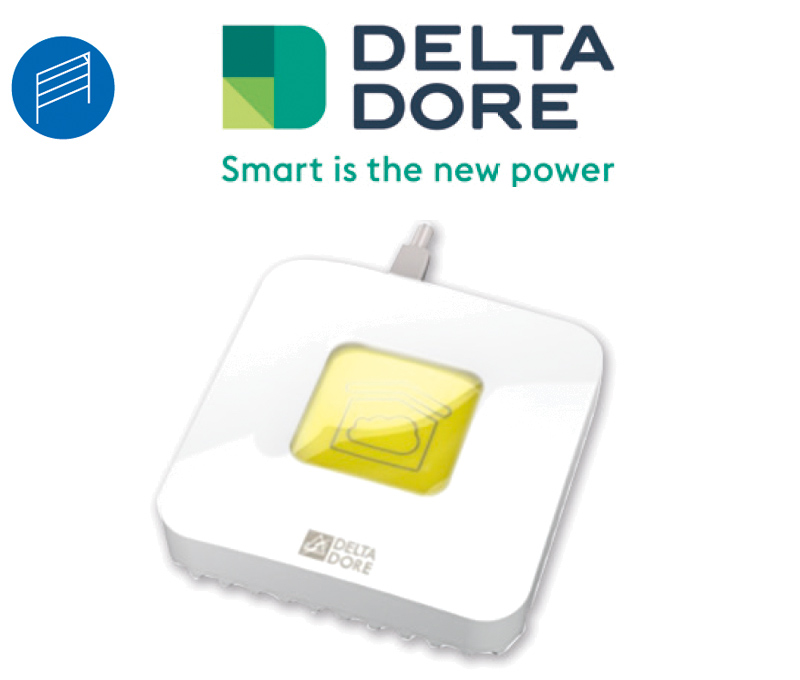

Delta Dore
TYDOM 1.0

  • Geeignet für:
    NovoPort® Speed,
    Novomatic 443, 573 S und 823 S

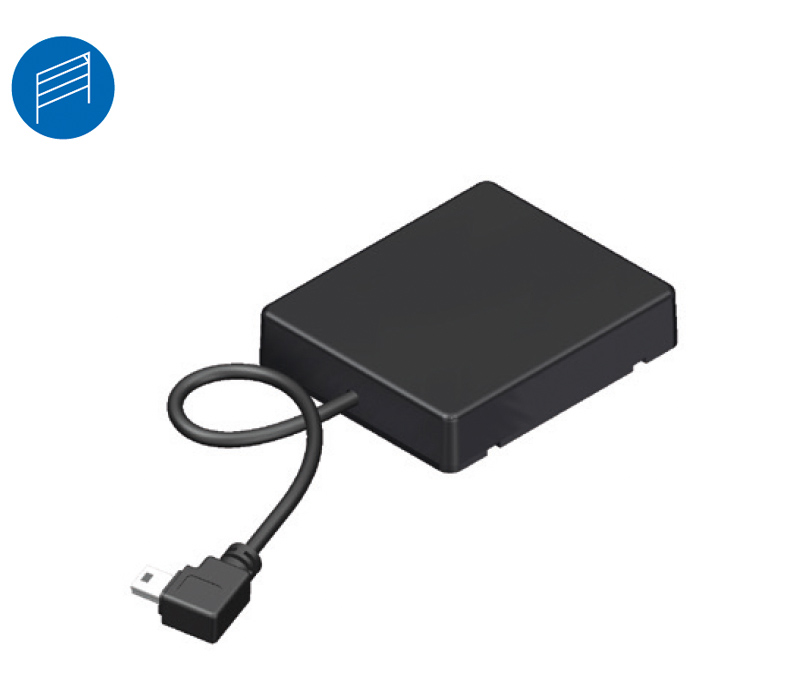

Novoferm plug-on module
for controlling an additional drive via your chosen SmartHome partner app

  • Suitable for:
    NovoPort® Speed,
    Novomatic 443, 573 S and 823 S
STYLISH LIGHTING

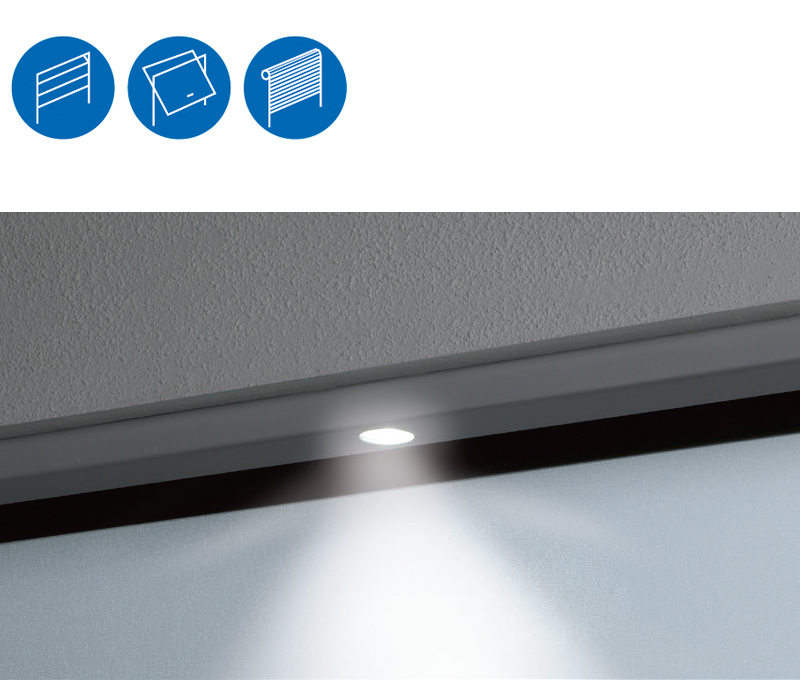

LED LIGHT STRIP

  • Aluminium anodised light strip
  • Bright illumination with low power consumption
  • Long service life thanks to LED technology
  • Weather-protected lighting
  • Available lengths: 3 m, 4 m and 5 m - can be shortened if required
  • Even distribution across the door width:
    4, 6 or 8 LEDs for door widths of up to 3,000, 4,000 or 5,000 mm
  • Door and light can be controlled with a hand-held transmitter
  • Lighting optionally with or without door movement
  • Space-saving installation under the garage lintel
LIGHT BARS

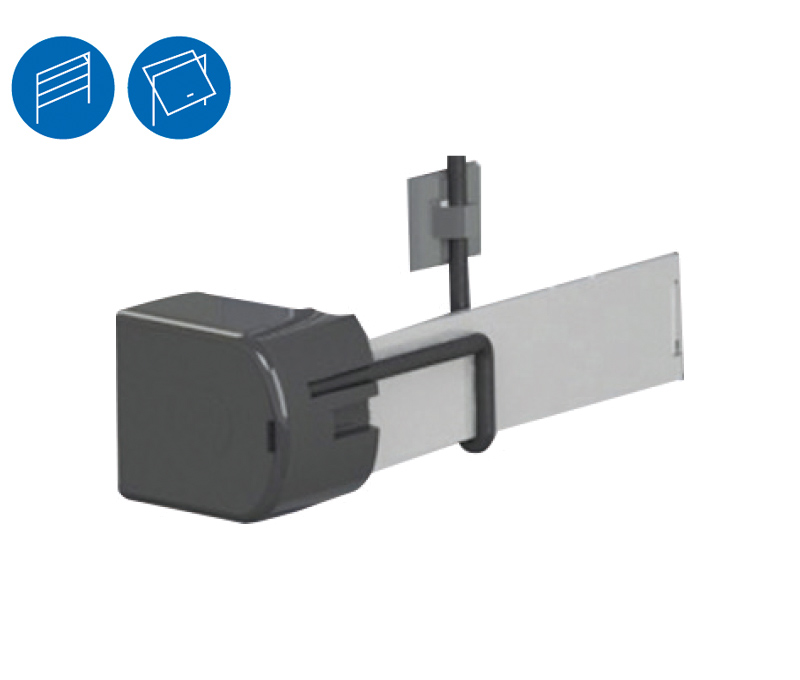

"Easy" throughbeam photoelectric sensor

  • 10-30 V
  • Range 7 m
  • Suitable for:
    Novoferm sectional doors with operator

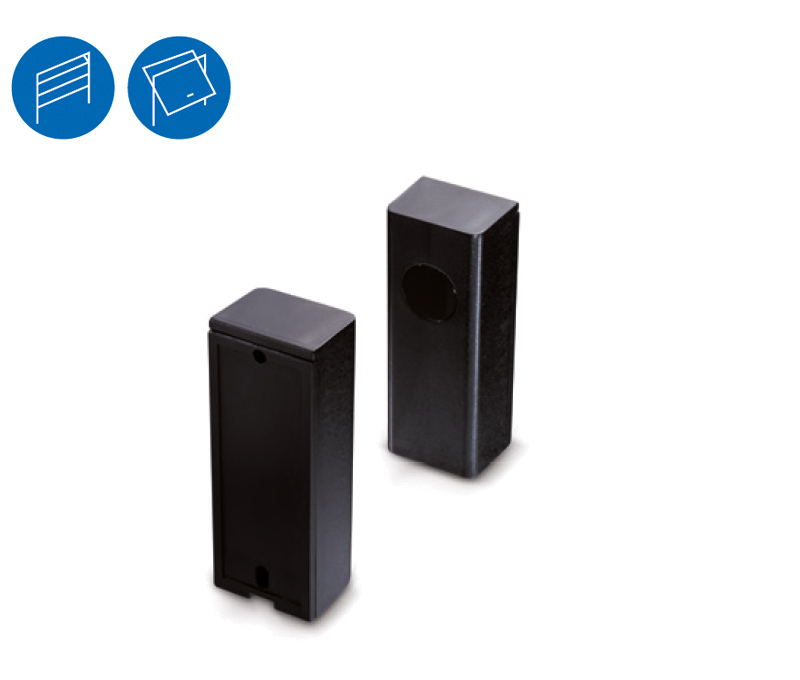

Throughbeam photoelectric sensor "Extra 625"

  • 24 V DC, IP 54
  • Range 8 m
  • Suitable for:
    All operator models

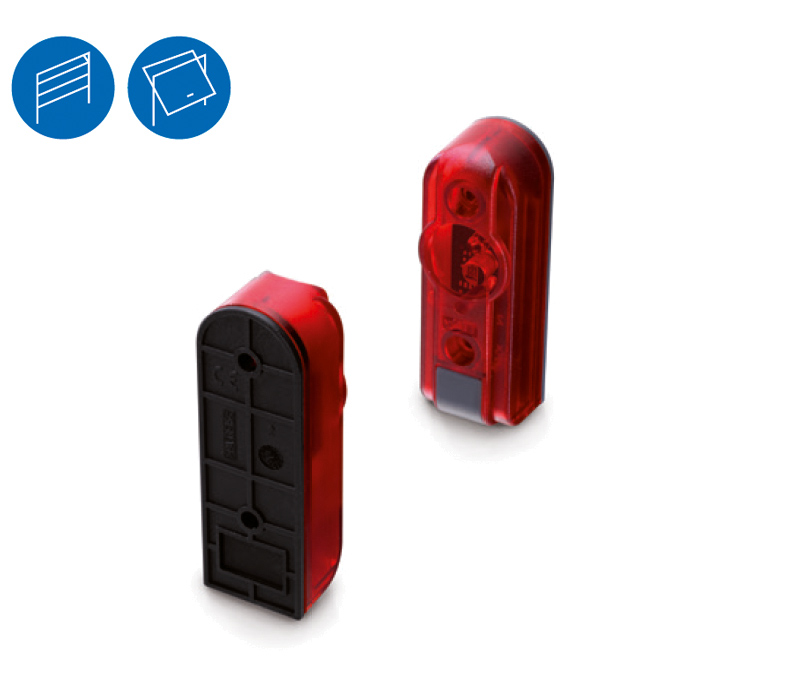

Throughbeam photoelectric sensor "Extra 626"

  • 20-28 V, IP 50, 2-wire
  • Range 8 m
  • Suitable for:
    Novomatic 423, 563 S
    NovoPort®

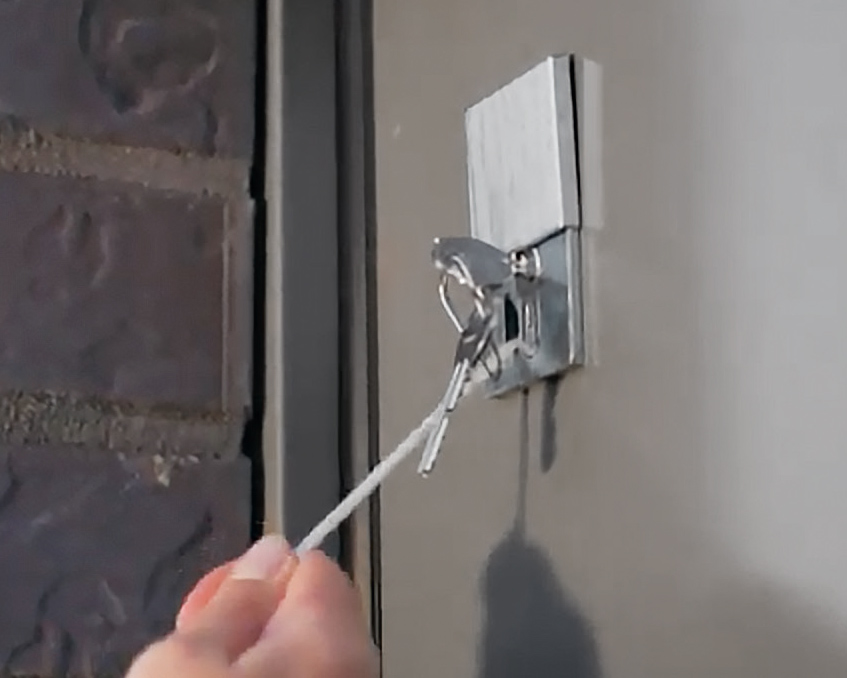

Emergency release

Emergency release

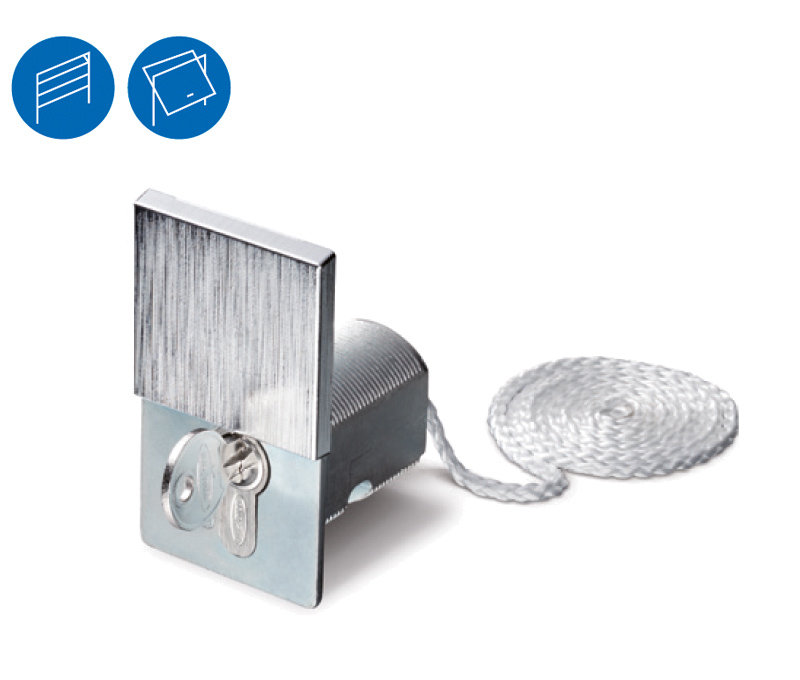

Extra 315" emergency release

  • With safety profile half cylinder
  • Suitable for iso 20 and iso 45 sectional doors
  • A separate version is available for iso 70 sectional doors

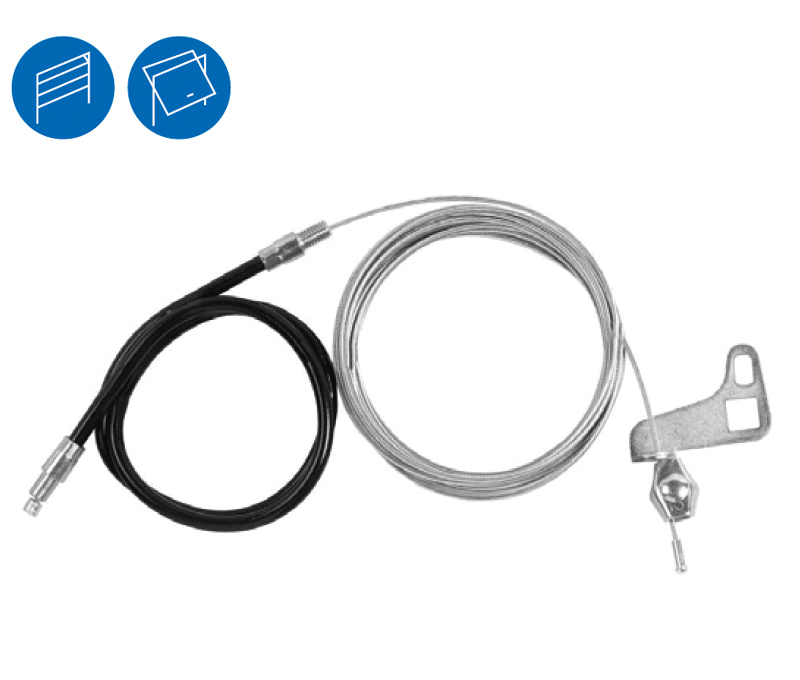

Extra 312" emergency release

  • Suitable for Novomatic door operators
  • Suitable for Novoferm K® and M® up-and-over doors

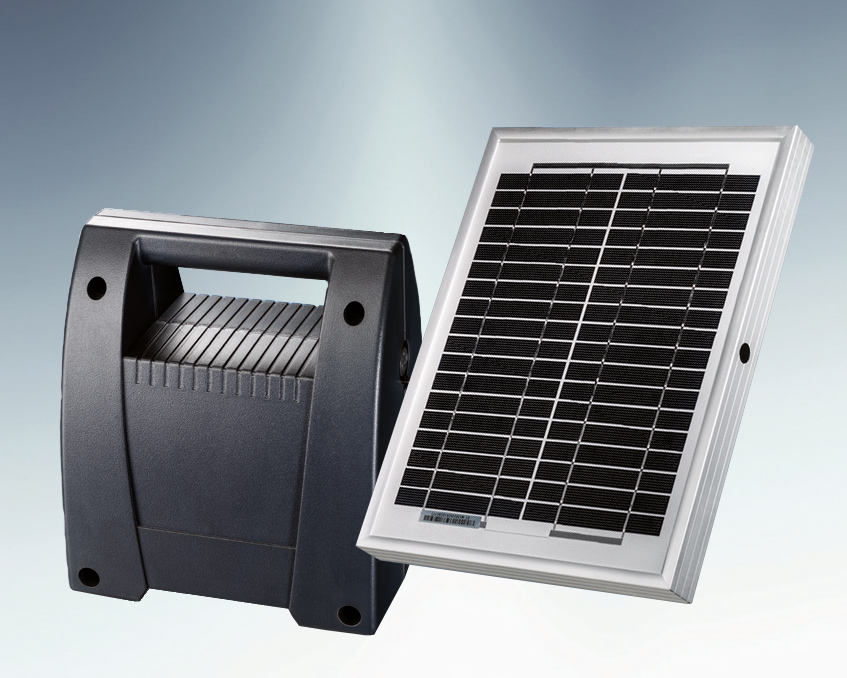

Battery version and solar module

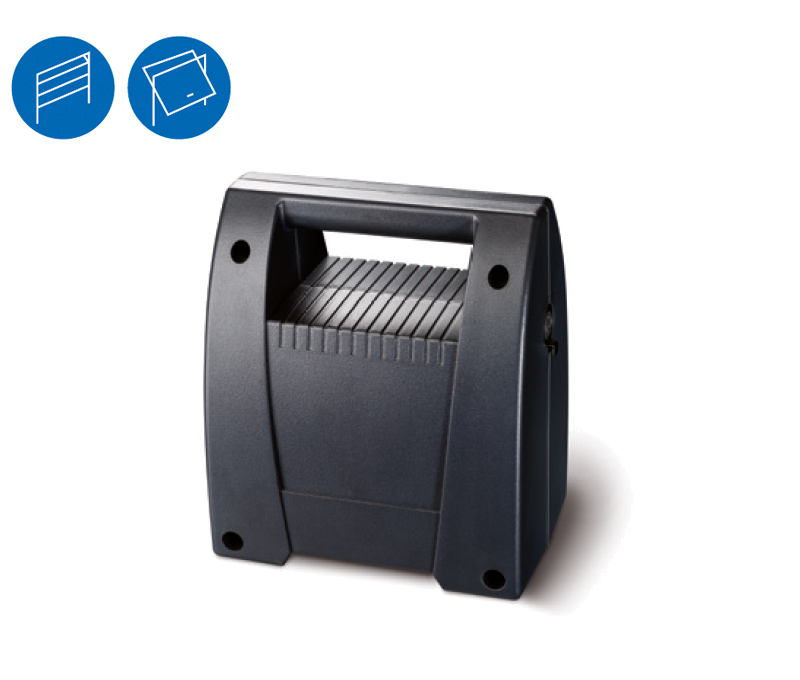

Battery pack
Nominal voltage 12 V DC, nominal capacity 15 Ah, service life 40 days with max. 4 openings per day and at a temperature of 20 °C, temperature range - 15 ° to + 45 °C, integrated charge controller
for plug-in power supply unit

  • Suitable for:
    Novomatic 423 Accu

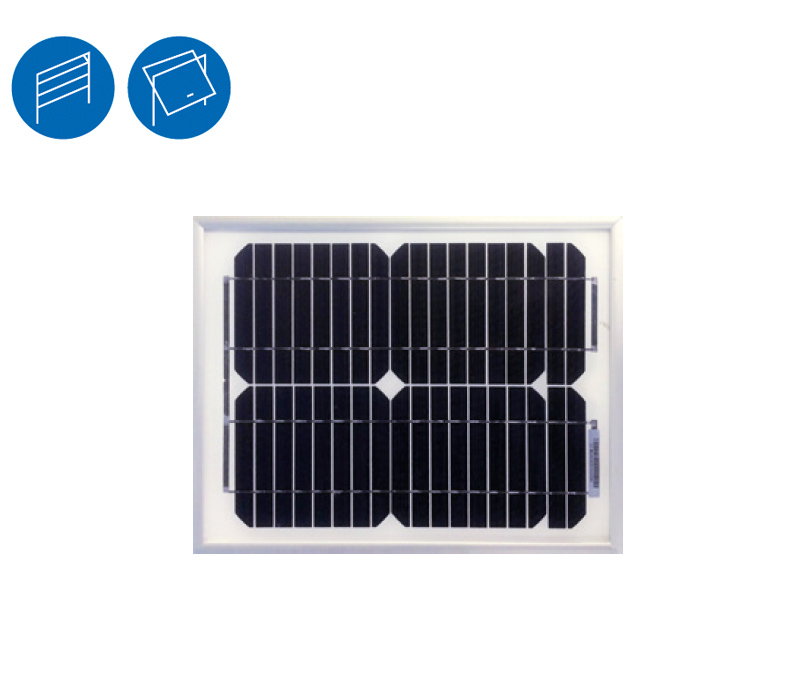

Solar module
Output Pmax 10 Wp, open-circuit voltage 21.5 V, current at Pmax 0.5 A, dimensions 370 x 310 mm

  • Suitable for:
    Novomatic 423 Accu

Use & benefit of accessories

What are the advantages of the accessories?

How can I control my garage door or garage door opener via app? How do I open my automatic garage door if there is a power cut? How can I optimise the ventilation of my garage door? What happens if I don't look at my garage door control? Our user and service videos answer these and many other questions?

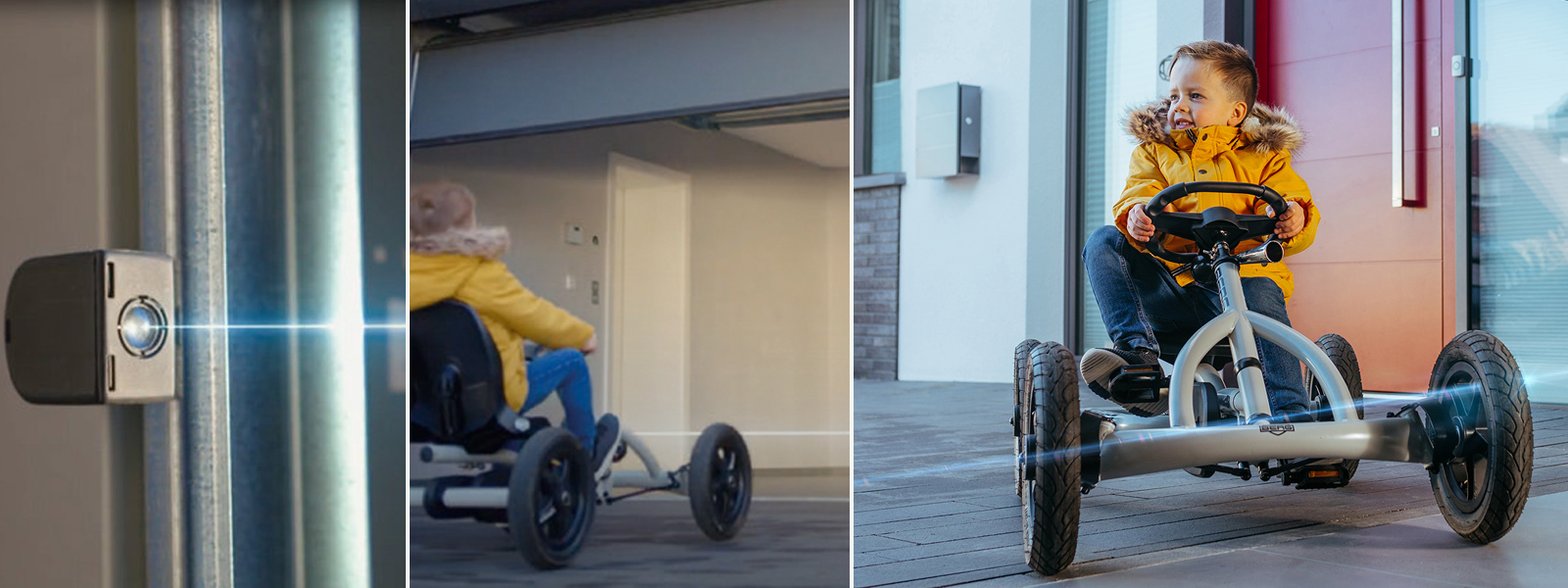

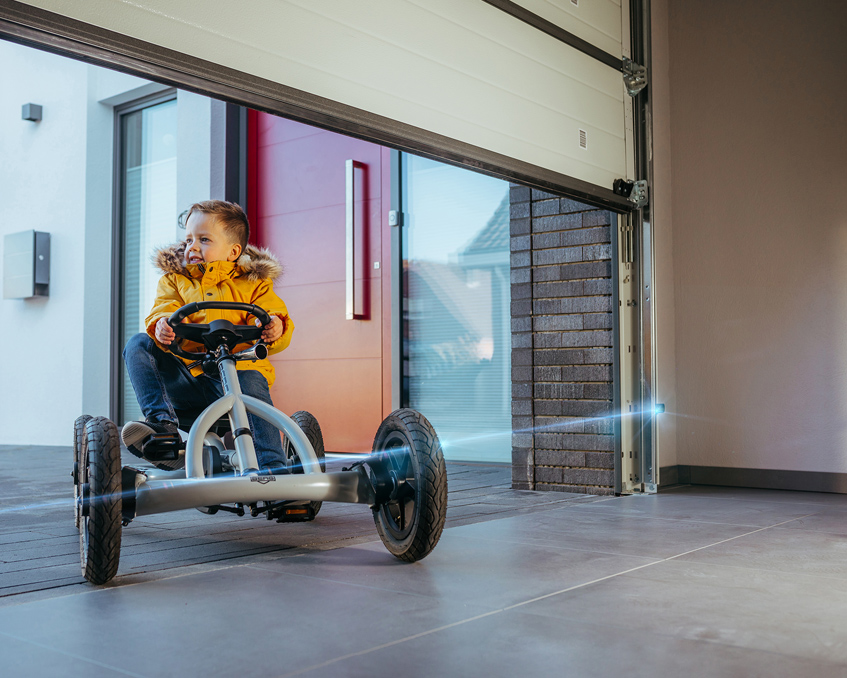

Easy" safety light barrier

Thanks to the Novoferm "Easy" safety light barrier, your garage door stops when obstacles are detected, even when you are not looking.

- Reliable detection of obstacles and people
- Automatic detection of the photocell by the operator
- Simple installation without screws
- Self-retaining design on the sectional door frame
- Predefined installation position thanks to holes in the frame

You can find videos of other highlights below or on the Novoferm YouTube channel:
https://www.youtube.com/NovofermVideos

Operating elements for operating garage doors

Operating elements for operating garage doors

Convenient opening of Novoferm garage doors! A wide range of different Novoferm operating elements are available for operation without remote control.

Bidirectional radio with NovoPort®

Bidirectional radio with NovoPort®

Door status query thanks to multicoloured LED on the Novoferm hand-held transmitter Mini-Novotron 523 Protect! The door status can be reliably checked using the LED colour.

SmartHome - Door control with app

SmartHome door control with app

You can use typical SmartHome systems (Homematic IP, DeltaDore, Mediola, Google Home, Amazon Alexa) for the intelligent control of garage door openers from Novoferm(NovoPort®Speed, Novomatic 443, Novomatic 573 S).

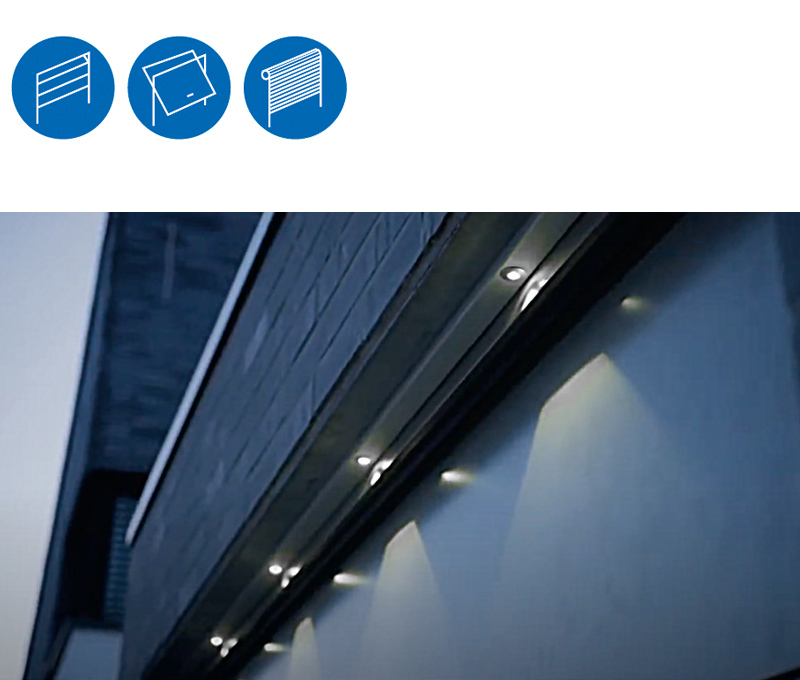

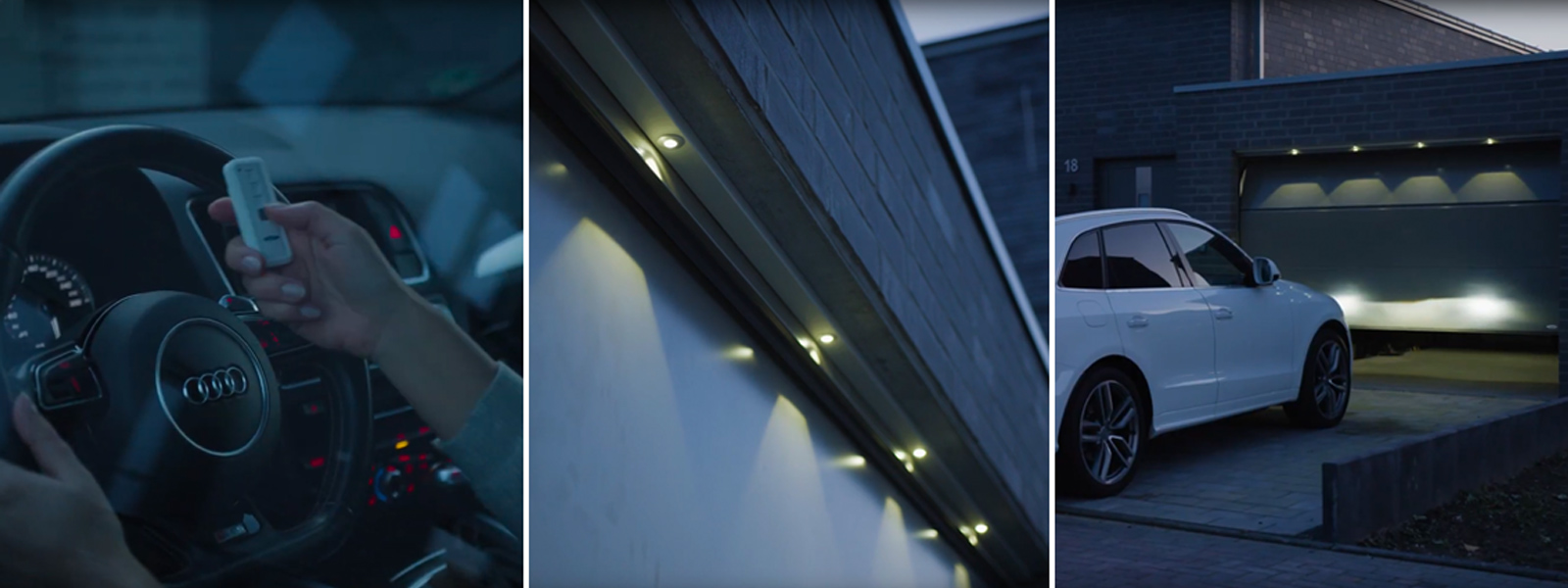

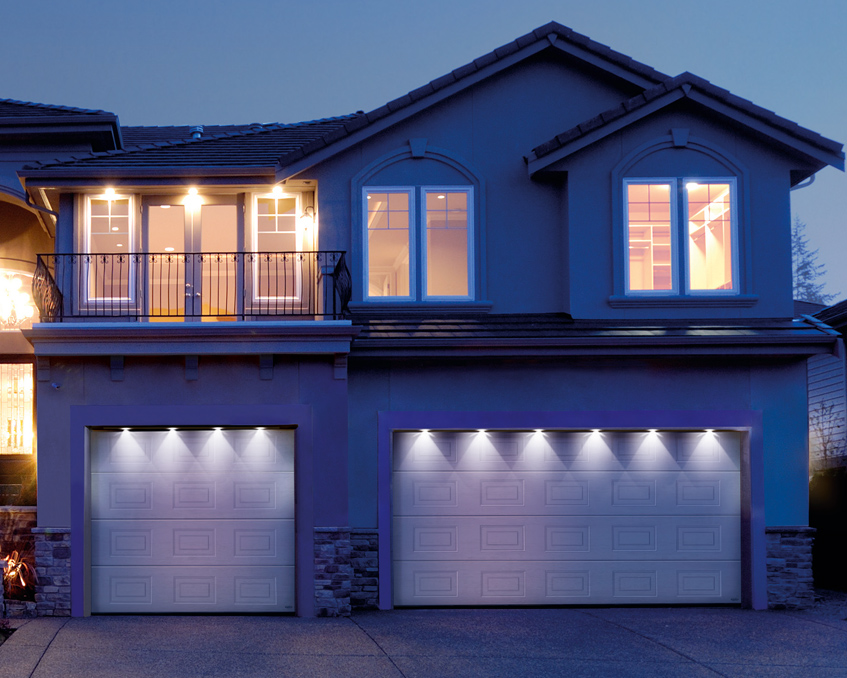

LED light strip for the exterior lighting of the garage

LED light strip for the exterior lighting of the garage

The Novoferm LED light strip sets the scene for your door in the dark! Thanks to the light strip, burglars can also be effectively deterred.

Easy" photocell for garage doors

Easy" photocell for garage doors

Thanks to the Novoferm "Easy" safety light barrier, your garage door stops in the event of obstacles, even when you are not looking.

Extra 315" emergency release for garage doors

Extra 315" emergency release for garage doors

Easy opening of the door even in the event of a power failure! Thanks to the Novoferm "Extra 315" emergency release, you can open your garage door without any problems even in the event of a power failure.

Inspirationen

"Easy" safety light barrier
Thanks to the Novoferm "Easy" safety light barrier, your garage door stops in the event of obstacles, even when you are not looking.

LED light strip for installation under the garage lintel
The Novoferm LED light strip sets the scene for your door in the dark! Thanks to the light strip, burglars can also be effectively deterred.

Operation of garage doors
Convenient opening of Novoferm garage doors! A wide range of different Novoferm operating elements are available for operation without remote control.

Ventilation of garages
Optimum air circulation in the garage thanks to the adjustable ventilation position of Novoferm garage doors! Exhaust fumes and moisture affect the air quality in your garage. Regular ventilation with the ventilation function provides a remedy, ensures sufficient air circulation and prevents mould growth.

Bidirectional radio with the NovoPort garage door opener
Door status query thanks to multicoloured LED on the Novoferm Mini-Novotron 523 Protect hand-held transmitter! The door status can be reliably checked using the LED colour.

Emergency release "Extra 315"
Easy opening of the door even in the event of a power failure! Thanks to the Novoferm "Extra 315" emergency release, you can open your garage door without any problems even in the event of a power failure.

Finger pinch protection for Novoferm sectional garage doors
Pinching is virtually impossible! Finger trapping and injury on Novoferm sectional garage doors is virtually impossible at any point.

Push-button for NovoPort garage door opener
Integrated internal push-button for NovoPort garage door opener! Thanks to the push-button integrated directly into the control unit, no separate wall push-button is required.

High-speedfunction for garage door openers
Faster garage door opening! With the high-speed function of the Novoferm Novomatic 573 S and 563 S garage door opener, you can achieve up to 50 % faster door opening.

Teach-in of hand-held transmitters & buttons

How do I learn remote controls?

The hand-held transmitter and buttons are programmed easily and conveniently using three push-buttons and a clear display on the door operator. Thanks to logical menu navigation, no setting can be overlooked. All parameters are retained even in the event of a power failure.

TEACH-IN HAND-HELD TRANSMITTER MINI-NOVOTRON 522

This video shows you how to teach in the Novoferm hand-held transmitter Mini-Novotron 522 (2-channel interchangeable code hand-held transmitter - KeeLoq) to control the Novoferm design operators for opening and closing garage doors and/or the operator lighting.

You can find videos on other functions below or on the Novoferm YouTube channel:
https://www.youtube.com/NovofermVideos

Teach-in hand-held transmitter Mini-Novotron 522

Teach-in hand-held transmitter Mini-Novotron 522


This video from the garage door sector shows you how to programme the new Novoferm hand-held transmitter Mini-Novotron 522 (2-channel interchangeable code hand-held transmitter -- KeeLoq) to control the new Novoferm design operators for opening and closing garage doors and/or the operator lighting.

Teach-in radio code switch Signal 218

Teach-in radio code switch Signal 218

This video from the garage door sector shows you how to programme the new Novoferm Signal 218 radio code switch in white by entering a 4-digit security code to control the new Novoferm design operators for opening and closing garage doors. The push-button can be programmed with 10 codes.

Teach-in radio indoor push-button Signal 111

Teach-in radio indoor push-button Signal 111

This video from the garage door sector shows you how to teach in the new Novoferm Signal 111 (2-channel) indoor radio switch in white to control the new Novoferm design operators for opening and closing garage doors and/or the operator lighting.

Battery replacement for Novoferm hand-held transmitters

Battery replacement for Novoferm hand-held transmitters

This video shows step-by-step how to change the batteries in Novoferm hand-held transmitters.

Montage

How do I install garage door accessories?

The following videos illustrate the step-by-step installation of selected door accessories. The videos are only intended as a supplement to the installation, operating and maintenance instructions. They do not replace professional installation by qualified and trained specialist personnel.

Mounting emergency release "Extra 315"

Step-by-step installation of the Novoferm emergency release "Extra 315" on a sectional garage door type ISO 45 with NovoPort operator system.

You can find more installation videos below:

Installation of radio code button Signal 218 for garage doors

MONTAGE Radio code button Signal 218 for garage doors

This video shows the step-by-step installation and teach-in of the Novoferm Signal 218 radio code button for garage doors.

Installation of "Easy" safety light barrier for garage doors

Installation of "Easy" safety light barrier for garage doors

This video shows the step-by-step installation of the Novoferm "Easy" safety light barrier on an ISO 45 sectional garage door.

Mounting emergency release Extra 315

Mounting emergency release Extra 315

This video shows the step-by-step installation of the Novoferm "Extra 315" emergency release on an ISO 45 sectional garage door with NovoPort operator system.
