GARAGE DOOR OPENING WITH ELECTRIC OPERATOR
Convenient door control with app, remote control or push-button
Novoferm recommends buying a garage door together with a garage door opener, because anyone buying a new garage door today not only wants it to look good, but also wants it to open easily. With an electric operator, you can raise the comfort level of your garage at the touch of a button and eliminate inconvenience - simply by clicking on the radio remote control or control with an app.
All Novoferm operators are tested in combination with Novoferm doors. This guarantees maximum functional reliability and durability. And thanks to the practical emergency release, you can always get in even if the power fails.
Selection of garage door openers
Choose your electric door operator:
Drive comparison
COMPARISON OF DRIVE TYPES
Garage door openers in comparison

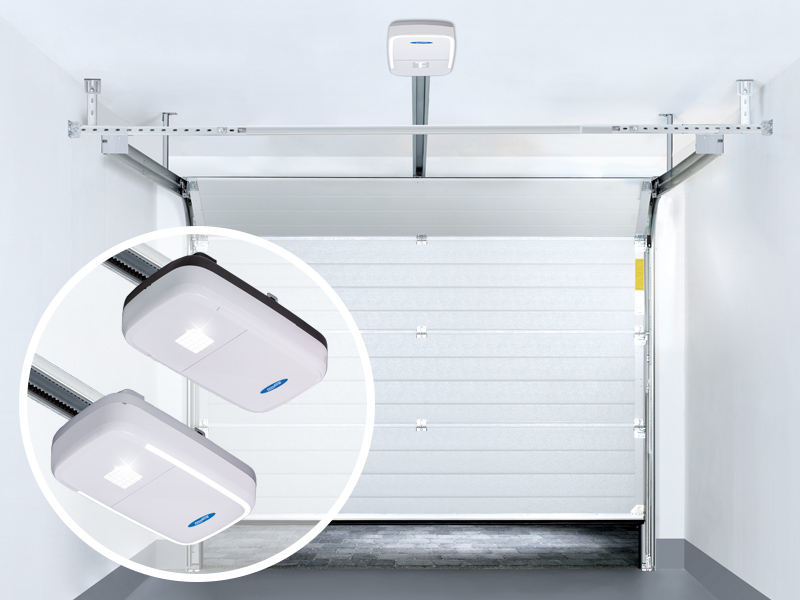

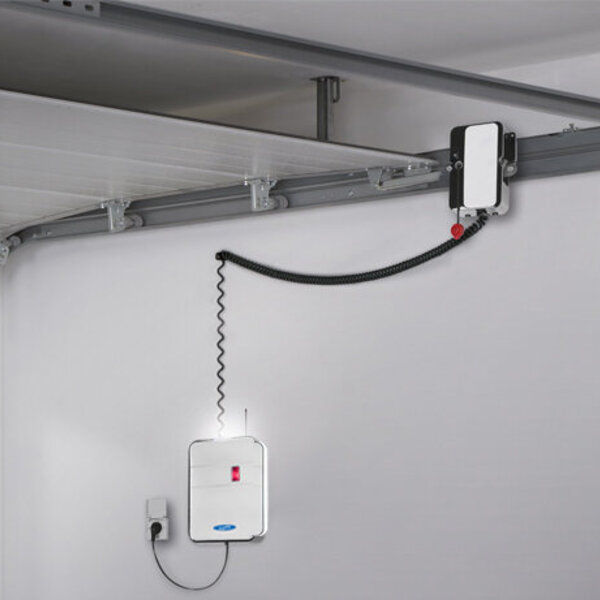

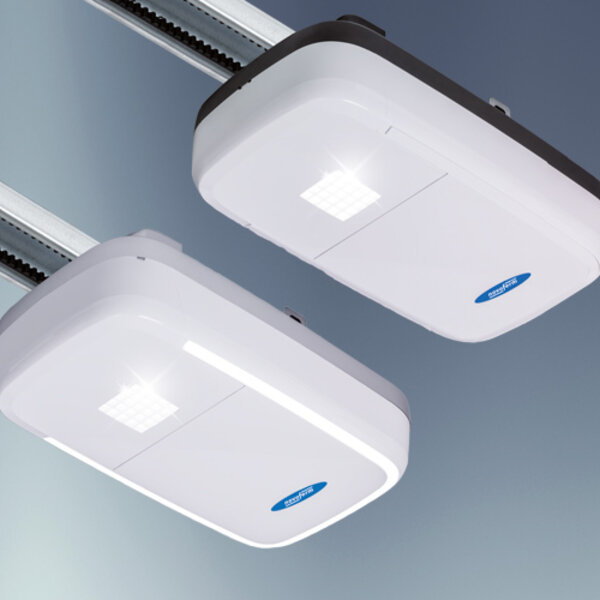

Garage door opener | NovoPort® Speed operator system | Novomatic 443 | Novomatic 573 S | Novomatic 823 S | Control unit for roller shutters |
---|---|---|---|---|---|

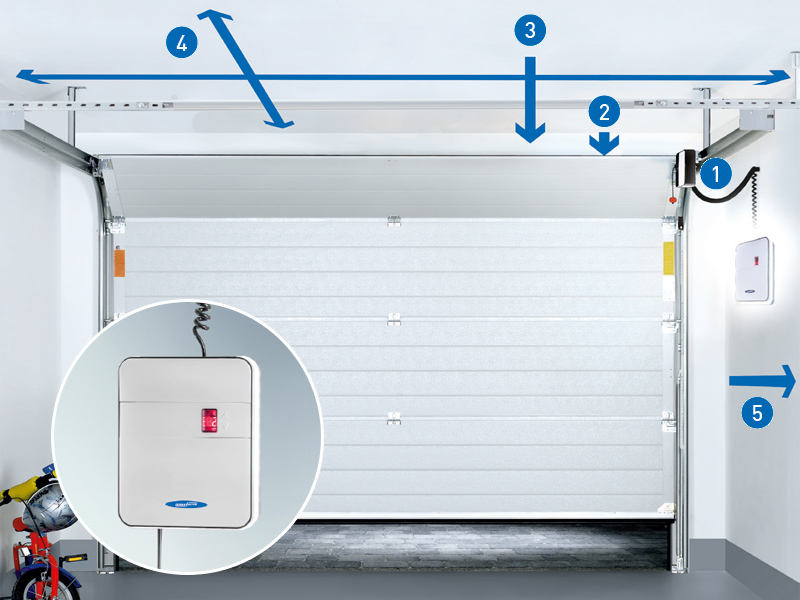

Mounting position Operator | Side mounting | Ceiling mounting | Ceiling mounting | Ceiling mounting | Side mounting |
Compatible with door types |
|
|
|
|
|
Compatible with SmartHome- System (only for sectional doors) |
|
|
|
|
|
Special features |
|
|
|
|
|
Notes:

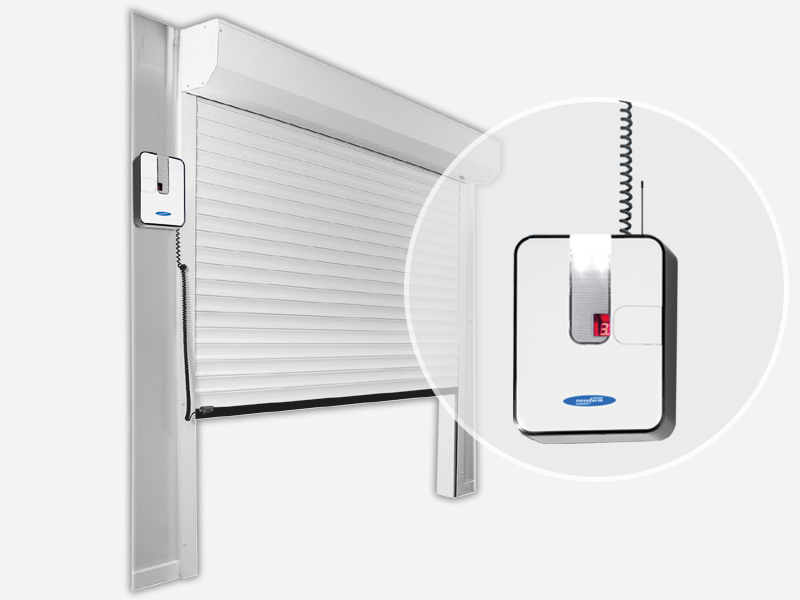

Due to their heavy weight, roller garage doors are equipped and supplied with a special operator as standard. Due to their special construction and double-leaf design, up-and-over garage doors can only be operated manually.
Data at a glance
Data at a glance
Technical data | NovoPort® Speed | Novomatic 443 | Novomatic 423 Accu | Novomatic 573 S | Novomatic 823 S |
Pull and push force | 550 N | 600 N | 400 N | 800 N | 1000 N |
Mains connection | 230 V/ 50 Hz | 230 V/ 50 Hz | - | 230 V/ 50 Hz | 230 V/ 50 Hz |
Mains connection cable | With EU connection cable C7, 2-pole, 1 m long | With EU connection cable C7, 2-pin, 1 m long | Battery connection cable, 2 m long | With EU connection cable C7, 2-pin, 1 m long | With EU connection cable C5, 3-pin, 1 m long |
Duty cycle | 3 cycles/hour, max. 10 cycles/day | 3 cycles/hour, max. 10 cycles/day | - | 3 cycles/hour, max. 10 cycles/day | 5 cycles/hour, max. 70 cycles/day |
Operating current | 1,25 A | 0,7 A | 0,7 A | 1,25 A | 2,0 A |
Temperature range | -20 ° to +40 °C | -20 ° to +40 °C | -20 ° to +40 °C | -20 ° to +40 °C | -20 ° to +40 °C |
Operating voltage motor | 24 V | 24 V | 12 V | 24 V | 24 V |
Gearbox | Closed worm gear unit, self-locking | Enclosed worm gear unit, self-locking | Enclosed worm gearbox, self-locking | Enclosed worm gearbox, self-locking | Enclosed worm gearbox, self-locking |
Power consumption Operation | 200 W | 160 W | 160 W | 240 W | 410 W |
Power consumption stand-by | < 0,5 W | < 0,5 W | 3 mA | < 0,5 W | < 4 W |
Protection class | For dry rooms only (IP 20) | Only for dry rooms (IP 22) | Only for dry rooms (IP 22) | Only for dry rooms (IP 22) | Only for dry rooms (IP 20) |
Running speed | 17 cm/s (soft start and soft stop = 7 cm/s) | 15 cm/s (soft start, soft stop = 7 cm/s) | 13 cm/s (soft start, soft stop = 7 cm/s) | open: 22 cm/s (soft start, soft stop = 7 cm/s) close: 17 cm/s (soft start, soft stop = 7 cm/s) with ramp function | open: 22 cm/s (soft start, soft stop = 7 cm/s) close: 17 cm/s (soft start, soft stop = 7 cm/s) with ramp function |
Control system | Microprocessor-controlled | Microprocessor-controlled with motor head | Microprocessor-controlled with motor head | Microprocessor-controlled with motor head | Microprocessor-controlled with motor head |
Programming | Menu-guided, with 7-segment display | Menu-guided, with 7-segment display | Menu-guided, with 7-segment display | Menu-guided, with 7-segment display | Menu-guided, with 7-segment display |
Control sequence | 1st pulse = drive runs 2nd pulse = drive stops 3rd pulse = reverses direction of travel | 1st pulse = drive runs 2nd pulse = drive stops 3rd pulse = reversal of direction | 1st pulse = drive runs 2nd pulse = drive stops 3rd pulse = reversal of direction | 1st pulse = drive runs 2nd pulse = drive stops 3rd pulse = reversal of direction | 1st pulse = drive runs 2nd pulse = drive stops 3rd pulse = reversal of direction |
Radio control | 433 MHz, with KeeLoq changeover code, with AES 128 bit encryption and bidirectional radio | 433 MHz, with KeeLoq changeover code | 433 MHz, with KeeLoq exchangeable code | 433 MHz, with KeeLoq changeover code | 433 MHz KeeLoq receiver (up to 30 signals) or multibit (up to 1000 signals) |
Internal push-button | With control housing as standard | Available as additional equipment | Available as optional equipment | Available as optional equipment | Available as optional equipment |
Quick release from inside | On the motor housing with permanent release function | As standard, can be operated from the inside with permanent release function | As standard, can be operated from the inside with permanent release function | Standard, can be operated from the inside with permanent release function | As standard, can be operated from the inside with permanent release function |
Emergency release from the outside | Available as optional equipment | Available as optional equipment | Available as optional equipment | Available as optional equipment | Available as optional equipment |
Interior garage lighting | Power LED, 1.6 W adjustable from 60 - 240 seconds with/without advance warning | Power LED, 1.6 W adjustable from 60 - 240 seconds with/without advance warning | Power LED, 0.4 W, adjustable 30, 60 or 90 seconds | Power LED, 1.6 W adjustable from 60 - 240 seconds with/without pre-warning | Power LED, 1.6 W adjustable from 60 - 240 seconds with/ without pre-warning "Eltako" impulse switch for staircase lighting available |
Garage exterior lighting | External lighting max. 500 W or warning light can be connected directly | External lighting max. 500 W or warning light can be connected directly | - | External lighting max. 500 W or warning light can be connected directly | External lighting max. 500 W or warning light can be connected directly |
Ventilation setting | Programmable | Programmable | - | Programmable | Programmable |
Automatic switch-off | Can be set separately for both running directions (10-stage fine adjustment) | Can be set separately for both running directions (10-stage fine adjustment) | Can be set separately for both running directions (10-stage fine adjustment) | Separately adjustable for both running directions (10-stage fine adjustment) | Separately adjustable for both running directions (10-stage fine adjustment) |
Safety device | Automatic force adjustment with 2-processor safety technology Reversing in closed position, partial reversing before closed position (soft start), stop in open position | Automatic force adjustment with 2-processor safety technology Reversing in closed position, partial reversing before closed position (soft start), stop in open position | Automatic force adjustment with 2-processor safety technology Reversing in closing position, partial reversing before closing position (smooth running), stop in opening position | Automatic force adjustment with 2-processor safety technology Reversing in closing position, partial reversing before closing position (smooth running), stop in opening position | Automatic force adjustment with 2-processor safety technology Reversing in closing position, partial reversing before closing position (smooth running), stop in opening position |
Limit stop | Microprocessor-controlled distance detection with reference point | Microprocessor-controlled distance detection with reference point | Microprocessor-controlled distance detection with reference point | Microprocessor-controlled distance measurement with reference point | Microprocessor-controlled distance detection with reference point |
Running time limitation | Motor is switched off automatically after 90 s running time | Motor is switched off automatically after 90 s running time | Motor is switched off automatically after 90 s running time | Motor is switched off automatically after 90 s running time | Motor is switched off automatically after 90 s running time |
Blocking protection | Motor standstill is detected in addition to automatic switch-off | Motor standstill is detected in addition to automatic switch-off | Motor standstill is detected in addition to automatic switch-off | Engine standstill is detected in addition to automatic switch-off | Motor standstill is detected in addition to automatic switch-off |
Overrun protection | Through self-locking of the geared motor and additional mechanical locking via the upper rollers of the door (sectional doors) | By self-locking the geared motor and additional mechanical locking via the top rollers of the door (sectional doors) | By self-locking the geared motor and additional mechanical locking via the top rollers of the door (sectional doors) | By self-locking the geared motor and additional mechanical locking via the top rollers of the door (sectional doors) | By self-locking the geared motor and additional mechanical locking via the top rollers of the door (sectional doors) |
Running rail | Toothed belt integrated in door track | Galvanised steel profile with toothed belt and ball bearing mounted deflections | Galvanised steel profile with toothed belt and deflections | Galvanised steel profile with toothed belt and ball bearing mounted deflections | Galvanised steel profile with toothed belt and ball bearing mounted deflections |
CE mark | Yes | Yes | Yes | Yes | Yes |
App capability | Yes | Yes | No | Yes | Yes |
90° installation | No | Yes | Yes | Yes | Yes |

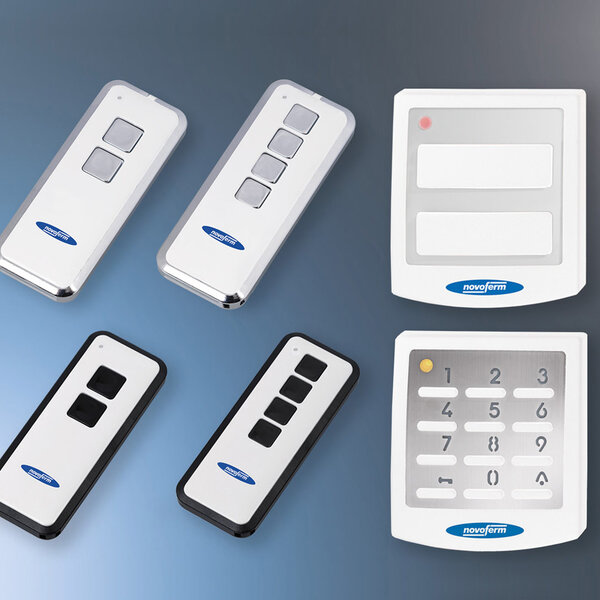

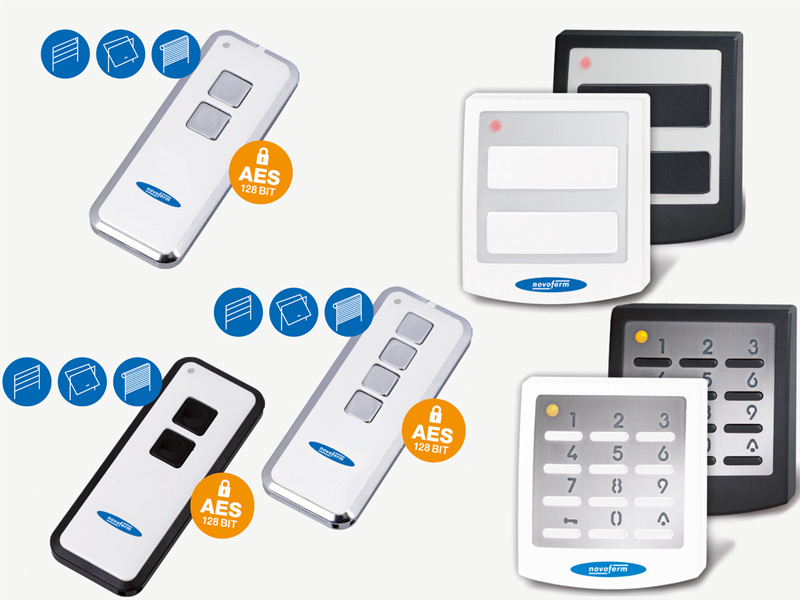

Garage door accessories
WOULD YOU LIKE A LITTLE MORE?
Examples of applications

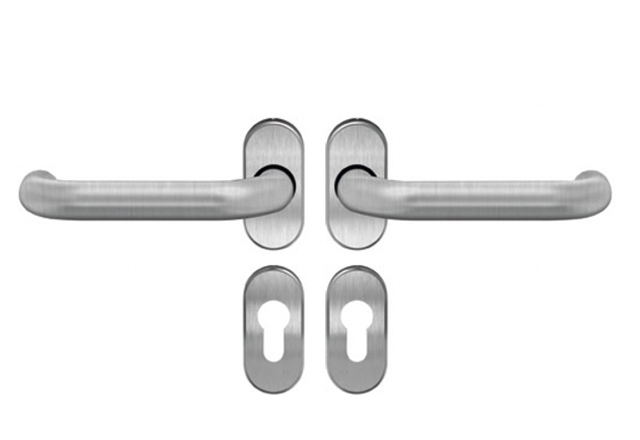

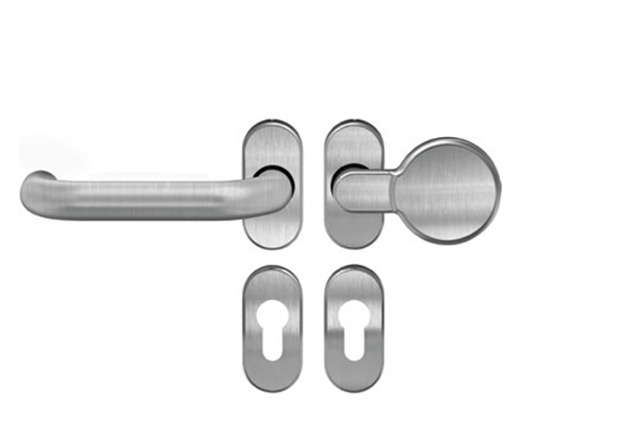

MANUAL OPENING WITH DOOR HANDLE

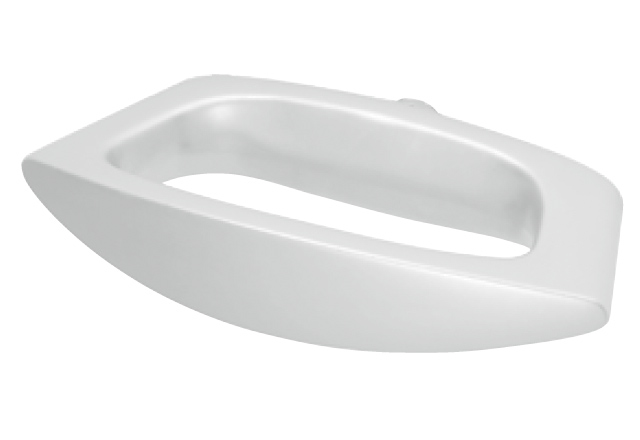

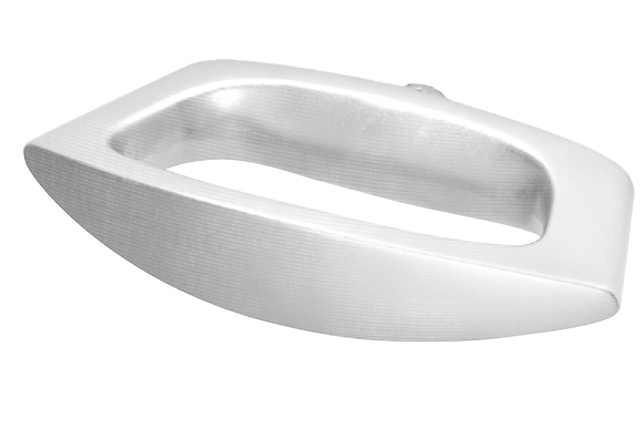

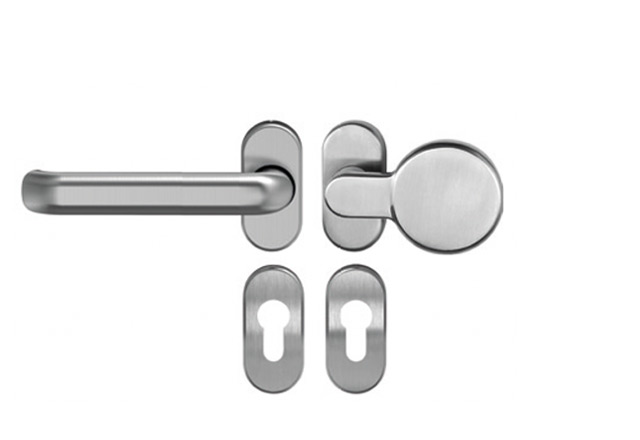

As an alternative to electric openers, door handles are available in many colours and designs to match the door.
EXAMPLES SECTIONAL GARAGE DOORS

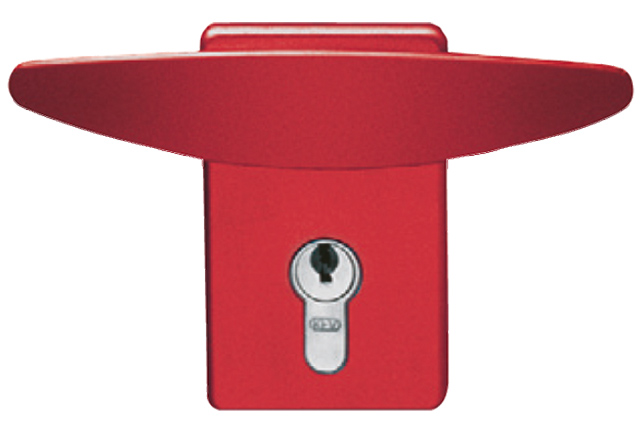

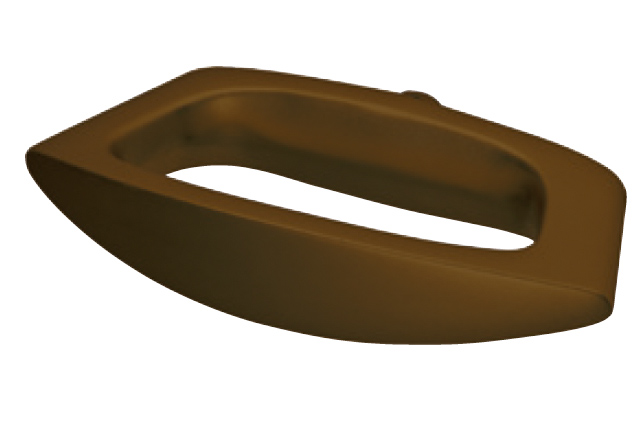

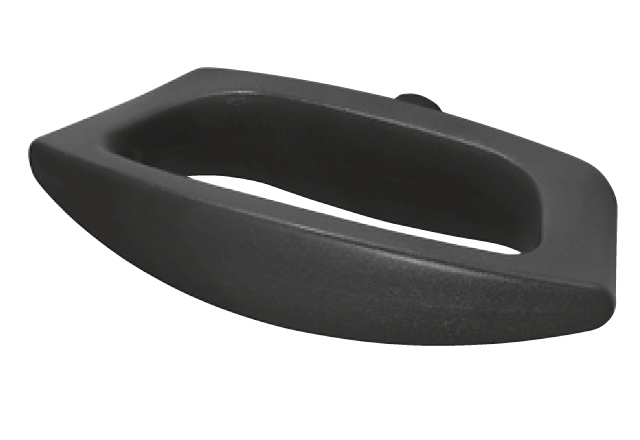

Matching door handles are available in all fourteen Super-Color colours and RAL of your choice.

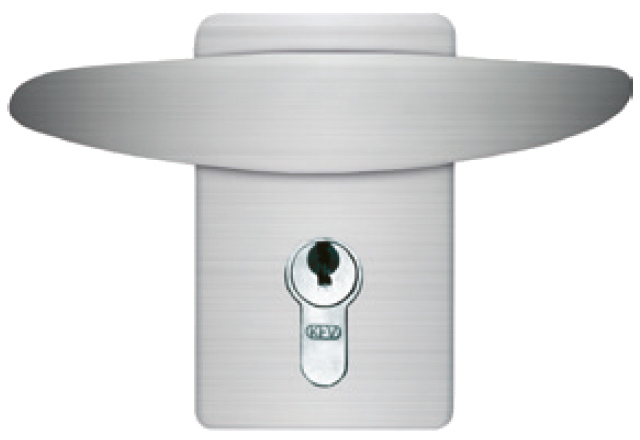

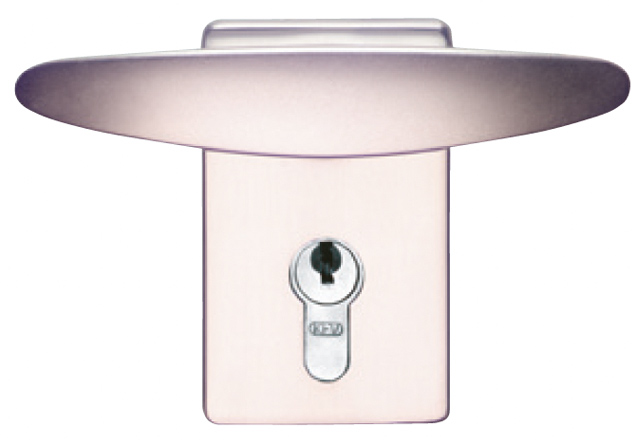

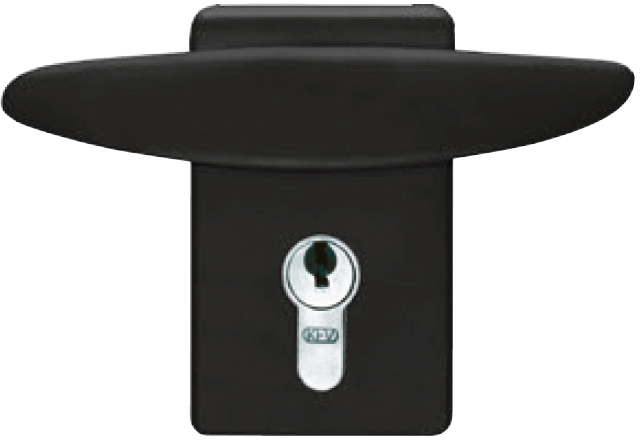

EXAMPLES UP-AND-OVER GARAGE DOORS

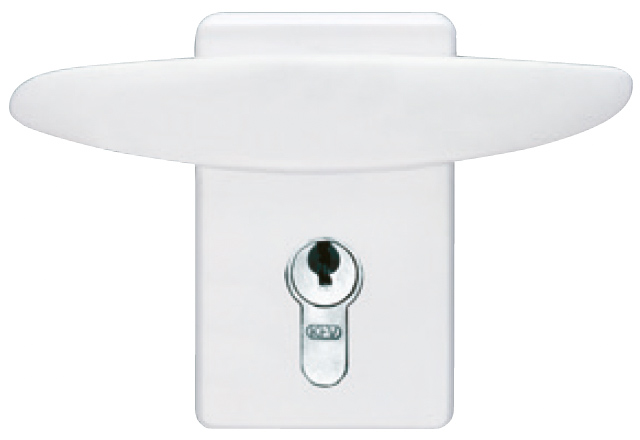

Exclusive handle variants in different surfaces are available for all door embossings.
