FIRE DOORS

YOUR SPECIALIST FOR FIRE PROTECTION CLOSURES

As a specialist for steel doors Novoferm offers a wide range of generally approved fire doors and fire protection doors. Novoferm fire doors are available in fire protection classes T30 (EI2 30) and T90 (EI2 90), with high-quality thick rebate, thin rebate or flush butt-jointed, for internal and external use, as a standard version or with high-quality special features - you will find the right solution for practically any application here.

WHY MULTIFUNCTIONAL STEEL DOORS FROM NOVOFERM?

Fire protection

As a specialist for commercial doors, Novoferm offers a wide range of building authority approved fire protection doors in classes T30 (EI 30), T60 (EI 60) and T90 (EI 90). The sheet steel doors are available with high-quality thick rebate or flush butt-jointed, for internal and external use, as a basic model or with high-quality special equipment and accessories. They were developed specifically for the European market and therefore already fulfil the European product standard EN 16034.

Smoke protection

Smoke protection systems with Novoferm doors provide effective protection against smoke. Our smoke protection doors are already approved in accordance with DIN 18095 and the European EN 1634-3 standard. The testing of steel doors with additional equipment can be carried out in accordance with EN 1634-3 at room temperature as tight-closing doors or at a temperature of 200 °C as smoke protection doors. Even at high temperatures and the associated stress on the door elements, Novoferm doors remain tightly sealed. Novoferm doors are supplied as standard with overhead door closers, special sealing systems including a lowerable smoke-tight floor seal (RS1) or, on request, a hump threshold (RS2).

Security

Novoferm security doors fulfil the performance characteristics of the Europe-wide test standards for security doors in accordance with DIN EN 1627. Depending on the type, our security doors offer tested security from resistance class RC 2 (WK 2) to RC4 (WK 4); depending on the door type, also available in combination with fire protection T30 (EI 30), T60 (EI 60) or T90 (EI 90). There are also many options for creative door design, e.g. our glazing in the door leaf and for top panels and fanlights - naturally with the same security performance. There are also numerous accessories and special fittings for that extra safety.

Sound insulation

With Novoferm sound insulation equipment, all elements of the door system (door leaf, frame and high-quality seals) are specially matched to each other. Our soundproof doors have been proven to reduce noise pollution in buildings with just one lowerable threshold-free floor seal. Novoferm soundproof doors in the NovoPorta Premio DB-1 type 50 version with a stable steel door leaf, special sound insulation and a special lowerable floor seal have been developed for particularly high requirements. These result in a tested and threshold-free sound insulation value of up to Rw = 50 dB; in conjunction with an additional threshold of up to Rw = 53 dB.

Environmental protection

Many of our products are sustainable - including, for example, steel multifunctional doors, aluminium/steel tubular frame doors and fire-resistant sliding doors. Not only the environment but also our partners benefit from the evidence we have provided by being awarded certificates. Architects and planners can therefore include these products in the ecological assessment of buildings over their entire life cycle.

Design

An exclusive look with sophisticated Novoferm technology - the result is certainly a harmonious overall picture that impresses the observer. Doors can be almost visually integrated into the wall, with a huge variety of design options.

The high-quality Novoferm primer in traffic white (similar to RAL 9016) already has a very pleasant appearance on delivery. Of course, almost all RAL colours are available on request. At Novoferm, this variety consists of the door leaf, frame look and the hinges, which can be designed as a unit or in different designs.

Montage

NovoPorta Premio and Plano offer standardised installation methods - e.g. the popular rebate screw installation for corner frames or the two-part 2140B/2240B surround frames. Installation methods for all wall types and eventualities: That's what we mean by frames for all situations!

Flexible options for backfilling with Novoferm fire protection foam, loose mineral wool, plasterboard strips or mortar or now also with factory-fitted EasyFit fire protection without further backfilling complete the picture.

Selection of fire doors

Choose your fire door:

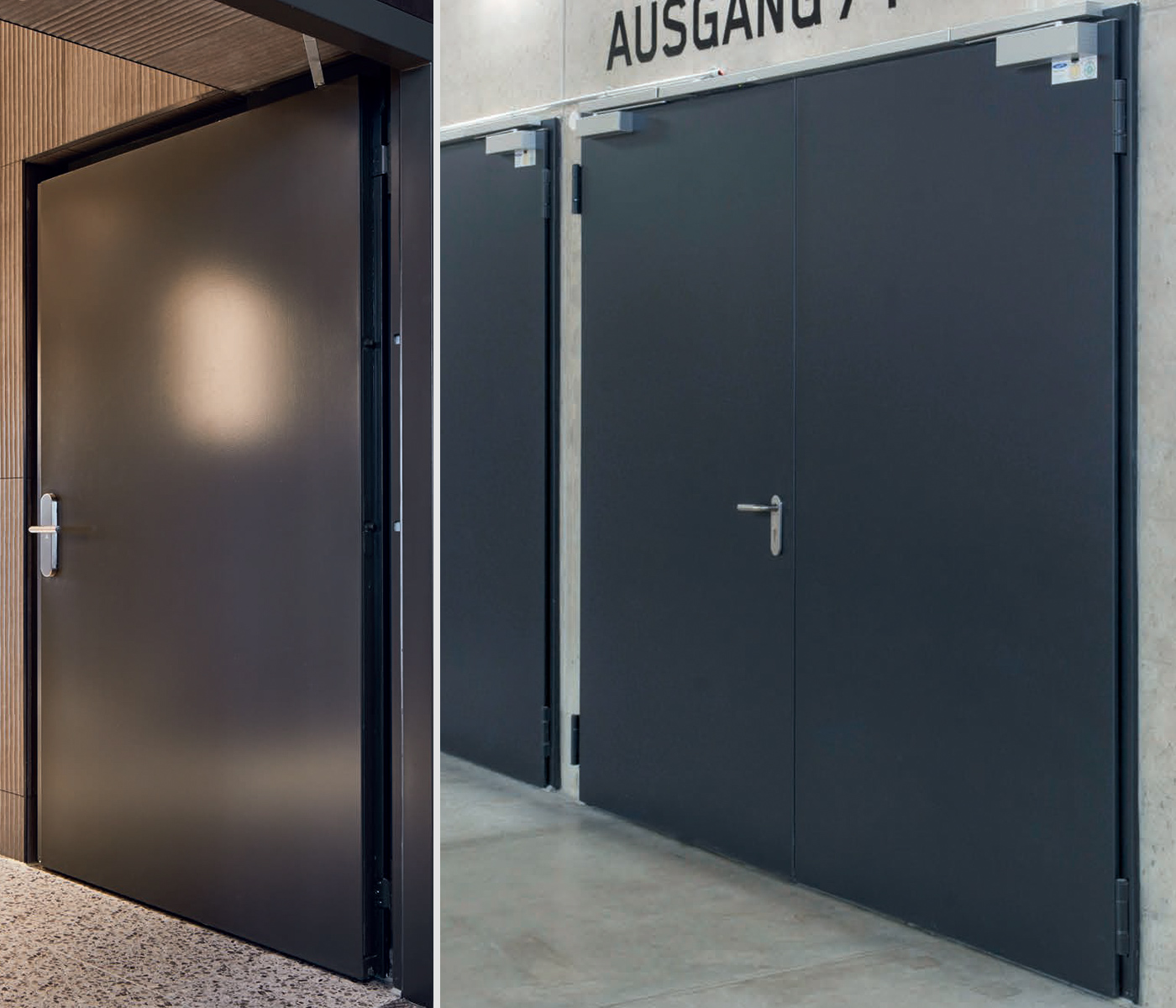

Premio fire protection doors with cosy thick rebate available in fire protection classes EI2 30, EI260 and EI2 90.

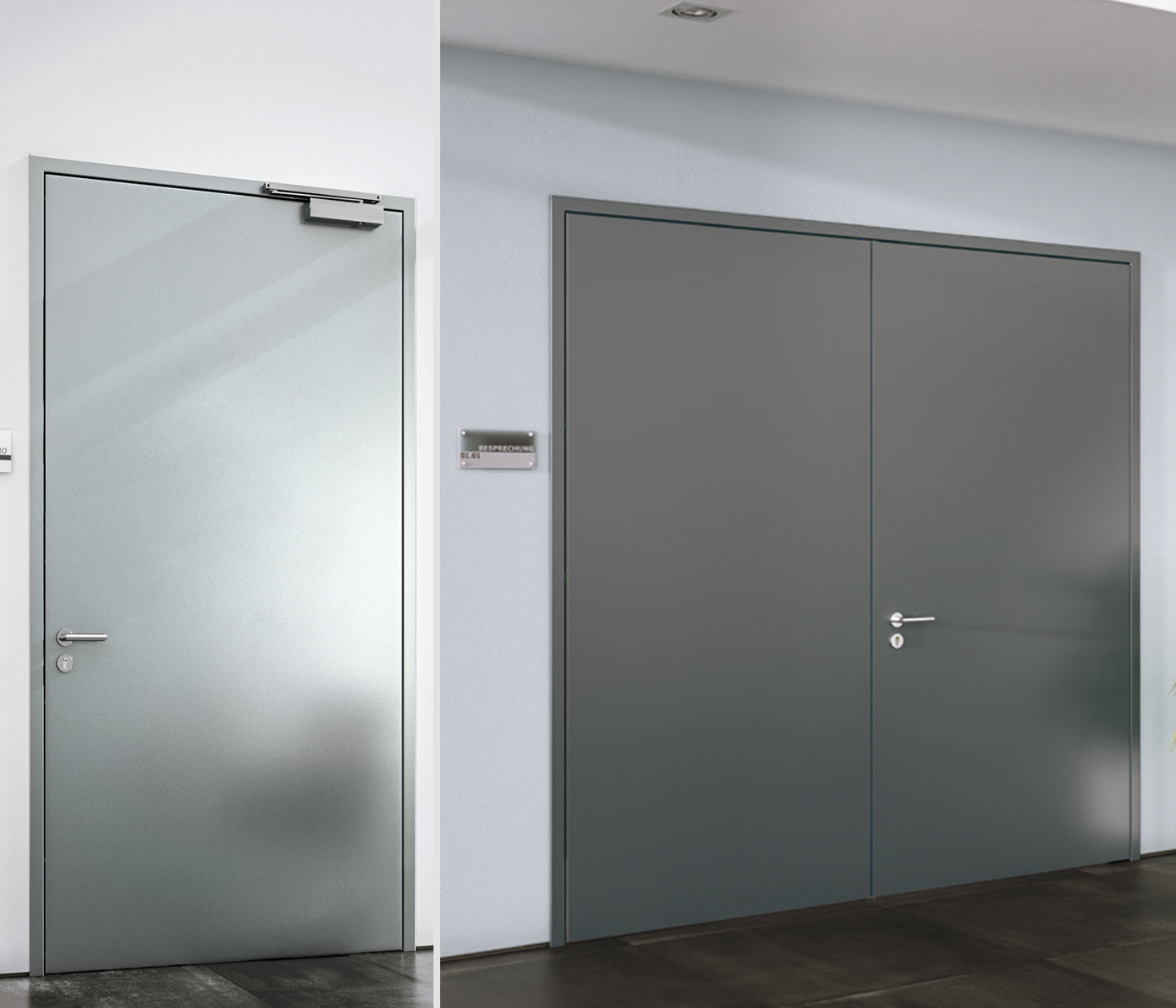

Plano fire protection doors available in flush design / butt-jointed with fire protection class EI2 30.

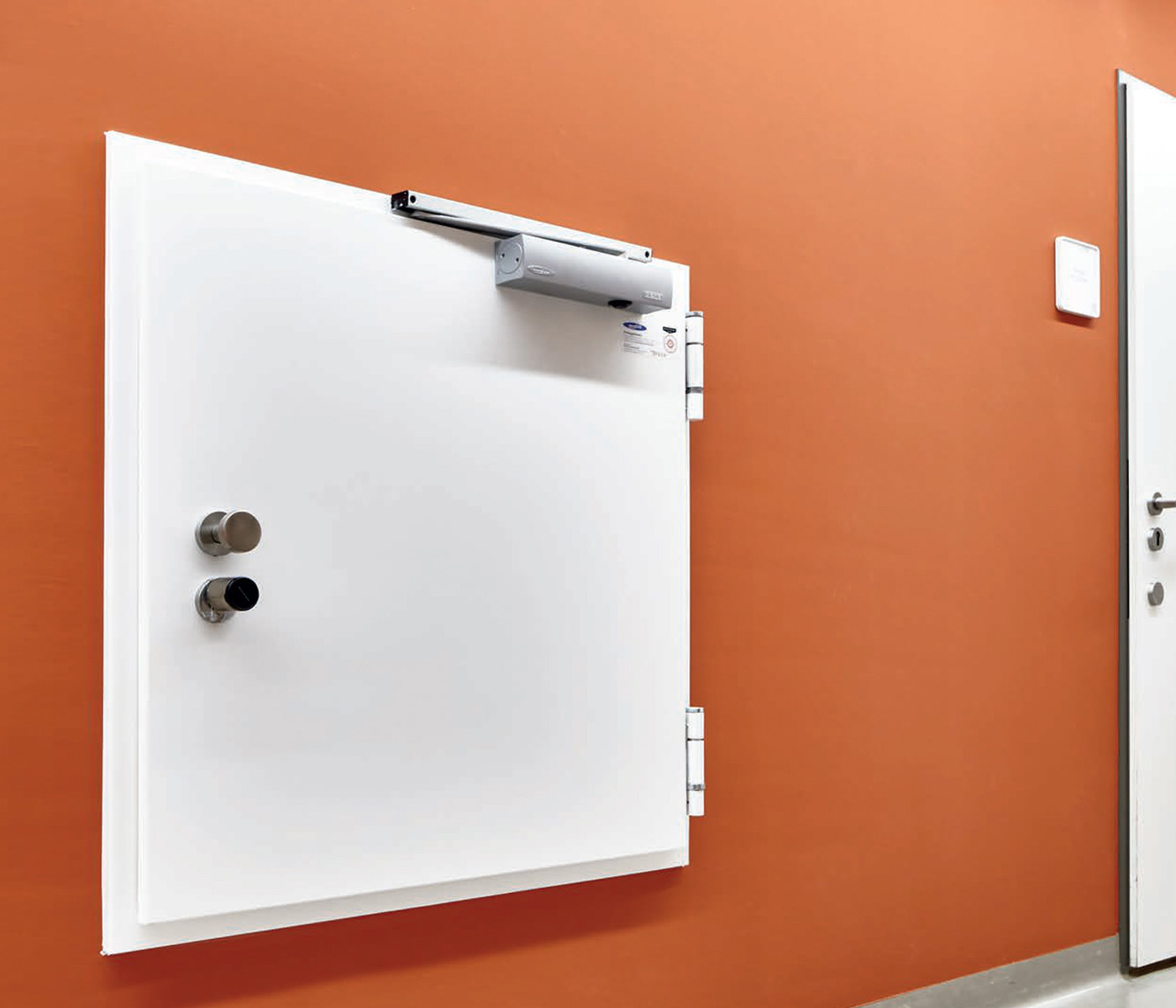

Premio fire protection wall dampers, available in thick rebate design in fire protection classes EI2 30 and EI2 90.

Door comparison and properties

Fire protection classes

Fire protection classes / classification DIN and EN in comparison

Fire resistance duration

Designation

Designation (national)

Designation (European)

30 minutes

Fire-retardant

T30

EI230-C5

60 minutes

Highly fire-retardant

T60

EI260-C5

90 minutes

Fire resistant

T90

EI290-C5

Comparison of NovoPorta platform fire doors
Door seriesRebate type

Fire protection

Safety and security

RS

Sound-insulatingThermallyinsulatingFinishAlso foroutdooruseDIN EN 14351-1

Fire doors

NovoPorta Premio



Thick rebate

T30 (EI2 30)
T60 (EI2 60)
T90 (EI2 90)

RC 2
RC 3

-

up to RW= 44 dB

min. 1.4 W / (m2*K)

Door, 1-leaf
Door, 2-leaf

-

-

Fire dampers

NovoPorta Premio

Thick rebate

T30 (EI2 30)
T90 (EI2 90)

RC 2
RC 3

-

up to RW= 44 dB

n.a.

Flap, 1-leaf

-

-

Fire protection doors

NovoPorta Plano



butt-jointed

T30 (EI2 30)

RC 2

-

up to RW=42w dB

min. 1.5 W / (m2*K)

Door, 1-leaf
Door, 2-leaf

-

-

Overview of T30/EI 30 fire doors

Fire doors T30/EI 30

DesignationThick rebate / flush-fitting - available door panel thicknessesFire protection to DNI 4102-5/ DIN EN 13501-2Smoke protection to DIN 18095/ DIN EN 1634-3Security in accordance with DIN EN 1627Sound insulation RWp test valueThermal transmittance coefficient U-value in W/m2KConstruction dimension mm
Premio T30-1 wall flap

Thick rebate 1.0/1.5

T30/EI2 30

-

RC 2 (WK 2)

RC 3 (WK3)

43 dB

k. A.

min. 500 x 715

max. 1250 x 1750

Premio T30-1









Premio EI2 30-1 GE oversize

Thick rebate 1.0/1.5

T30/EI2 30

-

RC 2 (WK 2)

40 dB1)

43 dB2)

42 dB4)

1,5

min. 500 x 715

max. 1375 x 2500

Thick rebate 1.0

EI2 30

-

RC 2 (WK 2)

39 dB1)

41 dB2)

1,6

max. 1500 x 3000

Premio T30-2







Premio EI2 30-2 GE oversize

Thick rebate 1.0/1.5

T30/EI2 30

-

RC 2 (WK 2)

39 dB1)

41 dB2)

42 dB4)

1,5

min. 1170 x 1750

max. 2500 x 2500

Thick rebate 1.0

EI2 30

-

RC 2 (WK 2)

37 dB1)

40 dB2)

1,6

max. 3000 x 3000

Plano T30-1

flush-fitting 1.0

T30/EI2 30

-

RC 2 (WK 2)

35 dB1)

41 dB2)

38 dB4)

1,5

min. 625 x 1750

max. 1375 x 2750

Plano T30-2

flush-fitting 1.0

T30/EI2 30

-

RC 2 (WK 2)

33 dB1)

41 dB2)

38 dB4)

1,6

min. 1375 x 1750

max. 2500 x 2500

Premio EI230-1 External application

Thick rebate 1.0/1.5

EI2 30

-

RC 2 (WK 2)

40 dB1)

43 dB2)

1,5

min. 500 x 715

max. 1375 x 2500

Premio EI230-2 External application

Thick rebate 1.0/1.5

EI2 30

-

RC 2 (WK 2)

39 dB1)

41 dB2)

1,5

min. 1375 x 1750

max. 2500 x 2500

The specified values depend on the door and installation situation - Available - Not available

1) Abs. door seal 2) Stop shaft / 4-sided 3) Overrun seal 4) Double abs. door seal

Overview of T60/EI 60 fire doors

Fire doors T60/EI 60

DesignationThick rebate / flush-fitting - available door panel thicknessesFire protection to DNI 4102-5/ DIN EN 13501-2Smoke protection to DIN 18095/ DIN EN 1634-3Security in accordance with DIN EN 1627Sound insulation RWp test valueThermal transmittance coefficient U-value in W/m2KConstruction dimension mm

Premio EI2 60-1









Premio EI2 60-1 GE oversize

Thick rebate 1.0

EI2 60

-

RC 2 (WK 2)

35 dB1)

36 dB2)

36 dB4)

1,5

min. 563 x 1594

max. 1375 x 2500

Thick rebate 1.0

EI2 60

-

In the test procedure

37 dB1)

41 dB2)

1,8

max. 1500 x 3000

Premio EI2 60-2







Premio EI2 60-2 GE oversize

Thick rebate 1.0

EI2 60

-

RC 2 (WK 2)

35 dB1)

37 dB2)

36 dB4)

1,6

min. 1250 x 1750

max. 2500 x 2500

Thick rebate 1.0

EI2 60

-

In test procedure

36 dB1)

38 dB2)

1,7

max. 3000 x 3000

Premio EI2 60-1 External application

Thick rebate 1.0

EI2 60

-

RC 2 (WK 2)

35 dB1)

36 dB2)

1,5

min. 563 x 1594

max. 1375 x 2500

Premio EI2 60-2 External application

Thick rebate 1.0

EI2 60

-

RC 2 (WK 2)

35 dB1)

37 dB2)

1,6

min. 1375 x 1750

max. 2500 x 2500

The specified values depend on the door and installation situation - Available - Not available

1) Abs. door seal 2) Stop shaft / 4-sided 3) Overrun seal 4) Double abs. door seal

Overview of T90/EI 90 fire doors

Fire doors T90/EI 90

DesignationThick rebate / flush-fitting - available door panel thicknessesFire protection to DNI 4102-5/ DIN EN 13501-2Smoke protection to DIN 18095/ DIN EN 1634-3Security in accordance with DIN EN 1627Sound insulation RWp test valueThermal transmittance coefficient U-value in W/m2KConstruction dimension mm
Premio T90-1 wall flap

Thick rebate 1.0/1.5

T90/EI2 90

-

RC 2 (WK 2)

RC 3 (WK3)

44 dB

k. A.

min. 500 x 715

max. 1250 x 1750

Premio T90-1









Premio EI2 90-1 GE oversize

Thick rebate 1.0/1.5

T90/EI2 90

-

RC 2 (WK 2)

39 dB1)

44 dB2)

43 dB4)

1,7

min. 500 x 715

max. 1375 x 2500

Thick rebate 1.0

EI2 90

-

In the test procedure

37 dB1)

41 dB2)

1,8

max. 1500 x 3000

Premio T90-2







Premio EI2 90-2 GE oversize

Thick rebate 1.0/1.5

T90/EI2 90

-

RC 2 (WK 2)

39 dB1)

42 dB2)

41 dB4)

1,8

min. 1170 x 1750

max. 2500 x 2500

Thick rebate 1.0

EI2 90

-

In the test procedure

36 dB1)

38 dB2)

1,7

max. 3000 x 3000

Premio EI2 90-1 Exterior application

Thick rebate 1.0/1.5

EI2 90

-

RC 2 (WK 2)

39 dB1)

44 dB2)

1,7

min. 500 x 715

max. 1375 x 2500

Premio EI2 90-2 External application

Thick rebate 1.0/1.5

EI2 90

-

RC 2 (WK 2)

39 dB1)

42 dB2)

1,8

min. 1375 x 1750

max. 2500 x 2500

The specified values depend on the door and installation situation - Available - Not available

1) Abs. door seal 2) Stop shaft / 4-sided 3) Overrun seal 4) Double abs. door seal

Highlights Multifunctional steel doors

This animation shows the highlights and possibilities of Novoferm multifunctionalsteel doorsare presented in a visually appealing and condensed form.

You can find further animations at

https://www.youtube.com/NovofermVideos

Your plus points at a glance

  • Versatile and highly configurable property door
  • Available in fire protection classes EI 30, EI 60 or EI 90 as well as smoke protection, multi-purpose, sound insulation and security doors
  • Consistently sophisticated appearance thanks to high-quality thick rebate and for flush-fitting for sophisticated architecture
  • Wide range of design variants, decors and colours available
  • High stability thanks to an additional innovative glued box/cover connection
  • Flush centre stop with integrated centre muntin bar for all double-leaf doors up to fire protection class T90
  • Subsequently replaceable door leaves while retaining the frame up to a height of 2125 mm
  • Installation advantages with many frame variants, e.g. approved backfilling with loose mineral wool or Novoferm fire protection foam
  • Rebate screw installation for corner frame also approved for T90 fire protection class
  • The new two-part universal frame 2140 B is the ideal solution for all wall types
  • Five different hinge types in steel or stainless steel, also as 3D hinges and a slimline 3D object hinge in stainless steel, all easy to install and smooth-running
