Mechanical dock levellers with folding wedge are controlled via an operating lever and are available in two versions (NovoDock L100 and L150). Both dock levellers are mounted on a ramp.

Dock levellers overview

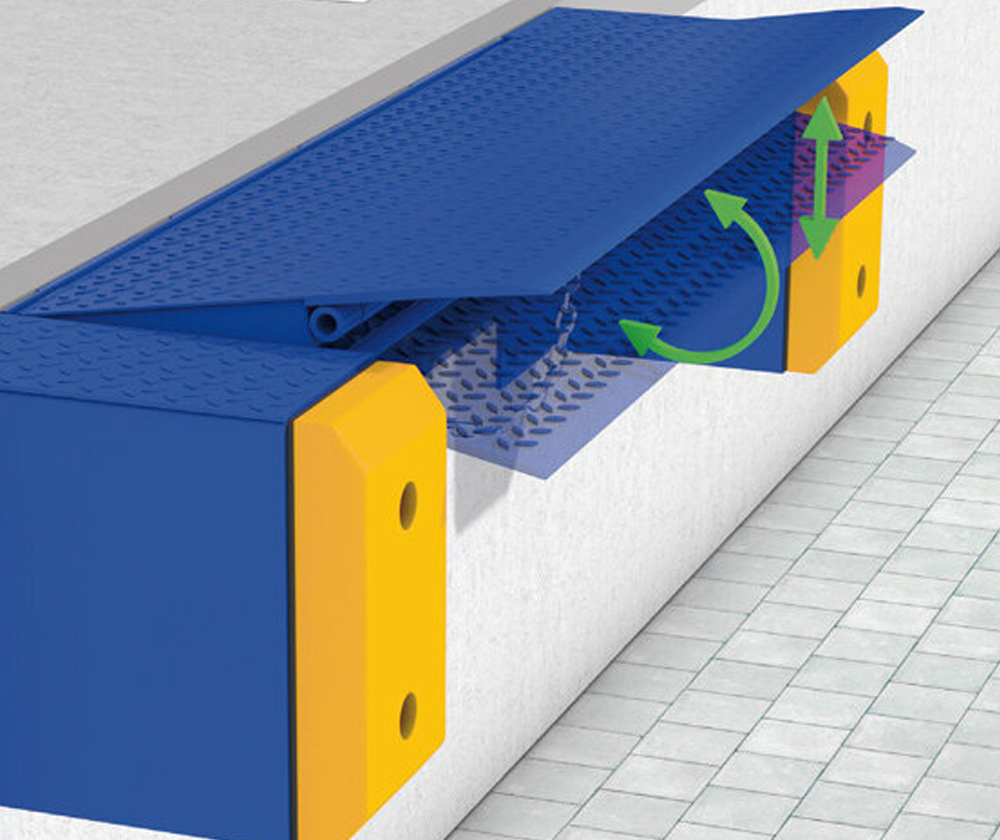

The NovoDock L 100 dock leveller is a robust collision protection system that enables loading in the tightest of spaces, is quiet and particularly easy to operate.

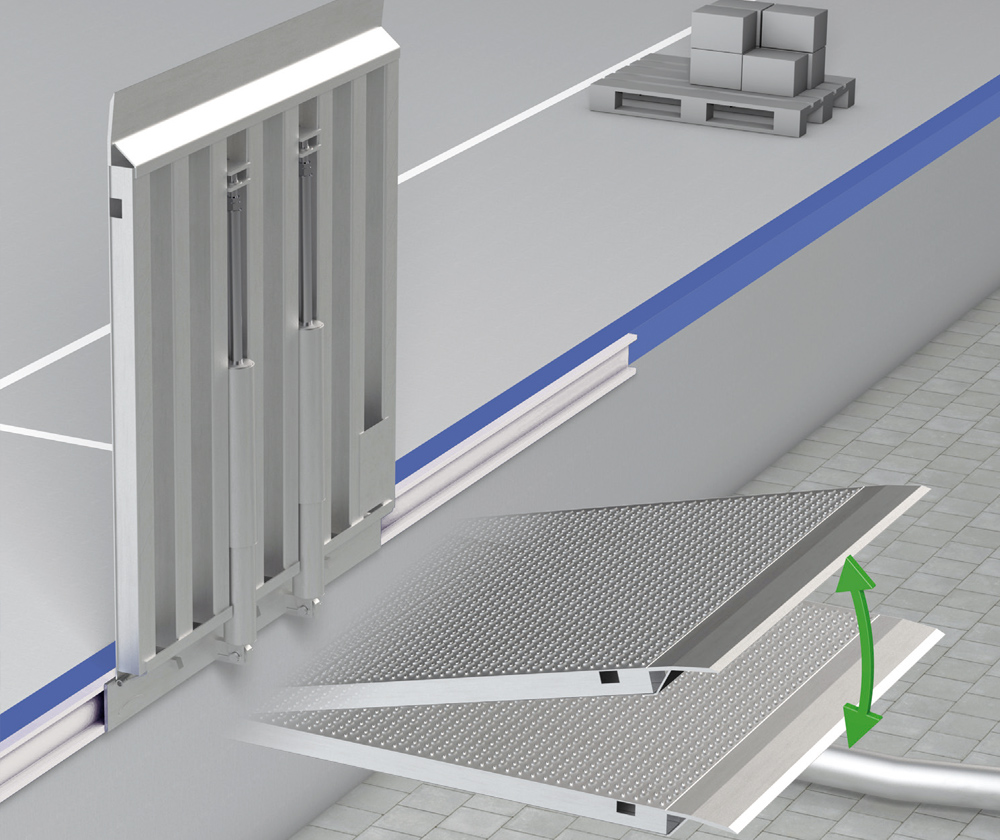

The NovoDock L 150 dock leveller can be used statically or laterally adjustable, it compensates for small to medium height differences between the vehicle and the top edge of the ramp and can be used for indoor and outdoor ramps.

Comparison and properties

Comparison of dock levellers with folding wedge
Product features

L100

L150

with feed

with folding wedge

●

●

ISO dock





Option packages

GreenPlus

GreenSLOD

IsoPlus

DoorPlus

SafetyPlus

Nominal load according to EN 1398 in kN

60

60

Nominal lengths (NL) in mm

400

1.500, 1.750, 2.000

Nominal widths in mm

1.750, 2.000, 2.200

1.500, 1.750, 2.000





Overall height

600 mm

700 mm/725 mm1)

800 mm /830 mm2)

900 mm/1200 mm3)

Feed/folding wedge length in mm

300

Power supply

Protection class

Motor power in kW

Design featurePlateau liner plate in mm

4/6

4/6

Advance/folding wedge of lug plate in mm

12/14



























Bridging values
upwards /
downwards
(feed 1000 mm)

Nominal length 2000, overall height 600

Nominal length 2000, overall height 700 /7251)/8302)

Nominal length 2250, overall height 600

Nominal length 2500, overall height 600

Nominal length 2500, overall height 700 /7251)/8302)

Nominal length 2750, overall height 600

Nominal length 2750, overall height 700

Nominal length 3000, overall height 600

Nominal length 3000, overall height 700/7251)/8302)

Nominal length 3000, overall height 800 /9002)

Nominal length 3500, overall height 800

Nominal length 3500, overall height 900/12003)

Nominal length 4000, overall height 900/12003)

Nominal length 4500, overall height 900/12003)

Nominal length 5000, overall height 1200

Maximum permissible inclination according to EN 1398

12,5 %

12,5 %

Control system

Operating rod

Operating rod

Novo i-Vision version

Novoferm Communication Interface (NCI)





Colours

RAL 5010 (gentian blue)

●

RAL 7016 (anthracite grey)

●

RAL 9005 (black)

●

Other RAL colours

o

galvanised

o

●

● Standard o Option 1) P1320 only 2) L730i only 3) VL6020 only 4) Feed rate 700/1.000 as for L730i ISO
Details Novodock L 100

Details Novodock L 100

NOVODOCK L 100

Mechanical dock levellers

NovoDock L100 can be controlled easily and simply using an operating lever. The leveller is mounted on a ramp.

Product advantages

  • Enables loading in the tightest of spaces
  • Different installation methods
  • Low noise level
  • 60 kN dynamic load capacity
  • Particularly easy operation
  • Robust collision protection
Details Novodock L 150

Details Novodock L 150

NOVODOCK L 150

Mechanical dock levellers

NovoDock L150 can be controlled easily and simply using an operating lever. The leveller is mounted on a ramp.

Product advantages

  • Stationary or laterally adjustable
  • Galvanised as standard
  • Compensates for small to medium height differences between the vehicle and the top edge of the ramp
  • Easy to operate
  • For use on indoor and outdoor ramps
  • 60 kN dynamic load capacity

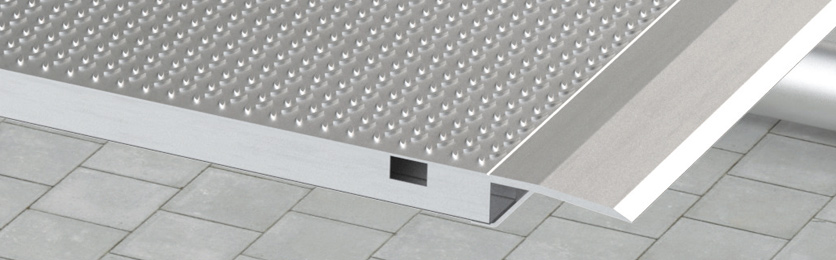

Aluminium support L150

PROJECT Dispatch centre ebm-papst Mulfingen GmbH & Co. KG

PROJECT LOCATION Mulfingen-Hollenbach

ARCHITECT Kraft+Kraft Architekten, Schwäbisch Hal

REQUIREMENTS PROFILE
High demands on modern, efficient and safe loading technology as well as high-quality, functional fire protection solutions.

COMPLETION May 2017

NOVOFERM PRODUCTS
- 50x NovoDock P1530i loading bays with H100
house structure, S420 dock leveller, AZJ500 buffer, traffic lights
and wheel chocks
- 8x roller grilles
- 74x Thermo 40 sectional industrial doors
- 4x NovoSpeed Flex HardEdge high-speed roller shutters
- 2x sliding fire doors - T30 SKE - T90 SKE
- 67x aluminium tubular frame doors NovoFire - T30
partly with side panel - F30/ F90 fixed glazing - T90/ T90
- 46x sheet steel doors NovoPorta Premio - T30 - T90 - MZ

PROJECT
Freudenberg Filtration FFT logistics centre

PROJECT LOCATION
Kaiserslautern

ARCHITECT
Architekturbüro Edinger GmbH

COMPLETION
2013

REQUIREMENTS PROFILE
High demands on modern, efficient and safe loading technology

NOVOFERM PRODUCTS
NovoEASY, NovoDock, NovoSeal and accessories

PROJECT
Transshipment hall BTG - Feldberg & Sohn GmbH & Co. KG Bocholt

PROJECT LOCATION
Bocholt

Client
Client BTG Feldberg & Sohn GmbH & Co. KG, Bocholt

General contractor
Depenbrock Bau GmbH & Co. KG, Stemwede

REQUIREMENTS PROFILE
High demands on modern, efficient and safe loading technology

NOVOFERM PRODUCTS
- 74x Hydraulic dock levellers
- 74x Thermo sectional doors
- 77x Door seals

PROJECT Logistics centre symbiolog

PROJECT LOCATION Burgbernheim

Client Symbio-Immobilien AG, Winterhur, Switzerland

General planning, project management
Baumann Gesamtplanungs GmbH, Stuttgart

General contractor BAU WOLFF & MÜLLER, Waldenburg

REQUIREMENTS PROFILE
High demands on modern, efficient and safe loading technology as well as high-quality, functional fire protection solutions

COMPLETION February 2017

NOVOFERM PRODUCTS
- NovoDock L530i and VL6020 dock levellers
with Thermo 40 sectional doors, door seals,
rubber buffers and drive-in aids
- Industrial sectional doors Alu 40 with matching side door
- NovoFire aluminium tubular frame doors - T30/T90
- NovoPorta Premio sheet steel doors - T30 - T90 - MZ

PROJECT
NSM-Löwen Entertainment

PROJECT LOCATION
Bingen

Client
NSM-Löwen Entertainment GmbH

Architect
Dipl.-Ing. Olaf Neusch, Sigmaringen

NOVOFERM PRODUCTS
- Dock levellers NovoDock L500i
- Door seals NovoSeal S420
- Set of drive-in aids with electric wheel wedges
- Set of steel buffers
- Industrial sectional doors NovoDoor Thermo 45
- High-speed doors NovoSpeed Heavy Indoor
- Multi-purpose doors MZ 53-1 or MZ 53-2
- Fire doors T30-1 N2/50

Technology and details

Technical data NovoDock L 100 and L 150
Product features

L100

L150

with feed

with folding wedge

●

●

ISO dock





Option packages

GreenPlus

GreenSLOD

IsoPlus

DoorPlus

SafetyPlus

Nominal load according to EN 1398 in kN

60

60

Nominal lengths (NL) in mm

400

1.500, 1.750, 2.000

Nominal widths in mm

1.750, 2.000, 2.200

1.500, 1.750, 2.000





Overall height

600 mm

700 mm/725 mm1)

800 mm /830 mm2)

900 mm/1200 mm3)

Feed/folding wedge length in mm

300

Power supply

Protection class

Motor power in kW

Design featurePlateau liner plate in mm

4/6

4/6

Advance/folding wedge of lug plate in mm

12/14



























Bridging values
upwards /
downwards
(feed 1000 mm)

Nominal length 2000, overall height 600

Nominal length 2000, overall height 700 /7251)/8302)

Nominal length 2250, overall height 600

Nominal length 2500, overall height 600

Nominal length 2500, overall height 700 /7251)/8302)

Nominal length 2750, overall height 600

Nominal length 2750, overall height 700

Nominal length 3000, overall height 600

Nominal length 3000, overall height 700/7251)/8302)

Nominal length 3000, overall height 800 /9002)

Nominal length 3500, overall height 800

Nominal length 3500, overall height 900/12003)

Nominal length 4000, overall height 900/12003)

Nominal length 4500, overall height 900/12003)

Nominal length 5000, overall height 1200

Maximum permissible inclination according to EN 1398

12,5 %

12,5 %

Control system

Operating rod

Operating rod

Novo i-Vision version

Novoferm Communication Interface (NCI)





Colours

RAL 5010 (gentian blue)

●

RAL 7016 (anthracite grey)

●

RAL 9005 (black)

●

Other RAL colours

o

galvanised

o

●

● Standard o Option 1) P1320 only 2) L730i only 3) VL6020 only 4) Feed rate 700/1.000 as for L730i ISO
