The NovoDock H50 and H100 building superstructures offer you a variable concept for the use of feed and hinged wedge bridges. The loading bays can be constructed in rows or angles where space is limited and offer additional storage space within the building.

Overview of house superstructures

As a robust steel construction, the NovoDock H 50 offers a variable concept for the use of feed and folding wedge bridges, can be retrofitted to a loading point and offers various enclosure options.

The NovoDock H 100 is comparable to the NovoDock H 50 version, but can also be adapted to suit structural conditions, offers different angles of attack and is available as a version for in-line systems.

NOVODOCK H50

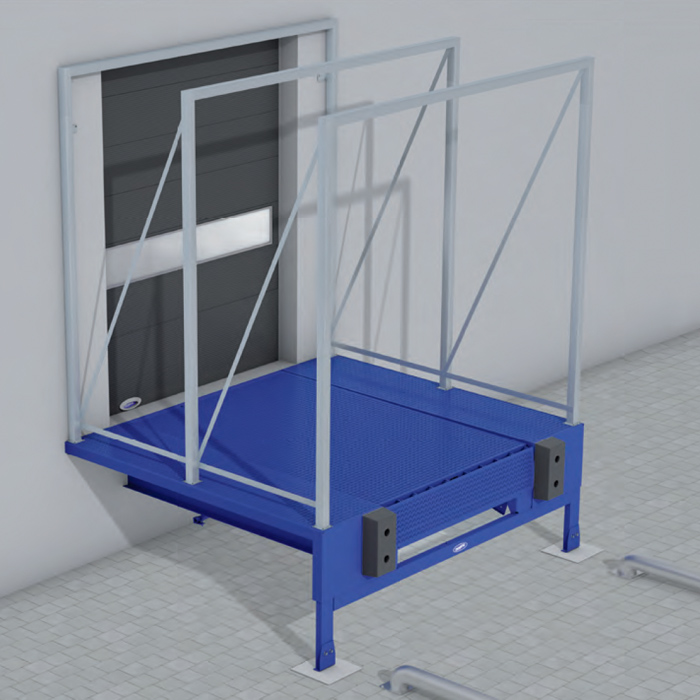

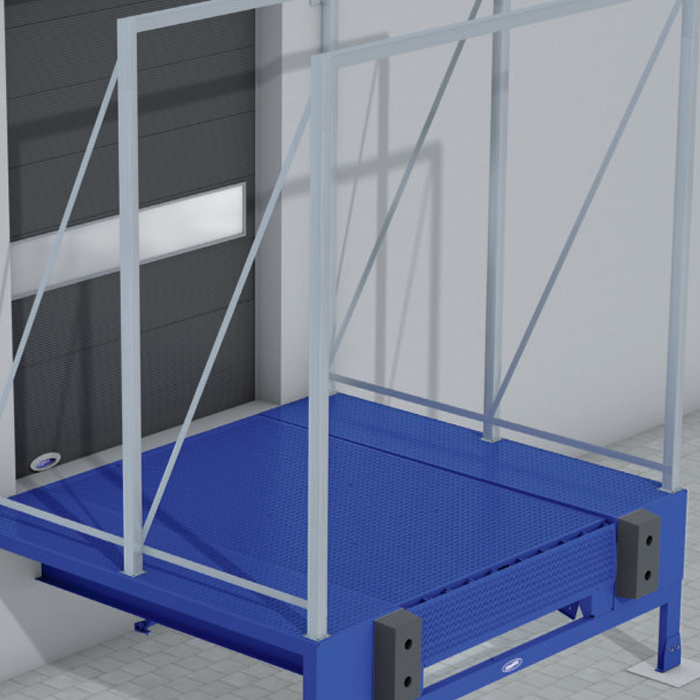

Base frame

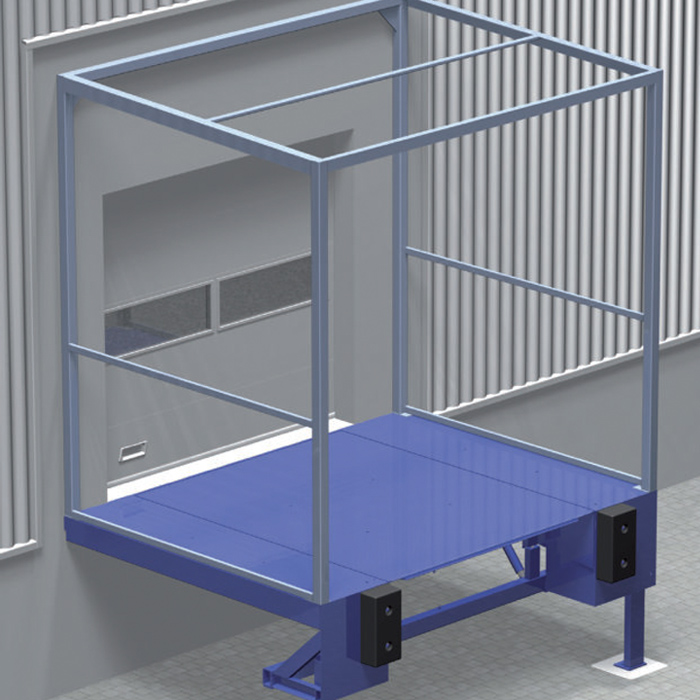

NOVODOCK H100
Base frame

PROPERTIES

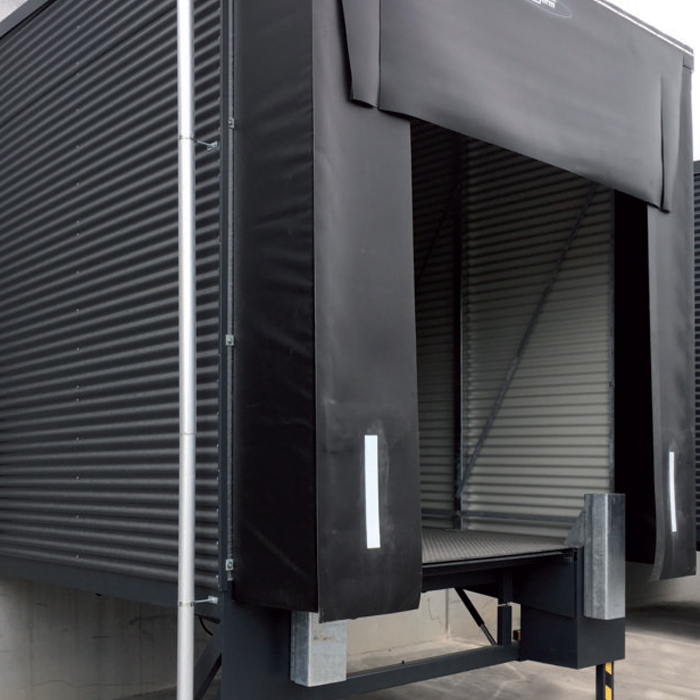

Details NovoDock H50

IN-HOUSE CONSTRUCTION FOR PODESTYLE SYSTEMS
The NovoDock H50 offers you a variable concept for the use of feed and hinged wedge bridges. The loading lock provides additional storage space within the building.

The NovoDock H50 is only available as a 90 degree variant . The panelling is fitted horizontally. Thanks to its modular design, the NovoDock H50 also offers transport cost benefits.

The NovoDocks P1530 or P1320 serve as the basis for the NovoDock H50.

The NovoDock H50
is only available as a 90 degree version.

Standard type:
Cladding with corrugated sheet metal as a sinusoidal wave up to the top edge of the steel platform, primer-coated

Type ISO:
Cladding with 40 mm ISO panel (M16 micro lined) up to the top edge of the steel platform, primer-coated

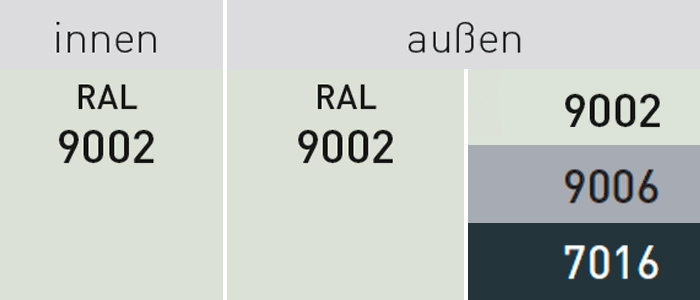

Colours:
RAL standard cladding colours(interior)
RAL standard cladding colours(exterior)

Product advantages
Retrofitting of a loading point possible	Uncomplicated installation even during ongoing operation
Reduction of energy requirements for temperature-controlled warehouses	Flexible forms of enclosure
Robust steel construction	Transport-optimised solution

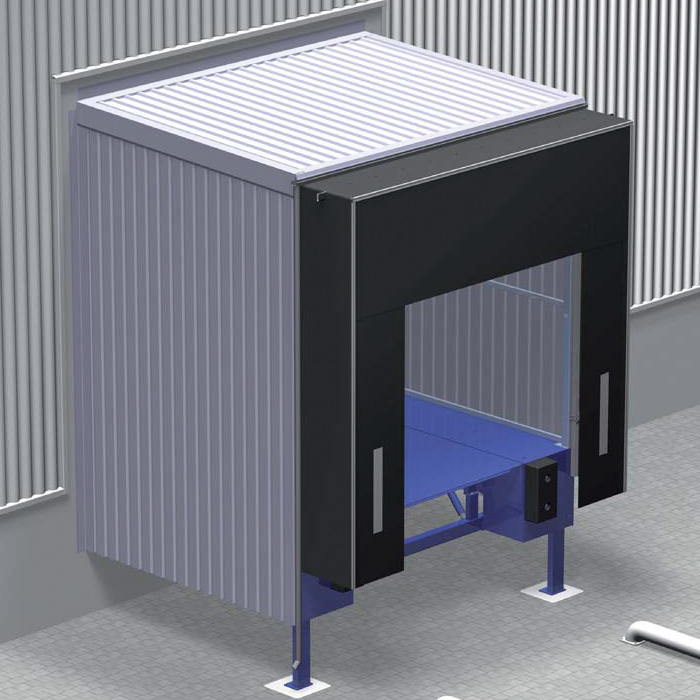

Details NovoDock H100

HOUSE STRUCTURE FOR PLATFORM SYSTEMS

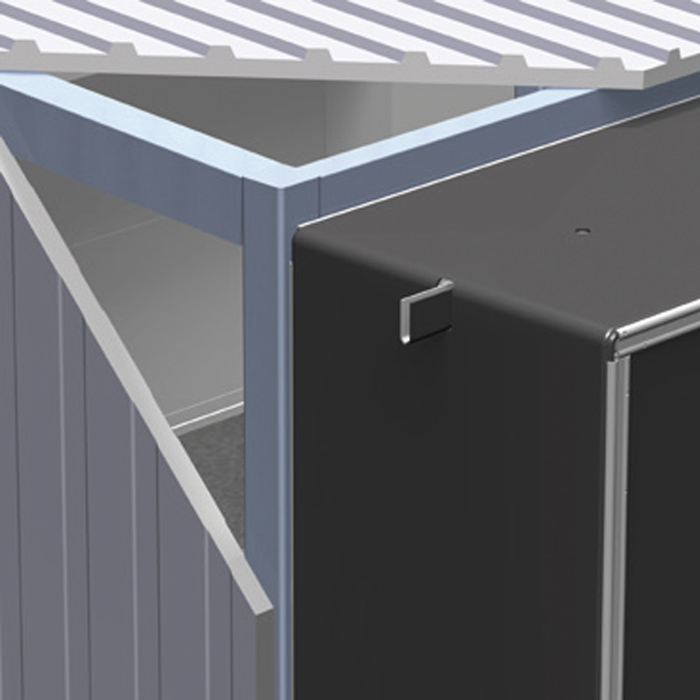

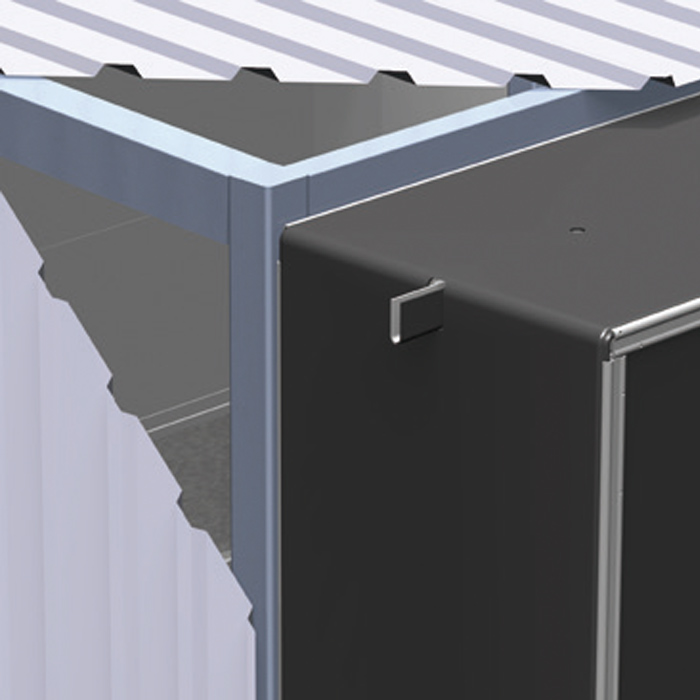

Standard type:
Cladding with trapezoidal sheet metal up to the top edge of the steel platform, primer-coated

Type ISO:
Cladding with 40 mm ISO panel up to the top edge of the steel platform, primer-coated

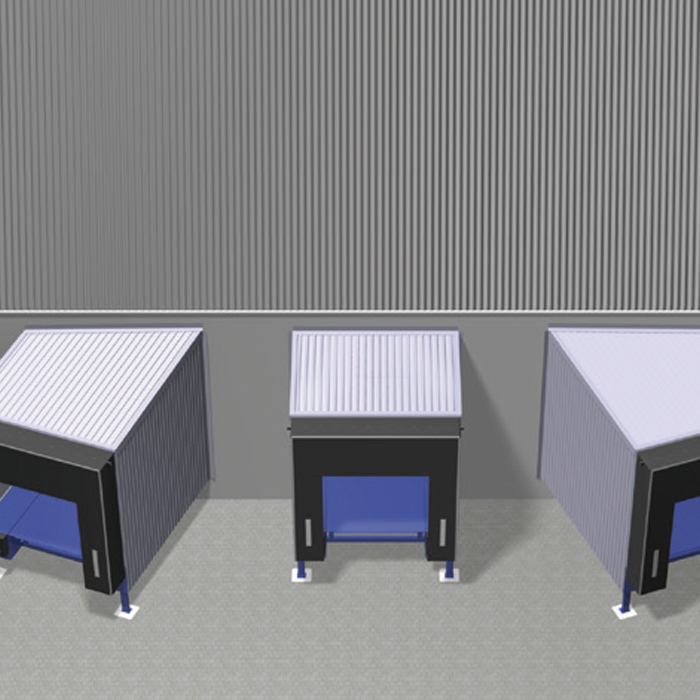

Angle design
(90°, 75°, 60°, 45°, 105°, 120°, 135°)

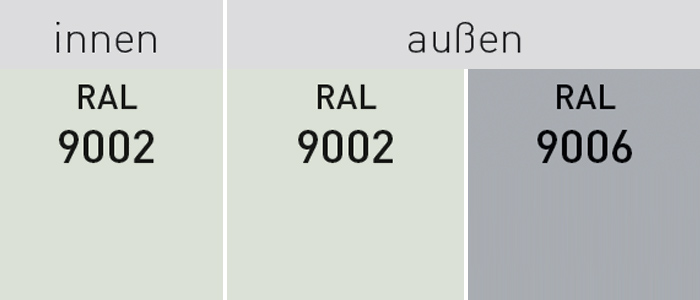

Colours:
RAL standard cladding colours(interior)
RAL standard cladding colours(exterior)

Product advantages
Retrofitting of a loading point possible	Green Solution product
Reduction of the energy requirement for temperature-controlled storage systems	Different angles of attack
Uncomplicated installation even during operation	Can be designed as a series system
Flexible forms of enclosure	Adaptation to structural conditions possible
Robust steel construction

PROJECT Dispatch centre ebm-papst Mulfingen GmbH & Co. KG

PROJECT LOCATION Mulfingen-Hollenbach

ARCHITECT Kraft+Kraft Architekten, Schwäbisch Hal

REQUIREMENTS PROFILE
High demands on modern, efficient and safe loading technology as well as high-quality, functional fire protection solutions.

COMPLETION May 2017

NOVOFERM PRODUCTS
- 50x NovoDock P1530i loading bays with H100
house structure, S420 dock leveller, AZJ500 buffer, traffic lights
and wheel chocks
- 8x roller grilles
- 74x Thermo 40 sectional industrial doors
- 4x NovoSpeed Flex HardEdge high-speed roller shutters
- 2x sliding fire doors - T30 SKE - T90 SKE
- 67x aluminium tubular frame doors NovoFire - T30
partly with side panel - F30/ F90 fixed glazing - T90/ T90
- 46x sheet steel doors NovoPorta Premio - T30 - T90 - MZ

PROJECT
Freudenberg Filtration FFT logistics centre

PROJECT LOCATION
Kaiserslautern

ARCHITECT
Architekturbüro Edinger GmbH

COMPLETION
2013

REQUIREMENTS PROFILE
High demands on modern, efficient and safe loading technology

NOVOFERM PRODUCTS
NovoEASY, NovoDock, NovoSeal and accessories

PROJECT
Transshipment hall BTG - Feldberg & Sohn GmbH & Co. KG Bocholt

PROJECT LOCATION
Bocholt

Client
Client BTG Feldberg & Sohn GmbH & Co. KG, Bocholt

General contractor
Depenbrock Bau GmbH & Co. KG, Stemwede

REQUIREMENTS PROFILE
High demands on modern, efficient and safe loading technology

NOVOFERM PRODUCTS
- 74x Hydraulic dock levellers
- 74x Thermo sectional doors
- 77x Door seals

PROJECT Logistics centre symbiolog

PROJECT LOCATION Burgbernheim

Client Symbio-Immobilien AG, Winterhur, Switzerland

General planning, project management
Baumann Gesamtplanungs GmbH, Stuttgart

General contractor BAU WOLFF & MÜLLER, Waldenburg

REQUIREMENTS PROFILE
High demands on modern, efficient and safe loading technology as well as high-quality, functional fire protection solutions

COMPLETION February 2017

NOVOFERM PRODUCTS
- NovoDock L530i and VL6020 dock levellers
with Thermo 40 sectional doors, door seals,
rubber buffers and drive-in aids
- Industrial sectional doors Alu 40 with matching side door
- NovoFire aluminium tubular frame doors - T30/T90
- NovoPorta Premio sheet steel doors - T30 - T90 - MZ

PROJECT
NSM-Löwen Entertainment

PROJECT LOCATION
Bingen

Client
NSM-Löwen Entertainment GmbH

Architect
Dipl.-Ing. Olaf Neusch, Sigmaringen

NOVOFERM PRODUCTS
- Dock levellers NovoDock L500i
- Door seals NovoSeal S420
- Set of drive-in aids with electric wheel wedges
- Set of steel buffers
- Industrial sectional doors NovoDoor Thermo 45
- High-speed doors NovoSpeed Heavy Indoor
- Multi-purpose doors MZ 53-1 or MZ 53-2
- Fire doors T30-1 N2/50
