STEEL INTERIOR DOORS

FOR ALL AREAS OF LIFE AND WORK

That suits your ideas. Doors connect rooms and people. They provide safety and security, create transitions between different areas of life and work. They provide intimacy and give people the opportunity to withdraw and find peace and quiet. For confidential dialogue. For concentrated work. For undisturbed play. At home, at school, during leisure time or in the office. That is why it is important that doors really "fit", that they blend into rooms and fulfil their function permanently and securely. You will find all these features in the Novoferm interior door programme. Reliable products for sophisticated interior fittings. With high functionality, top quality and plenty of scope for your personal style.

High quality and cosy
Novoferm steel interior doors are particularly high quality thanks to their 40 mm thick, double-walled door leaf. The high-quality rebate gives the door a cosy character.

For all areas
Novoferm interior doors can be used for all living and working areas. The doors are available in many RAL colours, DB colours, metallic colours, special paint finishes and glazing.

Impressive details
The doors impress with well thought-out details. For example, with an integrated magnetic board or an integrated floor seal that is triggered mechanically - lowers when the door is closed and keeps out cold air and noise.

Door comparison and properties

Comparison of interior doors

Interior doors

Designation	Door 1 +2panel	Thick rebate / flush rebate - available door panel thicknesses	Sound insulation RWp test value	Thermal transmittance coefficient U-value in ^W/m2K	Construction dimension mm	Glazing possible
Interior doors	Door 1 +2fl.	Thick rebate	26 dB1^{) 2)}	2,3	min. 500 x 1600 max. 2500 x 2500	-
Classic interior doors	Door 1 +2panel	Thick rebate 0.88	30 dB1⁾	k. A.	min. 500 x 1600 max. 2500 x 2250	-
Access door Super Safe	Door 1 leaf.	Thick rebate 0.7	26 dB1^{) 2)}	2,3	min. 750 x 1875 max. 1125 x 2250	-
	-Yes - No 1) Abs. door seal 2) Stop shaft / 4-sided

Interior door details

NOVOFERM INTERIOR DOORS - THE DECISIVE DETAILS

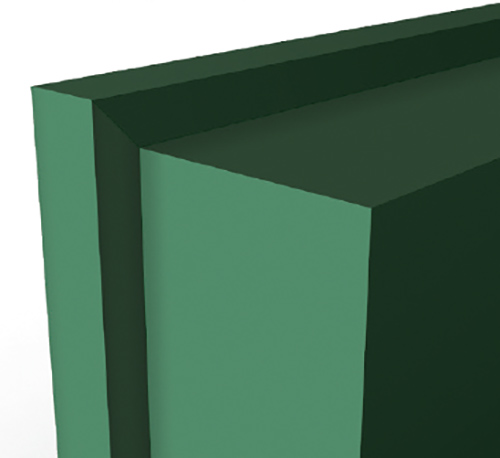

DICKFALZ
The high-quality rebate gives the door a cosy character. High-quality construction. 40 mm thick, double-walled door leaf, rebated on 3 sides. This design is visually impressive and gives the door outstanding stability.

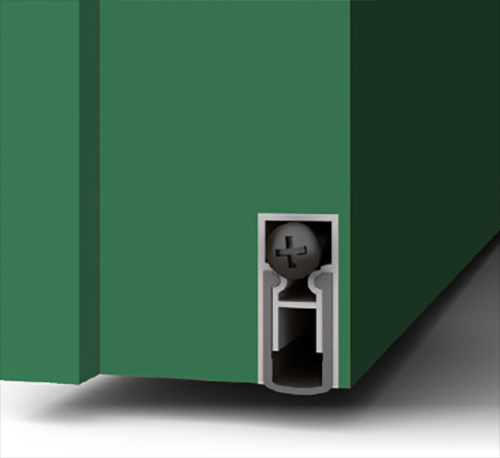

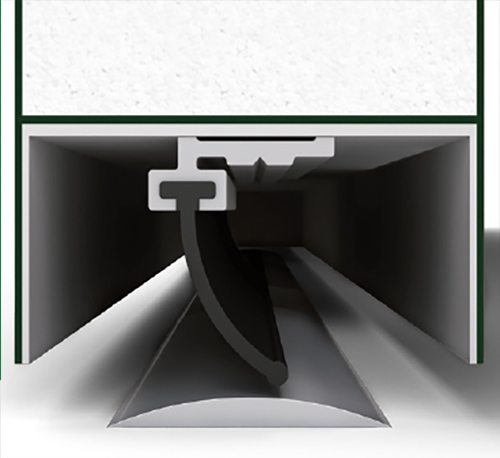

FLOOR SEALING
An integrated floor seal, which is triggered mechanically and lowers when the door is closed, keeps cold air and noise outside. Sound insulation values of up to 30 dB possible in conjunction with tubular chipboard panelling

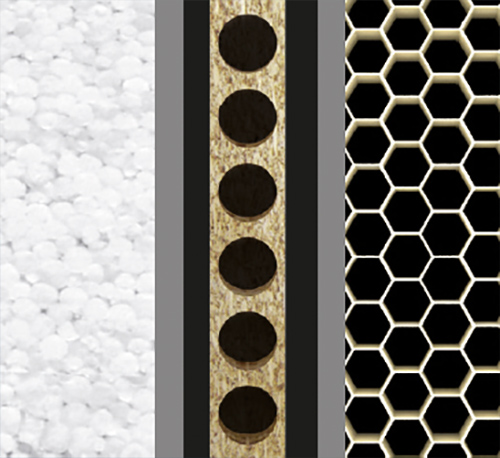

HONEYCOMB, STYROPOR, TUBE CHIP FILLING
The fully bonded, close-meshed honeycomb filling provides unrivalled stability and absorbs any "tinny" sound when knocking. Optionally, you can have optimised thermal and sound insulation with the polystyrene filling* or a classic tubular chipboard filling

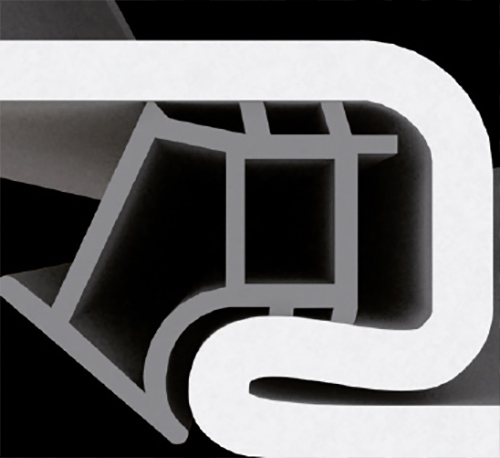

FRAME SEALING
Our selection of seals enables different closing pressures. Draughts are reliably prevented in all cases

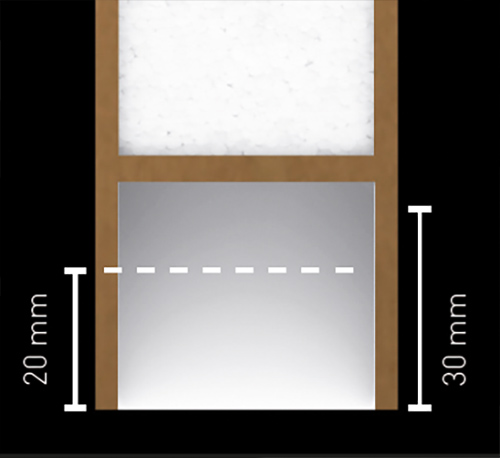

SHORTABLE DOOR SHEET
Door leaf can be shortened by up to 20 mm at the bottom for uneven floors or new flooring

SURFACES
From super standard to RAL and DB colours of your choice

OVERFLOW GASKET
An integrated overflow gasket that runs on a 3 mm high aluminium profile when the door is closed

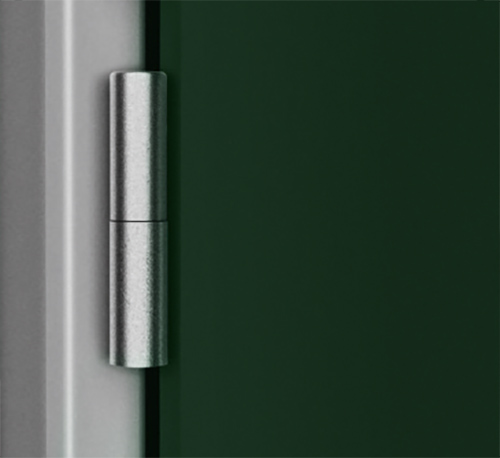

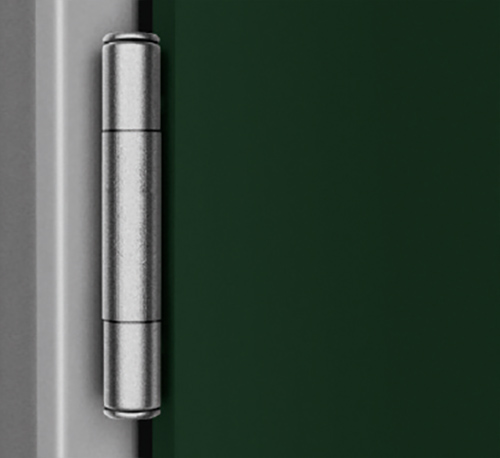

STRAP AND STRAP CASE
Classic 2-part strap, optionally available in 3 parts (3-part strap with strap pin lock available), also in stainless steel.

The seat and design of the strap pocket comply with DIN 18111, making it easy to replace at any time. A third strap can also be ordered

GLAZING
Transparency or brightness, round or square, selectable in number and size. Versions e.g: ESG, VSG, wired glass, Mastercarré or pre-equipped for on-site solutions. Glass retaining strips made of aluminium or steel. Further functional solutions for door viewer, letter slot, ventilation grille etc. are possible

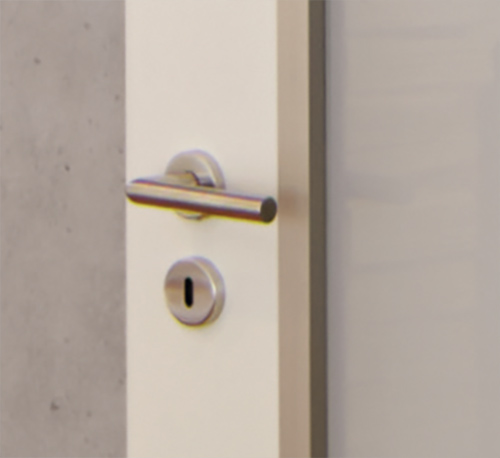

HANDLE GARNITUREN
Novoferm offers designs ranging from classic to modern, retrofitting possible (design: coloured or profile cylinder).
VARIABLE HANDLE HEIGHT
The height of the handle can be adapted to suit the needs of the disabled (850-1,200 mm) or individually for schools, for example

Your plus points at a glance

Steel interior doors for all living and working spaces
High-quality steel and hard-wearing, easy-care surfaces
Cosy look thanks to thick rebate

Double-walled door leaves with sound and thermal insulation, reliable and tight-closing
Available in many attractive colours and decors

TYPES, COLOURS AND EQUIPMENT

COLOURS FOR SUPER STANDARD INTERIOR DOORS

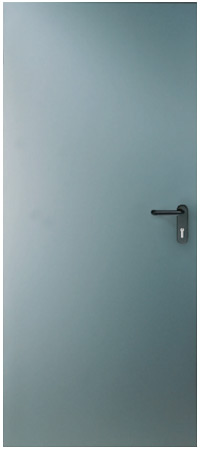

Super-Standard

Door leaf:
40 mm thick
Rebated on 3 sides
made of hot-dip galvanised thin sheet
Frame:
electrocoated corner frame with three-sided circumferential seal
and complete hinge parts
Lock and fitting:
BB/PZ lock, with black round lever handle set
Door leaf surface:
galvanised

Standard

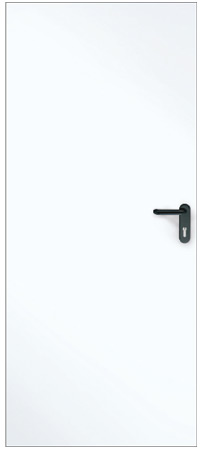

COLOURS FOR SUPER PLUS INTERIOR DOORS

SUPER-PLUS INTERIOR DOORS

Design as Super-Standard

However, additionally:
Door leaf surface:
galvanised and primed with an environmentally
friendly powder coating
similar to RAL 9016, traffic white

Traffic white
similar to RAL 9016

Platinum white
similar to
RAL 9002

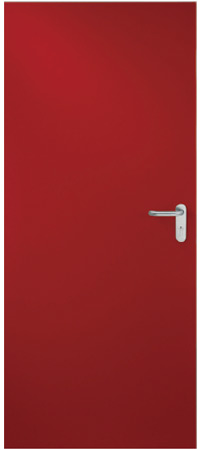

COLOURS FOR SUPER COLOR INTERIOR DOORS

SUPER-COLOR INTERIOR DOORS

Design as Super-Standard

But additionally:

Door leaf surface:
galvanised and primed with an environmentally friendly, textured powder coating
Possible colours:
Super-Color

Light grey
similar to
RAL 7035

Window grey
similar to
RAL 7040

Anthracite grey
similar to
RAL 7016

Nut brown
similar to
RAL 8011

Sepia brown
similar to
RAL 8014

Platinum white
similar to
RAL 9002

Steel blue
similar to
RAL 5011

Fir-green
similar to
RAL 6009

SPECIAL PRIMER

SPECIAL PRIMER FOR INTERIOR DOORS

Design as Super-Standard

But additionally:

Door leaf surface:
galvanised and primed with an environmentally friendly powder coating
Possible colours:
RAL colours
DB colours
Metallic colours (except pearl effects)
and special paint finishes

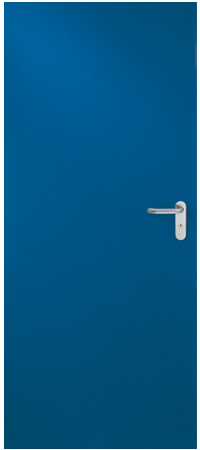

RAL colour
(blue)

RAL colour fan

Metallic colour fan

SPECIAL PRIMER FOR INTERIOR DOORS

Design as Super-Standard

But additionally:

Door leaf surface:
galvanised and primed with an environmentally friendly powder coating
Possible colours:
RAL colours
DB colours
Metallic colours (except pearl effects)
and special paint finishes

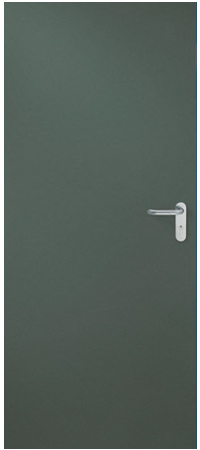

DB colour
(702)

DB 301

DB 501

DB 601

DB 510

DB 701

DB 703

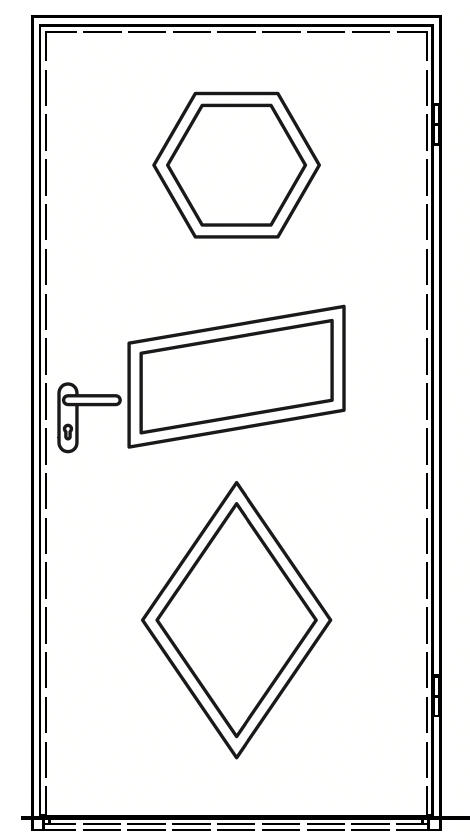

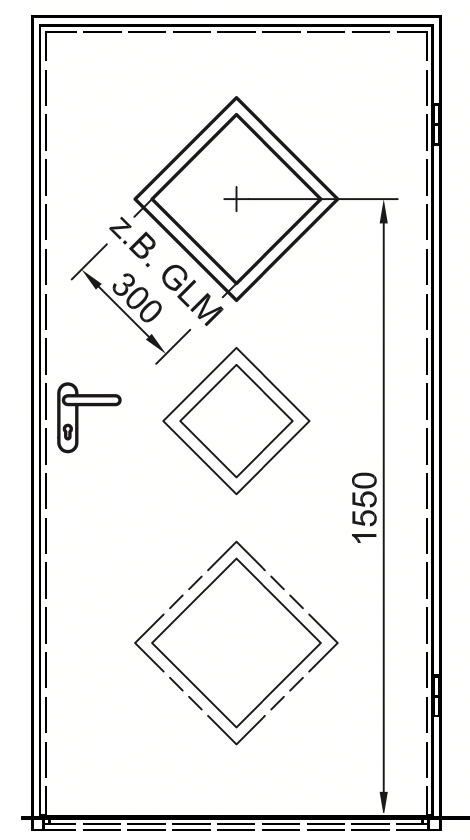

GLAZING AND LIGHT OPENINGS

MORE LIGHT THROUGH LIGHT OPENINGS
Letting more light into the room is often an important criterion when selecting and planning interior doors. Novoferm offers many different light opening variants as well as round glazing at an extra charge.

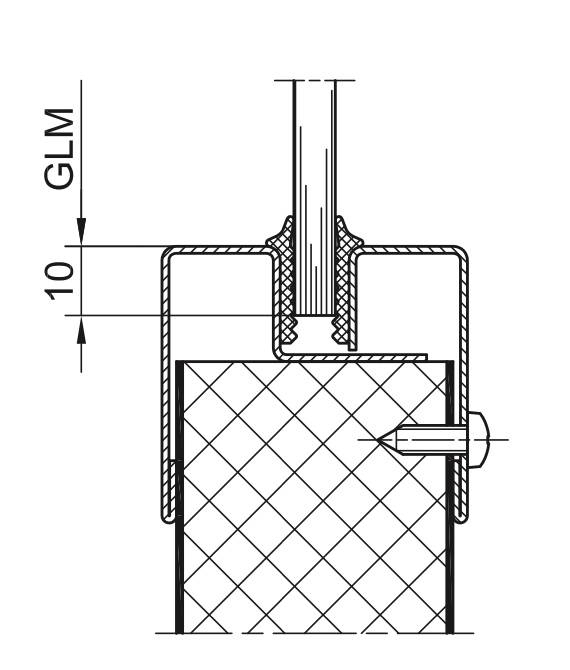

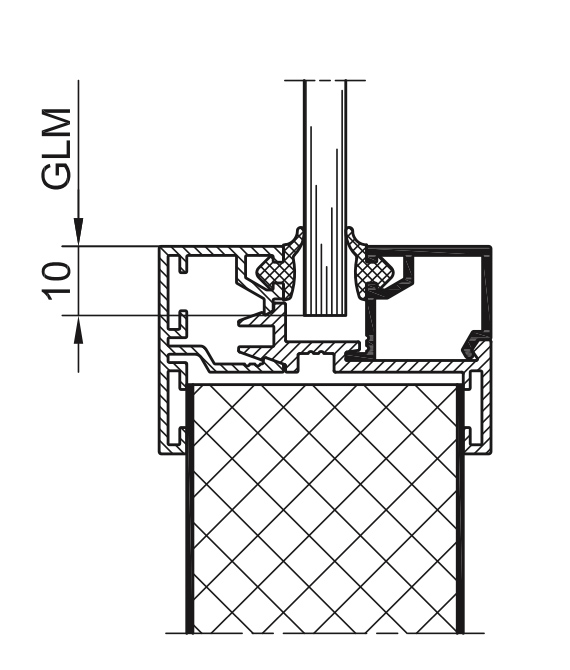

The glazing beads provided for this are optionally available in aluminium or steel.

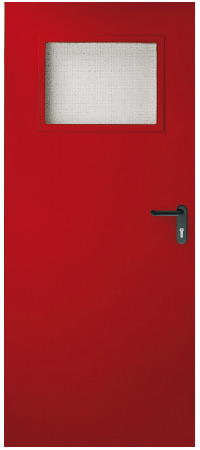

Super-Color

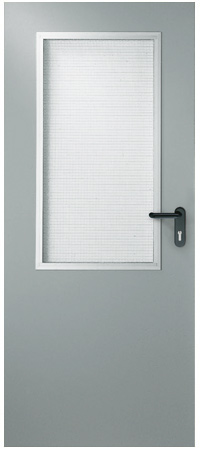

With light aperture 1

Super-Colour
With light aperture 2

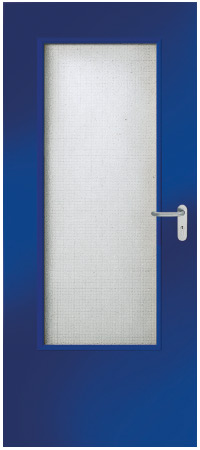

Super-Color
With RAL of your choice (at extra cost), with light aperture 3

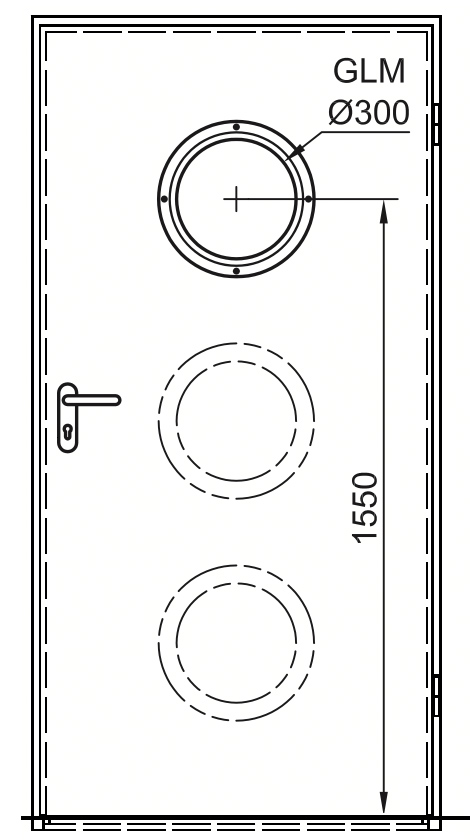

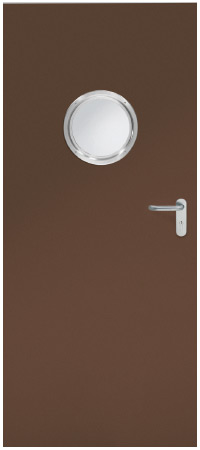

Super-Color
With round glazing and stainless steel lever handle set (at an extra charge)

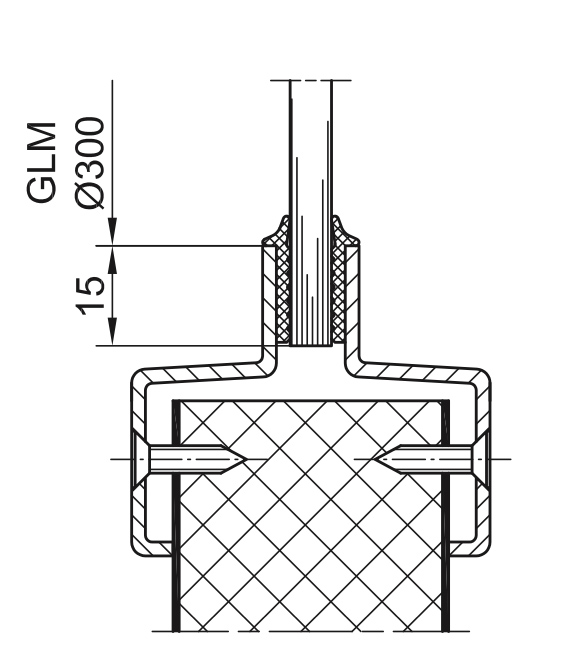

GLAZING FOR INTERIOR DOORS

The choice of glazing also has a decisive influence on the effect of the door. We offer our customers the following options:

Glazing unit (without glass) for 6 mm thick glass or acrylic glass
Standard glass design:
Wire-ornamented glass (illustrations above, light opening 1-4), light-coloured, 6-7 mm thick
Laminated safety glass
(VSG, 6 mm thick), toughened safety glass (ESG, 6 mm thick) or insulating glass (14 mm thick float glass, only to be fixed with steel or aluminium strip)

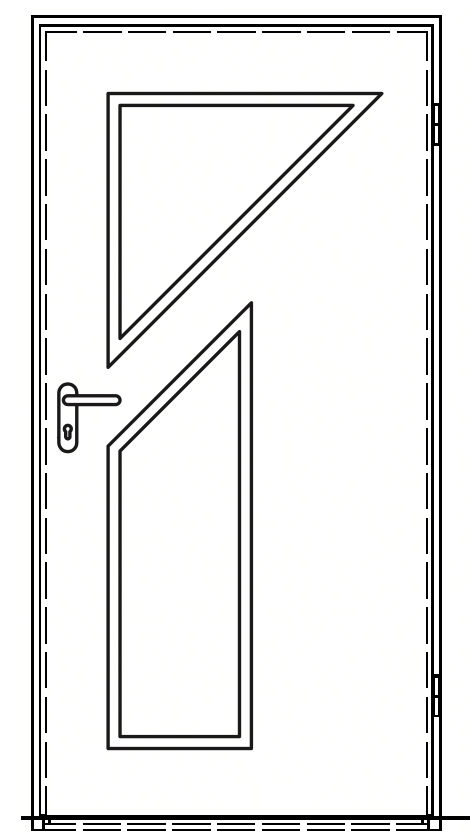

Special glass design: Ornamental glass in float glass structure, 6 mm thick, in three different designs: Mastercarré, Satinato and frosted glass (illustrations on the right) for customised design. These diffuse the light in different shades and protect against indiscreet glances.

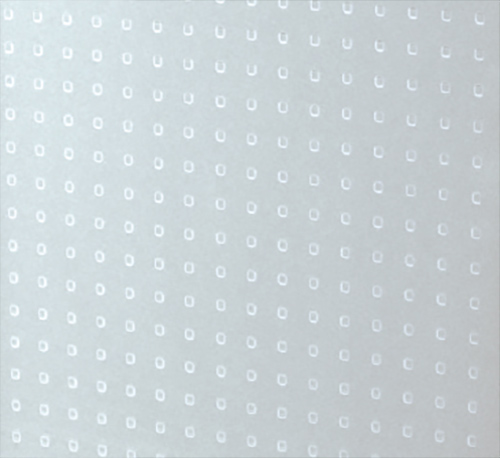

Mastercarré

Satin

Frosted glass

LEVER HANDLE SETS AND OTHER ACCESSORIES

HANDLESETS AND OTHER ACCESSORIES
Matching handle sets add the finishing touch to your door. Novoferm offers you a wide range of beautifully designed variants that allow you to open and close any door conveniently and easily. In addition to the standard fitting with the classic black round lever handle set, you can choose from a wide range of accessories including various round lever handle sets, lever handle sets and WC sets. We supply the colours red and white as standard. Special colours are available on request. Handle and lever handle sets in light metal and stainless steel are also available.

Exclusive accessories enhance your door even further. You can determine the fittings entirely according to your requirements and combine the accessories with each other.

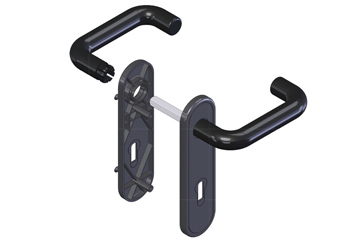

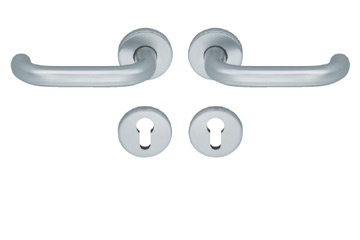

Standard lever handle set BB/PZ
black with short backplate (profile cylinder optionally available on request)

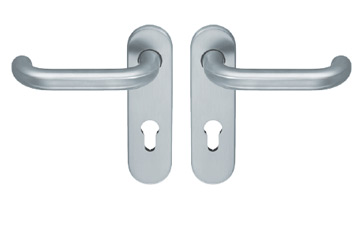

Lever handle set,
PZ, light metal

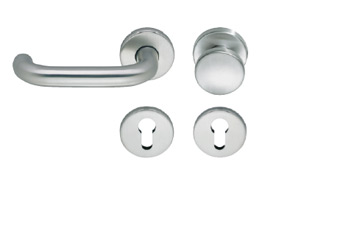

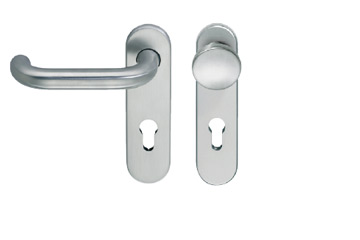

Interchangeable set,
PZ, light metal

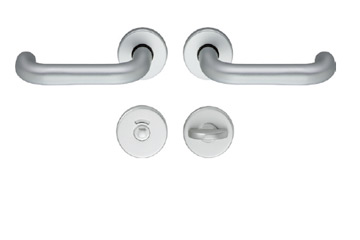

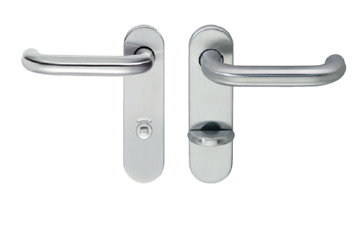

WC set,
PZ, light metal

Lever handle set

Interchangeable set

WC-Garnitur

SELECTION OF AVAILABLE HANDLE VARIANTS

Other handle shapes available on request.

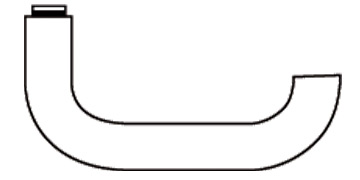

The arch
D-110

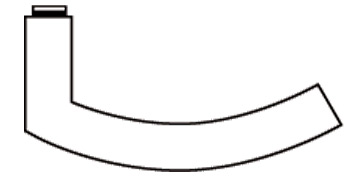

Segment
D-510

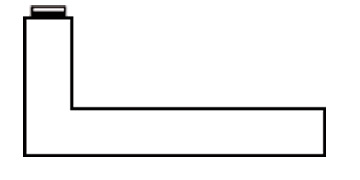

Angle
D-310

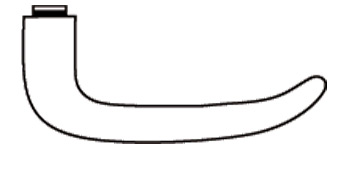

Style
D-410

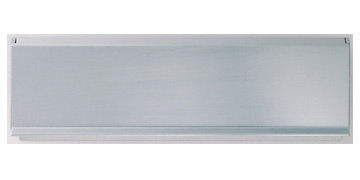

Letter slot flap
Just like our sample, deliberately kept simple, but other designs of letter slots, letter slots or cat flaps etc. are also possible, each matching the 40 mm sheet thickness.

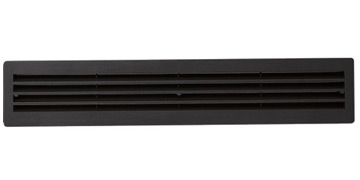

Ventilation grille
Available in white, black, aluminium look or special colours. Aluminium or perforated metal grilles are also available on request.

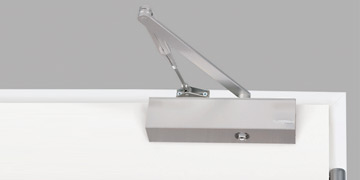

Door closer
Both overhead door closers with scissor arm and slide channel closers are available. They can be installed on the hinge or opposite hinge side.

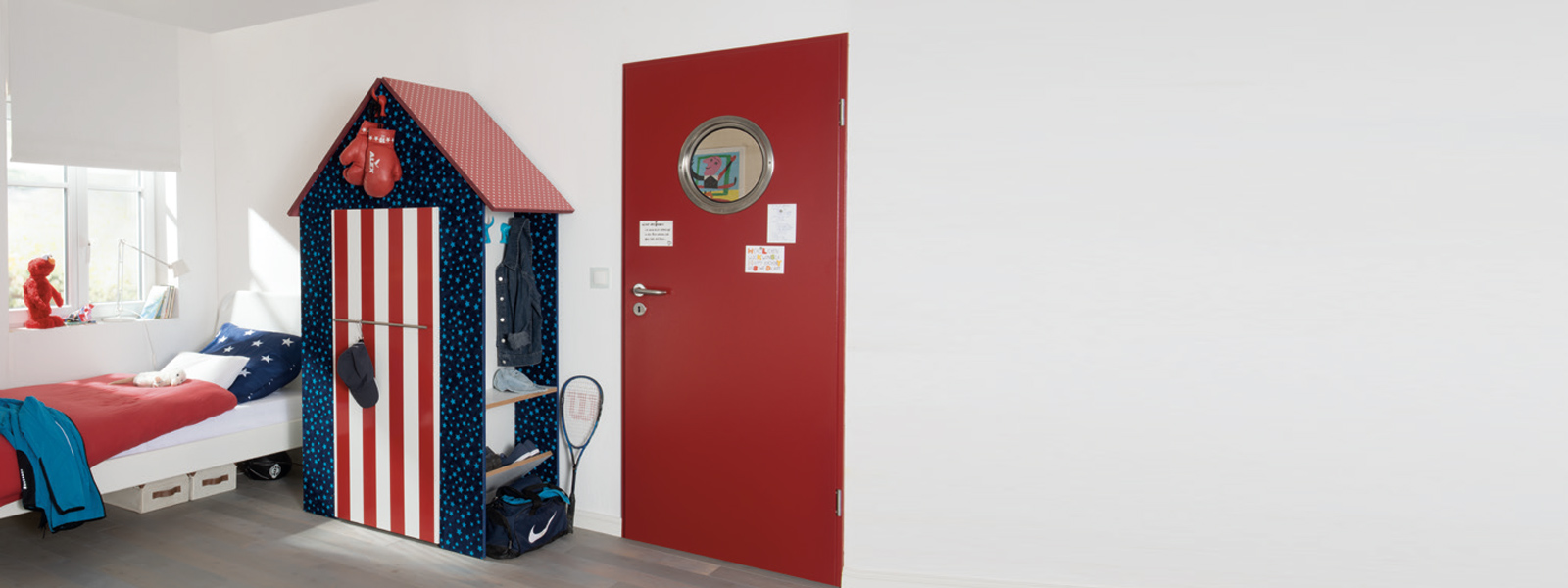

Steelinterior door
in the children's room

Colour: ruby red, similar to RAL 3003
Special feature: with magnetic board

Steelinterior door
in the study

Colour: grey-white, similar to RAL 9002
Special feature: with glazing (light opening 3)

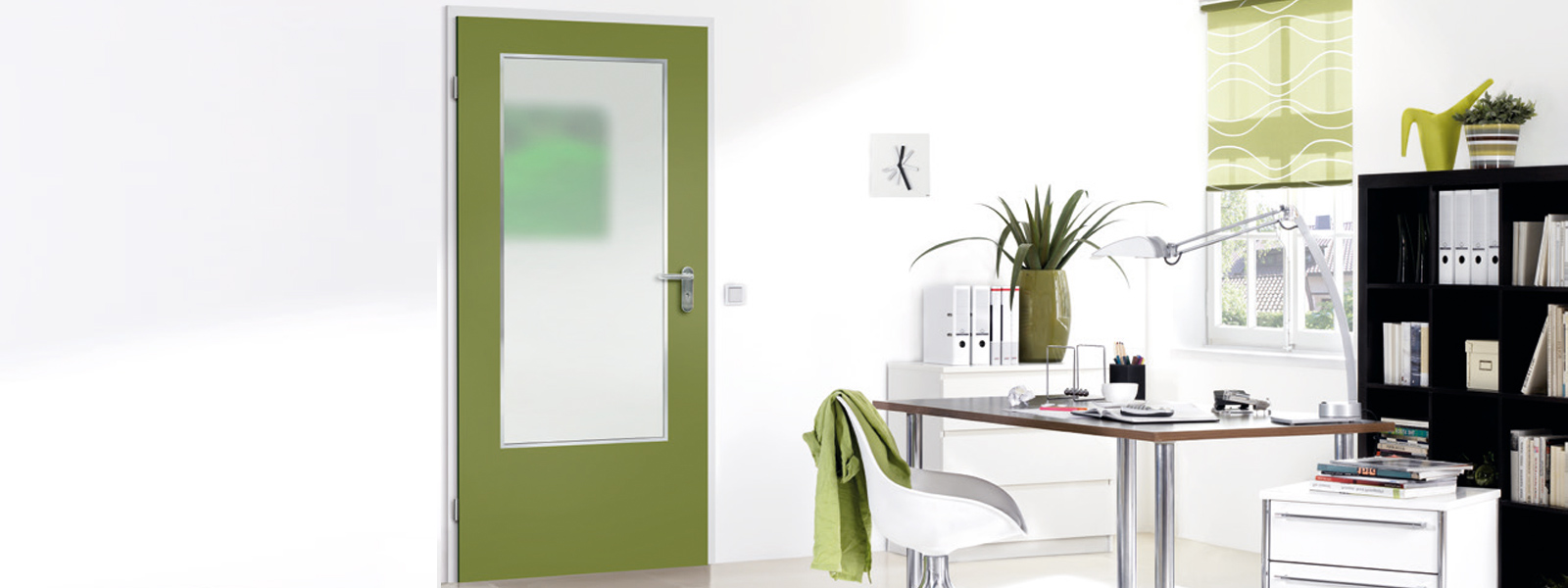

Steelinterior door
in the study

Colour: Reseda green, similar to RAL 6011
Special feature: with glazing (light opening 3)

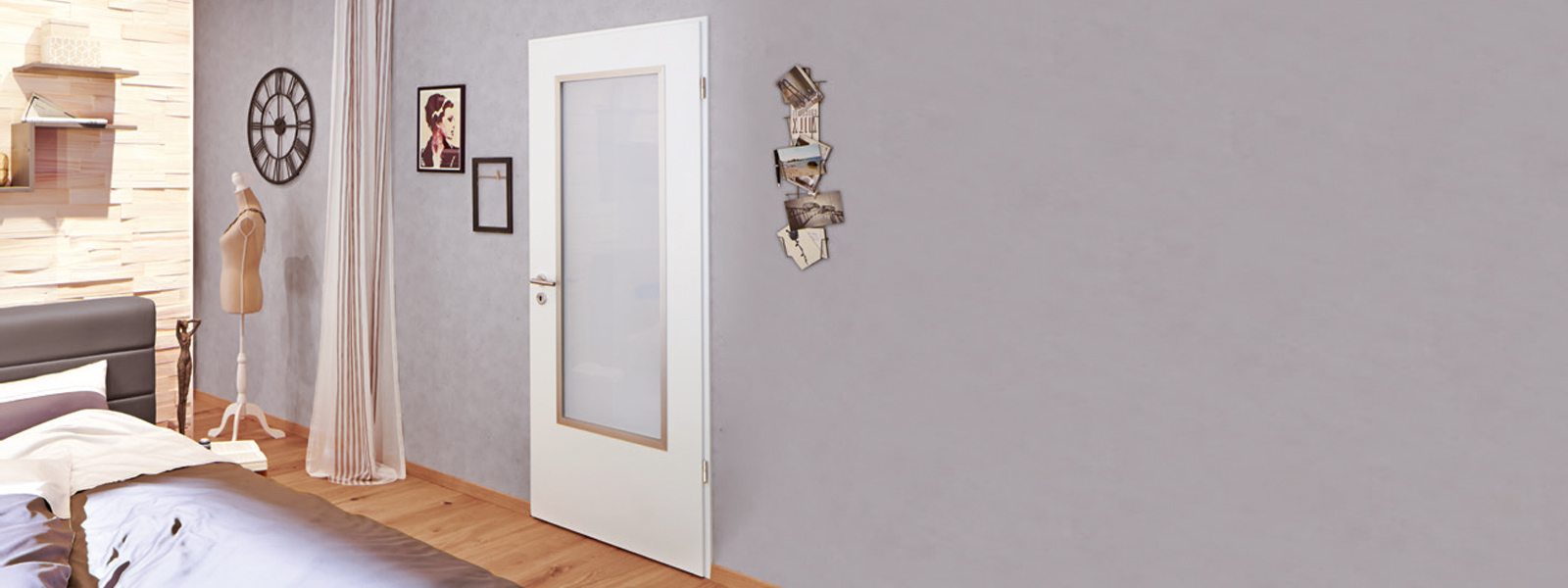

Steelinterior door
in the bedroom

Colour: Traffic white, similar to RAL 9016
Special feature: with glazing (light opening 3)

Technology and details

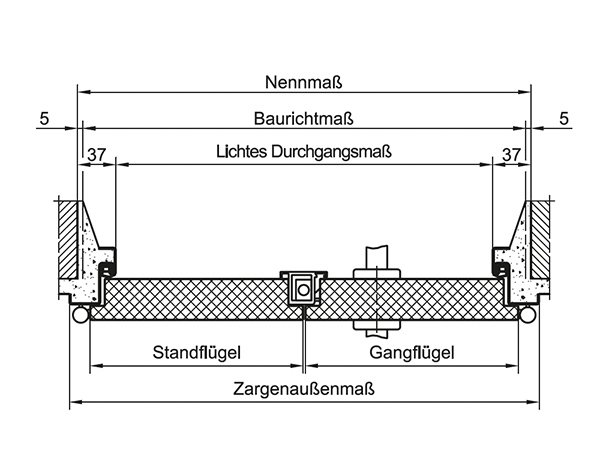

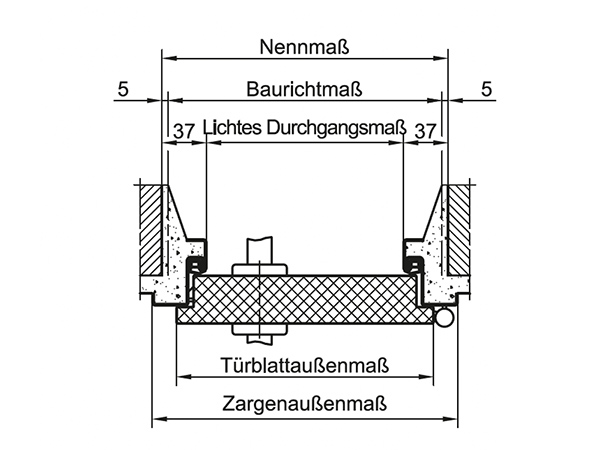

Technical data - Interior doors

	Basic dimensions (BR) DIN 18100 (order dimensions) Width x height	Nominal dimensions DIN 18100 Width x height	Clear opening dimensions DIN 18111 Width x height	Door leaf outer dimensions DIN 18101 Width x height	*External frame dimensions Width x height**
1-fl.	625 x 2.000	635 x 2.005	561 x 1.968	610 x 1.985	651 x 2.043
	750 x 1.875	760 x 1.880	686 x 1.843	735 x 1.860	776 x 1.918
	750 x 2.000	760 x 2.005	686 x 1.968	735 x 1.985	776 x 2.043
	750 x 2.125	760 x 2.130	686 x 2.093	735 x 2.110	776 x 2.168
	875 x 1.875	885 x 1.880	811 x 1.843	860 x 1.860	901 x 1.918
	875 x 2.000	885 x 2.005	811 x 1.968	860 x 1.985	901 x 2.043
	875 x 2.125	885 x 2.130	811 x 2.093	860 x 2.110	901 x 2.168
	1.000 x 1.875	1.010 x 1.880	936 x 1.843	985 x 1.860	1.026 x 1.918
	1.000 x 2.000	1.010 x 2.005	936 x 1.968	985 x 1.985	1.026 x 2.043
	1.000 x 2.125	1.010 x 2.130	936 x 2.093	985 x 2.110	1.026 x 2.168
	1.125 x 2.125	1.135 x 2.130	1.061 x 2.093	1.110 x 2.110	1.151 x 2.168
	1.250 x 2.000	1.260 x 2.005	1.186 x 1.968	1.235 x 1.985	1.276 x 2.043
	1.250 x 2.125	1.260 x 2.130	1.186 x 2.093	1.235 x 2.110	1.276 x 2.168
	Super-Standard special sizes up to 1,250 x 2,500 mm, Super-Plus special sizes up to 1,250 x 2,250 mm. Super-Colour and Classic: special sizes up to 1,250 x 2,250 mm. *Including floor recess 30 mm
2-fl.	1.500 x 2.000**	1.510 x 2.005	1.436 x 1.968	1.485 x 1.985	1.526 x 2.043
	1.750 x 2.000**	1.760 x 2.005	1.686 x 1.968	1.735 x 1.985	1.776 x 2.043
	2.000 x 2.000**	2.010 x 2.005	1.936 x 1.968	1.985 x 1.985	2.026 x 2.043
	2.000 x 2.125**	2.010 x 2.130	1.936 x 2.093	1.985 x 2.110	2.026 x 2.168
	Super-Standard special sizes up to 2,500 x 2,500 mm, Super-Plus special sizes up to 2,500 x 2,250 mm. Super-Colour and Classic: special sizes up to 2,500 x 2,250 mm. Including floor recess 30 mm *Centrally divided All dimensions in mm.

THE TECHNOLOGY FOR INTERIOR DOORS

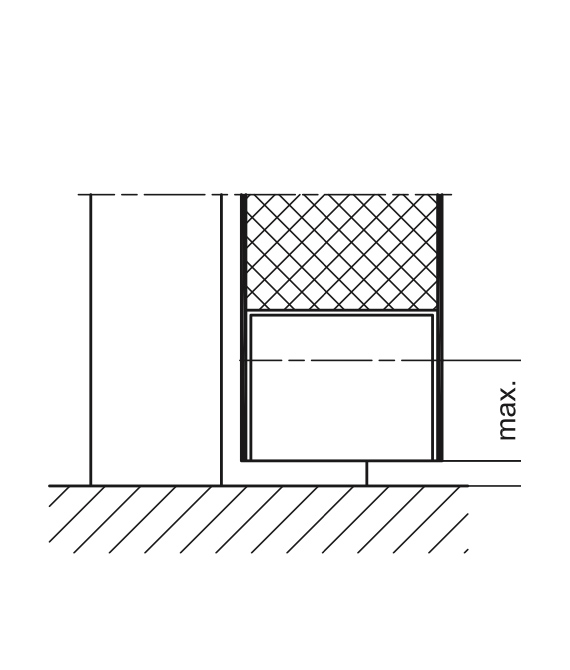

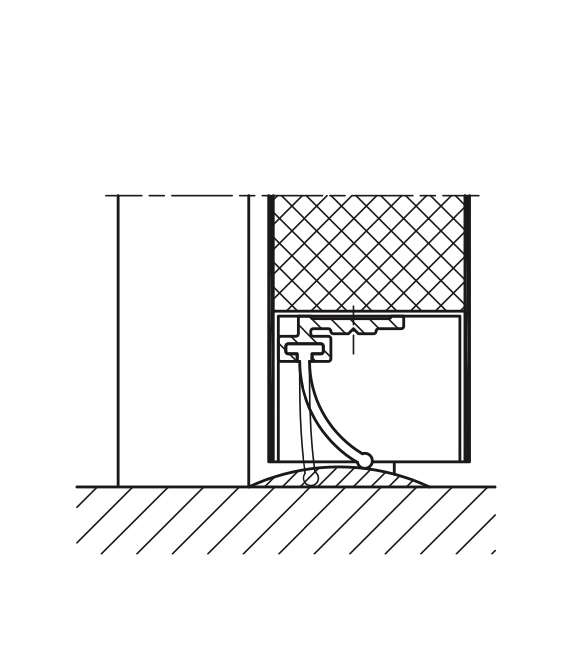

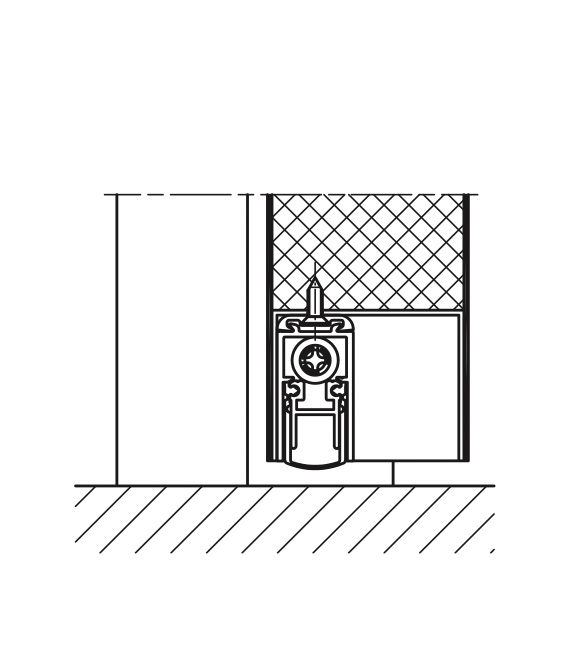

LOWER DOOR CLOSURE

Door leaf can be shortened in the area of the U-profile

Lowerable floor seal (optional)

Overrun seal with flat round sill (optional)

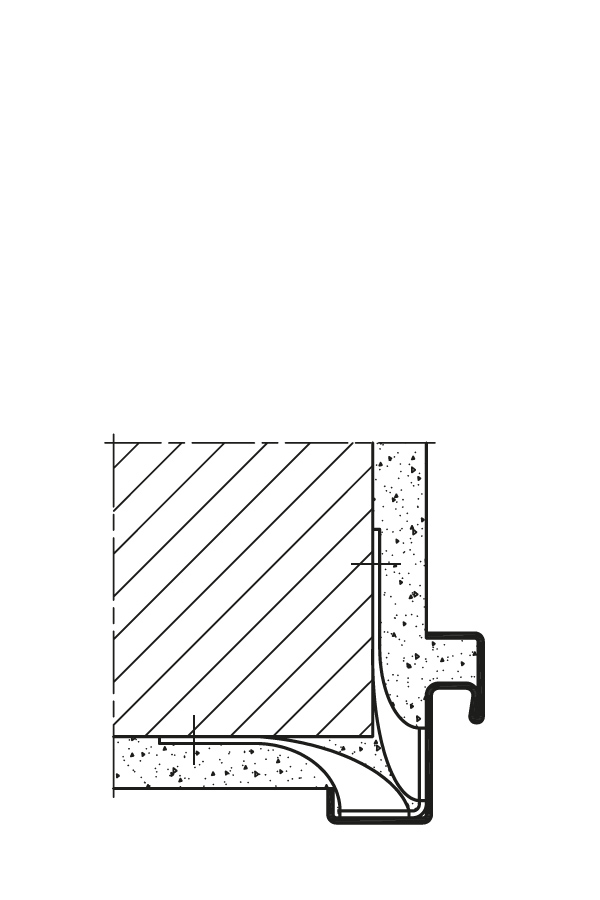

Eckzarge
Profil 21
(Standard)

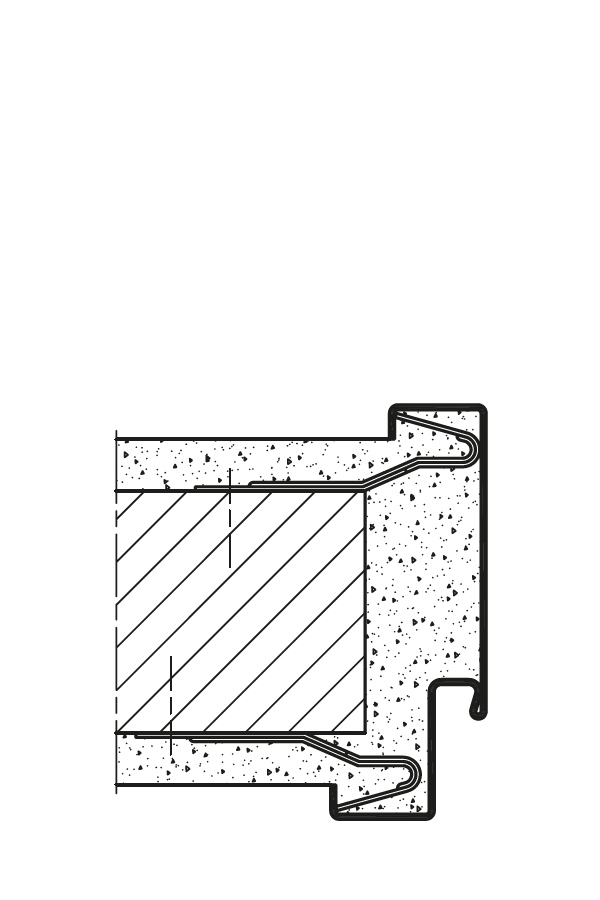

Surround frame
Profile 21
Masonry

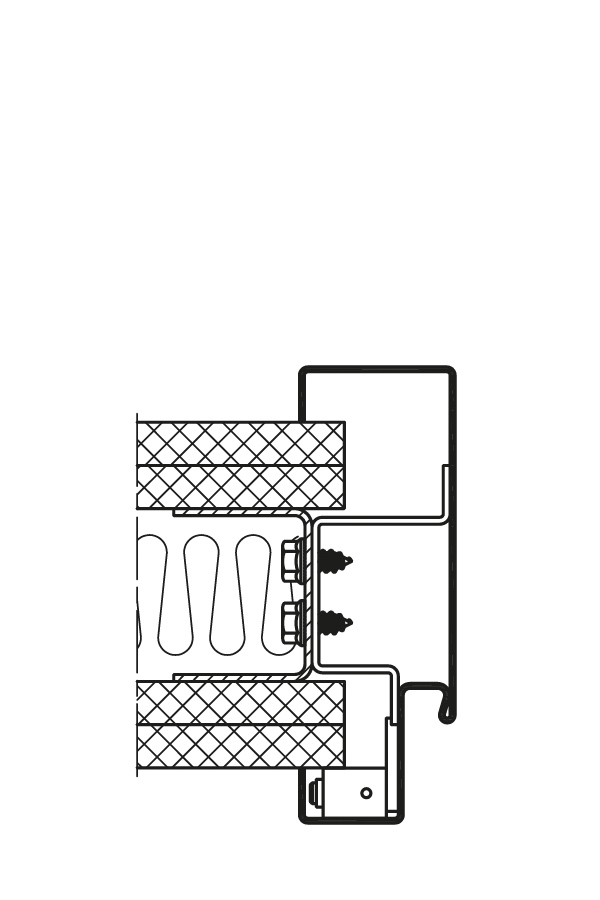

Surround frame
Profile 23/1645
Stud frame

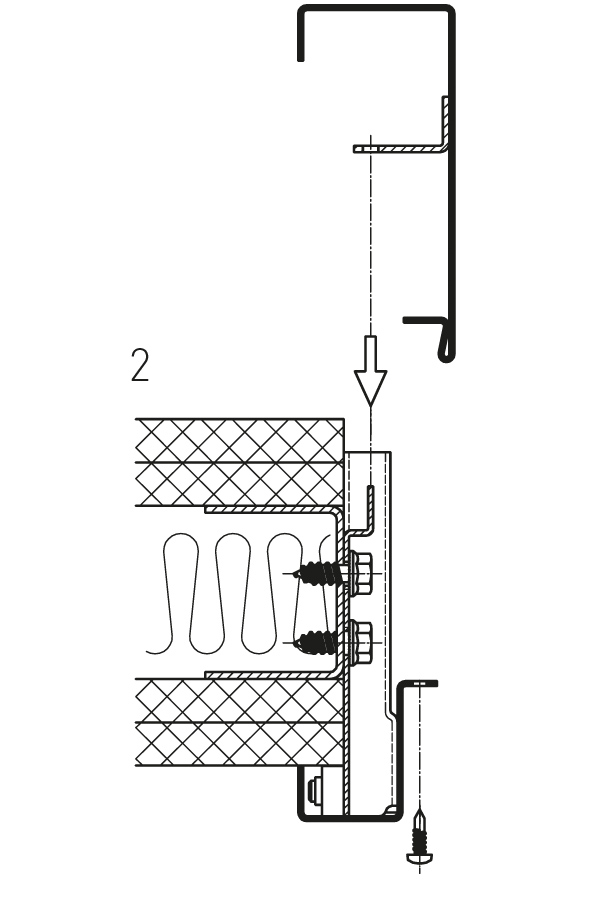

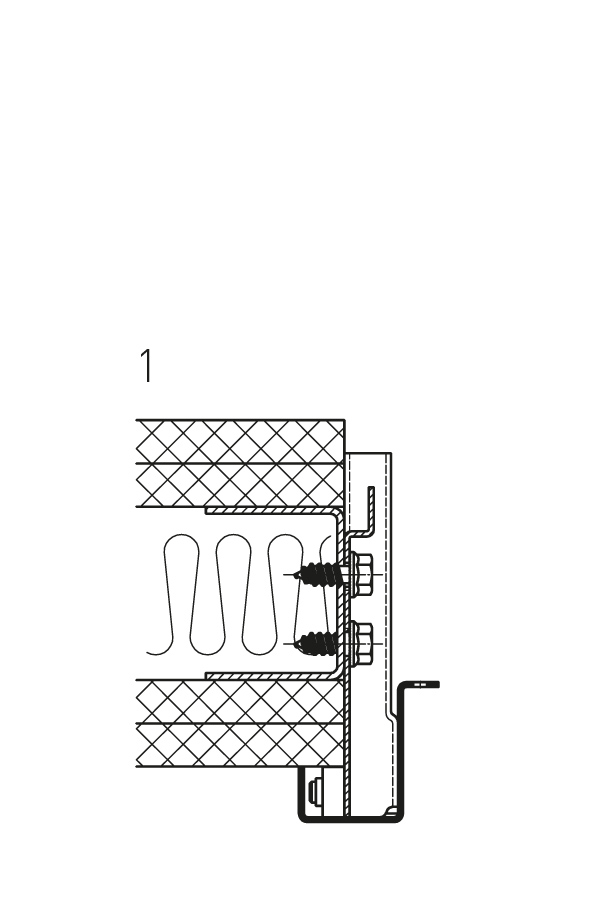

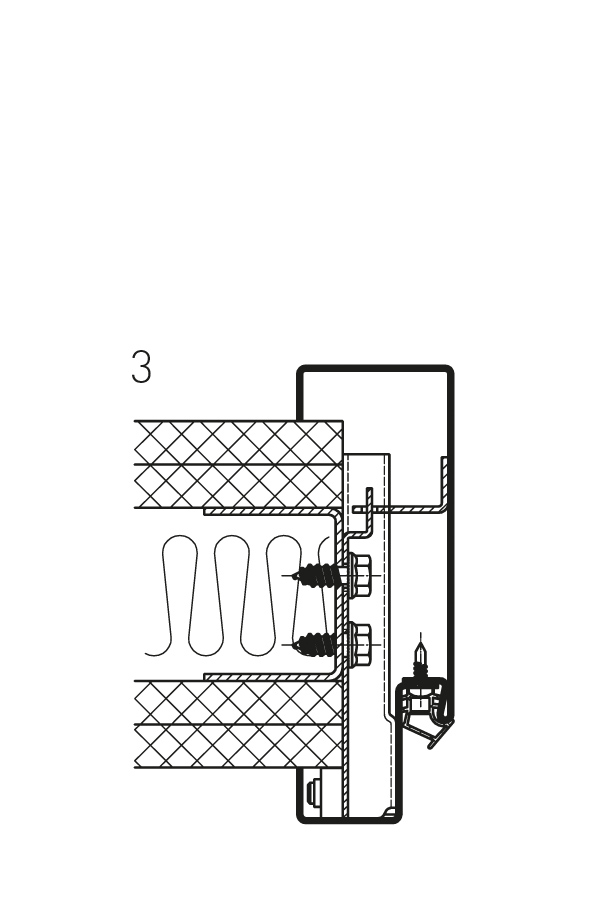

2-piece surround frame
Profile 2140/1645
Masonry or stud frame

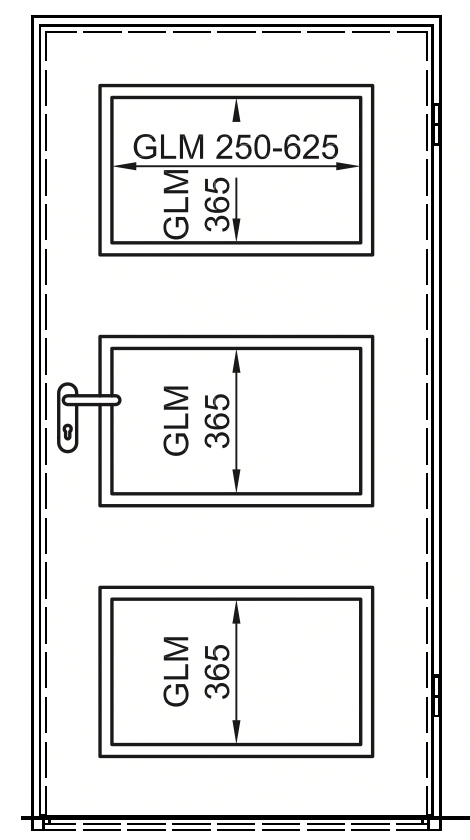

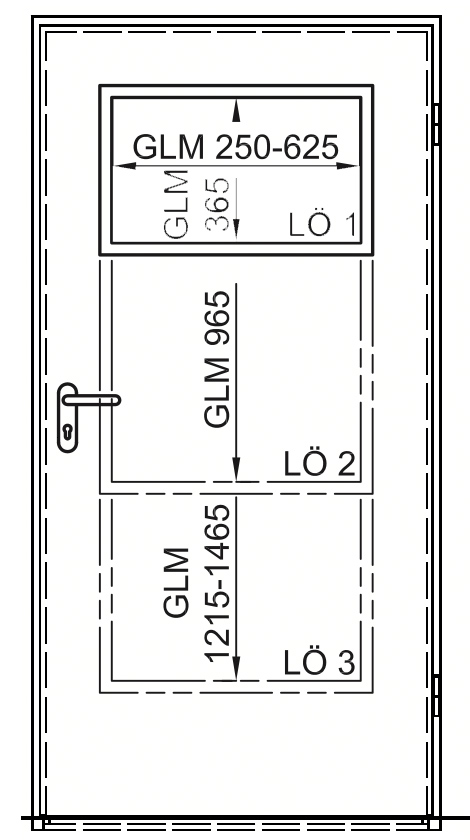

Technical data - Light openings

	Dimensions Width x height	Light opening 1 Width x height	Light opening 2 Width x height	Light opening 3 Width x height	Light opening 4 Width x height
1-flg. Standard size	625 x 2.000	270 x 385	270 x 985	270 x 1.360	3 x 270 x 385
	750 x 1.875	395 x 385	395 x 985	395 x 1.235	3 x 395 x 385
	750 x 2.000	395 x 385	395 x 985	395 x 1.360	3 x 395 x 385
	750 x 2125	395 x 385	395 x 985	395 x 1.485	3 x 395 x 385
	875 x 1.875	520 x 385	520 x 985	520 x 1.235	3 x 520 x 385
	875 x 2.000	520 x 385	520 x 985	520 x 1.360	3 x 520 x 385
	875 x 2.125	520 x 385	520 x 985	520 x 1.485	3 x 520 x 385
	1.000 x 1.875	645 x 385	645 x 985	645 x 1.235	3 x 645 x 385
	1.000 x 2.000	645 x 385	645 x 985	645 x 1.360	3 x 645 x 385
	1.000 x 2.125	645 x 385	645 x 985	645 x 1.485	3 x 645 x 385
	1.125 x 2.125	770 x 385	770 x 985	770 x 1.485	3 x 770 x 385
	1.250 x 2.000	895 x 385	895 x 985	895 x 1.360	3 x 895 x 385
	1.250 x 2.125	895 x 385	895 x 985	895 x 1.485	3 x 895 x 385
2-flg. Standard size	1.500 x 2.000*	520 x 385	520 x 985	520 x 1.360	3 x 520 x 385
	1.750 x 2.000	520 x 385	520 x 985	520 x 1.360	3 x 520 x 385
	2.000 x 2000	645 x 385	645 x 985	645 x 1.360	3 x 645 x 385
	2.000 x 2.125	645 x 385	645 x 985	645 x 1.485	3 x 645 x 385
* Glazing only in the active leaf. All dimensions in mm.

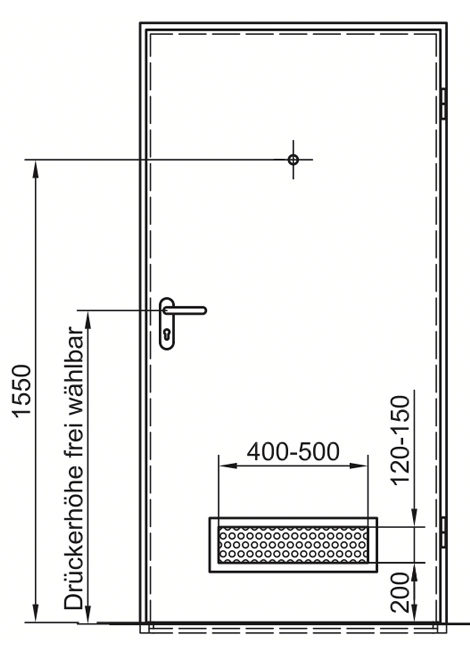

SPECIAL EQUIPMENT

Special lever handle height
Door viewer

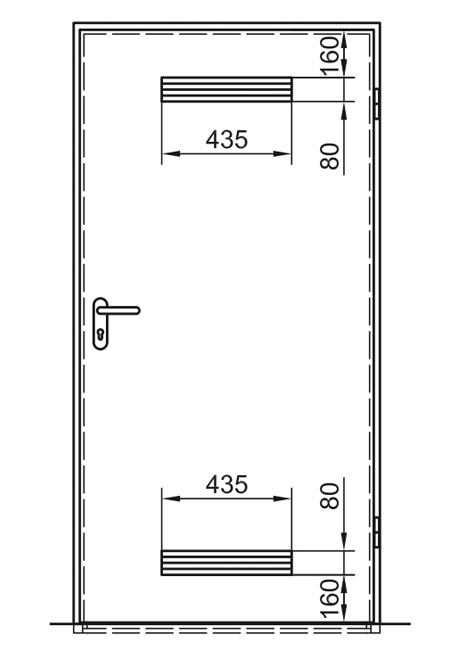

Ventilation grille with perforated plate
Ventilation cross-section 175-200 ^cm2
Other dimensions on request
