Roller garage doors

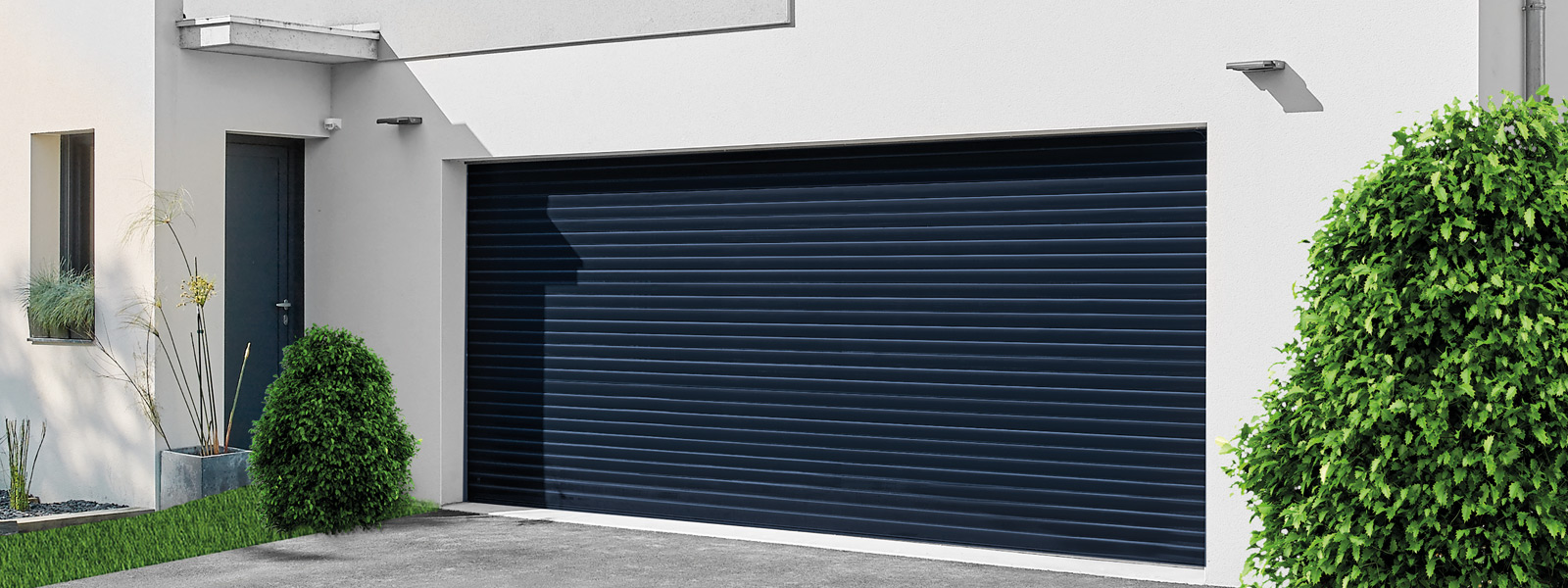

The automatic roller garage door

Roller garage doors are made of high-quality aluminium slats and are manufactured according to the roller shutter principle. This leaves the ceiling in the garage free and no swing space is required in front of the garage, so you can use every last centimetre of space, for example for parking a second car.

For your individual design, Novoferm roller garage doors are available in traffic white and golden oak or in one of nine preferred colours. All NovoRol garage doors are supplied with a tubular motor and two 2-channel hand-held transmitters as standard.

How roller shutters work

THE ROLLING GATE PRINCIPLE

THE ROLLING GATE PRINCIPLE

Roller garage doors are made of high-quality aluminium slats and are manufactured according to the roller shutter principle. The individual slats roll into the roller shutter box in a space-saving manner, similar to the window roller blinds used at home. The vertical tracks are fitted with brush seals, which ensure low-wear door guidance!

This leaves the ceiling in the garage free and no swivelling space is required in front of the garage.

Function and technology

1. housing
Supplied in the standard colour white. Protects the user from jamming and at the same time offers an attractive appearance.
2. Manual operation
We supply a crank handle as standard. This allows the door to be opened manually from the inside, for example if the power fails.
3. Control unit with standard lighting
As soon as you open or close the door, the lighting on the control unit is activated. It switches off again automatically after four minutes.

4. vertical guide rails
The vertical guide rails are fitted with brush seals that ensure low-wear door guidance and good sealing!
5. closing edge safety device
If the door encounters the slightest resistance when closing, the optical closing edge safety device ensures that it stops immediately and opens again.

SPACE REQUIREMENT IN FRONT OF AND IN THE GARAGE

SPACE REQUIREMENT IN FRONT OF AND IN THE GARAGE

Utilise every last centimetre of the space in front of and inside the garage:

As the roller garage door does not require any swing space, it allows storage space for bulky items on the garage ceiling as well as parking a second car in front of the garage.

ROLLING CASE

ROLLING CASE

Each roller shutter door is equipped with a 300 x 300 mm roller shutter box, which can be positioned behind, in or in front of the opening, depending on the available space.

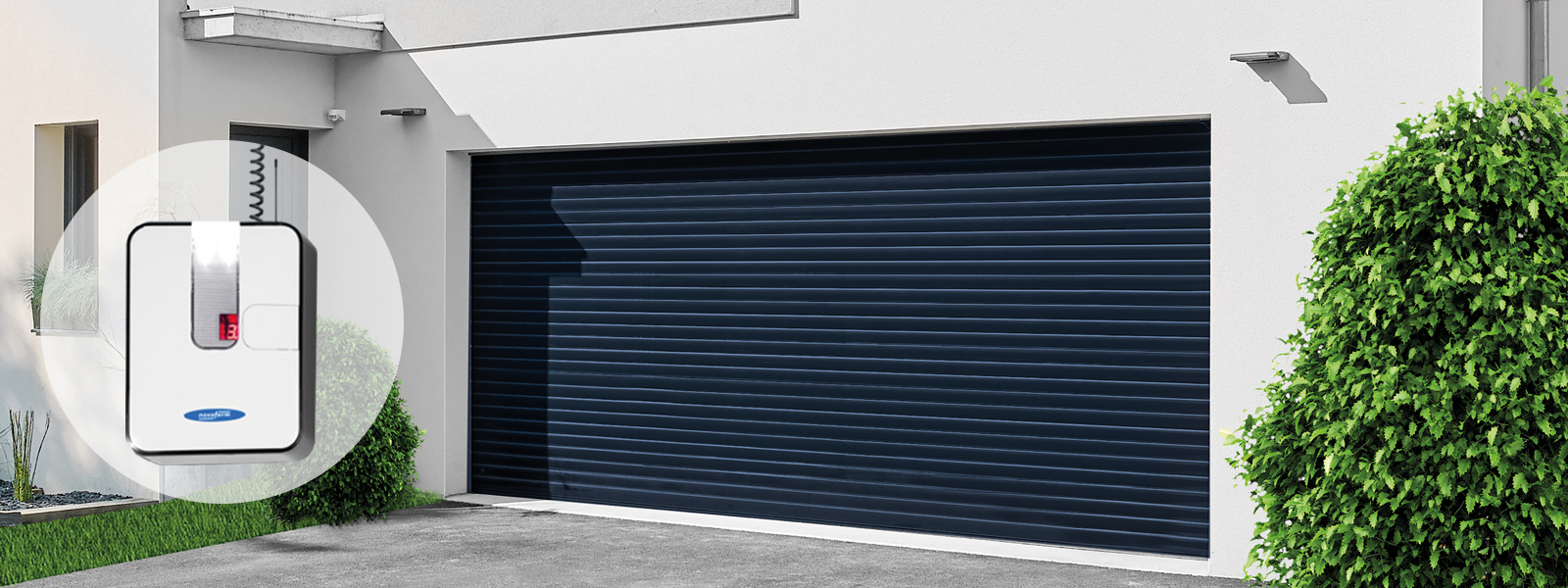

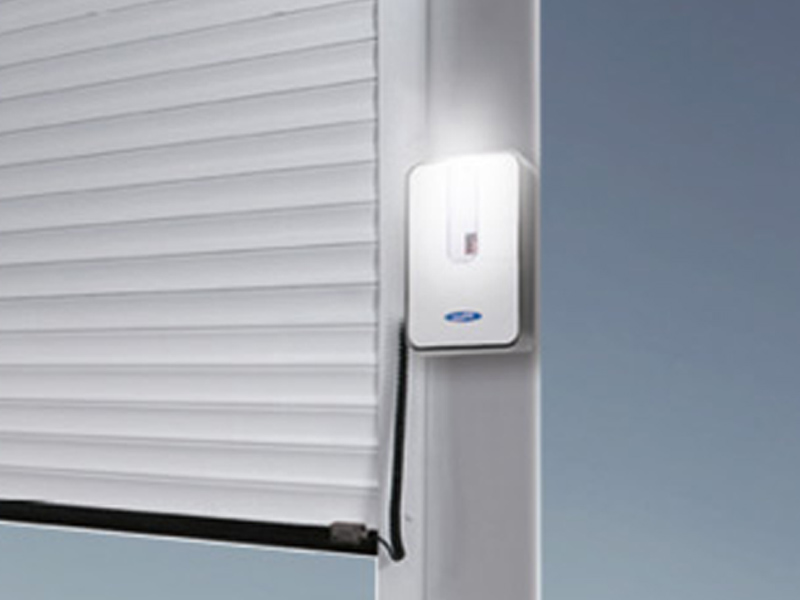

MOTORISATION

MOTORISATION

Due to their heavy weight, roller garage doors are fitted with an operator as standard.

An internal push button and LED lighting are already integrated in the control unit.

Doors based on the roller shutter principle
"NovoRol" roller garage doors are made of high-quality aluminium slats and are manufactured according to the roller shutter principle. The doors are fitted with a roller shutter box, which is installed behind, in or in front of the opening.

Large selection of colours
Novoferm "NovoRol" roller shutters are available in the "Golden oak" wood look or in one of ten preferred or RAL colours, on which dirt and moisture simply roll off.

Innovative / SmartHome-capable
Novoferm roller garage doors are fitted with an electric operator as standard. The smart home-compatible operator is mounted on the side to save space and enables the door to be opened with an integrated button.

Door comparison and properties

Comparison with other garage door types

Roller shutters

Sectional doors

Up-and-over doors

Swing gates

Functional principle

Door slats roll into the roller shutter box provided, similar to the window roller blinds used in domestic applications, to save space

Sectional door consists of sections that are connected to each other and are pushed vertically under the ceiling

Up-and-over door consists of a door leaf as a unit, supported by two lateral lever arms

Swing doors can be opened with two swing doors that swing outwards or inwards

Space in front of the garage

Space in front of the garage can be used for parking a car, for example (no swinging space in front of the garage)

Space in front of the garage can be used for parking a car, for example (no swing space in front of the garage)

Compared to sectional or roller doors, the door leaf swings outwards when opened

The space required in front of the garage must be taken into account for outward swinging hinged doors

Construction dimension

Up to 5 m wide

Up to 5.50 m wide

Up to 5 m wide

Up to 3 m wide

Insulation

Low insulation

20 mm, 45 mm, 67 mm insulation

Low insulation

45 mm insulation

Thermal separation

-

-

-

-

TÜV tested burglar resistance

-

-

-

-

Tested security according to resistance class RC 2

-

-

-

-

Surface finish

- Smooth surface

- Wood optics

- Woodgrain

- Smooth surface

- Wood optics

- Satin surface

- Microline

- Smooth surface

- Woodgrain

- Smooth surface

- Wood optics

- Satin surface

Embossing/ motif

- Aluminium slats

- Horizontal bead

- Large bead

- Large louvre

- Cassette

- Bead (vertical or horizontal)

- Slat (vertical or horizontal)

- Cassette (vertical, square, rectangular)

- Door leaf frame for on-site infill

- Horizontal bead

- Large bead

- Large slat

- Cassette

Colours

- 10 attractively priced preferred colours

- 1 wood look

- 16 attractively priced preferred colours

- RAL colours of your choice

- 4 wood finishes

- 6 satin finishes

- 8 attractively priced preferred colours

- RAL colours of your choice

- 16 attractively priced preferred colours

- RAL colours of your choice

- 4 wood finishes

- 6 satin surfaces

Glazing

- (whole slats only)

-

-

-

Spring technology

-

- Tension spring

- Torsion spring (in front)

- Torsion spring (rear)

Tension spring

-

Wicket door

-

- Without wicket door

- With wicket door (opening outwards)

- With wicket door (opening inwards)

- Without wicket door

- With wicket door (opening outwards)

-

Opening method

- Electric (with drive)

Manually operated (with handle)

Electric (with drive)

Electric (with app)

- Manually operated (with handle)

- Electric (with drive)

- Manually operated (with handle)

- Yes - No
The most important data at a glance

THE MOST IMPORTANT DATA AT A GLANCE


Functional principleDoor slats roll up into the roller shutter box provided for this purpose to save space, similar to the window roller blinds used in domestic applications
Space in front of the garageSpace in front of the garage can be used for parking a car, for example (no swivelling space in front of the garage)
Overall dimensions

Up to 5 m wide

Insulation

Low insulation

Surface finish
  • Smooth surface
  • Wood looks
Embossing/ motif
  • Aluminium slats
Colours
  • 10 attractively priced preferred colours
  • 1 wood look
Glazing- (Whole louvres only)
Opening method
  • Electric (with drive)
Drive installation positionSide mounting
Compatible with door typesRoller shutters
Special features
  • Integrated in control unit
  • inside push button
INSULATION and ENERGY EFFICIENCY

NOTES ON INSULATION AND ENERGY EFFICIENCY

Compared to modern sectional garage doors, roller garage doors have low insulating properties.
For garages that are built directly next to the house, have a transition from the garage to the living area or are used for another purpose in addition to parking a car (garage as a workshop, storage room, living space, ...), sectional garage doors with high thermal and sound insulation are generally used.

Energy-saving LED lighting is integrated into the operator control unit.

SAFETY

FALL PROTECTION

Electrically operated roller garage doors offer more convenience, but also require additional safety devices. For example, the aluminium slat roller shutter curtain must be prevented from suddenly falling. For this purpose, our roller garage doors are equipped with fall protection.

If the supporting equipment fails and the rolling speed therefore exceeds a certain value, this safety device takes effect and stops the door movement automatically.

SLIDE-ON SAFETY DEVICE

The anti-opening device protects against unauthorised opening of the door. Electrically operated doors such as roller garage doors always offer a manual unlocking option so that the garage remains accessible even in the event of a power failure.

To prevent this option from being misused, the anti-opening device is included as standard.

CLOSING EDGE PROTECTION

If the door encounters the slightest resistance when closing, the optical closing edge safety device ensures that it stops immediately and opens again.

This prevents personal injury and damage to property from the outset.

The closing edge safety device is pre-assembled in the factory as standard and is equipped with an LED status indicator.

Your plus points at a glance

  • For private garages up to 5,000 mm wide
  • 300 x 300 mm roller box
  • Vertical brush seals to protect the slats and ensure quiet operation
  • Anti-lift device to prevent unauthorised opening



  • Optical closing edge safety device with LED indicator
  • Large selection of colours available
  • Automatically equipped with a drive unit
  • LED lighting and a push button are integrated into the operator control unit

COLOURS AND EQUIPMENT

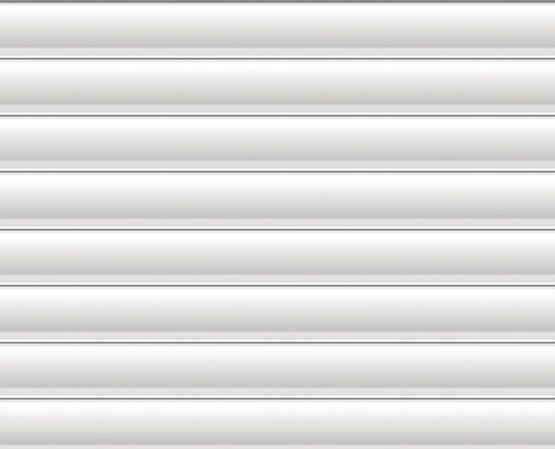

TOR-MOTIVE

NovoRol garage doors are made of high-quality aluminium slats.

Colours and surfaces

Colours and surfaces

Standard colour

Traffic white,
similar to RAL 9016

PREFERENCE COLOURS

You can choose from nine RAL colours for further customisation.

Light ivory,
similar to RAL 1015

Purple red,
similar to RAL 3004

Pale green,
similar to RAL 6021

Anthracite grey,
similar to RAL 7016

Sepia brown,
similar to RAL 8014

Grey-brown,
similar to RAL 8019

White aluminium,
similar to RAL 9006

Sand black,
2100

Deep black,
similar to RAL 9005

WOOD LOOK (SMOOTH)

NovoRol garage doors consist of high-quality aluminium slats. On request, these are available with the Golden oak foil surface, which simply repels dirt and moisture.

Inspirationen

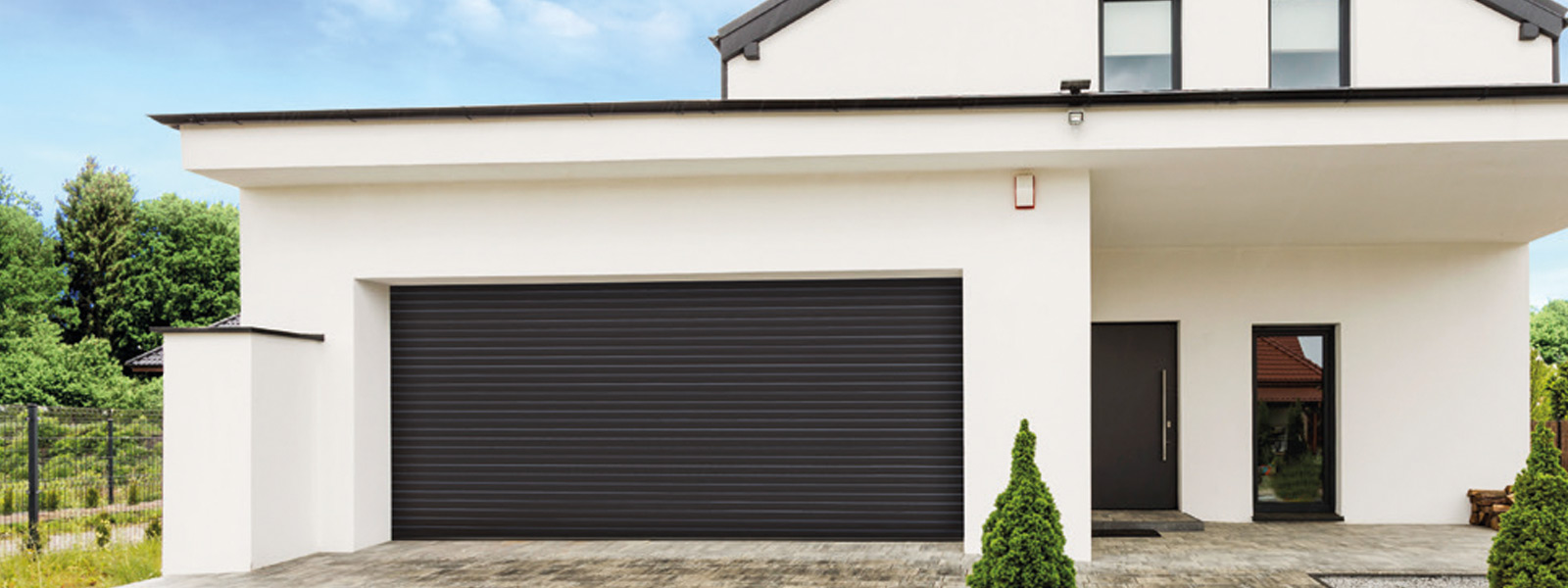

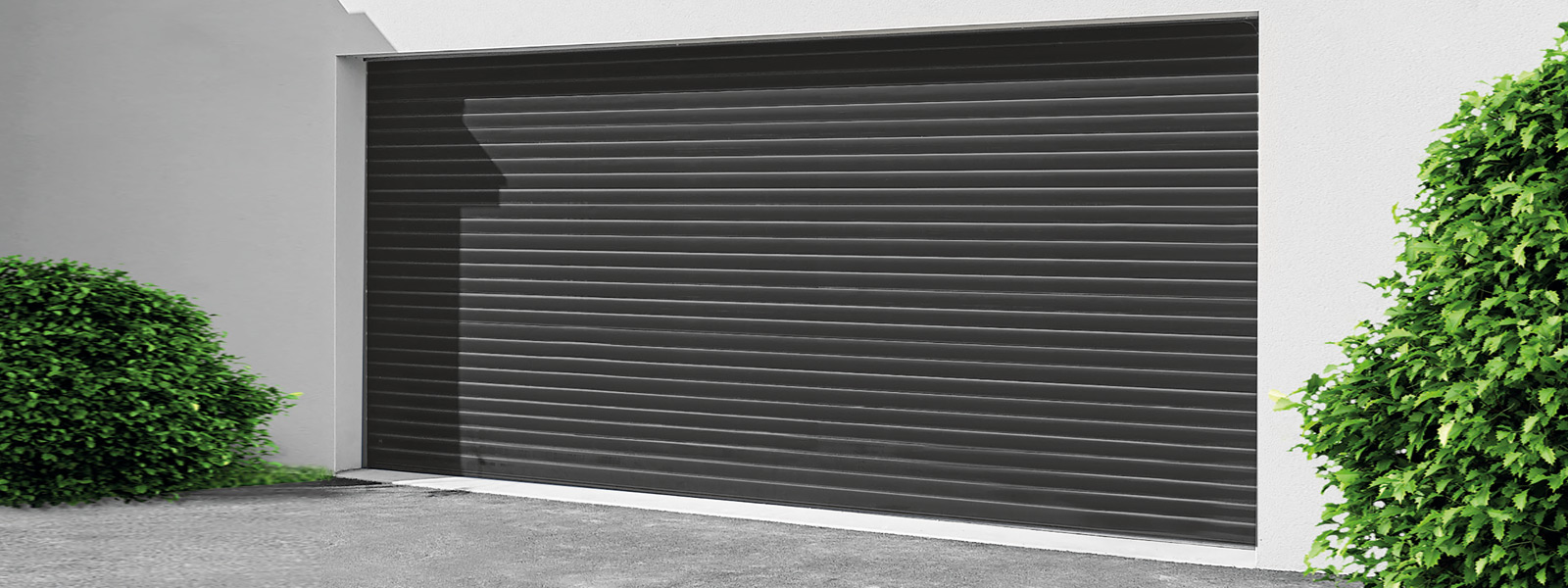

Roller garage door with aluminium slats
"NovoRol" rollergarage door

Colour: Anthracite grey, similar to RAL 7016

Roller garage door with aluminium slats
"NovoRol" rollergarage door

Colour: Deep black, similar to RAL 9005

Roller garage door with aluminium slats
"NovoRol" rollergarage door

Colour: Deep black, similar to RAL 9005

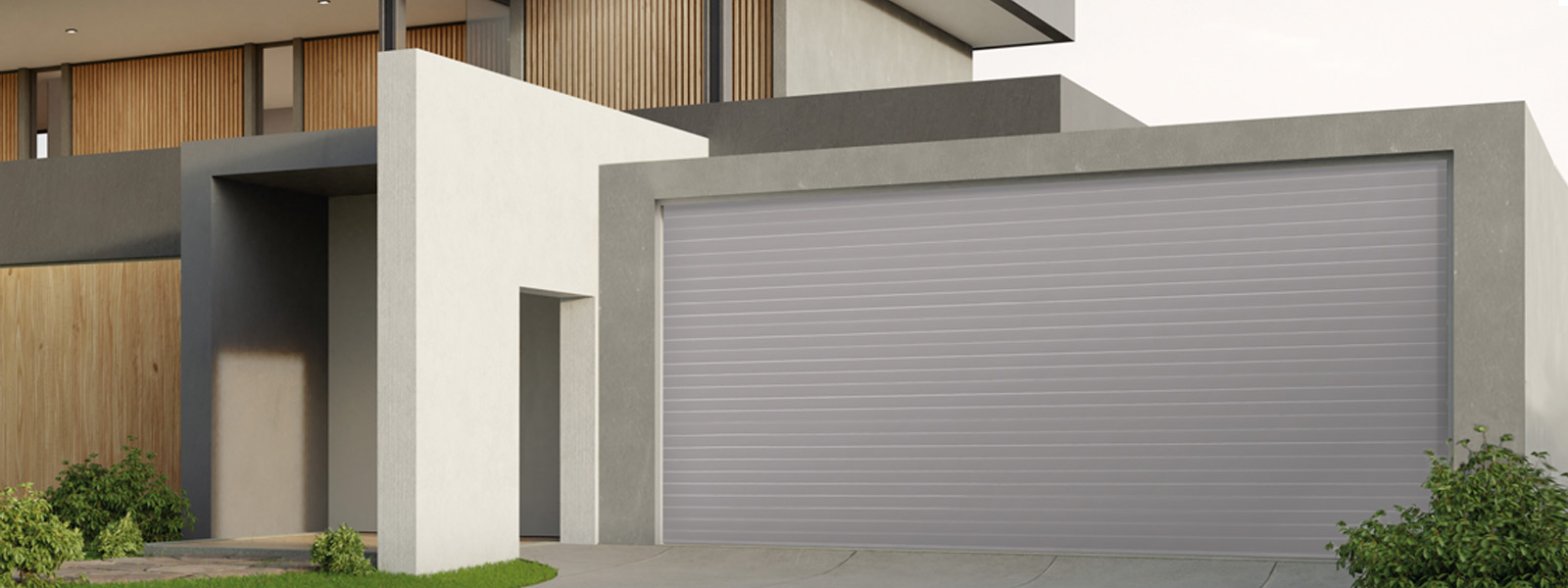

Roller garage door with aluminium slats
"NovoRol" rollergarage door

Colour: White aluminium, similar to RAL 9006

Roller garage door with aluminium slats
"NovoRol" rollergarage door

Colour: Grey-brown, similar to RAL 8019
