CARGO SECTIONAL DOORS

FOR SAFE USE IN TRUCK FREIGHT TRANSPORT.

Innovative technology – Groundbreaking new concepts
Novoferm CARGO doors are designed for the special requirements and tough conditions of freight transport. Every detail of Novoferm CARGO doors not only offers the highest possible security for your valuable goods, but innovative features also ensure a high degree of functionality, ease of maintenance and convenient handling.

When quiet is a must!
Novoferm CARGO doors are extremely quiet and thus make an effective contribution to noise reduction, e.g. during night-time deliveries.

Better safe than sorry!
CODE-XL-certified CARGO doors have been developed for the particularly demanding transport of heavy goods. The normative requirements for load safety up to 8.1 tonnes are certified for all CARGO doors in accordance with DIN EN 12642.

Refrigerated freight, fresh produce, valuable freight, pharmaceutical services – Novoferm Cargo doors offer individual solutions for all areas of application.

Technology that impresses!

Throughout Europe!

Novoferm CARGO-Tore

CARGOTORE AT A GLANCE

	CT-39	CT-60	CT-67
Section thickness	39 mm	60 mm	67 mm
Width (min.-max.)	1,200 - 2,455 mm	1,200 - 2,455 mm	1,200 - 2,455 mm
Height (max.)	3,000	3,000 mm	2,750 mm
Colours	RAL 9010 RAL of your choice	RAL 9010 RAL of your choice	RAL 9010 RAL of your choice
U-value (^W/m²K)	0.55	0.37	0.32
Thermal separation	X	X	X
Drive	X	X	X

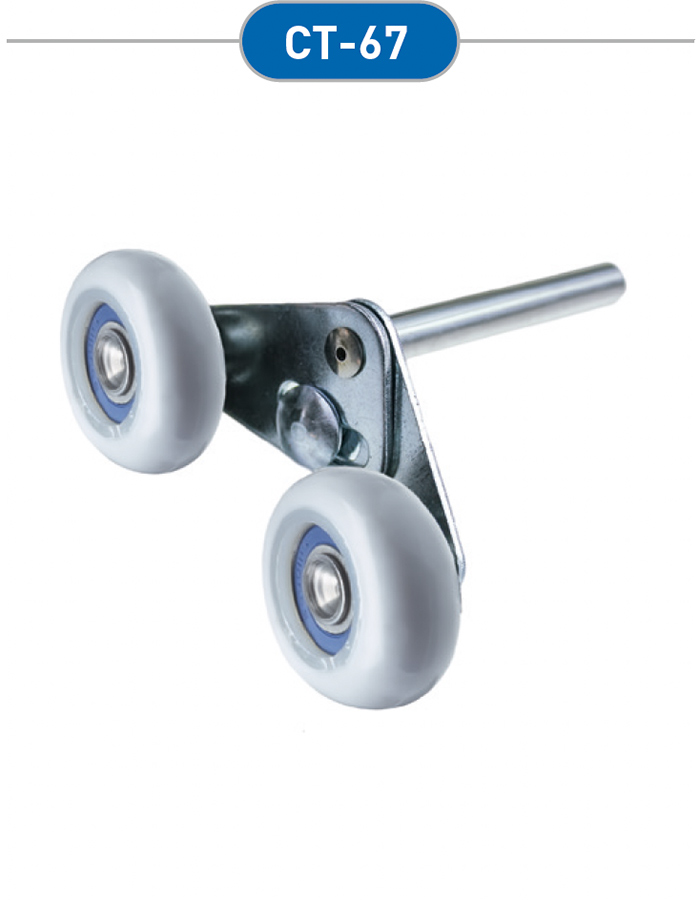

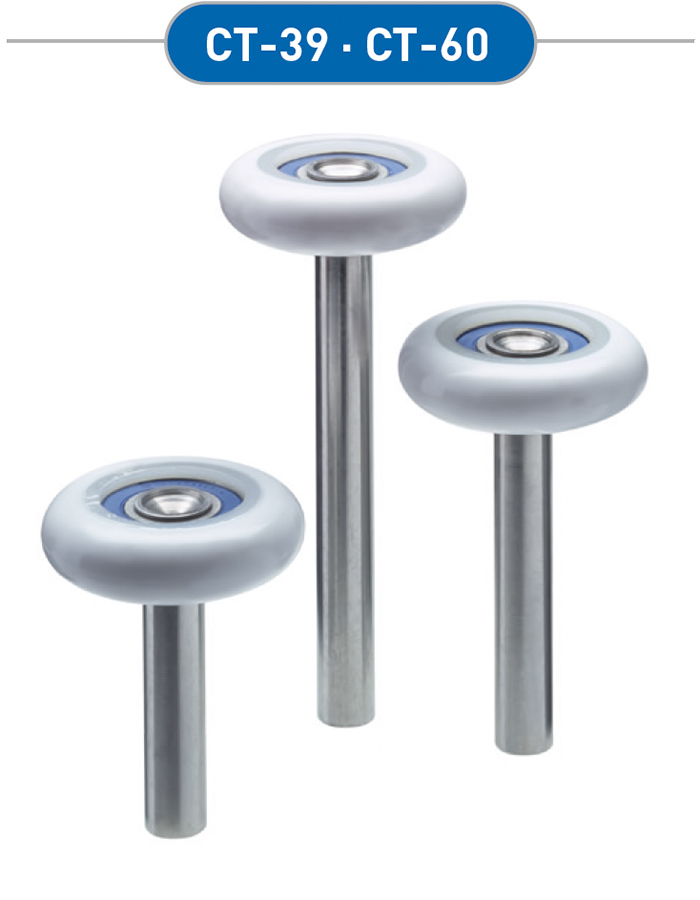

Smooth-running tandem castors	—	—	X
PIEK certificate ≤ 60 dB (subsequent delivery)	—	X	—

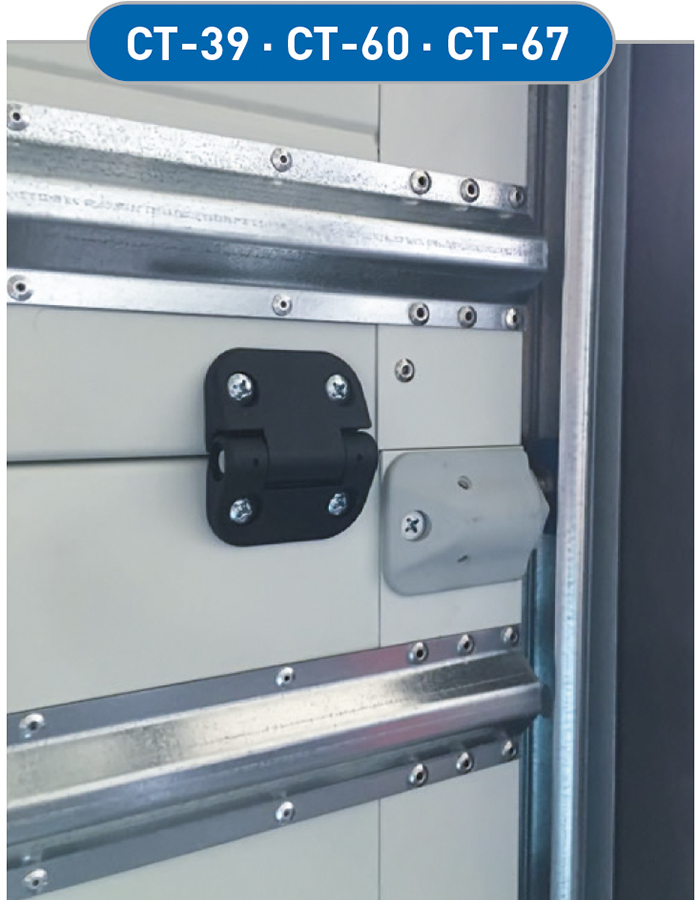

CODE XL certificate (load securing up to 8.1 t) (optional)	X	X	X

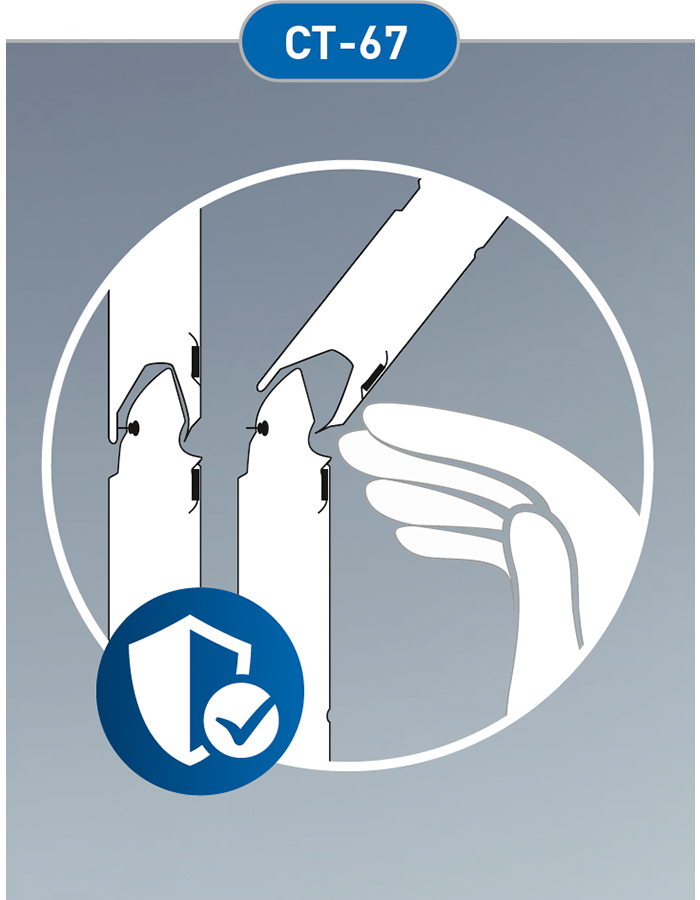

Finger trap protection (inside and outside) in accordance with DIN EN 12604	—	—	X
Burglary protection RC2 (optional)	—	X	—
ATP*	—	X	X

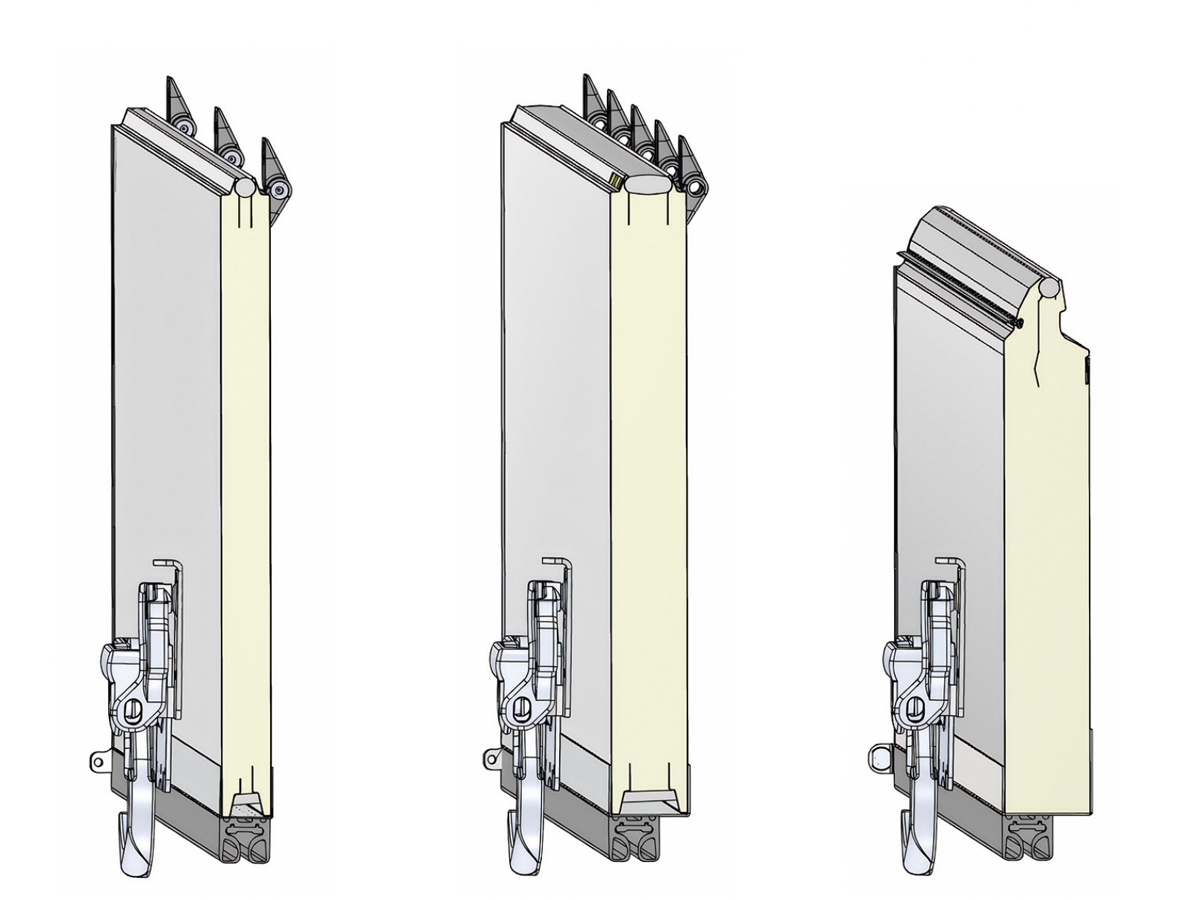

Section heights	488 mm	488 mm	375 mm and 450 mm
Areas of application:
Refrigerated cargo	X	X	X
Frozen cargo	—	X	X
Dry cargo	X	X	X
Premium cargo	—	X	—
Pharmaceutical cargo	—	X	X

* Agreement on the International Carriage of Perishable Foodstuffs and on the Special Equipment to be used for such Carriage.

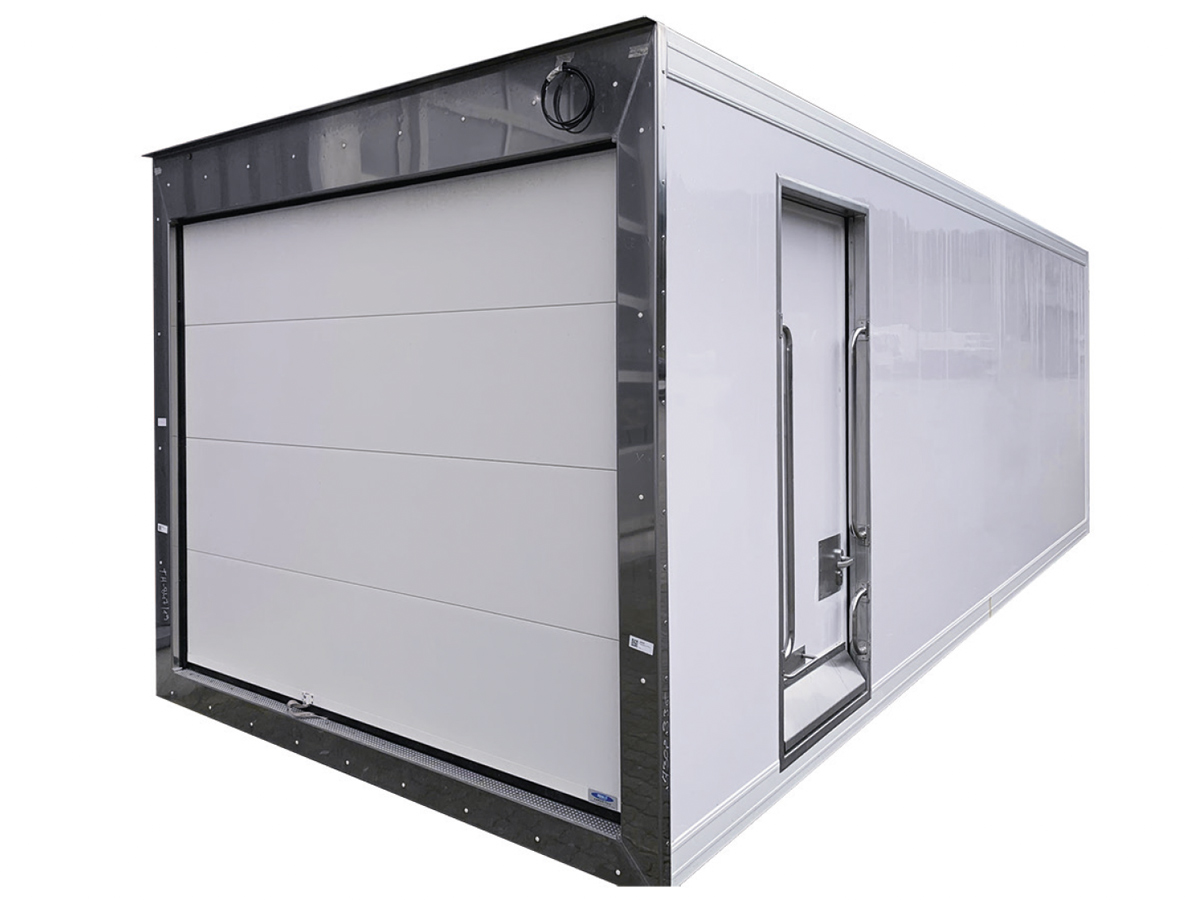

Cargo-Tor CT-39

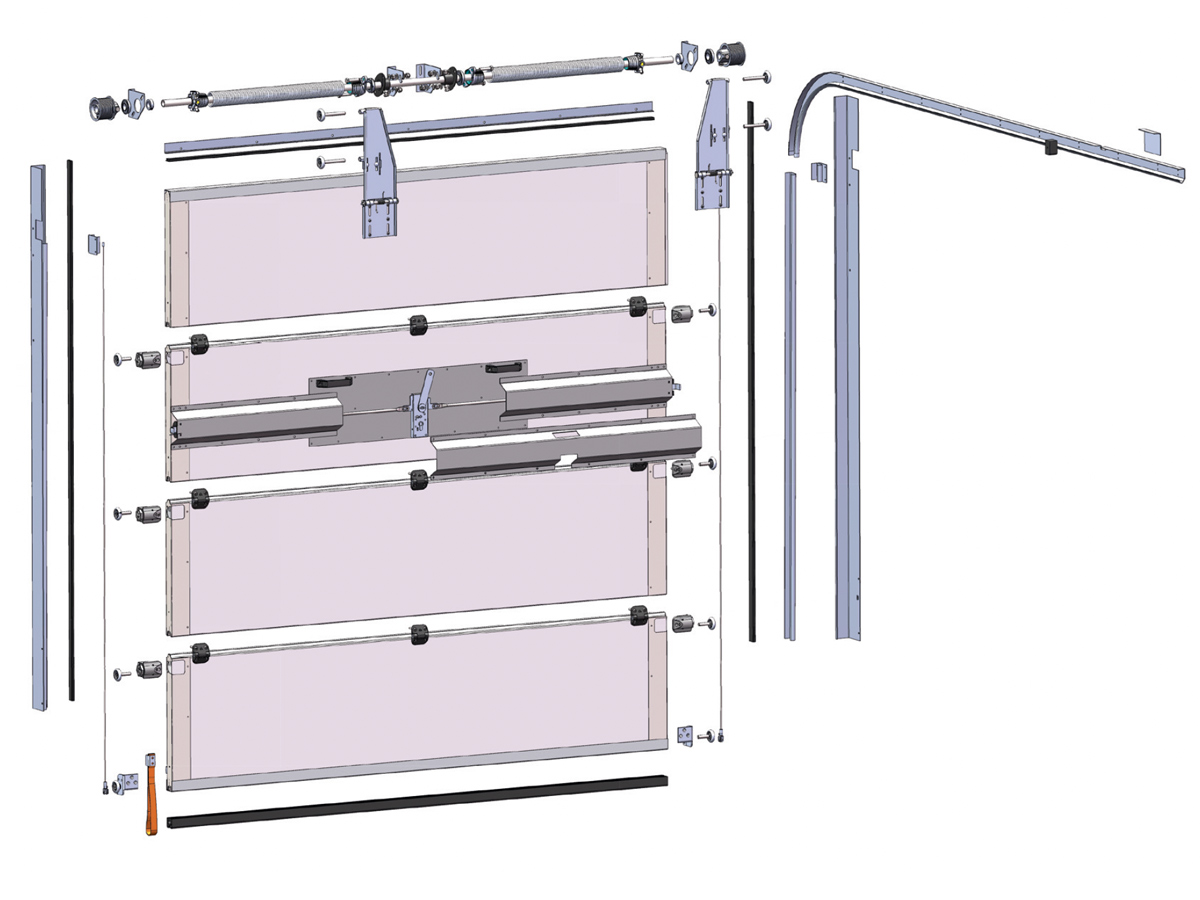

Comprehensive concept solutions

Novoferm CARGO doors offer state-of-the-art technology.

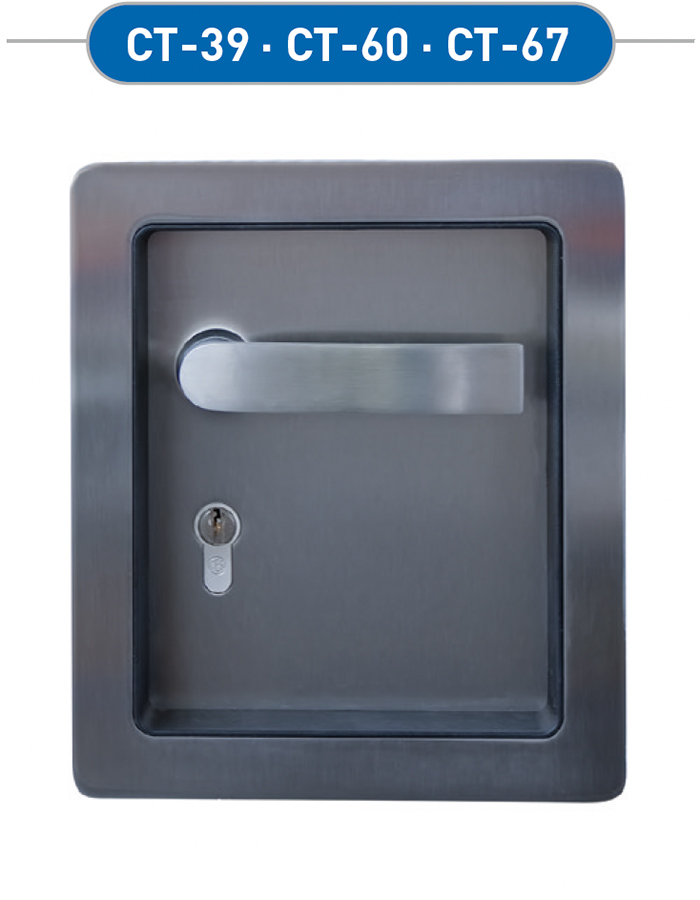

Innovative safety concepts, such as the internal locking system or the Code XL variant, have proven themselves throughout Europe.

A choice of RAL colours for all door variants meets particularly high aesthetic standards.

CARGO-TOR CT-39

Your advantages at a glance

Sections consist of painted steel cover layers, thermally separated and fitted with a PUR rigid foam core; section thickness 39 mm.

Optimal areas of application:

Dry freight, fresh produce
Design similar to RAL 9010 or RAL of your choice
Numerous equipment options, e.g.

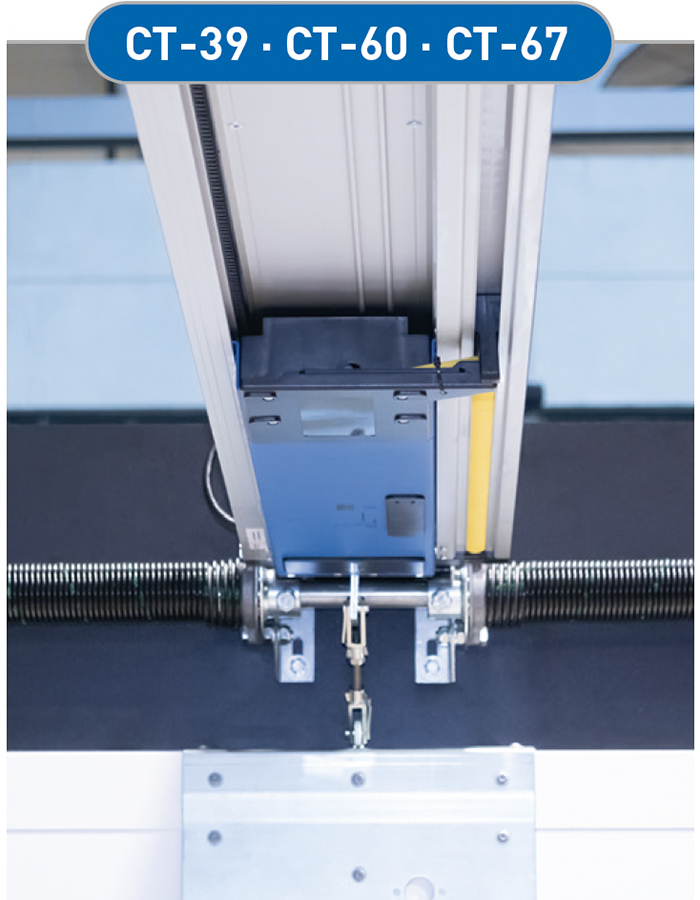

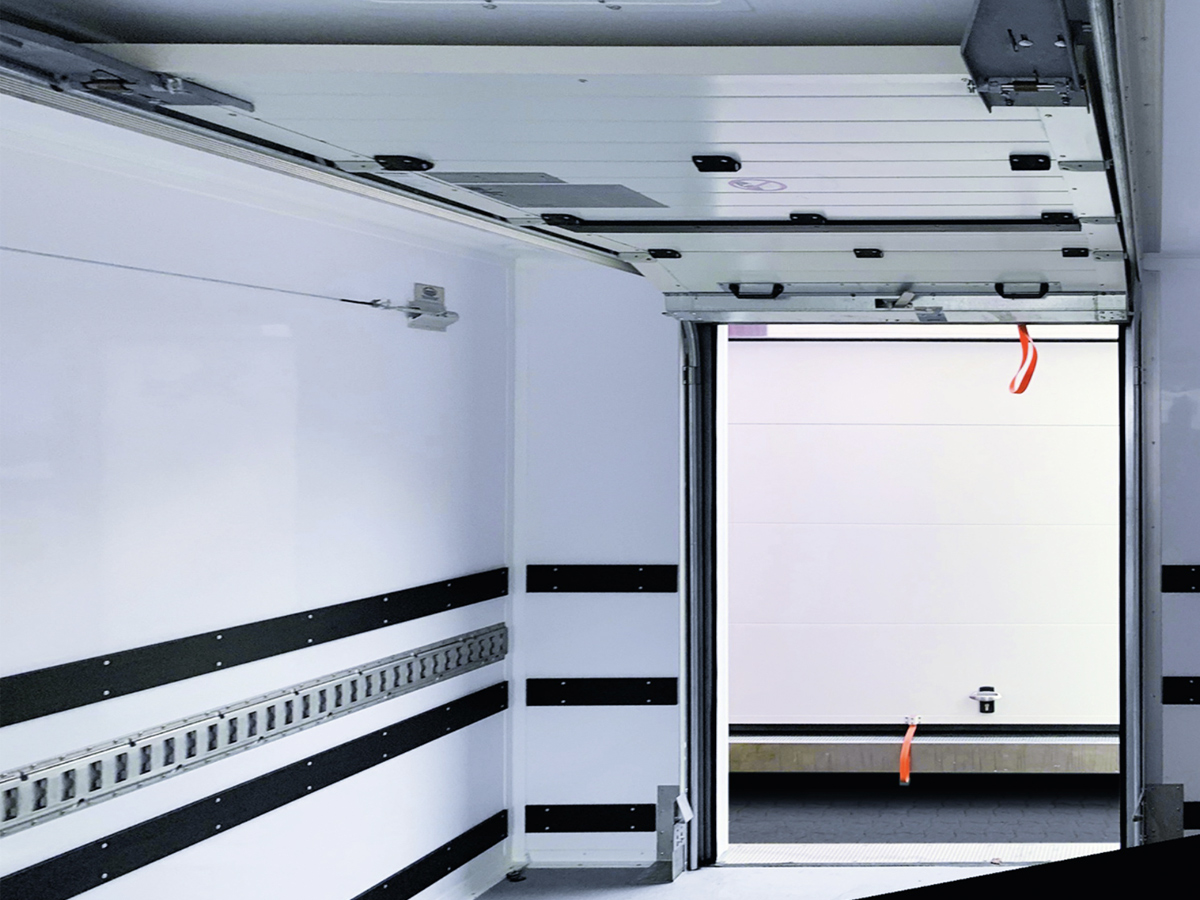

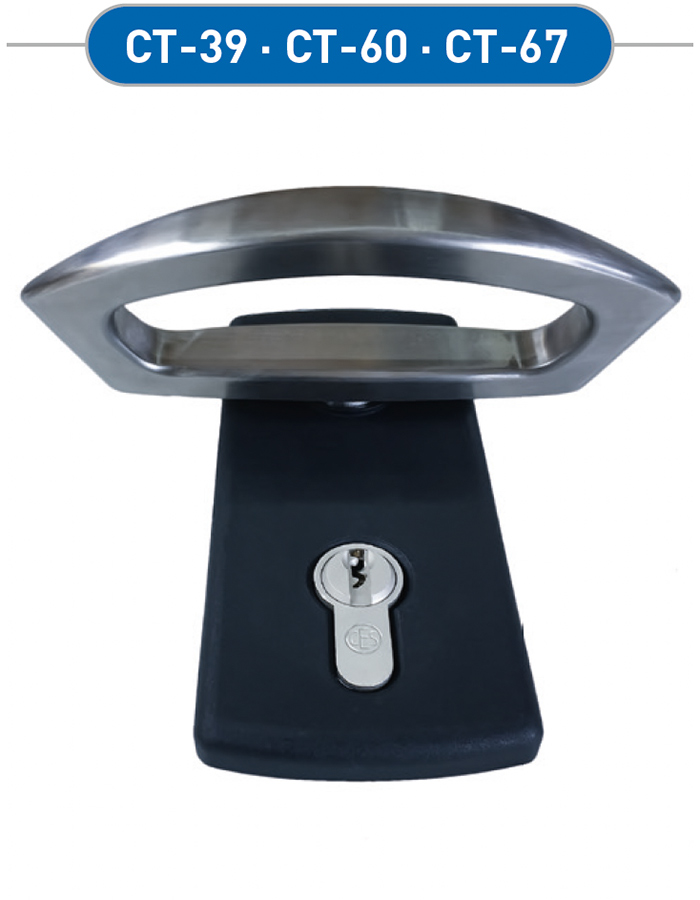

, such as internal locking, double-glazed windows, electric drive

CARGO-TOR CT-60

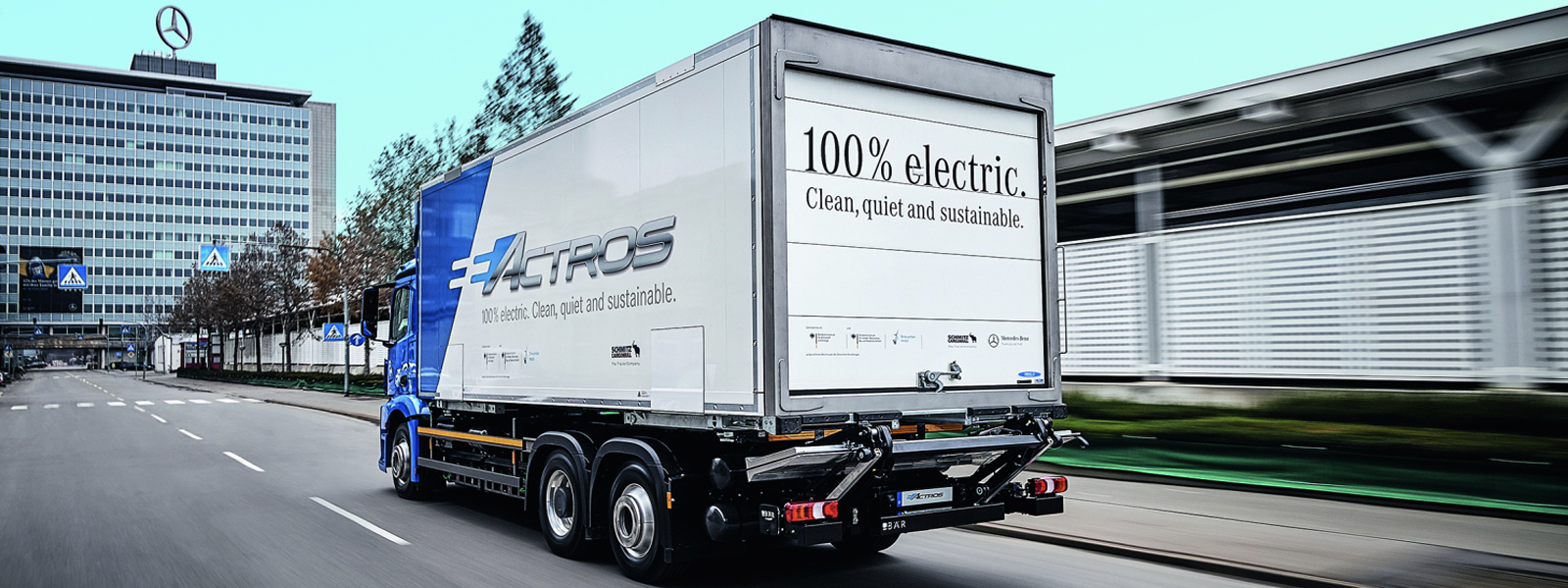

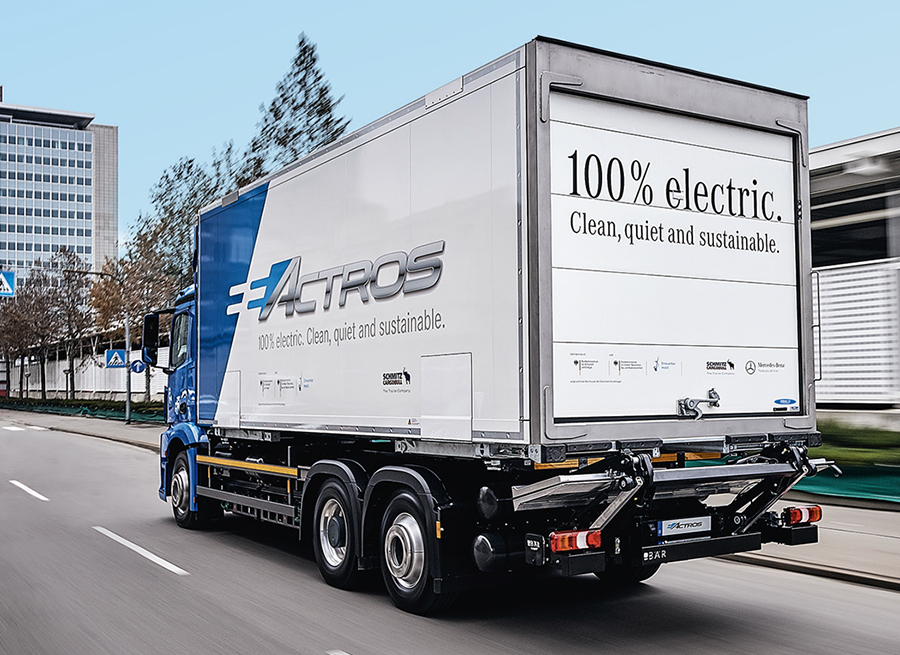

Silence is golden!

Just in time – that often means overnight delivery.

Be quick, fresh and on time for the start of sales.
That's what we're used to.

But one man's joy is another man's sorrow?
Novoferm CARGO doors are extremely quiet and thus make an effective contribution to noise reduction.

CARGO-TOR CT-60

Your advantages at a glance

Sections consist of painted steel cover layers, thermally separated and fitted with a PUR rigid foam core; section thickness 60 mm.

Optimal areas of application:

Dry freight, fresh produce, frozen freight, valuable freight
Finish similar to RAL 9010 or RAL of your choice
Burglary resistance RC2 for valuable (premium) cargo (e.g. sports cars, IT technology)

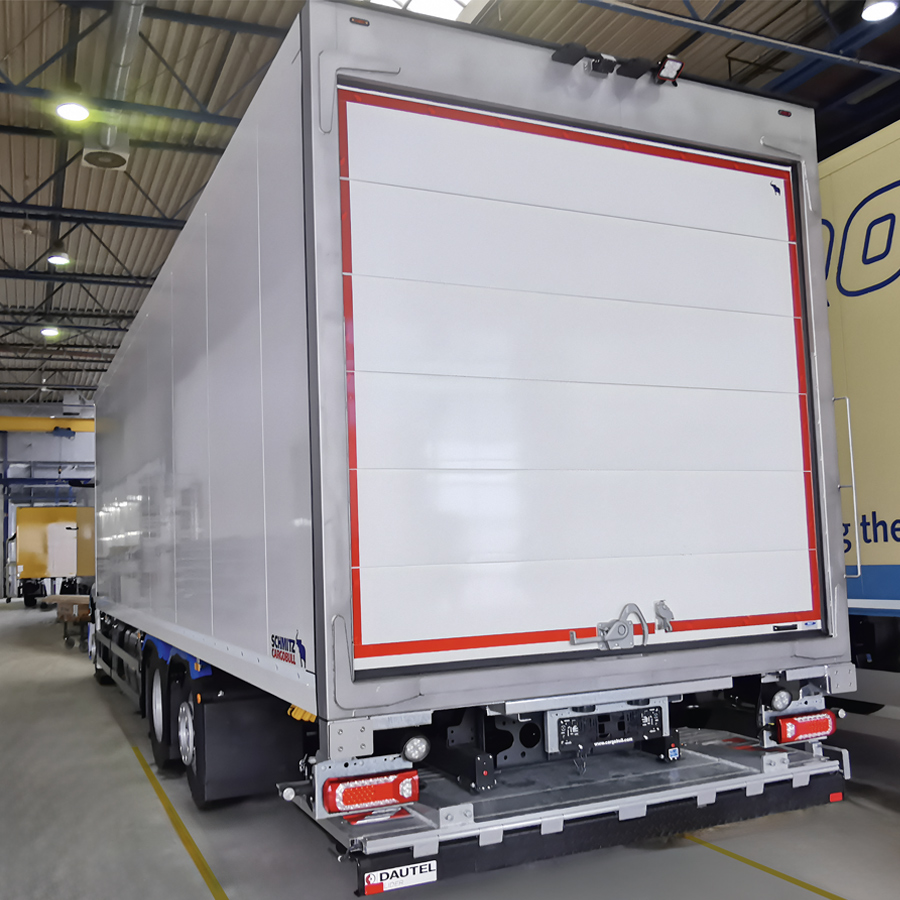

CARGO-TOR CT-67

Better safe than sorry!

Temperature-sensitive products such as meat or fish require professional and risk-free transport.

The same applies to pharmaceutical products.

The CARGO CT-67 door has excellent insulation properties.

A Code XL-certified design has been developed for the particularly demanding transport of heavy objects. The normative requirements of DIN EN 12642 for the load safety of the door up to 8.1 tonnes are met.
