Side doors for garage doors

For side and secondary entrances to garages

You don't want to have to drive the large door up and down every time you need a bicycle, lawnmower or screwdriver?

Opt for a side door with the same view as your Novoferm garage door!

Overview of door types

Sectional door side doors, matching and matching the appearance of your sectional garage door.

Up-and-over garagedoor side doors, matching and identical in appearance to your up-and-over garage door.

MZ Universal steel multi-purpose doors for customised use as garage side doors, external or internal cellar doors.

Door comparison and properties

Side garage doors in comparison

Side garage doors with the same appearance

Door type	Sectional door side door	Overhead door side door	Steel multi-purpose door Universal MZ
Equal view	To the sectional garage door	To the up-and-over garage door	Same colour as the door only
Locking system	With 3-point locking system Without 3-point locking	With 3-point locking Without 3-way locking	Additional bolt lock above the main lock
Hinge lock	With hinge lock Without hinge lock	Without fire protection	-
Material	Aluminium frame construction Wood look	Aluminium frame construction Wood look	steel
Surface finish	Woodgrain Satin surface Smooth surface Microline Wood optics	Smooth surface	Smooth surface
Embossing/ motif	Horizontal bead Large bead Large lamella Cassette	Bead (vertical or horizontal) Slat (vertical or horizontal) Cassette (vertical, square, rectangular) Door leaf frame for on-site infill
Colours	12 attractively priced preferred colours RAL colours of your choice 5 wood finishes 6 satin surfaces	8 attractively priced preferred colours RAL colours of your choice	Pure white, similar to RAL 9010 Anthracite grey, similar to RAL 7016
Glazing possible	-	-	-

- Yes - No

Details Sectional door side doors

Precise processing

The right frame for every door

All door leaf frames are made of aluminium and guarantee maximum weather resistance, while sturdily crafted hinges ensure precise opening and closing over the long term.

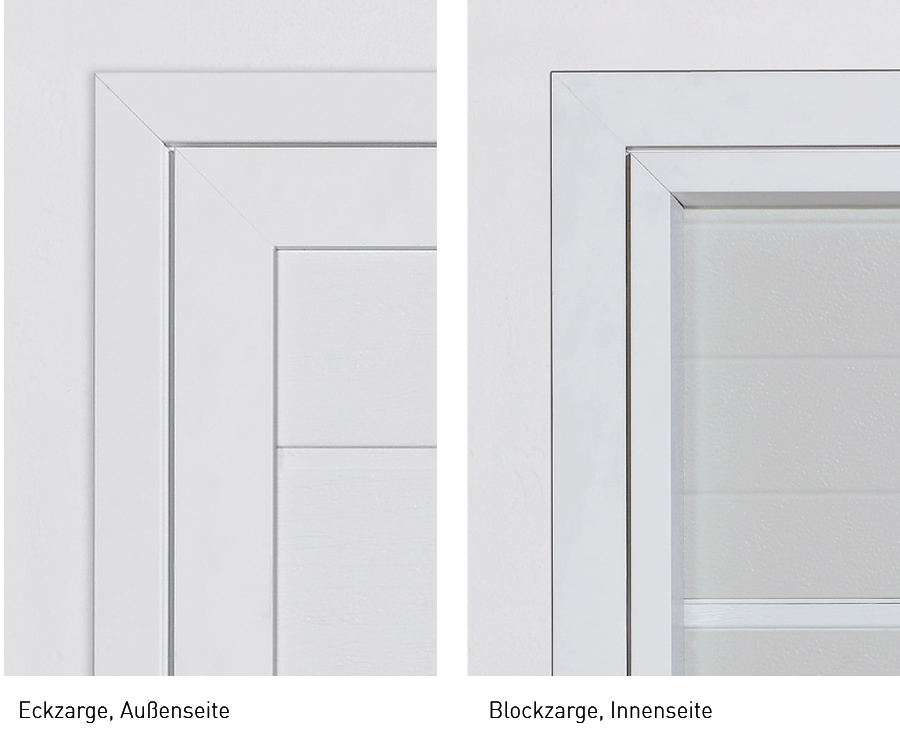

There are different frame types depending on the installation situation:
● Block frame (inside or outside opening)
● Corner frame 3 or 4-sided
● Clamp frame 3-sided (for prefabricated garages)

Details Steel multi-purpose doors as side doors

Elegant appearance, high stability and insulation at an attractive price-performance ratio

Elegant appearance thanks to cosy thick rebate
High insulation thanks to pressure-resistant polystyrene filling
High-quality appearance thanks to end-coated door leaves and frames as standard, in pure white, similar to RAL 9010 and anthracite grey, similar to RAL 7016
Protection against levering open thanks to security bolts
Attractive price/performance ratio
Optionally available with numerous other features (glazing, lowerable floor seal, additional bolt lock, various hardware variants, ...)

UNIVERSAL MZ-1
STEEL MULTI-PURPOSE DOOR

Order dimensions / standard dimensions
( width x height mm )
875 x 2.000*
875 x 2.125*
1.000 x 2.000*
1.000 x 2.125*
with BRB 750 mm on request
* available from stock. All versions available in DIN left or DIN right

YOUR PLUS POINTS AT A GLANCE

High-quality aluminium profiles with panel or as a steel door (depending on the door type)
Elegant appearance thanks to cosy thick rebate and a standard door leaf thickness of 40 mm (MZ Universal)
Protection against prising with security bolts (MZ Universal)
Available in numerous final-coated colours and surfaces

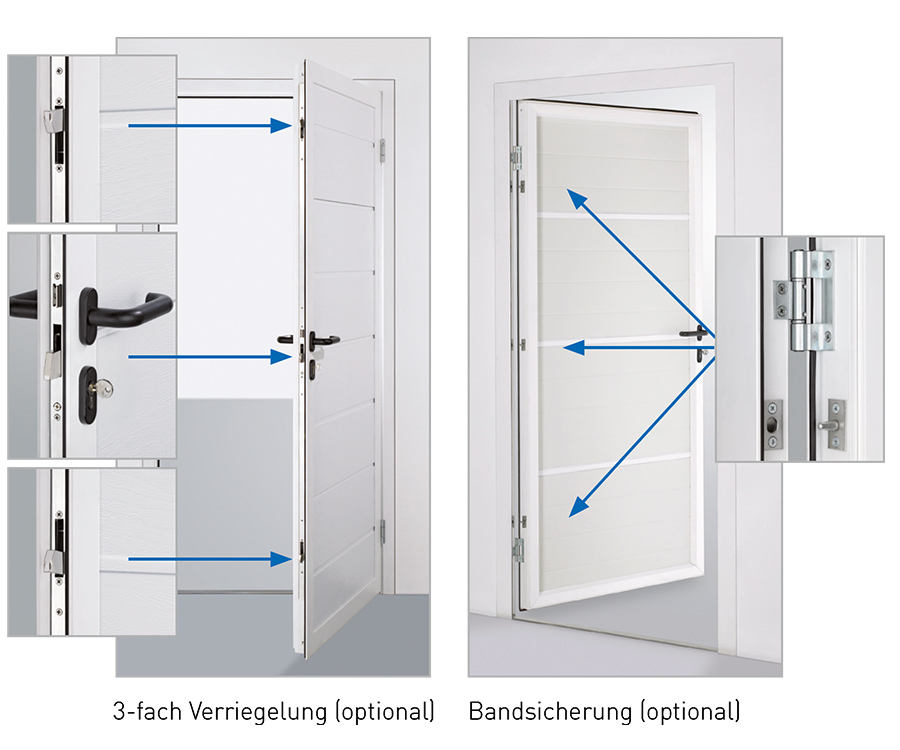

With 3-point locking and hinge protection (sectional door side door)
High stability due to full-surface bonding of the door leaf panel with the 0.7 mm thick door panels and additional 3-part hinges as standard (MZ Universal)
High insulation thanks to pressure-resistant polystyrene filling (MZ Universal)
Same appearance as sectional and up-and-over garage doors

Motifs, colours and equipment

Optics sectional door side doors

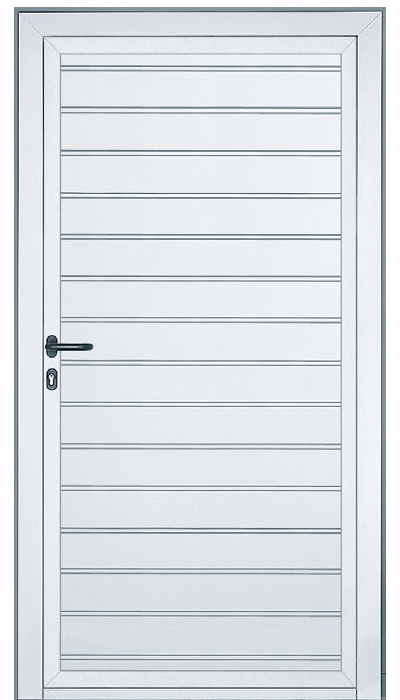

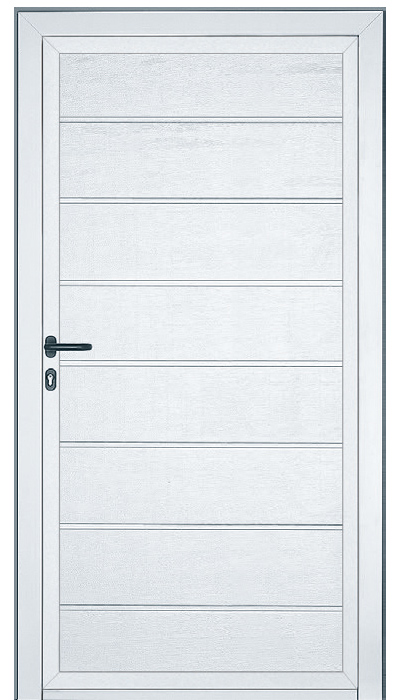

1. horizontal bead
Traffic white,
similar to RAL 9016

2. large bead
Traffic white,
similar to RAL 9016

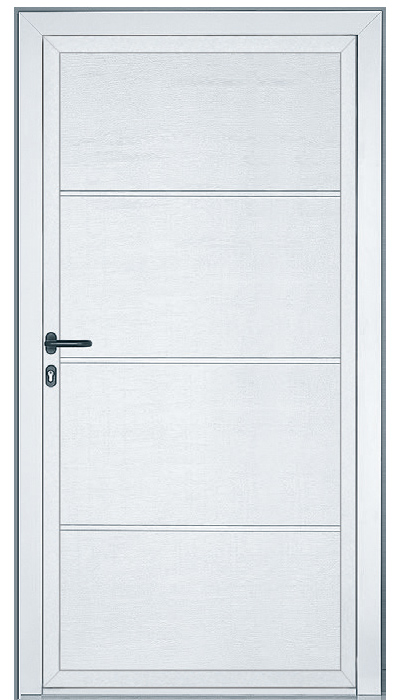

3. large slat
Traffic white,
similar to RAL 9016

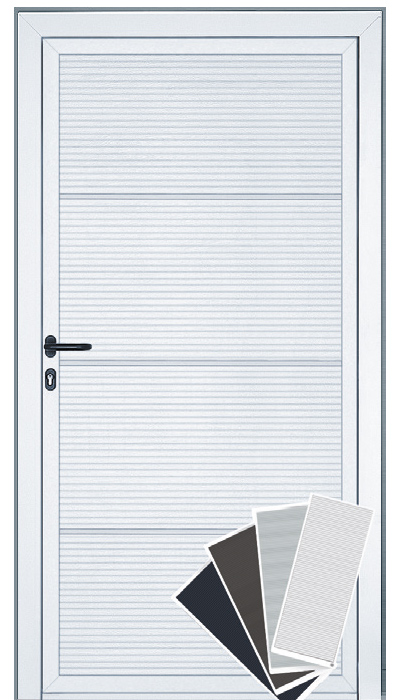

4. microline (large slat)
Satin white,
similar to RAL 9016

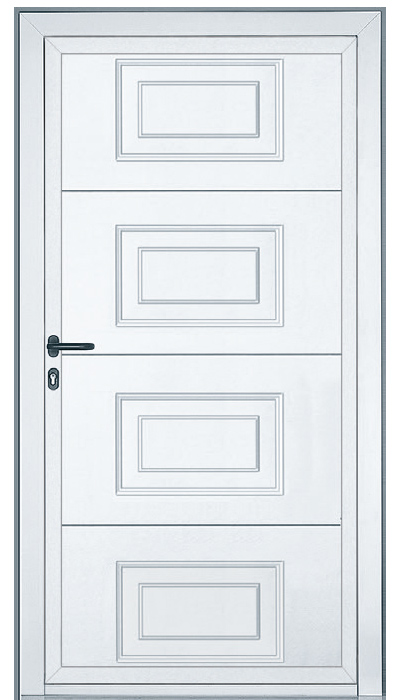

5. cassette embossing
Traffic white,
similar to RAL 9016

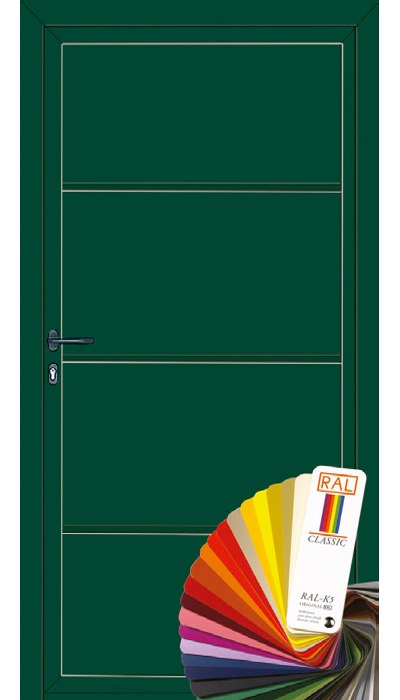

6. large slat
Moss green,
similar to RAL 6005

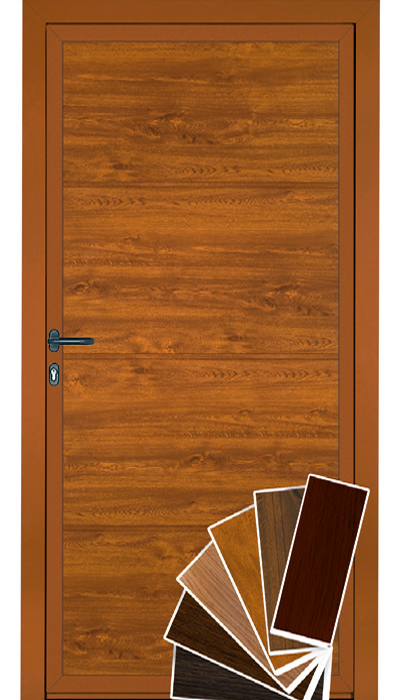

7. large lamella
Golden oak

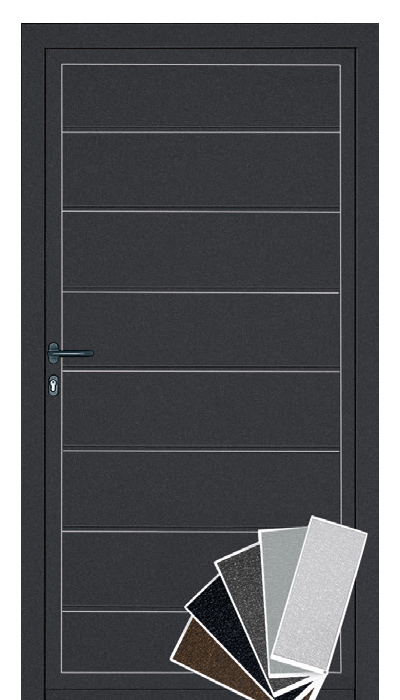

8. large surround
Satin Dark grey,
similar to RAL 7016

Note:
Aluminium profiles of the side doors are finished in a corresponding colour for wood looks and satin surfaces.

Optics overhead door side doors

BEISPIELE FÜR GARAGEN-SCHWINGTORE

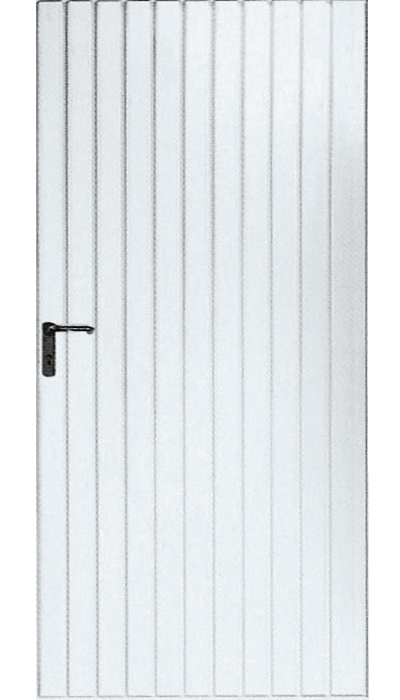

Rees, vertical bead

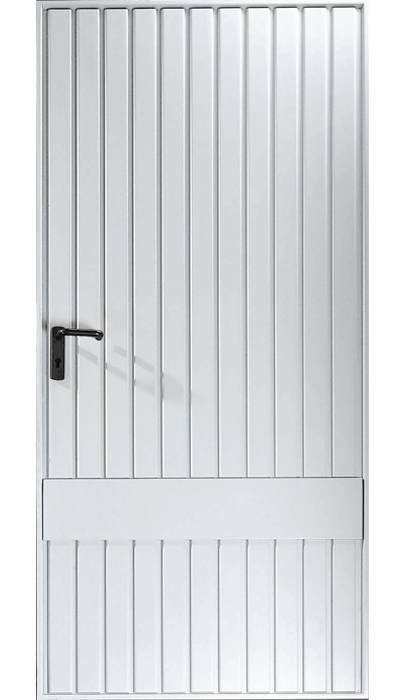

Kassel, vertical bead with horizontal centre profile

Siegen, waagerechte Lamelle

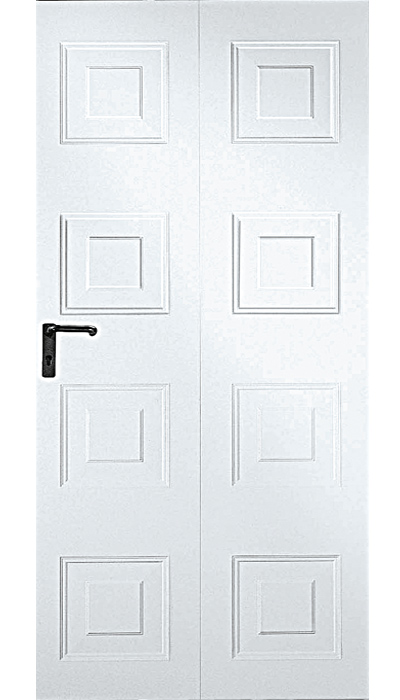

Frankfurt, square cassette

BEISPIELE FÜR NEBENTÜREN AUS MASSIVHOLZ

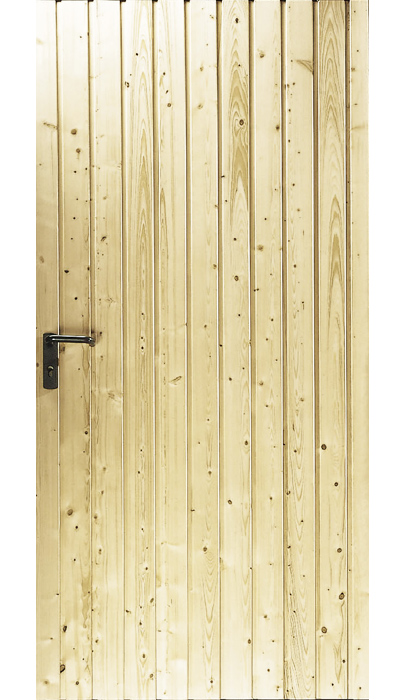

Munich/ Leipzig, vertical bead

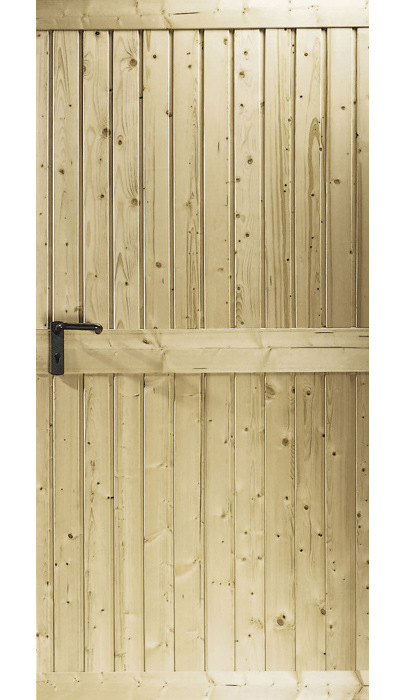

Nuremberg, vertical beading with attached horizontal mouldings

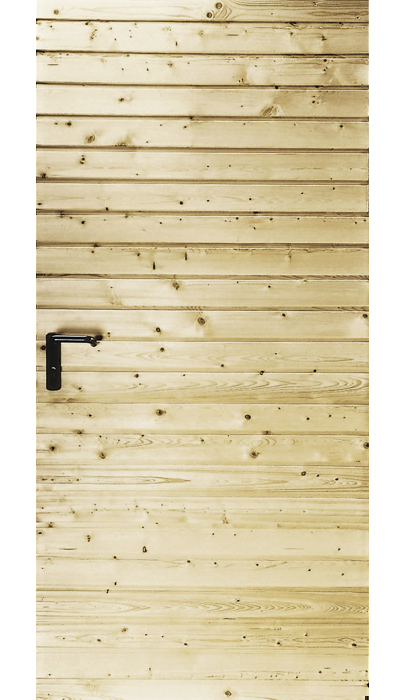

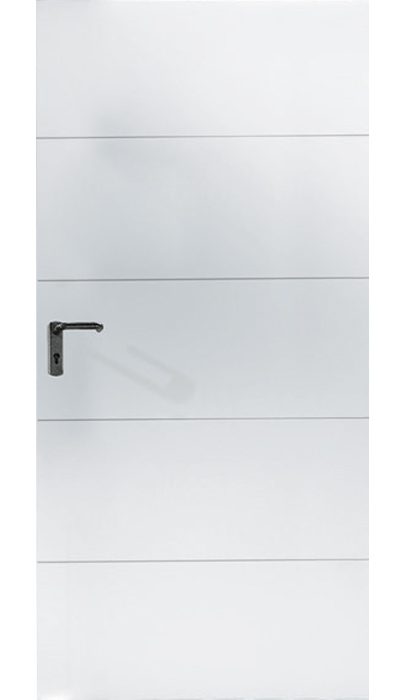

Stuttgart/ Schwerin, horizontal slat

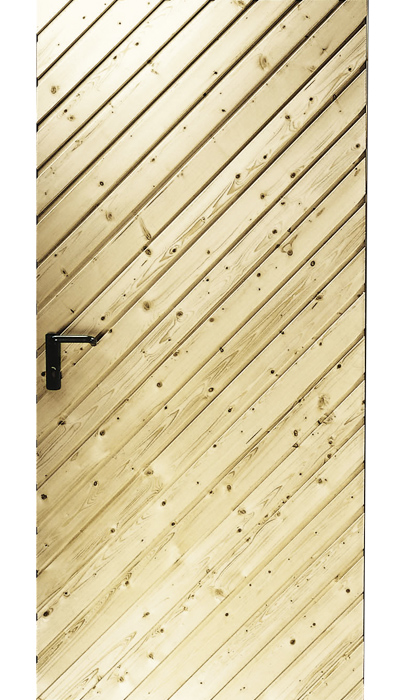

Augsburg/ Rostock, diagonal bead

Optics Steel multi-purpose doors as side doors

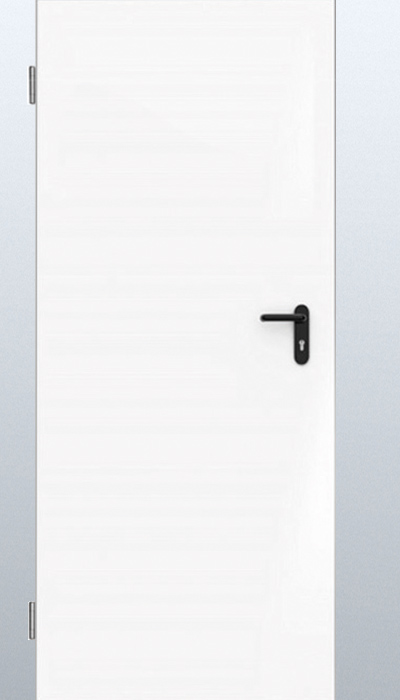

Steel multi-purpose door MZ-1 Universal, end-coated colour: Pure white, similar to RAL 9010

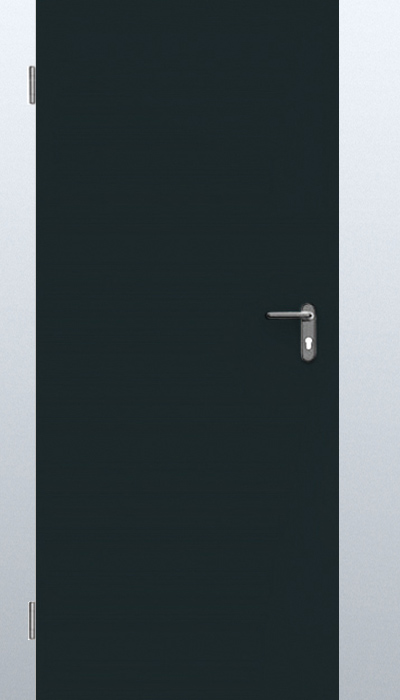

Steel multi-purpose door MZ-1 Universal, end-coated colour: anthracite grey similar to RAL 7016

Inspirationen

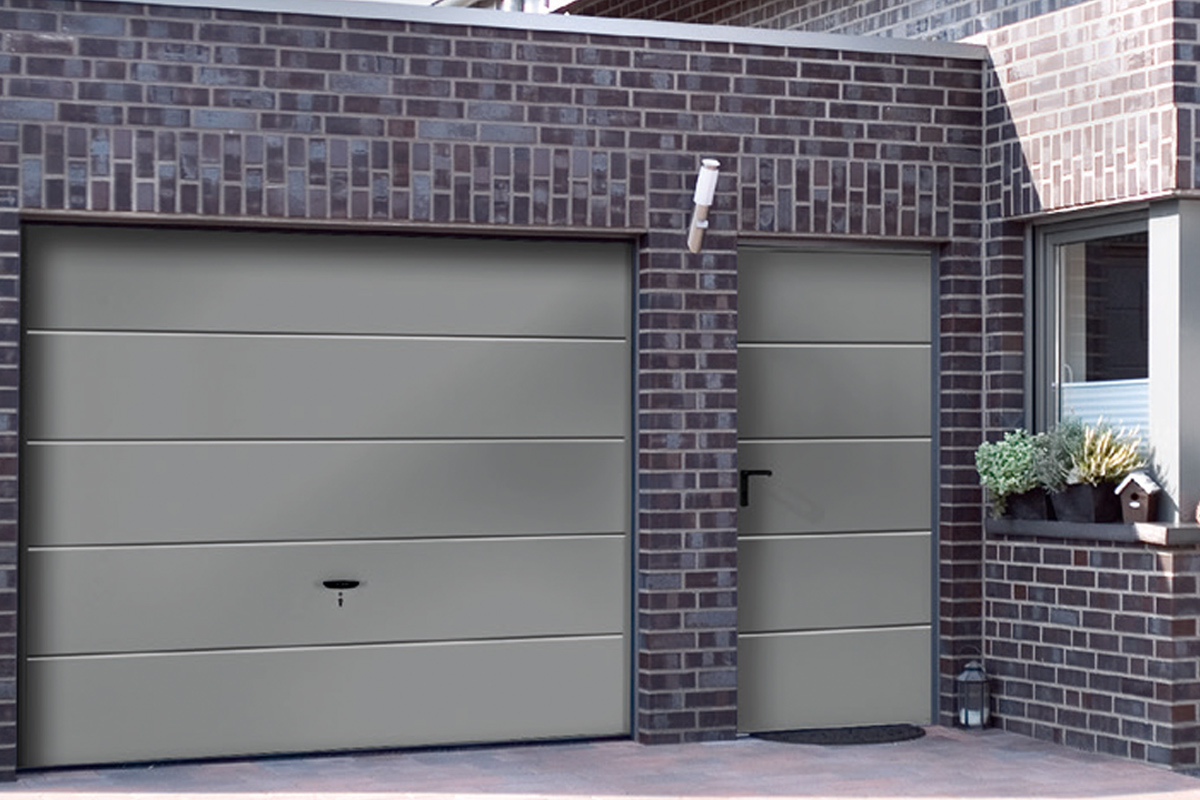

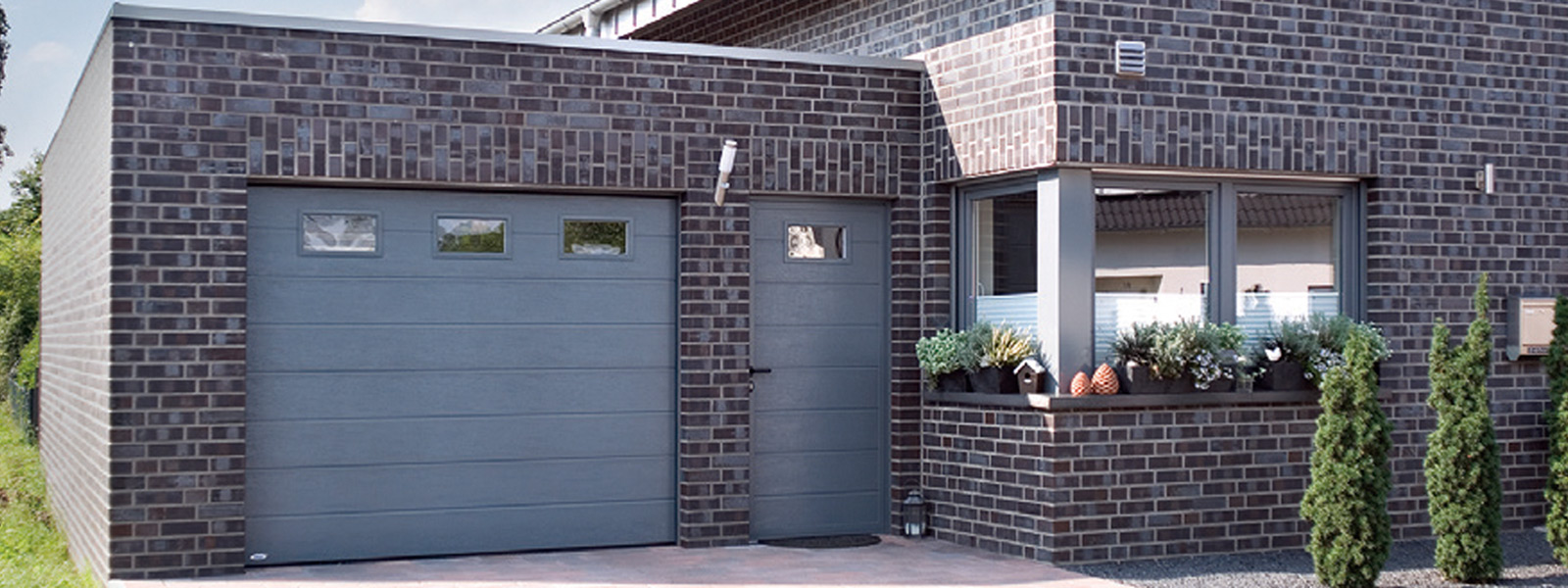

Sectional door side door with windows
with aluminium profiles
Matching Novoferm sectional garage doors

Door embossing: Modern large beading
Surface: Woodgrain (discreetly grained wood structure)
Colour: Pigeon blue, similar to RAL 5014

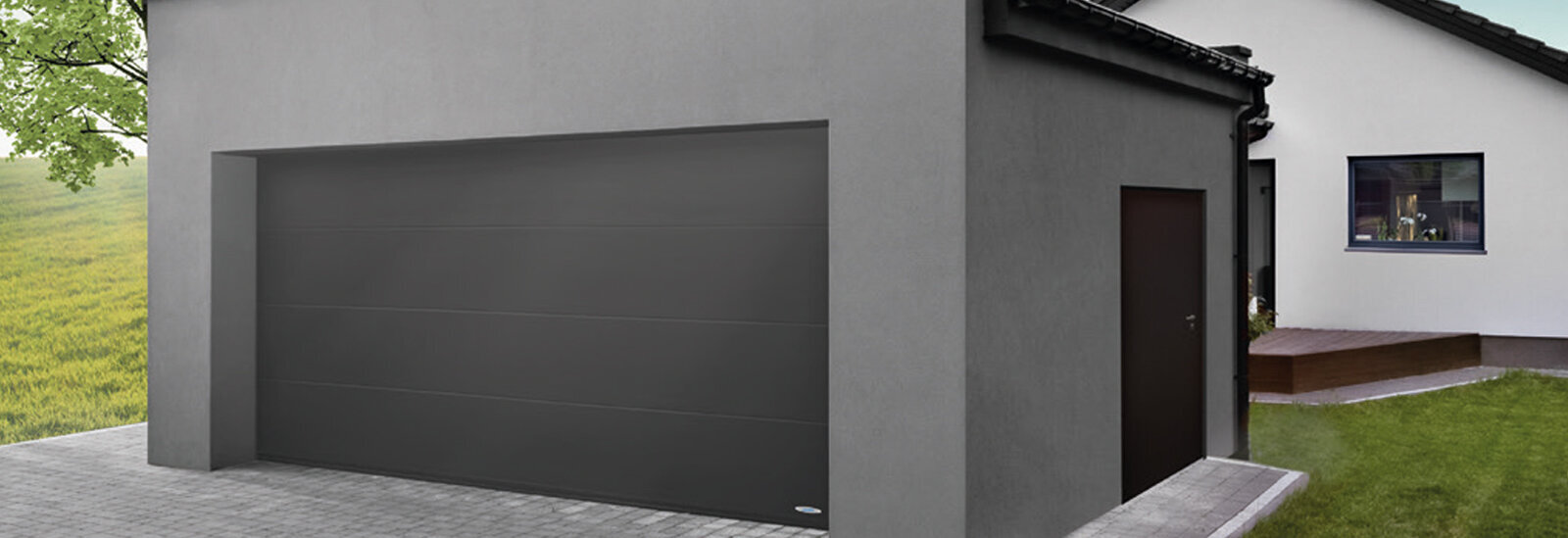

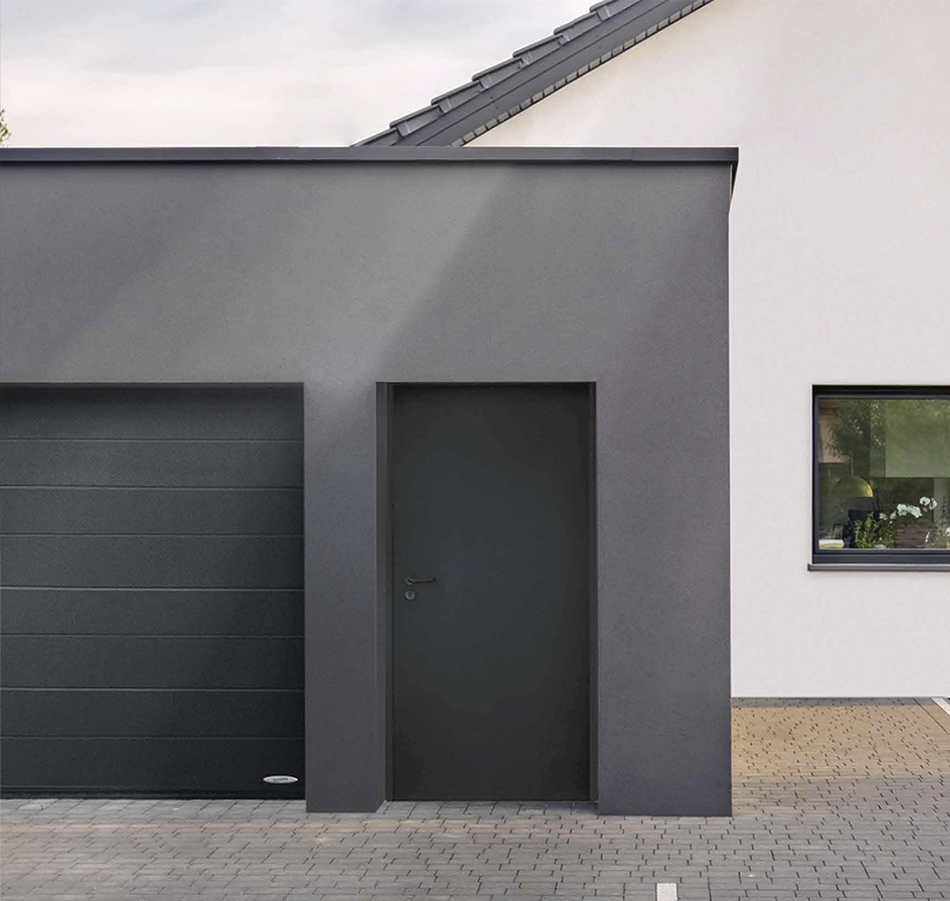

Steel multi-purpose door MZ Universal
made of steel
Colour-matched to Novoferm garage doors

Surface: Smooth
Colour: Anthracite grey, similar to RAL 7016

Steel multi-purpose door MZ Universal
made of steel
Colour-matched to Novoferm garage doors

Surface: Smooth
Colour: Anthracite grey, similar to RAL 7016

Up-and-over door side door
Door leaf frame made of thin sheet metal
identical in appearance to Novoferm up-and-over garage doors

Door motif: Vertical beading
Colour: Anthracite grey, similar to RAL 7016

Up-and-over door side door
Door leaf frame made of thin sheet metal
Identical in appearance to Novoferm up-and-over garage doors

Door motif: Vertical beading
Colour: Anthracite grey, similar to RAL 7016

Sectional door side door
with aluminium profiles
Matching Novoferm sectional garage doors

Door embossing: Modern large beading
Surface: Woodgrain (discreetly grained wood structure)
Colour: Traffic white, similar to RAL 9016

Steel multi-purpose door MZ Universal
made of steel
Colour-matched to Novoferm garage doors

Surface: Smooth
Colour: Anthracite grey, similar to RAL 7016

Steel multi-purpose door MZ Universal
made of steel
Colour-matched to Novoferm garage doors

Surface: Smooth
Colour: Anthracite grey, similar to RAL 7016

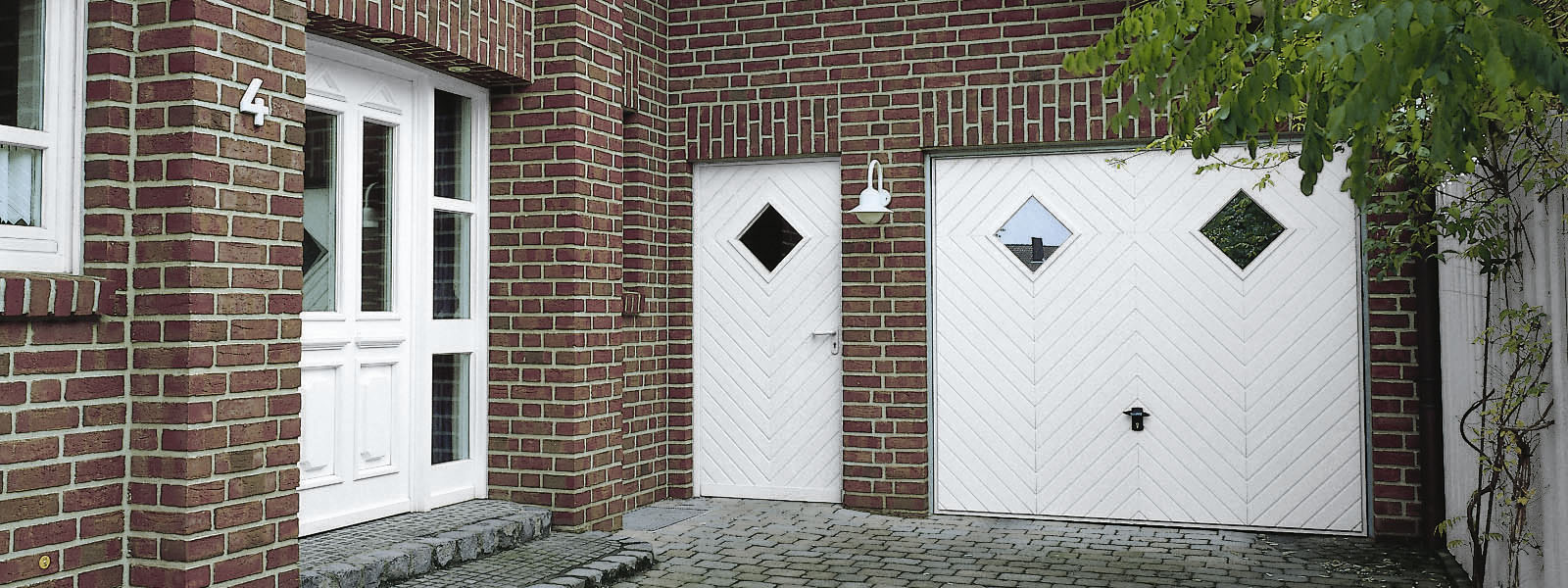

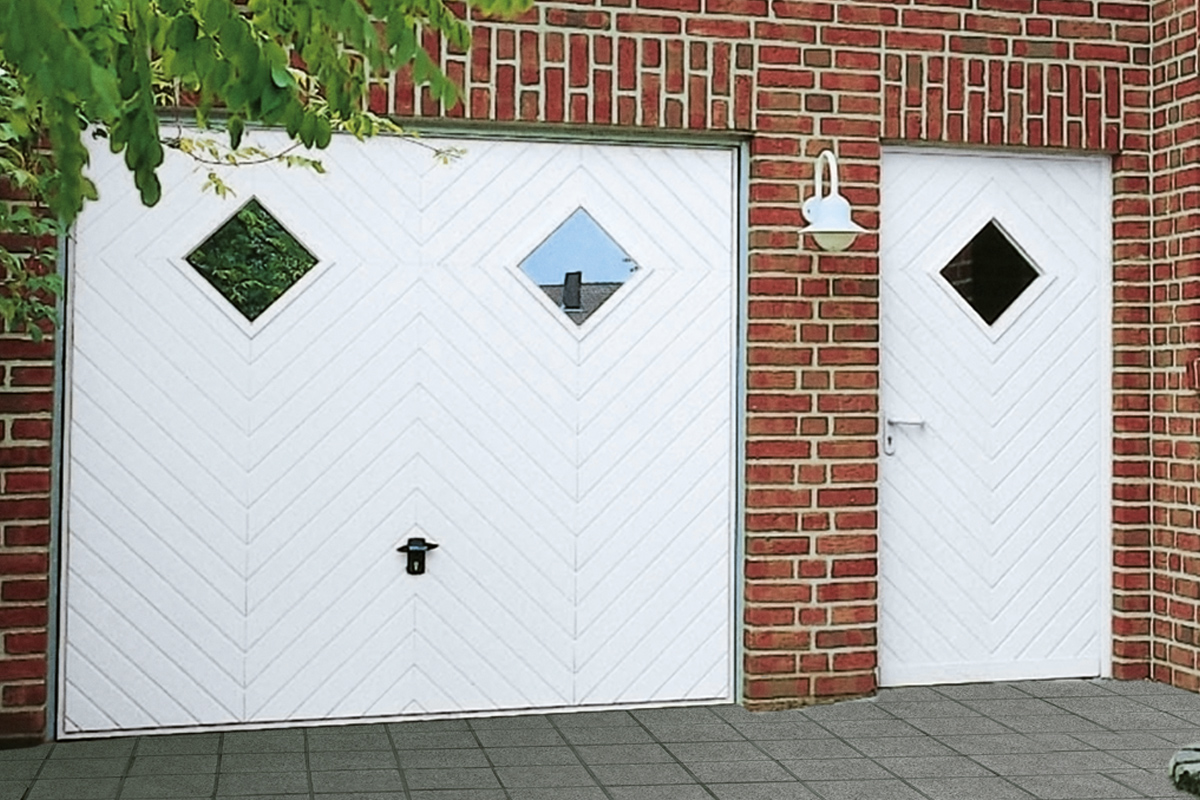

Up-and-over door side door with glazing
Door leaf frame made of thin sheet metal
Identical in appearance to Novoferm up-and-over garage doors

Door motif: Herringbone pattern
Colour: Traffic white, similar to RAL 9016

Montage

How do I install side garage doors?

The following video illustrates the step-by-step installation of a sectional door side door. The videos are only intended as a supplement to the installation, operating and maintenance instructions. They do not replace professional installation by qualified and trained specialist personnel.

INSTALLATION OF SECTIONAL DOOR SIDE DOOR

In this video, we show you the step-by-step installation of a side garage door for Novoferm sectional doors.

You can find more videos on the Novoferm YouTube channel:
https://www.youtube.com/NovofermVideos

More information on MZ Universal steel doors?

Detailed information for specialised customers

All technical and detailed information on our MZ Universal steel multi-purpose doors - including highlights, areas of application, storage, technology and installation - can be found on the following page:

Specialist information MZ Universal
