Steel security doors
as protection against burglary and fire
For cellar and rear entrances or as a connection between the garage and living space
Cellar and rear entrances as well as transitions between the garage and house require special protection. Hidden entrances offer a target for burglars, and Novoferm steel security doors with multi-point locking are recommended here. Fire protection must also be ensured between the house and garage, because if a fire breaks out in the garage, smoke and flames must not be allowed to spread to the house. That's why you should opt for our steel fire doors with tested security.
Overview of door types
Comparison of security doors and properties
COMPARISON SECURITY DOORS
Steel security doors in comparison
| Resistance class in accordance with standard DIN EN 1627 | RC 2 (WK2) | RC 3 (WK3) | RC 4 (WK 4) | RC 3 (WK 3)/ FB 4 | RC (WK 3)/ VPAM P6 |
|---|---|---|---|---|---|
| Resistance time according to standard DIN EN 1627 | 3 minutes | 5 minutes | 10 minutes | 5 minutes | 5 minutes |
| Perpetrator according to standard DIN EN 1627 | Occasional offender | Perpetrator | Experienced offender | Perpetrator | Perpetrator |
| Perpetrator behaviour and Tools according to standard DIN EN 1627 | Simple tools such as screwdrivers, pliers and wedges | Attempt by the perpetrator to break open with a second screwdriver and cow foot | Also has sawing and striking tools (axe, chisel, hammer, chisel, cordless drill) | Attempted break-in by the perpetrator with a second screwdriver and cow foot. Additional bullet resistance for handguns up to calibre 44 Rem. Magnum, 357 Magnum | Attempted break-in by the perpetrator with a second screwdriver and cow foot. Additional bullet resistance up to assault rifle calibre (AK-47) 7.62 x 39 mm (FJ/PB/ SC) |
| Fire protection in accordance with standards DIN 4102-5/ DIN EN 13501-2 |
|
|
|
|
|
| Smoke tightness (4-sided sealing system) | - With smoke protection - Without smoke protection | ||||
| Sound-insulating | 23 - 44 dB | 23 - 45 dB | 22 - 47 dB | 21 - 38 dB | 21 - 38 dB |
| Thermal transmittance coefficient U-value | 1.5 W/m2K | 1.8 W/m2K | 1.8 W/m2K | 1.8 W/m2K | 1.8 W/m2K |
| Tested performance properties for External doors | Yes | ||||
| Appearance | As standard: | ||||
| Glazing possible | - | - | - | - | - |
- Yes - No
Details and performance features
Details and performance characteristics
CONVINCING DETAILS
PERFORMANCE CHARACTERISTICS
YOUR PLUS POINTS AT A GLANCE
- Novoferm doors are available as fire protection, sound insulation or security doors; also in combination depending on the door type
- Tested security to RC 2 (WK 2), RC 3 (WK 3) or RC 4 (WK 4) in accordance with DIN EN 1627 available
- Also available in bullet-resistant design in accordance with bullet resistance class FB 4 or VPAMP6 on request
- Available with multi-point locking

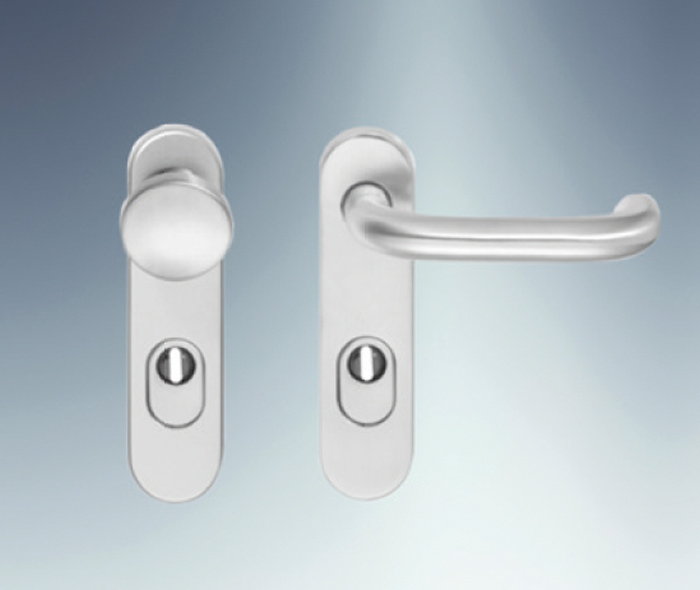

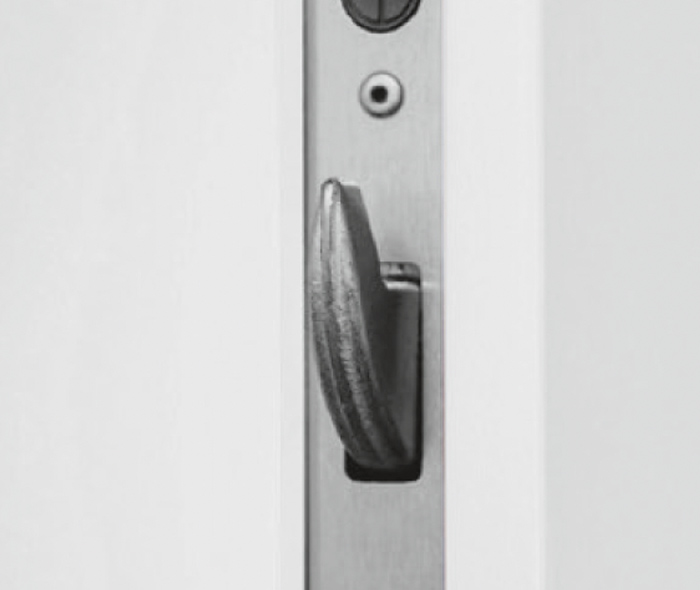

- Numerous security features (additional steel bolts to prevent prising, security fittings, drill-protected security profile cylinder, ...)
- Cosy appearance thanks to thick rebate

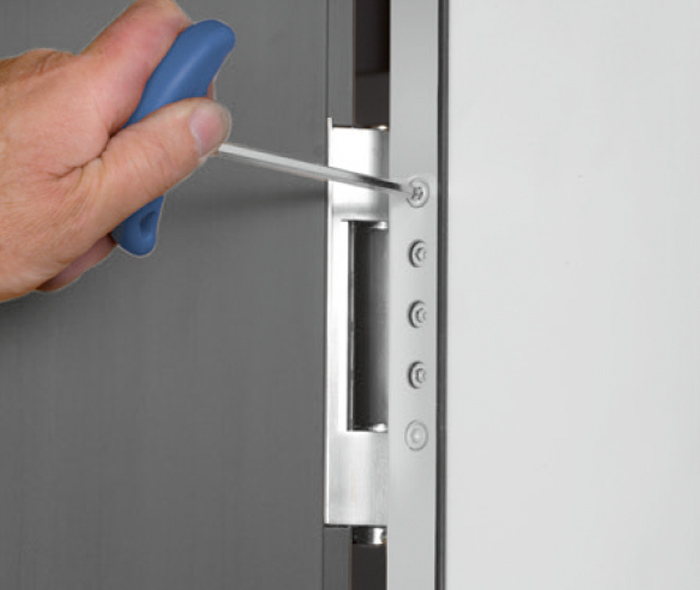

- Easily adjustable 3D hinges
- Available in many colours and wood decors
Inspirationen
Steel security door E-S6
with tested security RC 2
and 6-point locking in
Traffic white, similar to RAL 901

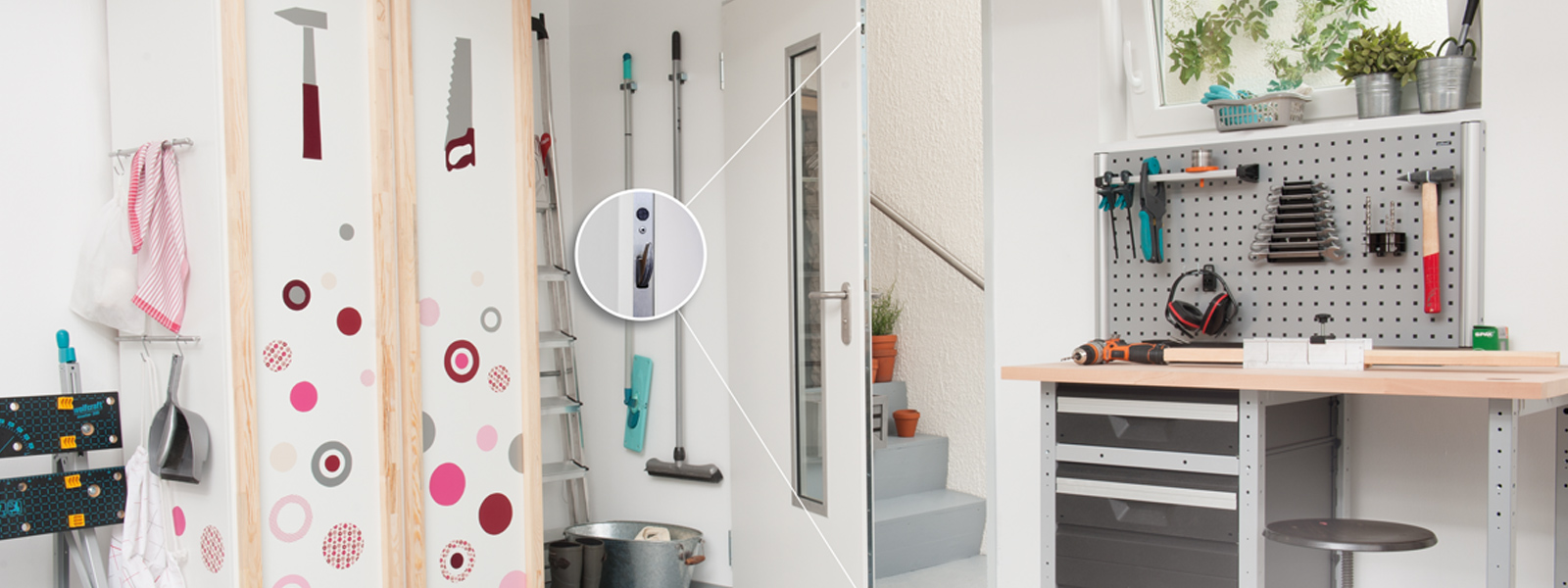

Garage connecting door with
security class RC 3 and
fire protection class EI 30 in
window grey, similar to RAL 7040
More information on security doors?
Detailed information for specialist customers
All technical and detailed information on our security doors - including highlights, technology and installation - can be found on the following page:
Specialist information on security doors
