UP-AND-OVER GARAGE DOORS MADE OF STEEL

Up-and-over doors made of steel with hot-dip galvanised door leaves

Up-and-over garage doors are galvanised and polyester primed. For a harmonious appearance, the frame elements visible from the outside are painted in the door colour - in an attractive colour of your choice.

Up-and-over steel doors
Novoferm up-and-over doors made of hot-dip galvanised sheet metal and a base coat of electrostatic polyester-based stove enamel provide the door with double protection against corrosion. The door leaf frame, block frame, guide rails, lever arms and all components are galvanised.

Large selection of designs / colours
Novoferm up-and-over doors are available in numerous bead and slat designs as well as cassette versions. The doors can be finished in one of eight preferred colours as well as almost any RAL colour of your choice.

Overhead operators / security
All up-and-over doors are available with Novomatic operators, which are mounted on the ceiling. In a special configuration, the door is available in combination with an operator and a 3-point locking system based on the safe principle for particularly high security.

Your plus points at a glance

For private garages up to 5,000 mm wide
High quality with 10-year guarantee (Made in Germany)
Pleasantly quiet running thanks to whisper-quiet plastic rollers and sliding strips in the block frame
Available in many designs and colours
High corrosion resistance thanks to primed, hot-dip galvanised door leaves and galvanised block frames

Easy operation and high functional reliability thanks to stable multiple spring assemblies
High torsional rigidity thanks to continuously welded hollow frame profiles with cross struts
Available with automatic drives

TOR-MOTIVE, colours and equipment

Gate motifs

TOR-MOTIVE

STEEL SWINGING DOORS TO MATCH YOUR HOUSE ARCHITECTURE!
Give your up-and-over door your own personal touch - at Novoferm you have the choice between many variants in bead, slat or cassette designs.

Beaded look

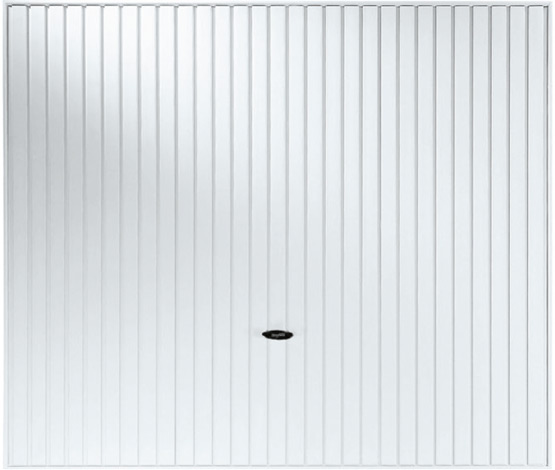

Vertical bead

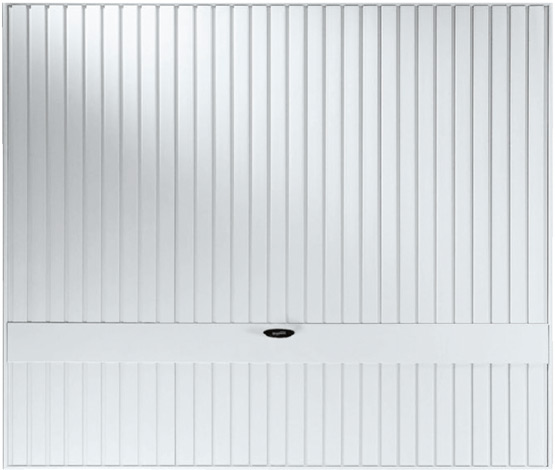

Vertical bead with
horizontal centre profile

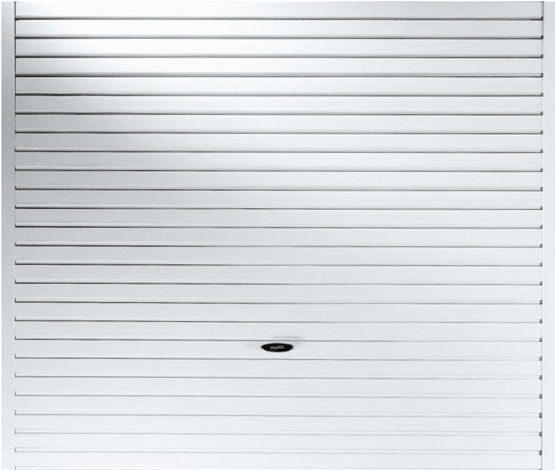

Horizontal bead

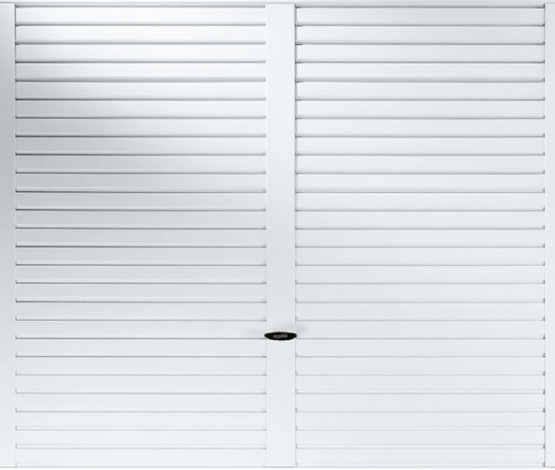

Horizontal bead with
centre and side profile

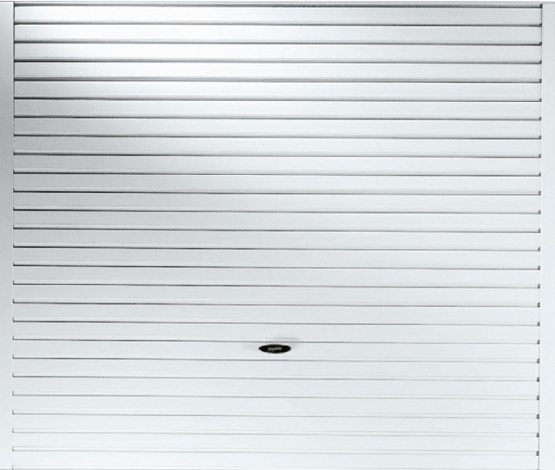

Horizontal bead
with side profile

Slatted look

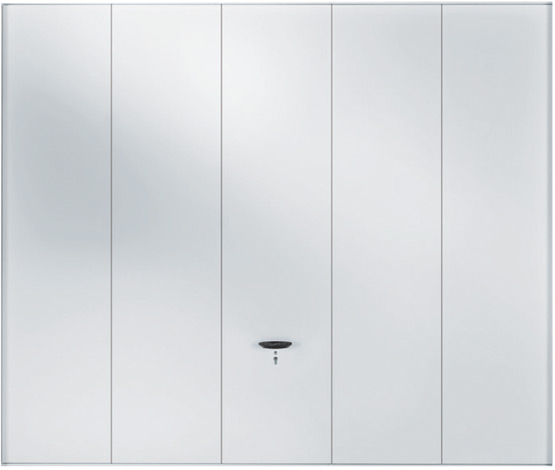

Vertical slat

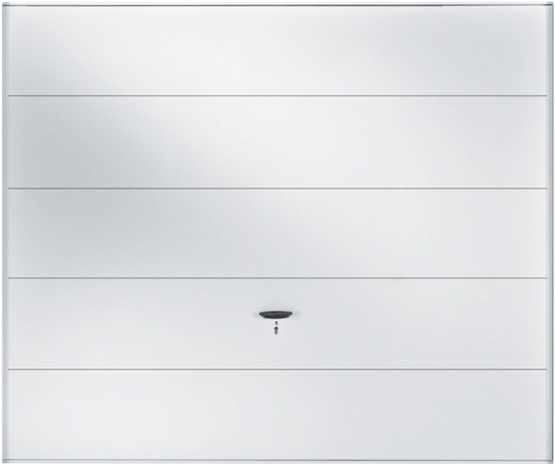

Horizontal slat

Cassette look

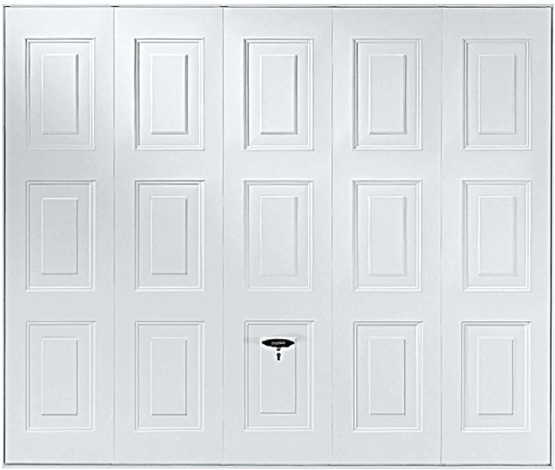

Vertical cassettes

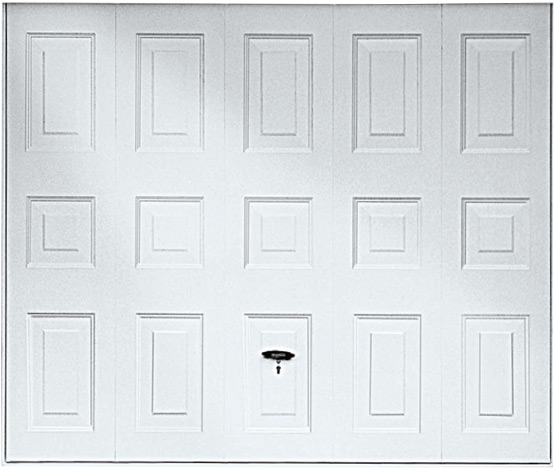

Rectangular cassette with
square centre line

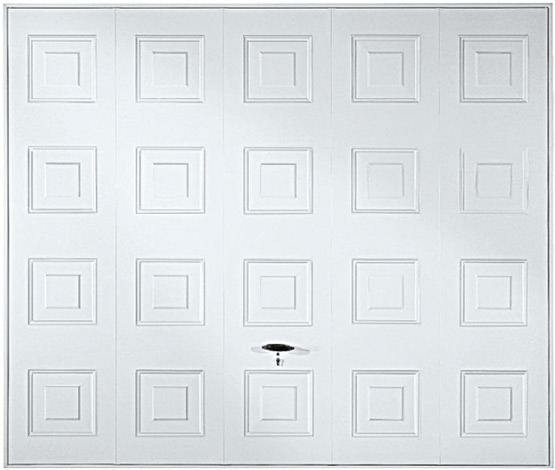

Square cassettes

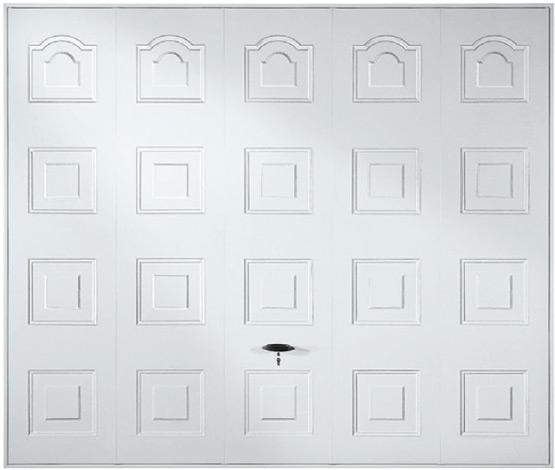

Square cassette with
upper round arch line

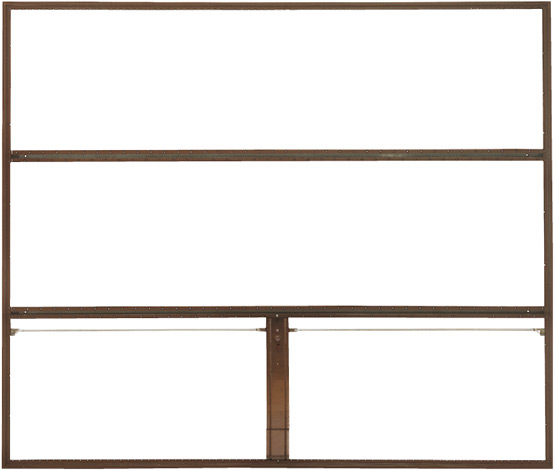

DOOR LEAF FRAME FOR ON-SITE FILLING

Door leaf frame for on-site infill.
Standard colour sepia brown, similar to RAL 8014

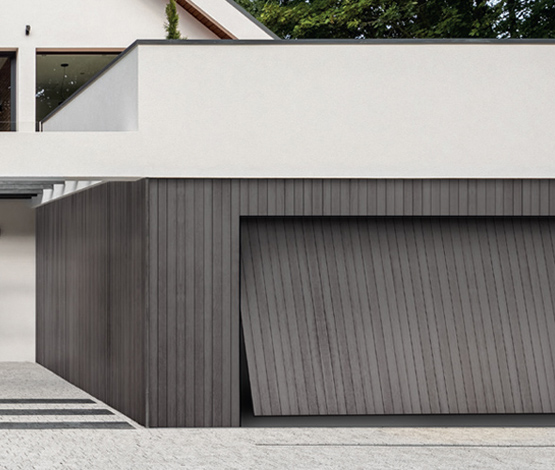

INSTALLATION OF BOARDS
A special door leaf frame for on-site filling offers the option of customised boarding. With this model, Novoferm supplies a stable yet flexible frame that can be filled with boards of your choice. This allows you to seamlessly harmonise the garage door with your house façade and create a continuous surface to match your house architecture without any interruptions. The door leaf frame is offered in sepia brown, similar to RAL 8014, as standard.

COLOURS

STANDARD COLOUR
Of course, your new Novoferm up-and-over door will be designed entirely to your taste. If you have opted for solid steel, you should first choose the colour. The standard traffic white colour is very popular, but there are hundreds of other options available for a small surcharge. Take a look at our colours, you're sure to find something you like!

STANDARD COLOUR

SUPER-COLOR COLOURS/ PREFERRED COLOURS

Fir green,
similar to RAL 6009

Light grey,
similar to RAL 7035

Window grey,
similar to RAL 7040

Pigeon blue,
similar to RAL 5014

Anthracite grey,
similar to RAL 7016

Ochre brown,
similar to RAL 8001

Sepia brown,
similar to RAL 8014

RAL of your choice

In addition to super colours/preferred colours, almost all individual colour requests are possible for a small surcharge - with the exception of a few metallic, fluorescent and pearl effect colours and some particularly dark shades. Ask your specialist dealer.

GLAZING / WINDOWS - STYLISH GLIMPSES OF LIGHT INSIDE

Let light into your garage:

Simply through a standard window with acrylic clear glass or acrylic crystal glass or through a diamond window or cross window with crystal glass!

Bead doors can be fitted with horizontal or vertical light openings, depending on the door type. Cassette doors are only available with vertical light openings
All windows optionally with clear or crystal-clear 3 mm acrylic glass double glazing
Dimensions: approx. 390 x 190 mm

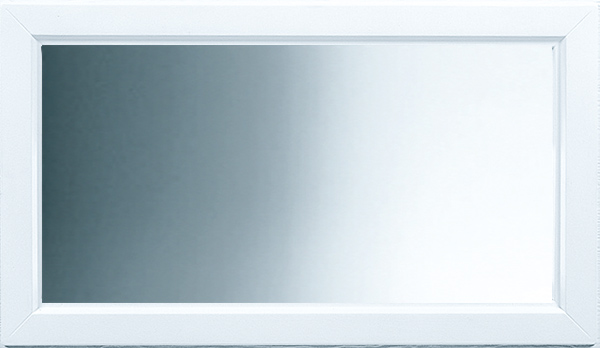

Variant 1:
Standard window, clear glass

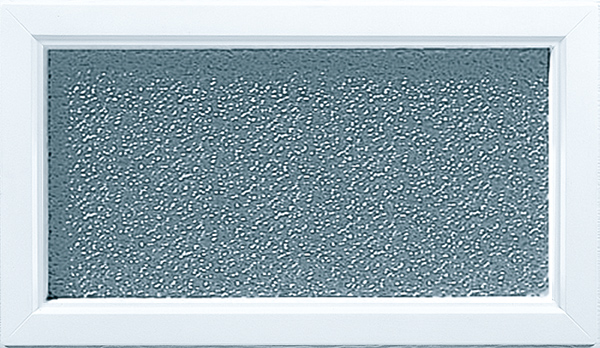

Variant 1:
Standard window, crystal glass

Variant 2:
diamond pattern, crystal glass

Variant 3:
Cross window look, crystal glass

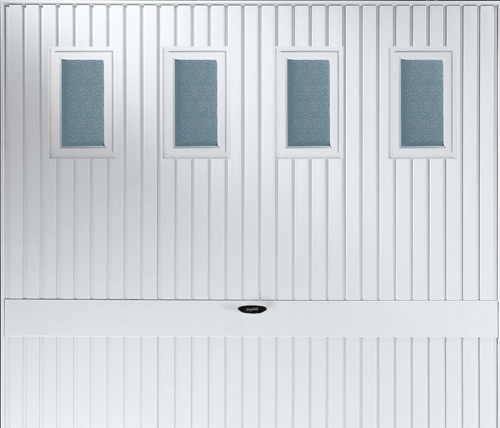

Example 1:
Type Kassel with standard window
Crystal glass

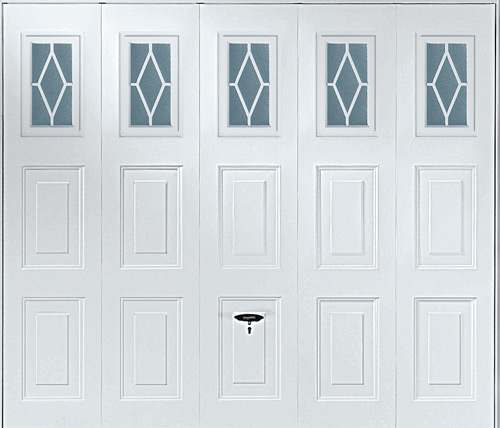

Example 2:
Type Hagen with diamond mullion window,
Crystal glass

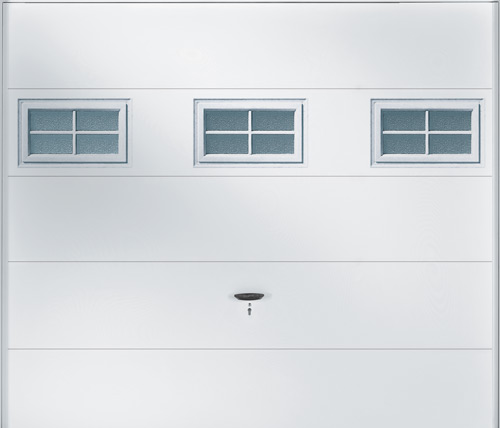

Example 3:
Type Siegen with cross-mullion window,
Crystal glass

GATE GRIPS

Stainless steel

Plastic-coated
in black

F1 silver-coloured anodised

Plastic-coated
in sepia brown

Exclusive handle variants in different finishes are available for all door embossings. Ask your specialist dealer.

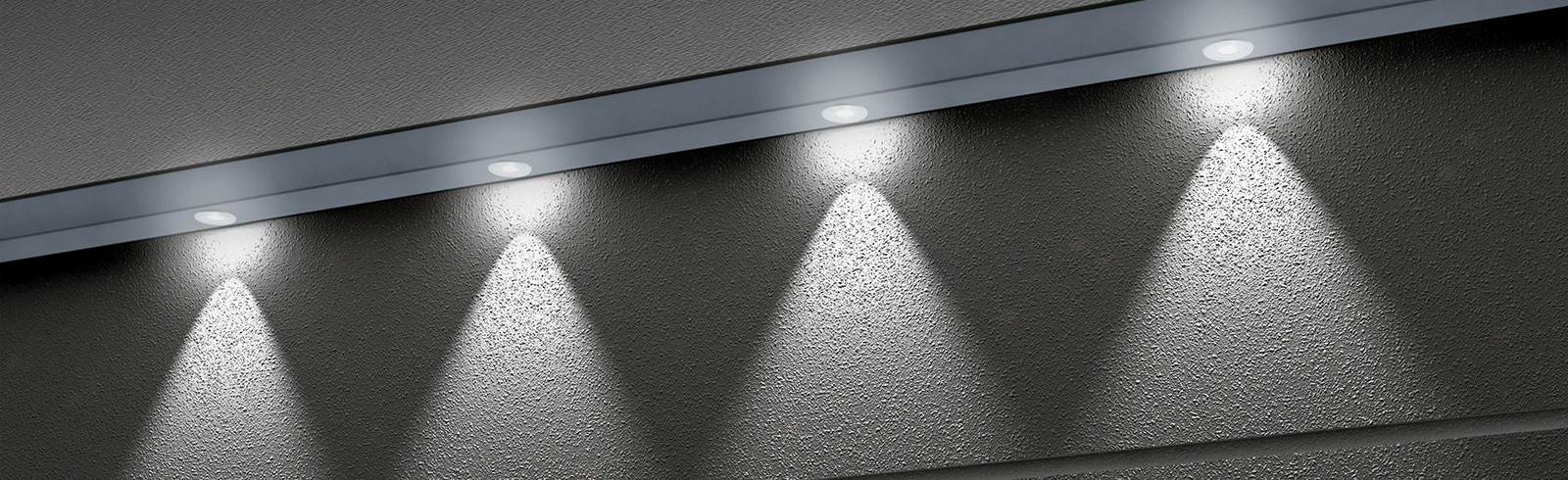

SPACE-SAVING OUTDOOR LED LIGHTING

LONG-LIFE LEDS

Bathe your garage door in bright light, but require very little power. An LED lighting unit above the garage door sets the scene for your façade. At just 2 cm high and 4 cm wide, the lighting kit takes up so little space under the garage lintel that almost the full clearance height is retained. Long-life LEDs bathe your garage door in bright light, yet require very little power.

Weather-protected lighting
Space-saving installation under the garage lintel
Controlled via 2-channel hand-held transmitter
Even distribution across the door width:
4, 6 or 8 LEDs for door widths of up to 3,000, 4,000 or 5,000 mm

Separate switching independent of drive function possible
Bright illumination with low power consumption
Long service life thanks to LED technology
Incl. mains transformer 230 V/12 V

GARAGE DOOR OPENING WITH ELECTRIC OPERATOR

Selection of garage door openers and accessories

Select your electric door operator:

Novomatic operators for sectional and up-and-over doors, ceiling mounting

Accessories for door operators - remote controls, buttons, light barriers, LED light strips,...

Inspirationen

Steelup-and-over garage door

Door motif: Horizontal beading with side profile
Colour: Window grey, similar to RAL 7040

Steelup-and-over garage door

Door motif: Horizontal beading with centre and side profile
Colour: Traffic white, similar to RAL 9016

Steelup-and-over garage door

Door motif: Vertical beading
Colour: Pigeon blue, similar to RAL 5014

Steelup-and-over garage door

Door motif: Horizontal slat
Colour: Anthracite grey, similar to RAL 7016

Steelup-and-over garage door

Door motif: Horizontal beading with centre and side profile
Colour: Traffic white, similar to RAL 9016

Steelup-and-over garage door

Door motif: Vertical beading
Colour: Pigeon blue, similar to RAL 5014

Up-and-over garage door made of solid wood

Door motif: Vertical beading
with matching side door

Technology and details

Novoferm K up-and-over door

Normgrößen Schwingtor K® für Einzelgaragen (abhängig vom Tormotiv)
Bestellmaß Construction-Richtmaß		Rahmen- Außenmaß		Lichte Durchgangsmaße		Einbau hinter der Öffnung Einbaubereich		Einbau in der Öffnung Fertigmaße
Breite	Höhe	Breite	Höhe	Breite	Höhe	Length	Höhe	Length	Höhe
2250	1920	2341	1985	2107	1780	2250 (2205-2330)	1920 (1890-1950)	2361	1965
	2000	2341	2065	2107	1860	2250 (2205-2330)	2000 (1970-2030)	2361	2045
	2075	2341	2140	2107	1935	2250 (2205-2330)	2075 (2045-2105)	2361	2120
	2125	2341	2190	2107	1985	2250 (2205-2330)	2125 (2095-2155)	2361	2170
2375	1920	2466	1985	2232	1780	2375 (2330-2455)	1920 (1890-1950)	2486	1965
	2000	2466	2065	2232	1860	2375 (2330-2455)	2000 (1970-2030)	2486	2045
	2075	2466	2140	2232	1935	2375 (2330-2455)	2075 (2045-2105)	2486	2120
	2125	2466	2190	2232	1985	2375 (2330-2455)	2125 (2095-2155)	2486	2170
	2250	2466	2315	2232	2110	2375 (2330-2455)	2250 (2220-2280)	2486	2295
	2375	2466	2440	2232	2235	2375 (2330-2455)	2375 (2345-2405)	2486	2420
2500	1920	2591	1985	2357	1780	2500 (2455-2580)	1920 (1890-1950)	2611	1965
	2000	2591	2065	2357	1860	2500 (2455-2580)	2000 (1970-2030)	2611	2045
	2075	2591	2140	2357	1935	2500 (2455-2580)	2075 (2045-2105)	2611	2120
	2125	2591	2190	2357	1985	2500 (2455-2580)	2125 (2095-2155)	2611	2170
	2250	2591	2315	2357	2110	2500 (2455-2580)	2250 (2220-2280)	2611	2295
	2375	2591	2440	2357	2235	2500 (2455-2580)	2375 (2345-2405)	2611	2420
	2500	2591	2565	2357	2360	2500 (2455-2580)	2500 (2470-2530)	2611	2545
	2750	2591	2815	2357	2610	2500 (2455-2580)	2750 (2720-2780)	2611	2795
2625	2125	2716	2190	2482	1985	2625 (2580-2705)	2125 (2095-2155)	2736	2170
2750	2000	2841	2065	2607	1860	2750 (2705-2830)	2000 (1970-2030)	2861	2045
2750	2125	2841	2190	2607	1985	2750 (2705-2830)	2125 (2095-2155)	2861	2170
3000	2000	3091	2065	2857	1860	3000 (2955-3080)	2000 (1970-2030)	3111	2045
3000	2125	3091	2190	2857	1985	3000 (2955-3080)	2125 (2095-2155)	3111	2170

Novoferm M up-and-over door

Standard sizes up-and-over door M® for double garages (depending on door motif)
Order size		Frame Outer dimension		Clearance Clearance dimensions		Installation behind the opening		Installation in the opening
width	Height	width	Height	width	Height	width	Height	width	Height
4000	2000	4100	2070	3780	1870	4000 (3955-4070)	2000 (1970-2035)	4120	2060
4000	2125	4100	2195	3780	1995	4000 (3955-4070)	2125 (2095-2160)	4120	2185
4500	2000	4600	2070	4280	1870	4500 (4455-4570)	2000 (1970-2035)	4620	2060
	2125	4600	2195	4280	1995	4500 (4455-4570)	2125 (2095-2160)	4620	2185
	2250	4600	2320	4280	2120	4500 (4455-4570)	2250 (2220-2285)	4620	2310
5000	2000	5100	2070	4780	1870	5000 (4955-5070)	2000 (1970-2035)	5120	2060
5000	2125	5100	2195	4780	1995	5000 (4955-5070)	2125 (2095-2160)	5120	2185
