INTERIOR HIGH-SPEED ROLLER SHUTTERS
NOVOFERM SPEEDROLLER FOR INDOOR USE
SpeedRollers for inside are designed for installation in buildings, for example on passageways between rooms or on the inside of an external wall. Which door is best suited to your situation depends on numerous factors. First and foremost, the size of the door opening and the wind pressure must be considered. The wind pressure between smaller rooms is generally lower than between large halls or in an airlock. Novoferm SpeedRollers are particularly fast-running electrically driven doors. The fast opening and closing, without obstructing traffic, ensures that draughts have no chance.
Overview of door types
Door comparison and properties
Comparison of high-speed roller shutters for indoor use
| Type designation | PRIME | PRIME-XF | STRONG-E | STRONG | STRONG-FV | NOVOZIP |
| max. area (W × H) | 12,25 m² | 12,25 m² | 9 m² | 25 m² | 25 m² | 20,25 m² |
| max. width | 3,500 mm | 3,500 mm | 3,000 mm | 5,000 mm | 5,000 mm | 4,500 mm |
| Max. height | 3,500 mm | 3,500 mm | 3,500 mm | 5,000 mm | 5,000 mm | 4,500 mm |
| Wind load resistant up to min. [* with WindLoad Optimiser] | 3 / 7* Bft | 3 / 7* Bft | 8 Bft | 7 Bft | 7 Bft | 11 Bft |
| Max. wind load class according to EN 12424 | 0 | 0 | 0 | 2* | 1* | 3* |

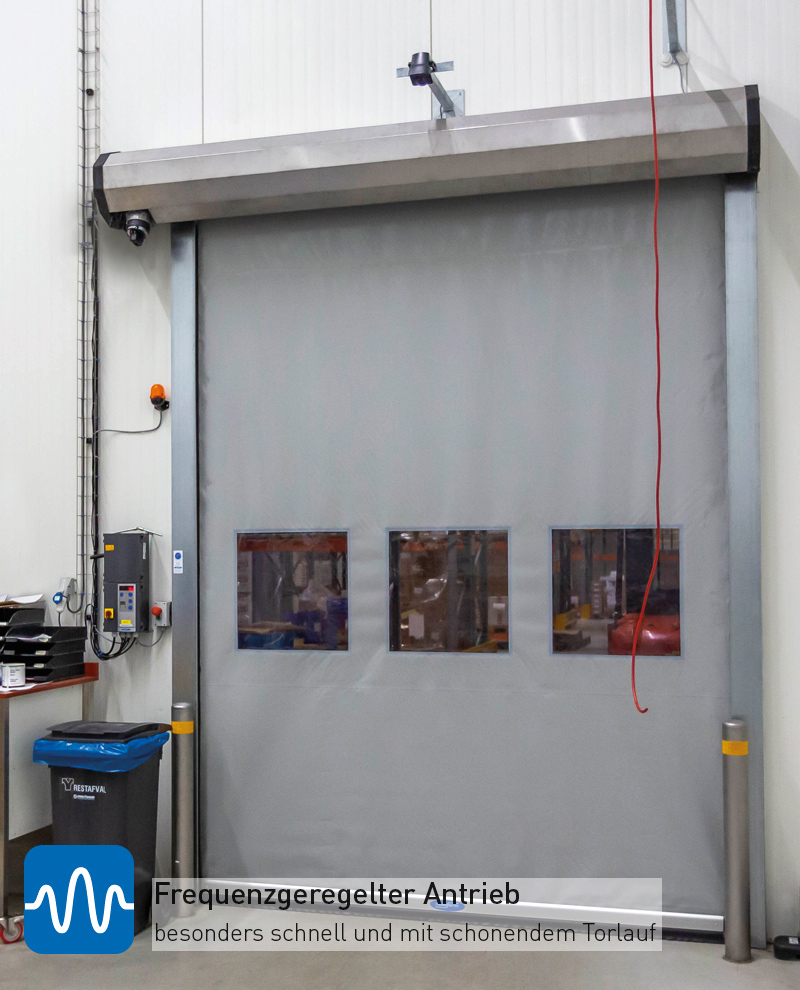

| Opening speed with frequency regulator | 1.5 m/s | 2.3 m/s | 1.8 m/s | 1.8 m/s | 1.8 m/s | 2.0 m/s |
| Closing speed with frequency regulator | 0.5 m/s | 0.5 m/s | 0.5 m/s | 0.5 m/s | 0.5 m/s | 0.5 m/s |
| Opening/closing speed with standard control | 1 m/s | 1 m/s | 1 m/s | 1 m/s | 1 m/s | |
| Curtain thickness (standard/optional) | 0.7 / 1.2 mm | 1.2 mm | 0.7 mm | 0.7 / 1.2 mm | 0.8 mm | 1.0 mm |
| Curtain weight (standard/optional) | 680 / 1,400 g/m² | 1,400 g/m² | 680 g/m² | 680 / 1400 g/m² | 1,050 g/m² | |
| Curtain weight, class M2 | 900 g/m² | |||||
| Suitability as exterior door | no | no | no | no | no | yes |

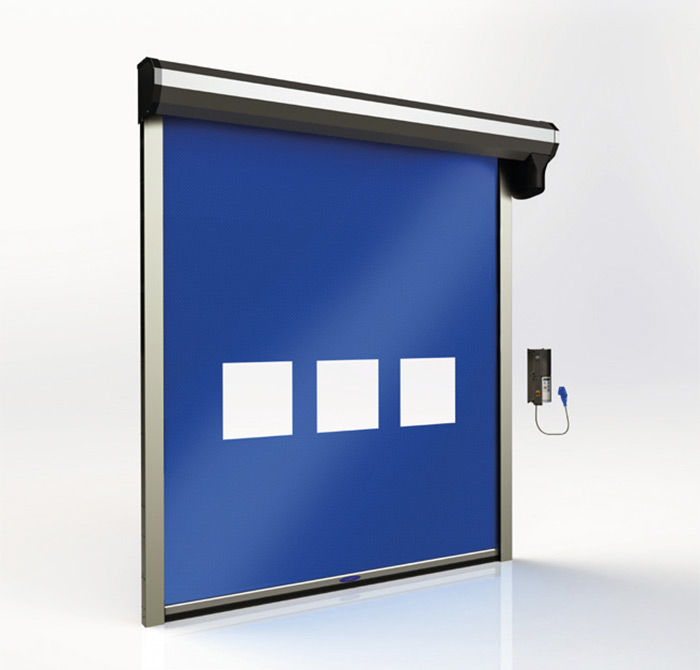

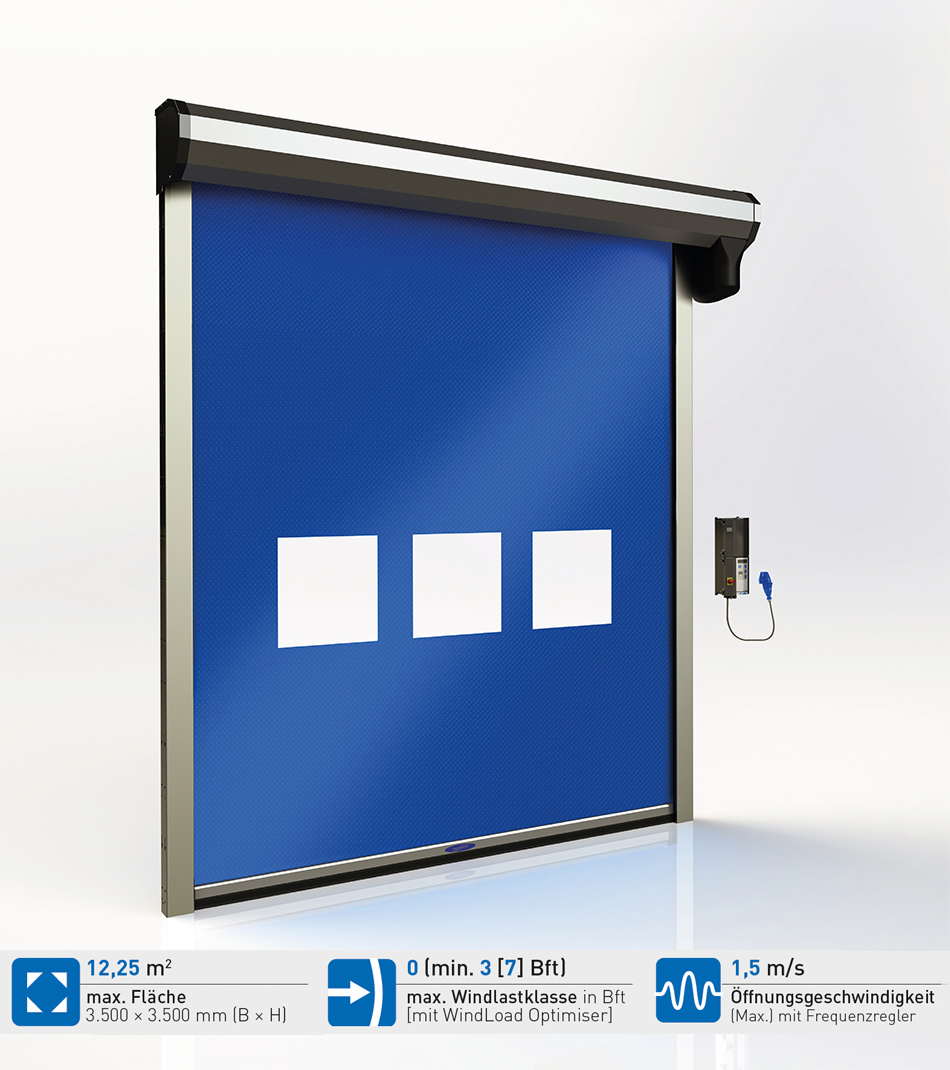

Details Prime
Details Prime
THE PARTICULARLY FAST AND QUIET SOLUTION AGAINST DRAUGHTS
The SPEEDROLLER PRIME-XF has been specially developed for high speed and intensive use.
Ideal for the fast passage of people and light goods. This innovative door is versatile and suitable for openings up to 12.25 m2. The one-piece door curtain runs extremely quietly and can be customised as required. The high running speed makes this door particularly suitable for passageways that are used very frequently. Operation by pull rope or motion detector enables particularly fast and convenient passage.
APPLICATION
- Supermarkets
- Food industry
- Laboratories
- Light industry
PROPERTIES

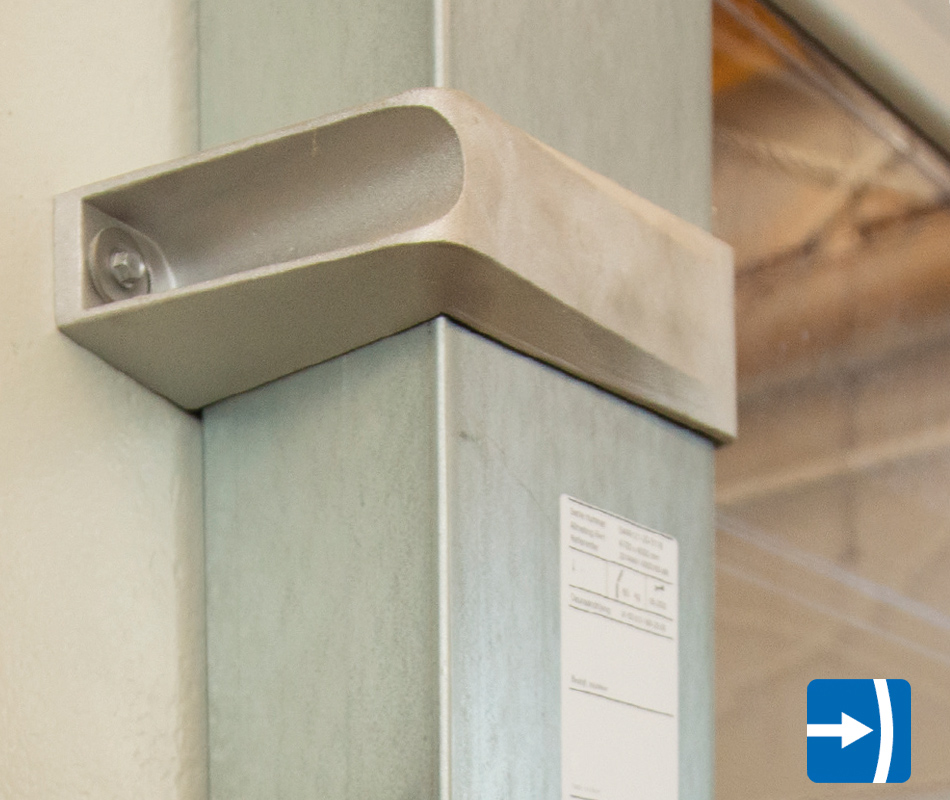

- WIND RESISTANT: up to min. 3 Bft, with WindLoad Optimiser even up to 7 Bft. wind class 0 according to EN 12424
- QUIET: one-piece door curtain, practically noiseless

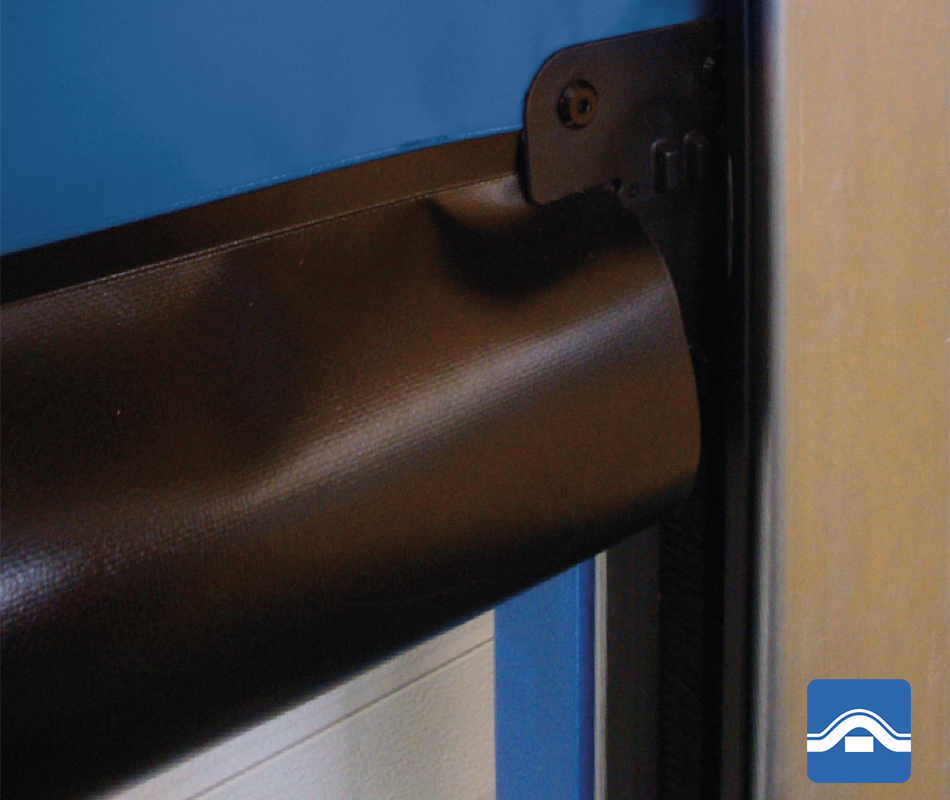

- SAFE : with light grid as standard, optionally with FlexEdge closing edge
- ROBUST: running rails made of steel, curtain made of polyester-reinforced plastic fabric
- NO MORE AIR: brush seals in the track and closing edge with rubber seal
- ATTRACTIVE: Door curtain can be printed in full colour as required! How about an attractive photo of your products, your logo or an image that goes well with your interior design?
COLOURS
Available as standard in the following RAL colours:
Optionally available with 1.2 mm door curtain in the following RAL colours:
The side guides and the cover are optionally available in any standard RAL colour.
* Depending on the configuration.

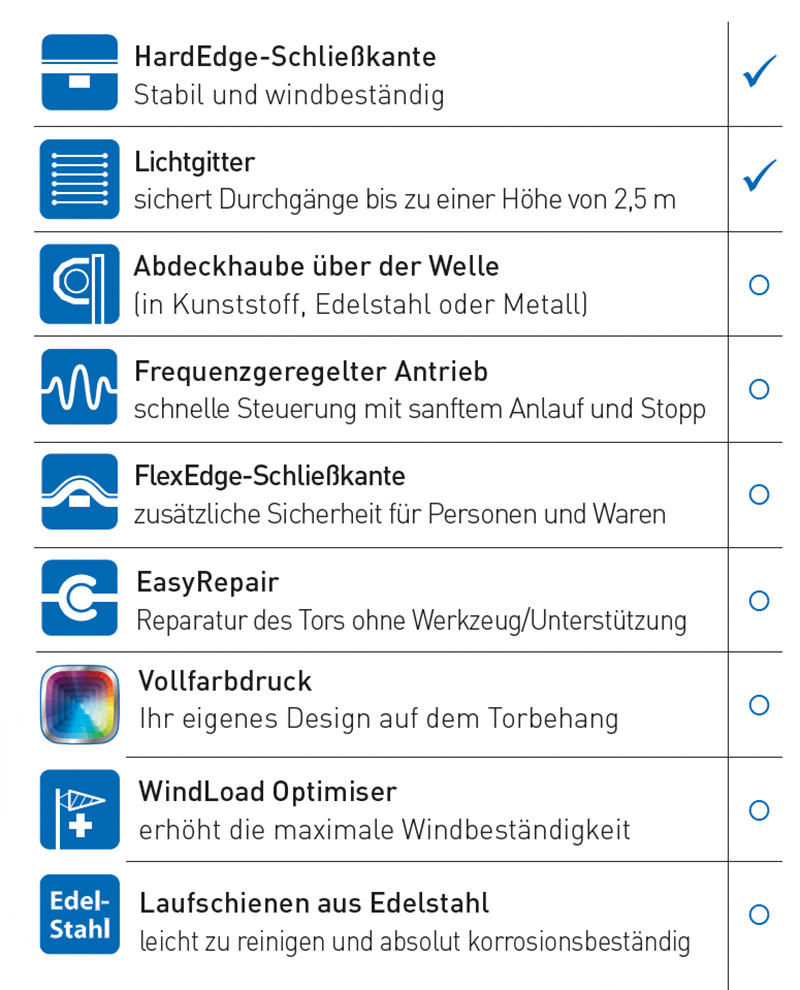

Options
APPLICATION EXAMPLES
In SUPERMARKETS, the shelves must be continuously replenished from the warehouse. It is essential that staff can enter and leave the warehouse quickly using pallet trucks, etc. A large push button or card reader can be used to give staff access to the warehouse while keeping customers out. Because the Prime high-speed roller shutter opens and closes relatively quickly, the climate in the sales area remains pleasant.

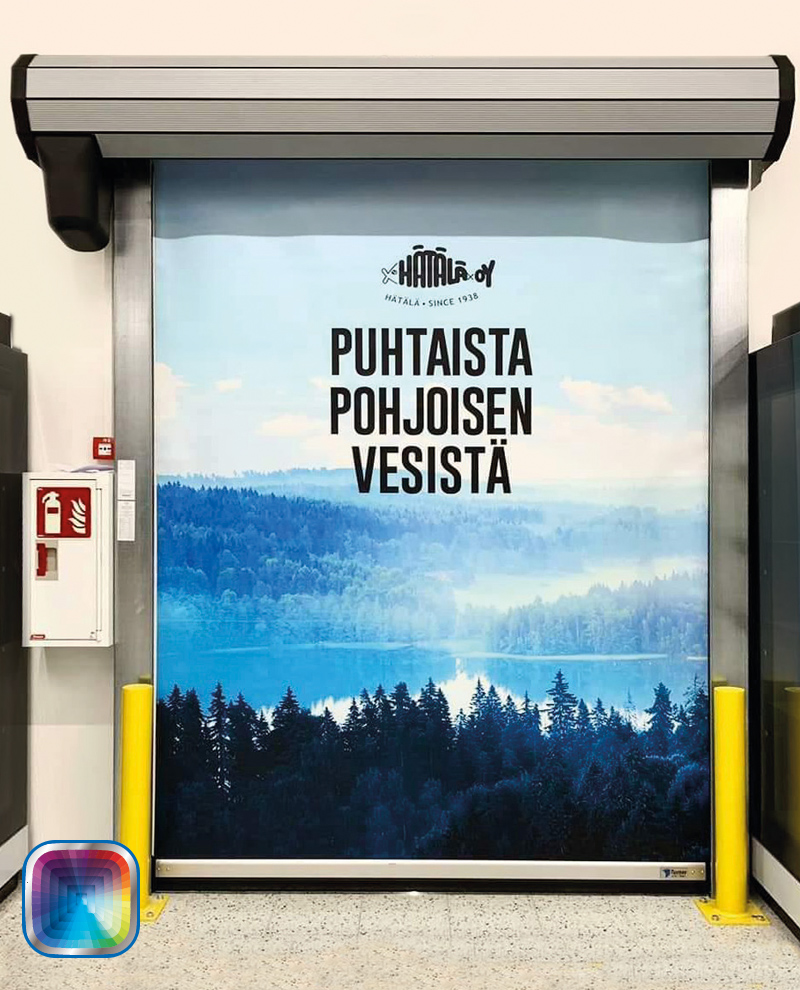

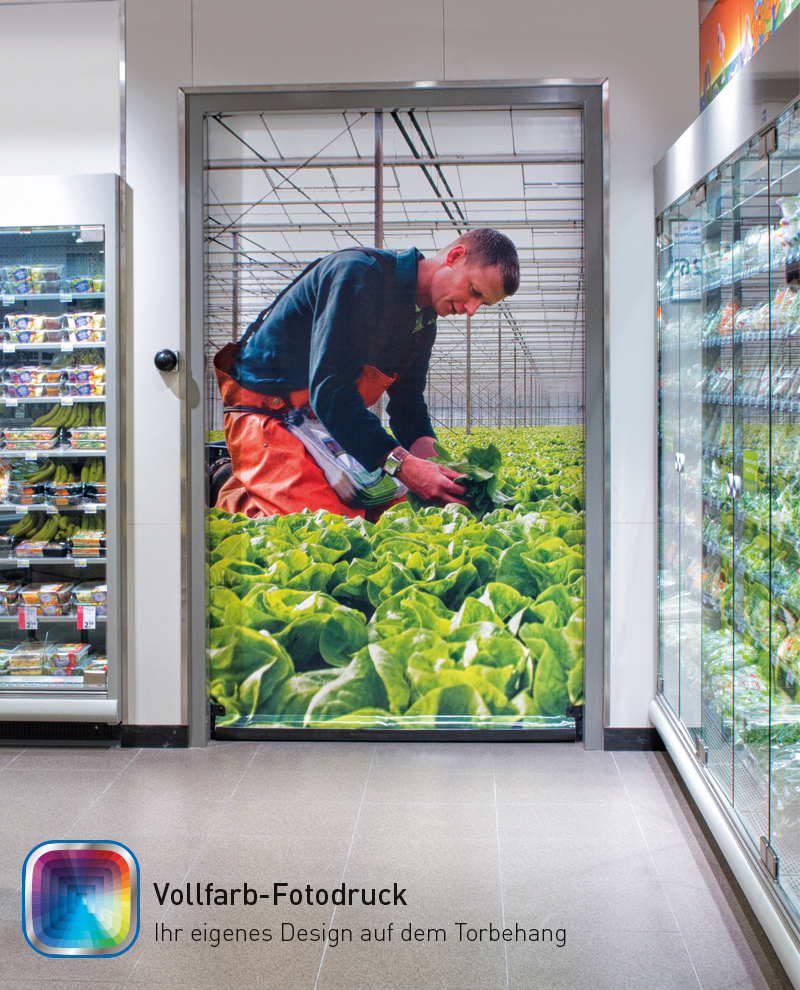

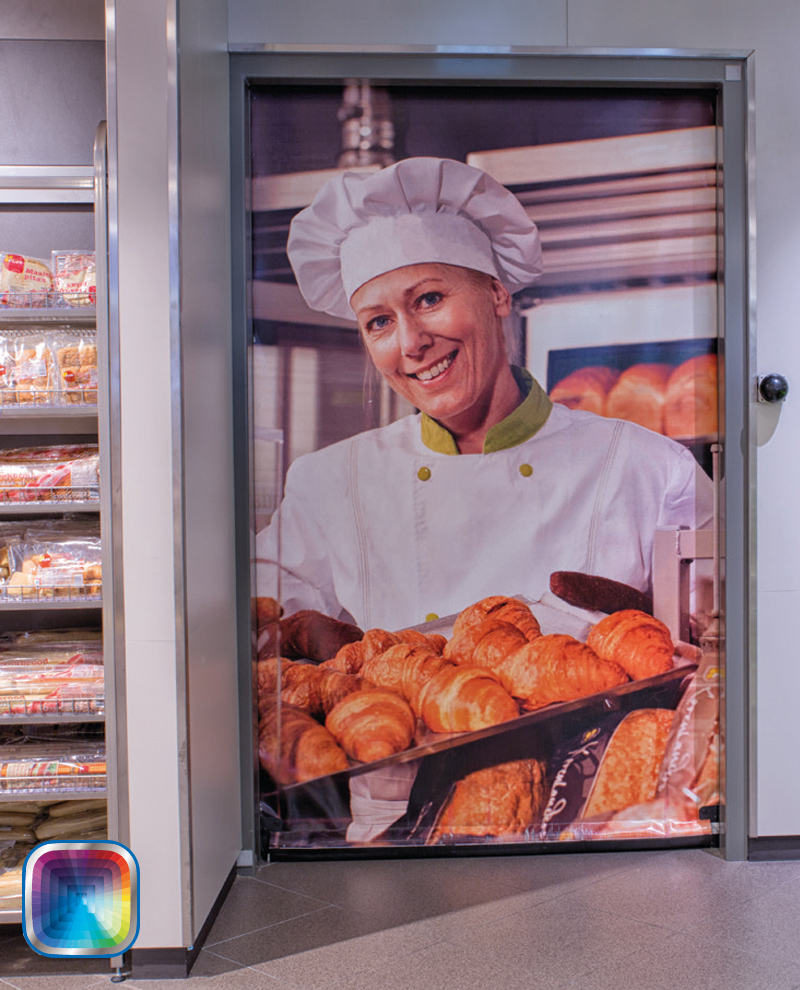

The one-piece door curtain can be printed as required. In this way, a closed passageway can be transformed into an attractive eye-catcher. All in all, this is reason enough for Novoferm SpeedRollers to have been standard in many renowned supermarket chains for many years!
The FOOD INDUSTRY often requires small high-speed doors that are easy to clean and can be operated with a pull rope, for example from a small forklift truck or pallet truck. If the wind pressure in the passageway is not very high, doors from the Prime range are ideal for such applications.
By using motion detectors or a Magic Switch button, staff can open the door quickly and contact-free.
The IXIO-D is a radar and presence detector in one. It opens the door and monitors the passage at the same time.

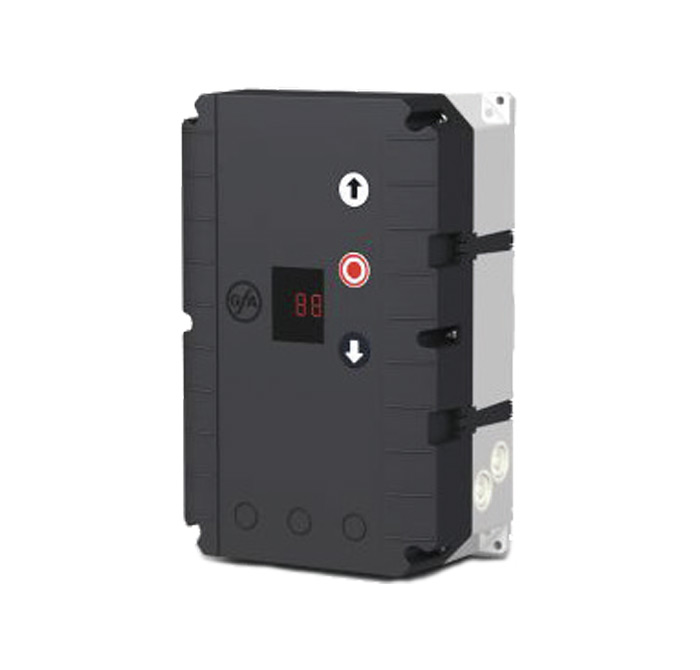

CONTROL
TECHNICAL DATA PRIME
| Max. area (W × H) | 12,25 m² |
| Max. width | 3,500 mm |
| max. height | 3,500 mm |
| Wind load resistant up to min. [* with WindLoad Optimiser] | 3 / 7* Bft |
| Max. wind load class according to EN 12424 | 0 |
| Opening speed with frequency regulator | 1.5 m/s |
| Closing speed with frequency regulator | 0.5 m/s |
| Opening/closing speed with standard control | 1 m/s |
| Curtain thickness (standard/optional) | 0.7 / 1.2 mm |
| Curtain weight (standard/optional) | 680 /1,400 g/m² |
| Suitability as external door | no |

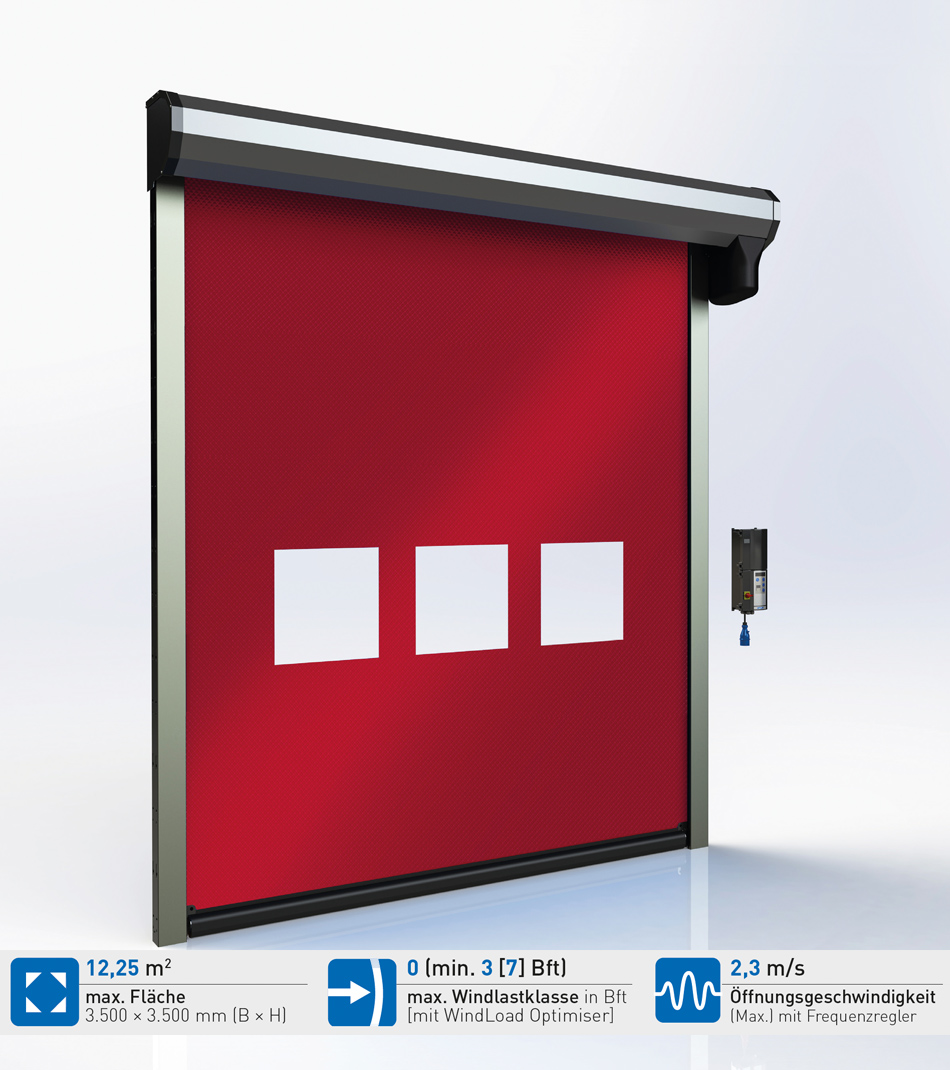

Details Prime-XF
Details Prime-XF

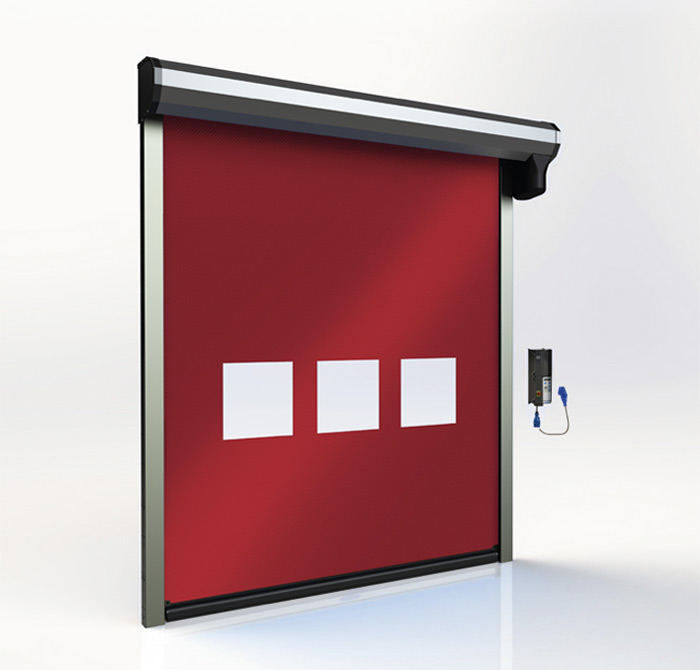

THE FAST AND QUIET SOLUTION FOR DRAUGHTS
The SPEEDROLLER PRIME is a good solution for medium-sized openings (up to 12.25m2) and for normal use.
Ideal for the daily passage of people and light goods. The one-piece door curtain runs extremely quietly and can be customised as required.
SpeedRollers from Novoferm are often used in supermarkets because they are particularly practical to use, save a lot of energy and contribute to the atmosphere with attractive printing.
APPLICATION
- Supermarkets
- Food industry
- Laboratories
- Light industry
PROPERTIES
- WIND RESISTANT: up to min. 3 Bft, with WindLoad. Optimiser even up to 7 Bft. wind class 0 according to EN 12424
- ON FOOT OR BY VEHICLE: Passing through the PRIME-XF is child's play. With a motion detector or remote control, for example, the gate opens so quickly that the speed hardly needs to be reduced when passing through
- QUIET: one-piece curtain, practically noiseless

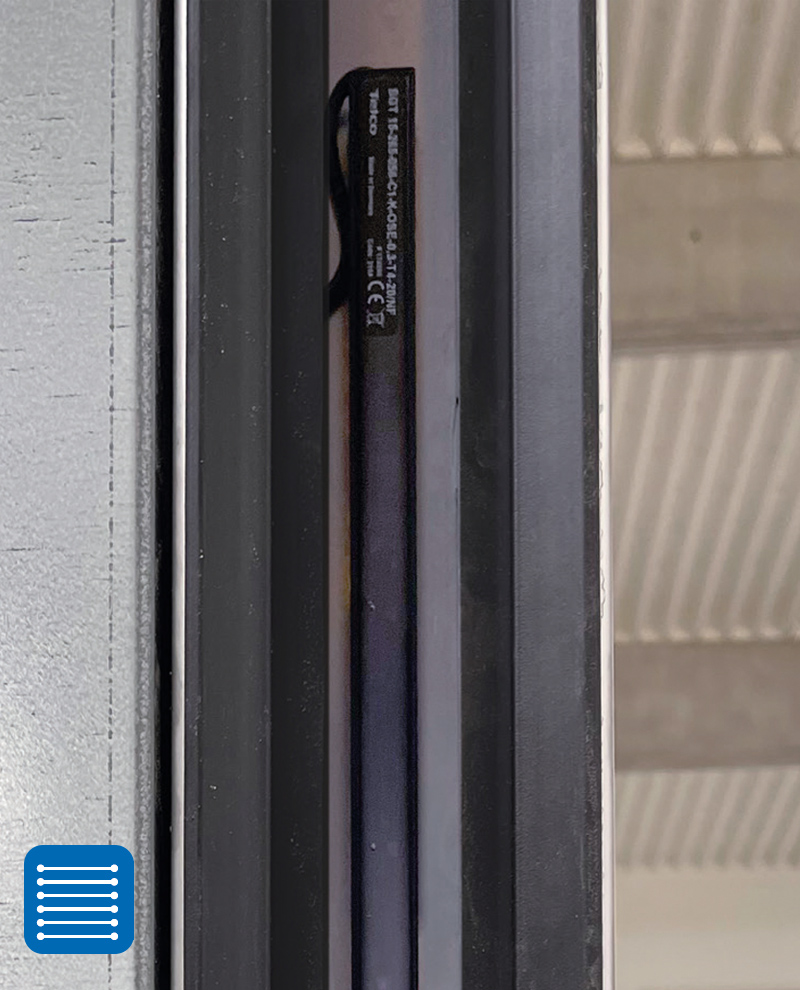

- SAFE : with light curtain as standard, optionally with FlexEdge closing edge
- ROBUST: running rails made of steel, door curtain made of polyester-reinforced plastic fabric
- NO MORE AIR: rubber seal on track and closing edge
COLOURS
Available as standard with 1.2 mm door curtain in the following RAL colours:
The side guides and the cover are optionally available in any standard RAL colour.
* Depending on the configuration.
Options
APPLICATION EXAMPLES
SUPERMARKETS need particularly fast access to the warehouse in order to be able to replenish shelves quickly at any time.
The Prime-XF is even faster than the standard Prime. The warehouse may only be entered by employees. In addition, the door must not be left open for too long, otherwise draughts will occur, creating an unpleasant climate for customers on the sales floor.
The Prime-XF fulfils all these requirements:
- extremely fast (up to 2.3 m/s!)
- Access only with card or access code*
- Closes the aisle draught-free in the shortest possible time
- With a customised print of your choice, the Prime-XF also looks great - a life-size painting in your rooms
LOGISTICS COMPANIES work with precisely coordinated flows of goods. By using SpeedRoller high-speed doors with intelligent control, these flows can also be handled with optimum efficiency between different halls.
Particularly in large halls with numerous employees, it is often difficult to maintain a pleasant indoor climate if there are many small to medium-sized passageways that need to be opened and closed frequently.
The Prime-XF is ideal for this situation: fast, reliable and, above all, quiet, which is particularly important in large buildings where there are echoes.
CONTROL
| Max. area (W × H) | 12,25 m² |
| Max. width | 3,500 mm |
| max. height | 3,500 mm |
| Wind load resistant up to min. [* with WindLoad Optimiser] | 3 / 7* Bft |
| Max. wind load class according to EN 12424 | 0 |
| Opening speed with frequency regulator | 2.3 m/s |
| Closing speed with frequency regulator | 0.5 m/s |
| Opening/closing speed with standard control | 1 m/s |
| Curtain thickness | 1.2 mm |
| Curtain weight | 1,400 g/m² |
| Suitability as external door | no |

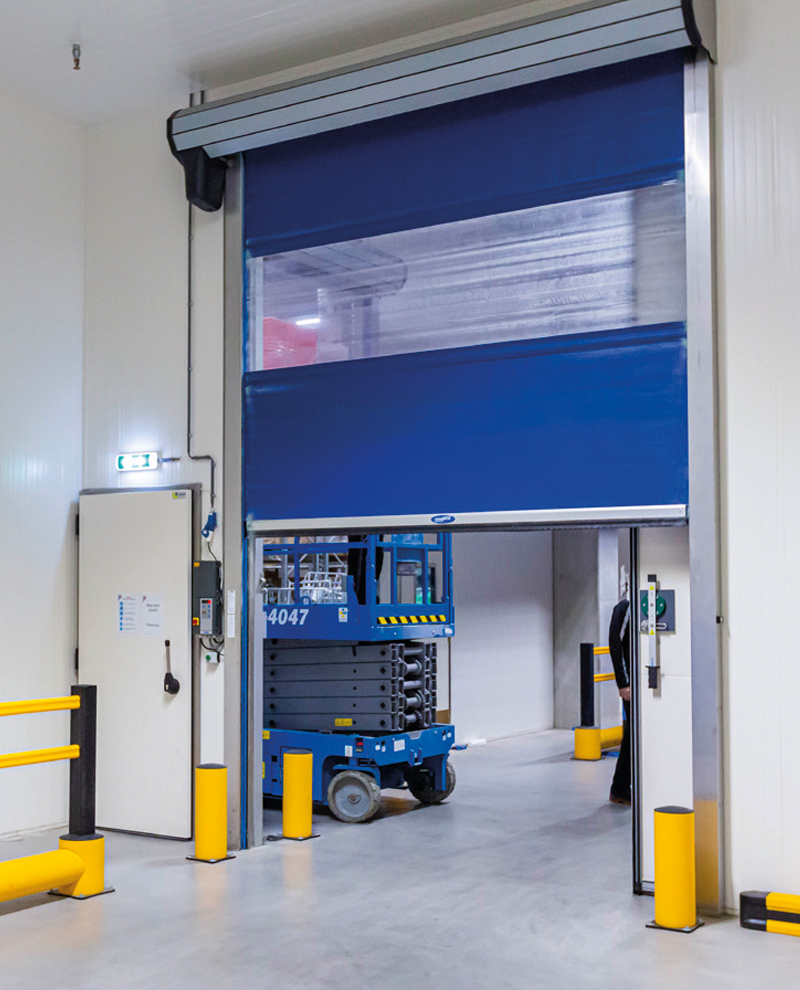

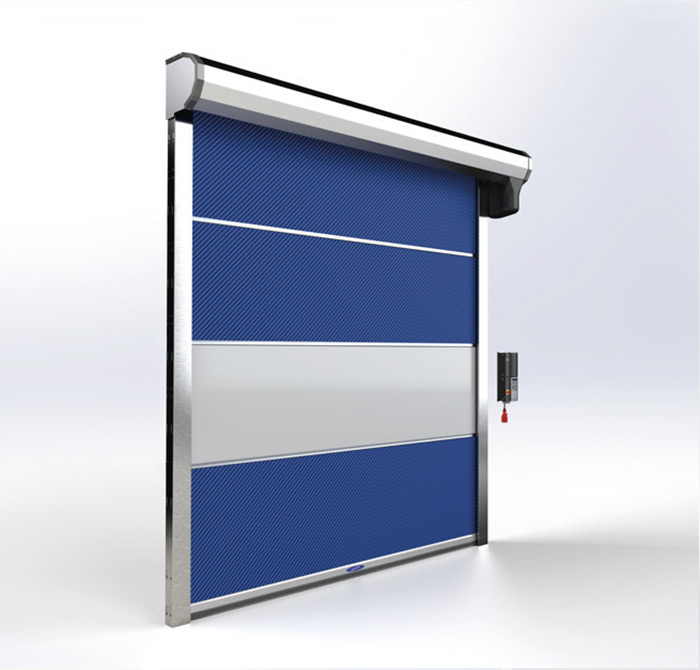

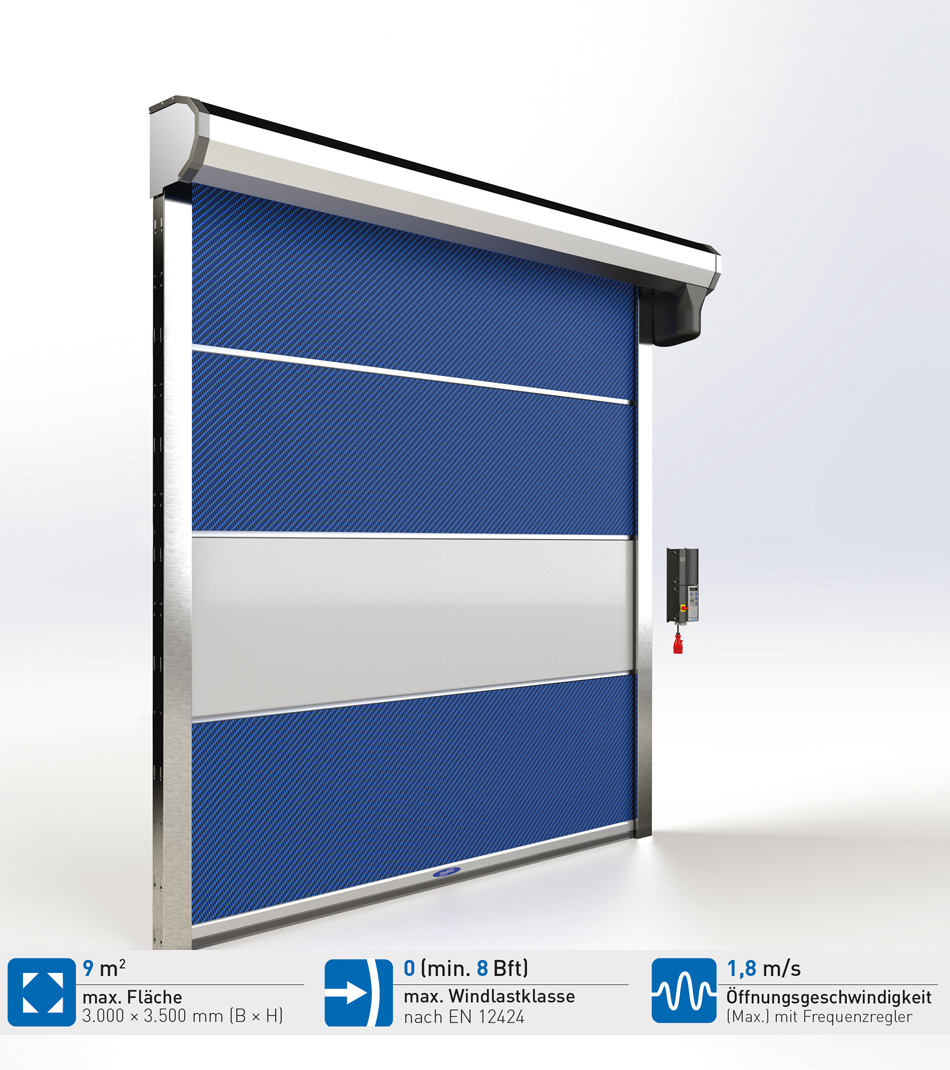

Details Strong-E
Details Strong-E
ALL ESSENTIAL FUNCTIONS IN A COST-EFFECTIVE PACKAGE
The SPEEDROLLER STRONG-E is a good solution for passageways with an area of up to 9m2 and moderate wind pressure.

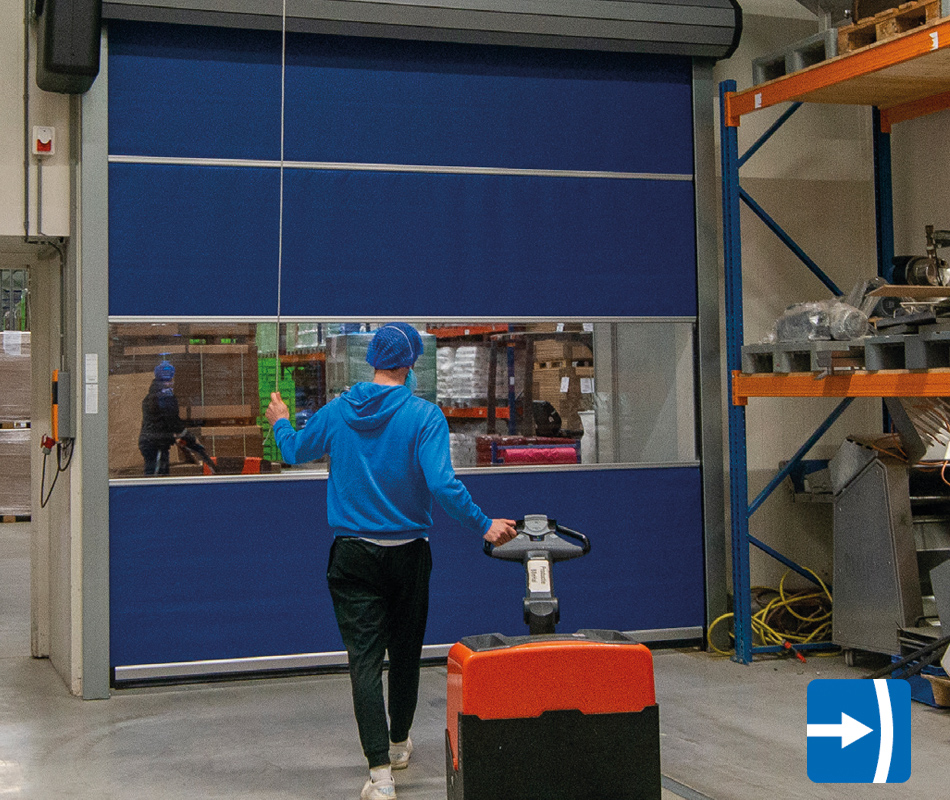

Ideal for the daily passage of people and light goods. The reinforcement profiles provide additional stability. The opening speed of 1.8 m/s makes this door a practical solution even in heavy traffic. Suitable for fast-moving production processes where downtime cannot be tolerated.
This innovative door is characterised by a wide range of possible applications.
APPLICATION
- Distribution centres
- Warehouses
- Food industry
- Light and heavy industry
PROPERTIES
- WIND RESISTANT up to min. 8 Bft. wind class 0 according to EN 12424

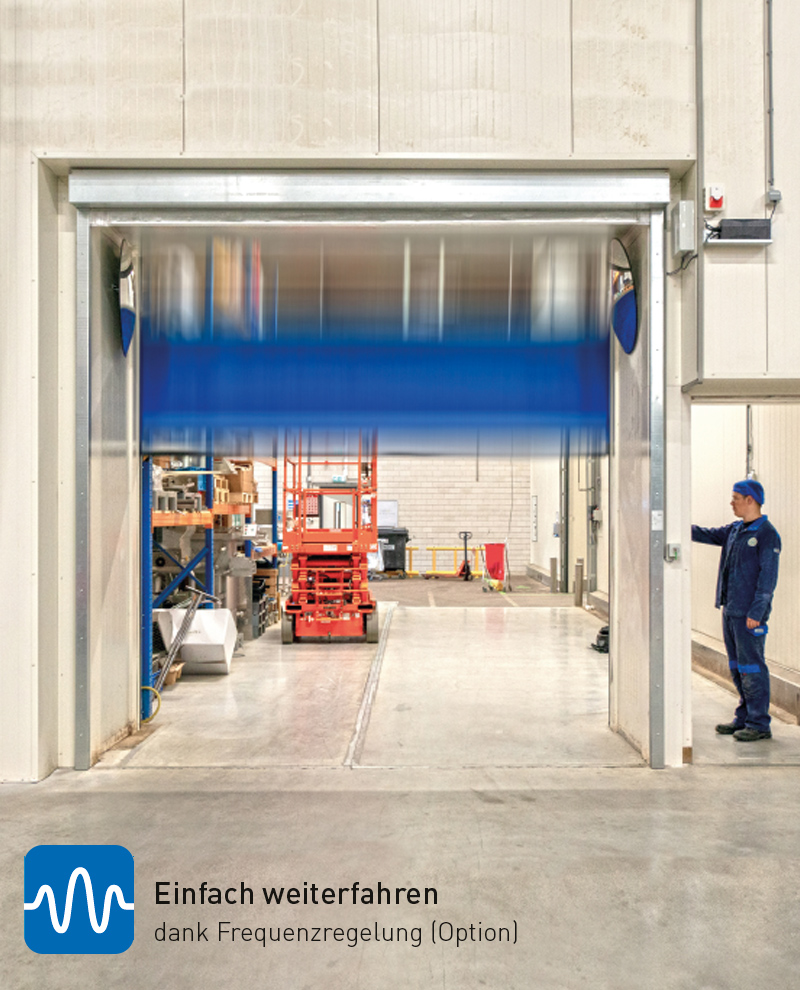

- FAST: the Strong-E is ideal for fast crossing on foot or with a vehicle, even in situations with slightly higher wind pressure, for example in production halls. If speed is of the essence in your production process, the Strong-E is the right choice.
- SAFE: with light curtain as standard, optionally with FlexEdge closing edge
- ROBUST: running rails made of steel, curtain made of plastic fabric with reinforcement profiles
- NO MORE AIR: brush seals in the track and closing edge with rubber seal
COLOURS
Available as standard in the following RAL colours:
The side guides and the cover are optionally available in any standard RAL colour.
* Depending on the configuration.

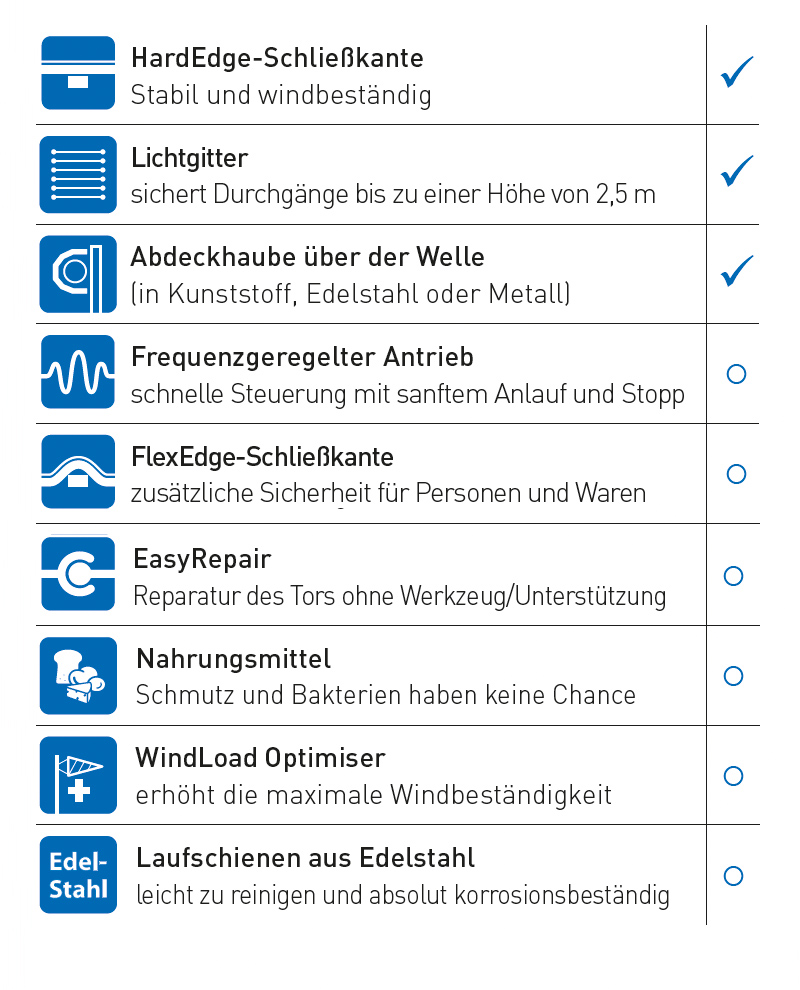

Options
APPLICATION EXAMPLES

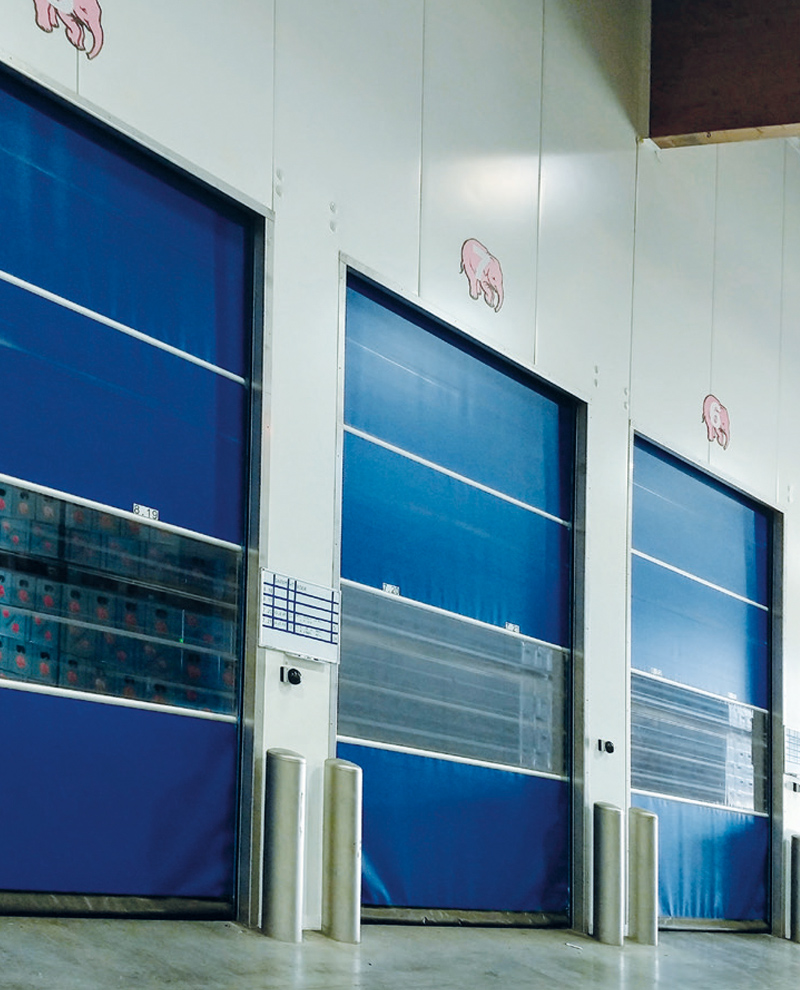

WAREHOUSES must be quickly and easily accessible, but at the same time free from draughts.
A large push button or a radar movement detector allows your staff to enter and leave quickly. This allows you to keep your warehouses at the right temperature and your products are always easily accessible. A keypad allows your staff to enter the warehouse while keeping customers out. This is particularly useful when there is a lot of footfall, which is why speed rollers are so popular in the retail sector.
With a wind pressure in the aisle of more than 3 Bft, a Prime may not be sufficient, while a Strong will overshoot the target. In such cases, the SpeedRoller Strong-E is the right choice for you.
SPECIAL SPACES that need to be closed quickly and draught-free, but also need to be easy to open again (for example with a remote control), are a case for the Strong-E.
Thanks to its ease of use, reliability and low purchase price, the Speed-Roller Strong-E is the perfect choice for numerous applications.
CONTROL
| Max. area (W × H) | 9 m² |
| Max. width | 3,000 mm |
| max. height | 3,500 mm |
| Wind load resistant up to min. [* with WindLoad Optimiser] | 8 Bft |
| Max. wind load class according to EN 12424 | 0 |
| Opening speed with frequency regulator | 1.8 m/s |
| Closing speed with frequency regulator | 0.5 m/s |
| Opening/closing speed with standard control | 1 m/s |
| Curtain thickness (standard/optimum) | 0.7 mm |
| Curtain weight (standard/optimum) | 680 g/m² |
| Suitability as external door | no |

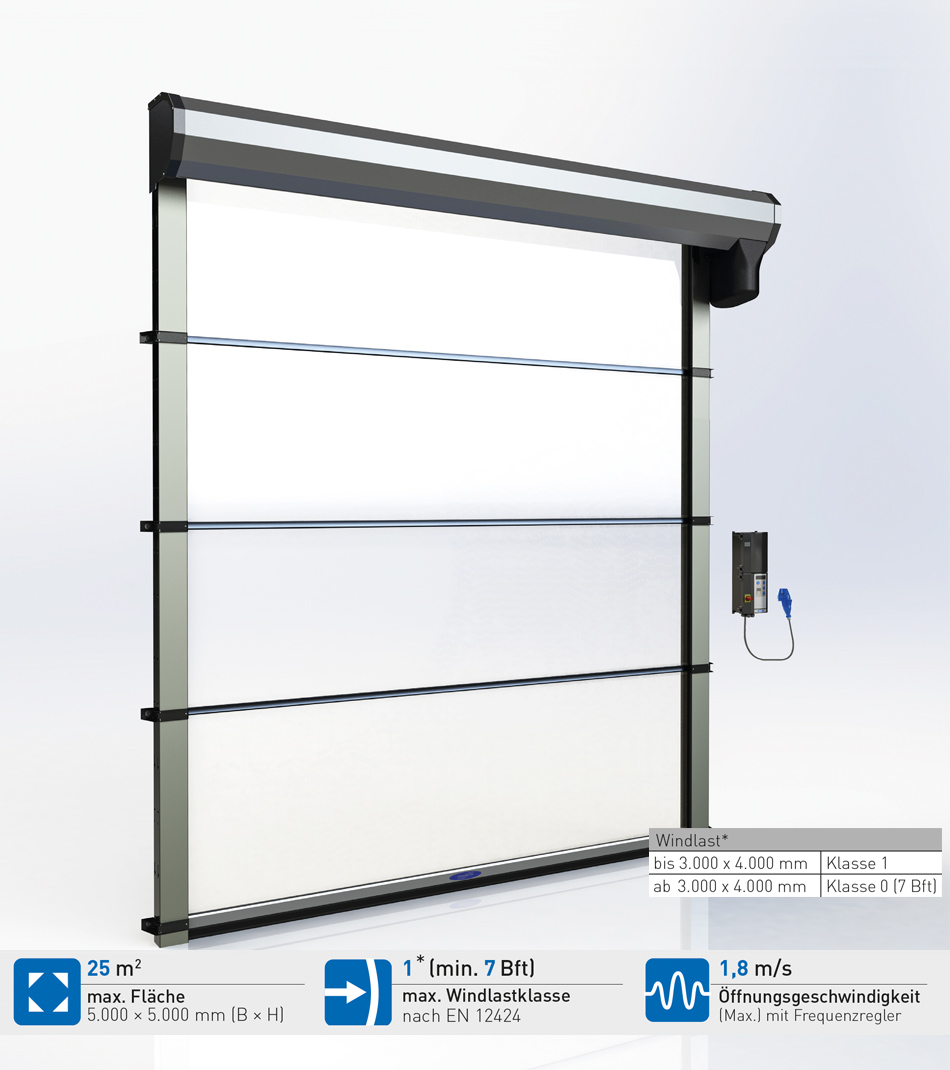

Details Strong Fullvision
Details Strong Fullvision

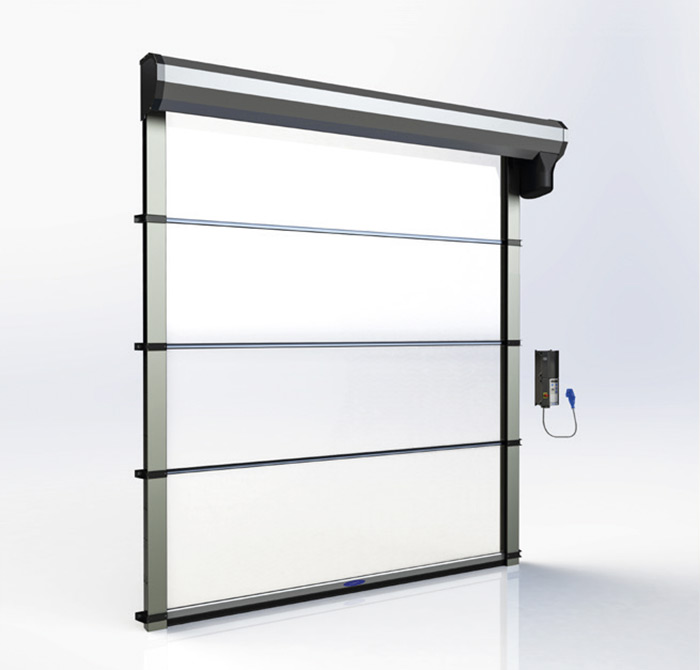

A SOLUTION WITH UNRESTRICTED VISIBILITY FOR BUSY AREAS
The SPEEDROLLER STRONG-FULLVISION is the transparent version of our standard high-speed door for indoor areas:
Reliable technology for many years of trouble-free operation and a clear view.
Ideal for passages that are frequently used in both directions. Accidents are prevented as it is possible to see at a glance when traffic is coming from the opposite direction.
APPLICATION
- Light and heavy industry
- Workshops with heavy traffic in both directions
- Situations where high visibility is required
- Drive-through areas
PROPERTIES
- WIND RESISTANT up to min. 7 Bft (5,000 × 5,000 mm) wind class 1 according to EN 12424 (up to a width of 3,000 mm)

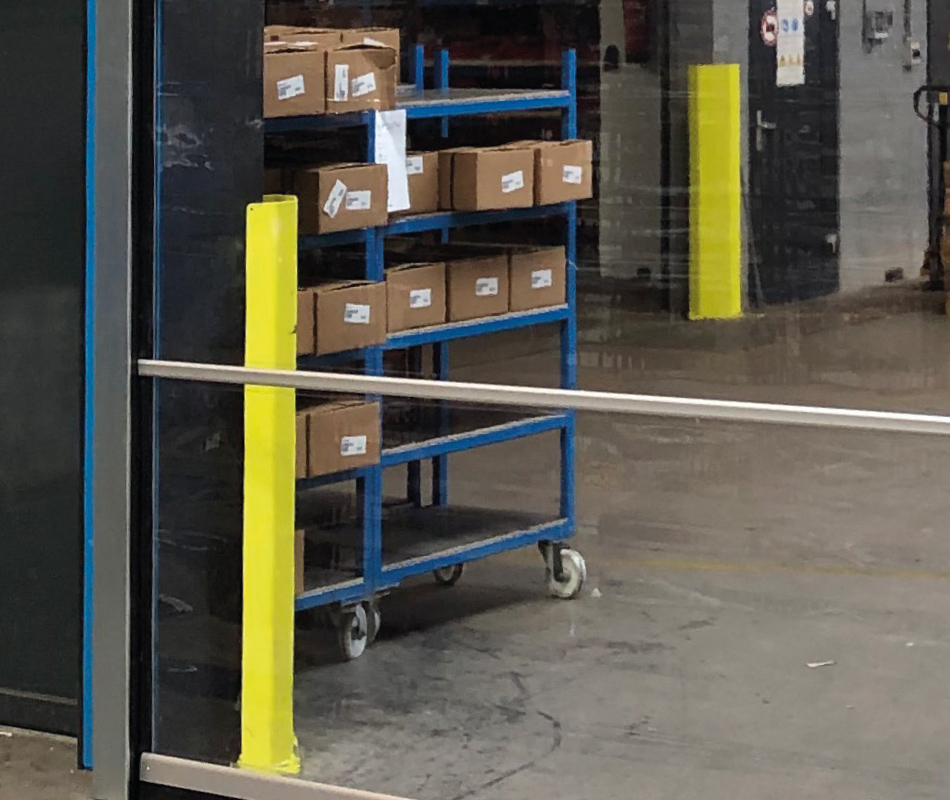

- COMPLETELY TRANSPARENT: oncoming traffic is clearly recognisable
- SOUND INSULATION: noise insulation through additional sound insulation on the winding shaft

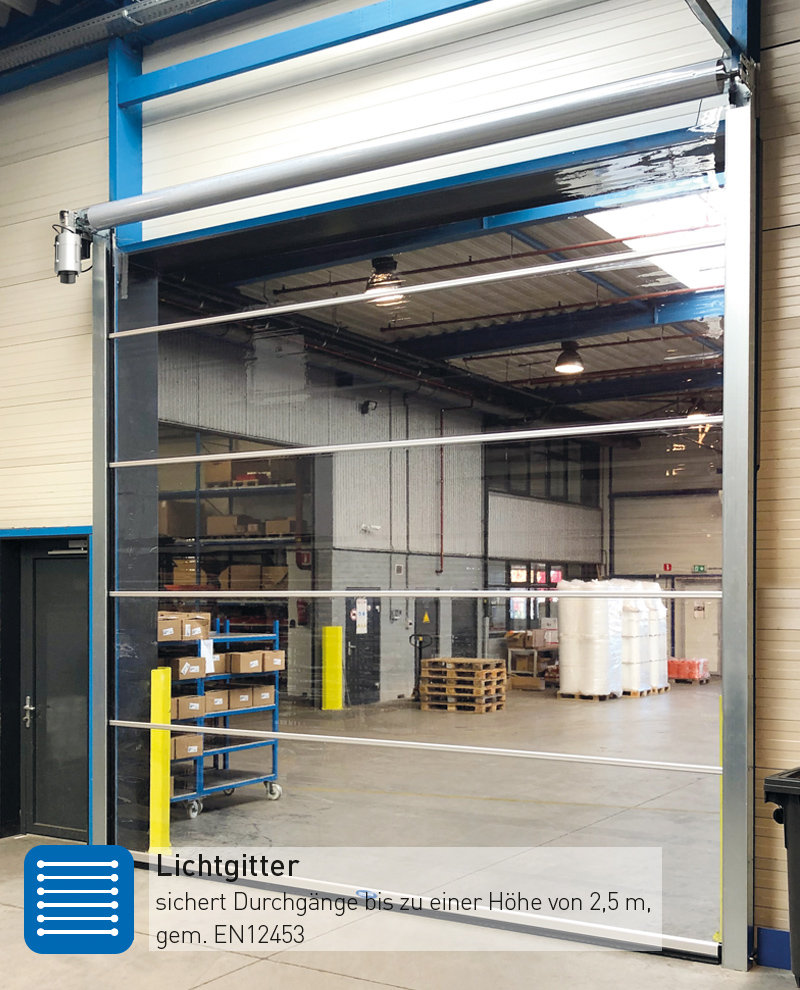

- SAFE : with light grid as standard
- ROBUST: running rails made of steel, curtain made of highly flexible plastic
- NO MORE AIR: brush seal in the track and closing edge with rubber seal
- INSTALLATION: in any passageway up to 25m2 inside the building, not suitable for installation in external walls
Options
APPLICATION EXAMPLES

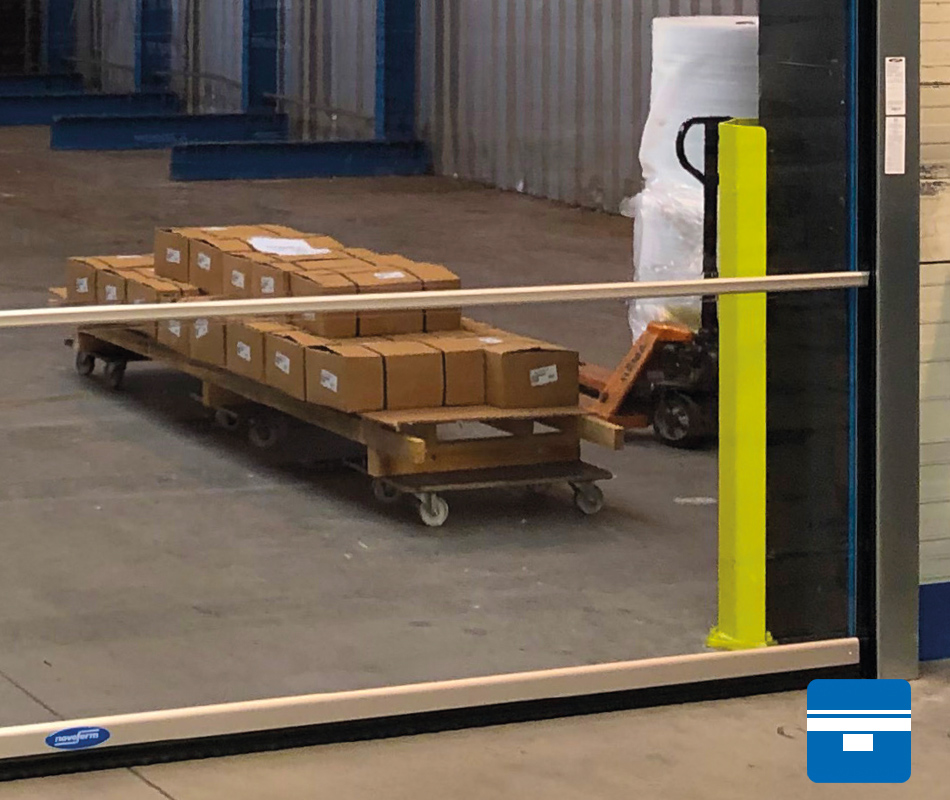

MANUFACTURING FACILITIES with heavy forklift traffic in both directions can improve safety and speed up the production process with a transparent high-speed door. When oncoming traffic is directly visible, accidents are avoided.
With a fast frequency-controlled drive and intelligent control, for example by induction loop or with a pull cable, the door opens so quickly that the forklift truck can pass virtually unhindered if the path is clearly visible.
With heavy forklift truck traffic in both directions, the Strong-FV significantly increases safety and also saves you time and energy costs!
WORKSHOP OPERATORS who want to offer their customers a look behind the scenes and thus increase their confidence in the work of the mechanics can use a Strong-FV to keep the workshop and showroom strictly separate. Customers can watch the mechanics at work, but cannot enter the workshop and therefore do not disturb their work. The Strong-FV also makes it easier to regulate the different climates in the workshop and showroom. Draughts and noise cannot pass from one area to the neighbouring one.
In short: a must for every modern vehicle workshop.
In DRIVE-THROUGH AREAS, customers should be able to wait their turn. At the same time, they should recognise how long it will take. Here too, the Strong-FV is the ideal solution!

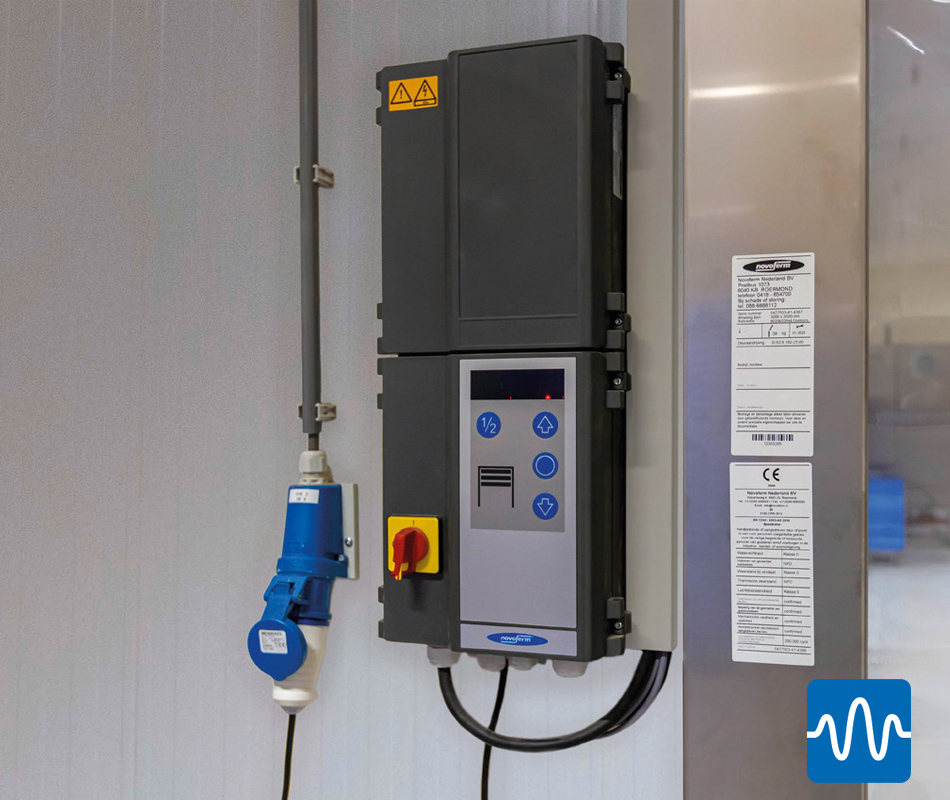

CONTROL
| max. area (W × H) | 25 m² |
| max. width | 5,000 mm |
| max. height | 5,000 mm |
| Wind load resistant up to min. [* with WindLoad Optimiser] | 7 Bft |
| Max. wind load class according to EN 12424 | 1* |
| Opening speed with frequency regulator | 1.8 m/s |
| Closing speed with frequency regulator | 0.5 m/s |
| Opening/closing speed with standard control | 1 m/s |
| Curtain thickness | 0.8 mm |
| Suitability as external door | no |

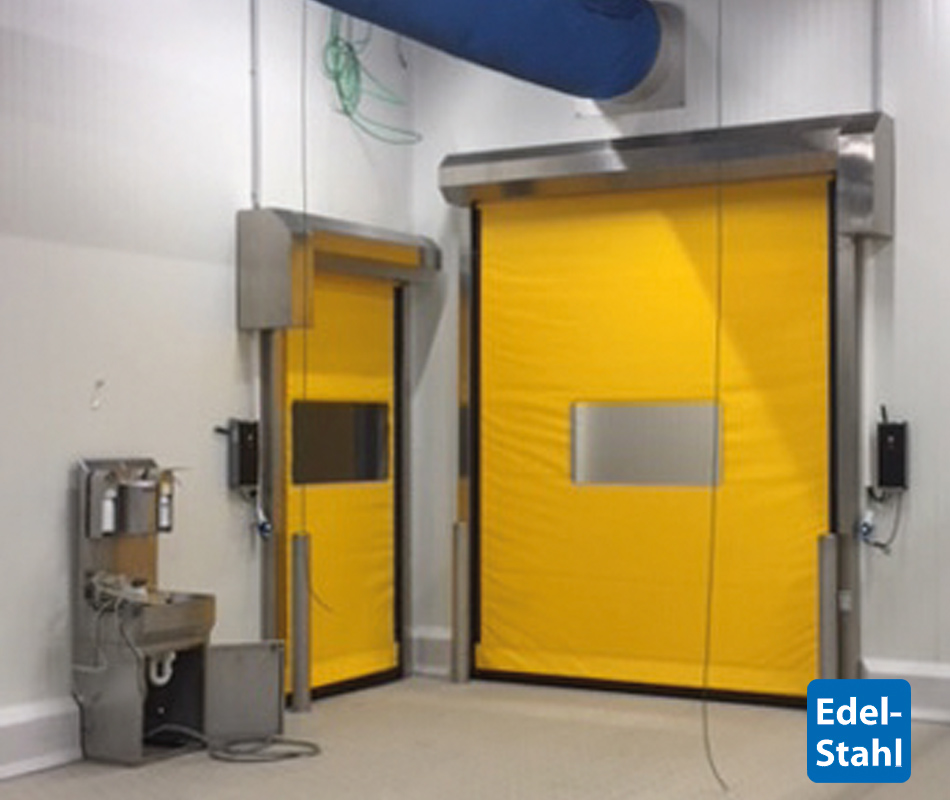

Details Novozip
Details Novozip
SELF-REPAIRING HIGH-SPEED DOOR

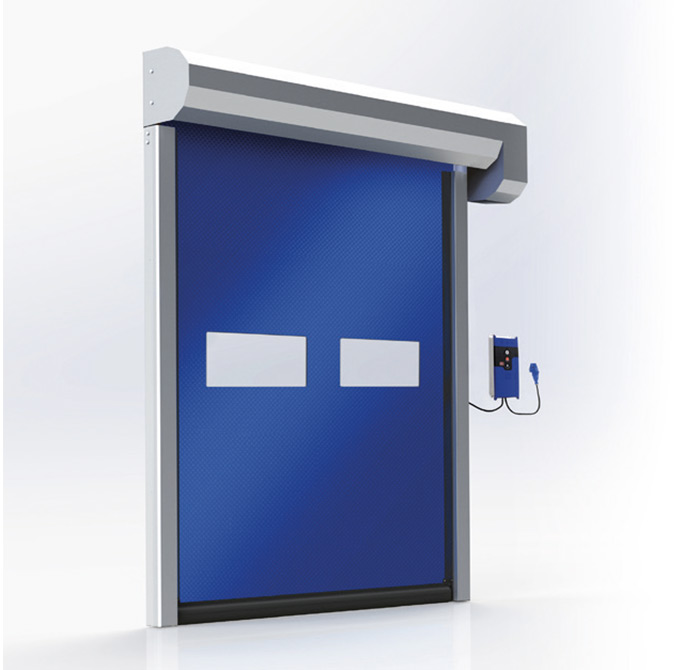

The self-repairing SPEEDROLLER NOVOZIP is the ideal solution for openings of up to 20.25m2 with intensive use.
The self-repair function of the self-lubricating rail reduces the number of malfunctions and thus prevents interruptions to the production process.
The NovoZip is designed as a fast and user-friendly room divider. It provides excellent protection against draughts, facilitates air conditioning and thus saves considerable amounts of energy.
APPLICATION
- Supermarkets
- Food industry
- Laboratories
- Industry
PROPERTIES
- WIND RESISTANT up to min. 11 Bft. wind class 3 according to EN 12424

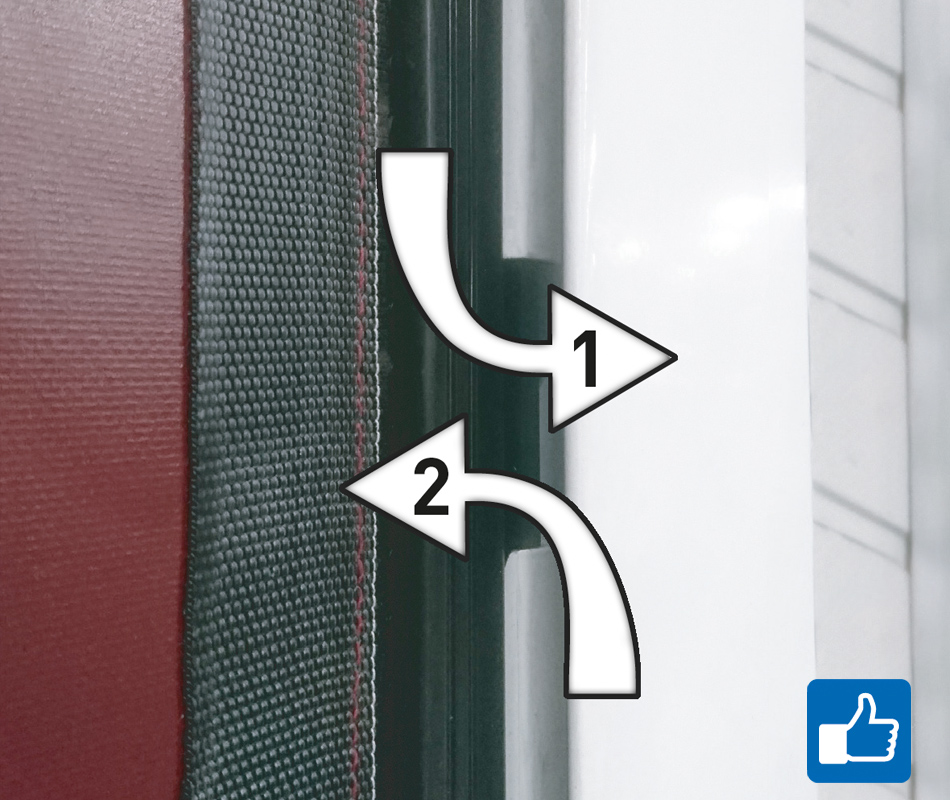

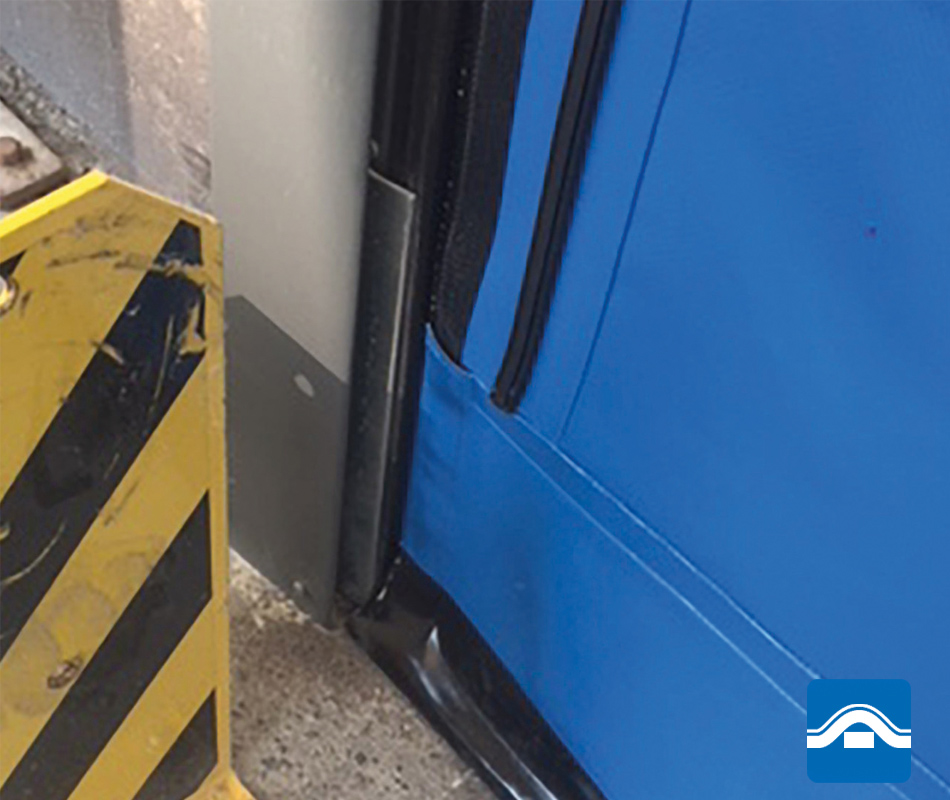

- SELF-REPAIRING: the door curtain automatically returns to the guide after a collision
- QUIET: one-piece curtain, practically noiseless
- SAFE : with light grid and soft FlexEdge closing edge as standard
- ROBUST: running rails made of steel, curtain made of polyester-reinforced plastic fabric
- DRAught protection : zip technology and lintel seals provide excellent protection against draughts
- INSTALLATION: suitable for all passageways up to 20.25m2 in the interior walls of buildings and on the inside of exterior walls
COLOURS
Available as standard with a curtain weight of 900 g/m2, in the following RAL colours:

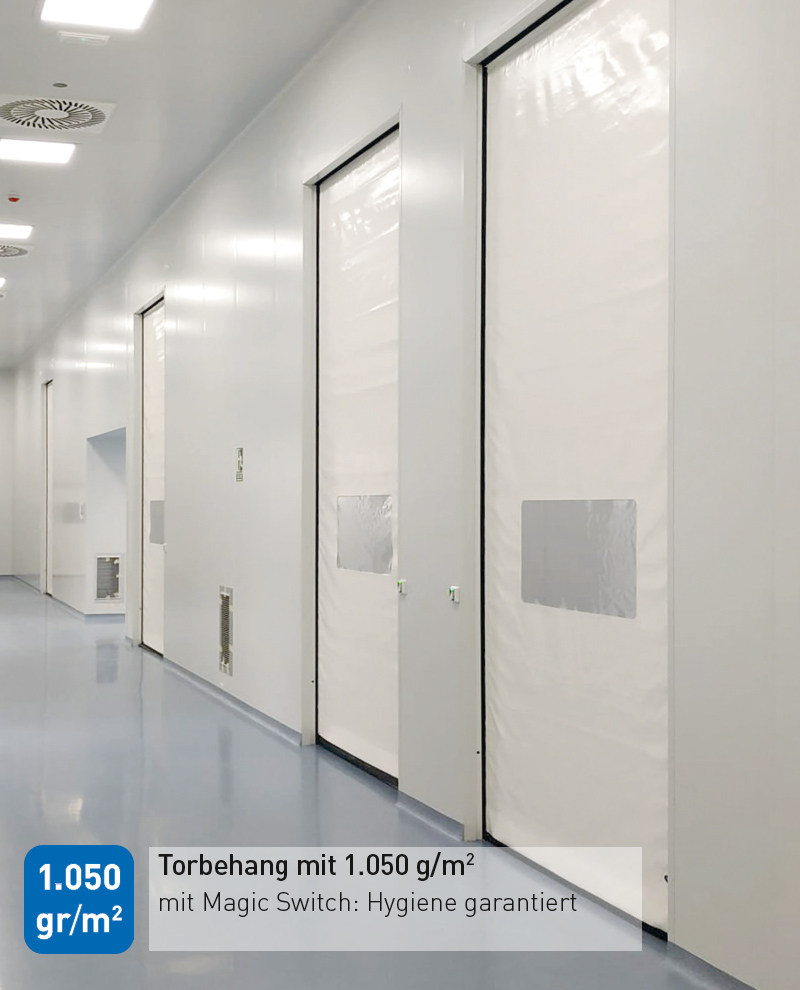

Optionally available with a white door curtain with a weight of 1,050 g/m2
The side guides and the cover are optionally available in any standard RAL colour.
* Depending on the configuration.

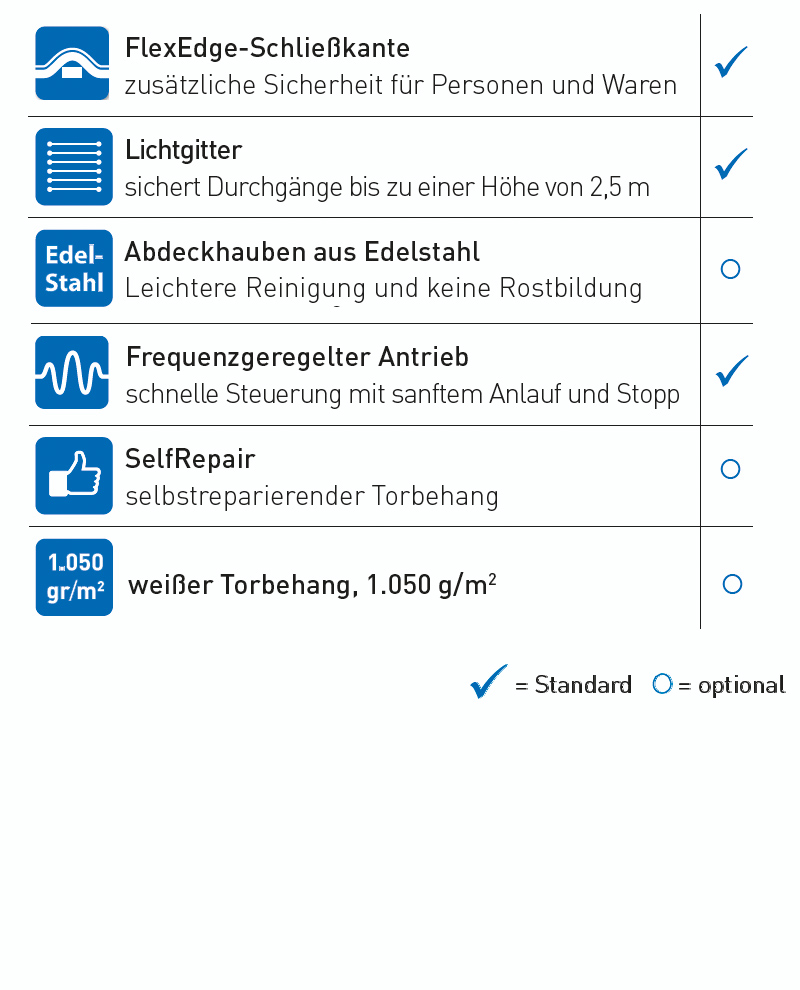

Options
APPLICATION EXAMPLES
In the LIGHT AND HEAVY INDUSTRY, production processes must run without interruptions and delays. If production is spread across several buildings, transport between them is necessary.
Delays caused by jammed or even defective doors are unacceptable.
The NOVOZIP is extremely fast, extremely reliable even under high wind loads and is also self-repairing:
After a collision with the door, the door curtain automatically returns to the guide rail. This virtually eliminates disruptions to your production process.
At the same time, you save a lot of energy and can ensure a permanently pleasant indoor climate.
In the FOOD INDUSTRY, doors must be quick, reliable and easy to clean. Hinges and closing edges, where dirt can accumulate, are not permitted in many places. There is often considerable wind pressure between the various halls. Under such conditions, the Novo-Zip is the perfect solution.
In the AUTOMOBILBRANCHE, production lines often run from one hall to a neighbouring one. High-speed doors help to maintain the climate in the halls and help to save energy, while at the same time separating the individual areas from each other so that dust, dirt and noise cannot spread. The high-speed doors are integrated into the process control system to ensure uninterrupted production.
With the intelligent control systems from Novoferm, each door can be customised to any situation.

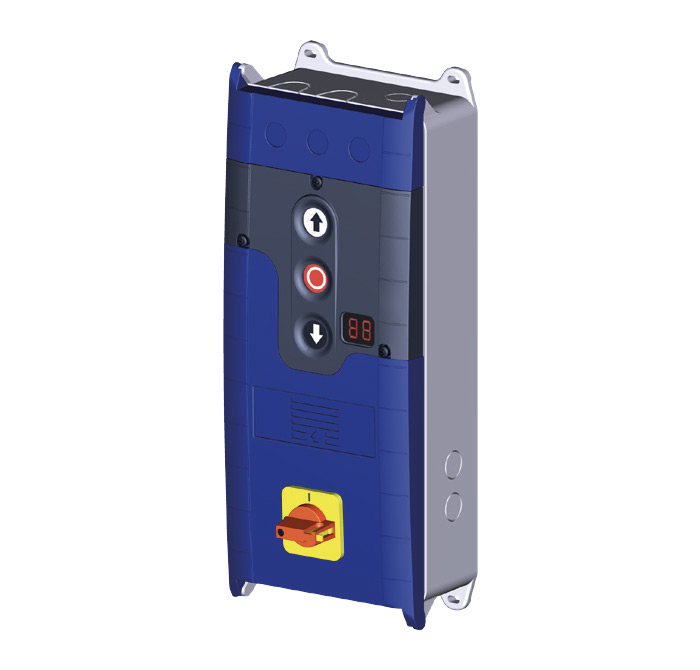

CONTROL
MAGIC SWITCH | Control unit
The Magic Switch control works like a non-contact button.
This is particularly important in environments where hygiene is important, for example in the food industry.

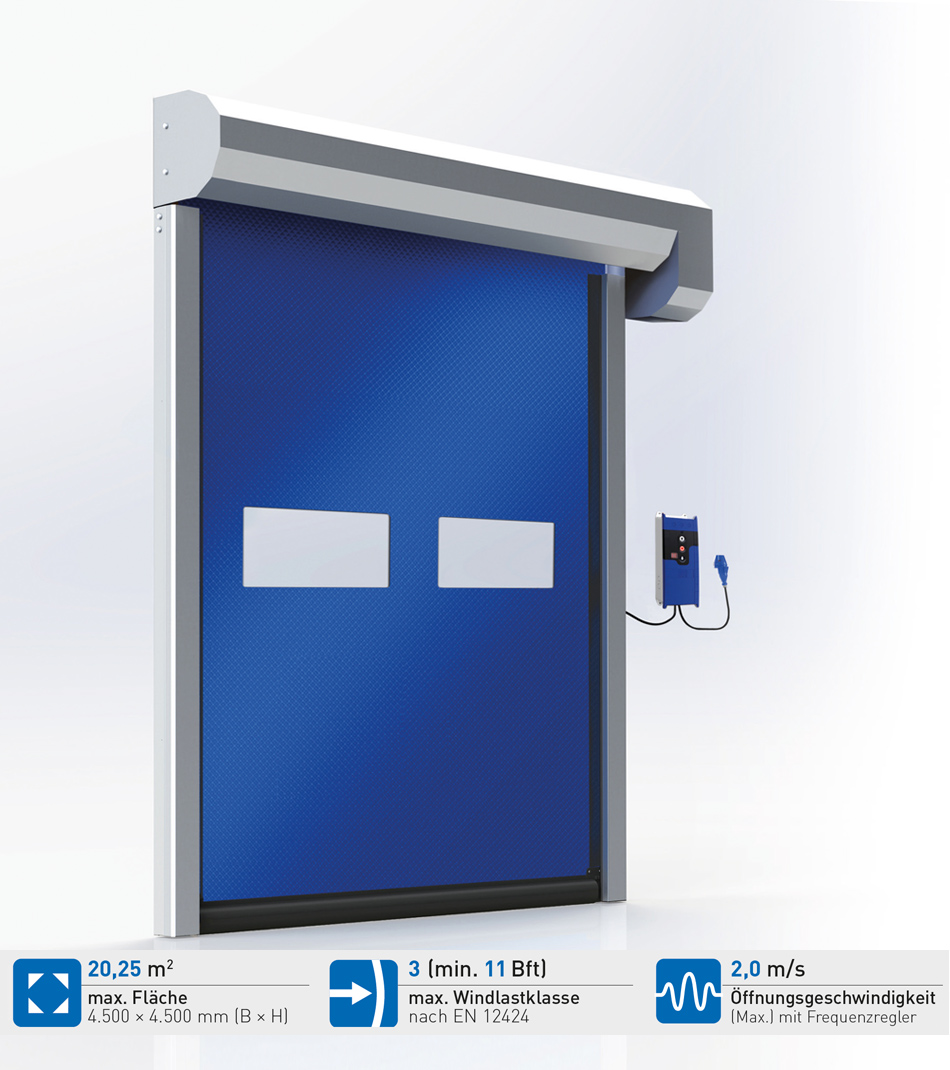

| max. Fläche (B × H) | 20,25 m² |
| max. Breite | 4.500 mm |
| max. Höhe | 4.500 mm |
| Windlastbeständig bis min. [* mit WindLoad Optimiser] | 11 Bft |
| max. Windlastklasse nach EN 12424 | 3* |
| Öffnungsgeschwindigkeit mit Frequenzregler | 2,0 m/s |
| Schließgeschwindigkeit mit Frequenzregler | 0,5 m/s |
| Behangstärke | 1,0 mm |
| Behanggewicht, Class M2 | 900 g/m² |
| Behanggewicht (optional) | 1.050 g/m² |
| Eignung als Außentor | ja |

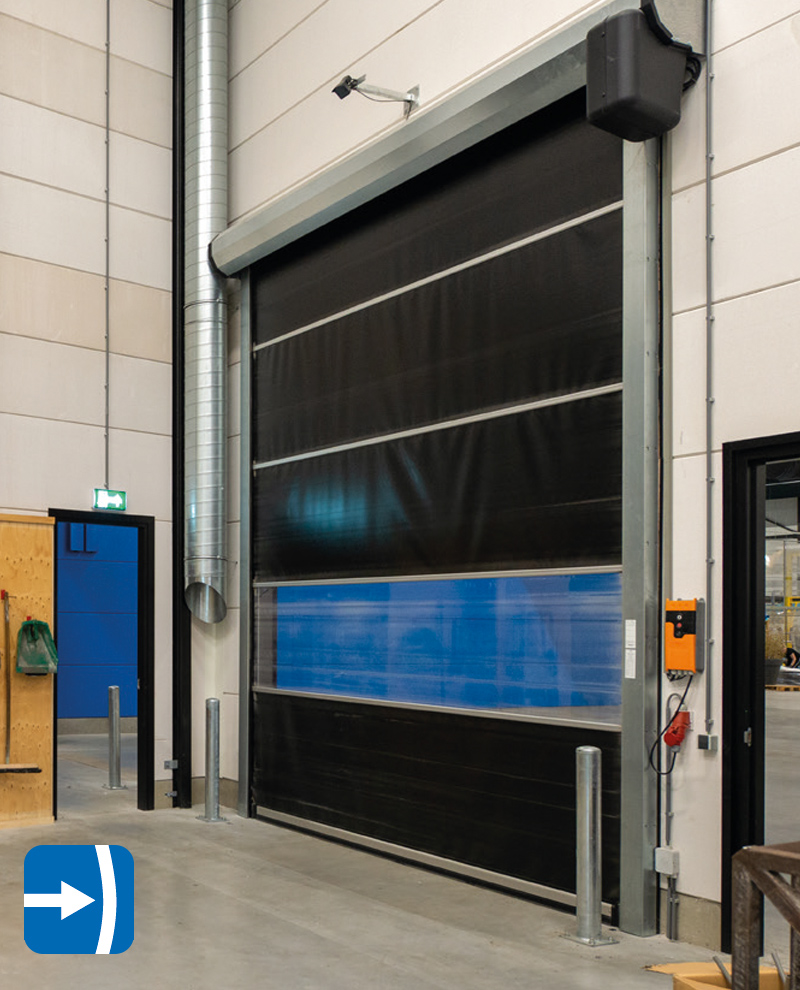

Details Strong
Details Strong

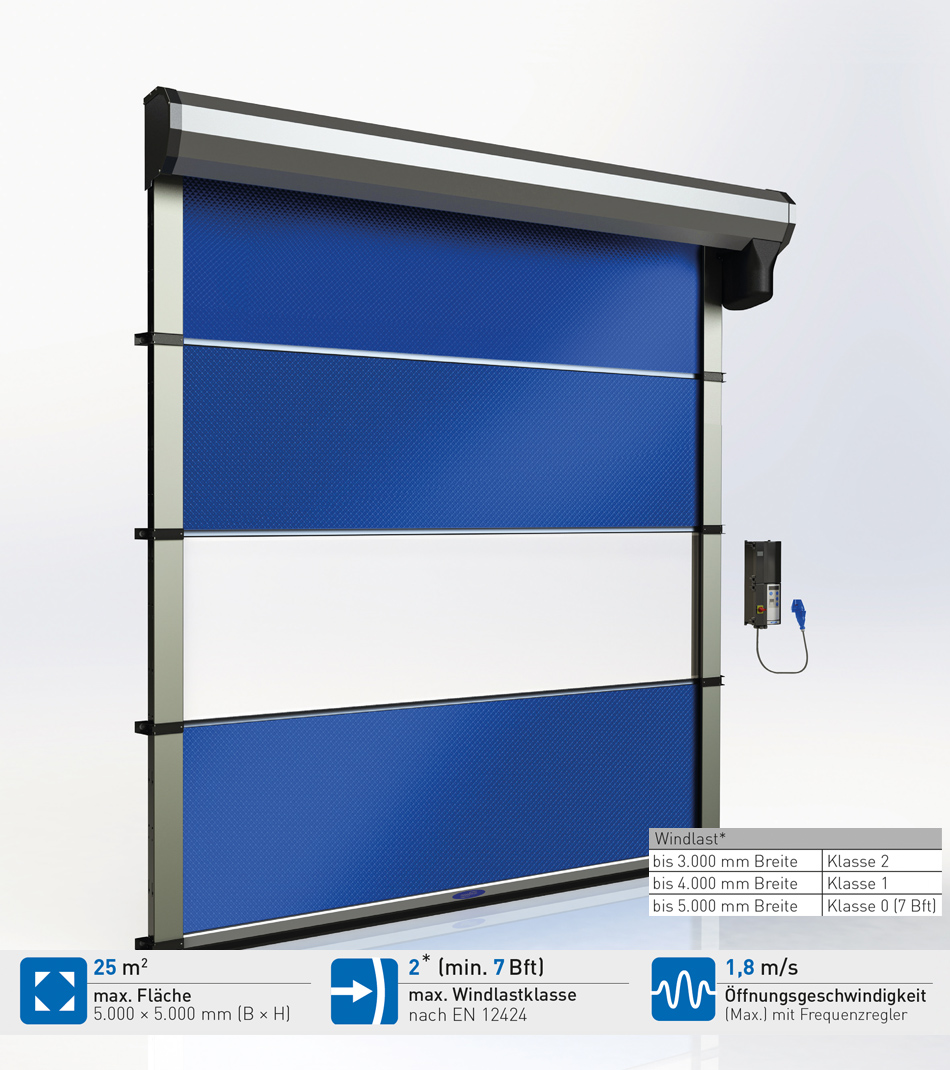

APPEARANCE AND PERFORMANCE IN PERFECT HARMONY

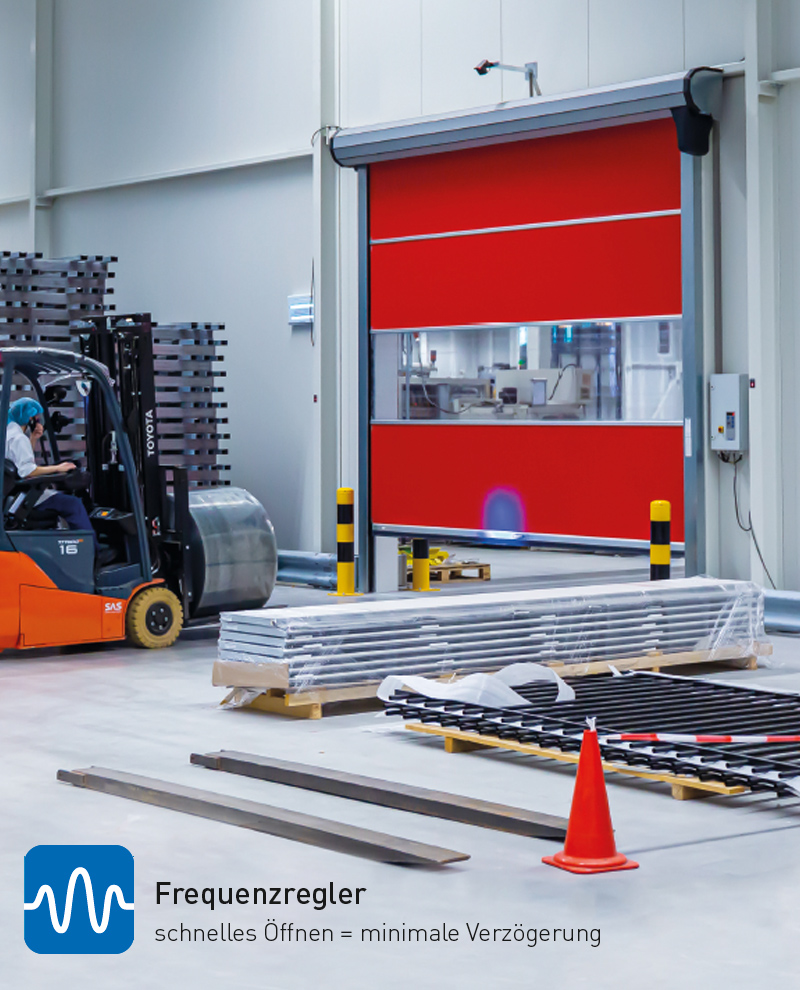

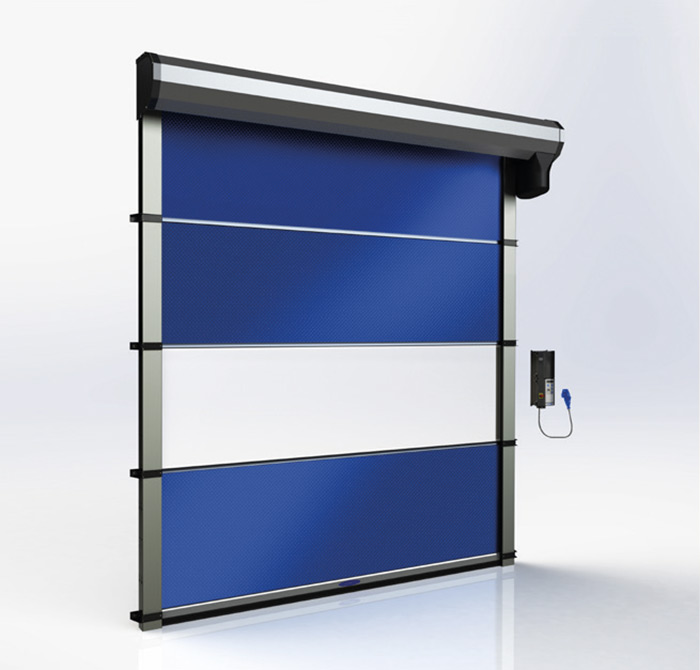

The SPEEDROLLER STRONG has been specially developed for high speeds and intensive use.
Ideal for the rapid passage of people and goods, even under high wind pressure. Suitable for openings up to 25m2.
The reinforcement profiles provide additional stability.
The opening speed of 1.8 m/s makes this door a practical solution, even with heavy traffic and large passageways.
Ideal for fast-moving, large-scale production processes where downtime cannot be tolerated.
APPLICATION
- Distribution centres
- Warehouses
- Large industrial halls
- Heavy industry
PROPERTIES
- WIND RESISTANT up to min. 7 Bft (5,000 × 5,000 mm) Wind class 2 according to EN 12424 (up to a width of 3,000 mm)
- FAST opening and closing, and very frequently: this is the strength of the SpeedRoller STRONG.
- MAXIMUM reliability under all indoor conditions
- SOUND INSULATION: Noise reduction thanks to additional sound insulation on the winding shaft
- NO MORE AIR: brush seal in the track and closing edge with rubber seal
- SAFE : with light grille as standard, optionally with FlexEdge closing edge
- ROBUST: the WindLoad Optimiser makes the Strong even more stable for high wind loads
COLOURS
Available as standard in the following RAL colours:
Optionally available with 1.2 mm door curtain in the following RAL colours:
The side guides and cover are optionally available in any standard RAL colour.
1) optional

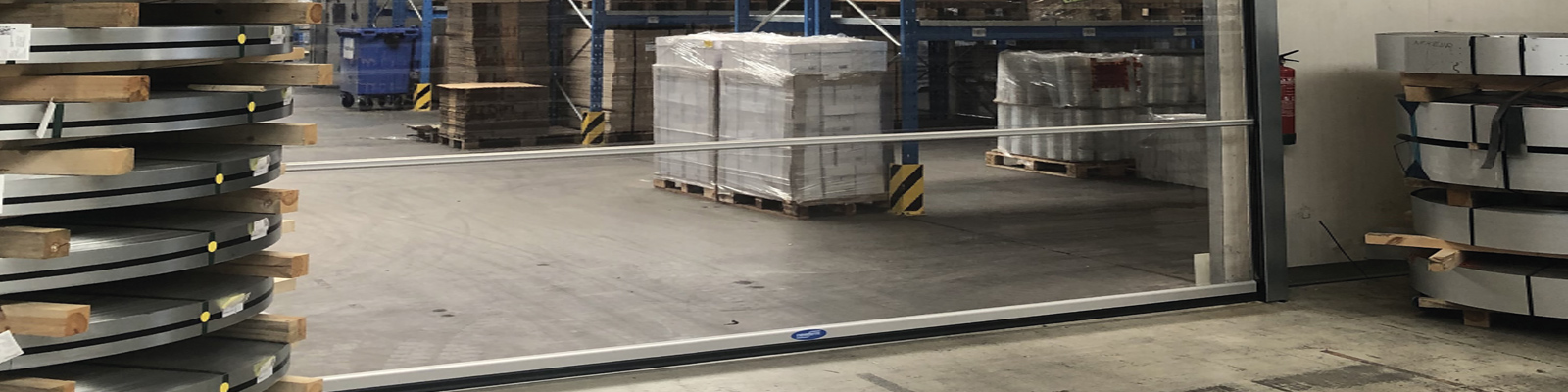

* Depending on configuration
Options
APPLICATION EXAMPLES
In LARGE STORES, heating or air treatment systems can create a pressure difference compared to neighbouring rooms or the outside air.
Every door in the warehouse must be able to withstand the enormous wind loads that occur when the air pressure built up in the warehouse escapes through a relatively small door opening.
Although solid sectional doors are able to do this, they open and close slowly. As a result, a lot of heat is lost, which in turn creates strong draughts and unnecessarily slows down your production process.
In such situations, the SpeedRoller Strong is the ideal solution!
LOGISTICS SERVICES are particularly efficient when traffic between the various halls can flow quickly and smoothly. By using suitable control elements, it is possible to determine exactly who is allowed to pass through which gate and who is not. In this way, traffic not only flows quickly and smoothly, but also in a highly structured manner. Only then can you precisely control the flow of goods in your building and thus further increase efficiency.

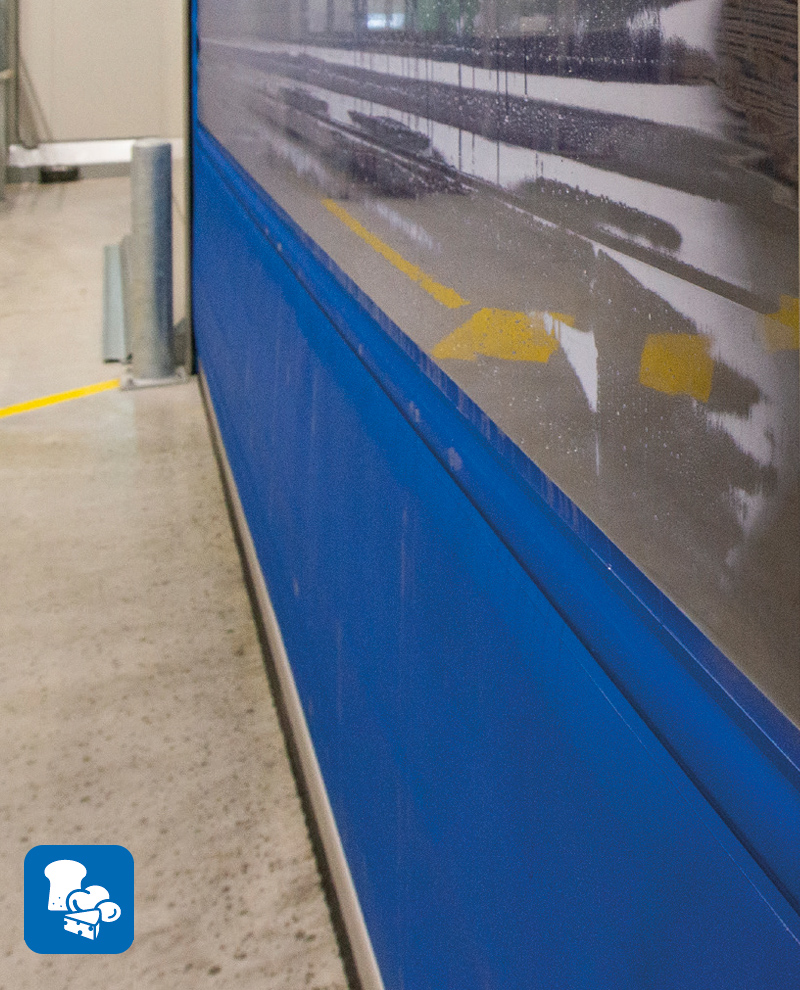

In the FOOD INDUSTRY , fast, reliable and hygienic doors are required. In such situations, the SpeedRoller Strong is the perfect solution: fast thanks to optional frequency control, reliable thanks to the robust supporting structure with additional reinforcement profiles, hygienic thanks to the optional stainless steel runners, encapsulated hinges and mould-resistant seals.
CONTROL
| max. area (W × H) | 25 m² |
| max. width | 5,000 mm |
| max. height | 5,000 mm |
| Wind load resistant up to min. [* with WindLoad Optimiser] | 7 Bft |
| Max. wind load class according to EN 12424 | 2* |
| Opening speed with frequency regulator | 1.8 m/s |
| Closing speed with frequency regulator | 0.5 m/s |
| Opening/closing speed with standard control | 1 m/s |
| Curtain thickness (standard/optimum) | 0.7 / 1.2 mm |
| Curtain weight (standard/optimum) | 680 / 1400 g/m² |
| Suitability as external door | no |
Technology and details
Technical data - High-speed roller doors for indoor use
Technical data - High-speed roller doors for indoor use
description | unit | PRIME | Prime-XF | Strong-E | Strong-FV | Strong | NovoZip | |
Speed control | Standard control | open in m/s (approx.) | 1 | 1 | 1 | |||
close in m/s (approx.) | 1 | 1 | 1 | |||||
| Control with frequency controller | open in m/s (approx.) | 1,5 | 1,8 | 1,8 | ||||
close in m/s (approx.) | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | |||
| Safety | EN 13241 | ● | ● | ● | ● | ● | ● | |
| Wind resistance | Minimum value, in Bft | [with WindLoad Optimiser] | 3 [7] (- 61 km/h) | 3 [7] (- 61 km/h) | 8 (- 74 km/h) | 7 (- 61 km/h) | 7 (- 61 km/h) | 11 (- 117 km/h) |
| Wind load class | max., according to EN 12424 | Class 0 | Class 0 | Class 0 | Class 1 (B ≤ 3 m) | Class 2 (B ≤ 3 m) | Class 3 | |
Door size | Width | in mm, max. | 3.500 | 3.500 | 3.000 | 5.000 | 5.000 | 4.500 |
| Height | in mm, max. | 3.500 | 3.500 | 3.500 | 5.000 | 5.000 | 4.500 | |
| Max. area | in m², max. | 12,25 | 12,25 | 9 | 25 | 25 | 20,25 | |
Overall size without required mounting clearances | Width drive side | clear width + mm | 300 | 300 | 300 | 300 | 300 | 310 |
| Width bearing side | clear width + mm | 170 | 170 | 170 | 170 | 170 | 120 | |
| Height | Clear height + mm | 410 | 410 | 410 | 410 | 410 | 500 | |
| Depth | from wall, in mm | 325 | 325 | 325 | 325 | 325 | 370 | |
| Width with protective cover, drive side | clear width + mm | 410 | 410 | 410 | 410 | 410 | 310 | |
| Width with protective cover, bearing side | clear width + mm | 170 | 170 | 170 | 170 | 170 | 120 | |
| Height with protective cover | Clear height + mm | 460 | 460 | 460 | 460 | 460 | 500 | |
| Depth with protective cover | from wall, in mm | 430 | 430 | 430 | 430 | 430 | 370 | |
| Control unit T100R, plastic housing [400 V, 3L + N + PE, IP65] | W × H × D = 219 × 256 × 117 mm | ● | ● | ● | ● | |||
| large control unit T100R FU, 1.5 kW [230 V, L+ N + PE, IP65] | W × H × D = 219 × 550 × 117 mm | o | ● | o | o | o | ||
| large control unit T100R FU 3 kW [400 V, 3L+ N + PE, IP65] | W × H × D = 300 × 600 × 160 mm | |||||||
| GFA TS971 | W × H × D = 155 × 386 × 90 mm | ● | ||||||
| GFA TS981 | W × H × D = 190 × 300 × 115 mm | o | ||||||
| EasyRepair | manual retraction | o | o | o | o | |||
| SelfRepair | Automatic retraction (self-repair) | ● | ||||||
Door curtain | Thickness of the transparent sections | 0.8 / 20 mm | 0.8 mm | 0.8 mm | 0.8 mm | 0.8 mm | 0.8 mm | 0.8 mm |
| Thickness of the coloured plastic door curtain | 0.7 / 1.0 / 1.2 mm | 0.7 / 1.2 mm | 1.2 mm | 0.7 mm | 0.7 / 1.2 mm | 1.0 mm | ||
| Thickness of the insulation sections | 40 mm | |||||||
Guide material/surface finish | Steel, galvanised/powder-coated | ● / - | ● / - | ● / - | ● / - | ● / - | ● / - | |
| Stainless steel (304), polished | o | o | o | o | o | o | ||
| Painted/powder-coated in RAL colour according to customer requirements | o | o | o | o | o | o | ||
Drive and control unit | Electronic limit switches DES | ● | ● | ● | ● | ● | ● | |
| Power supply | 230 V, L + N + PE/ 400 V, 3L + N + PE | 230 V, L + N + PE | 230 V, L + N + PE/ 400 V, 3L + N + PE | 230 V, L + N + PE/ 400 V, 3L + N + PE | 230 V, L + N + PE/ 400 V, 3L + N + PE | 230 V, L + N + PE | ||
| Fuse | 16 A, slow-blow | 16 A, slow-blow | 16 A, slow-blow | 16 A, slow-blow | 16 A, slow | 16 A, slow | ||
| Main switch | o | o | ● | o | o | o | ||
| Emergency stop switch | o | o | o | o | o | o | ||
| Direction detection in the door opening | Light grid | ● | ● | ● | ● | ● | ● | |
Light barrier + safety closing edge | o | o | o | o | o | o | ||
Radar detector | o | o | o | o | o | o | ||
Emergency opening | Crank | ● | ● | ● | ● | ● | ● | |
| Pull chain | o | o | o | o | o | o | ||
| UPS, 230 V | only with 230 V frequency regulator | o | o | o | o | o | o | |
| ● = standard version o = optional | ||||||||
Montage
How do I install Novoferm high-speed roller shutters?
The following videos illustrate the step-by-step installation of Novoferm high-speed roller shutters. The videos are only intended as a supplement to the installation, operating and maintenance instructions. They do not replace professional installation by qualified and trained personnel.
ASSEMBLY HIGH-SPEED ROLLER SHUTTER STRONG
Click on the animation on the left for a visually appealing demonstration of the installation of a Novoferm high-speed roller shutter door using the example of the Speedroller Strong.
Detailed animations / videos on the advantages, installation and programming of Novoferm high-speed roller shutters can be found on the Novoferm YouTube channel:
https://www.youtube.com/NovofermVideos
ASSEMBLY HIGH-SPEED ROLLER SHUTTER PRIME
ASSEMBLY HIGH-SPEED ROLLER SHUTTER PRIME
Click on the animation on the left for a visually appealing demonstration of how to install a Novoferm high-speed roller shutter door using the NovoSpeed Prime model as an example.
Detailed animations / videos on the advantages, installation and programming of Novoferm high-speed roller shutters can be found on the Novoferm YouTube channel:
https://www.youtube.com/NovofermVideos
Mounting Speedroller NovoZip
ASSEMBLY OF NOVOZIP HIGH-SPEED ROLLER SHUTTER DOOR
Click on the animation on the left for a visually appealing demonstration of how to install a Novoferm high-speed roller shutter door using the NovoZip Speedroller as an example.
Detailed animations / videos on the advantages, installation and programming of Novoferm high-speed roller shutters can be found on the Novoferm YouTube channel:
https://www.youtube.com/NovofermVideos
