NOVOLUX INDUSTRIAL SECTIONAL DOORS
Available with 40 mm or 60 mm insulation
When light and visibility are the benchmark

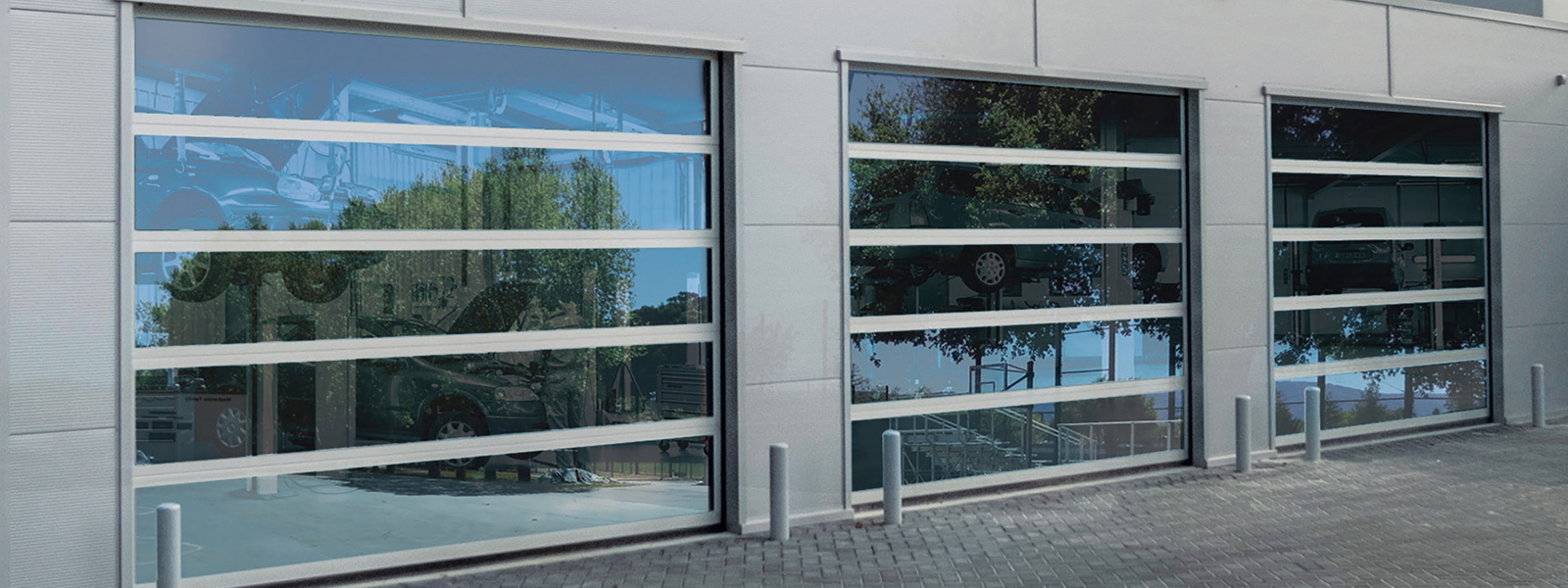

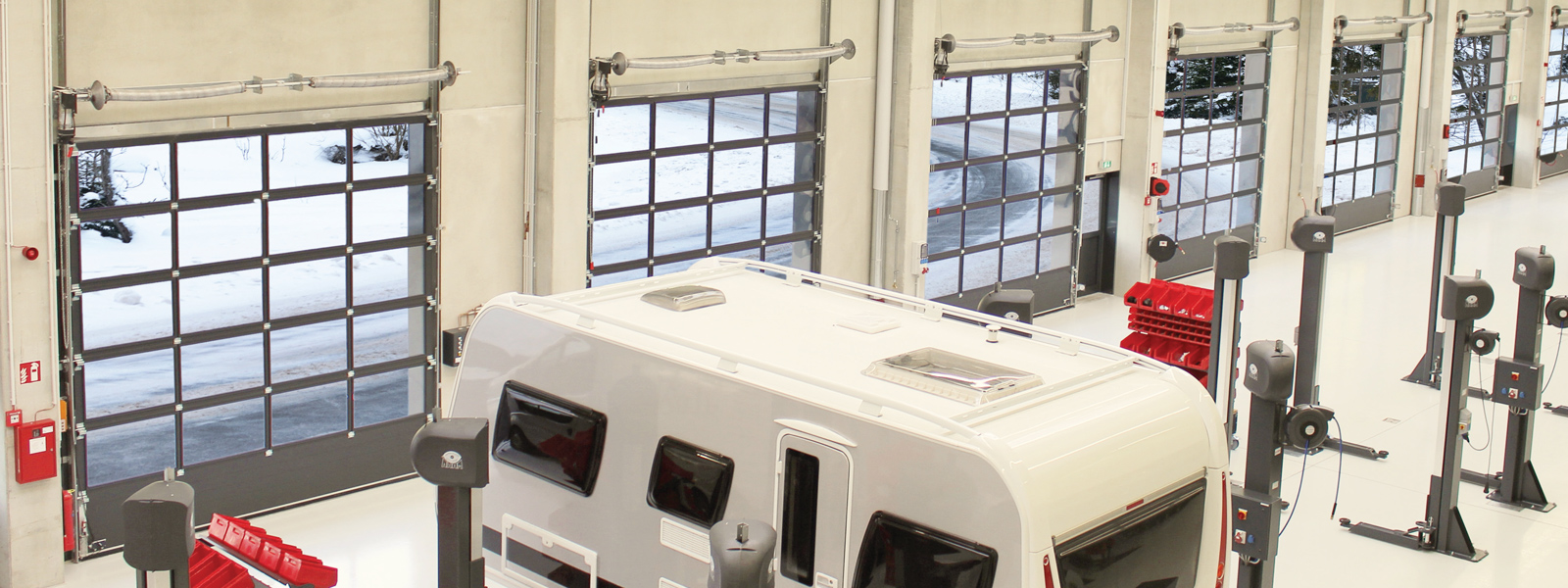

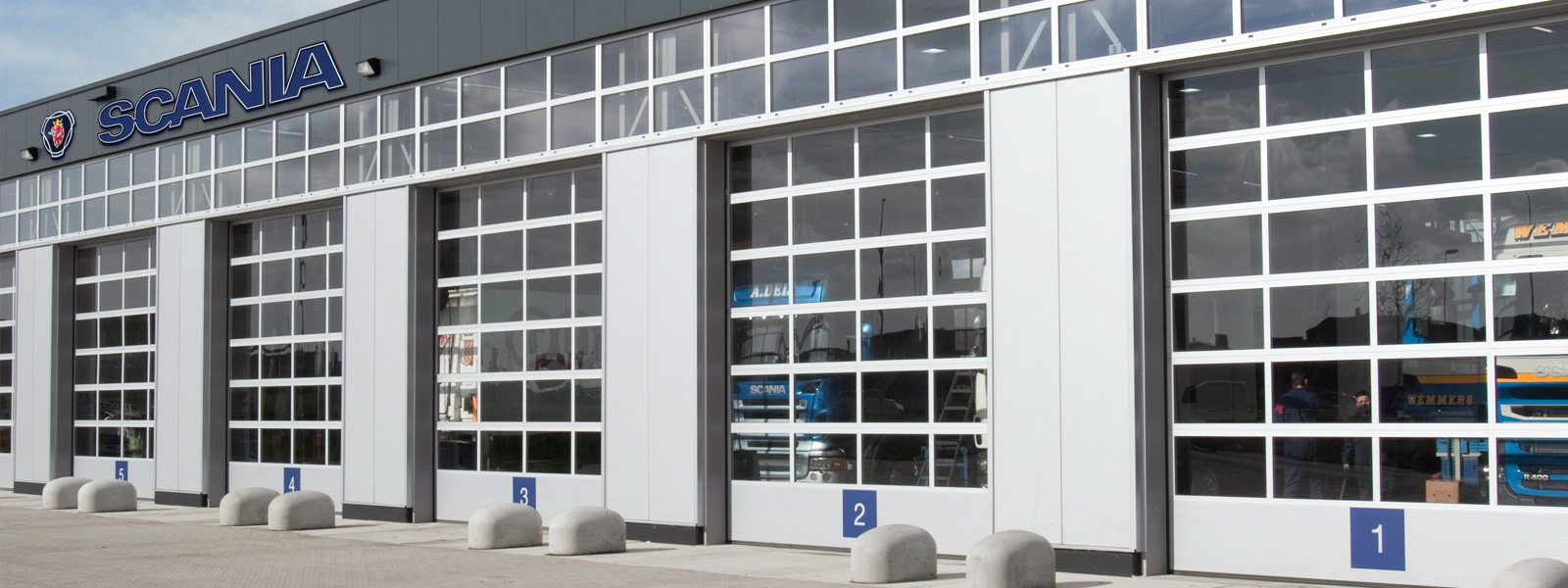

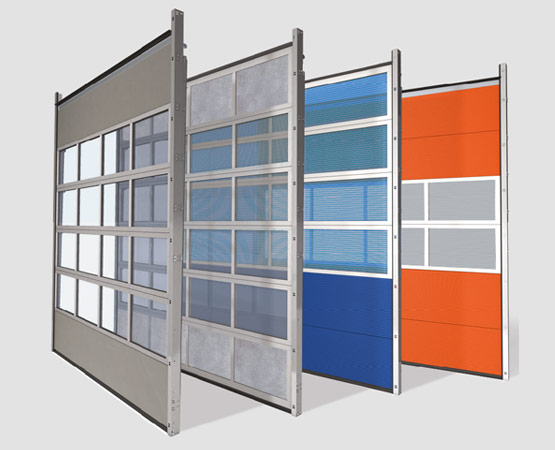

NovoLux sectional doors show their strengths in commercial environments where light and visibility are crucial. The door leaf is made up of several sections. By using specially dimensioned aluminium profiles, frame constructions can be produced with a wide range of options for filling the sections. Combine the frames with aluminium cassette panels and choose between translucent, coloured, heat-insulating or air-permeable. Practically anything is possible.
Overview of door types
Door comparison and properties
Comparison of sectional door types
Novolux 40 mm, Novolux 60 mm, Novolux Xl 40 mm and Novolux Xl 60 mm
| General | NovoLux 40 mm | NovoLux 60 mm | NovoLux XL 40 mm | NovoLux XL 60 mm | ||
| Max. Max. width | 8,000 mm | 8,000 mm | 4,000 mm | 4,000 mm | ||
| Max. Max. height | 6,000 mm | 6,000 mm | 4,500 mm | 4,500 mm | ||
| Max. Surface area (WxH) | 48 m² | 48 m² | 18 m² | 18 m² | ||
| U-value (for 5,000 x 5,000 mm) | 3.87 W/m²K | 2.38 W/m²K | 3.87 W/m²K | 2.43 W/m²K | ||
| Wind class according to EN 12424 | 3 - 4 wind resistant up to 12 - 13 Beaufort (118 - 149 km/h) | 3 - 4 wind resistant up to 12 - 13 Beaufort (118 - 149 km/h) | 3-4 wind-resistant up to 12-13 Beaufort (118 - 149 km/h) | 3-4 wind-resistant up to 12-13 Beaufort (118 - 149 km/h) | ||
Rail systems | Standard guide | T 450 | x | x | x | x |
| T 340 | o | o | o | o | ||
| Low camber | T 240 | o | o | o | o | |
With height guide | T 400 | o | o | o | o | |
| T 400 HF | o | o | o | o | ||
| T 400 DS | o | o | o | o | ||
Roof sequence | T 450 | o | o | o | o | |
| T 340 | o | o | o | o | ||
| T 240 | o | o | o | o | ||
| T 400 | o | o | o | o | ||
| T 400 HF | o | o | o | o | ||
| T 400 DS | o | o | o | o | ||
Vertical guide | T 500 | o | o | o | o | |
| T 500 HF | o | o | o | o | ||
| T 500 DS | o | o | o | o | ||
| Operation and control | ||||||
| Operation | Manual operation | Pull rope or reel chain | Pull rope or reel chain | Pull rope or reel chain | Pull rope or reel chain | |
| E-drive | o Electric motor with gearbox | o Electric motor with gearbox | o Electric motor with gearbox | o Electric motor with gearbox | ||
| Control (electric drive) | Dead man's control, pulse control or remote control | Dead man's control, pulse control or remote control | Dead man's control, pulse control or remote control | Dead man's control, pulse control or remote control | ||
| Available controls | T75/ T100 | T75/ T100 | T75/ T100 | T75/ T100 | ||
| Load change | 30,000 cycles using torsion springs * | 30,000 cycles using torsion springs * | 30,000 cycles using torsion springs * | 30,000 cycles using torsion springs * | ||
| Options and accessories1 | ||||||
Safety | Leading light barrier (no wiring on the door leaf) | o | o | o | o | |
| Rope breakage protection | o | o | o | o | ||
| Lifting safety device | o | o | o | o | ||
| Connection of traffic lights (red/green or red and green) | o | o | o | o | ||
| Flashing warning light (orange/red) | o | o | o | o | ||
| Push bolt with spring return, heavy-duty design | o | o | o | o | ||
| Cylinder lock | o | o | o | o | ||
| 1 At extra cost x = Standard o = Optional - = Not possible * Higher load cycles possible | ||||||
Highlights und Optionen

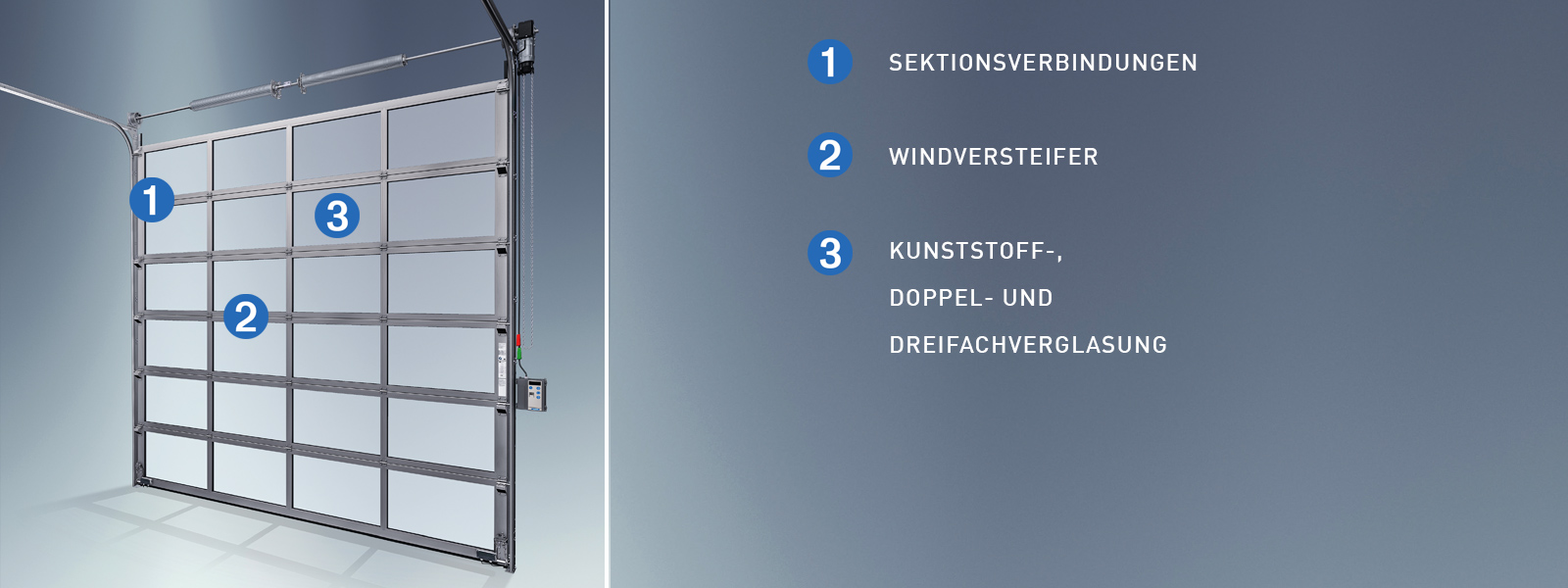

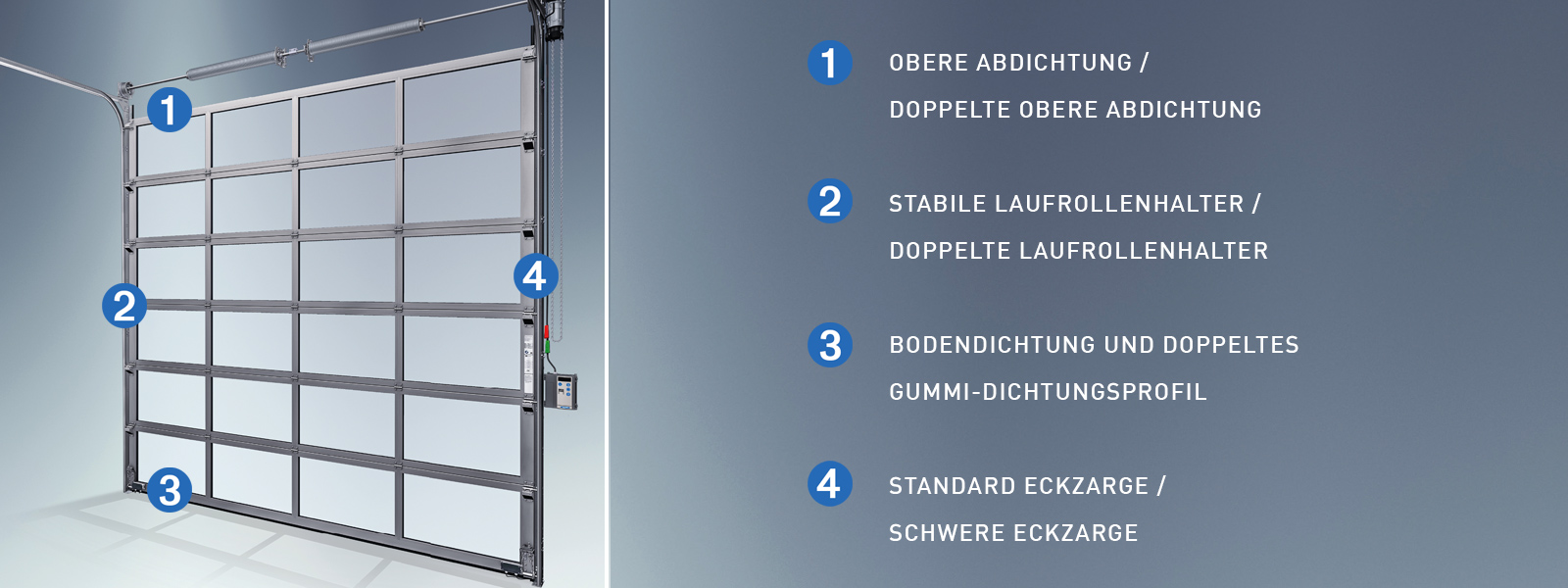

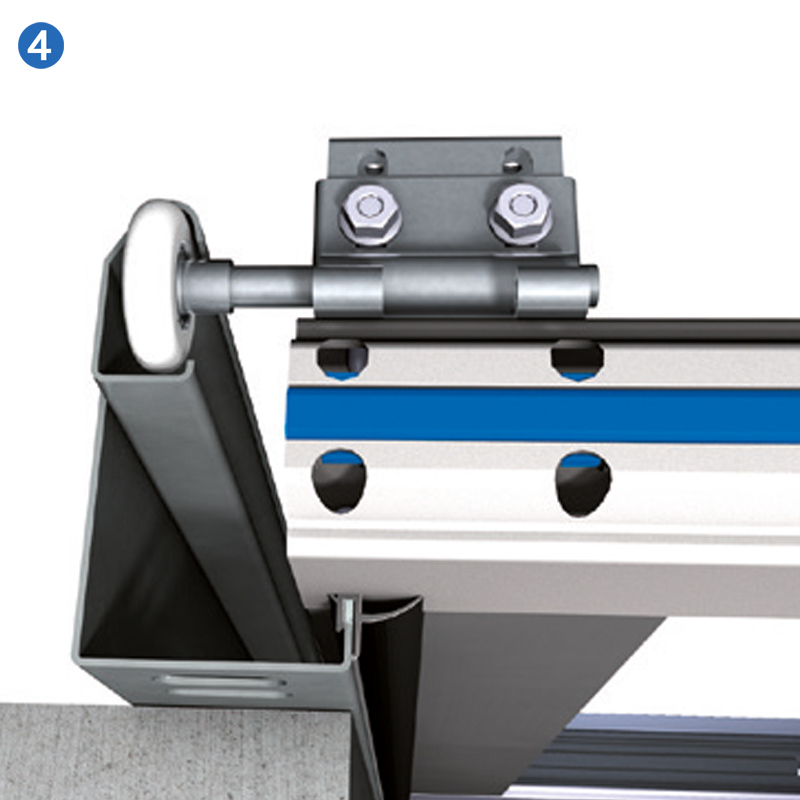

DETAILS UND OPTIONEN NOVOLUX 40/ 60
DETAILS UND OPTIONEN NOVOLUX 40/ 60

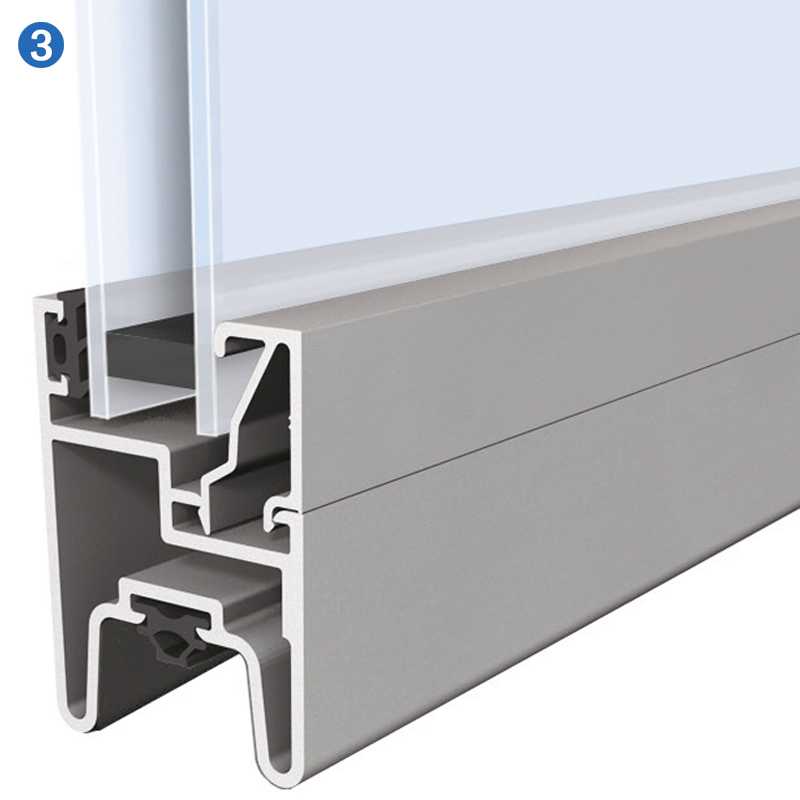

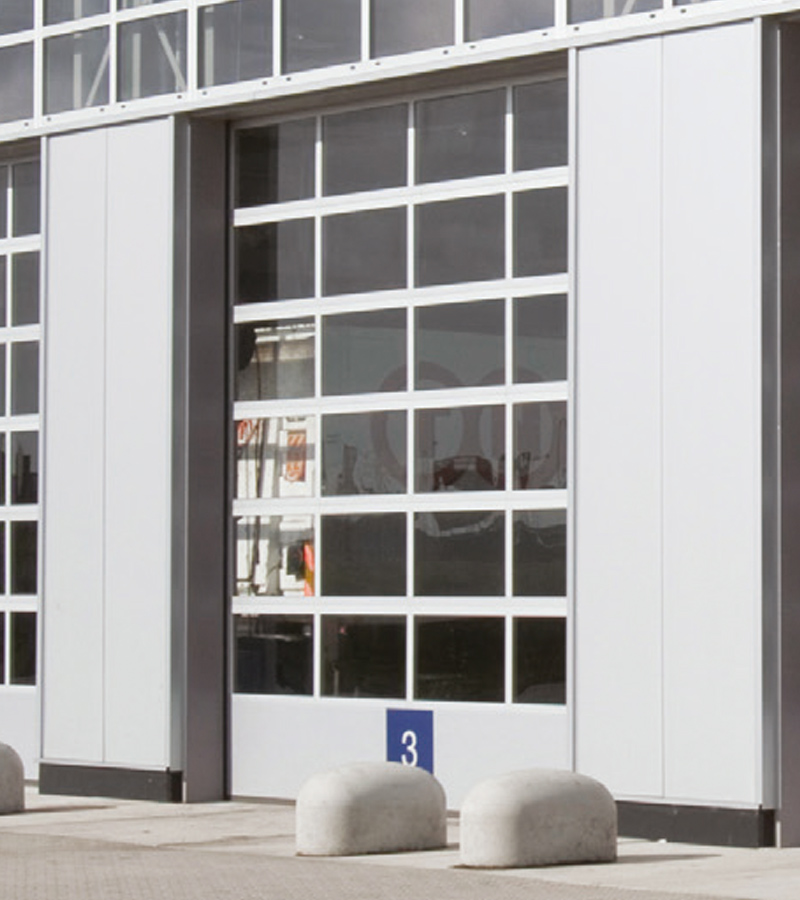

Details sectional door NovoLux 40 mm
Details sectional door NovoLux 40 mm

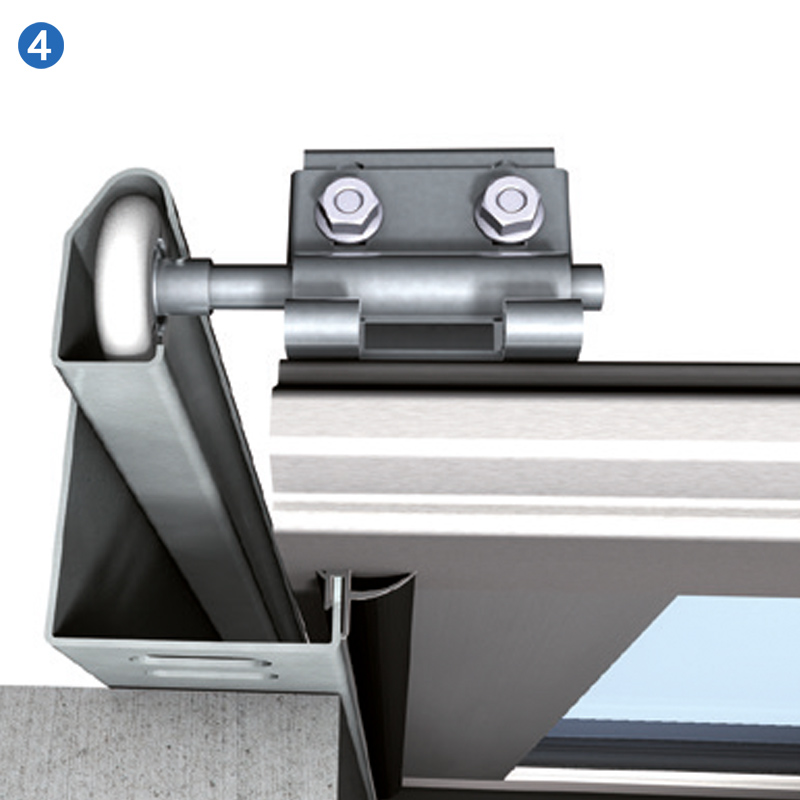

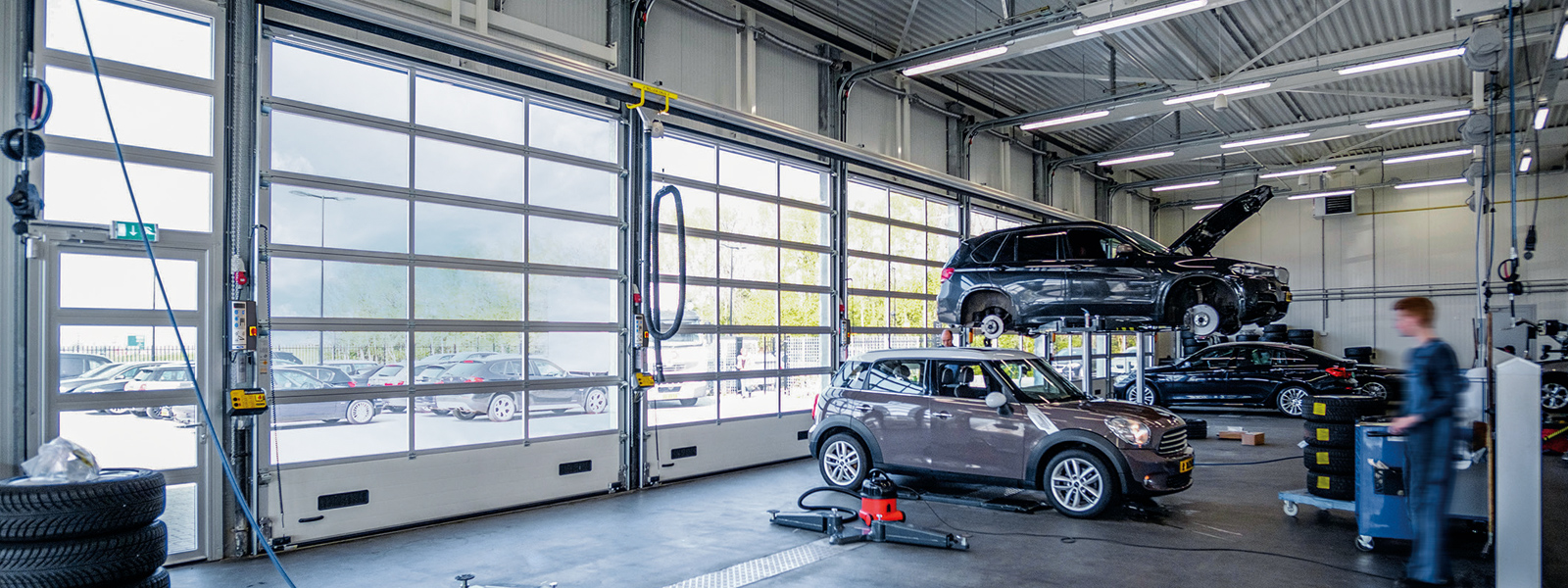

The NovoLux 40 sectional door shows its strengths in commercial environments where light and visibility are crucial. The door leaf is made up of several sections. By using specially dimensioned aluminium profiles, frame constructions can be produced with a wide range of options for filling the sections. Combine the frames with aluminium cassette panels and choose between translucent, coloured, heat-insulating or air-permeable. Practically anything is possible.
PLAYING WITH LIGHT AND SIGHT
NovoLux 40 sectional doors can be fitted with a wide range of PVC-U windows in numerous variants, thermal insulation values, colours and textures to suit your requirements.
Choose between coloured glass or multi-skin sheets, play with the section layout and combine thermal panels with the NovoLux sections for an optimum effect.
The NovoLux 40 door offers a wide range of design and application options, especially if you need a lot of light for working in your building, but the appearance is also important.

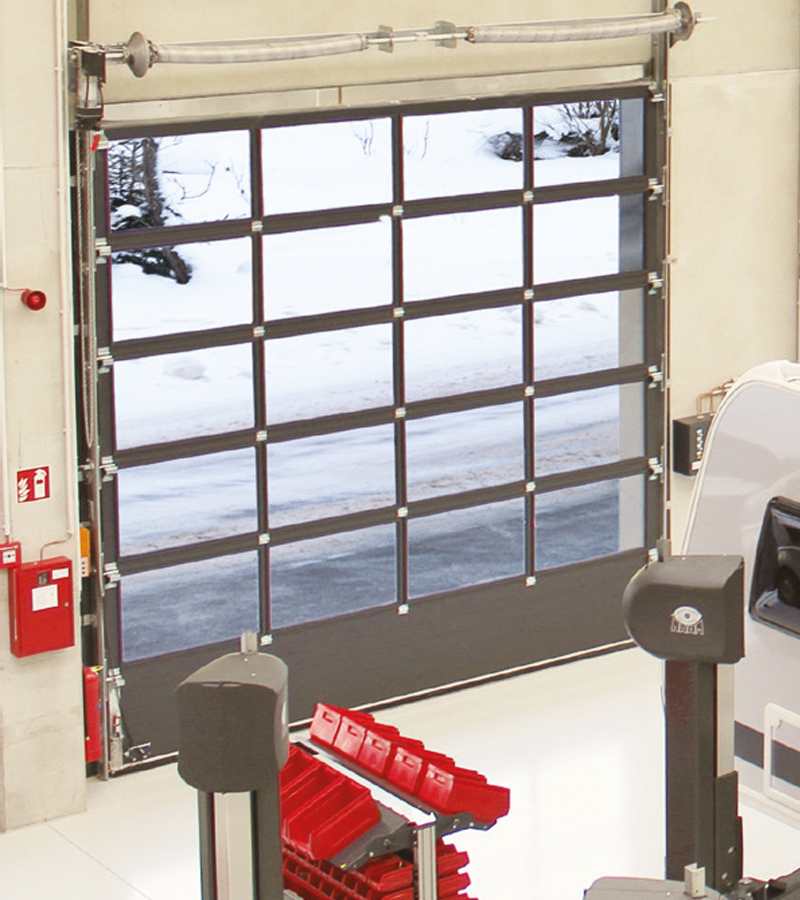

Details sectional door NovoLux 60 mm
Details sectional door NovoLux 60 mm

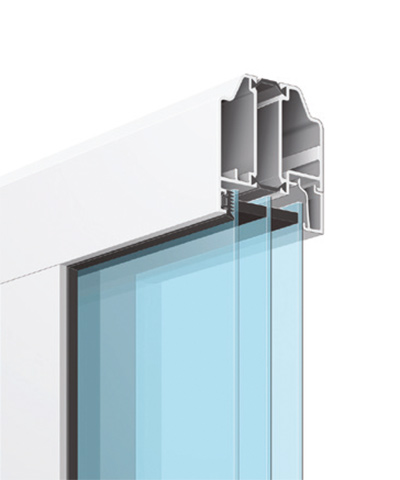

The NovoLux 60 sectional door is modern and innovative, and is characterised by its form, function and ease of installation. The door in 60 mm construction thickness is supplied with triple glazing as standard and guarantees excellent thermal insulation as well as soundproofing properties and prevents condensation. Ideal in areas where light, visibility and a constant indoor climate are important.

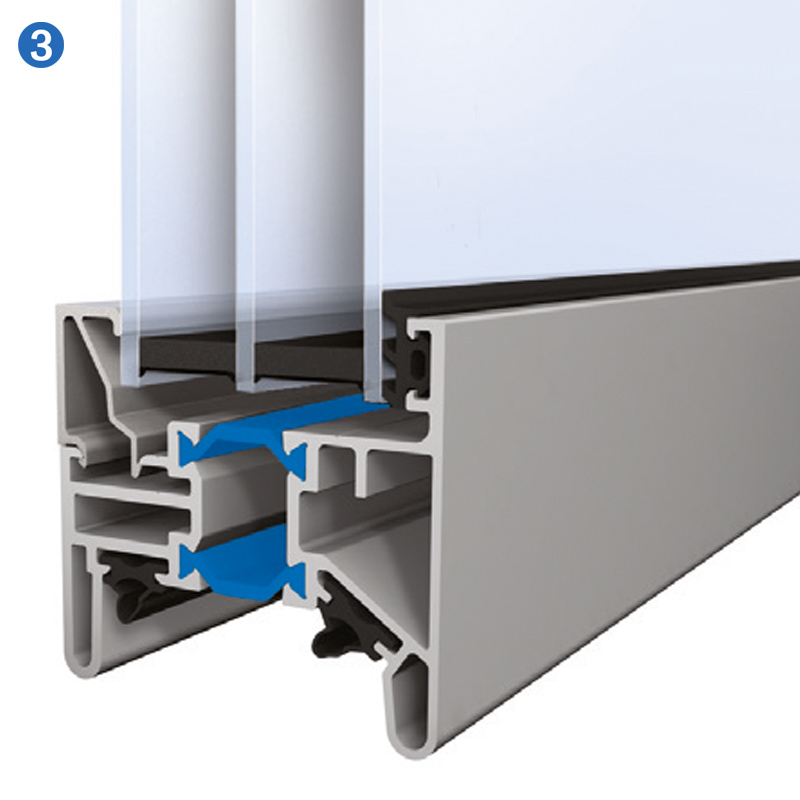

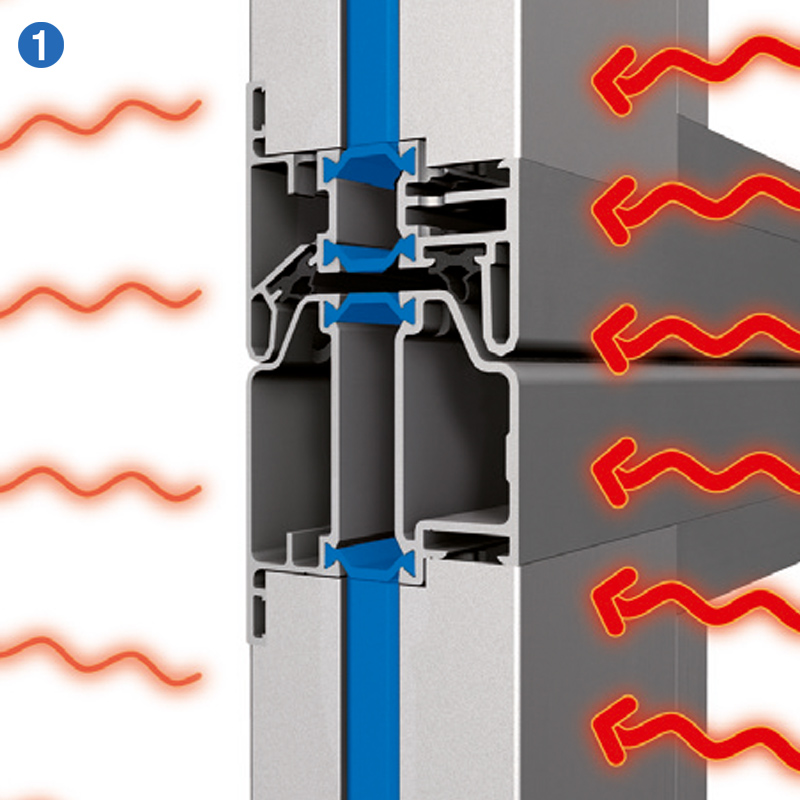

THERMALLY SEPARATED PROFILES

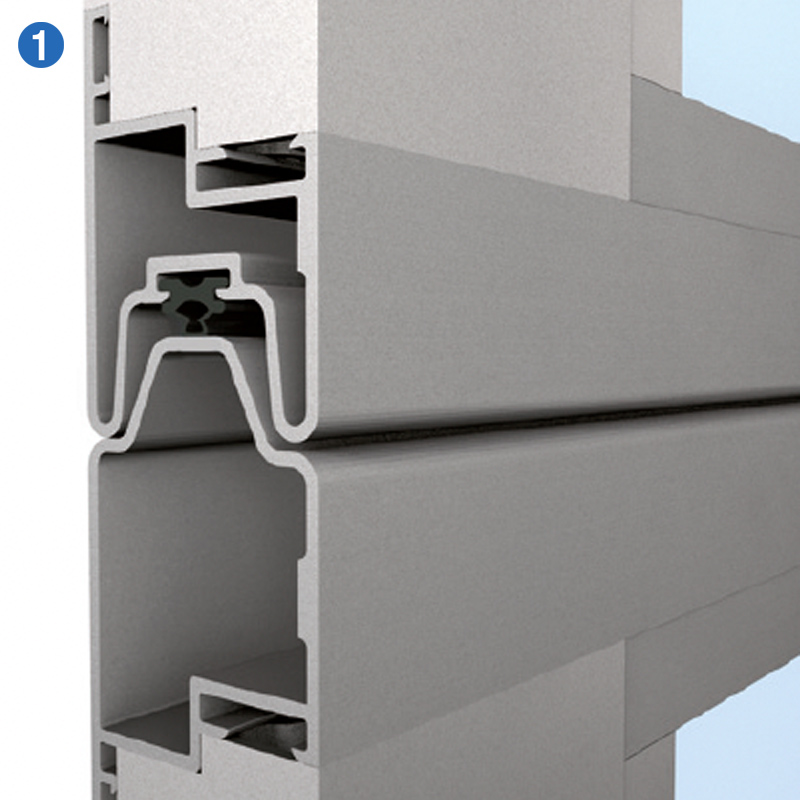

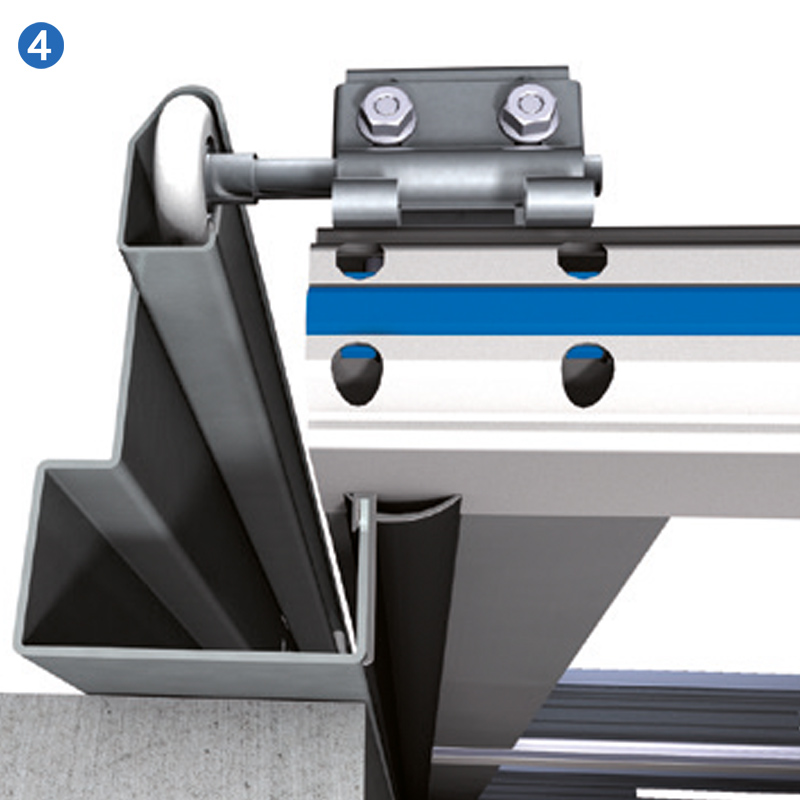

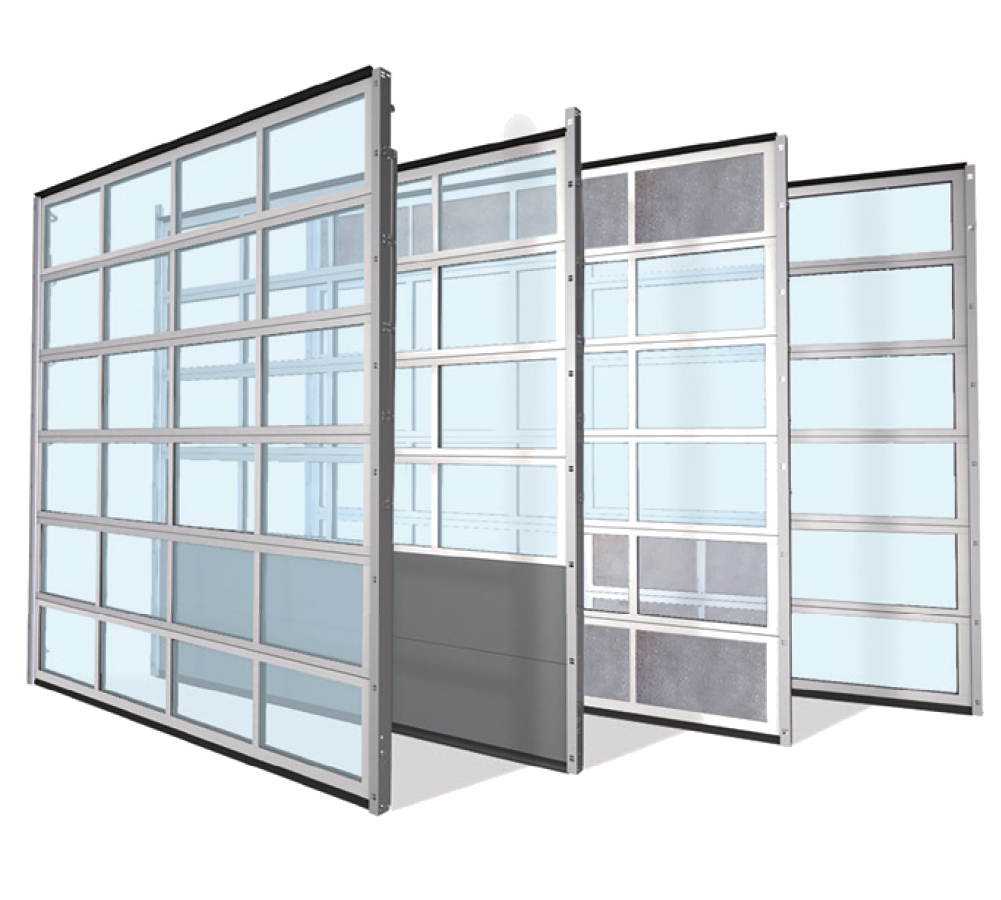

The NovoLux 60 door consists of two aluminium profiles that are thermally separated by a special design. The door therefore has a very low U-value, even when using vision panels.
It is particularly suitable for locations where light is crucial, but where good thermal insulation and optimum energy efficiency are also important.

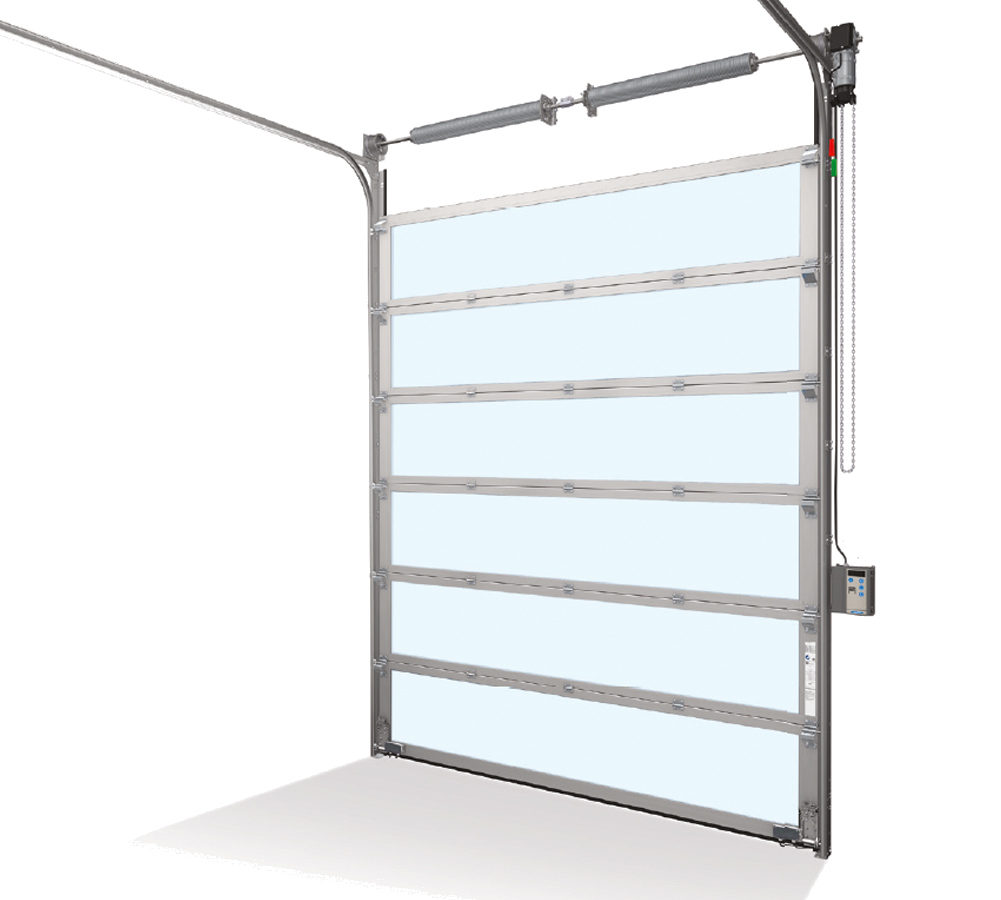

Details sectional door NovoLux XL 40 / 60 mm
Details sectional door NovoLux XL 40 / 60 mm

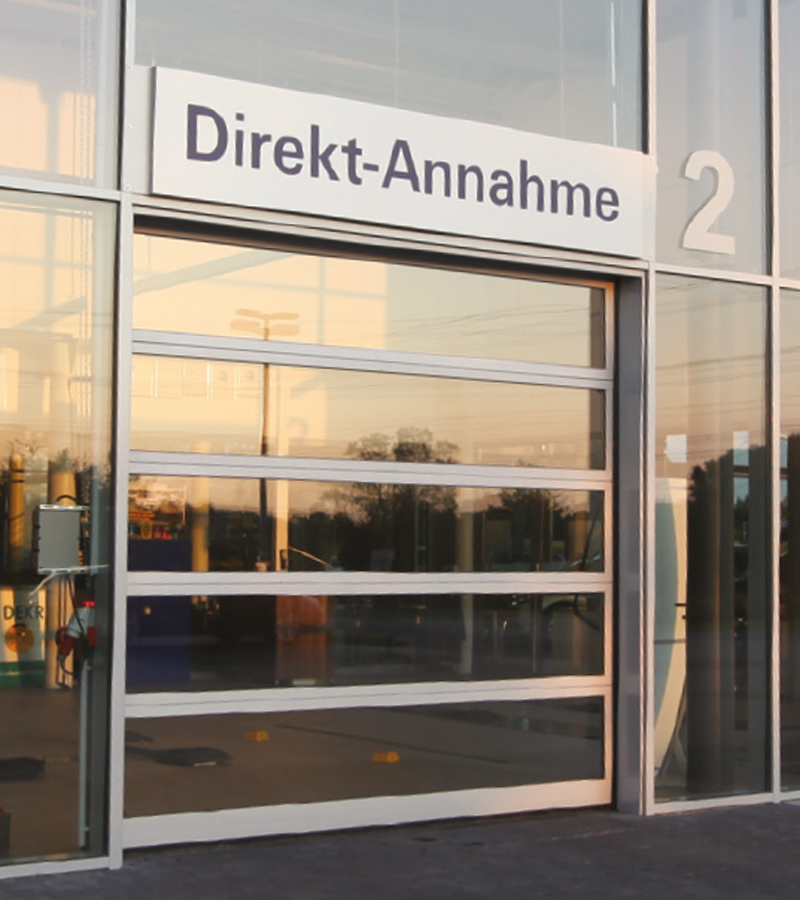

The NovoLux XL door is an aluminium door that is available in versions 40 or 60 as required. What is unusual about this door is that the sections have no vertical intermediate struts, allowing a wide glass view.

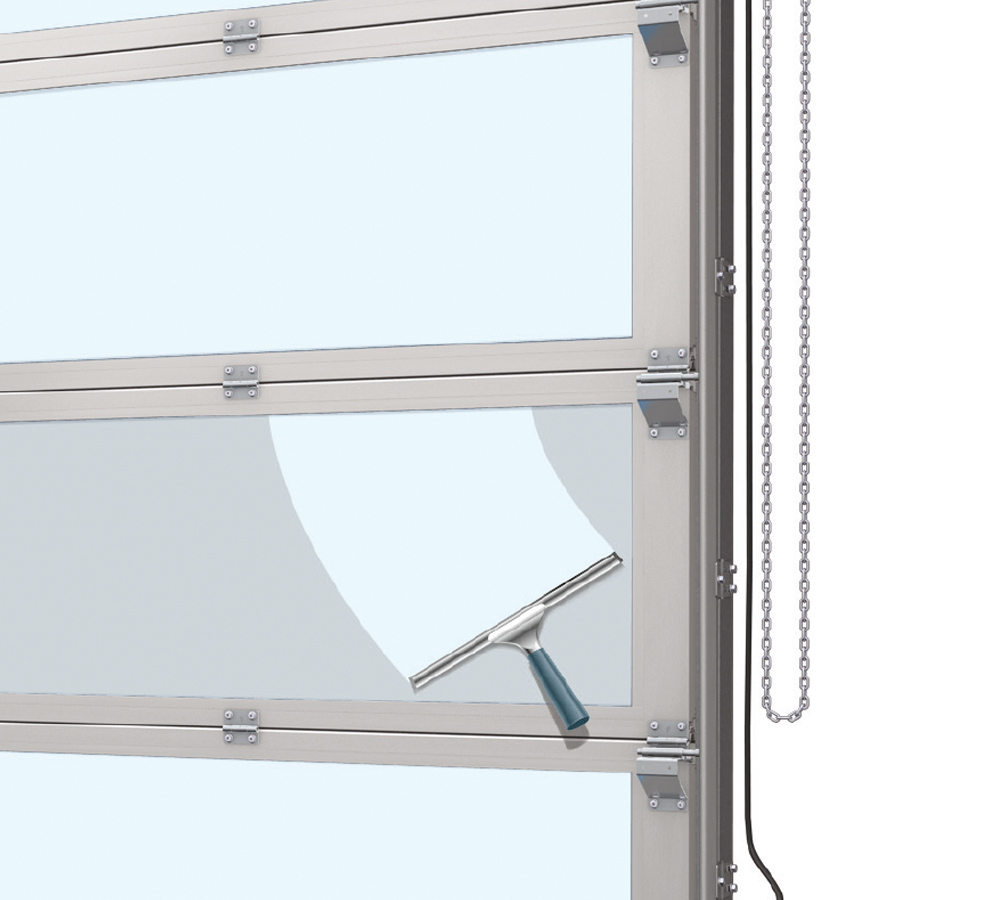

The high-quality Plexiglas is particularly strong and thick, hardly deforms and looks like real glass, even though it is plastic.
This ensures a natural reflection of the window areas and an attractive appearance.
ACRYLGLAS OPTICAL
The NovoLux XL is available in a maximum width of 4,000 mm and a maximum height of 4,500 mm. The NovoLux XL door comes into its own particularly in environments where an attractive appearance of the building is important, as well as light and visibility in the hall. The "Plexiglas Optical" used is characterised by the fact that it looks like real glass, but also offers the safety of plastic. The Plexiglas Optical panes are available as 20 mm double panes and 40 mm triple panes.

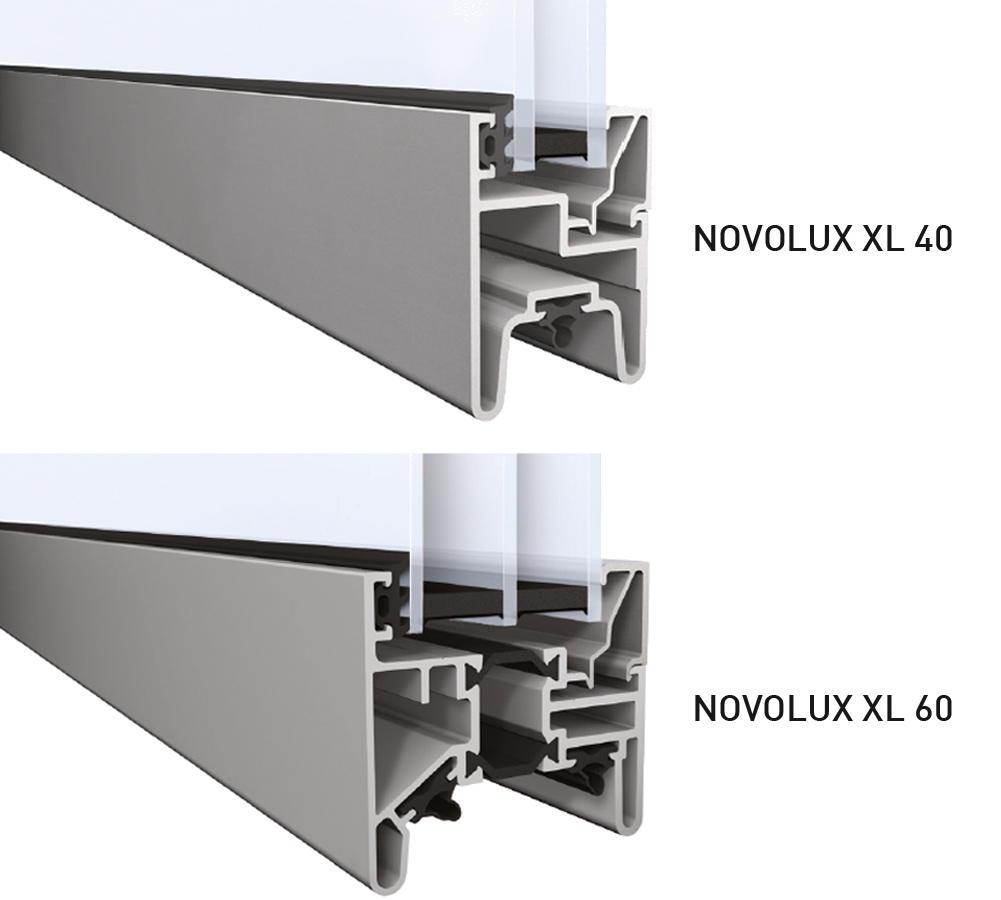

NOVOLUX XL 40:
Plexiglas double panes; Optical 20 mm
(4-12-4 mm)
NOVOLUX XL 60:
Plexiglas triple panes Optical 40 mm
(4-14.75-2.5-14.75-4 mm)
Your plus points at a glance
- Insulating to highly insulating NovoLux industrial sectional doors with triple glazing
- Ideal solution for areas where plenty of light and visibility as well as a constant indoor climate are important
- Available in 40 and 60 mm versions
- Excellent thermal insulation and sound-absorbing properties; prevents condensation
- Supplied with triple glazing as standard
- Combination of thermal panels with NovoLux sections possible depending on requirements
- Large selection of PVC-U windows in numerous qualities, insulation values, colours and structures
Colours and equipment
Fillings and colours
Fillings and colours

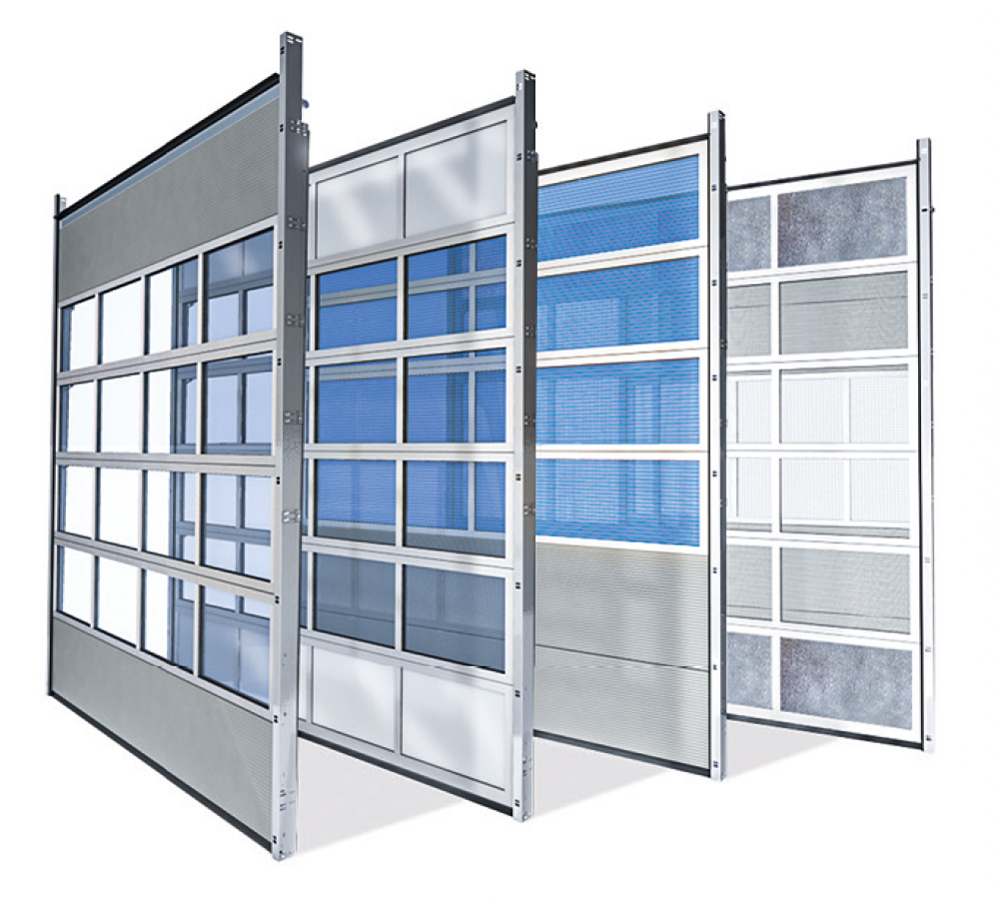

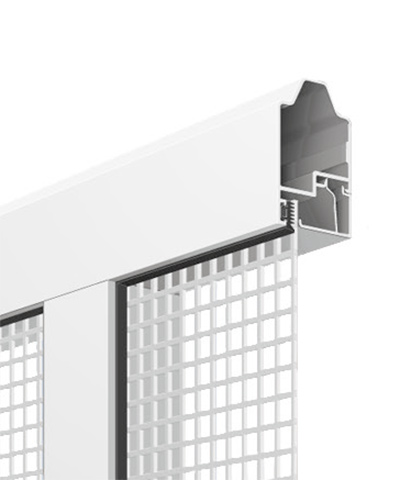

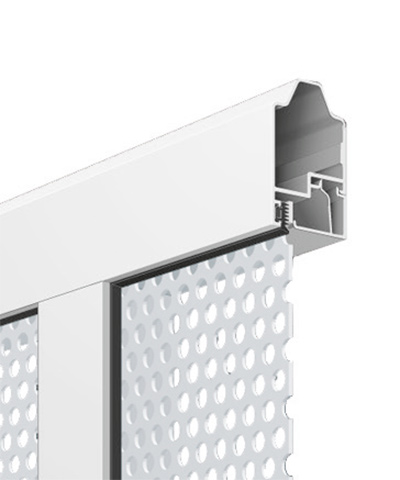

VARIOUS FILLINGS
Novoferm offers unlimited possibilities for the use of glazing in NovoLux doors. The panes are available in a wide range of variants, colours, transparency levels and designs. This gives the architect a great deal of freedom when designing the NovoLux door. Almost nothing is impossible.
COMBINE COLOURS
The NovoLux door is supplied in anodised aluminium, colourless, as standard. However, this does not mean that you cannot use any colour. The aluminium can also be coated with wet paint in a colour of your choice. The combination of NovoLux panels with Thermo panels gives you 1001 design options.
Window variants and glass
Window variants and glass

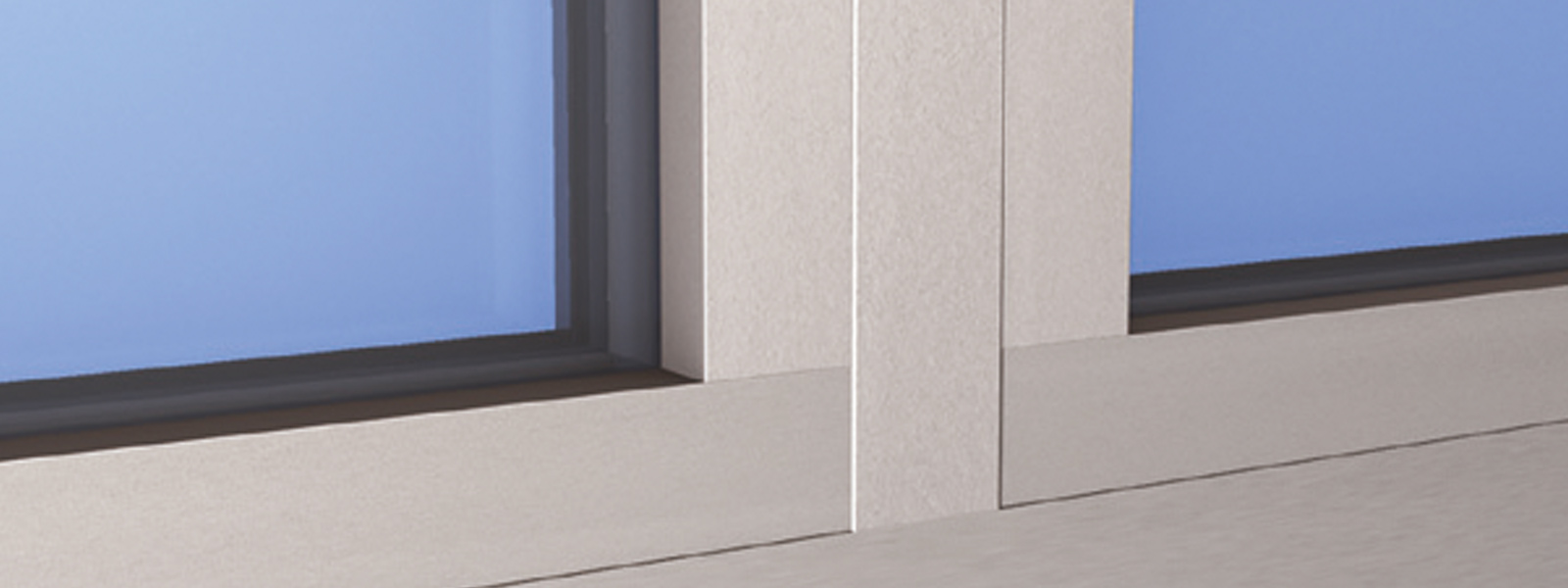

ALUMINIUM GLASS RETAINING STRIPS AS STANDARD
Novoferm is one of the few suppliers in the industry to use anodised aluminium glazing beads as standard. This has the advantage that it looks much better and is much more durable than the black plastic frames that are often used. In addition, the aluminium components used all have the same coefficient of expansion, so everything expands evenly when heated and the frames do not warp, as is often the case with plastic frames.
Another advantage is that the glass retaining strips can also be supplied in the colour of your choice.

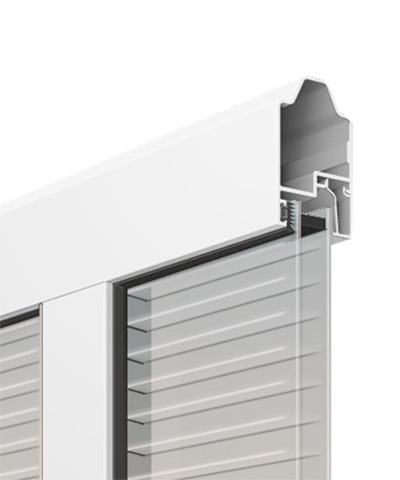

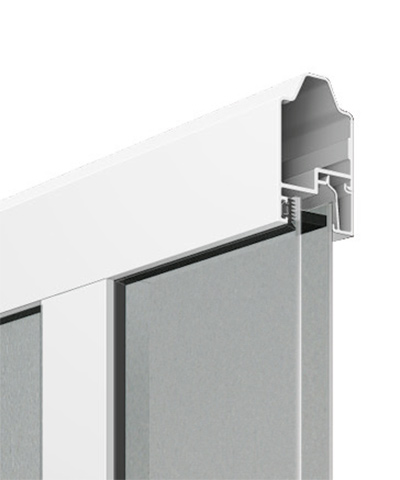

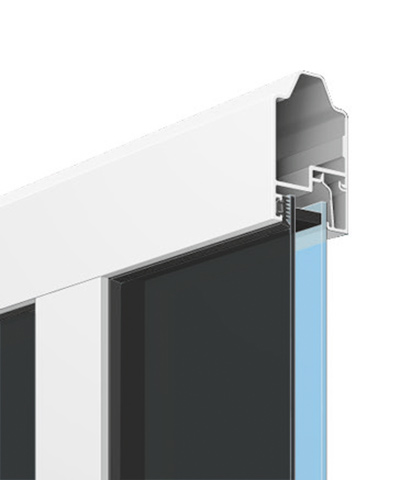

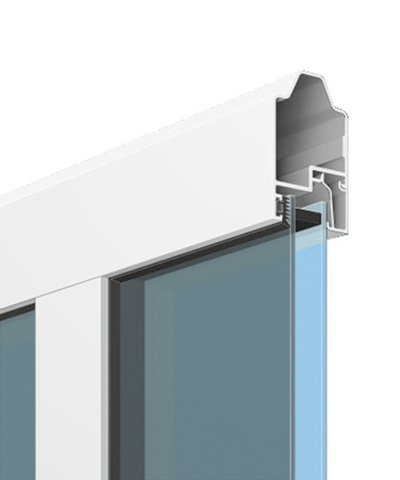

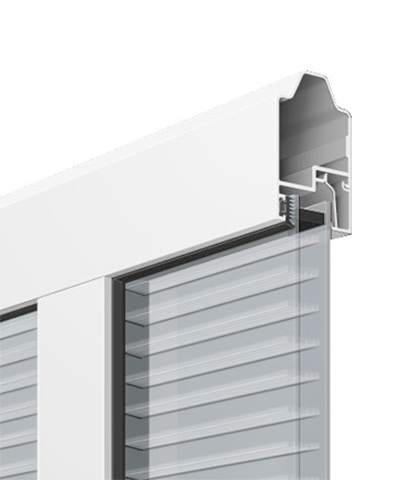

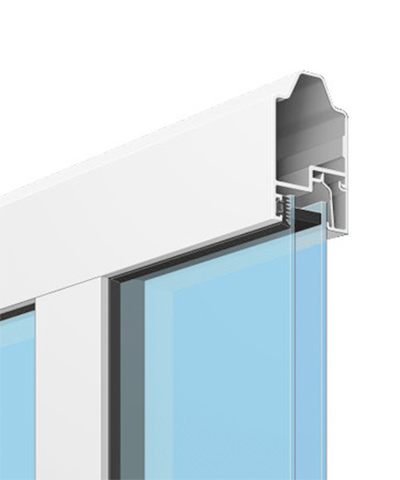

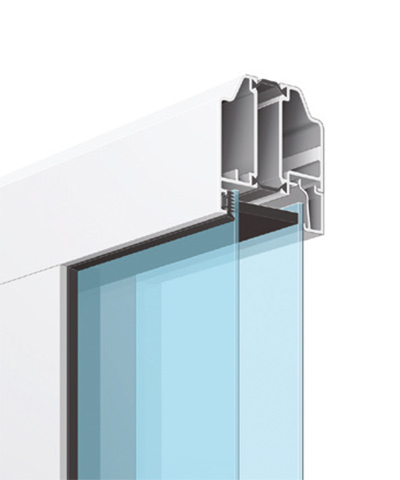

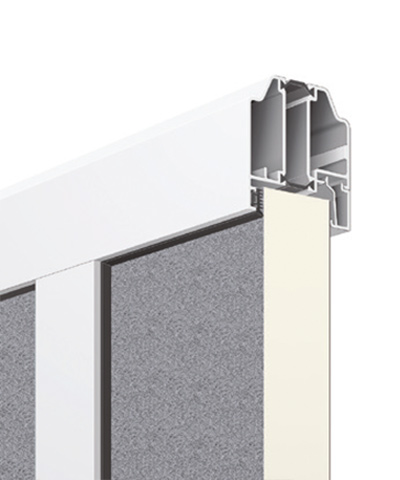

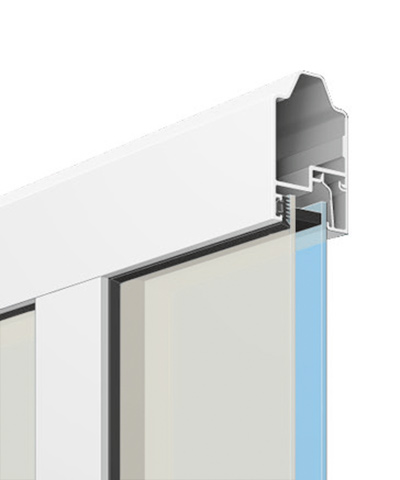

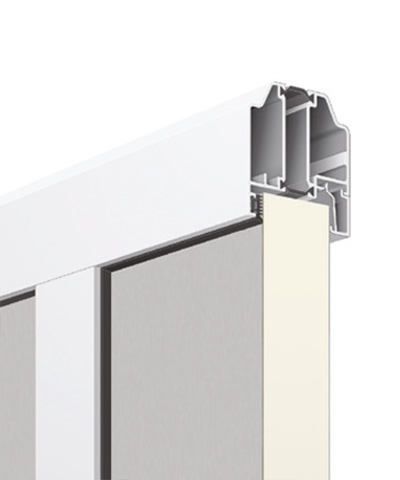

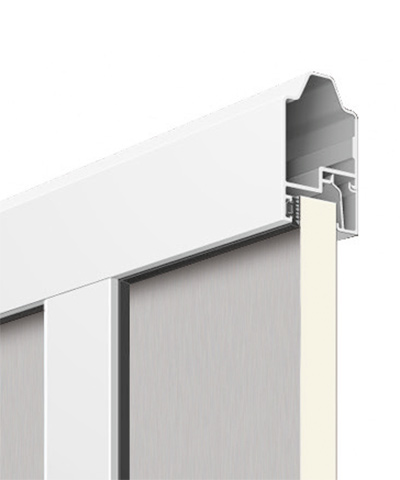

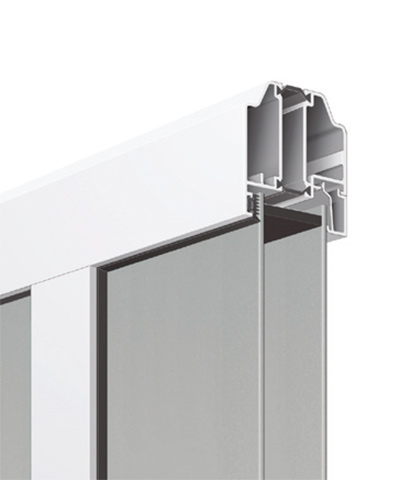

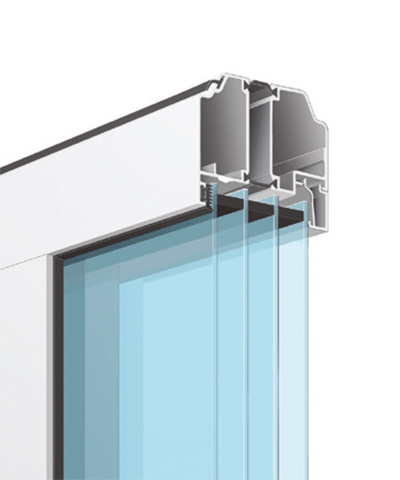

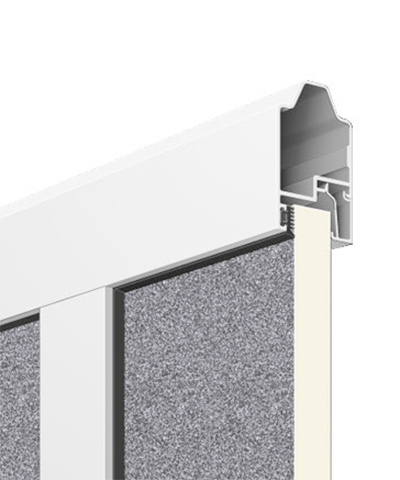

NOVOLUX 40/ 60/ 80 FENSTERVARIANTEN
DOPPELWANDIG
