RAIL AND HARDWARE SYSTEMS

MODULAR ASSEMBLY CONVENIENCE IN HIGH QUALITY

Novoferm rail systems have a modular design and are assembled as far as possible in advance. The rail systems are suitable for both thermal and Novolux doors as well as for the NovoLux XL door.

Certified quality and durability are always at the centre of the development and installation of the rail systems.

Overview of rail systems

T 240
LOW-STUDDING SHAFT REAR
A = 240 mm
B = Clearance height + 1,000 mm
Width max. 6,500 mm

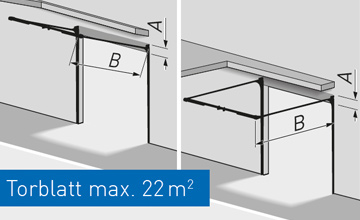

T 340
LOW-STORE FITTING
A = 340 mm
B = Clear height + 750 mm
Width max. 6,500 mm

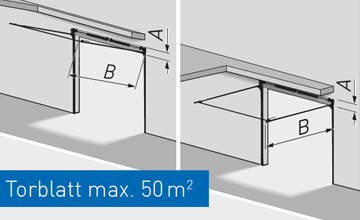

T 450
STANDARDBESCHLAG
A = 430 - 510 mm
B = Lichte Höhe + 650 mm

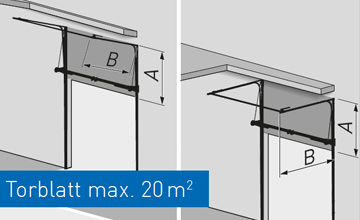

T 400 HF
LIFTING FITTING WITH LOWER SPRING SHAFT + STEEL SUPPORT PROFILE
A = Lifting + 200 mm
B = Clear height - lifting + 600 mm
Width max. 4,500 mm
Required lifting min. 1,450 mm

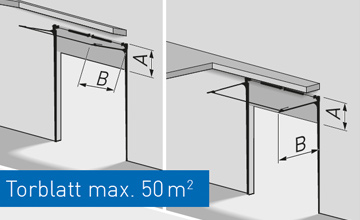

T 400
LIFTING FLAG
A = Lifting + 400 mm
B = Clear height - Lifting + 600 mm

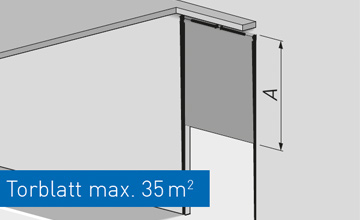

T 500
VERTICAL FITTING
A = Clearance height + 560 mm

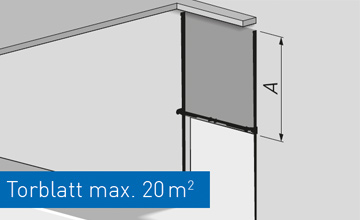

T 500 HF
VERTIKALBESCHLAG MIT UNTEN LIEGENDER FEDER-WELLE + STAHL-TRAGPROFIL
A = Lichte Höhe + 400 mm
Breite max. 4.500 mm

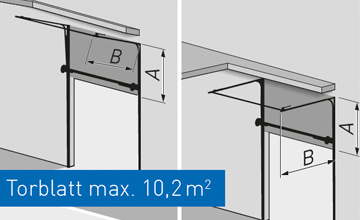

T 400 DS
LIFTING FITTING WITH LOWER SPRING SHAFT
A = Lifting + 200 mm
B = Clearance height - lifting + 600 mm
Width max. 3,200 mm
Height max. 3,200 mm
Required lifting min. 1,700 mm

T400 DDE (available from 9 doors)
LIFTING FITTING WITH LOWER SPRING SHAFT + STEEL SUPPORT PROFILE (PRE-CONSTRUCTED)
A = Lifting + 200 mm
B = Clear height - lifting + 600 mm
Width max. 3,200 mm
Height max. 3,200 mm
Required lifting min. 1,700 mm

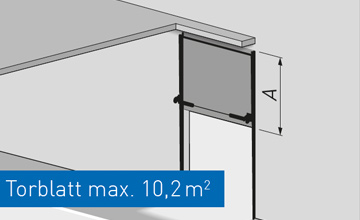

T 500 DS
VERTIKALBESCHLAG MIT UNTEN LIEGENDER FEDERWELLE
A = Light Höhe + 400 mm
Breite max. 3,200 mm
Höhe max. 3,200 mm

T 500 DDE (available from 9 doors)
VERTICAL SHUTTER WITH BOTTOM-LOCATED SPRING SHAFT + STEEL SUPPORT PROFILE (PRE-CONSTRUCTED)
A = Clear height + 550 mm
Width max. 3,200 mm
Height max. 3,200 mm

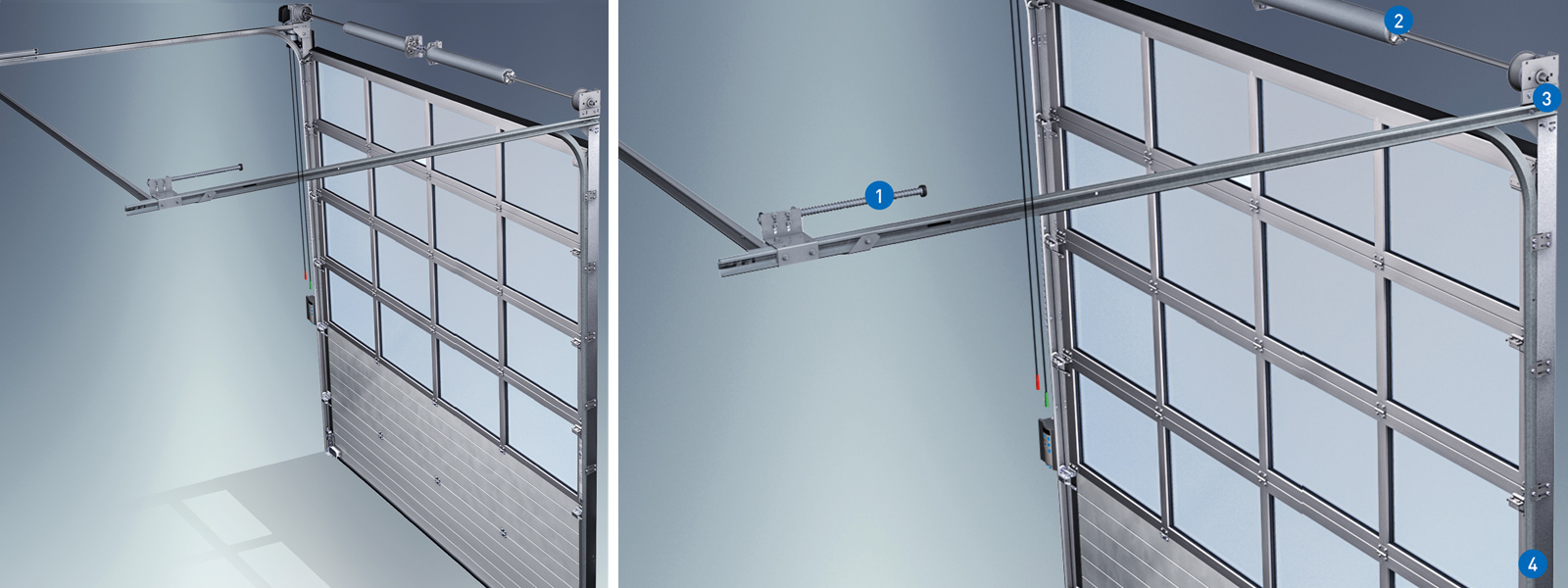

Highlights rail systems

MODULAR INSTALLATION CONVENIENCE IN HIGH QUALITY

Novoferm track systems are modular and are assembled as far as possible in advance. The rail systems are suitable for both Thermo and NovoLux doors, as well as for the NovoLux XL door. Certified quality and durability are always at the centre of the development and installation of the rail systems.

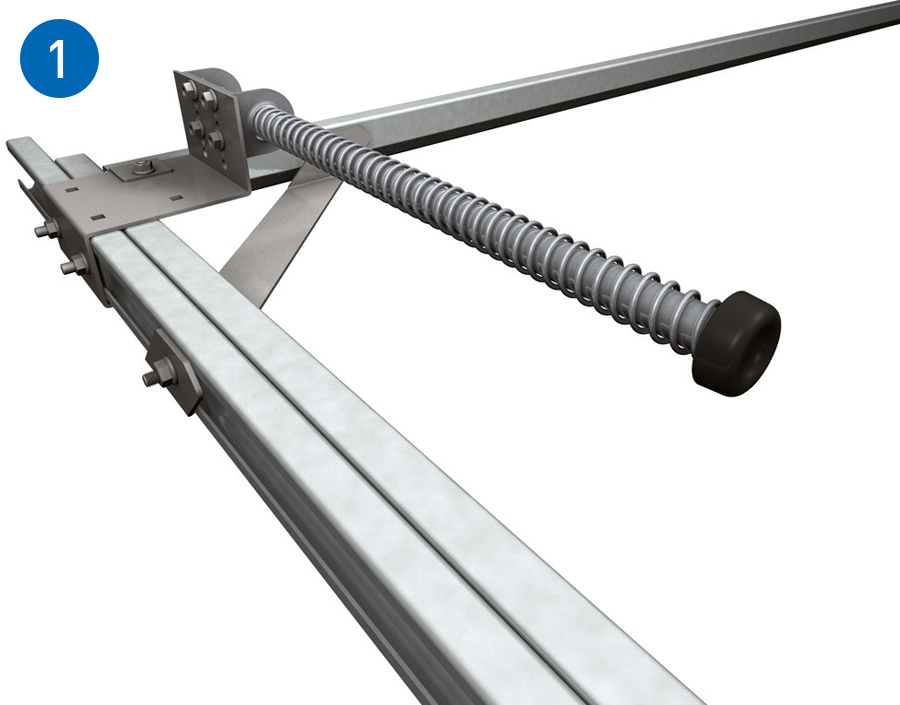

SPRING BUMPER
The heavy-duty spring buffer ensures that the door is given an initial push in the horizontal position for the closing process. The length of the spring buffer depends on the configuration of the door.

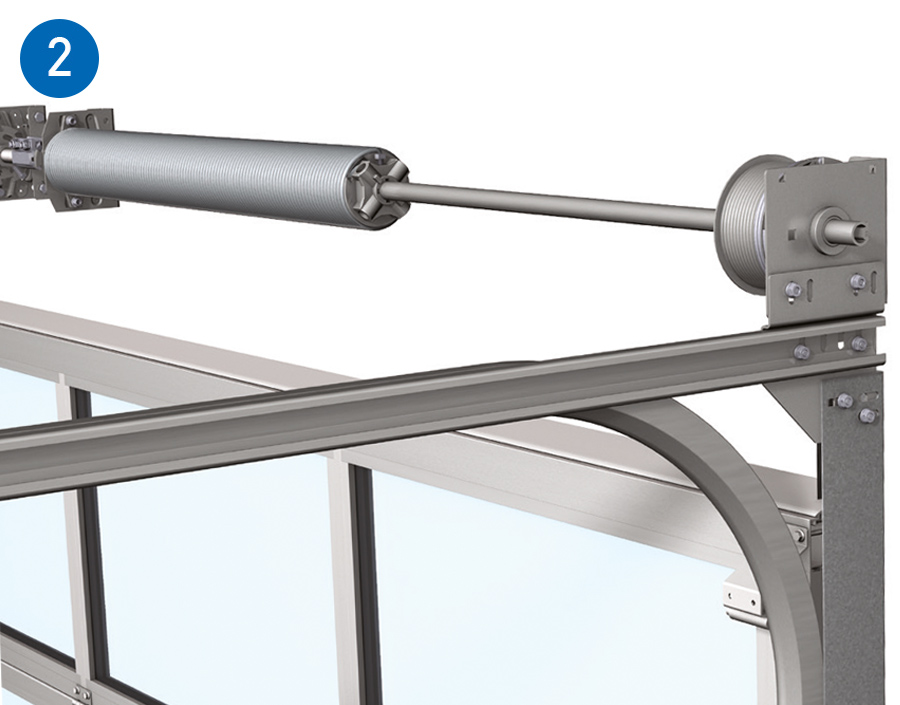

TORSION SPRINGS
The torsion springs are designed for 30,000 load cycles as standard. For areas where the doors are used a lot, you can optionally use torsion springs that are designed for 60,000 load cycles.

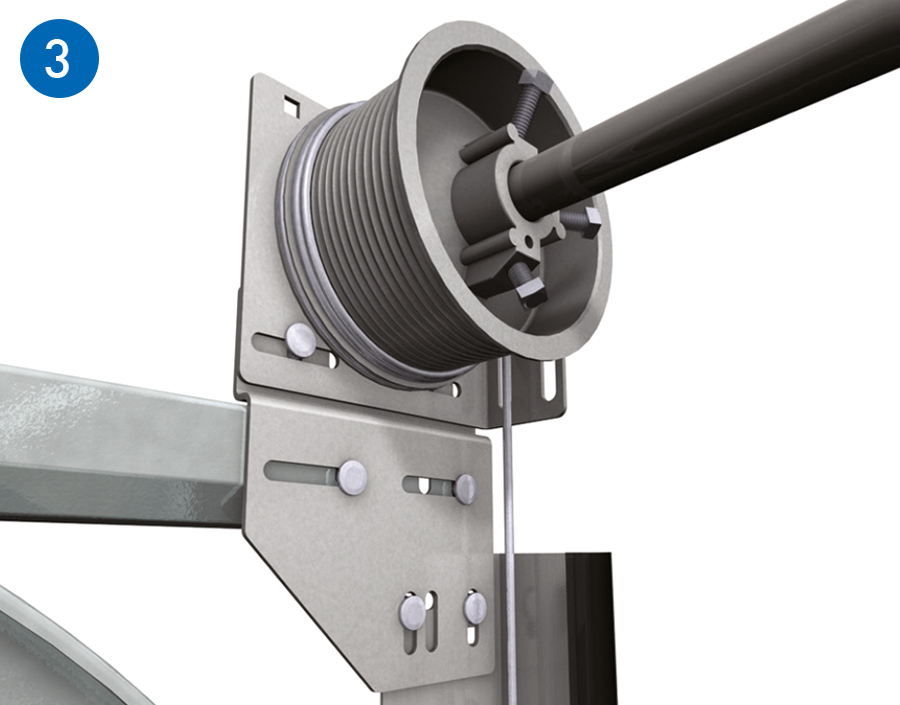

SUPPORT ROPE
Thanks to the modular design of our rail systems and fittings, we can always ensure the correct position of the support rope in relation to the vertical rails. This guarantees maximum safety and reliability.

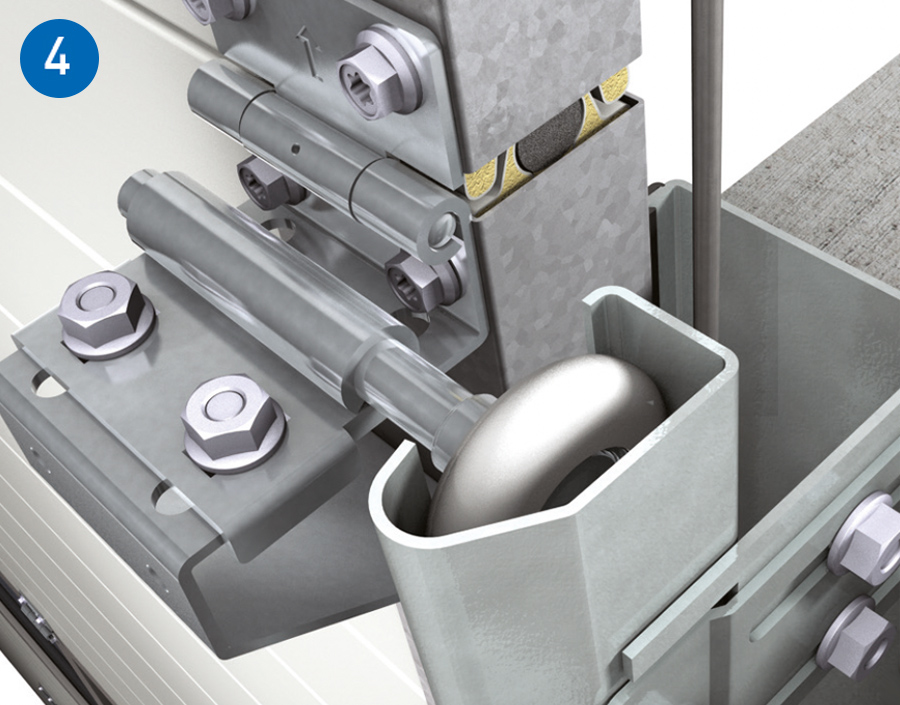

SAFETY RAIL
The safety rail ensures that the rollers cannot derail. For additional safety, the suspension cable remains safely concealed by the rail.
