INDUSTRIE-SEKTIONALTORE THERMO
Available with 40 mm, 60 mm or 80 mm insulation

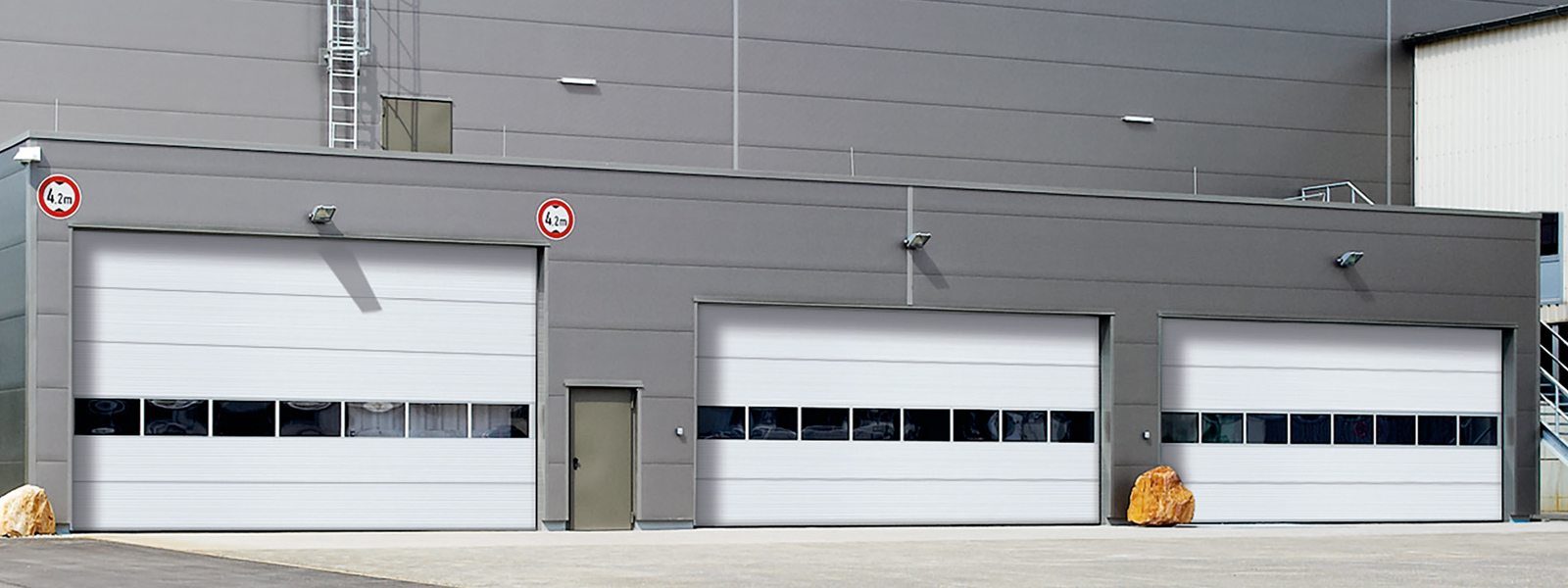

Thermo sectional doors are the all-rounders of industrial sectional doors. The doors have particularly high thermal and sound insulation values and ensure effective separation between temperature zones. Thermo sectional doors are available with 40 mm, 60 mm or 80 mm panels.
Overview of door types
GATE COMPARISON AND PROPERTIES
Comparison of sectional door types
THERMO 40 MM, THERMO 60 MM, THERMO 80 MM, UND NOVOSPEED Thermo
| Door types | Thermo 40 mm | Thermo 60 mm | Thermo 80 mm | NovoSpeed Thermo | ||
| Max. Max. width | 8,000 mm | 8,000 mm | 8,000 mm | 5,000 mm | ||
| Max. Max. height | 6,000 mm | 6,000 mm | 6,000 mm | 5,000 mm | ||
| Max. Surface area (WxH) | 48 m² | 48 m² | 42 m² | 25 m² (350 kg) | ||
| U-value (at 5,000 x 5,000 mm) (without NovoLux sections) | 0.99 W/m²K | 0.84 W/m²K | 0.49 W/m²K | 1.77 W/m²K | ||
| PU foam density | 40 kg/m² | 40 kg/m² | 40 kg/m² | 40 kg/m² | ||
| Wind class according to EN 12424 | 3 - 4 wind resistant up to 12 - 13 Beaufort (118 - 149 km/h) | 3 - 4 wind resistant up to 12 -13 Beaufort (118 - 149 km/h) | 3 - 4 wind-resistant up to 12 -13 Beaufort (118 - 149 km/h) | 2 - 3 wind-resistant up to 10 - 12 Beaufort (89 - 133 km/h) | ||
| Thermally separated sections | - | x | x | - | ||
Rail systems | Standard guide | T 450 | x | x | x | |
| T 340 | o | o | - | |||
| Low camber | T 240 | o | o | - | ||
With height guide | T 400 | o | o | o | ||
| T 400 HF | o | o | o | |||
| T 400 DS | o | o | - | |||
Roof sequence | T 450 | o | o | o | ||
| T 340 | o | o | - | |||
| T 240 | o | o | - | |||
| T 400 | o | o | o | |||
| T 400 HF | o | o | o | |||
| T 400 DS | o | o | - | |||
Vertical guide | T 500 | o | o | o | ||
| T 500 HF | o | o | o | |||
| T 500 DS | o | o | - | |||
| Helix | x | |||||
| S600 | o | |||||
| Operation and control | ||||||
| Operation | Manual operation | Pull rope or reel chain | Pull rope or reel chain | Pull rope or reel chain | - | |
| E-drive | o Electric motor with gearbox | o Electric motor | o Electric motor | x | ||
| Control unit (electric drive) | Dead man's control, pulse control or remote control | Dead man's control, pulse control or remote control | Dead man's control, pulse control or remote control | Pulse control or remote control | ||
| Available controls | T75/ T100 | T75/ T100 | T75/ T100 | TS971/ TS981 | ||
| Load change | 30,000 cycles using torsion springs ** | 30,000 cycles using torsion springs ** | 30,000 cycles using torsion springs ** | Approx. 200,000 cycles Springless | ||
| Options and accessories1 | ||||||

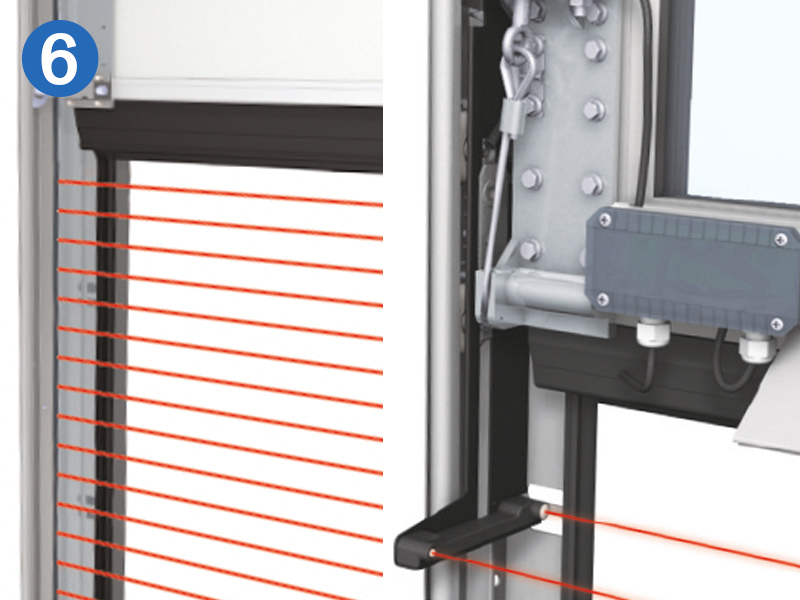

Safety | Leading photoelectric sensor (no wiring on the door leaf | o | o | o | o | |
| Light grid | o | o | o | o | ||
| Rope breakage protection | o | o | o | - | ||
| Lifting safety device | o | o | o | - | ||
| Connection of traffic lights (red/green or red and green) | o | o | o | o | ||
| Flashing warning light (orange/red) | o | o | o | o | ||
| Push bolt with spring return, heavy-duty design | o | o | o | - | ||
| Cylinder lock | o | o | o | - | ||
| 1 At an extra charge x = Standard o = Optional - = Not possible * FU = 230v TS971/ TS981 only emergency hand chain DU = 400 V T100 only quick release ** Higher load changes possible | ||||||

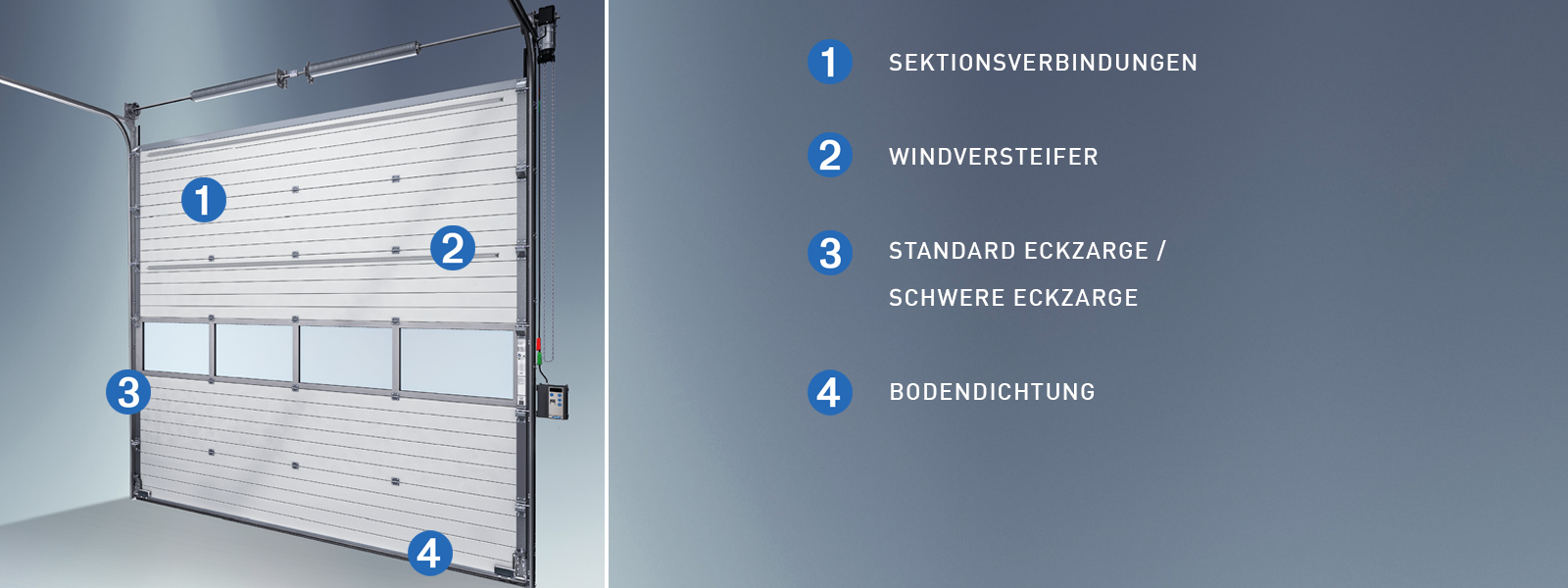

Highlights und Optionen
Highlights und Optionen
Details Thermo 40 sectional door
Details Thermo 40 sectional door

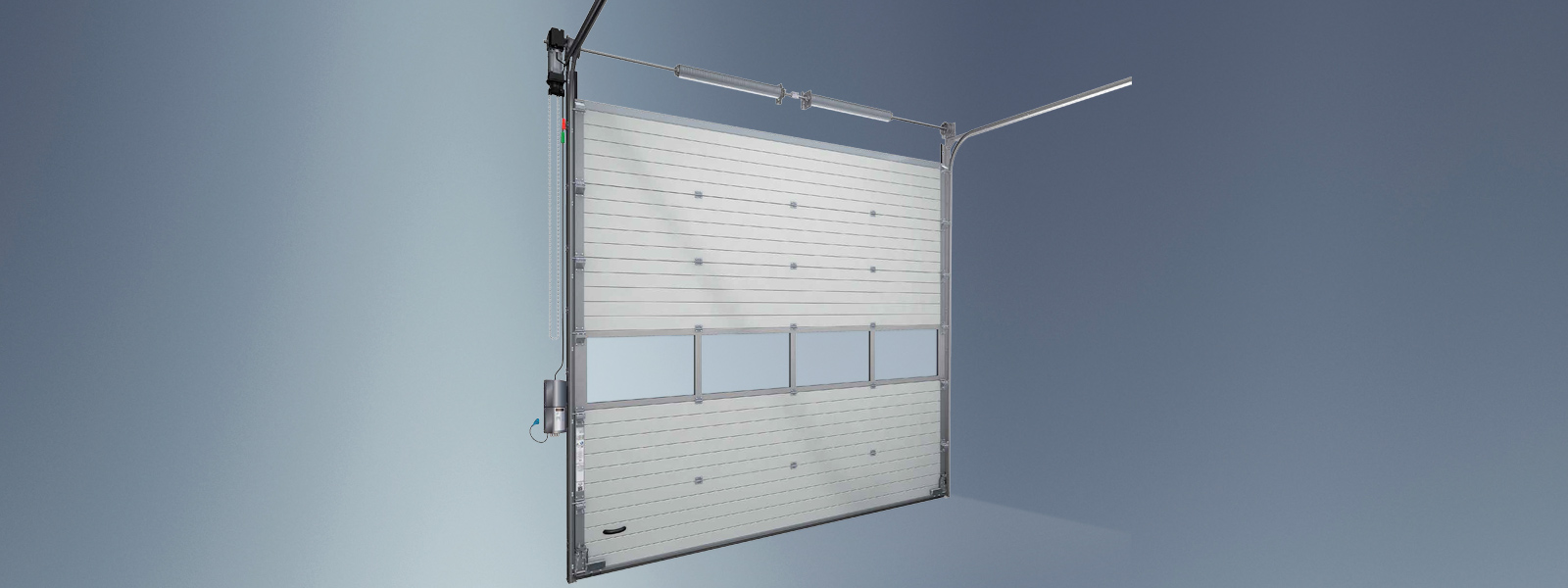

INDUSTRIE-SEKTIONALTOR THERMO 40
The Thermo 40 sectional door is the best-selling Novoferm industrial sectional door. The door combines excellent thermal and sound insulation properties with micro-profiled panels in a modern design. The design and configuration options are limitless, so that a door can always be perfectly configured for any situation.
Choose from numerous options for light and vision panels, heights and widths and a palette of 15 RAL colours as standard.
CORE OBJECTIVE FLEXIBILITY
Thermo 40 sectional doors are designed and manufactured using state-of-the-art technologies. The finishing is designed for high load-bearing capacity and thought through down to the last detail. This is clearly evident in the metal end caps, the reinforcement profiles and the underside of the anodised aluminium bottom profile, which is not visible from the outside. Flexibility is of central importance in the production of this door.
It is a genuine all-round model in which price, performance and application possibilities interact perfectly.

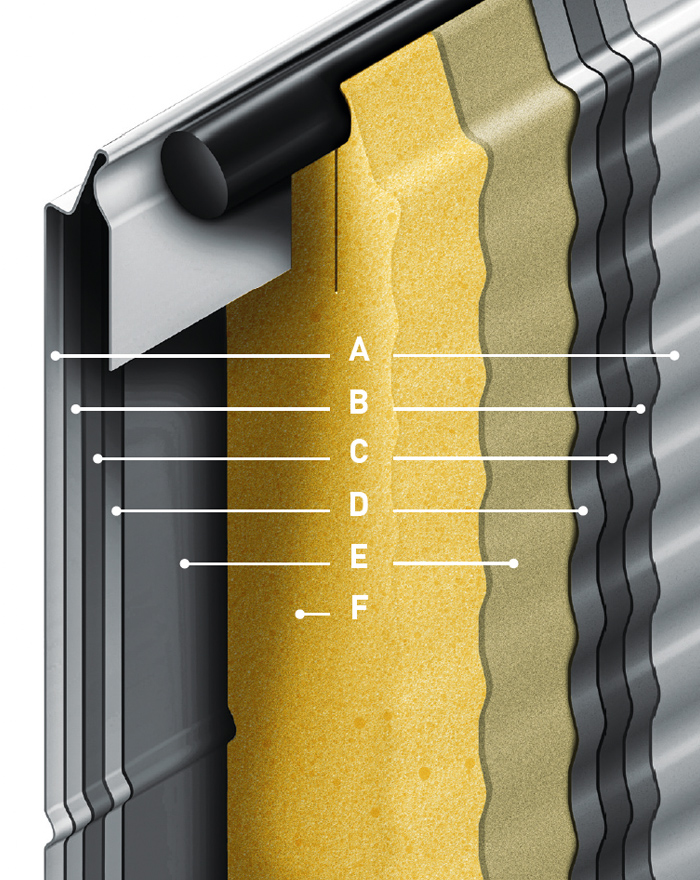

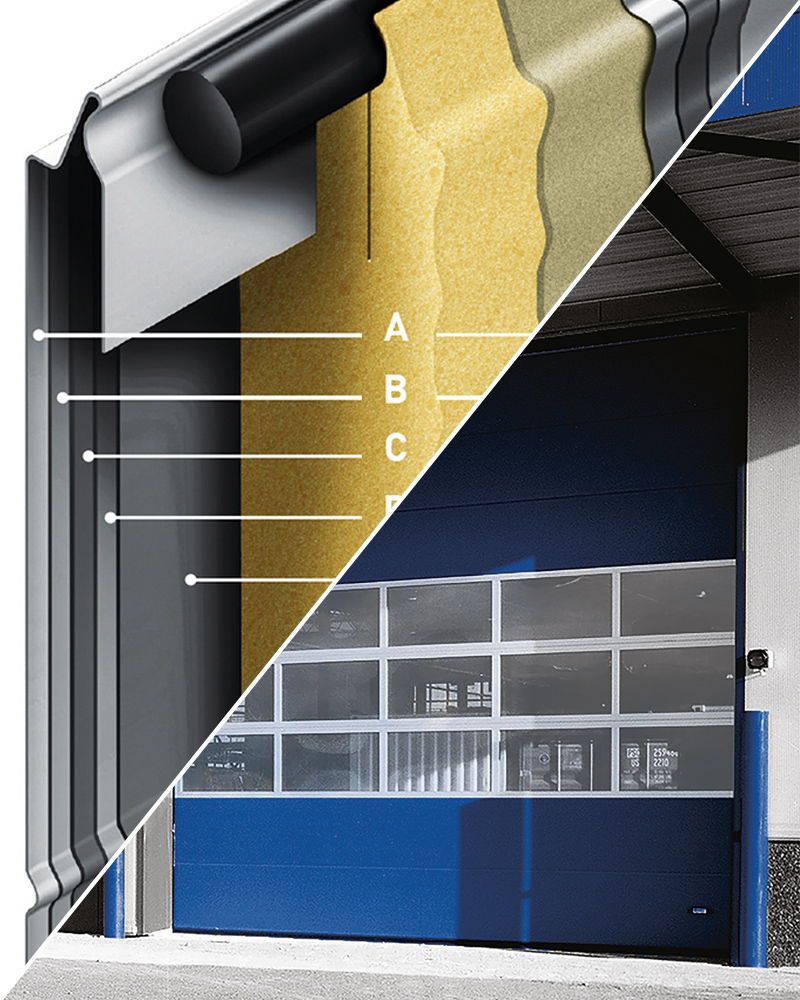

| A | Lacquer layer (outside): | In 15 colours, Microprofiled (standard)* |
| B | Zinc coating: | 275 g/m2 |
| C | Sheet steel: | 0.5 mm |
| D | Zinc coating: | 275 g/m2 |
| E | Adhesive base coat | |
| F | PU rigid foam: | g = 40 kg/m3 |

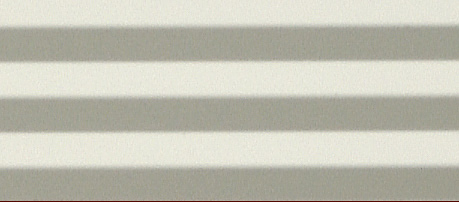

| A | Lacquer coating (inside): | RAL 9002 horizontally profiled |
| Panel thickness: | 40 mm | |
| Thermal insulation value: | U = 0.52 W/m2K | |
| PU foam density: | 40 kg/m3 | |
| Sound insulation: | 25 dB (for 4,100 x 2,830 mm door without window or wicket door) | |
* Other section designs or surfaces and finger protection on request.
Details Thermo 60 sectional door
Details Thermo 60 sectional door

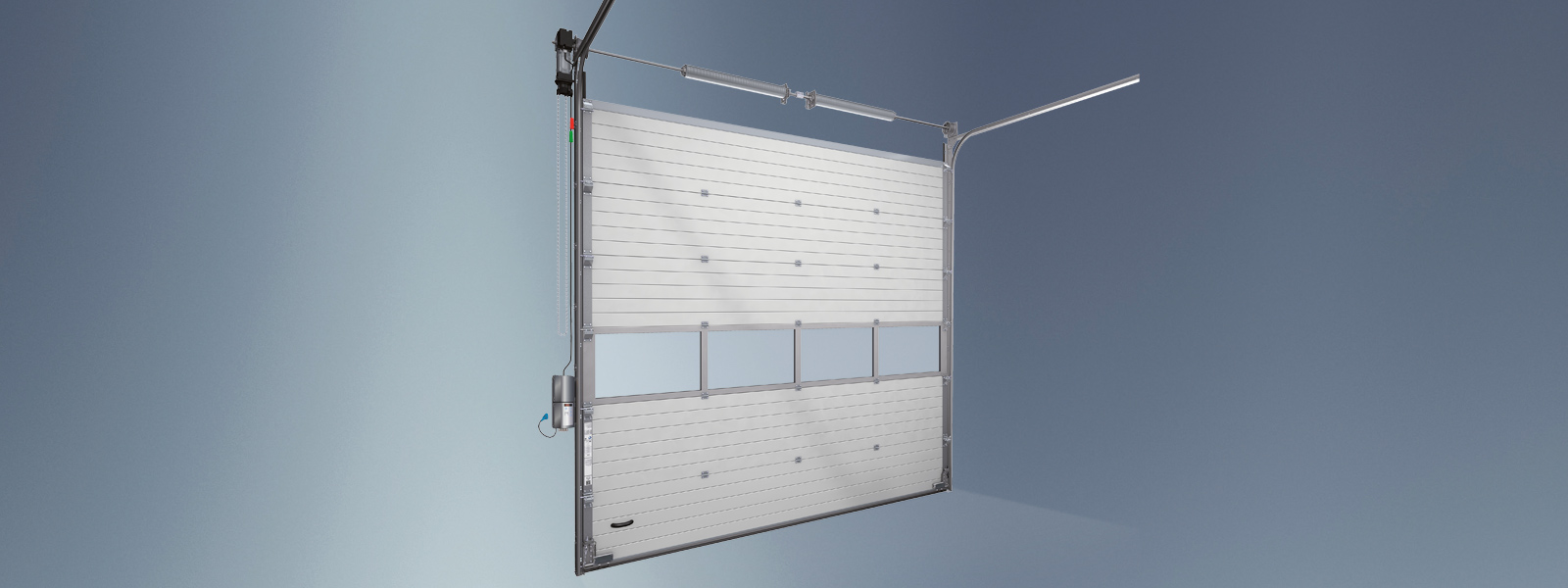

INDUSTRIE-SEKTIONALTOR THERMO 60
Thermo 60 sectional doors are particularly good heat-insulating and sealing doors that are ideal for areas where the separation between temperature zones is important. If you want to keep your production hall or warehouse at an even temperature level, then the Thermo 60 is just right for you.
The micro-profiled sheet steel panels have excellent sound-insulating and heat-insulating properties and are extremely weather-resistant.
PARTICULARLY HIGH THERMAL INSULATION VALUE

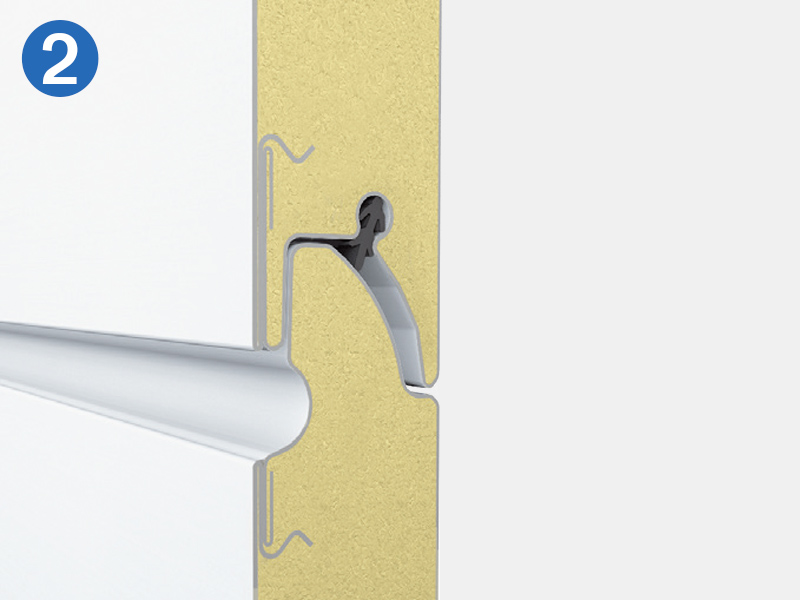

The panels of the Thermo 60 sectional doors are manufactured according to the so-called "sandwich principle". Rigid polyurethane foam is inserted between two steel sheets and bonded to the galvanised steel sheet on both sides. If you have special colour requirements, the sheet steel can be coated with acrylate paint in a RAL colour of your choice.

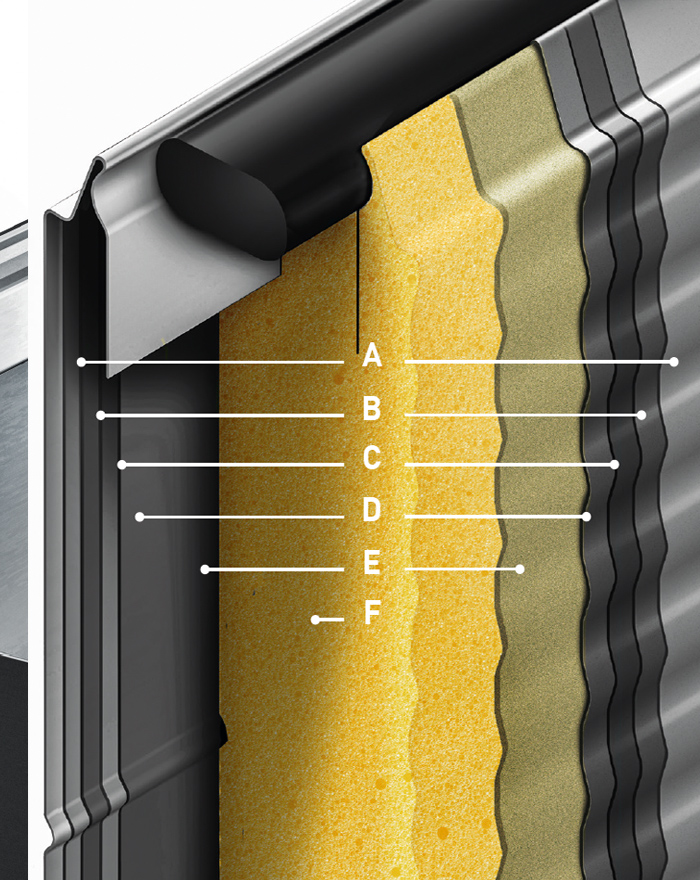

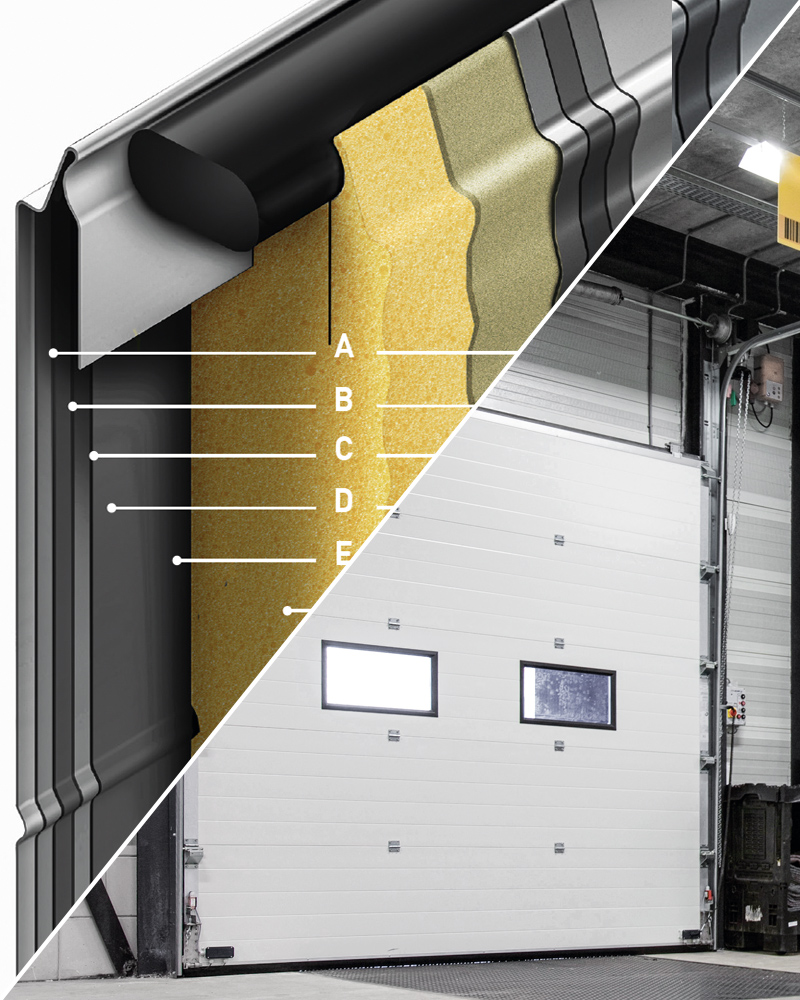

| A | Lacquer layer (outside): | In 10 colours, Microprofiled (standard)* |
| B | Zinc coating: | 275 g/m2 |
| C | Sheet steel: | 0.5 mm |
| D | Zinc coating: | 275 g/m2 |
| E | Adhesive base coat | |
| F | PU rigid foam: | g = 40 kg/m3 |
| A | Lacquer coating (inside): | RAL 9002 horizontally profiled |
| Panel thickness: | 60 mm | |
| Thermal insulation value: | U = 0.35 W/m2K | |
| PU foam density: | 40 kg/m3 | |
| Sound insulation: | 25 dB (for 4,100 x 2,830 mm door without window or wicket door) | |
* Other section designs or surfaces and finger protection on request.
Details Thermo 80 sectional door
Details Thermo 80 sectional door

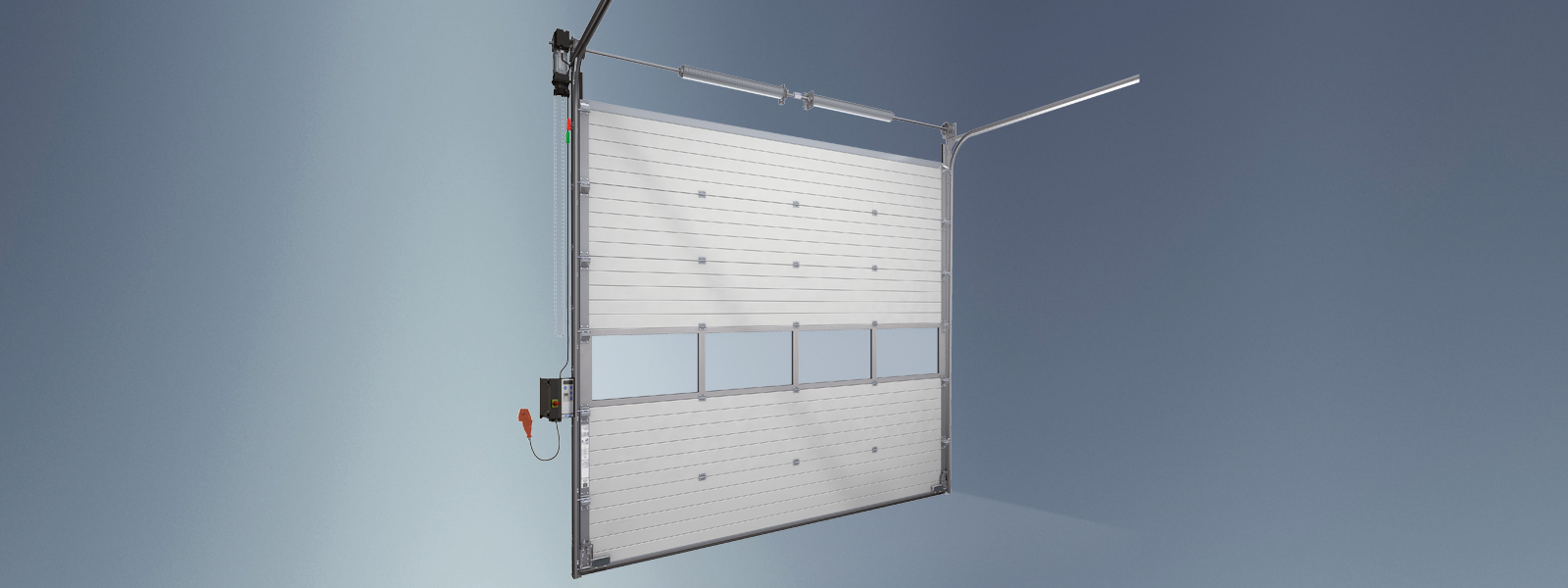

INDUSTRIE-SEKTIONALTOR THERMO 80
Nowadays, every building must be well insulated. It must comply with current standards. This also applies to external doors and gates. The panels of the Thermo 80 door are also foamed with polyurethane and thermally separated between the inner and outer shells, but have even better thermal insulation than the doors in the Thermo 40 or 60 series.
DOUBLE-WALLED SECTIONAL DOORS WITH THERMALLY BROKEN STEEL PANELS
With its optimum thermal insulation and a U-value of 0.25 W/m2K, the Thermo 80 fulfils the needs of clients who place particular emphasis on energy efficiency. This makes this door ideal for cold storage and deep-freeze halls, industrial halls, warehouses and distribution centres where heat loss must be avoided and where a certain temperature of the goods must be maintained.
The Thermo 80 sectional door is available in 3 standard colours.

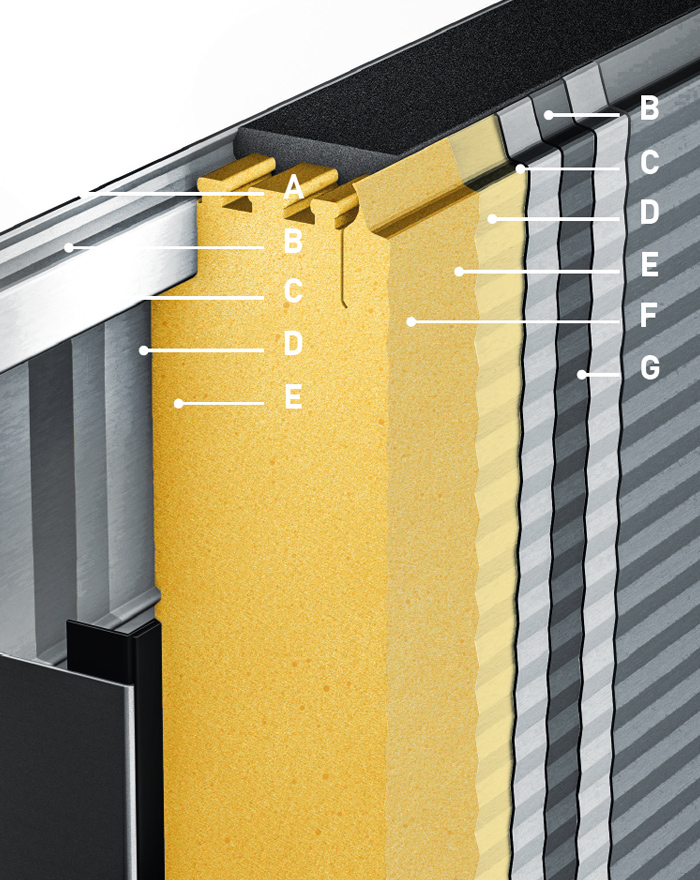

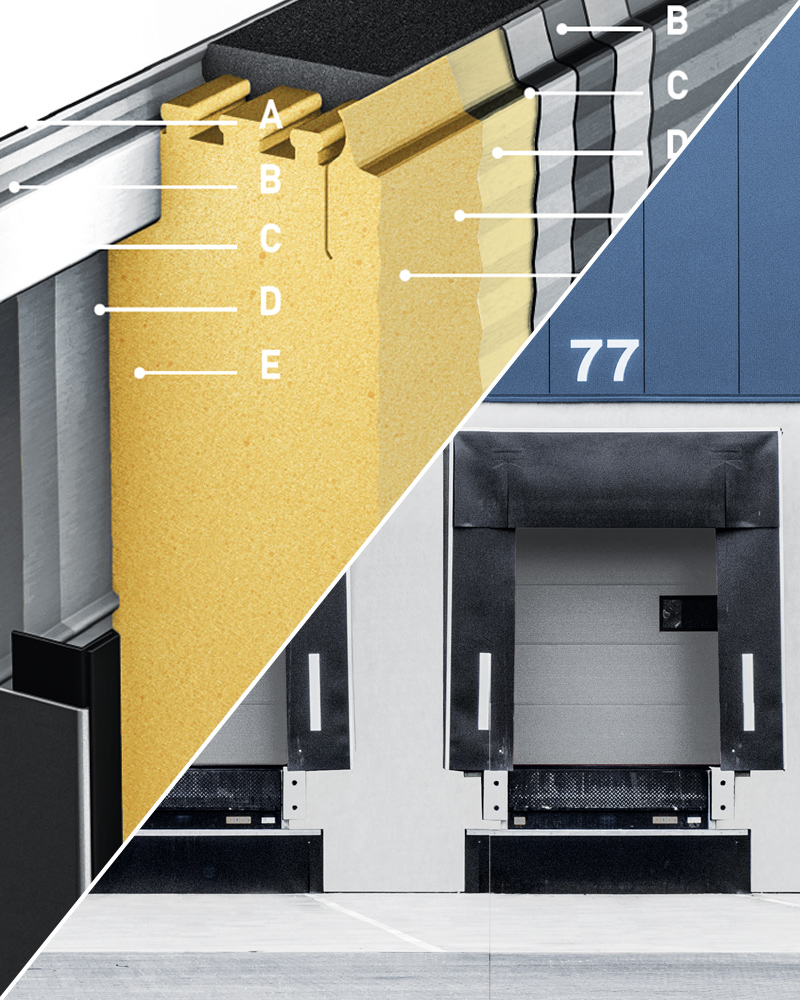

| A | Lacquer coating (outside): | In 3 colours, Microprofiled (standard)* |
| B | Zinc coating: | 275 g/m2 |
| C | Sheet steel: | 0.5 mm |
| D | Zinc coating: | 275 g/m2 |
| E | Adhesive base coat | |
| F | PU rigid foam: | g = 40 kg/m3 |
| A | Lacquer coating (inside): | RAL 9002, Stucco Design, horizontally profiled |
| Panel thickness: | 80 mm | |
| Thermal insulation value: | U = 0.25 W/m2K | |
| PU foam density: | 40 kg/m3 | |
| Sound insulation: | 25 dB (at 4,100 x 2,830 mm; Door without window or wicket door) | |
* Other section designs or surfaces and finger protection on request.
Details NovoSpeed Thermo
Details NovoSpeed Thermo
Your plus points at a glance

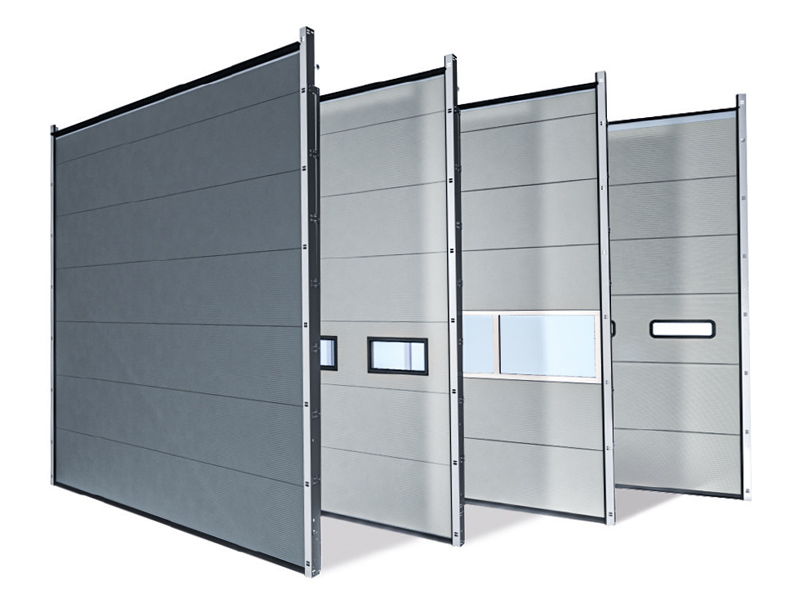

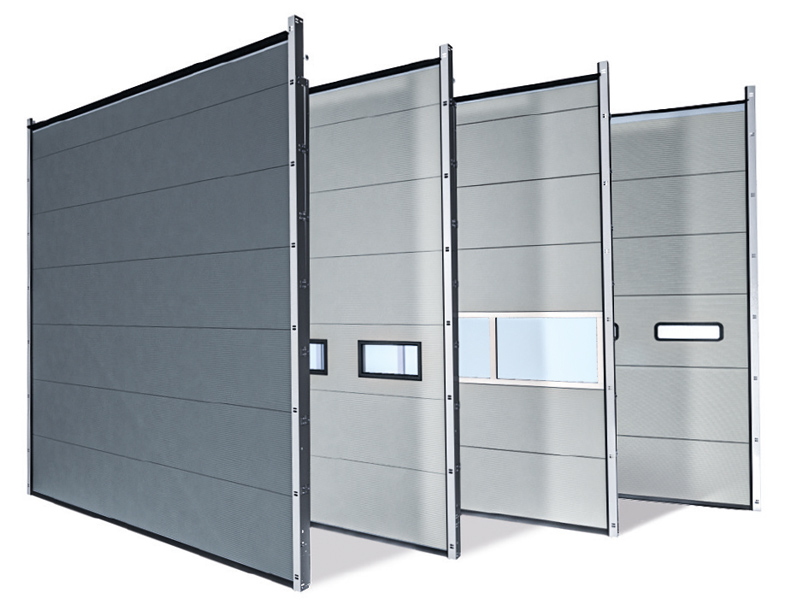

Insulating to highly insulating industrial sectional doors Thermo
Available with 40 mm, 60 mm and 80 mm panel thickness

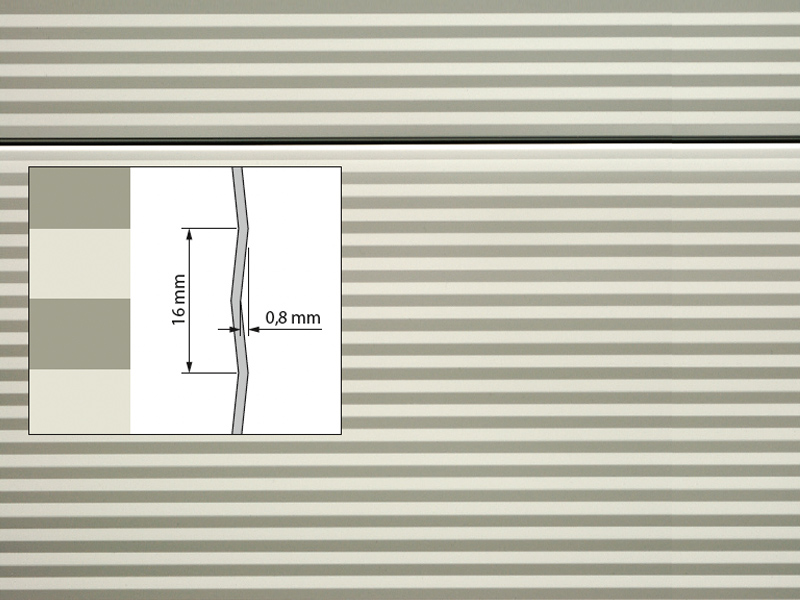

- Micro-profiled sheet steel panels have excellent sound-absorbing and insulating properties; extremely weather-resistant
- Thermally insulated panels (applies to 80 mm)
- Optimised lintel and side seals thanks to revised lintel seal and double side seals (applies to 80 mm)
- Microprofiling in up to 10 colours as standard at no extra charge; special colour requests in a RAL colour of your choice possible
- Combination of thermal panels with NovoLux sections possible depending on requirements
- Ideal solution for areas where separation between temperature zones is important

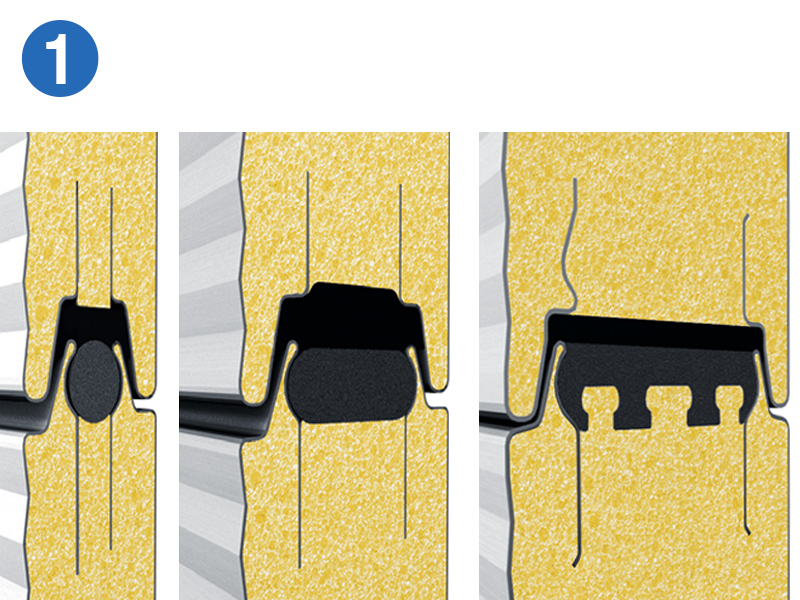

- Better sealing between the sections (affects 80 mm)

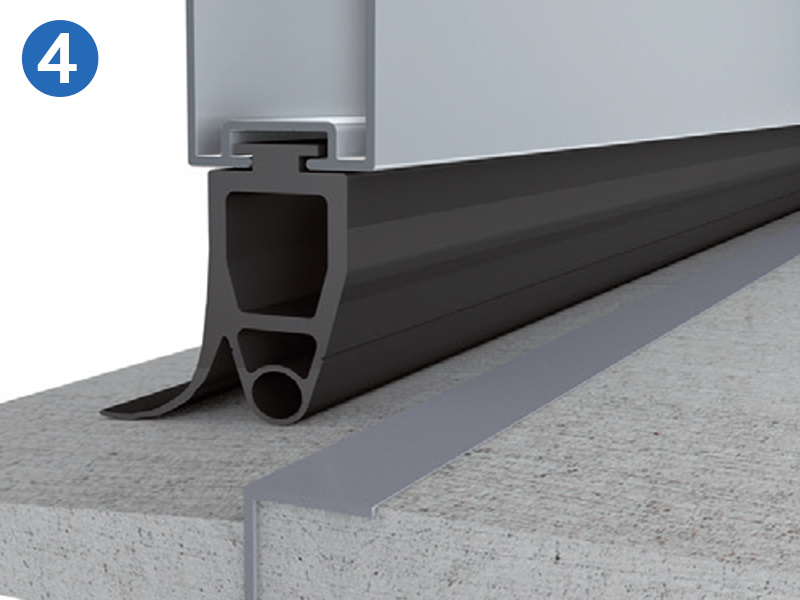

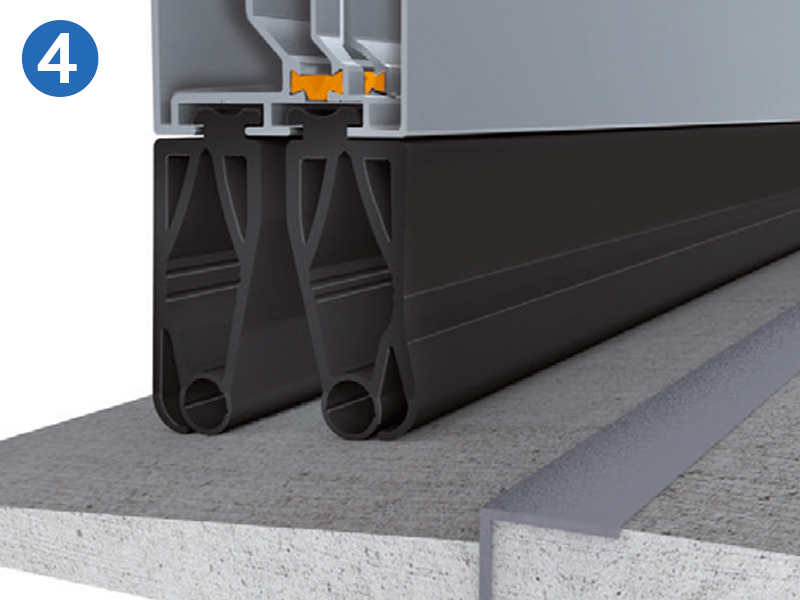

- Improved floor sealing through the use of 2 floor seals (applies to 80 mm)
COLOURS AND EQUIPMENT
COLOURS
COLOURS
COLOUR SORTING
15 STANDARD COLOURS WITHOUT EXTRA COST
With Novoferm, architects can play with design and colour. The optical properties of the micro-profiled steel sheet ensure that the doors are ideal for use in modern buildings. The colour range offers 15 popular colours that give each door an individual look at no extra cost.
This selection of colour-fast coil coatings allows the doors to be seamlessly integrated into your company's corporate design.
Do you have special colour requirements?
Novoferm also offers a range of options here.
Note:

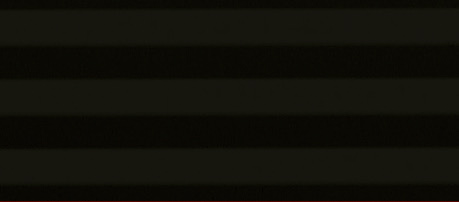

Dark colours should be avoided for double-walled steel doors facing the sun, as possible slat deflection can damage the door.

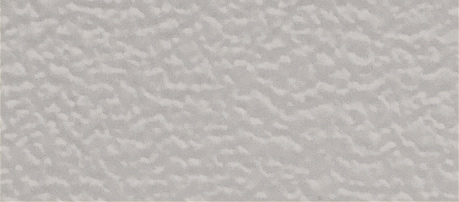

STUCCO PROFILIERUNG – THERMO 40
Note:
In addition to the 15 (iso 40) standard colours for microprofiling, 3 standard colours of the iso 40 stucco panels are available.
LIGHT AND VISUAL ELEMENTS
LIGHT AND VISUAL ELEMENTS
OPTIONS FOR LIGHT AND VISION ELEMENTS

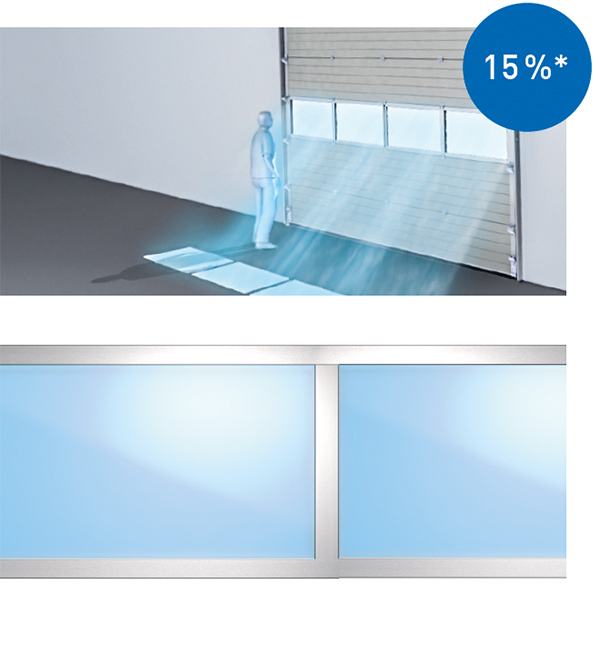

THE FUNCTION OF WINDOWS

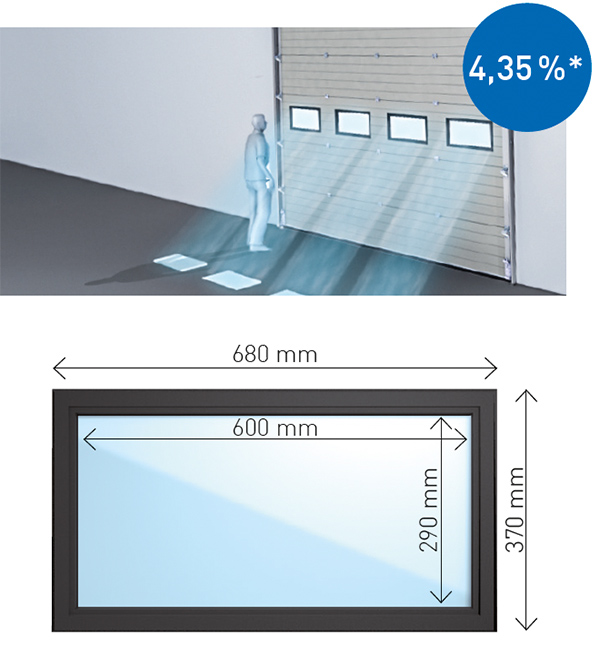

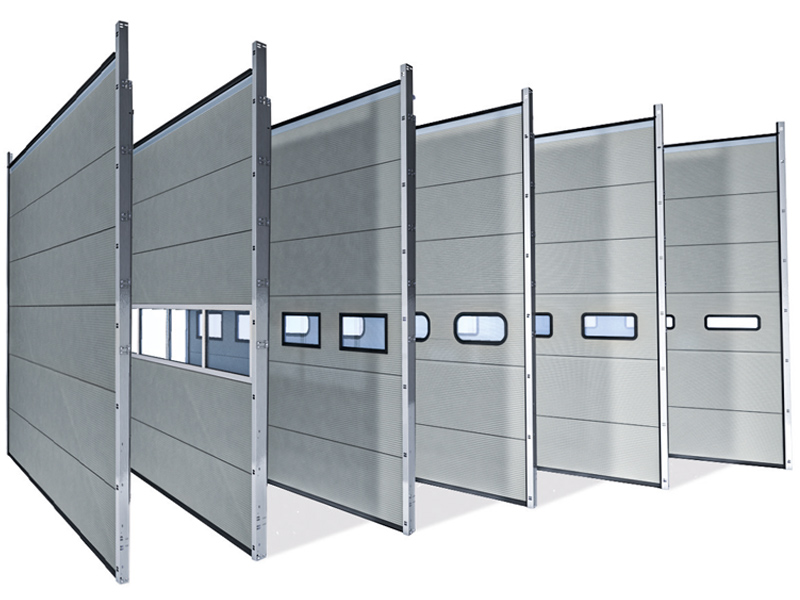

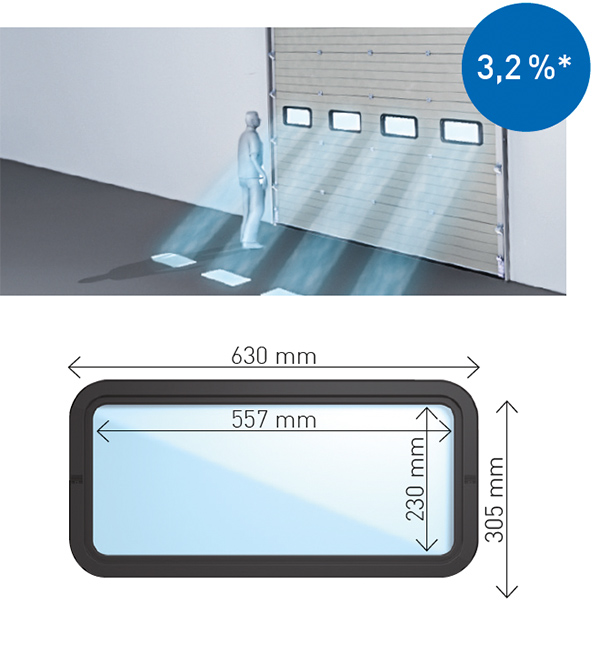

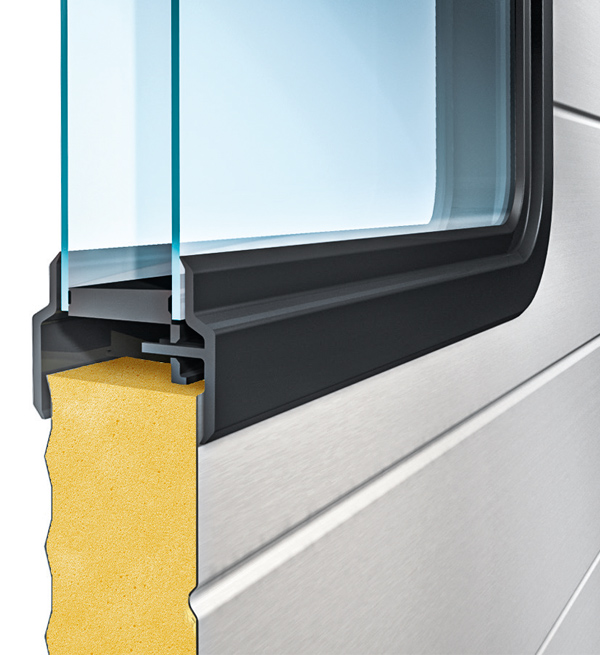

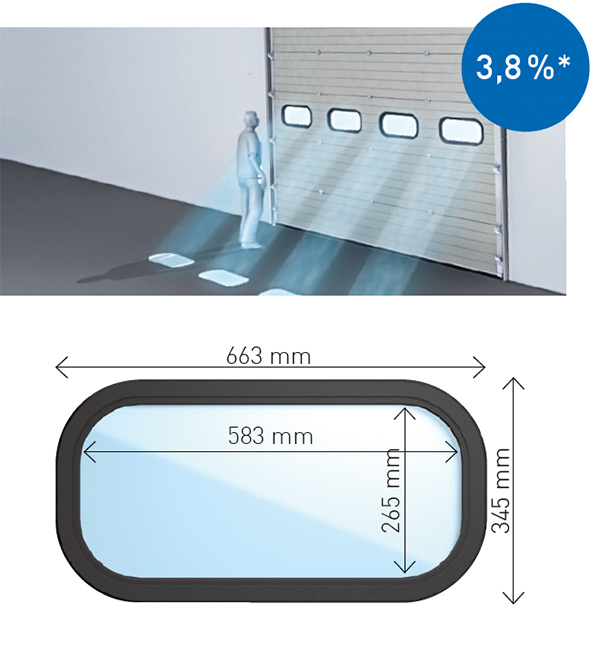

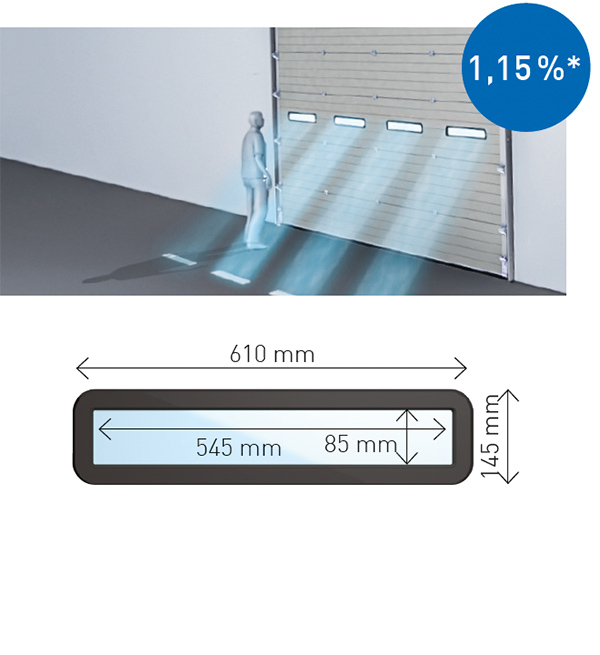

Thermo sectional doors can be fitted with Plexiglas panes for optimum light conditions and good visibility. The standard window models are elongated, with right-angled or rounded corners and have single-pane or multi-pane insulating glazing.
Rectangular panes with rounded corners and limited height are available as additional burglary protection.
Are you looking for an unconventional design?

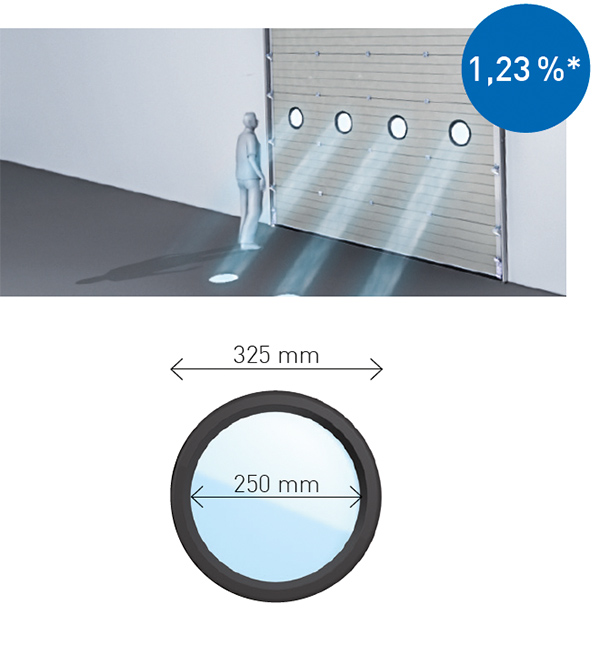

How about round windows or a creative arrangement of the panes?
THERMO 40/ 60/ 80
THERMO 40
THERMO 40
THERMO 40/ 60/ 80
THERMO 40/ 60/ 80
THERMO 40
* Light yield of the windows
