NovoPorta Plano fire doors

Fittings:

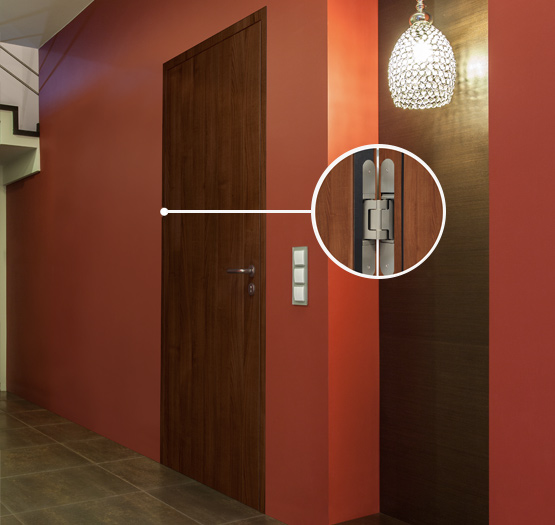

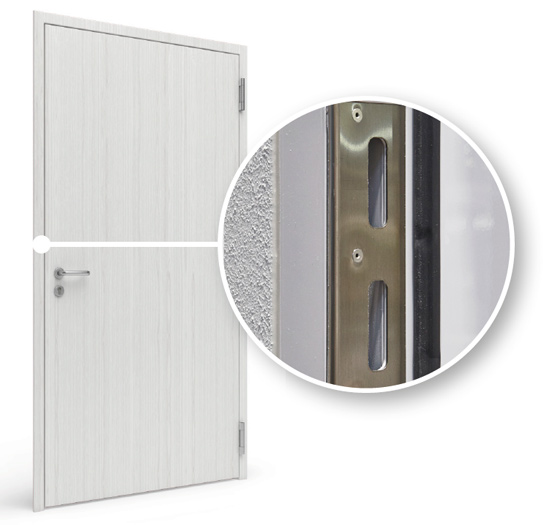

3-part 3D adjustable construction hinges with plain bearings as standard. Two hinges per leaf (> 2,500 mm BRM height three hinges) in standard white primed similar to RAL 9016; optionally also available in stainless steel. Two locking pins per door leaf. Interchangeable profile cylinder lock with stainless steel faceplate with black round lever handle set with round roses. Profile cylinder on site (length 90 mm, 45/45 mm). Single leaf doors with Novoferm NFGS 55 slide channel door closer on hinge side as standard (> 1,250 mm BRM width incl. Geze TS 5000 slide channel door closer).

Additionally for double-leaf doors:
Geze TS 5000 ISM or Dorma TS 93 GSR slide channel overhead door closer with integrated closing sequence control. Flush centre stop with centre rebate seal. Inactive leaf with rebate drive bolt, locking upwards (optionally also with locking upwards and downwards).

Frames:

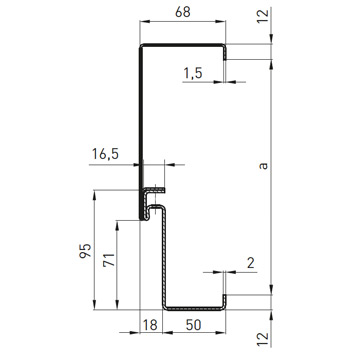

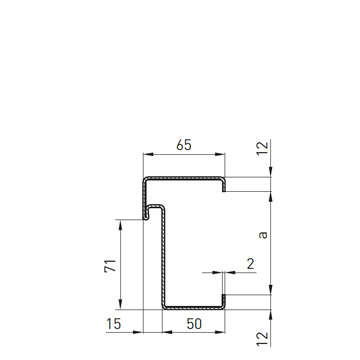

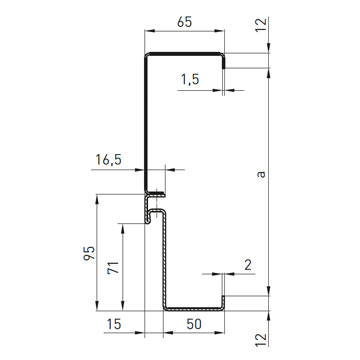

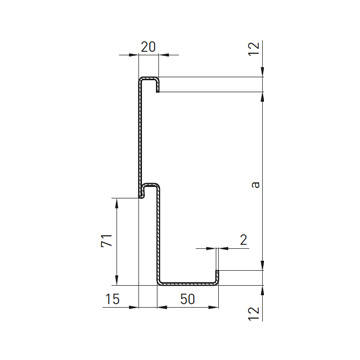

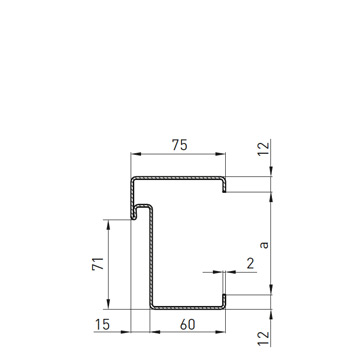

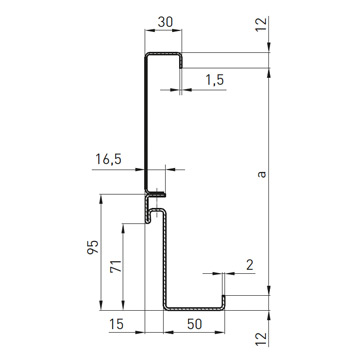

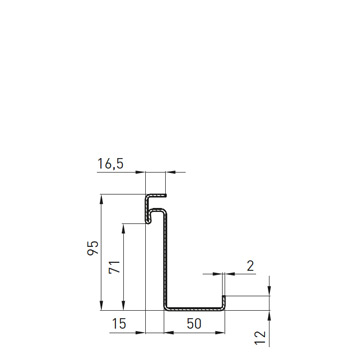

Standard corner frame with three-sided sealing profile, 2 mm thick, transom width 50 mm, optional surrounding frame, two-part surrounding frame profile 2240B, counter frame and block frames for flush wall connection.

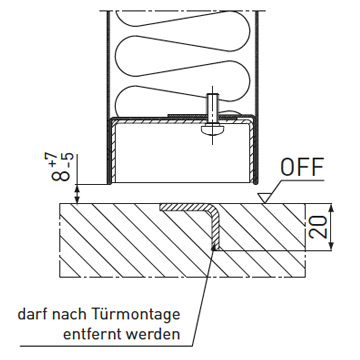

Thresholds:

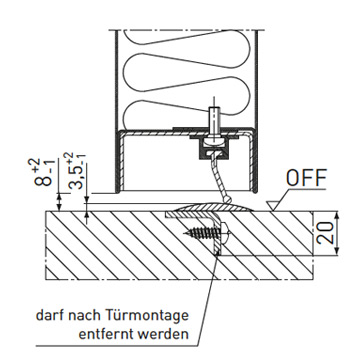

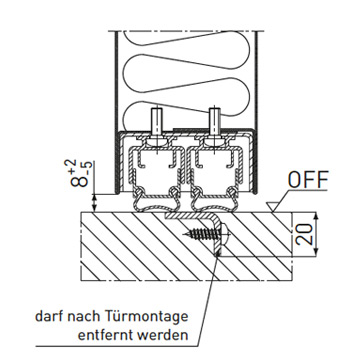

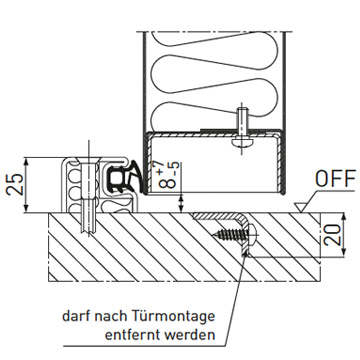

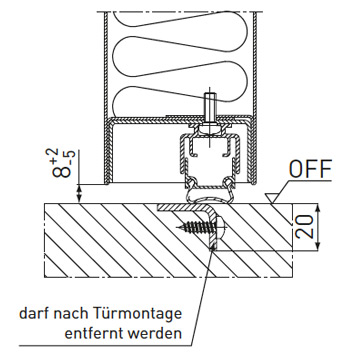

Standard A flush with the floor, optionally B3 with four-sided surrounding frame or C2 with bottom stop or RS1 sealing thresholds with lowerable floor seal, RS1 double threshold or RS2 hump threshold with overrun seal.

Surfaces:

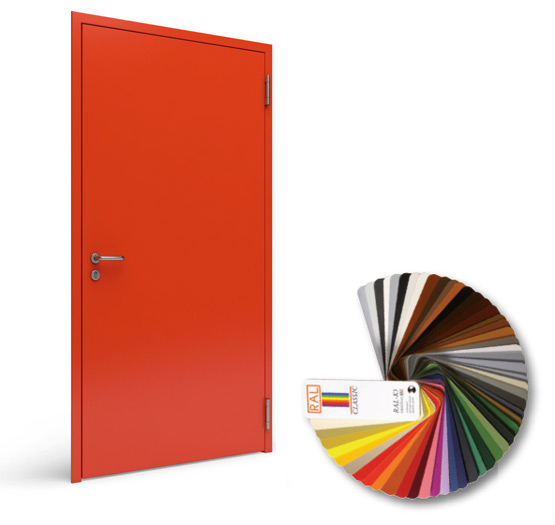

Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016. Door leaf and frame also optionally available with Novoferm Design surface.

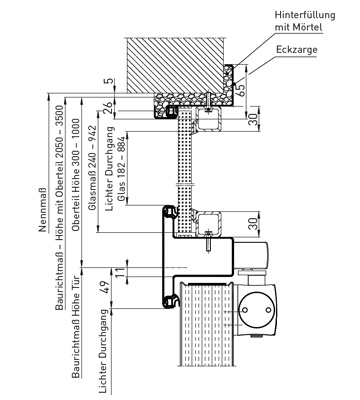

• Upper section - full leaf or glazed
• Fire-resistant glazing
• Smoke protection in accordance with DIN 18095 or EN 1634-3 with lowerable bottom seal (RS1) or cusp threshold with overrun seal (RS2)
• Sound-insulating - tested in accordance with DIN EN ISO 140-3, assessed in accordance with DIN EN ISO 717-1 (laboratory value for full leaf and threshold RS1 - for single-leaf elements 35 dB RW,P, for double-leaf elements 33 dB RW,P)
• Burglar-resistant RC2 (WK2) - tested on both sides in accordance with DIN EN 1627 - single-leaf up to BR 1,375 x 2,750 mm, double-leaf up to BR 2,500 x 2,500 mm

ATTRACTIVE DESIGN WITH ANSPRUCH

The right solution for every environment:
We offer a wide range of attractive designs with a matt (M) or high-gloss (H) clear lacquer finish.

The choice of glazing has a major influence on the visual effect of a door, but is also increasingly in line with rising energy efficiency requirements. Today, we are the only manufacturer to offer exclusively ISO glazing with greatly improved heat transfer coefficients of_Ug 1.1 to 1.3 W/(^m2K) for Premio and Plano multi-purpose door designs, depending on the type of glass selected in accordance with DIN EN ISO 10077-1.

Depending on the configuration, you can choose the NovoPorta Premio MZ with the following types of glazing (see table):
Standard and special glazing as ISO glass with particularly low heat transfer coefficients in accordance with EN ISO 10077-1.
Naturally also available as safety glass in laminated safety glass or toughened safety glass.

In addition, ornamental glass in a float glass structure, in three different designs:

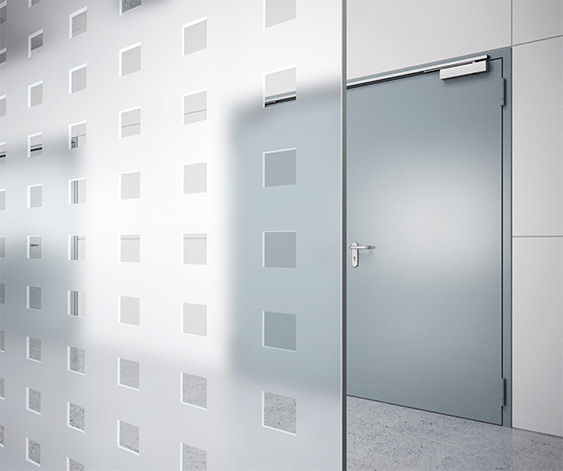

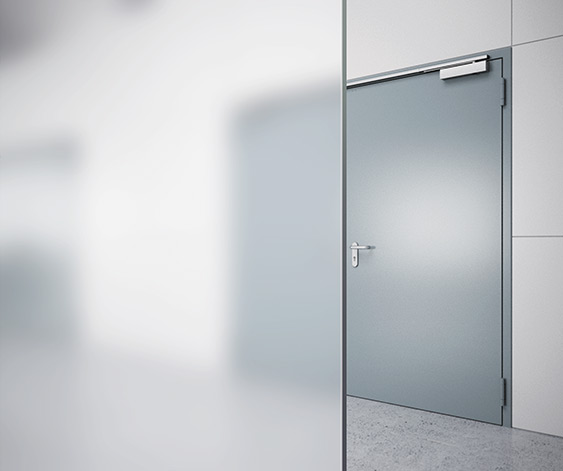

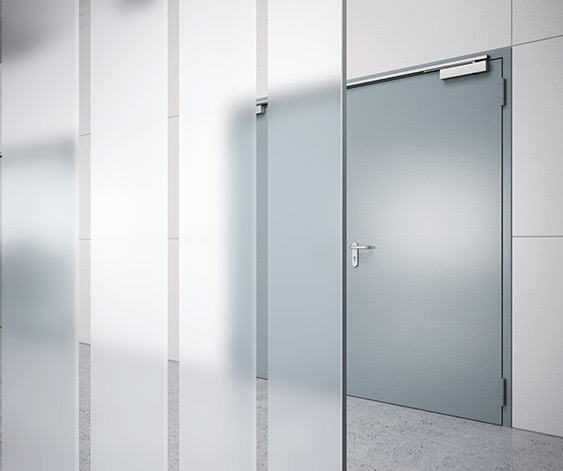

Mastercarré, Masterligne and frosted glass (see illustrations below) for customised design. These diffuse the light in different gradations and thus protect against indiscreet glances.

With glazing, the secured glazing bead is possible on the hinge side as standard (also on the opposite hinge side depending on the order).

* Observe workplace guidelines and accident prevention regulations.

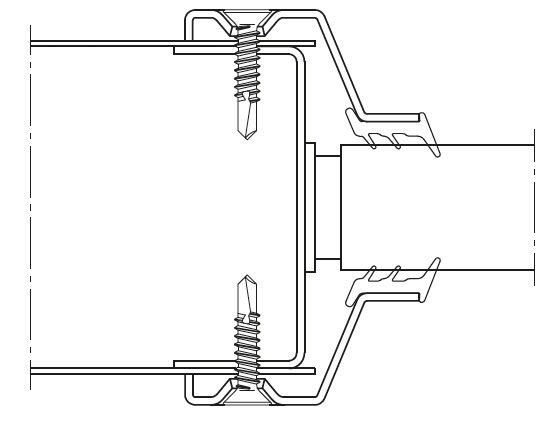

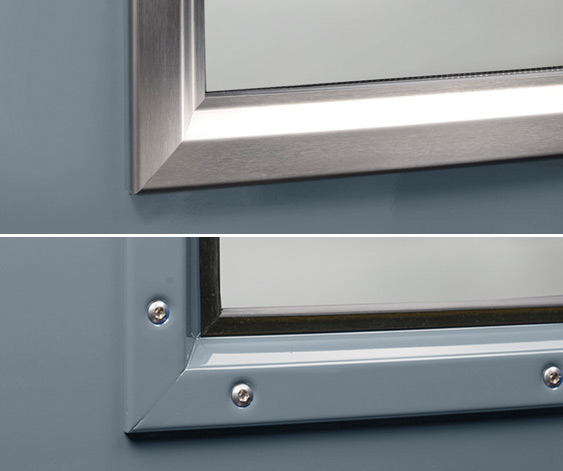

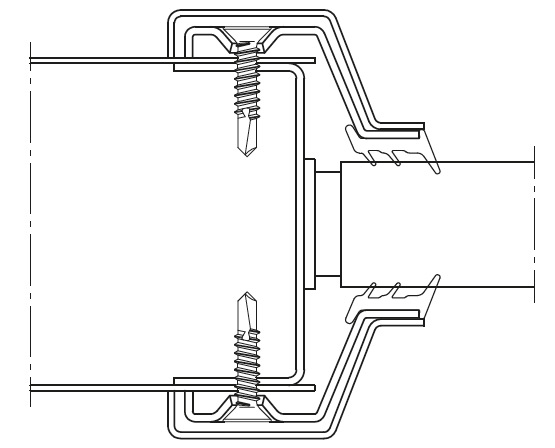

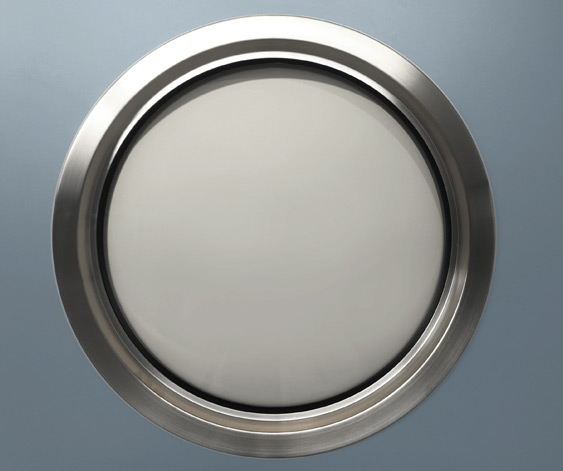

FUNCTIONAL GLASS RETAINING AND ELEGANT COVER MOULDINGS

NovoPorta Plano T30-1 und T30-2 ^{1) 2)}
NovoPorta Plano _EI2 30-1 und _EI2 30-2 ^{1) 2)}

Available glass types:
Glazing F30 clear for indoor use

NovoPorta Plano MZ-1 und MZ-2 ²⁾

Available glass types:
Only available with ISO glazing

¹) Glass for indoor use only (protect glass from UV radiation and direct exposure to halogen light). Glass can only be used for a temperature range of -20 to +45 °C.

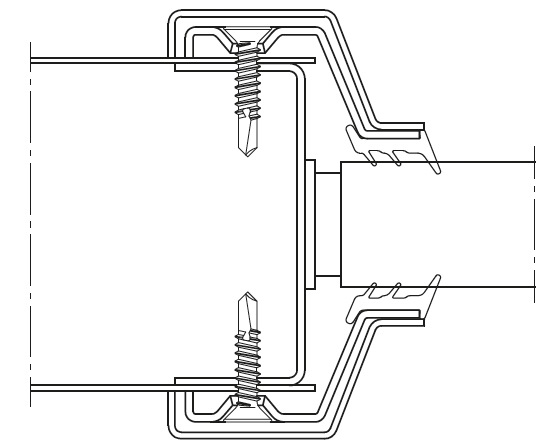

²) Standard steel glazing profiles are visibly screwed on both sides. With MZ doors, additionally secured on the hazard side / outside.

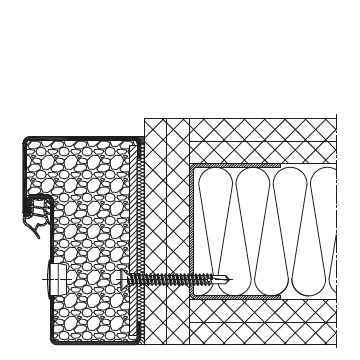

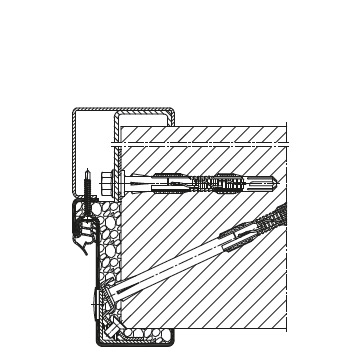

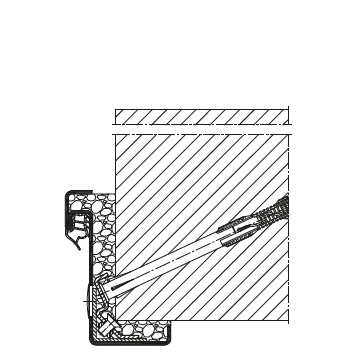

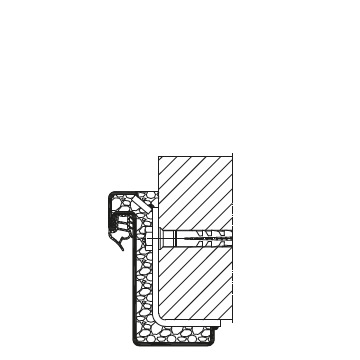

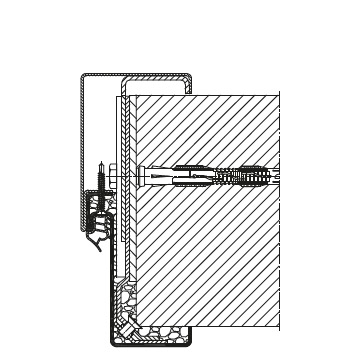

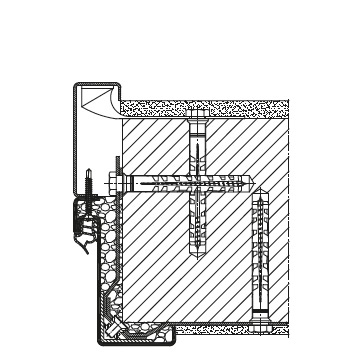

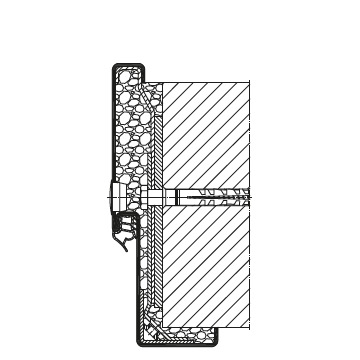

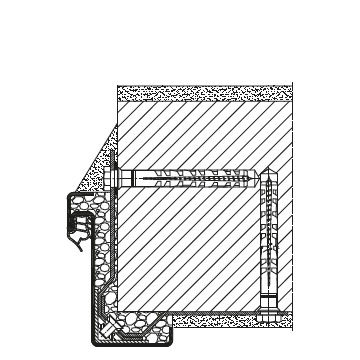

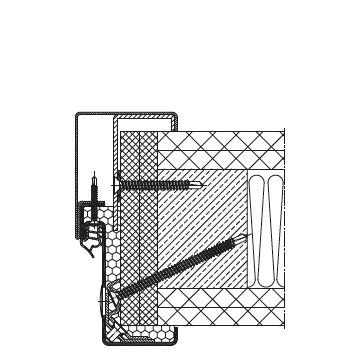

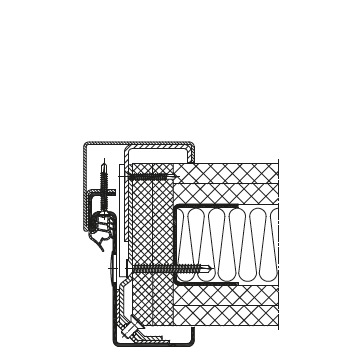

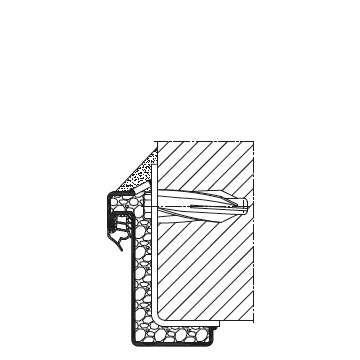

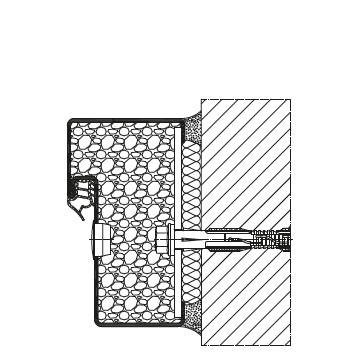

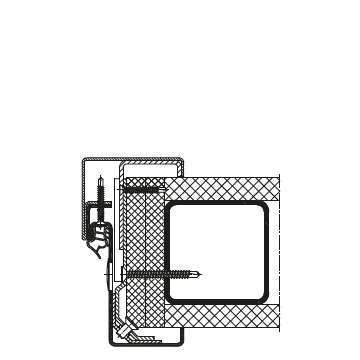

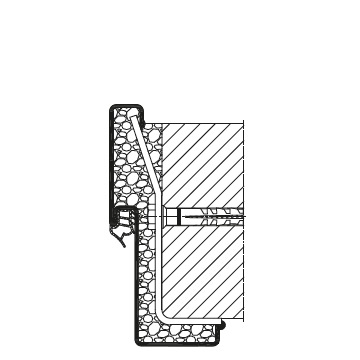

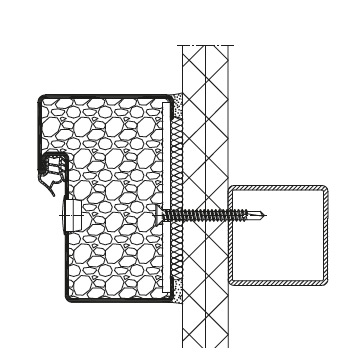

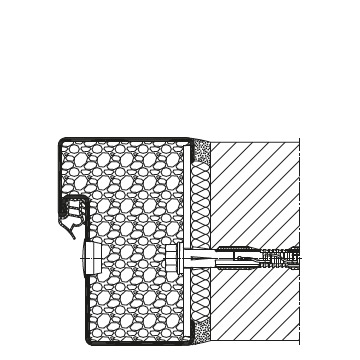

Overview of selected wall connections

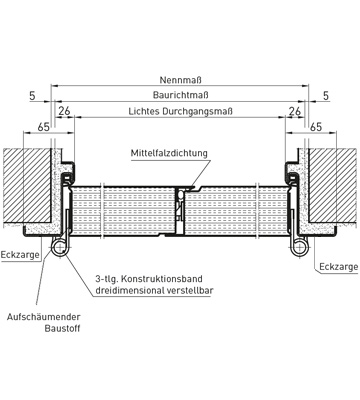

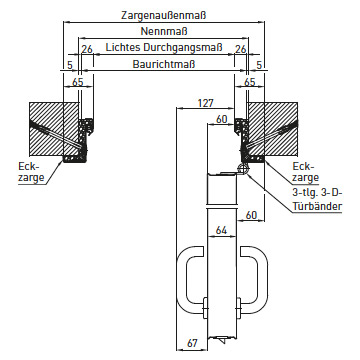

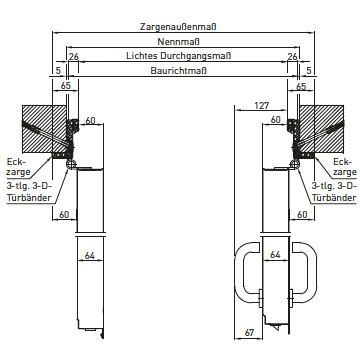

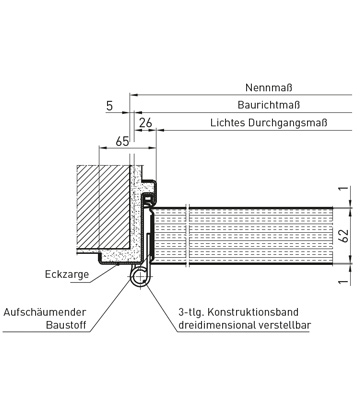

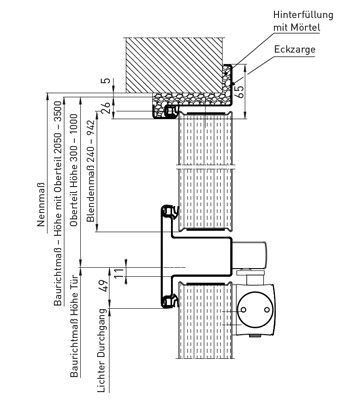

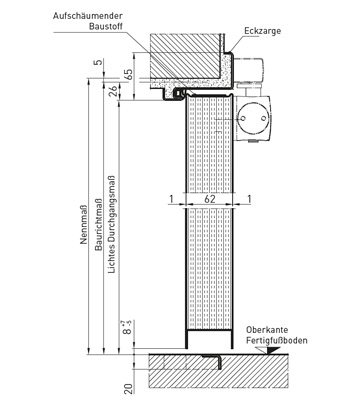

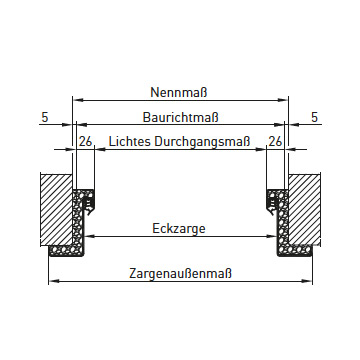

Determination of clear passage dimensions

Lightweight partition walls in the F60-A / F60-B category have proven themselves as quick, clean and flexible fire protection solutions in interior construction. With the NovoPorta Plano T30 door system, specially designed for installation walls, flush-fitting doors with frames can also be installed quickly, easily and cleanly. The system consists of the particularly attractive NovoPorta Plano steel door and the two-part frame profile 2240B.

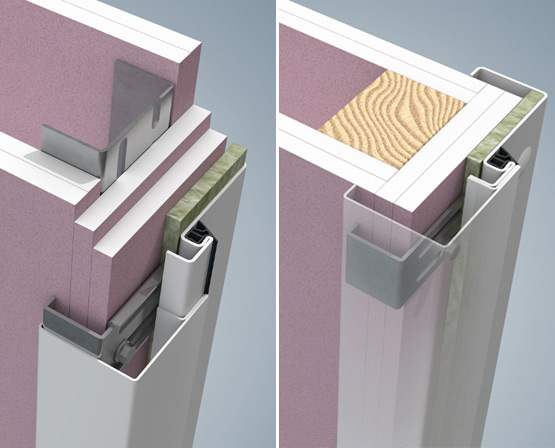

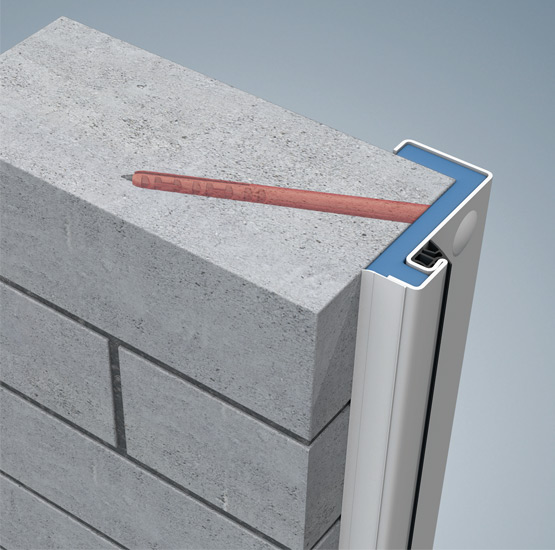

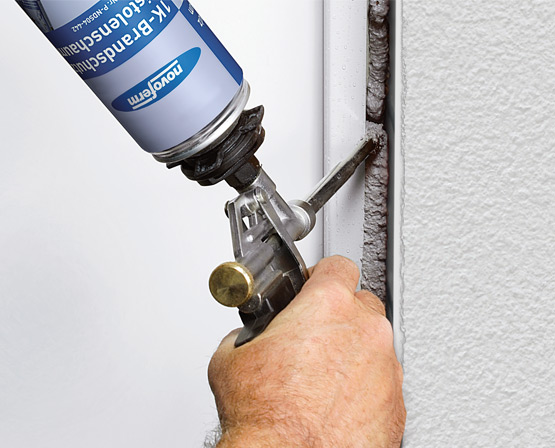

The approved frame backfillings with Novoferm fire protection foam and loose mineral wool* are a major advantage.

According to the approval, only the rebate area of the corner frame needs to be backfilled, while the special 2240B counter-shell can remain free. The complete system is tested in accordance with EN 1634 and approved by the building authorities in accordance with DIN 4102. It already fulfils the requirements of the European product standard EN 16034, which is currently in preparation.

* Bulk density min. 40 kg/m³, melting point > 1,000 °C, building material class A1, DIN 4102-1 or DIN 4102-4

The backfill can be selected as required and regardless of the wall type. Novoferm fire protection foam (blue), loose mineral wool* (yellow) and mortar (grey) are approved by the building authorities. * Bulk density min. 40 kg/m³, melting point > 1,000 °C, building material class A1, DIN 4102-1 or DIN 4102-4
