FIRE DOORS NOVOPORTA PREMIO

Fire protection doors in high-quality thick rebate for all requirements

Novoferm Fire protection doors NovoPorta Premio with high-quality thick rebate are available in fire protection classes EI2 30, EI2 60 and EI2 90) for internal and external use.

Cosy thick rebate
NovoPorta Premio multifunctional steel doors were developed specifically for the European market. The doors are ideal for all requirements in modern property construction thanks to their consistently sophisticated appearance with high-quality thick rebate and a 64 mm thick door leaf.

High functionality
NovoPorta Premio steel doors with high-quality thick rebate are available as fire protection (up to EI2 90), smoke protection, security (up to RC 4), sound insulation (up to RW = 53 dB), multi-purpose and even bullet-resistant doors (FB 4, VPAM 6) - for a uniform door appearance throughout the property.

Many assembly advantages
With the door series, you can choose from many quick, easy and clean assembly methods and frame backfilling options (rebate screw assembly, backfilling with fire protection foam, ideal drywall solutions, frames with factory-fitted fire protection, etc.).

Door comparison and properties

Comparison of NovoPorta Premio fire doors
Door designation

Thick rebate

T30 (EI2 30)

EI2 60

T90 (EI2 90)

RS

Sound-insulating

RC2

RC3

RC4

T30-1/EI2 30-1 Premio

Flap 1-leaf

-

-

-

-

-

T30-1/EI2 30-1
Premio

Door 1-leaf

-

-

-

-

-

-

-

EI2 30-1 Premio GE oversize

Door 1-leaf

-

-

-

-

-

T30-2/EI2 30-2 Premio

Door 2-leaf

-

-

-

-

-

-

EI2 30-2 Premio GE oversize

Door 2-leaf

-

-

-

-

-

EI2 60-1 Premio

Door 1-leaf

-

-

-

-

-

-

EI2 60-1 Premio GE oversize

Door 1-leaf

-

-

-

EI2 60-2 Premio

Door 2-leaf

-

-

-

-

-

-

EI2 60-2 Premio GE oversize

Door 2-leaf

-

-

-

-

T90-1/EI2 90-1 Premio

Flap 1-leaf

-

-

-

-

-

-

-

T90-1/EI2 90-1 Premio

Door 1-leaf

-

-

-

-

-

-

EI2 90-1 Premio GE oversize

Door 1-leaf

-

-

-

-

T90-2/EI2 90-2 Premio

Door 2-leaf

-

-

-

-

-

-

EI2 90-2 Premio GE oversize

Door 2-leaf

-

-

-

-

DETAILS OF THE NOVOPORTA PREMIO EI 30

DETAILS ZUR NOVOPORTA PREMIO EI 30

Fittings:
3-part construction hinges with ball bearing rings as standard. Two hinges per leaf (> BRM height 2,500 mm (> LD 2,458 mm) three hinges) in standard white primed similar to RAL 9016; optionally available in stainless steel, as 3D adjustable hinges in steel and stainless steel or as a slimline 3D stainless steel project hinge (overhead door closer required). For single-leaf doors up to max. BRM size 1,250 x 2,250 mm (LD 1,166 x 2,208 mm), one construction hinge and one spring hinge. For 2-leaf doors, two construction hinges per leaf. All BRM heights > 2,500 mm (> LD 2,458 mm) with three construction hinges per leaf as standard.
Two locking pins per door leaf. Interchangeable profile cylinder lock with black round lever handle set mounted on a fixed swivel bearing. Profile cylinder for internal doors on site (length 85 mm, 35/50 mm). Included in the scope of delivery for external doors in the form of a dummy cylinder. Single-leaf doors with internal reinforcement for overhead door closer on hinge side as standard. Installation dimensions > 1,250 x 2,250 mm (> LD 1,166 x 2,208 mm), as well as all door heights over 2,500 mm (> LD 2,458 mm), fitted as standard with Geze TS 4000 F or dormakaba TS 89 F overhead door closer (also available with Novoferm NFGS 55 guide rail door closer on request at the same price).

Additionally for 2-leaf doors:
Two Geze TS 4000 F or dormakaba TS 89 F overhead door closers and a door coordinator. Flush centre stop with centre rebate seal. Inactive leaf with rebate drive bolt, locking upwards (optionally upwards and downwards).

Frames:

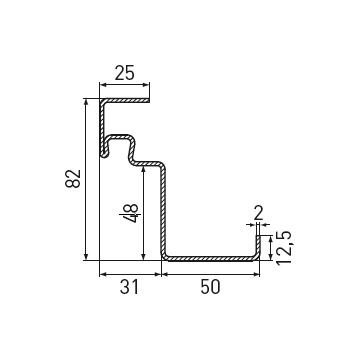

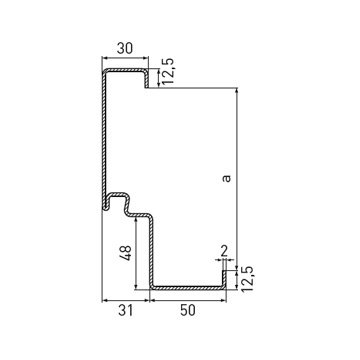

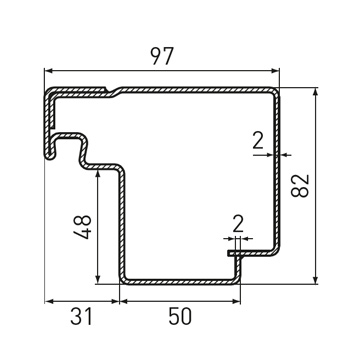

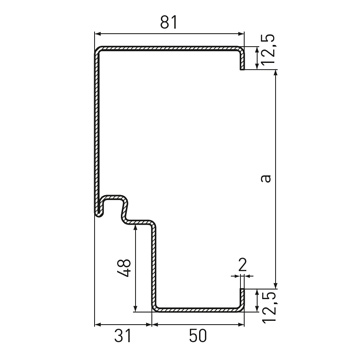

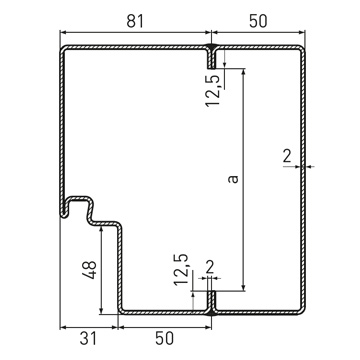

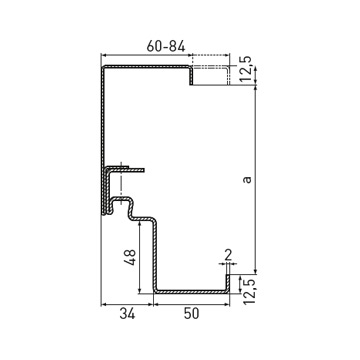

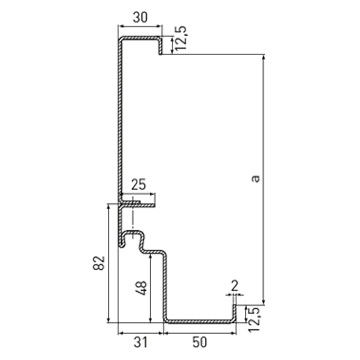

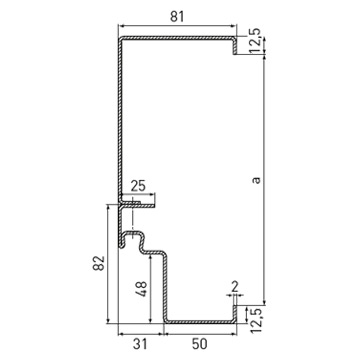

Standard corner frame with three-sided EPDM sealing profile without floor recess, 2.0 mm thick, mirror width 50 mm, optional surrounding frame, two-part surrounding frame profile 2140B, counter frame and block frame for flush wall connection or block frame for installation in front of the wall.

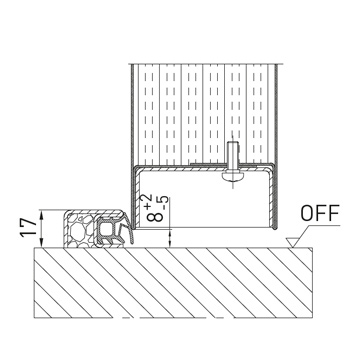

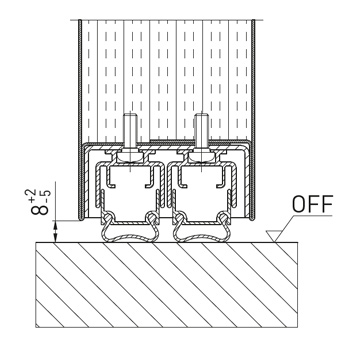

Thresholds:

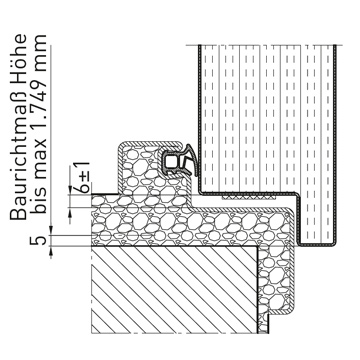

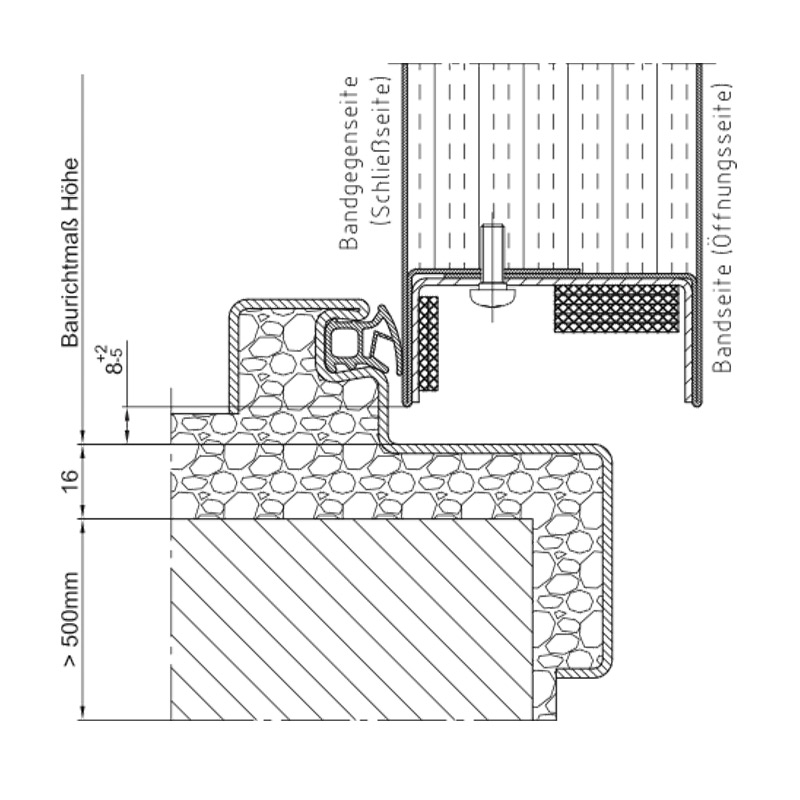

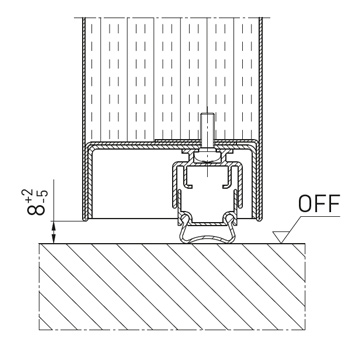

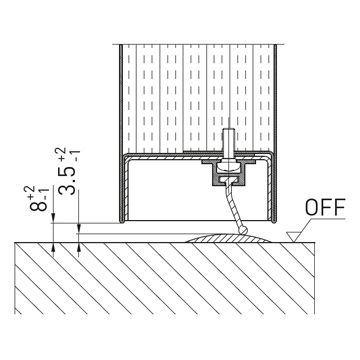

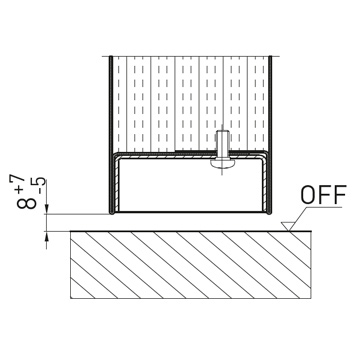

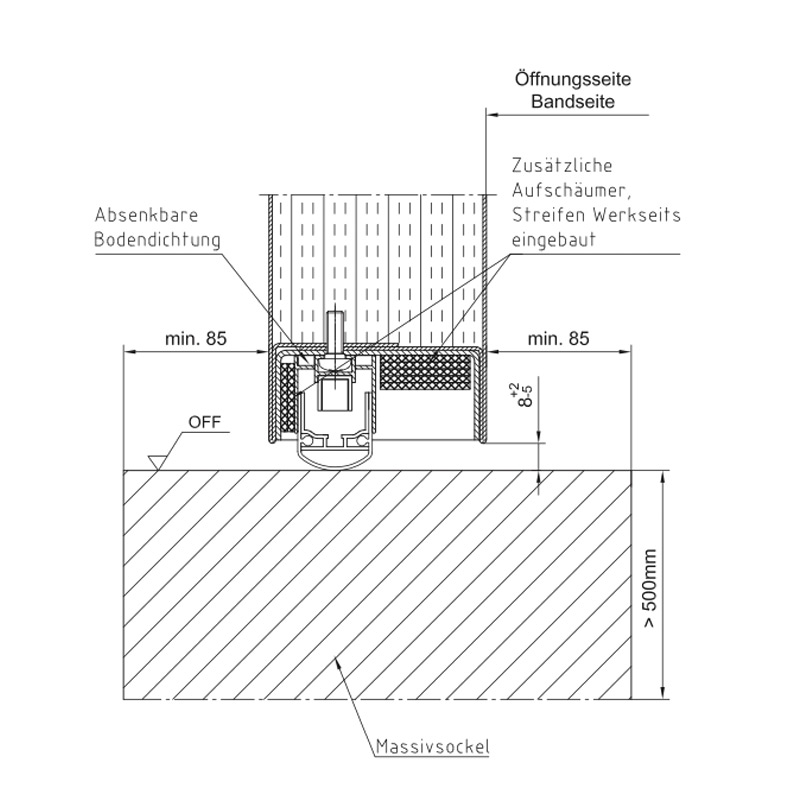

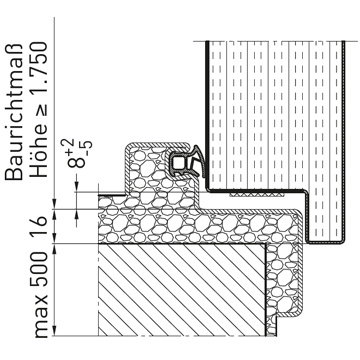

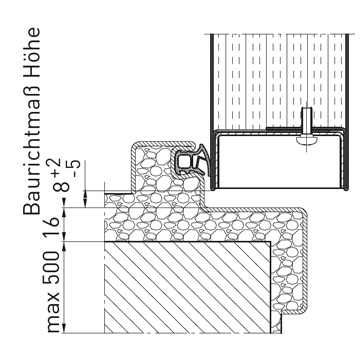

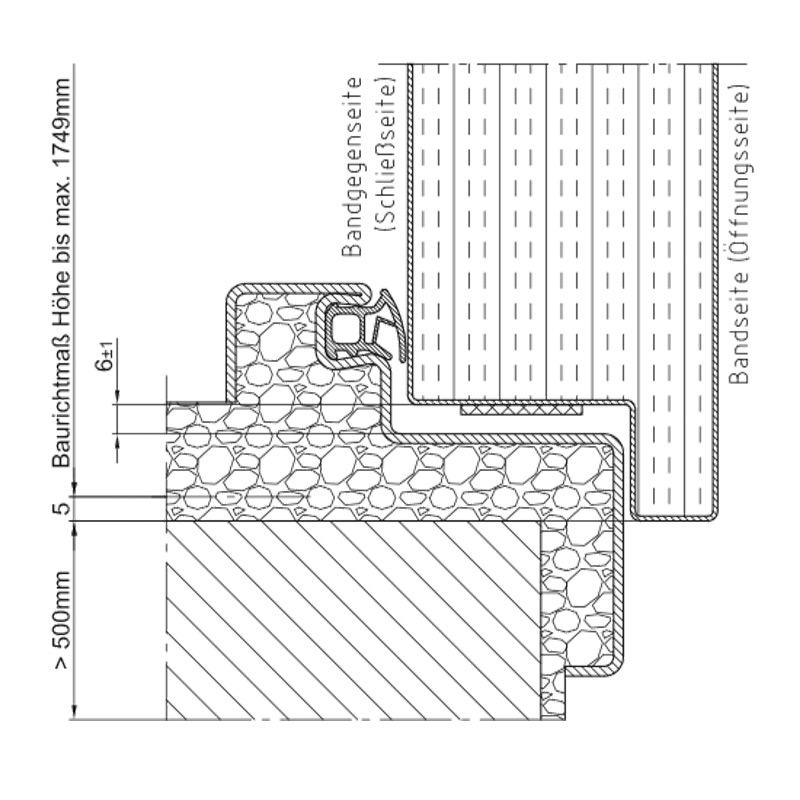

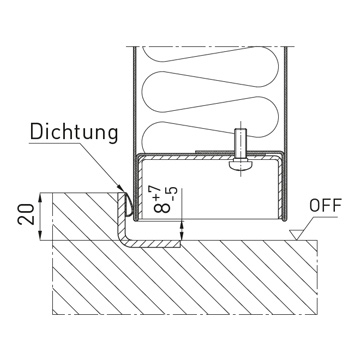

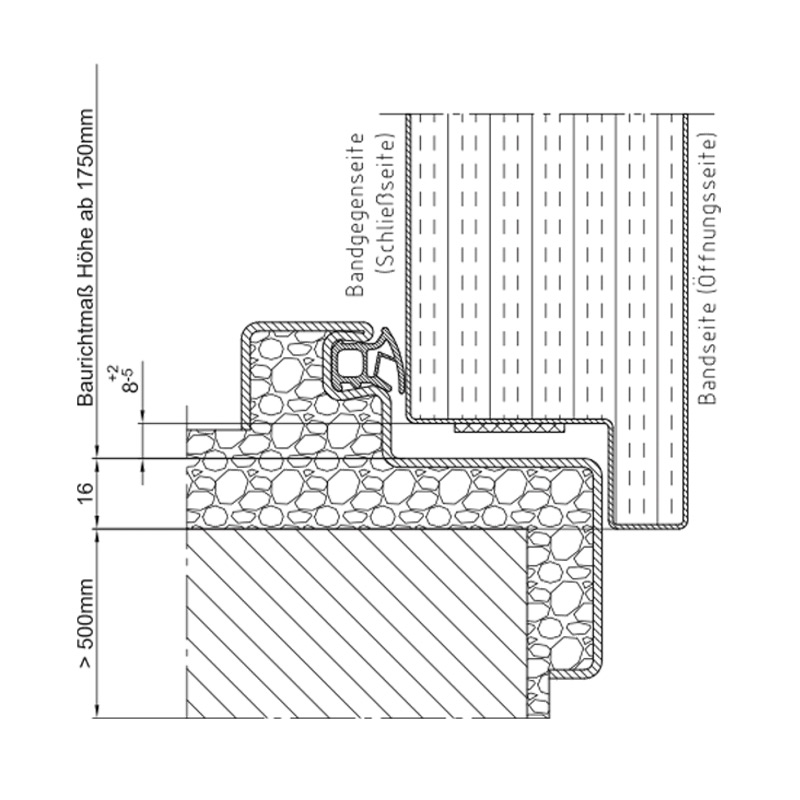

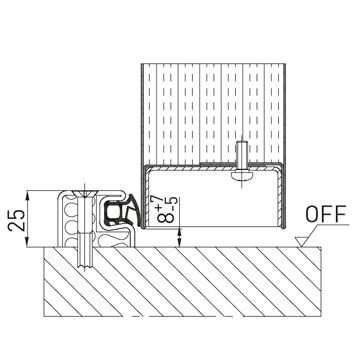

Standard A flush with the floor, optionally B 1, B 2, B 3, BE-2 with four-sided surrounding frame or C 2 with bottom stop and seal or RS 1 sealing thresholds with lowerable floor seal (also available as RS1V with delayed lowering), RS 1 double threshold or RS 2 hump threshold with overrun seal.

Surfaces:
Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016. Optional door leaf and frame also available with powder coating in the RAL colour of your choice.



NOVOPORTA PREMIO EI2 30-1

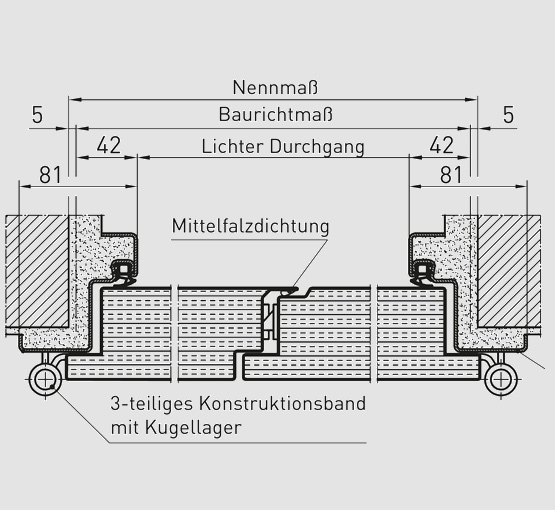

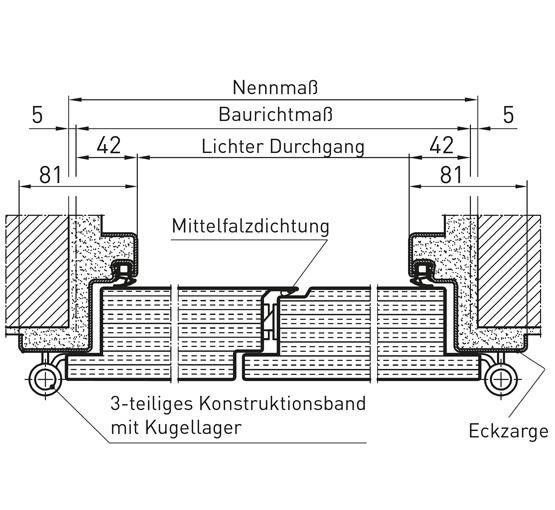

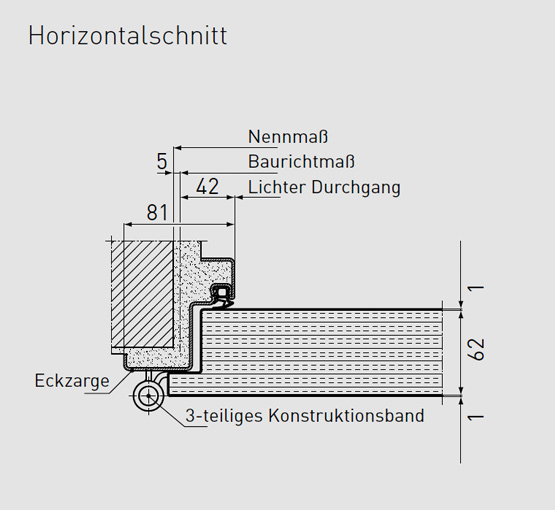

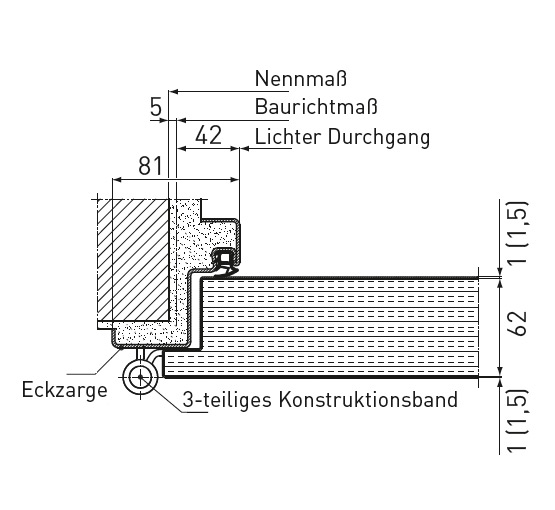

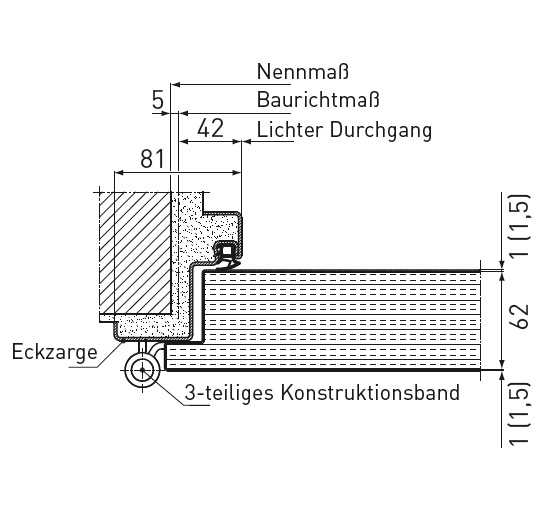

Horizontal section, 1-panel

Horizontal section, 2-panel

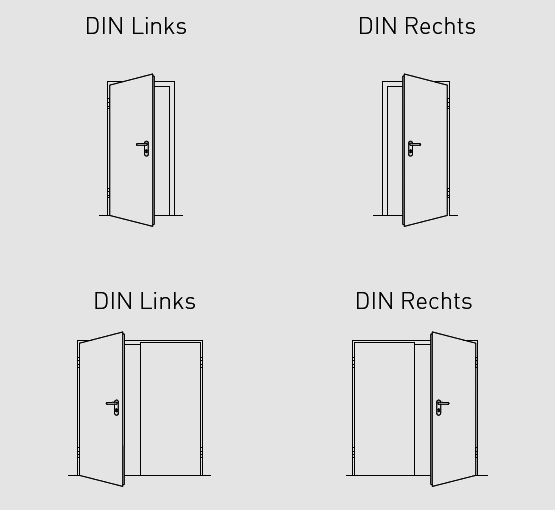

DIN left / DIN right



NEWPORT PREMIUM EI2 30

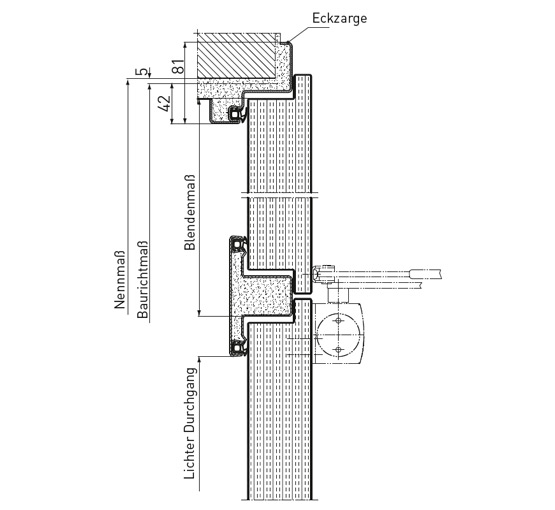

Vertical section

Vertical section
with top panel

ON REQUEST ALSO WITH:

  • Top panel/top light
  • Fire-resistant glazing (overhead door closer always required)
  • Smoke protection to EN 1634-3 with drop-down bottom seal (RS 1/RS1V) or cusp threshold with overlap seal (RS 2) and overhead door closer
  • Sound-insulating (not for version with top panel)
    • Tested in accordance with EN ISO 140-3, assessed in accordance with EN ISO 717-1 (laboratory value for full leaf and threshold RS 1/RS1V)
    • for 1-leaf elements up to BRM 1,375 x 2,500 mm (LD 1,291 x 2,458 mm) 40 dB RwP
    • for 1-leaf elements in oversize up to BRM 1,500 x 3,000 mm (LD 1,416 x 2,958 mm) 39 dB RwP
    • for 2-leaf units up to BRM 2,500 x 2,500 mm (LD 2,416 x 2,458 mm) 39 dB RwP
    • for 2-leaf elements in oversize up to BRM 3,000 x 3,000 mm (LD 2,916 x 2,958 mm) 37 dB RwP
  • Burglar-resistant RC 2* and RC 3* - tested on both sides in accordance with EN 1627 - up to BRM 2,500 x 2,500 mm (LD 2,416 x 2,458 mm) BRM sizes up to 3,000 x 3,000 mm (LD 2,916 x 2,958 mm) RC 2 in test procedure
  • Burglar-resistant RC 4* - tested on both sides in accordance with EN 1627 - only as 1-leaf design Full leaf up to BRM 1,375 x 2,500 mm (LD 1,291 x 2,458 mm)

YOUR PLUS POINTS AT A GLANCE

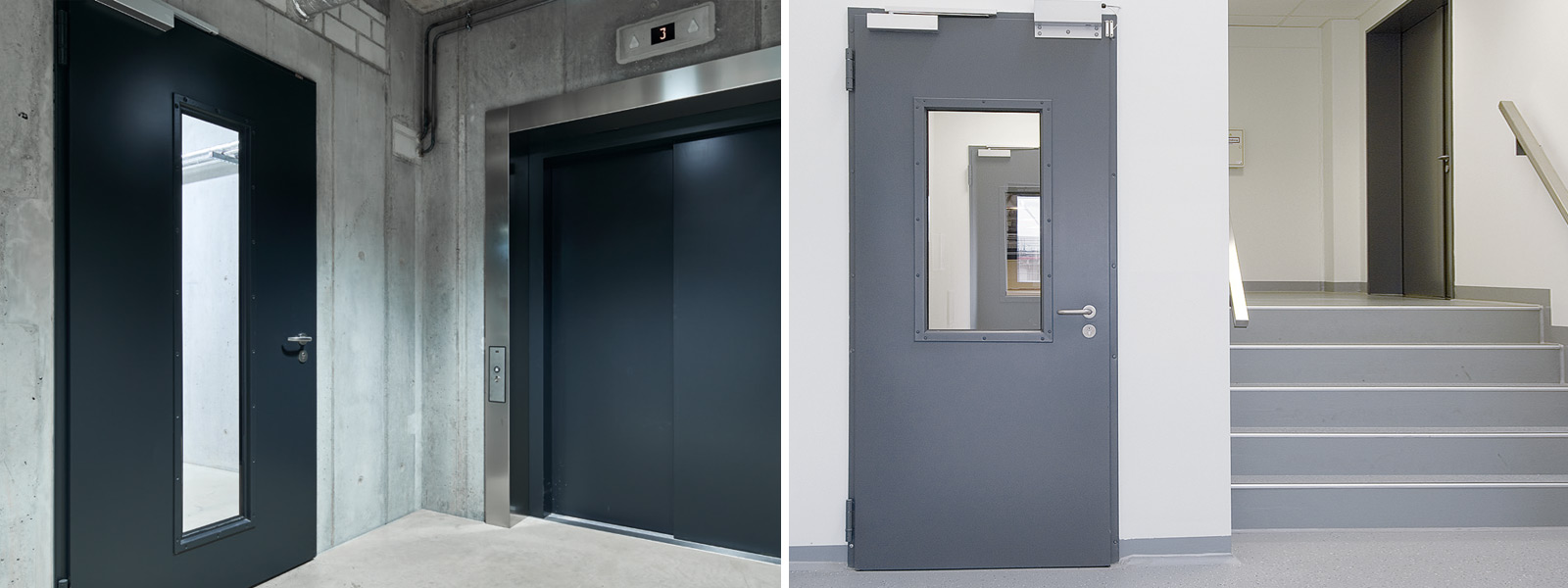

  • Single and double-leaf steel fire doors for internal or external use
  • Fire-resistant tested in accordance with EN 1634-1 and approved by the building authorities in accordance with DIN 4102 or European Technical Assessment ETA-17/0443
  • Fire protection strips on 3 sides and on the centre rebate of the active leaf
  • Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016
  • Door leaf rebated on three sides with thick rebate, 64 mm thick, sheet thickness 1.0 mm - optionally up to BRM size 1,375 x 2,500 mm (LD 1,291 x 2,458 mm) or 2,500 x 2,500 mm (LD 2,416 x 2,458 mm) also in 1.5 mm.
DETAILS OF THE NOVOPORTA PREMIO EI 60

DETAILS ZUR NEWPORT PREMIO EI2 60

Fittings:
3-part construction hinges with ball bearing rings as standard. Two hinges per leaf in standard white primed similar to RAL 9016; optionally also available in stainless steel, as 3-D adjustable hinges in steel and stainless steel, or as a slim 3-D stainless steel project hinge (an overhead door closer is always required for project hinges). For single-leaf doors up to max. BRM size 1,000 x 2,125 mm (LD 916 x 2,083 mm), one construction hinge and one spring hinge. For 2-leaf doors, two construction hinges per leaf. Two locking pins per door leaf. PZ exchangeable lock with black round lever handle set with fixed pivot bearing. Profile cylinder for internal doors on site (length 85 mm, 35/50 mm). Included in the scope of delivery for external doors in the form of a dummy cylinder. Single-leaf doors with internal reinforcement for overhead door closer on hinge side as standard. Construction dimensions > 1,000 x 2,125 mm (> LD 916 x 2,083 mm) with Geze TS 4000 F or dormakaba TS 89 F overhead door closer as standard (also available with Novoferm NFGS 55 slide channel door closer on request at the same price).

Additionally for 2-leaf doors:
Two Geze TS 4000 F or dormakaba TS 89 F overhead door closers and a door coordinator. Flush centre stop with centre rebate seal. Inactive leaf with rebate drive bolt, locking upwards and downwards.

Frames:

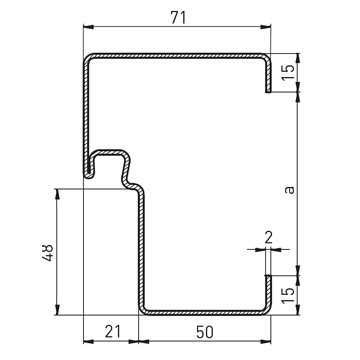

Standard: Corner frame with three-sided CR sealing profile without floor recess, 2.0 mm thick, mirror width 50 mm, optional surrounding frame, two-part surrounding frame profile 2140B, counter frame and block frames for flush wall connection.

Thresholds:
Standard A flush with the floor, optionally B1, B2, B3, BE-2 with four-sided frame or C2 with bottom stop or RS1 sealing thresholds with lowerable floor seal (also available as RS1V with delayed lowering) or RS1 double threshold.

Surfaces:
Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016. Optional door leaf and frame also available with powder coating in the RAL colour of your choice.



NOVOPORTA PREMIO EI2 60-1

Horizontal section, 1-panel

Horizontal section, 2-panel

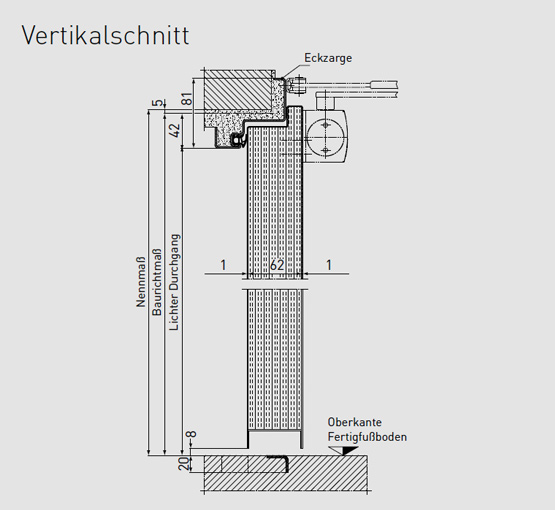

Vertical section

DIN left / DIN right

ON REQUEST ALSO WITH:

  • Fire-resistant glazing (overhead door closer always required)
  • Smoke protection in accordance with EN 1634-3 with lowerable floor seal (RS1/RS1V)
  • Sound-insulating - tested in accordance with EN ISO 140-3, assessed in accordance with EN ISO 717-1 (laboratory value for full leaf and threshold RS1/RS1V)
  • for 1-leaf elements up to BRM 1,375 x 2,500 mm (LD 1,291 x 2,458 mm) 35 dB RwP
  • for 2-leaf elements up to BRM 2,500 x 2,500 mm (LD 2,416 x 2,458 mm) 35 dB RwP
  • Burglar-resistant RC 2 - tested on both sides in accordance with EN 1627 - up to BRM 2,500 x 2,500 mm (LD 2,416 x 2,458 mm)
  • Burglar-resistant RC 3 - tested on both sides in accordance with EN 1627 - up to BRM 2,500 x 2,500 mm (LD 2,416 x 2,458 mm)
  • Burglar-resistant RC 4 - tested on both sides in accordance with EN 1627 - only as 1-leaf type Full leaf up to BRM 1,375 x 2,500 mm (LD 1,291 x 2,458 mm)

YOUR PLUS POINTS AT A GLANCE

  • Single and double-leaf steel fire doors for internal or external use
  • Highly fire-resistant tested in accordance with DIN EN 1634-1 and approved by the building authorities in accordance with European Technical Assessment ETA-17/0443
  • Door leaf rebated on three sides with thick rebate, 64 mm thick, sheet thickness 1.0 mm
  • Fire protection strips on 3 sides and on the centre rebate of the active leaf
  • Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016
DETAILS OF THE NOVOPORTA PREMIO EI 90

DETAILS ZUR NEWPORT PREMIO EI2 90

Fittings:
3-part construction hinges with ball bearing rings as standard. Two hinges per sash in standard white primed finish similar to RAL 9016; optionally available in stainless steel, as 3D adjustable hinges in steel and stainless steel or as slimline 3D stainless steel object hinge. Two locking pins per door leaf up to BRM height 2,125 mm (LD 2,083 mm), from height 2,126 mm (LD 2,084 mm) three locking pins. Fitted as standard with Geze TS 4000 F or dormakaba TS 89 F overhead door closer (also available with Novoferm NFGS 55 slide channel door closer on request at the same price). Interchangeable profile cylinder lock with black round lever handle set with fixed pivot bearing. Profile cylinder for internal doors on site (length 85 mm, 35/50 mm). Included in the scope of delivery for external doors in the form of a dummy cylinder.

Additionally for 2-leaf doors:
Second overhead door closer Geze TS 4000 F or dormakaba TS 89 F and a door coordinator. Flush centre stop with centre rebate seal. Inactive leaf with rebate drive bolt, locking upwards and downwards.

Frames:
Standard corner frame with three-sided CR sealing profile without floor recess, 2.0 mm thick, mirror width 50 mm, optional surrounding frame, two-part surrounding frame profile 2140B, counter frame and block frame for flush wall connection.

Thresholds:
Standard A flush with the floor, optionally B 1, B 2, B 3, BE-2 with four-sided surrounding frame or C 2 with bottom stop or RS 1 sealing thresholds with lowerable floor seal (also as delayed lowering RS1V) or RS 1 double threshold.

Surfaces:
Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016. Door leaf and frame also optionally available with Novoferm design surface.



NOVOPORTA PREMIO EI2 90-1

Horizontal section, 1-panel

Horizontal section, 2-panel

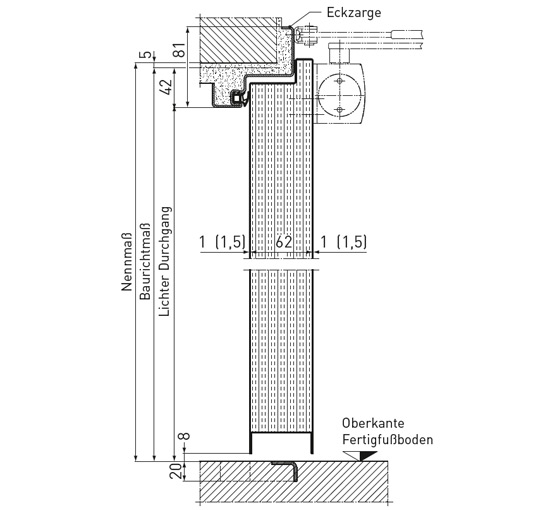

Vertical section

DIN left / DIN right

ON REQUEST ALSO WITH:

  • Fire-resistant glazing
  • Smoke protection in accordance with EN 1634-3 with lowerable bottom seal (RS 1/RS1V)
  • Sound-insulating - tested in accordance with EN ISO 140-3, assessed in accordance with EN ISO 717-1 (laboratory value for full leaf and threshold RS 1/RS1V)
    • for 1-leaf and 2-leaf elements 39 dB RwP each
  • Burglar-resistant RC 2 - tested on both sides in accordance with EN 1627 - full leaf up to BRM 2,500 x 2,500 mm (LD 2,416 x 2,458 mm)
  • Burglar-resistant RC 3 - tested on both sides in accordance with EN 1627 - full leaf up to BRM 2,500 x 2,500 mm (LD 2,416 x 2,458 mm)

YOUR PLUS POINTS AT A GLANCE

  • Single and double-leaf steel fire doors for internal or external use
  • Fire-resistant tested in accordance with EN 1634-1 and approved by the building authorities in accordance with DIN 4102 or European Technical Assessment ETA-17/0443.
  • Fire protection strips on 3 sides and on the centre rebate of the active leaf
  • Door leaf rebated on three sides with thick rebate, 64 mm thick, sheet thickness 1.0 mm (optionally in 1.5 mm)
  • Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016

Highlights Multifunctional steel doors

This animation shows the highlights and possibilities of Novoferm multifunctionalsteel doorsare presented in a visually appealing and condensed form.

You can find further animations at

https://www.youtube.com/NovofermVideos

EQUIPMENT

SURFACES AND DESIGNS

SURFACES AND DESIGNS

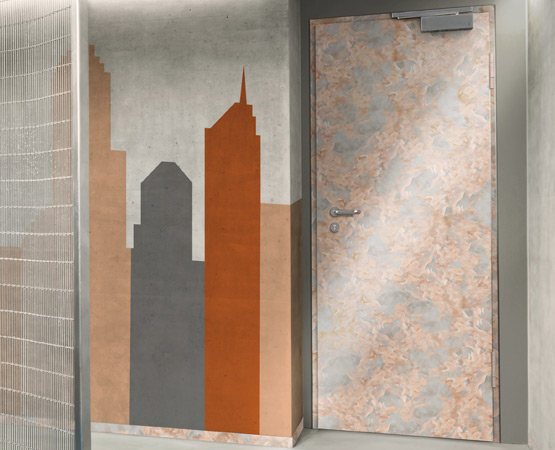

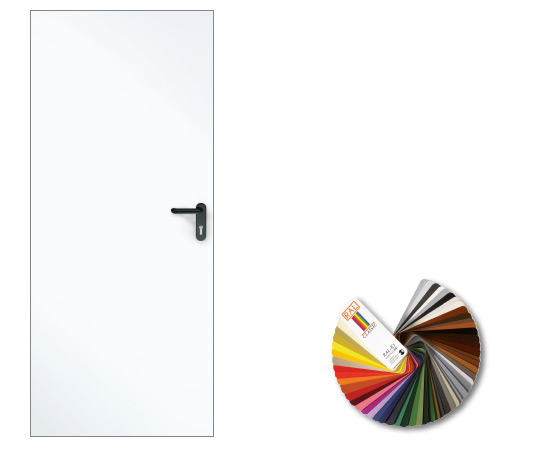

THE PREMIO BRINGS COLOUR TO THE OBJECT
Doors create an inviting entrance. That's why Novoferm attaches great importance to creating a high-quality impression with the traffic white powder coating. In addition, a wide range of design variants and RAL colours of your choice invite you to set further harmonious accents that also give a building its unmistakable character. The designs can be selected differently on the inside and outside or for each door leaf.

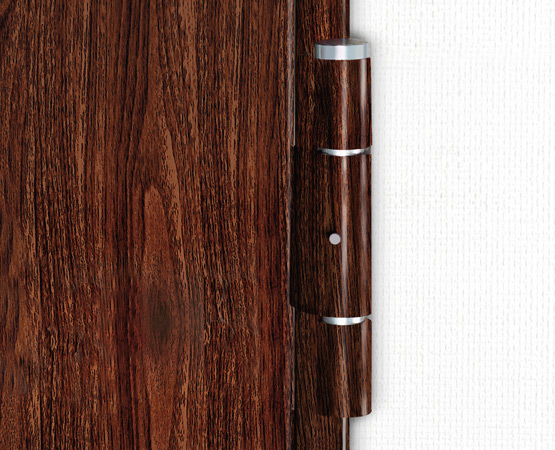

Even the hinges can be coloured in the door design on request.

An exclusive look with sophisticated Novoferm technology - the result is a harmonious overall picture that impresses the observer.

Doors can thus be visually integrated into the wall, with a huge variety of design options.

At Novoferm, this variety consists of the door leaf, frame appearance and hinges, which can be designed as a unit or in different ways.

This creates a perfect interplay between appearance and security that is impressive in every respect.

The high-quality Novoferm primer in traffic white (RAL 9016) already looks very attractive on delivery.

Many building owners find it so visually appealing that traffic white is the colour of choice in installation situations where there is no risk of corrosion.

Lightfast and extremely scratch-resistant thanks to the matt or high-gloss clear lacquer finish, you can design the Premio in a variety of attractive ways.

From industrial charm to rooms with a cosy atmosphere:
The outside and inside, the individual door leaves and even the hinges can be customised with individual designs.

The right solution for every environment:

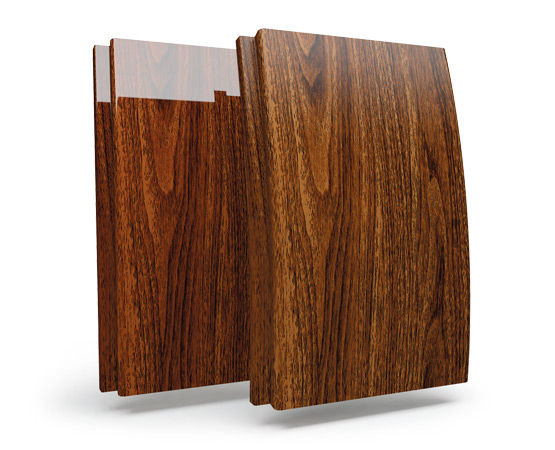

We offer a wide range of attractive designs with a matt (M) or high-gloss (H) clear lacquer finish.

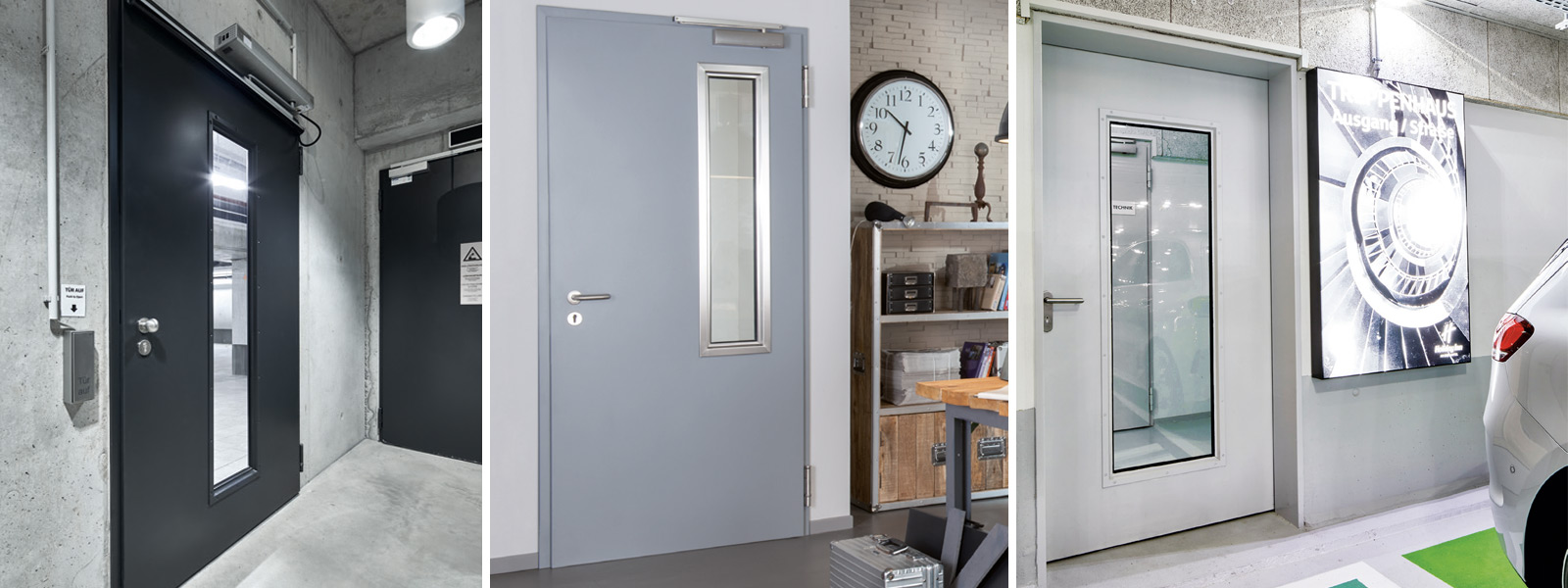

GLAZING

GLAZING

The choice of glazing has a major influence on the visual effect of a door, but is also increasingly in line with rising energy efficiency requirements. Today, we are the only manufacturer to offer exclusively ISO glazing with greatly improved heat transfer coefficients ofUg 1.1 to 1.3 W/(m2K) for Premio and Plano multi-purpose door designs, depending on the type of glass selected in accordance with DIN EN ISO 10077-1.

Depending on the configuration, you can choose the NovoPorta Premio MZ with the following types of glazing (see table):
Standard and special glazing as ISO glass with particularly low heat transfer coefficients in accordance with EN ISO 10077-1. Naturally also available as safety glass in LSG or toughened safety glass.

In addition, ornamental glass in a float glass structure, in three different designs:
Mastercarré, Masterligne and frosted glass (see illustrations below) for customised design.
These scatter the light in different gradations and thus protect against indiscreet glances.

Glass types
NovoPorta Plano and Premio MZ types

MZ-1
single-leaf

MZ-2
double-leaf

With ISO glass 24 mm float clear glass (standard glass)*.

-

-

With ISO glass VSG / VSG 24 mm (standard glass)

-

-

With ISO glass VSG / VSG 24 mm with matt film (standard glass)

-

-

With ISO glass 24 mm float patterned glass white / Mastercarré*

-

-

With ISO glass 24 mm float patterned glass, white / Masterligne*

-

-

With ISO glass ESG / ESG 24 mm

-

-

Other special glass types (ISO glass only) on request, glass thickness 24 mm

-

-

Glazing device for on-site ISO glass 24 mm

-

-



With glazing, the secured glazing bead is possible on the hinge side as standard (also on the opposite hinge side depending on the order). /
* Observe workplace guidelines and accident prevention regulations.

ORNAMENTAL GLASS VERSIONS

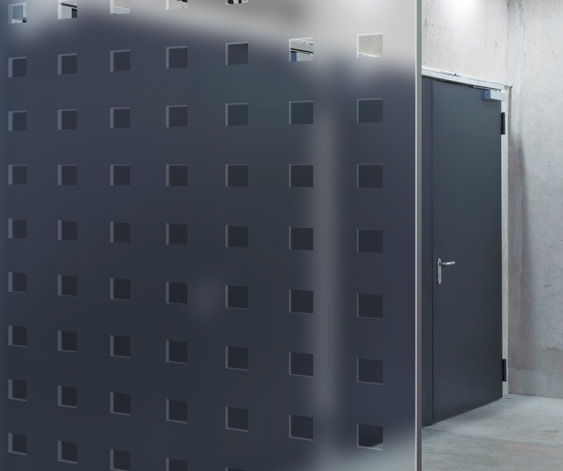

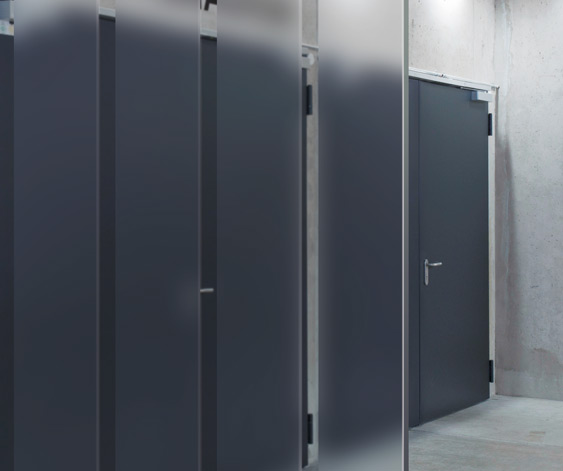

Mastercarré

Masterline

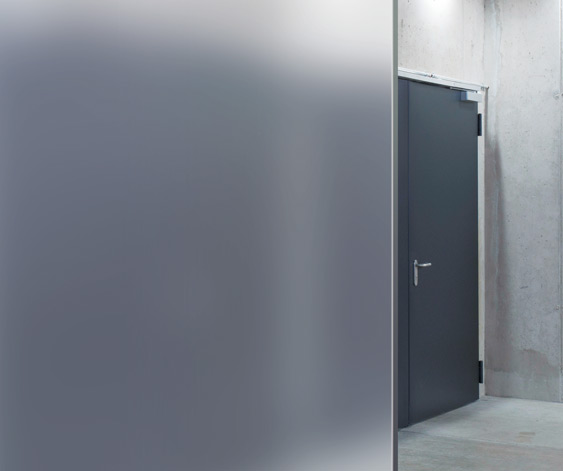

Matt film (frosted glass)

GLASS RETAINING AND COVER MOULDINGS

GLASS RETAINING AND COVER MOULDINGS

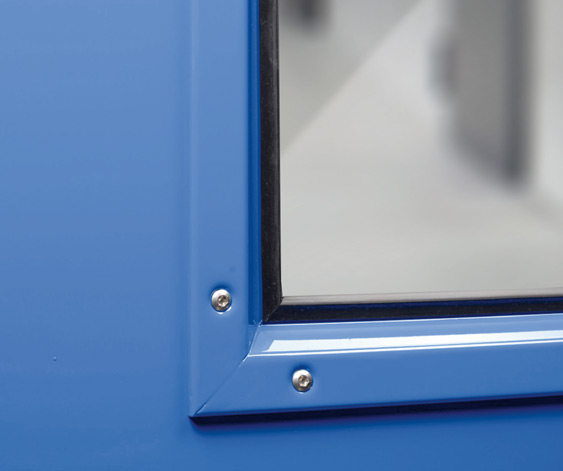

STEEL PROFILE FOR VISIBLE GLAZING
The robust steel glazing beads of the NovoPorta Premio are always the same width, regardless of whether it is an EI2 30, EI2 60, EI2 90, MZ or security door design. This means that the uniform door appearance is maintained throughout the property, even with regard to the glazing.

Material:
Steel

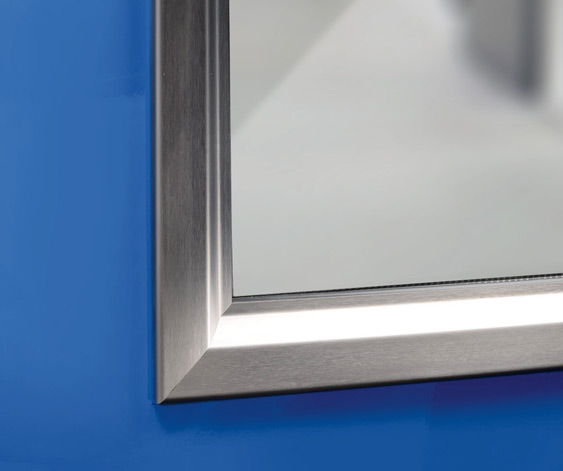

ELEGANT STAINLESS STEEL COVER RULES
If you want an even more attractive look, you can opt for elegant stainless steel cover mouldings. These are simply fitted over the standard glazing bead and enhance the appearance of a Premio with glazing even further.

Material:
Stainless steel, available for square and round glazing

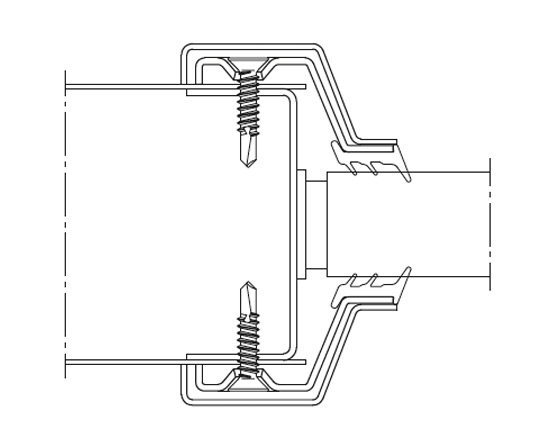

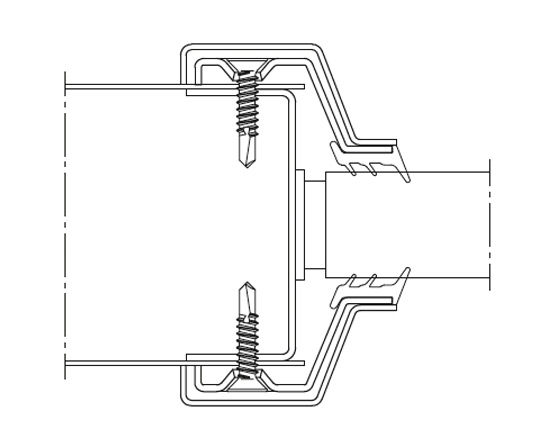

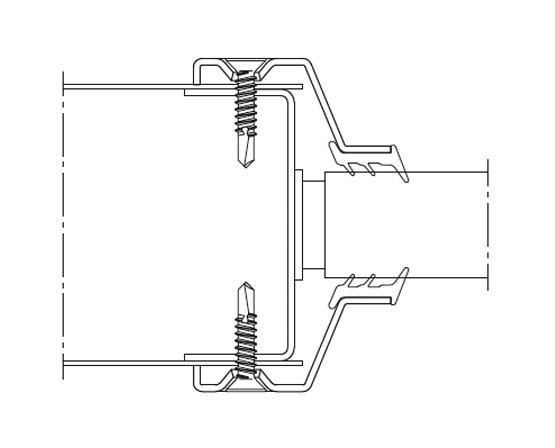

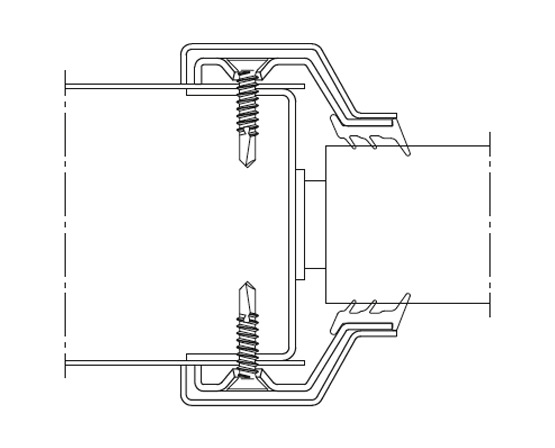

GLAZING PROFILES



NovoPorta Premio EI2 30-1 und EI2 30-2 1) 2)



Available glass types:
Glazing F30 clear for indoor and outdoor use

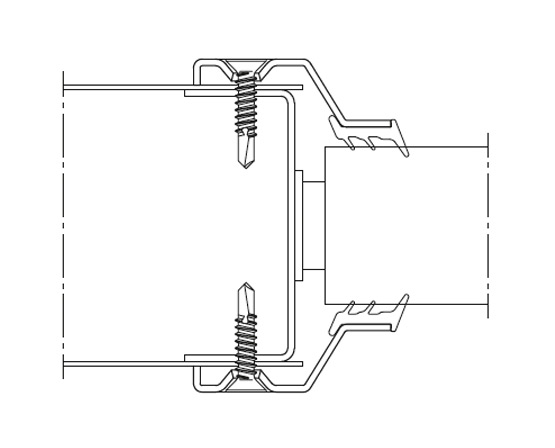

Steel glazing profiles
For rectangular and round standard and customised glazing

Glazing profiles with additional stainless steel cover profiles
For rectangular and round standard and special glazing

NovoPorta Prize EI2 60-1 und EI2 60-2 1) 2)

Steel glazing profiles
For rectangular and round standard and customised glazing

Steel glazing profiles
For rectangular and round standard and customised glazing

Glazing profiles with additional stainless steel cover profiles
For rectangular and round standard and special glazing

NovoPorta Premio EI2 90-1 und EI2 90-2 1) 2)

Available glass types:
Glazing F90 clear for indoor and outdoor use

Steel glazing profiles
For rectangular and round standard and customised glazing

Glazing profiles with additional stainless steel cover profiles
For rectangular and round standard and special glazing

NovoPorta Premio MZ-1 und MZ-2 2)

Steel glazing profiles
For rectangular and round standard and customised glazing

Glazing profiles with additional stainless steel cover profiles
For rectangular and round standard and special glazing

Available glass types:
Only available with ISO glazing


1) The F30/F60/F90 fire-resistant glasses listed are only suitable for interior use as standard, UV-resistant in accordance with DIN EN ISO 12543-4 Section 6, also for areas exposed to sunlight. Special UV-resistant F30 and F90 fire-resistant glass is available for external use, also only with a monolithic glass structure (no ISO glass!). These glasses are therefore only suitable for installation areas for which there are no thermal insulation requirements and must also be protected against direct weathering - especially driving rain.

2) Standard steel glazing profiles are visibly screwed on both sides. Additionally secured on the hazard side/outside of MZ doorsStandard steel glazing profiles are visibly screwed on both sides. Additionally secured on the danger side / outside of MZ doors.

ATTRACTIVE EQUIPMENT

ATTRACTIVE EQUIPMENT AT AN INTERESTING PACKAGE PRICE

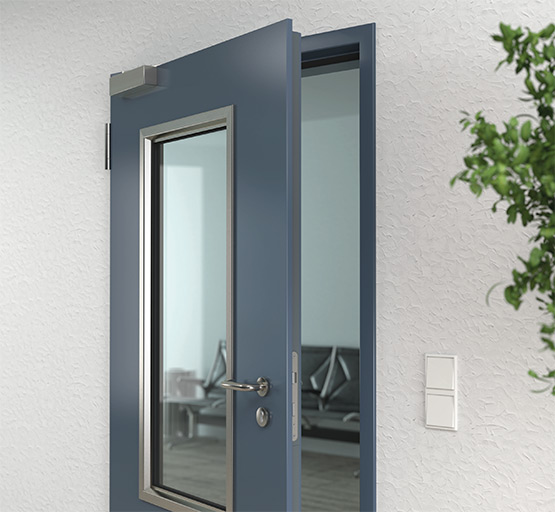

FOUR EQUIPMENT PACKAGES FOR SINGLE PREMIO DOORS
High-quality thick rebate doors, configured and priced particularly favourably. Since its market launch, the NovoPorta Premio has impressed with its wide range of variants. With the new equipment packages for fire protection, smoke protection or multi-purpose doors, four special variants have now been added. Simply select a combination of lock, fittings, hinges and overhead door closer on the right and benefit from a price advantage of up to 23 %*. All other Premio equipment options remain freely configurable within the scope of the respective authorisation.

Attractive equipment packages for single-leaf Premio doors
Our Premio equipment packages are finely tuned and only available in conjunction with a door order. For all four equipment packages, changes to the respective components are unfortunately not possible, even at extra cost. The only exception: The lock can be upgraded to anti-panic locks in accordance with DIN EN 179 (for an additional charge as per the price list).

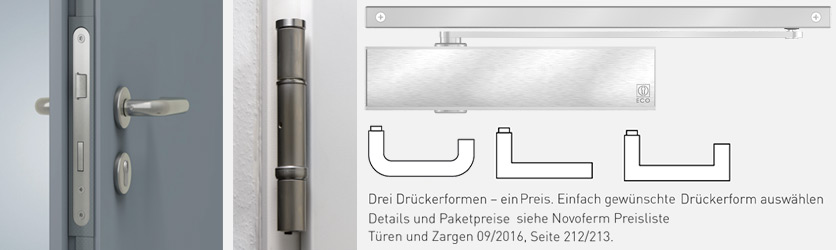

Stainless steel faceplate and round rosettes as standard
If the selected anti-panic lock is not already fitted with a stainless steel faceplate as standard, you will receive this at no extra charge. Unfortunately, no price reduction can be granted for the omission of the original standard package mortise lock with stainless steel faceplate.

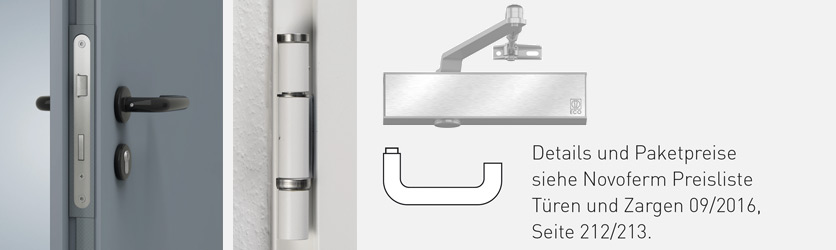

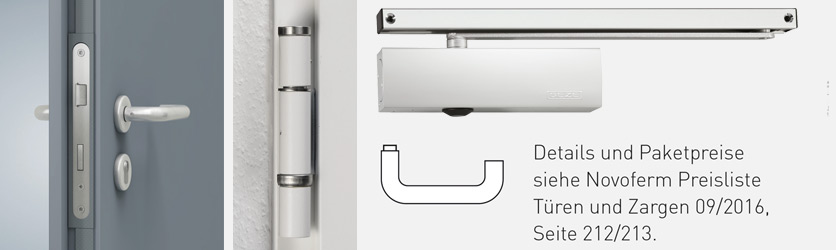

Fitting device and much more included in the price.
For versions with anti-panic locks, an anti-panic fitting design with split lever handle pin is provided at no extra charge. The fitting device for round rosettes is also included in the package price.

PACK BASIC

Up to 23% price advantage*

Mortise lock with lever
BMH 1000 PZW with stainless steel faceplate
Round handle lever set/
Interchangeable set ²)
ECO OGL plain bearing technology type D-110 FSU shape black - glossy - with round roses
3-piece standard hinges galvanised (not 3D)
Standard scissor arm overhead door closer
ECO TS 50 or GEZE TS 4000 or DORMA TS 89, silver-coloured ¹)

ALUMINIUM PACKAGE

Up to 20% price advantage*

Mortise lock with lever
BMH 1000 PZW with stainless steel forend
Round lever handle set/interchangeable set ²)
ECO OGL plain bearing technology type D-110 FSU form aluminium F1 anodised - with round roses
3-piece standard hinges galvanised (not 3D)
Standard slide channel overhead door closer
Novoferm NFGS 55, silver-coloured ¹)

STAINLESS STEEL PACKAGE

Up to 20% price advantage*

Mortise lock with lever
BMH 1000 PZW with stainless steel faceplate
Round handle lever set/interchangeable set ²)
ECO OGL slide bearing technology type D-110 FSU shape. Stainless steel - with round roses
3-piece stainless steel hinges, polished (not 3D)
Overhead door closer with slide channel
ECO TS 61 B (EN 2-5), or GEZE TS 5000, or DORMA TS 93 Basic, silver-coloured ¹)

STAINLESS STEEL PLUS PACKAGE

Up to 15% price advantage*

Mortise lock with change
BMH 1000 PZW with stainless steel faceplate
Round handle lever set/changeable set ²)
ECO OKL ball bearing technology type D-110 FSU shape. Stainless steel - with round roses
3-piece stainless steel hinges, ground
(3D-adjustable - slimline design)
Slide channel overhead door closer
ECO TS 61 B (EN 2-5) Fullcover, stainless steel ¹)

¹) All overhead door closers only for standard installation on the hinge side
²) Interchangeable set with straight flat head
* compared to list prices for individual orders

PACK BASIC

Up to 23% price advantage*

Mortise lock with lever
BMH 1000 PZW with stainless steel forend
Round lever handle set/interchangeable set ²)
ECO OGL plain bearing technology type D-110 FSU shape black - glossy - with round roses
3-piece standard hinges galvanised (not 3D)
Standard scissor arm overhead door closer
ECO TS 50 or GEZE TS 4000 or DORMA TS 89, silver-coloured ¹)

ALUMINIUM PACKAGE

Up to 21% price advantage*

Mortise lock with change
BMH 1000 PZW with stainless steel faceplate
Round handle lever set/changeable set ²)
ECO OGL plain bearing technology type D-110 FSU mould. Aluminium F1 anodised - with round roses
3-piece standard hinges galvanised (not 3D)
Standard slide channel overhead door closer
Novoferm NFGS 55, silver-coloured ¹)

STAINLESS STEEL PACKAGE

Up to 20% price advantage*

Mortise lock with lever
BMH 1000 PZW with stainless steel faceplate
Round handle lever set/interchangeable set ²)
ECO OGL slide bearing technology type D-110 FSU shape. Stainless steel - with round roses
3-piece stainless steel hinges, polished (not 3D)
Overhead door closer with slide channel
ECO TS 61 B (EN 2-5), or GEZE TS 5000, or DORMA TS 93 Basic, silver-coloured ¹)

STAINLESS STEEL PLUS PACKAGE

Up to 15% price advantage*

Mortise lock with lever
BMH 1000 PZW with stainless steel forend
Round lever handle set/reversible set ²)
ECO OKL ball bearing technology type D-110 FSU shape. Stainless steel - with round roses
3-piece stainless steel hinges, polished. (3D-adjustable - slim design)
Slide channel overhead door closer
ECO TS 61 B (EN 2-5) Fullcover, stainless steel ¹)

¹) All overhead door closers only for standard installation on the hinge side
²) Interchangeable set with straight flat head
* compared to list prices for individual orders

Technology and details

Overview of dimensions Ordering and installation dimensions

Overview of dimensions Ordering and installation dimensions





Bestellmaße
Baurichtmaße



Nennmaße



Lichte
Durchgangsmaße

Zargen-
außenmaße
mit Bodeneinstand
20 mm
ohne
Bodeneinstand
Breite x Höhe mmBreite x Höhe mmBreite x Höhe mmBreite x Höhe mmBreite x Höhe mm
Award T30/EI2 30-1 Wandklappe
Award T90/EI2 90-1 Wandklappe
750 x 750
750 x 875
760 x 760
760 x 885
666 x 666
666 x 791
828 x 828
828 x 953
-
-
800 x 800810 x 810716 x 716878 x 878-
875 x 875
875 x 1.000
875 x 1.250
885 x 885
885 x 1.010
885 x 1.260
791 x 791
791 x 916
791 x 1.166
953 x 953
953 x 1.078
953 x 1.328
-
-
-
1.000 x 1.000
1.000 x 1.250
1.010 x 1.010
1.010 x 1.260
916 x 916
916 x 1.166
1.078 x 1.078
1.078 x 1.328
-
-

zulässiger Größenbereich: 500 x 715 mm bis 1.000 x 1.750 mm (BRM = Baurichtmaß)
Award T30/EI2 30-1
Prize EI2 60-1
Award T90/EI2 90-1
Award MZ-1
Prize E-S-1
S-D-1 Award
DB-1 Typ 50 Award
750 x 2.000
750 x 2.125
760 x 2.005
760 x 2.130
666 x 1.958
666 x 2.083
828 x 2.059
828 x 2.184
828 x 2.039
828 x 2.164
875 x 1.875
875 x 2.000
875 x 2.125
885 x 1.880
885 x 2.005
885 x 2.130
791 x 1.833
791 x 1.958
791 x 2.083
953 x 1.934
953 x 2.059
953 x 2.184
953 x 1.914
953 x 2.039
953 x 2.164
1.000 x 2.000
1.000 x 2.125
1 010 x 2 005
1 010 x 2 130
916 x 1.958
916 x 2.083
1.078 x 2.059
1.078 x 2.184
1.078 x 2.039
1.078 x 2.164
1.125 x 2.000
1.125 x 2.125
1.135 x 2.005
1.135 x 2.130
1.041 x 1.958
1.041 x 2.083
1.203 x 2.059
1.203 x 2.184
1.203 x 2.039
1.203 x 2.164
1.250 x 2.000
1.250 x 2.125
1.250 x 2.250
1.260 x 2.005
1.260 x 2.130
1.260 x 2.255
1.166 x 1.958
1.166 x 2.083
1.166 x 2.208
1.328 x 2.059
1.328 x 2.184
1.328 x 2.309
1.328 x 2.039
1.328 x 2.164
1.328 x 2.289
zulässiger/lieferbarer Größenbereich:
500 x 715 mm (EI2 60-1 ab 563 x 1.594 mm) bis 1.500 x 3.000 mm
(BRM = Baurichtmaß)
Award T30/EI2 30-2
Prize EI2 60-2
Award T90/EI2 90-2
Award MZ-2
Prize E-S-2
S-D-2 Award
1,500 x 2,000**
1,500 x 2,125**
1,510 x 2,005
1,510 x 2,130
1,416 x 1,958
1,416 x 2,083
1.578 x 2.059
1.578 x 2.184
1.578 x 2.039
1.578 x 2.164
1.750 x 2.000***
1.750 x 2.125***
1.760 x 2.005
1.760 x 2.130
1.666 x 1.958
1.666 x 2.083
1.828 x 2.059
1.828 x 2.184
1.828 x 2.039
1.828 x 2.164
2.000 x 2.000
2.000 x 2.125
2.000 x 2.500
2.010 x 2.005
2.010 x 2.130
2.010 x 2.505
1.916 x 1.958
1.916 x 2.083
1.916 x 2.458
2.078 x 2.059
2.078 x 2.184
2.078 x 2.559
2.078 x 2.039
2.078 x 2.164
2.078 x 2.539
2.125 x 2.1252.135 x 2.1302.041 x 2.0832.203 x 2.1842.203 x 2.164
2.250 x 2.2502.260 x 2.2552.166 x 2.2082.328 x 2.3092.328 x 2.289
2.500 x 2.5002.510 x 2.5052.416 x 2.4582.578 x 2.5592.578 x 2.539
zulässiger / lieferbarer Größenbereich:
1.170 (1.375) x 1.750 mm bis 3.000 x 3.000 mm (BRM = Baurichtmaß
Technical data Novoporta Premio T30 / EI 30

NOVOPORTA PREMIO EI2 30-1 SINGLE-LEAF AND OVERSIZE G3)

Resistance class / type

Designation

NovoPorta
Premio EI2 30-1

single-leaf

NovoPorta
PremioEI2 30-1

single-leaf /
Oversize GE3)

Approved dimensions
Construction reference dimension (BRM) Width min. - max.
(clear passage (LD))

500 - 1,375
(416- 1,291)

1,376- 1,500
(1,292-1,416)

Height min. - max.

715 - 2,500
(673- 2,458)

2,501- 3,000
(2,459-2,958)

with top panel Height max.

3.500

-

of which door Height max.

2.500

-

Smoke protection with top panel BRM max.

3.500

-

Door leaf

Door leaf thickness approx.

64

64

Sheet thickness approx.

1,0

(optionally 1.5)

1,0

(1.5 in the test procedure)

Opening type

left or right

left or right

Walls

Masonry

> 115

> 175

Concrete

≥ 100

≥ 140

Aerated concrete block/plan blocks

≥ 150

≥ 175

Reinforced aerated concrete wall panels

≥ 150

≥ 175

Walls from F30-A/EI30 (GE type from F60-A/EI60) made of plasterboard fire protection panels with steel studs
(according to DIN 4102, Part 4, Table 10.2 or EN 13501-2)

≥ 100

≥ 100

Walls from F30-B/EI30 made of gypsum plasterboard fire protection boards with wooden studs
(according to DIN 4102, Part 4, Table 10.3 or EN 13501-2)

≥ 130

-

Other approved installation walls min. F30-A/EI30 (GE construction type from F60-A/EI60) or F30-B/EI30 (not for GE construction type) according to general building inspectorate
Test certificate on request

-

-

Clad steel columns / steel beams min. F60-A/R60, or clad timber columns / timber beams min. F60-B/ R60

-

-

Executions

Thermally insulated, full leaf, all threshold designs
(Ud value door element W/(m2)K)

1,5

1,6

Fire-retardant - tested to EN 1634-1

-

-

Also with fire-resistant glazing 1)

-

-

Also with smoke protection to EN 1634-3

-

-

Also sound-insulating (with four-sided frame B 1, without glass,
Laboratory value according to EN ISO 717-1)

approx. 40 dB RwP

approx. 39 dB RwP

Also burglar-resistant in accordance with EN 1627 (full leaf; tested on both sides)

RC 2

RC 3

RC 4

RC 2 in the test procedure

F30 glazing

Rectangular standard glazing with visible screwed glazing beads, galvanised and powder-coated primed (RAL 9016) as standard, optionally also available with additional cover profiles (without visible fixing) in steel or stainless steel.
Minimum frieze widths (bracket values apply to GE design) at the top and on the hinge side ≥ 150 (200) mm, on the lock side ≥180 (220) mm. Plinth height ≥ 150 (600) mm.

-

-

Round standard glazing
Design of glazing beads and minimum frieze widths /
frieze widths as for rectangular standard glazing.

-

-

Special glazing of your choice
From 170 x 270 mm to 849 x 2,134 mm (for GE design up to 670 x 1,770 mm).
Design and glazing beads and minimum frieze widths /
Frieze widths like standard rectangular glazing

-

-

Certification (approval) as interior door according to ETA 17/0443

EI2 30 / CE

EI2 30 / CE

Certification (approval) as external door in accordance with EN 16034 and EN 14351-1

EI2 30 / CE

EI2 30 / CE

- possible - not possible

¹) Standard glass for indoor use only (protect glass from UV light and direct exposure to halogen light). Glass can only be used for temperature range from -20 to +45˚C. Sketches only apply to door size 1,000 x 2,000 mm / All information on glazing sizes refers to the clear view per glazing unit. Glass versions and maximum glass sizes for external use on request.glass for internal use only (protect glass from UV light and direct exposure to halogen light). Glass can only be used for temperature range from -20 to +45˚C. Sketches only apply to door size 1000 x 2000 mm / All information on glazing sizes refers to the clear view per glazing unit.

2) Not authorised for version with top panel

3) GE = size extension / oversize
All dimensions in mm. BRM = Construction dimension RAM = External frame dimension LD = Clear passage dimension

Technical data Novoporta Premio EI2 30-2

NOVOPORTA PREMIO EI2 30-2 SINGLE-LEAF AND OVERSIZE G3)

Resistance class / type

Designation

NovoPorta Premio EI2 30-2

double-leaf

NovoPorta Premio EI2 30-2

double-leaf / oversize3)

Approved dimensions

Construction dimension (BRM) Width min. - max.

(clear passage (LD))



1,170 - 2,500
(1,086-2,416)

1,376-3,000
(1,292-2,916)
Height min. - max.

1,750 - 2,500
(1,708-2,458)

2,501 - 3,000
(2,459-2,958)

with top panel Height max.

3.500

-

of which door Height max.

2.500

-

Smoke protection with top panel BRM max.

3.500

-

Door leaf

Door leaf thickness approx.

64

64

Sheet thickness approx.

1,0

(optionally 1.5)

1,0

(1.5 in the test procedure)

Walking leaf width min. - max.600 - 1.228728 - 1.478
Inactive leaf width min. - max.525 - 1.228728 - 1.478
Opening type

Active leaf

left or right

Active leaf

left or right

Walls

Masonry

> 115

> 175

Concrete

≥ 100

≥ 140

Aerated concrete block/plan blocks

≥ 150

≥ 175

Reinforced aerated concrete wall panels

≥ 150

≥ 175

Walls from F30-A/EI30 (GE type from F60-A/EI60) made of plasterboard fire protection panels with steel studs
(according to DIN 4102, Part 4, Table 10.2 or EN 13501-2)

≥ 100

≥ 100

Walls from F30-B/EI30 made of gypsum plasterboard fire protection boards with wooden studs
(according to DIN 4102, Part 4, Table 10.3 or EN 13501-2)

≥ 130

-

Other approved installation walls min. F30-A/EI30 (GE construction type from F60-A/EI60) or F30-B/EI30 (not for GE construction type) according to general building inspectorate
Test certificate on request

-

-

Clad steel columns / steel beams min. F60-A/R60, or clad timber columns / timber beams min. F60-B/ R60

-

-

Executions

Thermally insulated, full leaf, all threshold designs
(Ud value door element W/(m2)K)

1,5

1,6

Fire-retardant - tested to EN 1634-1

-

-

Also with fire-resistant glazing 1)

-

-

Also with smoke protection to EN 1634-3

-

-

Also sound-insulating (with four-sided frame B 1, without glass,
Laboratory value according to EN ISO 717-1)

approx. 39 dB RwP

approx. 37 dB RwP

Also burglar-resistant in accordance with EN 1627 (full leaf; tested on both sides)

RC 2

RC 3

RC 2 in the test procedure

F30 glazing

Rectangular standard glazing with visible screwed glazing beads, galvanised and powder-coated primed (RAL 9016) as standard, optionally also available with additional cover profiles (without visible fixing) in steel or stainless steel.
Minimum frieze widths (bracket values apply to GE design) at the top and on the hinge side ≥ 150 (200) mm, on the lock side ≥180 (220) mm. Plinth height ≥ 150 (600) mm.

-

-

Round standard glazing
Design of glazing beads and minimum frieze widths /
frieze widths as for rectangular standard glazing.

-

-

Special glazing of your choice
From 170 x 270 mm to 849 x 2,134 mm (for GE design up to 670 x 1,770 mm).
Design and glazing beads and minimum frieze widths /
Frieze widths like standard rectangular glazing

-

-

Certification (approval) as interior door according to ETA 17/0443

EI2 30 / CE

EI2 30 / CE

Certification (approval) as external door in accordance with EN 16034 and EN 14351-1

EI2 30 / CE

EI2 30 / CE

- possible - not possible

¹) Glass as standard for indoor use only (protect glass from UV light and direct exposure to halogen light). Glass can only be used for temperature range from -20 to +45˚C. Sketches only apply to door size 1,000 x 2,000 mm / All information on glazing sizes refers to the clear view per glazing unit. Glass versions and maximum glass sizes for external use on request. Glass for indoor use only (protect glass from UV light and direct exposure to halogen light). Glass can only be used for temperature range from -20 to +45˚C. Sketches only apply to door size 1000 x 2000 mm / All information on glazing sizes refers to the clear view per glazing unit.

2) Not authorised for version with top panel

3) GE = size extension / oversize
All dimensions in mm. BRM = Construction dimension RAM = External frame dimension LD = Clear passage dimension
Technical data Novoporta Premio T60 / EI 60

Technical data NovoPorta Premio EI 60-1/2

Resistance class / type

Designation

NovoPorta Premio EI2 60-1

single-leaf

NovoPorta Premio EI2 60-2

double-leaf

Approved dimensions

Construction dimension (BRM) Width min. - max.

(clear passage (LD))



563 - 1,375
(479 - 1,291)

1,250 - 2,500
(1,166 - 2,416)

Height min. - max.

1,594 - 2,500
(1,552 - 2,458)

1,750 - 2,500
(1,708 - 2,458)

with top panel Height max.

-

-

of which door Height max.

-

-

Smoke protection with top panel BRM max.

-

-

Door leaf

Door leaf thickness approx.

64

64

Sheet thickness approx.

1,0

1,0

Walking leaf width min. - max.

-

600 - 1.228

Inactive leaf width min. - max.

-

525 - 1.228

Opening type

left or right

Active leaf

left or right

Walls

Masonry

> 115

> 175

Concrete

≥ 100

≥ 100

Aerated concrete block/plan blocks

≥ 150

≥ 150

Reinforced aerated concrete wall panels

≥ 150

≥ 150

Walls from F30-A/EI30 (GE type from F60-A/EI60) made of plasterboard fire protection panels with steel studs
(according to DIN 4102, Part 4, Table 10.2 or EN 13501-2)

≥ 100

≥ 100

Walls made of gypsum plasterboard fire protection boards with wooden studs
(according to DIN 4102, Part 4, Table 10.3 or EN 13501-2)

-

-

Other approved installation walls min. F60-A/EI60
according to general building authority test certificate on request

-

-

Clad steel columns/steel beams, or clad timber columns/timber beams

-

-

Executions

Thermally insulated, full leaf, all threshold designs
(Ud value door element W/(m2)K)

1,5

1,6

Highly fire-resistant - tested in accordance with EN 1634-1

-

-

Also with fire-resistant glazing 1)

-

-

Also with smoke protection to EN 1634-3

-

-

Also sound-insulating (with four-sided frame B 1, without glass,
Laboratory value according to EN ISO 717-1)

approx. 35 dB RwP

approx. 35 dB RwP

Also burglar-resistant in accordance with EN 1627 (full leaf; tested on both sides)

RC 2

RC 3

RC 4

RC 2

RC 3

F30 glazing

Rectangular standard glazing with visible screwed glazing beads, galvanised and powder-coated primed (RAL 9016) as standard, optionally also available with additional cover profiles (without visible fixing) in stainless steel.
Frieze widths at the top and on the hinge side ≥ 200 mm, on the lock side and on the fixed sash centre stop ≥ 220 mm, plinth height ≥ 300 mm.

-

-

Round standard glazing
Design of glazing beads and minimum frieze widths /
frieze widths like rectangular standard glazing.

-

-

Special glazing of your choice.
From 170 x 270 mm to 750 x 1,930 mm.
Design and glazing beads and minimum frieze widths / frieze widths like standard rectangular glazing.

-

-

Certification (approval) as interior door according to ETA 17/0443

EI2 60 / CE

EI2 60 / CE

Certification (approval) as external door in accordance with EN 16034 and EN 14351-1

EI2 60 / CE

EI2 60 / CE

- possible - not possible

¹) Glass for indoor use only (protect glass from UV light and direct exposure to halogen light). Glass can only be used for temperature range from -20 to +45˚C. Sketches only apply to door size 1,000 x 2,000 mm / All information on glazing sizes refers to the clear view per glazing unit

All dimensions in mm. BRM = Construction dimension RAM = External frame dimension LD = Clear opening dimension

Technical data Novoporta Premio T90 / EI 90

TECHNISCHE DATEN NOVOPORTA PREMIO EI 90-1/2

Resistance class / type

Designation

NovoPorta Premio EI2 90-1

single-leaf

NovoPorta Premio EI2 90-2

double-leaf

Approved dimensions

Construction dimension (BRM) Width min. - max.

(clear passage (LD))



500 - 1,375
(416 - 1,291)

1,170 - 2,500
(1,086 - 2,416)

Height min. - max.

715 - 2,500
(673 - 2,458)

1,750 - 2,500
(1,708 - 2,458)

with top panel Height max.

-

-

of which door Height max.

-

-

Smoke protection with top panel BRM max.

-

-

Door leaf

Door leaf thickness approx.

64

64

Sheet thickness approx.

1,0

(optionally 1.5)

1,0

(optionally 1.5)

Walking leaf width min. - max.

-

600 - 1.228

Inactive leaf width min. - max.

-

525 - 1.228

Opening type

left or right

Active leaf

left or right

Walls

Masonry

> 175

> 175

Concrete

≥ 140

≥ 140

Aerated concrete block/plan blocks

≥ 175

≥ 175

Reinforced aerated concrete wall panels

≥ 175

≥ 175

Walls from F30-A/EI30 (GE type from F60-A/EI60) made of plasterboard fire protection panels with steel studs
(according to DIN 4102, Part 4, Table 10.2 or EN 13501-2)

≥ 100

≥ 100

Walls made of gypsum plasterboard fire protection boards with wooden studs
(according to DIN 4102, Part 4, Table 10.3 or EN 13501-2)

-

-

Other approved installation walls min. F90-A/EI90 according to
general building authority test certificate on request

-

-

Clad steel supports/steel beams min. F90-A or with classification min. R90

-

-

Executions

Thermally insulated, full leaf, all threshold designs
(Ud value door element W/(m2)K)

1,7

1,8

Highly fire-resistant - tested in accordance with EN 1634-1

-

-

Also with fire-resistant glazing 1)

-

-

Also with smoke protection to EN 1634-3

-

-

Also sound-insulating (with four-sided frame B 1, without glass,
Laboratory value according to EN ISO 717-1)

approx. 39 dB RwP

approx. 39 dB RwP

Also burglar-resistant in accordance with EN 1627 (full leaf; tested on both sides)

RC 2

RC 3

RC 2

RC 3

F30 glazing

Rectangular standard glazing with visible screwed glazing beads, galvanised and powder-coated primed (RAL 9016) as standard, optionally also available with additional cover profiles (without visible fixing) in stainless steel. Frieze widths at the top and hinge side ≥ 200 mm, on the lock side and on the inactive leaf centre stop ≥ 220 mm, plinth height ≥ 300 mm

-

-

Round standard glazing
Design of glazing beads and minimum frieze widths /
Frieze widths like rectangular standard glazing.

-

-

Special glazing of your choice
From 170 x 270 mm to 460 x 1,500 mm. Design and glazing beads and minimum frieze widths / frieze widths like standard rectangular glazing.

-

-

Certification (approval) as interior door according to ETA 17/0443

EI2 90 / CE

EI2 90 / CE

Certification (approval) as external door in accordance with EN 16034 and EN 14351-1

EI2 90 / CE

EI2 90 / CE

- possible - not possible

¹) Standard glass for indoor use only (protect glass from UV light and direct exposure to halogen light). Glass can only be used for temperature range from -20 to +45˚C. Sketches only apply to door size 1,000 x 2,000 mm / All information on glazing sizes refers to the clear view per glazing unit. Glass versions and maximum glass sizes for external use on request.

All dimensions in mm. BRM = Construction dimension RAM = External frame dimension LD = Clear opening dimension

Frames

ZARGEN


ÜBERSICHT ZARGEN

Eckzarge

Corner frame with supplementary frame

Corner frame with counter frame

Block frame type 1
Wall corner
Installation in the reveal

Block frame type 1.1
Wall corner
Installation in the reveal

Block frame type 2 with trim profile
Installation in the reveal

Block frame type 3
Installation in front of the wall

Surrounding frame

Two-part surround frame, type 2140B

a = Mouth width of the frame

Swells

SWELLS

A
Threshold at floor level

B1
Threshold for doors from BRM height 1,750 mm 4-sided circumferential frame (door leaf and frame 4-sided circumferential)

B1
Threshold only for wall flaps up to BRM height 1,749 mm 4-sided circumferential frame (door leaf and frame 4-sided circumferential)

B2
Threshold for small doors up to BRM height 1,749 mm and doors from BRM height 1,750 mm 4-sided circumferential frame (frame 4-sided circumferential)

B3
Threshold with 4-sided surrounding frame

BE-2
Threshold with 4-sided surrounding frame

C 2
Threshold with bottom stop and seal

RS1 / RS1V
Lowerable floor seal

2 x RS1
Double lowerable floor seal

RS2
Sealing threshold / cusp threshold

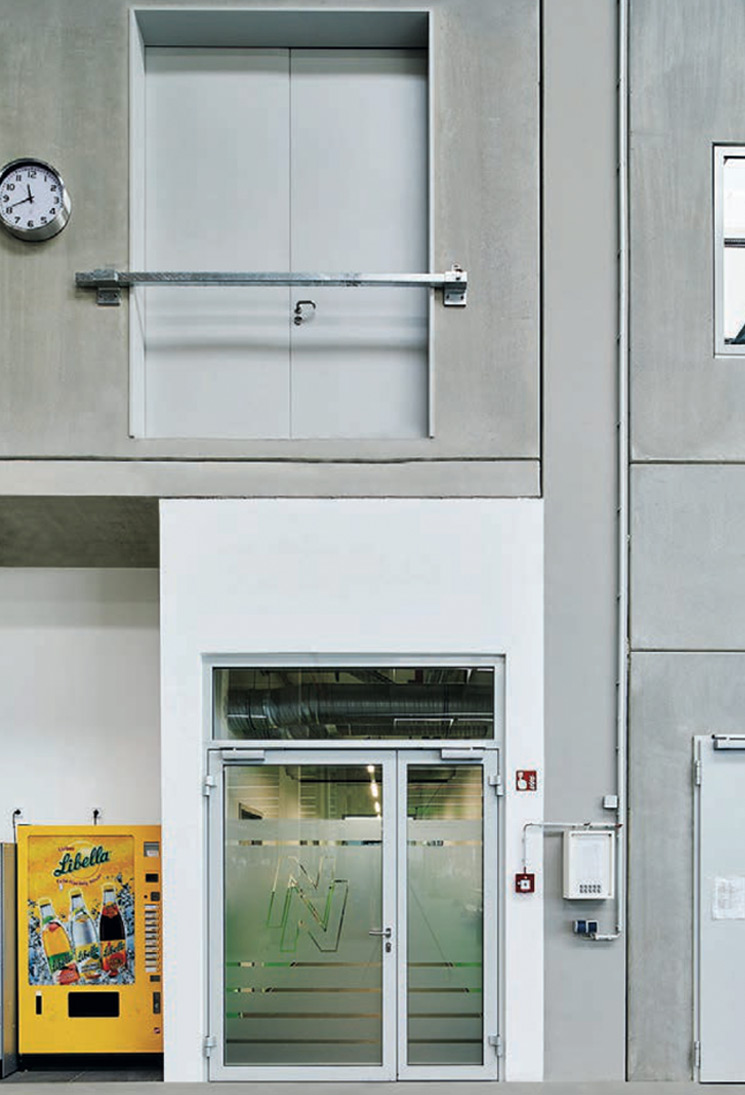

Thresholds for installation at greater heights / elevated installation position

Thresholds for installation at greater heights / Elevated installation position (SOCKEL > 500 MM)

RS3 Threshold1)

B1 Threshold for doors with 4-sided circumferential frame (door leaf and frame 4-sided circumferential)

B2 Threshold with 4-sided circumferential frame (frame 4-sided circumferential / door leaf 3-sided2)

B1 Threshold for wall flaps with 4-sided circumferential frame (door leaf and frame 4-sided circumferential)

1) Other RS3 threshold variants in conjunction with lower Promat panels, or with steel brackets, as well as on raised access floors, available on request.
2) Only available for 1-leaf Premio EI2 30 up to max. BRM 1,375 x 2,500 mm.

Montage

Simple assembly process and fast frame backfilling

ATTRACTIVE IN EVERY ENVIRONMENT, FIXED IN MANY WALLS!
With steel doors from the NovoPorta Premio range, you can choose from a variety of consistently fast, simple and clean installation methods and frame backfilling options.

NOVOPORTA PREMIO FRAMES WITH FACTORY-FITTED FIRE PROTECTION

NOVOPORTA PREMIO FRAMES WITH FACTORY-FITTED FIRE PROTECTION

ONE FRAME - ALL POSSIBILITIES.

YOUR BENEFITS AT A GLANCE!

  • No frame backfilling during installation, therefore no setting or drying times
  • Suitable for 1- and 2-leaf Premio EI30 / EI2 30 doors up to the maximum BRM sizes of 1,375 x 2,500 mm/ 2,500 x 2,500 mm
  • No preparation work for backfilling (e.g. lugging mortar bags, water connection, no mixing, no masking, etc.)
  • Independent of ambient site temperature
  • Ideal for doors and frames that are coated in RAL colour and are installed in a later construction phase
  • Tested to EN 1634 with European Technical Assessment to ETA-17/0443
  • Particularly environmentally friendly, as no residual materials need to be disposed of Highly economical and maximum safety: the error rate for the frame backfilling, which is important in terms of fire protection, is zero. The frame can be installed with the usual fixing materials and tolerances. No special features during installation!

NOW ALSO WITH FIRE PROTECTION EX WORKS

Only available from Novoferm.
Installing doors without time-consuming frame backfilling on site. Who wouldn't want that?
With the EasyFit system from Novoferm, it's now very easy. For this purpose, the standard corner frame is prepared with factory-fitted special foamers that expand in the event of a fire in such a way that the gap between the frame and wall is reliably sealed. This guarantees a 30-minute fire resistance time. All the usual backfilling work, which is always associated with additional expense, can be omitted. This is particularly noticeable in drywall construction, where time and speed are more important than ever. With EasyFit corner frames, you are not dependent on additional materials, ambient temperatures, drying times or water connections.

And most importantly:
The error rate is reduced to a minimum. Incorrect or incorrectly inserted material is impossible with EasyFit. And as the EasyFit system is an addition to the familiar and universally applicable NovoPorta Premio frame construction kit, there is nothing new or special to consider during installation - it couldn't be safer!

Just screw it on and you're done. That's EasyFit from Novoferm.

Intumescent fire protection material that foams up in the event of fire and reliably seals the gap between the frame and wall, thus providing fire protection.

GOOD IN MASONRY AND CONCRETE. EXCELLENT IN DRY CONSTRUCTION.

NovoPorta Premio fire protection doors with EasyFit corner frames are particularly suitable for dry construction with steel stud walls min. F30-A incl. 2-part 2140B surround frame and overhead door closer. The EasyFit system with rebate screw installation, incl. installation set (screws, dowels, overhead door closer and self-adhesive plastic cover profile) also simplifies installation in exposed brickwork and exposed concrete. The addition of the counter frame 2140B to form a 2-part surrounding frame is optional. The product range includes variants for single and double-leaf doors in the entire Premio size range up to 1,375 x 2,500 mm/ 2,500 x 2,500 mm, also in combination with smoke protection and sound insulation.

This is how EasyFit works:
strips of intumescent fire protection material are inserted into the frames at the factory. It expands from 200 °C up to 10 to 40 times its original volume and remains extremely dimensionally stable. In the event of fire, a 30-minute fire resistance time is guaranteed. EasyFit is tested in accordance with EN 1634, approved by the building authorities via European Technical Assessment ETA-17/0443 and classified as EI2 30-1 or EI2 30-2.

Exposed brickwork / exposed concrete

Lightweight stud wall (min. F30-A or EI 30)

Element consisting of:

  • Premio door leaf with standard corner frame
  • Rebate screw installation incl. complete installation set
  • Plastic cover profile
  • Overhead door closer
  • Factory-fitted EasyFit back panel

Element consisting of:

  • Premio door leaf with 2-part surround frame 2140B for wall thicknesses standard 100 / 125 / 150 mm (for special wall thicknesses 100 - 300 mm please note longer delivery time)
  • Overhead door closer
  • Factory-fitted EasyFit back panel
THE UNIVERSAL FRAME PROFILE 2140B

THE UNIVERSAL FRAME PROFILE 2140B: ONE FOR ALL INSTALLATION CASES

The corner frame is standard, while the supplementary universal profile, which does not need to be backfilled, is special. Together, this clever combination of front and counter frame results in a two-part 2140B surround frame. And it has a lot to offer, because even corner frames that have already been installed can be subsequently supplemented - or rather: refined - with the counter frame.

Further advantages:
According to the approval, only the frame front shell needs to be backfilled - the counter shell can remain empty. Various backfilling methods make installation easier, as do the installation sets available for practically all wall types (see pictures).

It goes without saying that the NovoPorta Premio together with the universal frame profile 2140B is approved as a complete system - with smoke, sound and fire protection (EI2 30, EI2 60, EI2 90) as well as burglar-resistant features.

Exposed brickwork

Fair-faced concrete

Aerated concrete

Installation wall from F30-A
(or classified with at least EI 30)

Installation wall from F30-B
(or classified with at least EI 30)

Plastered masonry

With the 2140B frame profile, you can realise practically any idea, because it not only looks impressively good:
With the available installation sets for all wall types, it can also be quickly fixed and neatly backfilled.
Depending on the installation team and installation situation on the construction site, several approved types of backfilling are flexibly available.
The clever combination of front and counter shells means that installation is always impressively quick and clean.

QUICKLY MOUNTED WITH SLIDING ANCHORS

QUICKLY MOUNTED WITH SLIDING ANCHORS

Only a maximum of 10 screws required
The frame is fixed to a maximum of 10 factory-prepared fixing points (number depends on door type and size) in accordance with the approval.
The best thing:
A single dowel screw per fixing point already provides the required stability and strength.

Always correctly positioned
The sliding counter-adapter is simply pushed onto the wall as far as it will go when the frame is screwed onto the corner frame adapters supplied. This also gives you the optimum position for fixing the special 2140B counter frame.

Counter adapters only where really necessary
Only six sliding counter adapters are required to install the counter frame. The lower anchor is extended to support the frame in the floor area where there is a risk of impact. Optimum: No counter-adapters are required for the upper fixing points.

Flexibility when backfilling
Only the corner frame front shell needs to be backfilled in accordance with the approval. For EI2 30, for example, with loose mineral wool*, Novoferm fire protection foam or factory-fitted EasyFit backfill. According to the approval, the counter frame does not need to be backfilled.

Simply slide on the counter frame and fix it invisibly.
No more awkward alignment:
Simply slide the counter frame at a slight angle from above over the bottom counter adapter and then to the stop, screw it to the prepared holes in the frame groove using the self-drilling screws supplied, and you're done. Finally, insert the sealing profile into the frame groove

Quick to install with sliding anchors

Available for masonry and concrete up to a wall thickness of 300 mm.
For EI2 30 now also with factory-fitted EasyFit backfill.

* Minimum density 40 kg/m3, melting point > 1,000 °C, building material class A1 or Euroclass A1

REBATE SCREW MOUNTING

THE PREMIO GENERATION ALSO SCORES HIGHLY WHEN IT COMES TO INSTALLATION:

With just one screw per fixing point!

Whether with a normal corner frame or as a two-part surround frame 2140B:
Novoferm rebate screw assembly is the quick and clean method for the attractive assembly of frames.

The ingenious thing about it is that only one screw per fixing point is needed to guarantee maximum stability. As only half the number of screws is required, installation is considerably faster. It also looks very good, as the drill holes concealed in the frame rebate are fitted with paintable cover caps and are completely invisible when the door is closed. The process is approved by the building authorities for EI2 30, EI2 60 and EI2 90, smoke protection or multi-purpose doors as well as for doors with burglar-resistant features. It can be used on exposed concrete and masonry walls (for EI2 30 also on plastered walls), but also on plasterboard installation walls with timber studs of category F30-B or higher (or classified with at least EI 30). If the finished floor is not yet in place, the corner frame can also be extended by 20 mm using the optionally available floor spacer adapter.

CONCEALED SCREW CONNECTION, QUICKLY BACKFILLED

NEW:
Significantly improved mounting adapter.

EI2 30, MZ
Backfill quickly, cleanly and stably with original Novoferm fire protection foam. Perfect for exposed brickwork and exposed concrete.

EI2 30, MZ
Only required in the rebate area: Loose mineral wool guarantees dry and fast frame backfilling, even where special cleanliness is required.

EI2 30, MZ
Now also available with rebate screw mounting for plastered masonry and concrete walls. Approved backfill: mortar.

EI2 30, EI2 60, EI2 90
Steel doors, particularly those with EI2 60 or EI290 approval, offer a particularly high level of safety. However, fire resistance also means increased weight of the door leaf, which increases the demands on the stability and strength of the frame. For maximum stability and fast installation, we recommend rebate screw installation with classic mortar backfilling - with approval, of course.

Extend the frame directly at the installation site. All Premio corner frames are now supplied as standard without a floor recess. Nevertheless, it regularly happens that the finished floor has not yet been installed at the construction site. As a result, the frame has to be extended. With Premio corner frames, this is now very easy to do. The optionally available floor spacer adapter can be screwed onto the lowest mounting element of the corner frame at any time. This allows you to generate a frame with a 20 mm floor recess, which can be installed in accordance with regulations.

THE IDEAL DRY CONSTRUCTION SOLUTION - THE NOVOPORTA PREMIO EI2 30 WITH EASY-TO-BACKFILL FRAME PROFILE 2140B

THE IDEAL DRY CONSTRUCTION SOLUTION - THE NOVOPORTA PREMIO EI2 30 WITH EASY-TO-BACKFILL FRAME PROFILE 2140B

Lightweight partition walls in the F30-A category and above or with the classification EI 30 or higher have proven to be a quick, clean and flexible fire protection solution in interior construction. With the NovoPorta Premio EI2 30 door system, specially designed for installation walls, doors and frames can be installed just as quickly, easily and cleanly. The system consists of the attractive, high-quality NovoPorta Premio steel door and the two-part 2140B frame profile.

The approved frame backfillings with Novoferm fire protection foam and loose mineral wool* are a major advantage. According to the approval, only the rebate area of the front shell needs to be backfilled, while the special 2140B counter shell can remain free. The required mineral wool is usually already present at the installation site. Traditionally backfilled with plasterboard strips, the 2140B frame profile can also be used for Premio variants with EI2 60 and EI2 90 approval. The complete system is tested in accordance with EN 1634-1 and -3 and also fulfils the requirements of the European product standard EN 16034 or is covered by the ETA. The special installation sets for EI 30-EI 90 walls (or for walls from F30-A) with the practical sliding anchors and self-tapping screws for UA profiles measurably reduce the installation time.

* Minimum density 40 kg/m3, melting point > 1,000 °C, building material class A1 or Euroclass A1

FRAME BACKFILLING WITH COMMERCIALLY AVAILABLE MINERAL WOOL

  • Mineral fibre insulation material, bulk density ≥ 40 kg/m3, melting point > 1,000 °C, building material class A1 or Euroclass A1
  • The required mineral wool - as loose wool or in strip form - can be easily obtained from specialist dealers
  • Cost-effective and user-friendly, as it is easy to transport, has short set-up times and can be processed cleanly and quickly
  • Time-saving, as only the rebate area in the front part of the 2140B frame is backfilled with loose mineral wool, while the rear part can remain empty Tested in accordance with EN 1634-1 and -3
  • Approved for Premio EI2 30 up to BRM size 1-leaf 1,375 x 2,500 mm, 2-leaf up to 2,500 x 2,500 mm

Frame backfill with commercially available mineral wool

BACKFILLING WITH FIRE PROTECTION FOAM

  • Only with Novoferm 1C fire protection gun foam (no other over-the-counter foams may be used!)
  • Significantly reduces noise emissions when closing doors
  • Cost-effective and user-friendly as it is easy to transport, short set-up times, clean and quick to apply
  • Time-saving, as only the rebate area in the front part of the 2140B frame is backfilled with fire protection foam, while the rear part can remain empty. (Protruding foam is covered by the rear section and therefore does not need to be cut off or removed).
  • Cost-effective, as the yield is approx. 12 running metres per can of fire protection foam - so there is enough foam available for at least two single-leaf door elements
  • Tested in accordance with EN 1634-1 and -3
  • Approved for Premio EI2 30 up to BRM size 1-leaf 1,375 x 2,500 mm, 2-leaf up to 2,500 x 2,500 mm

Backfilling with fire protection foam

Note on REACH Regulation (EC) No 1907/2006 with restriction entry No 74 on the use and placing on the market of diisocyanates

Diisocyanates are used in the production of polyurethane foams, among other things, but are also used in sealants, coatings and other applications. This restriction entry is intended to minimise the health risk to industrial and professional users due to possible inhalation and/or dermal exposure when using diisocyanates - in the uncured state.

The aim of the restriction is to avoid unsafe uses, but not to reduce the availability of the corresponding products. Due to the unique properties of PU foams, these products are expected to remain widely available.

Like all PU foams, our fire protection foam is also affected by this regulation. It stipulates that from 24 August 2023, all commercial processors will only be allowed to use PU foams if they can provide proof of safety training in advance.

These training courses have been prepared by the industry associations of diisocyanate manufacturers in all languages of the European Union in accordance with the legal requirements. These training materials are made available via an e-learning platform. All processors can find this platform at www.safeusediisocyanates.eu.

The labelling of our fire protection foam is provided with a corresponding note indicating the need for this training.

FRAME ADVANTAGES DRY CONSTRUCTION

FRAME ADVANTAGES DRY CONSTRUCTION

IF YOU LIKE WOOD, YOU WILL LOVE THE NOVOPORTA PREMIO

Carpenters and environmentally conscious builders like to work with wood as a renewable raw material. Their tools are designed for this and not for working with metal.

When designing the NovoPorta Premio, it was therefore important to us that the simple and quick rebate screw method of the 2140B frame profile can also be used for installation on timber stud walls.

The EI2 30 Premio classification now also includes EI 30 (or higher) assembly walls with timber studs (or assembly walls from F30-B) as well as a large number of other clad timber supports and beams (at least EI 30 or R 30).

THE CHOICE IS YOURS - WE OFFER EVERYTHING YOU NEED FOR FAST AND CLEAN WORK!

If you only have to backfill half of it, you can work twice as fast - especially if even the material can be selected flexibly. As the counter shell can remain completely free with the EI2 30 frame profile 2140B, you can backfill the rebate area of the front shell with loose mineral wool, for example. As a popular filling material for at least F30-A or EI 30 walls, this is usually already present at the installation site. For EI 30 stud walls, please always observe the minimum panelling thickness of 25 mm per wall side. This guarantees that you do not have to make any recesses/notches in the 3-sided UA profile, even when using 3D door hinges or electrical installation parts, for example. Time savings are guaranteed!

The details at a glance:

Novoferm fire protection foam
First install the front shell, inject the approved Novoferm fire protection foam quickly and cleanly, then install the counter shell. This allows you to work efficiently, as one can of foam is sufficient for two to three frames.

Loose mineral wool
If you prefer to work with loose mineral wool*, order the required quantity or use what is already available on site in accordance with the specification. Simply cut the correspondingly thick mineral wool into suitably wide strips and insert them into the front shell after the frame has been installed. The counter shell can then be fitted.

Plasterboard strips
Simply cut suitable strips from existing plasterboard and insert them into the frame before wall installation. A method that is always very popular - and above all: approved! - when no foam or mineral wool is available.

* Minimum density 40 kg/m3
Melting point > 1,000 °C
Building material class A1 or Euroclass A1
