MULTI-PURPOSE DOORS NOVOPORTA PLANO MZ

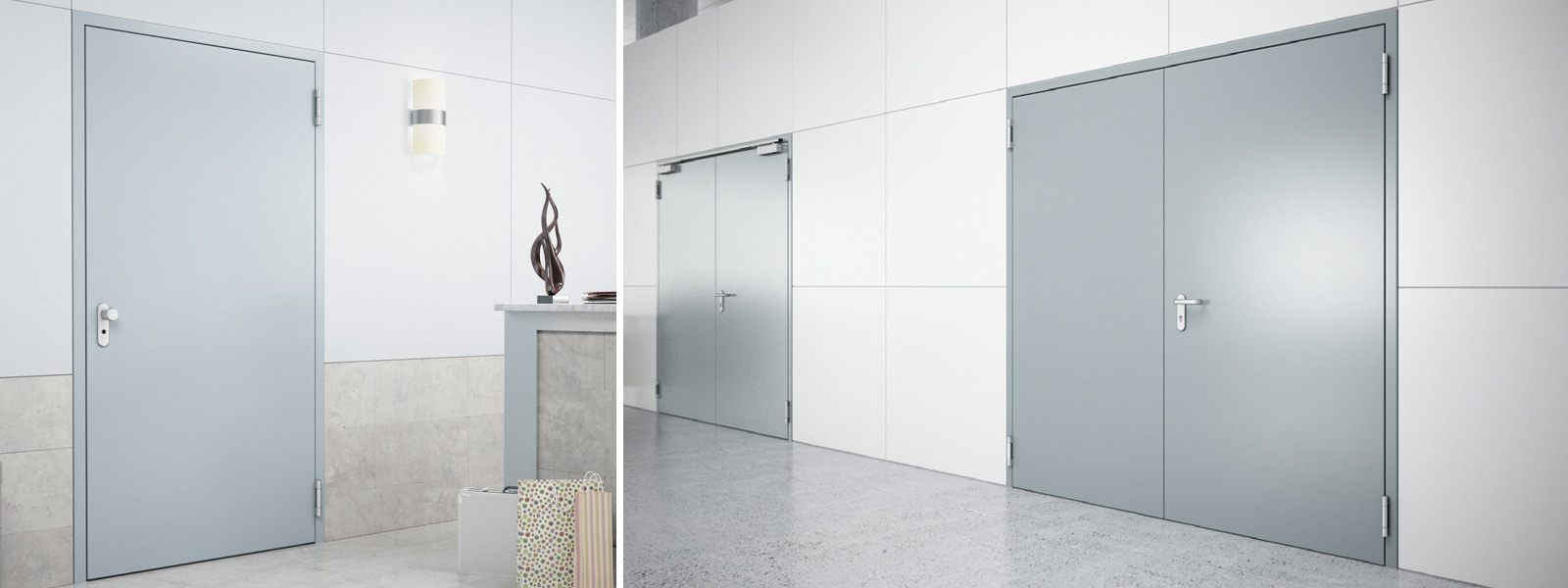

Multi-purpose doors in flush design for sophisticated architecture

Novoferm Multi-purpose doors NovoPorta Plano with flush flush-fitting door leaves are available for internal and external use.

Elegant, flush-mounted look
The NovoPorta Plano designer multifunctional door enhances sophisticated architecture in particular. With the flush-fitting module, the door is installed flush with the frame in the wall. (With a rebated door, on the other hand, the door leaf rests on the frame).

High functionality
NovoPorta Plano steel doors with a flush design are available as fire doors (EI2 30), smoke protection doors, security doors (RC 2), sound insulation doors (up to RW = 42 dB) and multi-purpose doors - for a uniform door appearance throughout the building.

Many installation advantages
With the door series, you can choose from many quick, easy and clean installation methods and options for frame backfilling (rebate screw installation, backfilling with fire protection foam, loose mineral wool, ....)

Door comparison and properties

Comparison of NovoPorta Plano multi-purpose doors
Door designation:

MZ-1 Plano

MZ-2 Plano

Butt-entry

-

-

RS

-

-

Sound-absorbing

-

-

RC2

-

-

RC3

-

-

RC4

-

-

Thermally insulating

-

-

Also for exterior use

-

-

DIN EN 14351-1

-

-

Overview multi-purpose doors Plano MZ
Designation

Plano MZ-1

Plano MZ-2

Door 1 +2 flush

Door 1 fl.

Door 2 fl.

Flush-fitting - available door panel thicknesses

flush-fitting 1.0

flush rebated 1.0

Smoke protection to DIN 18095/ DIN EN 1634-3

-

-

Security to DIN EN 1627

RC 2 (WK 2)

RC 2 (WK 2)



Sound insulation RWp test value

35 dB1)

41 dB2)

38 dB4)

33 dB1)

41 dB2)

38 dB4)

Thermal transmittance coefficient U-value in W/m2K

1,5

1,6

Construction dimension mm

min. 625 x 1750

max. 1375 x 2750

min. 1375 x 1750

max. 2750 x 2750

Details of the NovoPorta Plano MZ-1 / MZ-2

Fittings:
3-part 3D adjustable construction hinges with plain bearings as standard. Two hinges per leaf (≥ 2,500 mm BRM height three hinges) primed white similar to RAL 9016 as standard; optionally also available in stainless steel. Two locking pins per door leaf. Interchangeable profile cylinder lock with stainless steel faceplate with black round lever handle set with round roses. Profile cylinder on site (length 90 mm, 45/45 mm).

Inaddition for double-leaf doors:
Flush centre stop with centre rebate seal. Inactive leaf with forend edge bolt, locking upwards and downwards. Frames: Standard corner frame with three-sided sealing profile, 2 mm thick, mirror width 50 mm, optional surrounding frame, two-part surrounding frame profile 2240B, counter frame and block frames for butt wall connection.

Frames:
Standard corner frame with three-sided sealing profile, 2 mm thick, frame width 50 mm, optional surrounding frame, two-part surrounding frame profile 2240B, counter frame and block frames for butt wall connection.

Thresholds:
Standard A flush with the floor, optionally B3 with four-sided surrounding frame or C2 with bottom stop or RS1 sealing thresholds with lowerable floor seal, RS1 double threshold or RS2 hump threshold with overrun seal.

Surfaces:
Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016. Door leaf and frame also optionally available with Novoferm design surface.

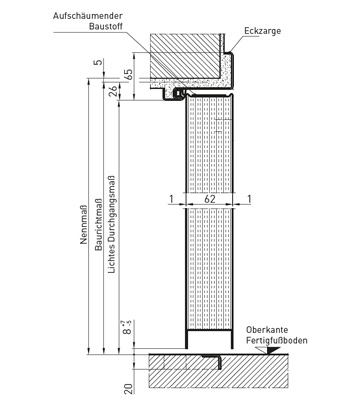

Vertical section

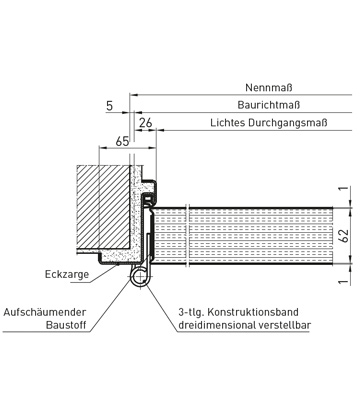

Horizontal section, 1-panel

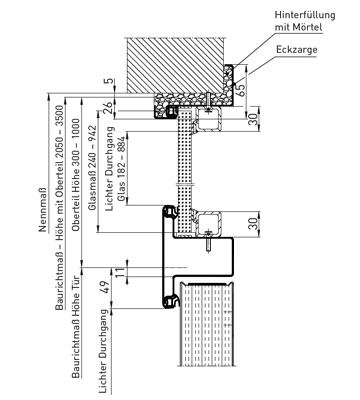

Vertical section of glazed upper section

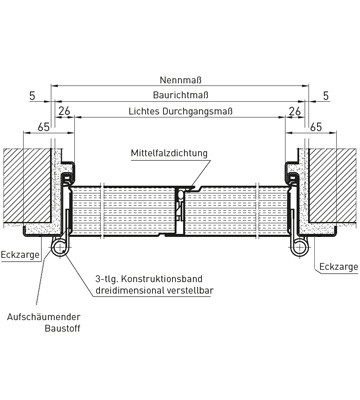

Horizontal section, 2-panel

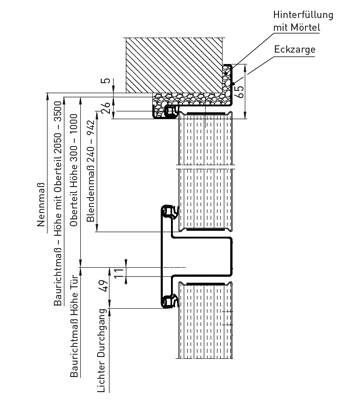

Vertical section upper part full leaf

ON REQUEST ALSO WITH:

  • Upper section - full-leaf or glazed
  • ISO glazing - also in special designs and special shapes
  • Smoke protection to DIN 18095 with lowerable floor seal (RS1) or cusp threshold with overrun seal (RS2). Single-leaf doors with Novoferm NFGS 55 slide channel door closer. Double-leaf elements with Geze TS 5000 ISM or Dorma TS 93 GSR slide channel overhead door closers with integrated closing sequence control and rebate drive bolt with upward locking.
  • Sound-insulating - tested in accordance with DIN EN ISO 140-3, assessed in accordance with DIN EN ISO 717-1 (laboratory value for full leaf and threshold RS1 - for single-leaf elements 35 dB RW,P, for double-leaf elements in the test procedure)
  • Burglar-resistant RC2 (WK2) - tested on both sides in accordance with DIN EN 1627 - single-leaf up to BR 1,375 x 2,750 mm, double-leaf up to BR 2,500 x 2,500 mm

Highlights Multifunctional steel doors

This animation shows the highlights and possibilities of Novoferm multifunctionalsteel doorsare presented in a visually appealing and condensed form.

You can find further animations at

https://www.youtube.com/NovofermVideos

Your plus points at a glance

  • Single and double-leaf multi-purpose doors made of steel for interior and exterior use
  • Tested performance properties in accordance with DIN EN 14351-1 with CE marking
  • Flush, butt-jointed door leaf, 64 mm thick, sheet thickness 1.0 mm
  • High-quality mineral wool as insulating filling
  • Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016

Technology and details

Technical details Plano MZ

Technical data PLano MZ

Resistance class / type

Designation

NovoPorta Plano MZ-1

single-leaf

NovoPorta Plano MZ-2

double-leaf

Approved dimensions
Construction dimension (BRM) Width min. - max.

625 - 1.375

1.375 - 2.750

Height min. - max.

1.750 - 2.750

1.750 - 2.750

with top panel Height max.

3.500

3.500

of which door Height max.

2.500

2.500

Smoke protection with top panel BRM max.

3.500

3.500

Door leaf
Door leaf thickness approx.

64

64

Sheet thickness approx.

1,0

1,0

Walking leaf Width min. - max.

-

589 - 1.353

Inactive leaf width min. - max.

-

525 - 1.353

Opening type

left or right

Active leaf
left or right

Versions

Thermally insulated, full leaf, all threshold designs
(Ud value door element W/(m2)K)

1.5

1,6

Also with glazing

-

-

Also with smoke protection

-

-

Also sound-insulating (with drop-down bottom seal, without glass)
(laboratory value for full-leaf doors according to DIN EN ISO 717-1)

approx. 35 dB
RW,P

approx. 35 dB
RW,P

Also burglar-resistant in accordance with DIN EN 1627
(full leaf; tested on both sides) 2) up to BRM (LD) max.

RC 2

RC 2

CE marking in accordance with EN 14351-1

-

-

Also with Novoferm design surface BMR max.

1.250 x 2.250

2.500 x 2.250

Available glazing
(dry glazing with rubber profile)

Rectangular standard glazing with visible screwed glazing beads in standard
galvanised and powder-coated primed (RAL 9016), optionally also available
with additional cover profiles (without visible fixing)
in stainless steel.

Minimum frieze widths on 3 sides ≥ 150 mm, on the lock side and on the inactive leaf centre stop ≥ 180 mm.

Available dimensions:

300 x 300
400 x 400
500 x 500

-

Round standard glazing
Design of glazing beads and minimum frieze widths/frieze widths
like rectangular standard glazing.
Available dimensions:
ø 350
ø 450

-

Special glazing of your choice,
from 150 x 150 mm to 935 x 2134 mm (single-leaf)
or
849 x 2134 mm (double-leaf).
Design of glazing beads and minimum frieze widths / frieze widths
like standard rectangular glazing

-

-

- possible - not possible

All dimensions in mm. BRM = Construction dimension RAM = External frame dimension LD = Clear passage dimension

Sketches only apply to door size 1,000 x 2,000 mm / All information on glazing sizes refers to the clear opening per glazing unit.
¹) Top panels for doors with additional smoke protection only available up to max. BRM width 1,250 mm for single-leaf doors. In conjunction with smoke protection, only approved for installation in solid walls (masonry/concrete/porous concrete).
