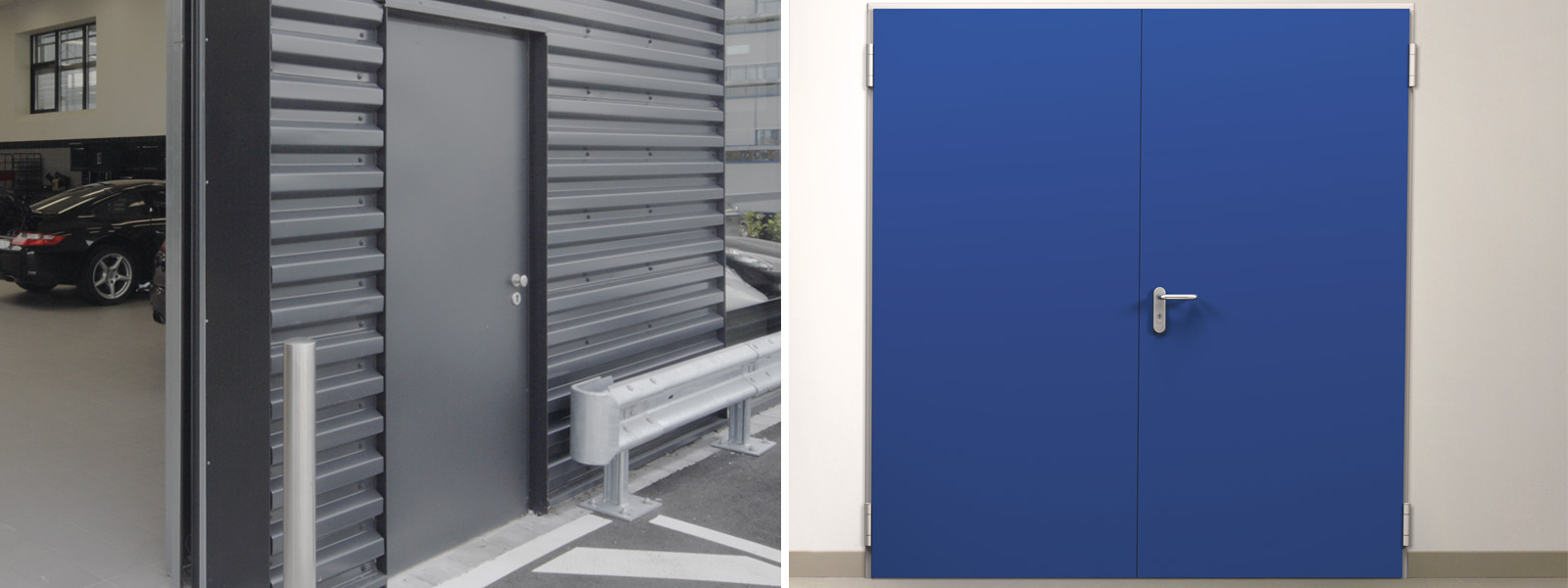

MULTI-PURPOSE DOORS NOVOPORTA PREMIO

Multi-purpose doors in high-quality thick rebate for all requirements

Novoferm NovoPorta Premio multi-purpose doors with high-quality thick rebate are available for internal and external use.

Cosy thick rebate
NovoPorta Premio multifunctional steel doors were developed specifically for the European market. The doors are ideal for all requirements in modern property construction thanks to their consistently sophisticated appearance with high-quality thick rebate and a 64 mm thick door leaf.

High functionality
NovoPorta Premio steel doors with high-quality thick rebate are available as fire protection (up to EI2 90), smoke protection, security (up to RC 4), sound insulation (up to RW = 53 dB), multi-purpose and even bullet-resistant doors (FB 4, VPAM 6) - for a uniform door appearance throughout the property.

Many assembly advantages
With the door series, you can choose from many quick, easy and clean assembly methods and frame backfilling options (rebate screw assembly, backfilling with fire protection foam, ideal drywall solutions, frames with factory-fitted fire protection, etc.).

Door comparison and properties

Comparison of NovoPorta Premio multi-purpose doors
Door designation

Thick rebate

Buttrebate

RS

Sound-insulating

RC2

RC3

RC4

Thermallyinsulating

Also forexterioruse

DIN EN 14351-1

MZ-1 Premio

Door 1-leaf

-

-

-

-

-

-

MZ-2 Premio

Door 2-leaf

-

-

-

-

-

-

Clean ER-1

Door 1-leaf

-

DB-1 Type 50 Premio

1-leaf

-

-

-

-

-

-

Overview of Premio MZ multi-purpose doors
DesignationDoor 1 +2 leafThick rebate - available door panel thicknessesSmoke protection to DIN 18095/ DIN EN 1634-3Security to DIN EN 1627Sound insulation RWp test valueThermal transmittance coefficient U-value in W/m2KConstruction dimension mm

Premio MZ-1









Premio MZ-1 GE oversize

Door 1 leaf

Thick rebate 1.0/1.5

-

up to RC 4

40 dB1)

43 dB2)

42 dB4)

1,5

min. 500 x 1500

max. 1375 x 2500

Door 1 leaf

Thick rebate 1.0

-

up to RC 3

39 dB1)

41 dB2)

1,6

min. 1500 x 3000 as type MZ53-1 up to max. 1500 x 3500

Premio MZ-2







Premio MZ-2 GE oversize

Door 2-leaf

Thick rebate 1.0/1.5

-

up to RC 3

39 dB1)

41dB2)

42 dB4)

1,5

min. 1050 x 1500

max. 2500 x 2500

Door 2-leaf

Thick rebate 1.0

-

up to RC 3

37 dB1)

40 dB2)

1,6

max. 3000 x 3000 as type MZ53-2 up to 3000 x 3500

Details of the NovoPorta Premio MZ-1 / MZ-2

Details of the NovoPorta Premio MZ-1 / MZ-2

Details of the NovoPorta Premio MZ-1 / MZ-2

Fittings:
3-part construction hinges with ball bearing rings as standard. Two hinges per sash (> BRM height 2,500 mm (> LD 2,458 mm) three hinges) in standard white primed similar to RAL 9016; optionally available in stainless steel, as 3D adjustable hinges in steel and stainless steel or as a slimline 3D stainless steel object hinge. Spring hinge per leaf up to BRM 1,250 x 2,250 mm (LD 1,166 x 2,208 mm). Two locking pins per door leaf. Interchangeable profile cylinder lock with black round lever handle set mounted on a fixed swivel bearing. Profile cylinder for internal doors on site (length 85 mm, 35/50 mm). Included in the scope of delivery for external doors in the form of a dummy cylinder.

Door leaf with internal reinforcement for overhead door closer on hinge side as standard.

Additionally for 2-leaf doors:
Flush centre rebate with centre rebate seal. Inactive leaf with faceplate latch, locking upwards and downwards.

Frames:
Standard corner frame with three-sided EPDM sealing profile without floor recess, 2.0 mm thick, frame width 50 mm, optional surrounding frame, two-part surrounding frame profile 2140B, counter frame and block frame for flush wall connection or block frame for installation in front of the wall.

Thresholds:
Standard A flush with the floor, optionally B 1, B 2, B 3, BE-2 with four-sided surrounding frame or C 2 with bottom stop and seal or RS 1 sealing thresholds with lowerable floor seal (also available as RS1V with delayed lowering), RS 1 double threshold or RS 2 hump threshold with overrun seal.

Surfaces:
Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016. Optional door leaf and frame also available powder-coated in the RAL colour of your choice.

NEW DOOR PRIZE MZ-1

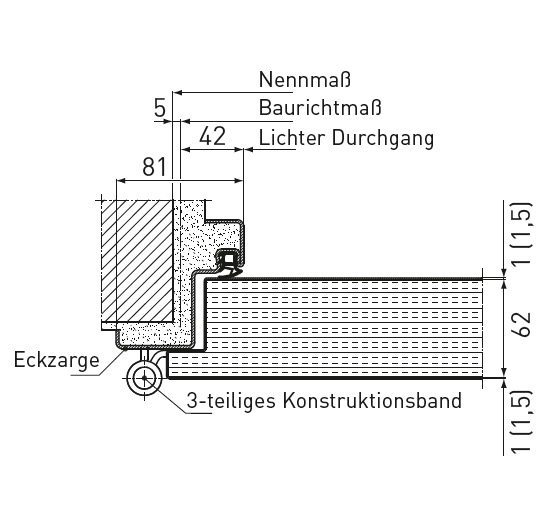

Horizontal section, 1-panel

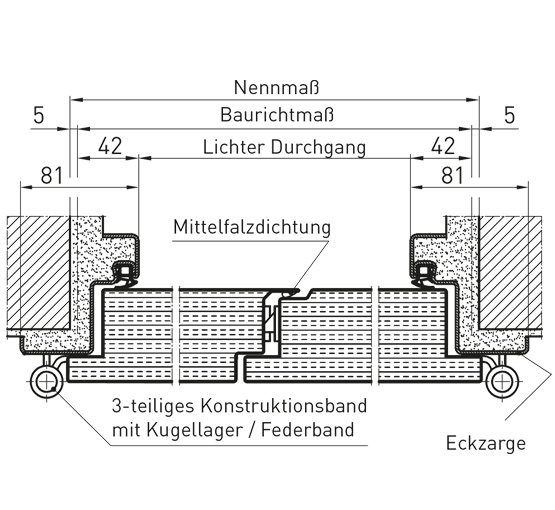

Horizontal section, 2-panel

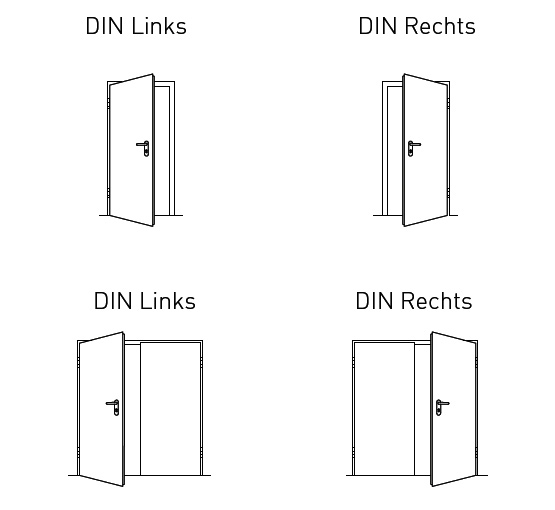

DIN left / DIN right

NEW DOOR PRIZE MZ-2

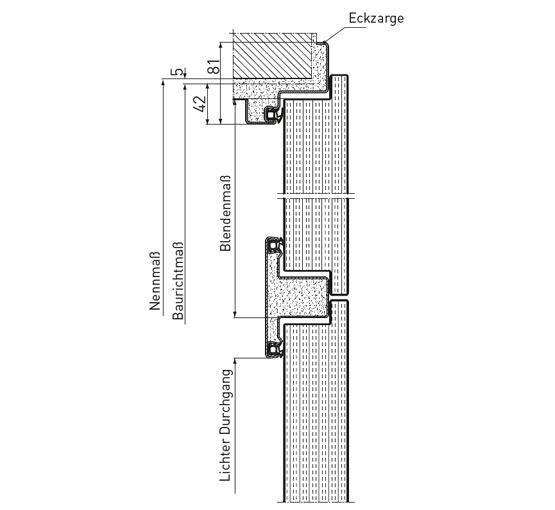

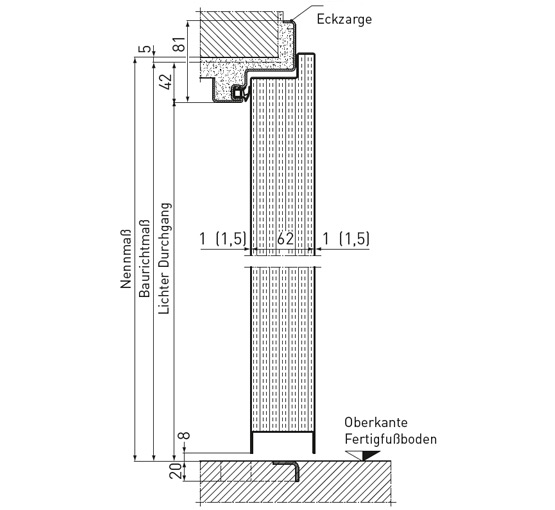

Vertical section

Vertical section with top panel

ON REQUEST ALSO WITH:

  • Skylight / fanlight
  • ISO glazing - also in special designs and special shapes
  • Smoke protection to DIN 18095 up to max. BRM size 1,375 x 2,500 mm (LD 1,291 x 2,458 mm) / 2,500 x 2,500 mm (LD 2,416 x 2,458 mm) with lowerable floor seal (RS1/RS1V) or cusp threshold with overlay seal (RS2) and overhead door closer (for 2-leaf elements with two overhead door closers Geze TS 4000 F or dormakaba TS 89 F as well as door coordinator and rebate drive unit). elements with two Geze TS 4000 F or dormakaba TS 89 F overhead door closers as well as door coordinator and rebate drive bolt with upward locking)
  • Sound-insulating (not for version with top panel) - tested in accordance with EN ISO 140-3, assessed in accordance with EN ISO 717-1 (laboratory value for full leaf and threshold RS 1
    • for 1-leaf elements up to BRM 1,375 x 2,500 mm (LD 1,291 x 2,458 mm) 40 dB RwP
    • for 1-leaf elements in oversize up to BRM 1,500 x 3,000 mm (LD 1,416 x 2,958 mm) 39 dB RwP
    • for 2-leaf units up to BRM 2,500 x 2,500 mm (LD 2,416 x 2,458 mm) 39 dB RwP
    • for 2-leaf elements in oversize up to BRM 3,000 x 3,000 mm (LD 2,916 x 2,958 mm) 37 dB RwP
  • Burglar-resistant RC 2 - tested on both sides in accordance with EN 1627 - up to BRM 2,500 x 2,500 mm (LD 2,416 x 2,458 mm) BRM sizes up to 3,000 x 3,000 mm (LD 2,916 x 2,958 mm) in test procedure (not approved for version with top panel)
  • Burglar-resistant RC 3 - tested on both sides in accordance with EN 1627 - up to BRM 2500 x 2500 mm (LD 2,416 x 2,458 mm) (not approved for version with top panel) Burglar-resistant RC 4 - tested on both sides in accordance with EN 1627 - only as 1-leaf design full leaf up to BRM 1,375 x 2,500 mm (LD 1291 x 2458 mm) (not approved for version with top panel)

Highlights Multifunctional steel doors

This animation shows the highlights and possibilities of Novoferm multifunctionalsteel doorsare presented in a visually appealing and condensed form.

You can find further animations at

https://www.youtube.com/NovofermVideos

Your plus points at a glance

  • Single and double-leaf multi-purpose doors made of steel for interior or exterior use
  • Tested performance properties in accordance with EN 14351-1 with CE marking
  • High-quality mineral wool as insulating filling
  • Door leaf rebated on three sides with thick rebate, 64 mm thick, sheet thickness 1.0 mm (optionally up to BRM size 1,375 x 2,500 mm (LD 1,291 x 2,458 mm)/2,500 x 2,500 mm (LD 2,416 x 2,458 mm) also in 1.5 mm)
  • Door leaf and frame galvanised and primed (powder-coated) similar to RAL 9016

Technology and details

Technical details Premio MZ

TECHNISCHE DATEN NOVOPORTA PREMIO MZ

Resistance class / type

Designation

NovoPorta Premio MZ-1

single-leaf

NovoPorta Premio MZ-2

double-leaf

Approved dimensions

Construction dimension (BRM) Width min. - max.

(clear passage (LD))



500 - 1,500
(416 - 1,416)

1,050 - 3,000
(966 - 2,916)

Height min. - max.

715 - 3,000
(673 - 2,958)

1,500 - 3,000
(1458 - 2,958)

with top panel Height max.

3.750

3.750

of which door Max. height

1,375 x 2,500
(1,291 x 2,458)

2,500 x 2,500
(2,416 x 2,458)

Smoke protection with top panel BRM max.

3.500

3.500

Door leaf

Door leaf thickness approx.

64

64

Sheet thickness approx.

1,0

(optionally 1.5) 1)

1,0

(optionally 1.5) 1)

Walking leaf Width min. - max.

-

525 - 1.478

Inactive leaf Width min. - max.

-

525 - 1.478

Opening type

left or right

Active leaf

left or right

Versions

Thermally insulated, full leaf, all threshold designs
(Ud value door element W/(m2)K)

1.5
> BRM 1,375 x 2,500 1.6

1.5
> BRM 2,500 x 2,500 1.6

Also with glazing

-

-

Also with smoke protection to DIN 18095 up to BRM (LD) max.

1,375 x 2,500
(1,291 x 2,458)

2,500 x 2,500
(2,416 x 2,458)

Also sound-insulating (with drop-down bottom seal, without glass)
(laboratory value for full-leaf doors in accordance with DIN EN ISO 717-1)

approx. 40 dB RwP
> BRM 1,375 x 2,500
approx. 39 dB RwP

approx. 39 dB RwP
> BRM 2,500 x 2,500
approx. 37 dB RwP

Also burglar-resistant in accordance with DIN EN 1627
(full leaf; tested on both sides) 2) up to BRM (LD) max.

RC 2
RC 3
RC 4
1,375 x 2,500
(1,291 x 2,458)

RC 2
RC 3
2,500 x 2,500
(2,416 x 2,458)

CE marking in accordance with EN 14351-1

Available glazing
(dry glazing with rubber profile)

Rectangular standard glazing with visible screwed glazing beads, galvanised and powder-coated primed (RAL 9016) as standard,
optionally also available with additional cover profiles (without visible fixing) in stainless steel.
Minimum frieze widths 3-sided ≥ 150 mm, on lock side and on inactive sash centre stop ≥ 180 mm.

-

-

Round standard glazing
Design of glass retaining strips and minimum frieze widths /
frieze widths as for rectangular standard glazing.

-

-

Special glazing of your choice
From 170 x 270 mm to 849 x 2,134 mm. Design and glazing beads and minimum frieze widths / frieze widths like standard rectangular glazing

-

-

- possible - not possible
1) Standard glass for indoor use only (protect glass from UV light and direct exposure to halogen light). Glass can only be used for temperature range from -20 to +45˚C.
Sketches only apply to door size 1,000 x 2,000 mm / All information on glazing sizes refers to the clear view per glazing unit. Glass versions and maximum glass sizes for external use on request.
2) Not authorised for version with top panel. Only available as exclusive security doors NovoPorta Premio E-S-1 and E-S-2.
All dimensions in mm. BRM = Construction dimension RAM = External frame dimension LD = Clearance dimension
