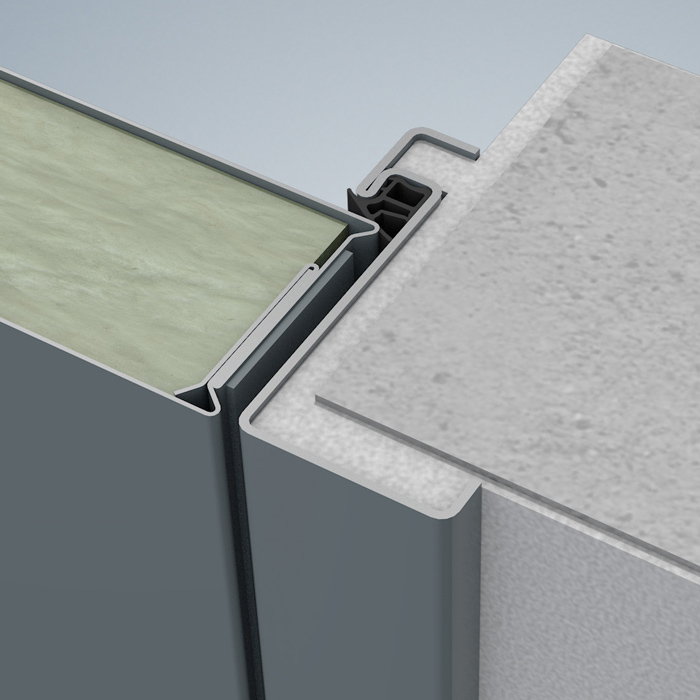

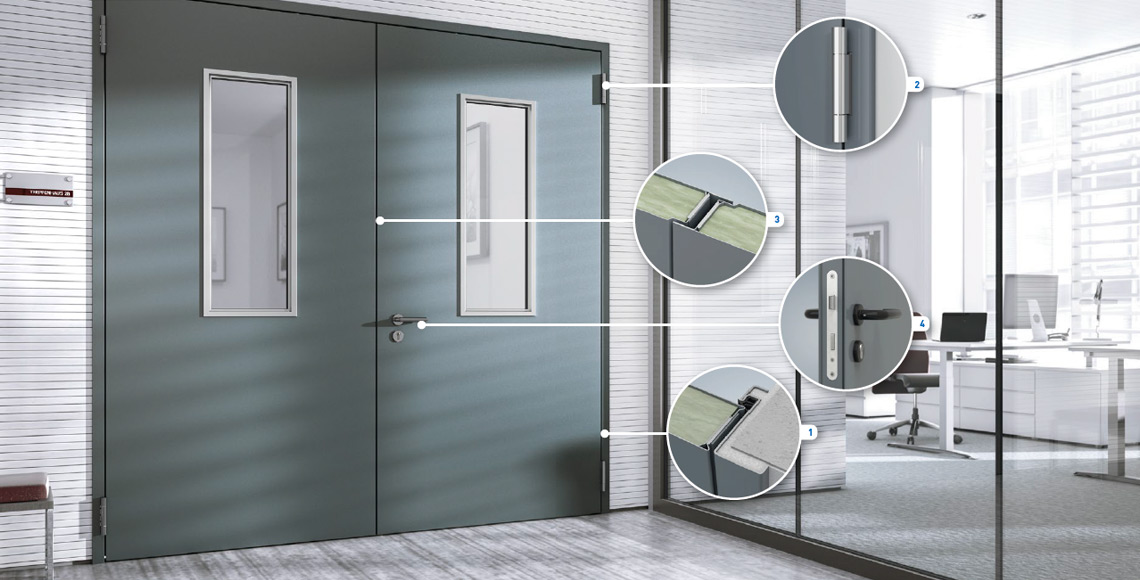

Thanks to the flush door rebate (1) and newly developed frame, the NovoPorta Plano offers an appealingly smooth, flush design. As it is supplied without a floor recess as standard, the Plano can be installed very late in the construction process, which has many advantages. The recessed foaming strip also contributes to the attractive visual effect of the Plano.

Promise a lot and deliver everything: The hinges (2) of the NovoPorta Plano are robust, slim and of a simple design. As a 3D-adjustable version, they are a standard feature of this door concept. They allow the door leaf to be aligned easily and perfectly with narrow joints. And because good looks are so important, we supply the hinges galvanised as standard, alternatively painted in the RAL colour of your choice or optionally in high-quality stainless steel.

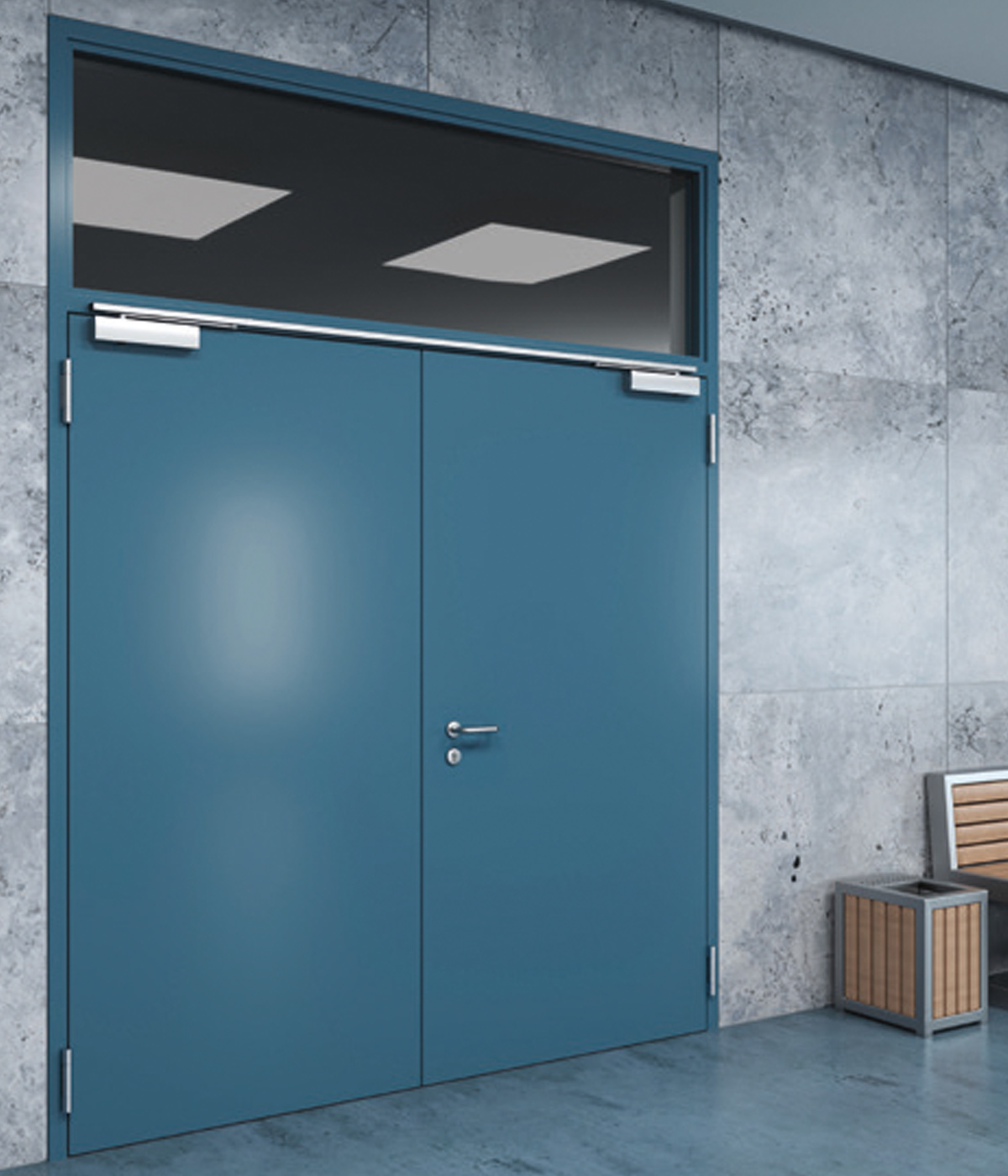

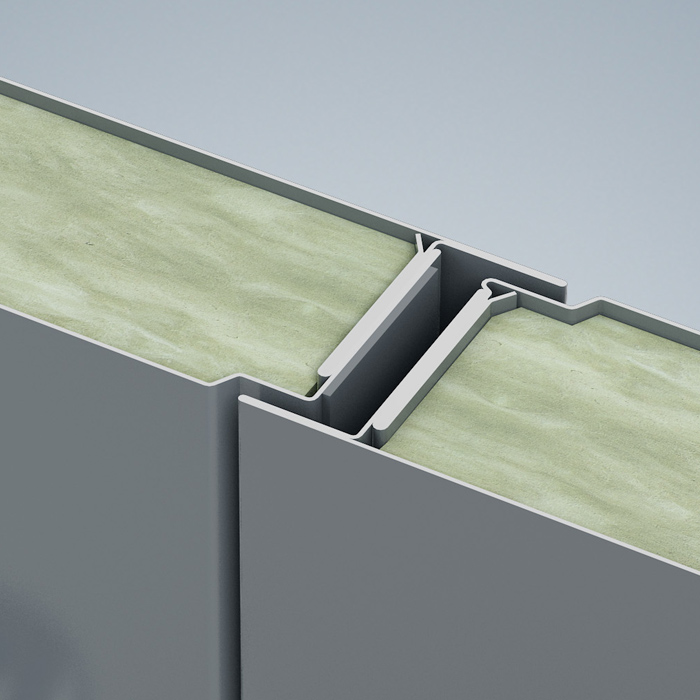

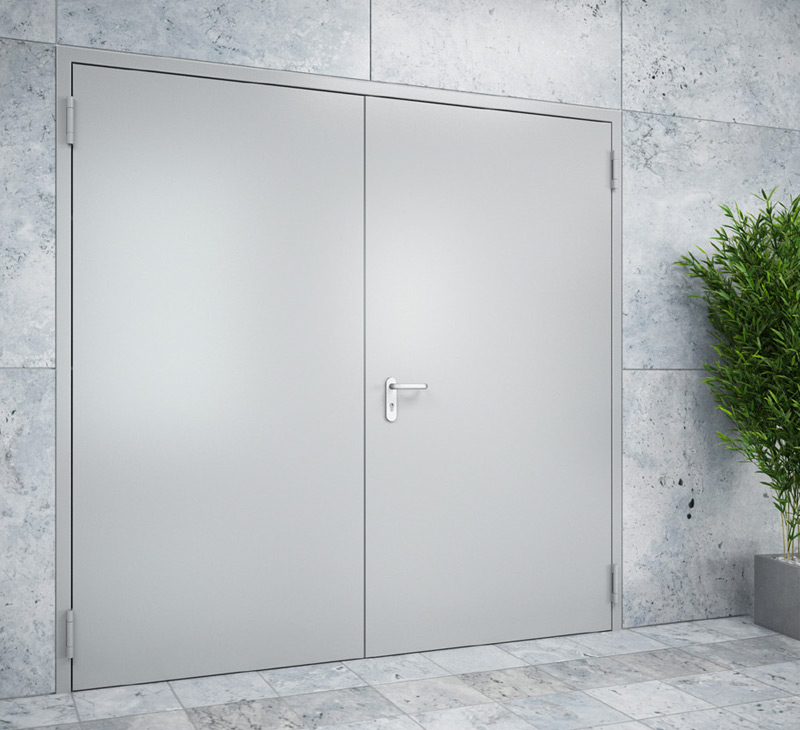

In the double-leaf version, a flush centre hinge (3) is part and parcel of a planned door concept. This is standard with the NovoPorta Plano, as with the NovoPorta Premio door series. The same applies to the highly flexible configurability with all options for commercial construction. With Plano, it is also possible to choose from a wide range of options and additional equipment and to customise the doors precisely to your requirements.

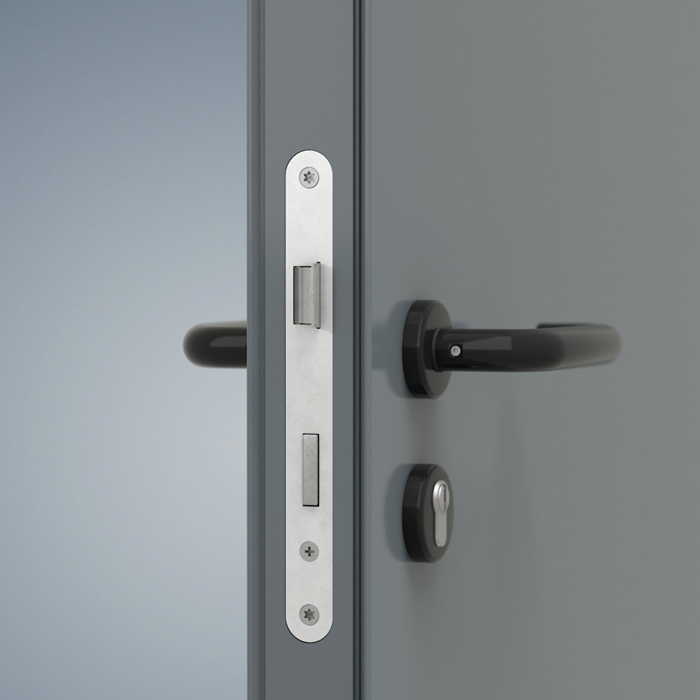

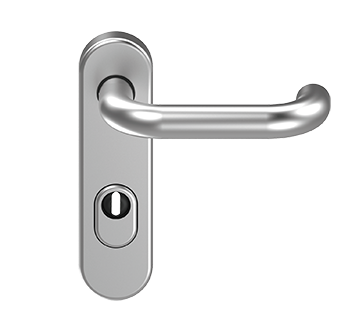

A steel door for exclusive architecture has to offer a lot visually. The NovoPorta Plano is therefore already equipped with attractive details as standard. These include, for example, elegant and robust rose fittings made of glossy PVC-U (4). There is also a large selection of hardware variants made of light metal or stainless steel with different designs and functions. And because we believe that a door should also look good when open, we supply the Plano with a high-quality mortise lock with a stainless steel faceplate.

Combining security, convenience and attractive design to create something new. Our engineers, security experts and designers have given their all to ensure that the inner values of our new multifunctional steel door with blunt stop are not visible. We can be proud of the result.

SECURITY EQUIPMENT
Not every visitor is welcome. Plano offers protection. The number of break-ins involving theft, vandalism or sabotage has risen by around 50 % in recent years. This not only affects private homes, but also public buildings and companies. NovoPorta Plano has something to counter this: Class RC2 resistance. ¹)

During the test procedure, the wedges or the screwdriver can be driven in with a rubber mallet to simulate corresponding blows by hand. Otherwise, the following tools are available: 1 screwdriver, 1 pipe wrench, 1 extension steel pipe, various plastic/wood wedges and various saws (wood, blade and hacksaw).

¹) In the test procedure

The specified time reflects the pure processing time of the doors. The time is only measured from the moment the first tool is applied.

As the resistance class increases:

• the required resistance time is extended and
• the permitted tool sets become more powerful.

Single and double-leaf Novo-Porta Plano doors are equipped with all kinds of security technology: such as the hinge bolt pull-out protection, security fittings, a cylinder cover and drill-proof profile cylinder.

A burglar-resistant wall connection is also provided - not only in the usual masonry and concrete walls, but also in aerated concrete walls, including the necessary pressure-resistant frame backfillings.

Noise reduction of up to 42 dB
Increasing noise pollution is a growing problem these days. In public buildings and companies, permissible noise immissions have long been regulated by law.

DIN 4109 only specifies minimum requirements here. During the development of Plano, particular attention was paid to protection against noise from outside and protection against noise penetrating to the outside. As a result, we were able to integrate noise insulation of 38 dB into the Plano without a threshold, e.g. for barrier-free use - and even up to 42 dB with a stop threshold.

Both values are just as attractive as the flush-mounted design of the NovoPorta Plano.

Smoke protection saves lives
Just three breaths in a smoke-filled room can be enough to render a person unconscious. It is therefore reassuring that the NovoPorta Plano not only protects against flames, but also against smoke ingress.

Today, the Plano fulfils the high requirements of DIN 18095 and even those of the European EN 1634-3.

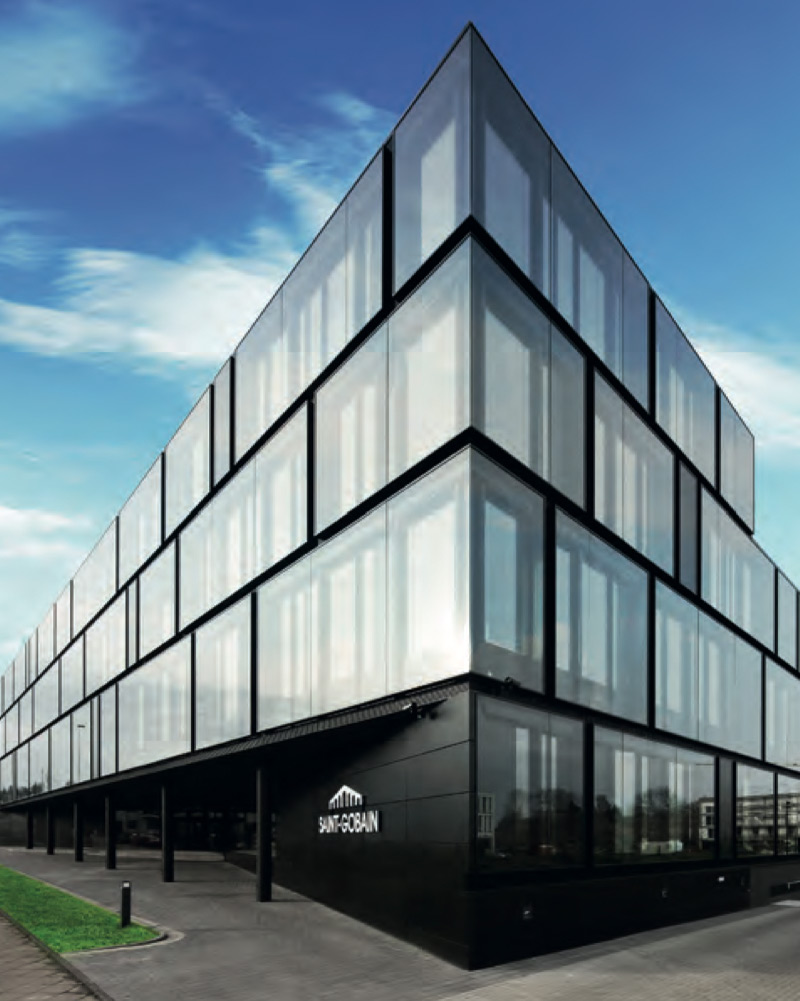

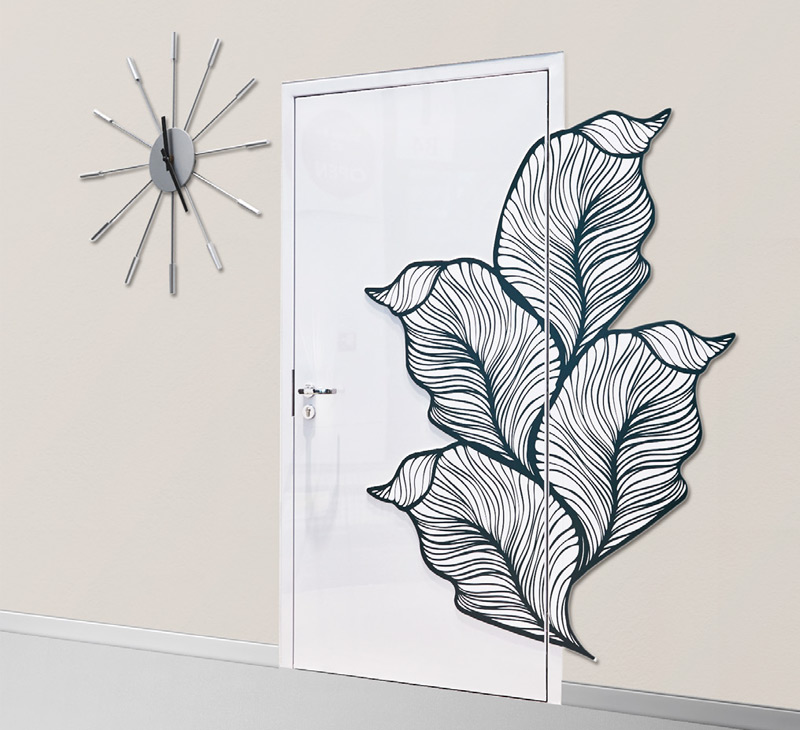

Attractive architecture thrives on design and function - the perfect environment for the NovoPorta Plano. As a designer multifunctional door, Plano enhances sophisticated architecture. For example, it enhances offices, surgeries or upmarket lounge, hotel and catering environments.

With the platform doors from the Premio and Plano series, doors can now be designed in all areas of a property with an attractive, uniform appearance, regardless of whether they are fire or noise protection, burglar-resistant or design versions.

Consistently simple in its design language:
This door concept invites you to equip attractive architecture with secure technology - e.g. in commercial construction, in high-quality office and practice environments as well as in the hotel or catering sector, in new builds and renovations. NovoPorta Plano is available in single and double-leaf versions in customisable sizes up to 2,500 x 2,500 mm, and even 2,500 x 3,500 mm in combination with top sections. As modern doors should not only be technically sophisticated and particularly secure, but also meet high design standards, Plano is available in a wide range of finishes, colours and equipment options.

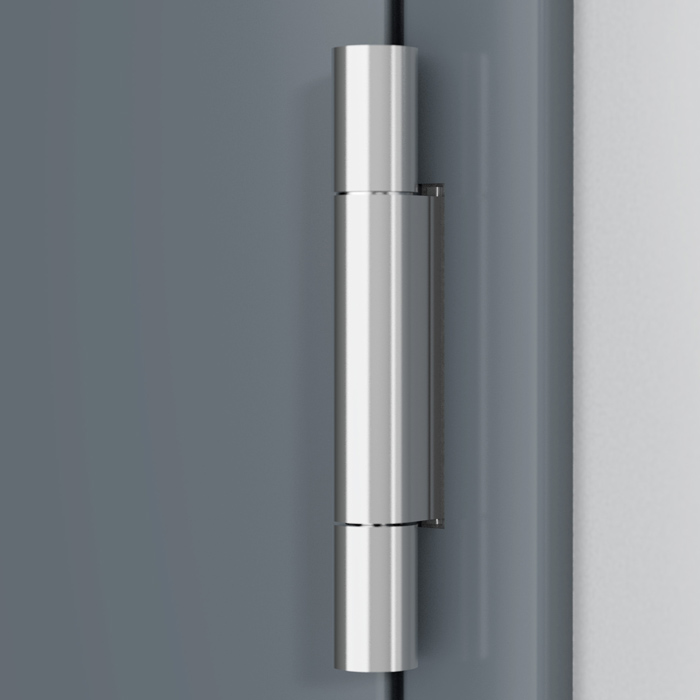

The concealed 3D hinges allow Plano doors, including the frame, to literally merge with the wall. Everything is on a single level.

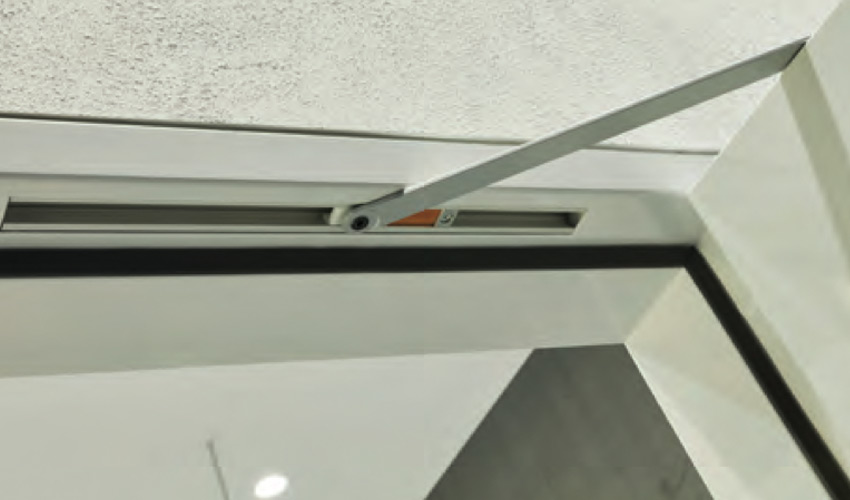

The optionally available integrated overhead door closers (Geze Boxer or dormakaba ITS96) are concealed in the door leaf and frame.

They are virtually invisible when the door is closed, making them ideal for high-quality property construction with flush-fitting door designs on the outside.

Novoferm is the first European manufacturer to have an ETA for NovoPorta Plano doors. This internationally recognised usability certificate officially documents the suitability of the Plano as a fire protection door, and the different national regulations no longer have to be taken into account. A Plano can therefore be installed in all 25 EOTA countries.

Customers benefit not only from the excellent design of Novoferm doors, but also from maximum planning security.

The ETA is particularly good news for design-orientated architects with demanding projects in various European countries. After all, with the Plano and the optional, fully concealed 3D hinges, it is easy to design the wall and frame in one plane.

Together with the blunt door rebate and the flush centre hinge - for double-leaf Planos - every Plano becomes a real gem.

Good taste is highly individual, which is why we also offer attractive fittings, numerous colour and design variants and many other equipment options.
Everything you need to turn a Plano into your Plano.

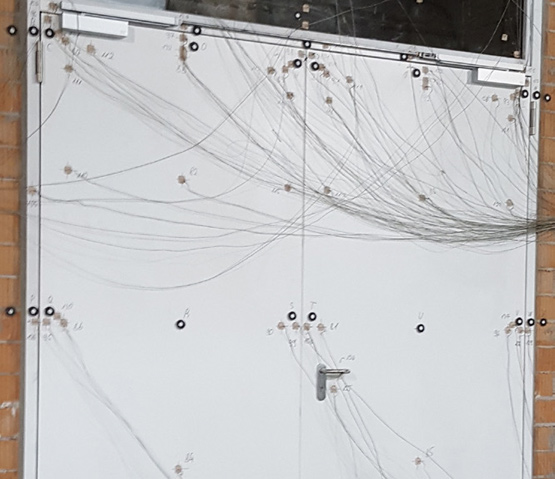

Produced in Germany, tested for Europe in accordance with DIN EN 1634
Protection against fire and its effects affect people all over the world. Plano has been designed to fulfil not only strict standards such as DIN 4102 and DIN EN 1634, but also the forthcoming European product standard EN 16034. All relevant approvals and classification reports are available. A Plano therefore also looks excellent in the fire test.

FIRE PROTECTION SAVES LIVES
A fire breaks out somewhere in the world every four seconds, with around eight million fires a year. The number of victims is high and the economic damage amounts to billions. The fire protection doors in the NovoPorta Plano series have been proven to protect human life and property and effectively prevent the spread of fires.

Tested and approved to the highest standards
Plano naturally fulfils the strict German standards and quality benchmarks, but above all also the forthcoming European product standard EN 16034. It is tested in accordance with DIN 4102 and DIN EN 1634 and approved by the DIBt building authorities - European fire protection with letter and seal.

Thinking ahead is an obvious choice for us, especially when it comes to certified environmental protection - with many advantages for architects and planners.

Award-winning products - also from an environmental perspective
Many of our products are sustainable - including, for example, steel multifunctional doors, aluminium/steel tubular frame doors, sliding fire doors and industrial roller shutters. Not only the environment benefits from the evidence we have provided by being awarded EPD certificates, but also our partners. Architects and planners can therefore include these products in the ecological assessment of buildings over their entire life cycle - because they have been awarded the "Blue-Green Eco-Efficiency" seal by the Institut Bauen und Umwelt e. V.

Quality is always sustainable
That's why our detailed view is not limited to the areas behind our own doors - we also look to the future, focussing on the environment in addition to technology. The result is sophisticated and environmentally-orientated products that originate from our development departments in Brackenheim, which are installed close to production.
