PREMIUM-PLUS SECTIONAL DOORS MADE OF STEEL

SECTIONAL DOORS WITH 70 MM THICKNESS AND MAXIMUM INSULATION

Your extra plus in insulation. With the new Premium-Plus sectional garage door, your garage is protected against wind and weather.

The particularly high level of insulation helps to ensure that your garage with adjoining or overbuilt living space does not cool down, even in winter. In this way, you avoid heat loss and actively support the optimisation of the performance balance of the entire building.

Do you want maximum energy efficiency and the best possible security in addition to the highest quality and maximum convenience?

Then opt for premium sectional doors with a total section thickness of 70 mm from Novoferm!

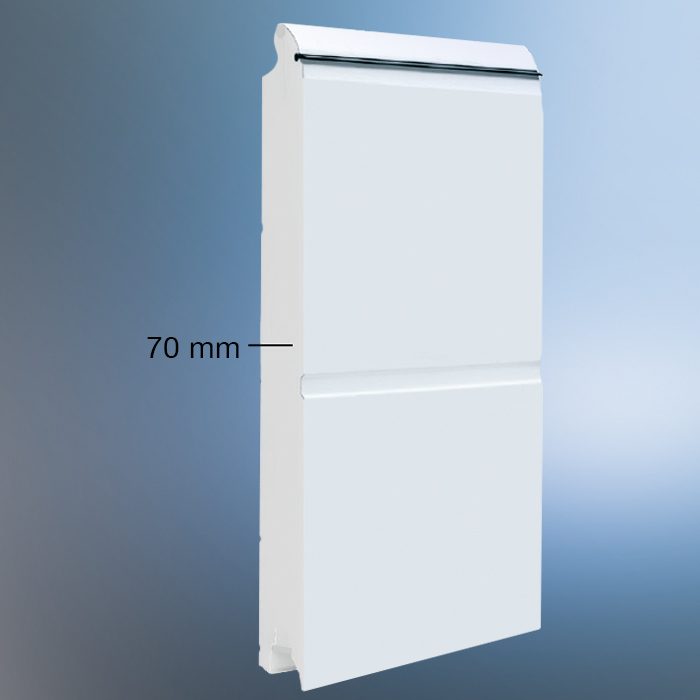

Premium door with maximum insulation
Novoferm sectional garage doors in the 70 mm version have a 67 mm thick insulating rigid foam core (total section thickness: 70 mm) for maximum thermal insulation.

Large selection of motifs / colours
Sectional doors are available in two door embossings, many surfaces and in almost all modern and end-coated RAL colours - to match your house architecture.

SmartHome-capable / Innovative
The NovoPort operator, which is only available from Novoferm and is smart home-capable, is not mounted on the ceiling and offers many advantages (integrated door opener, simple installation,...)

Your plus points at a glance

  • For private garages up to 5,500 mm wide
  • Particularly high thermal and sound insulation of the sections with a thermal insulation value of U(p) = 0.34 W/m²K and a total section thickness of 70 mm

  • Patented thermally separated sections



  • Also available with window variants and light openings with triple glazing on request
  • Novoferm thermal frame set provides up to 15 % better thermal insulation* on request
  • Modern and energy-saving LED lighting for Novoferm garage door operators and additional equipment (e.g. light strips)
  • Garage door openers with low energy consumption of just 0.5 watts in standby mode
  • Large selection of modern and end-coated surfaces and colours
  • Harmonious appearance of the inside of the door thanks to the smooth surface and uniform details (hinges, profiles, etc.) that are colour-coordinated with the door leaf
  • Tested security in accordance with resistance class RC 2 (in accordance with DIN/TS 18194:2020-07) possible
  • Maximum personal safety thanks to finger trap protection on the inside and outside
  • Reliable detection of obstacles and people thanks to the additionally available "Easy" safety light barrier
  • Smooth door operation thanks to stainless steel tandem rollers with ball bearings and whisper-quiet garage door openers

TOR-MERKMALE UND HIGHLIGHTS

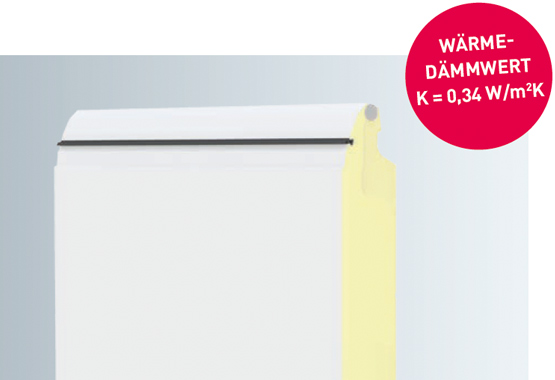

PARTICULARLY HIGH THERMAL AND SOUND INSULATION

PARTICULARLY HIGH THERMAL AND SOUND INSULATION

The patented thermally separated sections with a total thickness of 70 mm in combination with the PUR rigid foam core of the sectional door ensure a particularly high level of thermal and sound insulation.

The additional seals between the sections and the double bottom seal on the bottom edge of the door also support the thermal insulation and reduce heat loss.

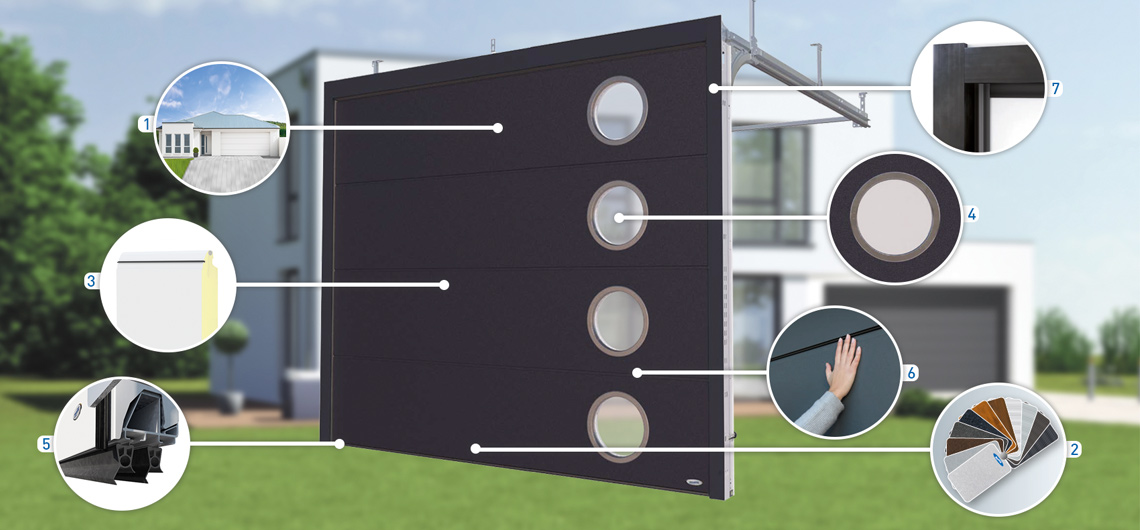

HIGHLIGHTS AUßEN

PREMIUM QUALITY THAT YOU CAN SEE

(1) For private garages up to 5,500 mm wide
Premium-Plus sectional garage doors are ideal for private garages or double garages up to a width of 5.50 m for new builds and renovations.

(2) Large selection of end-coated surfaces and colours
Premium-Plus sectional doors in lacquered versions, timber looks and our satin surfaces are end-coated. The high-quality surfaces are less sensitive to external influences and give your garage a sophisticated look.

(3) Double-walled and insulated
Our steel sections are manufactured exclusively in a double-walled sandwich construction and filled with a thermally insulating PUR rigid foam core. With a thickness of ≈67 mm (thermal insulation value U(p) = 0.34 W/m2K), it ensures particularly high thermal and sound insulation.

(4) Window variants with triple glazing
Also available with window variants with triple glazing, which ensure maximum light transmission in addition to high thermal insulation.

(5) Double bottom seal
The double bottom seal on the bottom edge of the door guarantees the best possible protection against water and dirt and compensates for minor unevenness in the floor. The double seal also reduces heat loss.

(6) Finger pinch protection on the inside and outside
The special design of the sections and hinges prevents pinch points on the door leaf from the outset. With Novoferm, there is also no pinch point on the inside.

(7) Thermal frame set
The optional sealing and insulating strip system improves thermal insulation by up to 15 %* thanks to the 3-sided thermal optimisation of the frame when installed behind the opening and actively supports the optimisation of the performance balance of the entire building.

* The performance value depends on the door motif and door size.

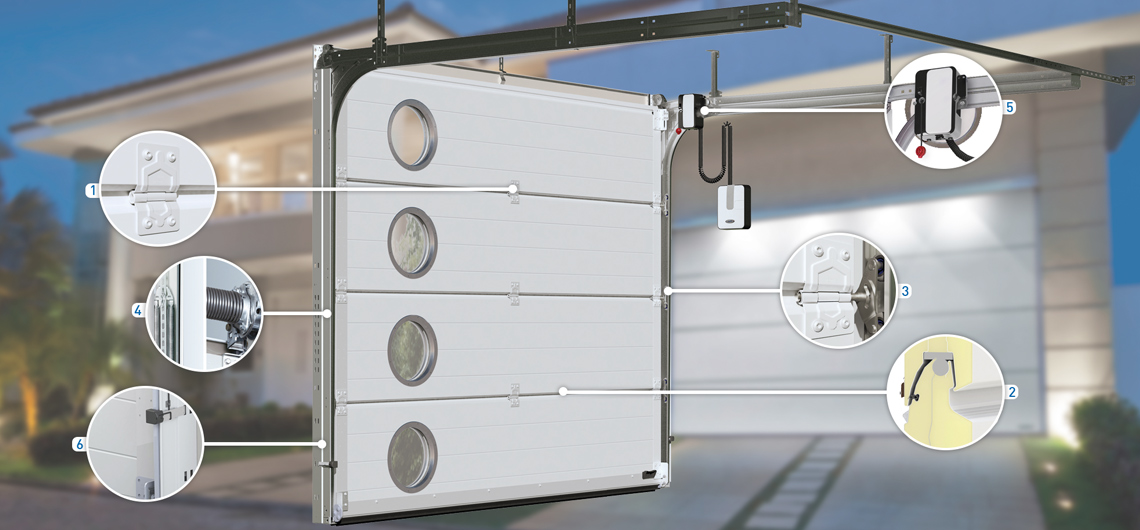

HIGHLIGHTS INNEN

WHAT'S INSIDE THE PREMIUM DOOR

(1) Uniform appearance of the inside of the door
The Premium Plus door offers a visual highlight thanks to the uniform appearance of the inside of the door. The elegantly smooth "Noblesse" surface of the door leaf as well as hinges and profiles in traffic white (similar to RAL 9016) enhance the harmonious overall impression.

(3) Ball bearing-mounted tandem rollers
High-quality, ball bearing-mounted tandem rollers in stainless steel ensure extremely smooth and even door movement.

(5) NovoPort® - Unique and flexible
The patented NovoPort® operator system with integrated internal pushbutton and door status display via hand-held transmitter ensures maximum convenience. The innovative, flexible side installation, optionally on the right or left, eliminates installation obstacles from the outset. This leaves the ceiling free.

(2) Thermal separation
The patented thermally separated sections with PUR hard foam core and additional seals between the sections provide EXTRA-PLUS thermal insulation.

(4) Optional spring technology
The Premium-Plus sectional door can be fitted with either safety multiple tension spring packs or torsion springs for smaller sizes. The vertical tension springs also enable a shallow installation depth and offer many options where space is limited. For large sizes, the door is fitted with torsion spring shafts, either at the front or rear.

(6) "Easy" safety light barrier
The supplementary "Easy" safety light barrier reliably detects obstacles and people and interrupts the closing process of the door in case of doubt.

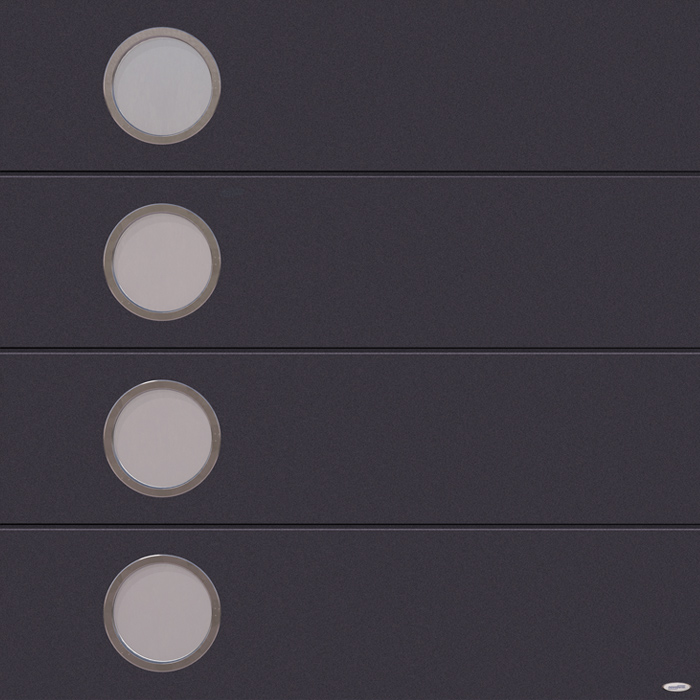

WINDOWS WITH TRIPLE GLAZING

WINDOWS WITH TRIPLE GLAZING

Our Premium-Plus sectional garage doors are also available with triple-glazed window variants, which ensure maximum light transmission in addition to high thermal insulation.

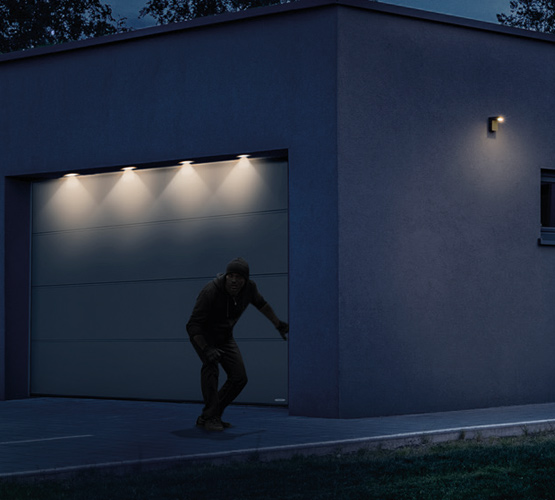

TESTED SAFETY

TESTED SAFETY

The Premium-Plus ISO 70 from Novoferm offers security at the highest level. On request, you can obtain your Premium-Plus ISO 70 in a burglar-resistant version with resistance class RC 2.

Even more security is provided by finger trap protection (inside and outside) and tamper-proof interchangeable code hand transmitters with AES 128 bit encryption.

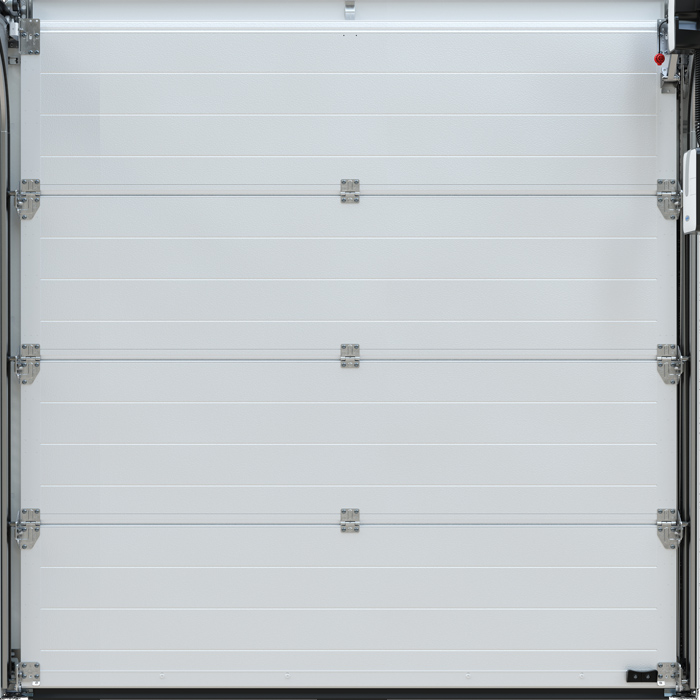

HIGH-QUALITY AND UNIFORM DOOR INSIDE

HIGH-QUALITY AND UNIFORM DOOR INSIDE

Compared to conventional doors, the Premium-Plus ISO 70 sectional garage door is also an eye-catcher from the inside!

The surface of the inside of the door is produced in the elegant, smooth "Noblesse" finish. The door leaf, hinges and profiles are also finished in traffic white, similar to RAL 9016, for a uniform colour scheme and a harmonious overall impression.

High-quality, ball-bearing tandem rollers in stainless steel also ensure that the door runs extremely smoothly and evenly.

SURFACES, COLOURS AND EQUIPMENT

TOR-PRÄGUNGEN

TOR-PRÄGUNGEN

Match your house architecture!
Give your garage door your own personal touch - our Premium Plus sectional doors with particularly high insulation are available on request in two door embossings with all the end-coated surfaces and colours from the Novoferm range listed below.

Elegant large louvre

Modern large bead

Door leaf
Inside: Polyurethane-based primer coat, traffic white, similar to RAL 9016
Exterior standard: Traffic white, similar to RAL 9016 (primed)
Exterior: Super-Color colours, RAL of your choice, satin surfaces or wood finishes at an extra charge (top-coated)
SURFACES

SURFACE NOBLESSE

Noblesse (smooth). The elegantly smooth surface on which dirt and moisture simply roll off

WOOD OPTICS

Our Premium Plus sectional doors are also available on request in 4 surfaces with an authentic rustic timber look. The surfaces are top-coated and weather-resistant.

Golden oak (smooth)

Dark oak (smooth)

SATIN SURFACES

Our Premium Plus sectional doors are also available in six decorative, end-coated, silk-matt satin surfaces with low soiling tendency and special weather resistance.

Satin white,
similar to RAL 9016

Satin window grey,
similar to RAL 7040

Satin grey,
(mixed colour)

Satin Dark grey,
similar to RAL 7016

Satin brown,
similar to RAL 8014

Satin black,
(mixed colour)

COLOURS

COLOURS

Experience more colour and individuality!
Our Premium Plus sectional garage door with 70 mm insulation is available in the elegantly smooth Noblesse surface, which simply repels dirt and moisture. For further customisation, you can choose from 14 attractively priced Super-Color finishes/preferred colours and almost all RAL colours.

STANDARD COLOUR

Traffic white,
similar to RAL 9016

PREFERRED COLOURS / SUPERCOLOR COLOURS AND RAL OF YOUR CHOICE

Moss green,
similar to RAL 6005

Grey aluminium,
similar to RAL 9007

Walnut brown,
similar to RAL 8011

Fir green,
similar to RAL 6009

Quartz grey,
similar to RAL 7039

Sepia brown,
similar to RAL 8014

Light grey,
similar to RAL 7035

Basalt grey,
similar to RAL 7012

Almost all RAL colours are available for further customisation.

Window grey,
similar to RAL 7040

Dark grey,
DB703

For a small surcharge, the door is available in a RAL colour of your choice.

White aluminium,
similar to RAL 9006

Slate grey,
similar to RAL 7015

Stone grey,
similar to RAL 7030

Anthracite grey,
similar to RAL 7016

GATE GRIPS

GATE GRIPS

DOOR HANDLES IN MANY MATERIALS AND COLOURS

Plastic-
coated, in preferred or RAL colour

Plastic-
coated, in preferred or RAL colour

Plastic-
coated, in preferred or RAL colour

Stainless steel

Matching door handles are available in all 16 Super-Color colours and RAL of your choice

Aluminium
silver-coloured
anodised

Aluminium
nickel silver-coloured
anodised

Aluminium
brass-coloured
anodised

Aluminium
with rustic textured effect

Aluminium
Traffic white

GLAZING AND WINDOWS

GLAZING FROM CLASSIC TO MODERN

DO YOU WANT MORE LIGHT IN YOUR GARAGE?
Have you already considered a door in a certain style and colour, but it's not yet individual enough for you?

Then take a look at our attractive glazing options. They not only draw attention to your garage, but also let the light in. This is particularly convenient if you also use your garage as a hobby room or workshop. All Novoferm glazing is made of weather-resistant acrylic glass or impact-resistant polycarbonate and is characterised by maximum light transmission.

Windows

Standard window

Cross window look

Diamond look

Dimensions:

  • Inside: approx. 392 x 192 mm
  • Outside: approx. 460 x 260 mm

Window thickness:

  • For large bead door embossing:
    clear or crystal-clear 16 mm acrylic glass double pane

LIGHT OPENINGS

Stainless steel-framed porthole, with 31 mm acrylic triple glazing.

Dimensions:

  • Inside: approx. ø 290 mm
  • Outside: approx. ø 350 mm

Rectangular window painted in RAL 9006 with 47 mm acrylic triple glazing.

Dimensions:

  • Inside: approx. 235 x 235 mm
  • Outside: approx. 320 x 320 mm
EXTERIOR LIGHTING OF THE GARAGE

EXTERIOR LIGHTING OF THE GARAGE

To put your garage door in the right light even after sunset - and also keep unauthorised persons out - we recommend the LED lighting kit. It creates an exciting dialogue with other light sources, e.g. illuminated windows, and sets the scene for the overall architecture of your home. Depending on the door width, the lighting kit consists of four, six or eight LEDs, which are evenly distributed across the entire width of the door in a U-shaped track.

It can be controlled either via the hand-held transmitter, which you also use to operate your operator, via a separate timer or a motion detector.

SAVES SPACE AND ENERGY

The flat, aluminium-coloured LED lighting kit (40 x 20 mm) is installed under the garage lintel to save space, so that almost the full clearance height is retained. Long-life LEDs ensure very bright illumination with minimal power consumption. Depending on the door width, the lighting units can be easily shortened on both sides to achieve exact symmetrical illumination of the door.

YOUR BENEFITS AT A GLANCE

  • Even distribution across the door width:
    4, 6 or 8 LEDs for door widths of up to 3,000, 4,000 or 5,000 mm
  • Separate switching independent of operator function possible
  • Available lengths:
    3 m, 4 m and 5 m - can be shortened if required!
  • Door and light can be controlled with one hand-held transmitter
  • Lighting optionally with or without door movement
  • Bright illumination with low power consumption
  • Weather-protected lighting
  • Space-saving installation under the garage lintel
  • Long service life thanks to LED technology
  • Incl. mains transformer 230 V/12 V
  • Anodised aluminium
SECURITY AND BURGLAR RESISTANCE

SECURITY AND BURGLAR RESISTANCE

SECURITY FOR YOUR HOME

We believe that burglary protection and energy efficiency belong together. That's why the Novoferm Evolution and iso 70 Premium-Plus premium sectional doors are now also available in a burglar-resistant version (resistance class RC 2 in accordance with DIN/TS 18194:2020-07). It has been proven that mechanical security systems on garage doors successfully ward off burglary attempts: Well over a third of all break-ins get stuck at the attempt stage because the door cannot be forced open quickly enough. So if you want to protect your garage with an appropriate door, you are on the safe side with burglar-resistant sectional garage doors from Novoferm. In combination with the Novomatic 423 or Novomatic 563 S overhead openers, the sectional garage door can achieve resistance class RC 2 (iso 70 only with Novomatic 563 S). Burglary protection even comes as standard with the iso 70 Premium-Plus sectional door.

On request, you can obtain your Evolution premium door in a burglar-resistant version with resistance class RC 2.

Installation conditions for achieving RC 2 security!

read more

GARAGE DOOR OPENING WITH ELECTRIC OPERATOR

GARAGE DOOR OPENING WITH ELECTRIC OPERATOR

Novoferm recommends buying a garage door together with a garage door opener, because anyone buying a new garage door today not only wants it to look good, but also wants it to open easily. With an electric operator, you can raise the comfort level of your garage at the touch of a button and eliminate inconvenience - simply by clicking on the radio remote control or control with an app.

All Novoferm operators are tested in combination with Novoferm doors. This guarantees maximum functional reliability and durability. And thanks to the practical emergency release, you can always get in even if the power fails.

Selection of garage door openers


Select your electric door operator:

NovoPort® Speed operator for sectional doors, side mounting

NovoPort® Speed garage door opener ›

Novomatic operators for sectional and up-and-over doors, ceiling mounting

Novomatic-Antriebe ›

Operator for roller shutters,
Side mounting

Control system for roller shutters ›

ACCESSORIES FOR DRIVES

The right accessories are also part of the desired equipment.
Because people have different wishes and because the structural conditions of a garage or sliding door are not always the same, we offer a comprehensive range of accessories with which you can equip our systems to suit your individual requirements.

Door control via app / Easy to integrate into standard SmartHome systems


SmartHome - Door control with app ›

Accessories for door operators - remote controls, buttons, light barriers, LED light strips,...

Accessories for door operators ›

Inspirationen

Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design

Door embossing: Elegant large louvre
Surface: Satin black
Colour: Mixed shade

Sectional garage door made of steel
in 45 mm (EVO) design

Door embossing: Elegant large louvre
Surface: Wood look - Winchester (smooth)

Sectional garage door made of steel
in 45 mm (EVO) design

Door embossing: Attractive large beading
Surface: Noblesse (smooth)
Colour: Anthracite grey, similar to RAL 7016

Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design

Door embossing: Attractive large bead
Surface: Satin grey
Colour: Mixed colour

Only for Novoferm sectional doors
with NovoPort side operator
with integrated button

Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design

Door embossing: Elegant large louvre
Surface: Satin grey
Colour: Mixed shade

Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design

Door embossing: Elegant large louvre
Surface: Satin window grey
Colour: Window grey, similar to RAL 7040
Window: with portholes

Sectional garage door made of steel
in 45 mm (EVO) mm design

Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour: White aluminium, similar to RAL 9006
Window: with portholes (stainless steel framed)

Sectional garage door made of steel
in 20 mm, 45 mm (EVO) or 70 mm design

Door embossing: Elegant large slat
Surface: Noblesse (smooth)
Colour: Anthracite grey, similar to RAL 7016
Accessories: with LED light strip for exterior lighting

Sectional garage door made of steel
in 20 mm, 45 mm (EVO) or 70 mm design

Door embossing: Elegant large slat
Surface: Noblesse (smooth)
Colour: Slate grey, similar to RAL 7015

Sectional garage door made of steel
in 20 mm or 45 mm (EVO) mm design

Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour: Traffic white, similar to RAL 9016

Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design

Door embossing: Elegant large louvre
Surface: Satin black
Colour: Mixed shade

Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design

Door embossing: Attractive large beading
Surface: Noblesse (smooth)
Colour: Anthracite grey, similar to RAL 7016

Sectional garage door made of steel
in 20 or 45 mm (EVO) design

Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour: Window grey, similar to RAL 7040

Sectional garage door made of steel
in 45 mm (EVO) mm design

Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour left-hand door: Traffic white, similar to RAL 9016
Colour right-hand door: Steel blue, similar to RAL 9011

Sectional garage door made of steel
in 20, 45 mm (EVO) or 70 mm design

Door embossing: Elegant large louvre
Surface: Noblesse (smooth)
Colour: Grey aluminium, similar to RAL 9007

Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design

Door embossing: Elegant large louvre
Surface: Satin Dark grey
Colour: Anthracite grey, similar to RAL 7016

Sectional garage door made of steel
in 45 mm (EVO) design

Door embossing: Microline (large slat)
Surface: Satin Dark grey
Colour: Anthracite grey, similar to RAL 7016

Sectional garage door made of steel
in 20 mm or 45 mm (EVO) design

Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour: Traffic white, similar to RAL 9016

Technology and details

STANDARD SIZES - VERTICAL TENSION SPRING

STANDARD SIZES - VERTICAL TENSION SPRING (LARGE BEAD, LARGE LAMELLA)

Standard size

Order size (BMR)





Width x height

Maximum wall opening dimension/ garage opening dimension



Width x height

Frame outer dimension
(RAM)

Width x height

Garage inner dimension
(GIB)

(min.)* (opt.)

Insertion depth

Ceiling height
(DH)

Clear headroom
(LDH)

Manual operation
(with clamp)

Drive unit

2250 x 1875

2340 x 1965

2402 x 1985

2410 (2500)

2495

1990

1800

1850

2250 x 2000

2340 x 2090

2402 x 2110

2410 (2500)

2620

2115

1925

1975

2250 x 2125

2340 x 2215

2402 x 2235

2410 (2500)

2745

2240

2050

2100

2375 x 1875

2465 x 1965

2527 x 1985

2535 (2625)

2495

1990

1800

1850

2375 x 2000

2465 x 2090

2527 x 2110

2535 (2625)

2620

2115

1925

1975

2375 x 2075

2465 x 2165

2527 x 2185

2535 (2625)

2695

2190

2000

2050

2375 x 2125

2465 x 2215

2527 x 2235

2535 (2625)

2745

2240

2050

2100

2375 x 2250

2465 x 2340

2527 x 2360

2535 (2625)

2870

2365

2175

2225

2500 x 1875

2590 x 1965

2652 x 1985

2660 (2750)

2495

1990

1800

1850

2500 x 2000

2590 x 2090

2652 x 2110

2660 (2750)

2620

2115

1925

1975

2500 x 2075

2590 x 2165

2652 x 2185

2660 (2750)

2695

2190

2000

2050

2500 x 2125

2590 x 2215

2652 x 2235

2660 (2750)

2745

2240

2050

2100

2500 x 2250

2590 x 2340

2652 x 2360

2660 (2750)

2870

2365

2175

2225

2500 x 2375

2590 x 2465

2652 x 2485

2660 (2750)

2995

2490

2300

2350

2500 x 2500

2590 x 2590

2652 x 2610

2660 (2750)

3120

2615

2425

2475

2500 x 2750

2590 x 2840

2652 x 2860

2660 (2750)

3370

2865

2675

2725

2625 x 2125

2715 x 2215

2777 x 2235

2785 (2875)

2745

2240

2050

2100

2750 x 2000

2840 x 2090

2902 x 2110

2910 (3000)

2620

2115

1925

1975

2750 x 2125

2840 x 2215

2902 x 2235

2910 (3000)

2745

2240

2050

2100

2750 x 2250

2840 x 2340

2902 x 2360

2910 (3000)

2870

2365

2175

2225

2750 x 2750

2840 x 2840

2902 x 2860

2910 (3000)

3370

2865

2675

2725

3000 x 2000

3090 x 2090

3152 x 2110

3160 (3250)

2620

2115

1925

1975

3000 x 2125

3090 x 2215

3152 x 2235

3160 (3250)

2745

2240

2050

2100

3000 x 2250

3090 x 2340

3152 x 2360

3160 (3250)

2870

2365

2175

2225

3000 x 2375

3090 x 2465

3152 x 2485

3160 (3250)

2995

2490

2300

2350

3000 x 2500

3090 x 2590

3152 x 2610

3160 (3250)

3120

2615

2425

2475

3000 x 2375

3090 x 2465

3152 x 2485

3160 (3250)

2995

2490

2300

2350

*When using aluminium frame set or installation aids (S-anchor, variable frame anchor): 90 mm per side required (GIB = BRB + 180 mm).
RENOVATION SIZES - VERTICAL TENSION SPRING

RENOVATION SIZES WHEN REPLACING A SECTIONAL DOOR FOR AN UP-AND-OVER DOOR

With existing up-and-over door
Novoferm K®/ competitor products

New renovation size

Order size (BMR)

Outer frame dimension
(RAM)

Clearance
clearance height
(LDH)

Order dimension (BMR)

Maximum
wall opening dimension/
Garage opening dimension

External frame dimension
(RAM)

Internal garage dimensions
(GIB)

Installation depth (EBT)

Ceiling height
(DH)

Clearance height (LDH)

Width x height

Width x height

Width x height

Width x height

Width x height

Width x height

(min.)* (opt.)

Manual operation
(with clamp)

Drive unit

2250 x 2000

2341 x 2065

1860

2190 x 1925

2280 x 20152342 x 20352350 (2440)

2545

2040

1850

1900

2250 x 2125

2341 x 2190

1985

2190 x 2050

2280 x 21402342 x 21602350 (2440)

2670

2165

1975

2025

2375 x 2000

2466 x 2065

1860

2315 x 1925

2405 x 20152467 x 20352475 (2565)

2545

2040

1850

1900

2375 x 2125

2466 x 2190

1985

2315 x 2050

2405 x 21402467 x 21602475 (2565)

2670

2165

1975

2025

2375 x 2250

2466 x 2315

2110

2315 x 2175

2405 x 22652467 x 22852475 (2565)

2795

2290

2100

2150

2500 x 2000

2591 x 2065

1860

2440 x 1925

2530 x 20152592 x 20352600 (2690)

2545

2040

1850

1900

2500 x 2125

2591 x 2190

1985

2440 x 2050

2530 x 21402592 x 21602600 (2690)

2670

2165

1975

2025

2500 x 2250

2591 x 2315

2110

2440 x 2175

2530 x 22652592 x 22852600 (2690)

2795

2290

2100

2150

3000 x 2125

3091 x 2190

1985

2940 x 2050

3030 x 21403092 x 21603100 (3190)

2670

2165

1975

2025

*When using aluminium frame set or mounting aids (S-anchor, variable frame anchor): 90 mm per side required (GIB = BRB + 180 mm).
NORMAL SIZE - FORWARD TORSION SPRING SHAFT (VL)

NORMAL SIZES - FORWARD TORSION SPRING SHAFT (VL) - (GROSSSICKE, GROSSLAMELLE)

Standard size

Order size (BMR)



Width x height

Maximum wall opening dimension/ garage opening dimension

Width x height

Frame outer dimension
(RAM)

Width x height

Garage inner dimension
(GIB)

(min.)* (opt.)

Insertion depth

(EBT)

Ceiling height
(DH) (min.)



Manual operation/
NovoPort®

Clear clearance height
(LDH)

Manual operation
(with clamp)

Drive unit

2250 x 1875

2340 x 1965

2402 x 2120

2410 (2500)

2495

2125

1800

1850

2250 x 2000

2340 x 2090

2402 x 2245

2410 (2500)

2620

2250

1925

1975

2250 x 2125

2340 x 2215

2402 x 2370

2410 (2500)

2745

2375

2050

2100

2375 x 1875

2465 x 1965

2527 x 2120

2535 (2625)

2495

2125

1800

1850

2375 x 2000

2465 x 2090

2527 x 2245

2535 (2625)

2620

2250

1925

1975

2375 x 2075

2465 x 2165

2527 x 2320

2535 (2625)

2695

2325

2000

2050

2375 x 2125

2465 x 2215

2527 x 2370

2535 (2625)

2745

2375

2050

2100

2375 x 2250

2465 x 2340

2527 x 2495

2535 (2625)

2870

2500

2175

2225

2500 x 1875

2590 x 1965

2652 x 2120

2660 (2750)

2495

2125

1800

1850

2500 x 2000

2590 x 2090

2652 x 2245

2660 (2750)

2620

2250

1925

1975

2500 x 2075

2590 x 2165

2652 x 2320

2660 (2750)

2695

2325

2000

2050

2500 x 2125

2590 x 2215

2652 x 2370

2660 (2750)

2745

2375

2050

2100

2500 x 2250

2590 x 2340

2652 x 2495

2660 (2750)

2870

2500

2175

2225

2500 x 2375

2590 x 2465

2652 x 2620

2660 (2750)

2995

2625

2300

2350

2500 x 2500

2590 x 2590

2652 x 2745

2660 (2750)

3120

2750

2425

2475

2500 x 2750

2590 x 2840

2652 x 2995

2660 (2750)

3370

3000

2675

2725

2625 x 2125

2715 x 2215

2777 x 2370

2785 (2875)

2745

2375

2050

2100

2750 x 2000

2840 x 2090

2902 x 2245

2910 (3000)

2620

2250

1925

1975

2750 x 2125

2840 x 2215

2902 x 2370

2910 (3000)

2745

2375

2050

2100

2750 x 2250

2840 x 2340

2902 x 2495

2910 (3000)

2870

2500

2175

2225

2750 x 2750

2840 x 2840

2902 x 2995

2910 (3000)

3370

3000

2675

2725

3000 x 2000

3090 x 2090

3152 x 2245

3160 (3250)

2620

2250

1925

1975

3000 x 2125

3090 x 2215

3152 x 2370

3160 (3250)

2745

2375

2050

2100

3000 x 2250

3090 x 2340

3152 x 2495

3160 (3250)

2870

2500

2175

2225

3000 x 2375

3090 x 2465

3152 x 2620

3160 (3250)

2995

2625

2300

2350

3000 x 2500

3090 x 2590

3152 x 2745

3160 (3250)

3120

2750

2425

2475

3000 x 3000

3090 x 3090

3152 x 3245

3160 (3250)

3620

3250

2925

2975

3250 x 2000

3340 x 2090

3402 x 2245

3410 (3500)

2620

2250

1925

1975

3250 x 2125

3340 x 2215

3402 x 2370

3410 (3500)

2745

2375

2050

2100

3250 x 2250

3340 x 2340

3402 x 2495

3410 (3500)

2870

2500

2175

2225

3500 x 2000

3590 x 2090

3652 x 2245

3660 (3750)

2620

2250

1925

1975

3500 x 2125

3590 x 2215

3652 x 2370

3660 (3750)

2745

2375

2050

2100

3500 x 2250

3590 x 2340

3652 x 2495

3660 (3750)

2870

2500

2175

2225

3750 x 2000

3840 x 2090

3902 x 2245

3910 (4000)

2620

2250

1925

1975

3750 x 2125

3840 x 2215

3902 x 2370

3910 (4000)

2745

2375

2050

2100

3750 x 2250

3840 x 2340

3902 x 2495

3910 (4000)

2870

2500

2175

2225

4000 x 2000

4090 x 2090

4152 x 2245

4160 (4250)

2620

2250

1925

1975

4000 x 2125

4090 x 2215

4152 x 2370

4160 (4250)

2745

2375

2050

2100

4000 x 2250

4090 x 2340

4152 x 2495

4160 (4250)

2870

2500

2175

2225

4250 x 2000

4340 x 2090

4402 x 2245

4410 (4500)

2620

2250

1925

1975

4250 x 2125

4340 x 2215

4402 x 2370

4410 (4500)

2745

2375

2050

2100

4250 x 2250

4340 x 2340

4402 x 2495

4410 (4500)

2870

2500

2175

2225

4500 x 2000

4590 x 2090

4652 x 2245

4660 (4750)

2620

2250

1925

1975

4500 x 2125

4590 x 2215

4652 x 2370

4660 (4750)

2745

2375

2050

2100

4500 x 2250

4590 x 2340

4652 x 2495

4660 (4750)

2870

2500

2175

2225

4750 x 2000

4840 x 2090

4902 x 2245

4910 (5000)

2620

2250

1925

1975

4750 x 2125

4840 x 2215

4902 x 2370

4910 (5000)

2745

2375

2050

2100

4750 x 2250

4840 x 2340

4902 x 2495

4910 (5000)

2870

2500

2175

2225

5000 x 2000

5090 x 2090

5152 x 2245

5160 (5250)

2620

2250

1925

1975

5000 x 2125

5090 x 2215

5152 x 2370

5160 (5250)

2745

2375

2050

2100

5000 x 2250

5090 x 2340

5152 x 2495

5160 (5250)

2870

2500

2175

2225

5500 x 2000

5590 x 2090

5652 x 2245

5660 (5750)

2620

2250

1925

1975

5500 x 2125

5590 x 2215

5652 x 2370

5660 (5750)

2745

2375

2050

2100

5500 x 2250

5590 x 2340

5652 x 2495

5660 (5750)

2870

2500

2175

2225

*When using aluminium frame set or installation aids (S-anchor, variable frame anchor): 90 mm per side required (GIB = BRB + 180 mm).
RENOVATION SIZES - FRONT TORSION SPRING SHAFT (VL)

RENOVATION SIZES WHEN REPLACING A SECTIONAL DOOR FOR AN UP-AND-OVER DOOR

With existing up-and-over door
Novoferm K®/ competitive brands

New renovation size

Order size (BMR)

Outer frame dimension
(RAM)

Clearance
clearance height
(LDH)

Order dimension (BMR)

Maximum
wall opening dimension/
Garage opening dimension

External frame dimension
(RAM)

Internal garage dimensions
(GIB)

Installation depth (EBT)

Ceiling height
(DH)

Clearance height (LDH)

Width x height

Width x height

Width x height

Width x height

Width x height

(min.)* (opt.)

Manual operation
(with clamp)

Drive unit

2250 x 2000

2341 x 2065

1860

2190 x 1925

2280 x 20152342 x 21702350 (2440)

2545

2175

1850

1900

2250 x 2125

2341 x 2190

1985

2190 x 2050

2280 x 21402342 x 22952350 (2440)

2670

2300

1975

2025

2375 x 2000

2466 x 2065

1860

2315 x 1925

2405 x 20152467 x 21702475 (2565)

2545

2175

1850

1900

2375 x 2125

2466 x 2190

1985

2315 x 2050

2405 x 21402467 x 22952475 (2565)

2670

2300

1975

2025

2375 x 2250

2466 x 2315

2110

2315 x 2175

2405 x 22652467 x 24202475 (2565)

2795

2425

2100

2150

2500 x 2000

2591 x 2065

1860

2440 x 1925

2530 x 20152592 x 21702600 (2690)

2545

2175

1850

1900

2500 x 2125

2591 x 2190

1985

2440 x 2050

2530 x 21402592 x 22952600 (2690)

2670

2300

1975

2025

2500 x 2250

2591 x 2315

2110

2440 x 2175

2530 x 22652592 x 24202600 (2690)

2795

2425

2100

2150

3000 x 2125

3091 x 2190

1985

2940 x 2050

3030 x 21403092 x 22953100 (3190)

2670

2300

1975

2025

*When using aluminium frame set or mounting aids (S-anchor, variable frame anchor): 90 mm per side required (GIB = BRB + 180 mm).
STANDARD SIZES - REAR-MOUNTED TORSION SPRING SHAFT (HL)

STANDARD SIZES - REAR-MOUNTED TORSION SPRING SHAFT (HL) - (LARGE BEAD, LARGE LAMELLA)

Standard size

Order size (BMR)





Width x height

Maximum wall opening dimension/ garage opening dimension



Width x height

Frame outer dimension
(RAM)

Width x height

Garage inner dimension
(GIB)

(min.)* (opt.)

Insertion depth

(EBT)

Ceiling height
(DH) (min.)



Manual operation/
NovoPort®

Clear clearance height
(LDH)

Manual operation
(with clamp)

Drive unit

2250 x 1875

2340 x 1965

2402 x 1985

2410 (2500)

2625

1990

1800

1850

2250 x 2000

2340 x 2090

2402 x 2110

2410 (2500)

2750

2115

1925

1975

2250 x 2125

2340 x 2215

2402 x 2235

2410 (2500)

2875

2240

2050

2100

2375 x 1875

2465 x 1965

2527 x 1985

2535 (2625)

2625

1990

1800

1850

2375 x 2000

2465 x 2090

2527 x 2110

2535 (2625)

2750

2115

1925

1975

2375 x 2075

2465 x 2165

2527 x 2185

2535 (2625)

2825

2190

2000

2050

2375 x 2125

2465 x 2215

2527 x 2235

2535 (2625)

2875

2240

2050

2100

2375 x 2250

2465 x 2340

2527 x 2360

2535 (2625)

3000

2365

2175

2225

2500 x 1875

2590 x 1965

2652 x 1985

2660 (2750)

2625

1990

1800

1850

2500 x 2000

2590 x 2090

2652 x 2110

2660 (2750)

2750

2115

1925

1975

2500 x 2075

2590 x 2165

2652 x 2185

2660 (2750)

2825

2190

2000

2050

2500 x 2125

2590 x 2215

2652 x 2235

2660 (2750)

2875

2240

2050

2100

2500 x 2250

2590 x 2340

2652 x 2360

2660 (2750)

3000

2365

2175

2225

2500 x 2375

2590 x 2465

2652 x 2485

2660 (2750)

3125

2490

2300

2350

2500 x 2500

2590 x 2590

2652 x 2610

2660 (2750)

3250

2615

2425

2475

2500 x 2750

2590 x 2840

2652 x 2860

2660 (2750)

3500

2865

2675

2725

2625 x 2125

2715 x 2215

2777 x 2235

2785 (2875)

2875

2240

2050

2100

2750 x 2000

2840 x 2090

2902 x 2110

2910 (3000)

2750

2115

1925

1975

2750 x 2125

2840 x 2215

2902 x 2235

2910 (3000)

2875

2240

2050

2100

2750 x 2250

2840 x 2340

2902 x 2360

2910 (3000)

3000

2365

2175

2225

2750 x 2750

2840 x 2840

2902 x 2860

2910 (3000)

3500

2865

2675

2725

3000 x 2000

3090 x 2090

3152 x 2110

3160 (3250)

2750

2115

1925

1975

3000 x 2125

3090 x 2215

3152 x 2235

3160 (3250)

2875

2240

2050

2100

3000 x 2250

3090 x 2340

3152 x 2360

3160 (3250)

3000

2365

2175

2225

3000 x 2375

3090 x 2465

3152 x 2485

3160 (3250)

3125

2490

2300

2350

3000 x 2500

3090 x 2590

3152 x 2610

3160 (3250)

3250

2615

2425

2475

3000 x 3000

3090 x 3090

3152 x 3110

3160 (3250)

3750

3115

2925

2975

3250 x 2000

3340 x 2090

3402 x 2110

3410 (3500)

2750

2115

1925

1975

3250 x 2125

3340 x 2215

3402 x 2235

3410 (3500)

2875

2240

2050

2100

3250 x 2250

3340 x 2340

3402 x 2360

3410 (3500)

3000

2365

2175

2225

3500 x 2000

3590 x 2090

3652 x 2110

3660 (3750)

2750

2115

1925

1975

3500 x 2125

3590 x 2215

3652 x 2235

3660 (3750)

2875

2240

2050

2100

3500 x 2250

3590 x 2340

3652 x 2360

3660 (3750)

3000

2365

2175

2225

3750 x 2000

3840 x 2090

3902 x 2110

3910 (4000)

2750

2115

1925

1975

3750 x 2125

3840 x 2215

3902 x 2235

3910 (4000)

2875

2240

2050

2100

3750 x 2250

3840 x 2340

3902 x 2360

3910 (4000)

3000

2365

2175

2225

4000 x 2000

4090 x 2090

4152 x 2110

4160 (4250)

2750

2115

1925

1975

4000 x 2125

4090 x 2215

4152 x 2235

4160 (4250)

2875

2240

2050

2100

4000 x 2250

4090 x 2340

4152 x 2360

4160 (4250)

3000

2365

2175

2225

4250 x 2000

4340 x 2090

4402 x 2110

4410 (4500)

2750

2115

1925

1975

4250 x 2125

4340 x 2215

4402 x 2235

4410 (4500)

2875

2240

2050

2100

4250 x 2250

4340 x 2340

4402 x 2360

4410 (4500)

3000

2365

2175

2225

4500 x 2000

4590 x 2090

4652 x 2110

4660 (4750)

2750

2115

1925

1975

4500 x 2125

4590 x 2215

4652 x 2235

4660 (4750)

2875

2240

2050

2100

4500 x 2250

4590 x 2340

4652 x 2360

4660 (4750)

3000

2365

2175

2225

4750 x 2000

4840 x 2090

4902 x 2110

4910 (5000)

2750

2115

1925

1975

4750 x 2125

4840 x 2215

4902 x 2235

4910 (5000)

2875

2240

2050

2100

4750 x 2250

4840 x 2340

4902 x 2360

4910 (5000)

3000

2365

2175

2225

5000 x 2000

5090 x 2090

5152 x 2110

5160 (5250)

2750

2115

1925

1975

5000 x 2125

5090 x 2215

5152 x 2235

5160 (5250)

2875

2240

2050

2100

5000 x 2250

5090 x 2340

5152 x 2360

5160 (5250)

3000

2365

2175

2225

5500 x 2000

5590 x 2090

5652 x 2110

5660 (5750)

2750

2115

1925

1975

5500 x 2125

5590 x 2215

5652 x 2235

5660 (5750)

2875

2240

2050

2100

5500 x 2250

5590 x 2340

5652 x 2360

5660 (5750)

3000

2365

2175

2225

*When using aluminium frame set or installation aids (S-anchor, variable frame anchor): 90 mm per side required (GIB = BRB + 180 mm).
RENOVATION SIZES - REAR-MOUNTED TORSION SPRING SHAFT (HL)

RENOVATION SIZES WHEN REPLACING A SECTIONAL DOOR FOR AN UP-AND-OVER DOOR

With existing up-and-over door
Novoferm K®/ competitor products

New renovation size

Order size (BMR)

Outer frame dimension
(RAM)

Clearance
clearance height
(LDH)

Order dimension (BMR)

Maximum
wall opening dimension/
Garage opening dimension

External frame dimension
(RAM)

Internal garage dimensions
(GIB)

Installation depth (EBT)

Ceiling height
(DH)

Clearance height (LDH)

Width x height

Width x height

Width x height

Width x height

Width x height

(min.)* (opt.)

Manual operation
(with clamp)

Drive unit

2250 x 2000

2341 x 2065

1860

2190 x 1925

2280 x 20152342 x 21702350 (2440)

2675

2040

1850

1900

2250 x 2125

2341 x 2190

1985

2190 x 2050

2280 x 21402342 x 22952350 (2440)

2800

2165

1975

2025

2375 x 2000

2466 x 2065

1860

2315 x 1925

2405 x 20152467 x 21702475 (2565)

2675

2040

1850

1900

2375 x 2125

2466 x 2190

1985

2315 x 2050

2405 x 21402467 x 22952475 (2565)

2800

2165

1975

2025

2375 x 2250

2466 x 2315

2110

2315 x 2175

2405 x 22652467 x 24202475 (2565)

2925

2290

2100

2150

2500 x 2000

2591 x 2065

1860

2440 x 1925

2530 x 20152592 x 21702600 (2690)

2675

2040

1850

1900

2500 x 2125

2591 x 2190

1985

2440 x 2050

2530 x 21402592 x 22952600 (2690)

2800

2165

1975

2025

2500 x 2250

2591 x 2315

2110

2440 x 2175

2530 x 22652592 x 24202600 (2690)

2925

2290

2100

2150

3000 x 2125

3091 x 2190

1985

2940 x 2050

3030 x 21403092 x 22953100 (3190)

2800

2165

1975

2025

*When using aluminium frame set or mounting aids (S-anchor, variable frame anchor): 90 mm per side required (GIB = BRB + 180 mm).

Montage

How do I install Novoferm sectional doors?

The following video illustrates the step-by-step installation of Novoferm sectional doors. The videos are only intended as a supplement to the installation, operating and maintenance instructions. They do not replace professional installation by qualified and trained specialist personnel.

INSTALLATION OF AN AUTOMATIC SECTIONAL DOOR

Click on the animation on the left to see the installation of a Novoferm sectional garage door using the example of type ISO 45 with Novomatic 563 S operator with vertical tension spring and the advantages in a visually appealing form.

Detailed animations / videos on the advantages, installation and programming of Novoferm sectional garage doors can be found on the Novoferm YouTube channel:
https://www.youtube.com/NovofermVideos
