STEEL SECTIONAL GARAGE DOORS
Sectional doors with 20 mm thickness and high insulation
A large selection of embossings and colours? At an attractive price? High quality, great convenience, high security and energy efficiency?
Then choose sectional garage doors with 20 mm insulation from Novoferm!
Door with high insulation / renovation
Novoferm sectional garage doors in the 20 mm version have a 20 mm thick insulating hard foam core for high thermal insulation. Ideally suited for renovation.
Large selection of motifs / colours
These sectional doors are available in three door embossings, two surfaces and 16 modern and end-coated preferred colours - to match your house architecture.
SmartHome-capable / Innovative
The NovoPort operator, which is only available from Novoferm and is smart home-capable, is not mounted on the ceiling and offers many advantages (integrated door opener, simple installation,...)
Your plus points at a glance
- For private garages up to 3,000 mm wide
- High quality with up to 10-year guarantee (Made in Germany)
- Available in 17 final lacquered and inexpensive preferred colours as well as two surfaces
- High thermal insulation thanks to 20 mm thick insulating hard foam core (thermal insulation value K = 1.0 W/m²K)
- TÜV-tested burglar resistance (without extras such as wicket door, emergency release, window, etc.)
- Maximum personal safety thanks to finger trap protection on the inside and outside
- Smooth running and stability thanks to double-walled, galvanised steel sections
- High level of convenience thanks to SmartHome-capable and whisper-quiet garage door openers
- Available as an automatically patented NovoPort operator system with a high level of convenience
SURFACES, COLOURS AND EQUIPMENT
TOR-PRÄGUNGEN
Gate embossing
Add the finishing touch to the look of your home. With modern, functional lines in bead or large slat embossing. With sectional doors in 20 mm thickness, you can choose between up to three door embossings.
Illustrations for single garages show door leaf size 2,500 x 2,125 mm. Other door sizes may differ from the illustration.
| Door leaf |
| Inside: Polyester-based primer coat, grey white similar to RAL 9002 |
| Exterior standard: Traffic white similar to RAL 9016 (primed) |
| Outside: Super-Color or RAL of your choice at an extra charge (final coating) |
SURFACES
Surfaces
COLOURS
Standard colour
Preferred colours / SuperColor colours
GLAZING AND WINDOWS
Glazing and windows
Have you already considered a door in a certain design and colour, but it's not yet individual enough for you?
Then take a look at our attractive glazing options. They not only draw attention to your garage, but also let the light in. This is particularly convenient if you also use your garage as a hobby room or workshop.

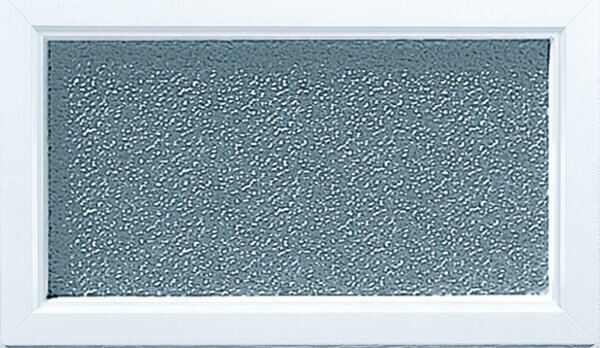

All Novoferm glazing is made of weather-resistant acrylic glass or impact-resistant polycarbonate and is characterised by maximum light transmission.
Dimensions:
- inside:
approx. 392 x 192 mm - outside:
approx. 460 x 260 mm
Window thickness:
- For large bead door embossing:
clear or crystal-clear 16 mm acrylic glass double pane
GATE GRIPS
Plastic-coated door handles
Matching door handles are available in all sixteen preferred colours and RAL of your choice.
EXTERIOR LIGHTING OF THE GARAGE
Exterior lighting of the garage
To put your garage door in the right light even after sunset - and also keep unauthorised persons out - we recommend the LED lighting kit. It creates an exciting dialogue with other light sources, e.g. illuminated windows, and sets the scene for the overall architecture of your home. Depending on the door width, the lighting kit consists of four, six or eight LEDs, which are evenly distributed across the entire width of the door in a U-shaped track. They can be controlled either via the hand-held transmitter, which you also use to operate your operator, via a separate timer or a motion detector.
Saves space and energy
The flat, aluminium-coloured LED lighting kit (40 x 20 mm) is installed under the garage lintel to save space, so that almost the full clearance height is retained. Long-life LEDs ensure very bright illumination with minimal power consumption. Depending on the door width, the lighting units can be easily shortened on both sides to achieve exact symmetrical illumination of the door.
Your plus points at a glance
- Even distribution across the door width:
4, 6 or 8 LEDs for door widths of up to 3,000, 4,000 or 5,000 mm - Separate switching independent of operator function possible
- Available lengths:
3 m, 4 m and 5 m - can be shortened if required! - Door and light can be controlled with one hand-held transmitter
- Lighting optionally with or without door movement
- Bright illumination with low power consumption
- Weather-protected lighting
- Space-saving installation under the garage lintel
- Long service life thanks to LED technology
- Incl. mains transformer 230 V/12 V
- Anodised aluminium
GARAGE DOOR OPENING WITH ELECTRIC OPERATOR
GARAGE DOOR OPENING WITH ELECTRIC OPERATOR
Novoferm recommends buying a garage door together with a garage door opener, because anyone buying a new garage door today not only wants it to look good, but also wants it to open easily. With an electric operator, you can raise the comfort level of your garage at the touch of a button and eliminate inconvenience - simply by clicking on the radio remote control or control with an app.
All Novoferm operators are tested in combination with Novoferm doors. This guarantees maximum functional reliability and durability. And thanks to the practical emergency release, you can always get in even if the power fails.
Selection of garage door openers
Select your electric door operator:
ACCESSORIES FOR DRIVES
The right accessories are also part of the desired equipment.
Because people have different wishes and because the structural conditions of a garage or sliding door are not always the same, we offer a comprehensive range of accessories with which you can equip our systems to suit your individual requirements.
Inspirationen
Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design
Door embossing: Elegant large louvre
Surface: Satin black
Colour: Mixed shade
Sectional garage door made of steel
in 45 mm (EVO) design
Door embossing: Elegant large louvre
Surface: Wood look - Winchester (smooth)
Sectional garage door made of steel
in 45 mm (EVO) design
Door embossing: Attractive large beading
Surface: Noblesse (smooth)
Colour: Anthracite grey, similar to RAL 7016
Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design
Door embossing: Attractive large bead
Surface: Satin grey
Colour: Mixed colour
Only for Novoferm sectional doors
with NovoPort side operator
with integrated button
Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design
Door embossing: Elegant large louvre
Surface: Satin grey
Colour: Mixed shade
Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design
Door embossing: Elegant large louvre
Surface: Satin window grey
Colour: Window grey, similar to RAL 7040
Window: with portholes
Sectional garage door made of steel
in 45 mm (EVO) mm design
Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour: White aluminium, similar to RAL 9006
Window: with portholes (stainless steel framed)
Sectional garage door made of steel
in 20 mm, 45 mm (EVO) or 70 mm design
Door embossing: Elegant large slat
Surface: Noblesse (smooth)
Colour: Anthracite grey, similar to RAL 7016
Accessories: with LED light strip for exterior lighting
Sectional garage door made of steel
in 20 mm, 45 mm (EVO) or 70 mm design
Door embossing: Elegant large slat
Surface: Noblesse (smooth)
Colour: Slate grey, similar to RAL 7015
Sectional garage door made of steel
in 20 mm or 45 mm (EVO) mm design
Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour: Traffic white, similar to RAL 9016
Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design
Door embossing: Elegant large louvre
Surface: Satin black
Colour: Mixed shade
Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design
Door embossing: Attractive large beading
Surface: Noblesse (smooth)
Colour: Anthracite grey, similar to RAL 7016
Sectional garage door made of steel
in 20 or 45 mm (EVO) design
Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour: Window grey, similar to RAL 7040
Sectional garage door made of steel
in 45 mm (EVO) mm design
Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour left-hand door: Traffic white, similar to RAL 9016
Colour right-hand door: Steel blue, similar to RAL 9011
Sectional garage door made of steel
in 20, 45 mm (EVO) or 70 mm design
Door embossing: Elegant large louvre
Surface: Noblesse (smooth)
Colour: Grey aluminium, similar to RAL 9007
Sectional garage door made of steel
in 45 mm (EVO) or 70 mm design
Door embossing: Elegant large louvre
Surface: Satin Dark grey
Colour: Anthracite grey, similar to RAL 7016
Sectional garage door made of steel
in 45 mm (EVO) design
Door embossing: Microline (large slat)
Surface: Satin Dark grey
Colour: Anthracite grey, similar to RAL 7016
Sectional garage door made of steel
in 20 mm or 45 mm (EVO) design
Door embossing: Attractive large beading
Surface: Woodgrain (discreetly grained wood texture)
Colour: Traffic white, similar to RAL 9016
TECHNOLOGY AND DETAILS
Vertical tension spring
Vertical tension spring
Our iso 20 sectional garage doors with vertical tension spring system are equipped with multiple safety tension spring assemblies.
- Sectional garage doors are equipped with stable multiple tension spring assemblies.
- The springs are adjusted at the top end of the spring assembly.
- The vertical tension springs also allow a lower installation depth and offer new possibilities where space is limited.
Details of the vertical tension spring
Details of the vertical tension spring
The sectional garage doors ISO 20 and ISO 45 with widths of up to 3,000 mm and a height of 2,500 mm (plain) or 2,750 mm (Woodgrain) are available with a vertical tension spring system. With ISO 70, this is only possible up to 3,000 mm (width) and 2,375 mm (height). With a stop width of just 80 mm per side, these doors are also ideal for renovation projects.
(1) ENTRY PROTECTED DIVERTING ROLLER
The steel cables run vertically into the angled frame via ball bearing-mounted deflection rollers with U-shaped pulley holders. This saves space in height, in contrast to the torsion spring in front.
(2) ROPE HOLDER
The wire rope holder ensures a secure rope run in the angled frame without the ropes touching the insulated section. The door leaf guide guarantees an optimum closing position of the door leaf.
(3) INTEGRATED TOOTH BELT FASTENING
The mould end piece includes a secure fastening for the maintenance-free NovoPort® toothed belt.
(4) MULTIPLE TENSION SPRING PACKAGES
For tension spring doors: The spring is adjusted at the upper end of the spring package. Vertical extension springs allow low installation depths and require little space.
(5) NOVOPORT® - UNIQUE & FLEXIBLE
The NovoPort® operator system ensures maximum convenience during operation and installation. The motor is not fixed to the ceiling like conventional operators, but is simply integrated into the side door track - on the right or left, depending on the structural conditions.
(6) FINGER PINCH PROTECTION
The design of the sections and hinges prevents pinch points on the door leaf from the outset - from the inside and outside.
(7) ENTRAPMENT PROTECTION AND INSIDE CABLE GUIDANCE
The angled frames largely prevent fingers from reaching between the door leaf and frame. Internal suspension cables minimise the risk of injury and ensure maximum functional safety.
HIGHLIGHTS
- Simple installation with low overall height
- Simple adjustment of the spring
- Shorter horizontal rails (less space required)
- Quick and easy installation of the NovoPort®
- Low lintel requirement as standard
- You also get the vertical tension spring system for ISO 45 and ISO 70 sectional doors at a lower price compared to the torsion spring version
SECTION HEIGHTS
SECTION HEIGHTS TYPE ISO 20, ISO 45 AND ISO 70 - DIMENSIONS AND SECTIONAL DIVISION
Construction- | Number | Section heights (standard division) | Bead spacing | ||||||
Floor | Lock section | Centre | Centre | Centre | Head | Scale- | Large | ||
3125 | 6 | 525 | 525 | 525 | 525 | 500 | 500 | 131/ 125 | 263/ 250 |
3000 | 6 | 500 | 500 | 500 | 500 | 500 | 500 | 125 | 250 |
2875 | 6 | 500 | 500 | 500 | 450 | 450 | 450 | 125/ 113 | 250/ 225 |
2750 | 6 | 500 | 450 | 450 | 450 | 450 | 450 | 125/ 113 | 250/ 225 |
2625 | 5 | 525 | 525 | 525 | 525 | 525 | 131 | 263 | |
2500 | 5 | 500 | 500 | 500 | 500 | 500 | 125 | 250 | |
2375 | 5 | 500 | 500 | 450 | 450 | 450 | 125/ 113 | 250/ 225 | |
2250 | 5 | 450 | 450 | 450 | 450 | 450 | 113 | 225 | |
2175 | 5 | 450 | 450 | 450 | 450 | 450* | 113 | 225 | |
2125 | 4 | 525 | 525 | 525 | 525 | 131 | 263 | ||
2075 | 4 | 525 | 525 | 500 | 500 | 131/ 125 | 263/ 250 | ||
2050 | 4 | 525 | 525 | 500 | 500 | 131/ 125 | 263/ 250 | ||
2000 | 4 | 500 | 500 | 500 | 500 | 125 | 250 | ||
1925 | 4 | 500 | 500 | 450 | 450 | 125/ 113 | 250/ 225 | ||
1875 | 4 | 500 | 450 | 450 | 450 | 125/ 113 | 250/ 225 | ||
STANDARD SIZES - VERTICAL TENSION SPRING
STANDARD SIZES - VERTICAL TENSION SPRING (HORIZONTAL BEAD, LARGE BEAD, LARGE LAMELLA (INCLUDING MICROLINE), CASSETTE LOOK)
Standard size | |||||||
Order size (BMR)
Width x height | Maximum wall opening dimension/ garage opening dimension
Width x height | Frame outer dimension Width x height | Garage inner dimension (min.)* (opt.) | Installation depth | Ceiling height (min.) Manual operation/ | Clear clearance height | |
Manual operation | Drive unit | ||||||
2250 x 1875 | 2340 x 1965 | 2402 x 1985 | 2410 (2500) | 2495 | 1990 | 1825 | 1875 |
2250 x 2000 | 2340 x 2090 | 2402 x 2110 | 2410 (2500) | 2620 | 2115 | 1950 | 2000 |
2250 x 2125 | 2340 x 2215 | 2402 x 2235 | 2410 (2500) | 2745 | 2240 | 2075 | 2125 |
2375 x 1875 | 2465 x 1965 | 2527 x 1985 | 2535 (2625) | 2495 | 1990 | 1825 | 1875 |
2375 x 2000 | 2465 x 2090 | 2527 x 2110 | 2535 (2625) | 2620 | 2115 | 1950 | 2000 |
2375 x 2075 | 2465 x 2165 | 2527 x 2185 | 2535 (2625) | 2695 | 2190 | 2025 | 2075 |
2375 x 2125 | 2465 x 2215 | 2527 x 2235 | 2535 (2625) | 2745 | 2240 | 2075 | 2125 |
2375 x 2250 | 2465 x 2340 | 2527 x 2360 | 2535 (2625) | 2870 | 2365 | 2200 | 2250 |
2375 x 2375 | 2465 x 2465 | 2527 x 2485 | 2535 (2625) | 2995 | 2490 | 2325 | 2375 |
2500 x 1875 | 2590 x 1965 | 2652 x 1985 | 2660 (2750) | 2495 | 1990 | 1825 | 1875 |
2500 x 2000 | 2590 x 2090 | 2652 x 2110 | 2660 (2750) | 2620 | 2115 | 1950 | 2000 |
2500 x 2075 | 2590 x 2165 | 2652 x 2185 | 2660 (2750) | 2695 | 2190 | 2025 | 2075 |
2500 x 2125 | 2590 x 2215 | 2652 x 2235 | 2660 (2750) | 2745 | 2240 | 2075 | 2125 |
2500 x 2250 | 2590 x 2340 | 2652 x 2360 | 2660 (2750) | 2870 | 2365 | 2200 | 2250 |
2500 x 2375 | 2590 x 2465 | 2652 x 2485 | 2660 (2750) | 2995 | 2490 | 2325 | 2375 |
2500 x 2500 | 2590 x 2590 | 2652 x 2610 | 2660 (2750) | 3120 | 2615 | 2450 | 2500 |
2500 x 2750 | 2590 x 2840 | 2652 x 2860 | 2660 (2750) | 3370 | 2865 | 2700 | 2750 |
2625 x 2125 | 2715 x 2215 | 2777 x 2235 | 2785 (2875) | 2745 | 2240 | 2075 | 2125 |
2750 x 2000 | 2840 x 2090 | 2902 x 2110 | 2910 (3000) | 2620 | 2115 | 1950 | 2000 |
2750 x 2125 | 2840 x 2215 | 2902 x 2235 | 2910 (3000) | 2745 | 2240 | 2075 | 2125 |
3000 x 2000 | 3090 x 2090 | 3152 x 2110 | 3160 (3250) | 2620 | 2115 | 1950 | 2000 |
3000 x 2125 | 3090 x 2215 | 3152 x 2235 | 3160 (3250) | 2745 | 2240 | 2075 | 2125 |
3000 x 2250 | 3090 x 2340 | 3152 x 2360 | 3160 (3250) | 2870 | 2365 | 2200 | 2250 |
3000 x 2375 | 3090 x 2465 | 3152 x 2485 | 3160 (3250) | 2995 | 2490 | 2325 | 2375 |
3000 x 2500 | 3090 x 2590 | 3152 x 2610 | 3160 (3250) | 3120 | 2615 | 2450 | 2500 |
Applies to horizontal beading (Woodgrain), large beading (Woodgrain), large louvre (Glatt) *When using aluminium frame set or installation aids (S-anchor, variable frame anchor): 90 mm per side required (GIB = BRB + 180 mm). | |||||||
RENOVATION SIZES - LOWERING RIGHT TENSION SPRING
renovation sizes when replacing a sectional door for an up-and-over door
With existing up-and-over door | New renovation size | |||||||||
Order size (BMR) | Outer frame dimension | Clearance | Order dimension (BMR) | Maximum | External frame dimension | Internal garage dimensions | Installation depth (EBT) | Ceiling height | Clearance height (LDH) | |
Width x height | Width x height | Width x height | Width x height | Width x height | Width x height | (min.)* (opt.) | (min.) Manual operation/ | Manual operation | Drive unit | |
2250 x 2000 | 2341 x 2065 | 1860 | 2190 x 1925 | 2280 x 2015 | 2342 x 2035 | 2350 (2440) | 2545 | 2040 | 1875 | 1925 |
2250 x 2125 | 2341 x 2190 | 1985 | 2190 x 2050 | 2280 x 2140 | 2342 x 2160 | 2350 (2440) | 2670 | 2165 | 2000 | 2050 |
2375 x 2000 | 2466 x 2065 | 1860 | 2315 x 1925 | 2405 x 2015 | 2467 x 2035 | 2475 (2565) | 2545 | 2040 | 1875 | 1925 |
2375 x 2125 | 2466 x 2190 | 1985 | 2315 x 2050 | 2405 x 2140 | 2467 x 2160 | 2475 (2565) | 2670 | 2165 | 2000 | 2050 |
2375 x 2250 | 2466 x 2315 | 2110 | 2315 x 2175 | 2405 x 2265 | 2467 x 2285 | 2475 (2565) | 2795 | 2290 | 2125 | 2175 |
2500 x 2000 | 2591 x 2065 | 1860 | 2440 x 1925 | 2530 x 2015 | 2592 x 2035 | 2600 (2690) | 2545 | 2040 | 1875 | 1925 |
2500 x 2125 | 2591 x 2190 | 1985 | 2440 x 2050 | 2530 x 2140 | 2592 x 2160 | 2600 (2690) | 2670 | 2165 | 2000 | 2050 |
2500 x 2250 | 2591 x 2315 | 2110 | 2440 x 2175 | 2530 x 2265 | 2592 x 2285 | 2600 (2690) | 2795 | 2290 | 2125 | 2175 |
3000 x 2125 | 3091 x 2190 | 1985 | 2940 x 2050 | 3030 x 2140 | 3092 x 2160 | 3100 (3190) | 2670 | 2165 | 2000 | 2050 |
| *When using aluminium frame set or mounting aids (S-anchor, variable frame anchor): 90 mm per side required (GIB = BRB + 180 mm). | ||||||||||
Montage
How do I install Novoferm sectional doors?
The following video illustrates the step-by-step installation of Novoferm sectional doors. The videos are only intended as a supplement to the installation, operating and maintenance instructions. They do not replace professional installation by qualified and trained specialist personnel.
INSTALLATION OF AN AUTOMATIC SECTIONAL DOOR
Click on the animation on the left to see the installation of a Novoferm sectional garage door using the example of type ISO 45 with Novomatic 563 S operator with vertical tension spring and the advantages in a visually appealing form.
Detailed animations / videos on the advantages, installation and programming of Novoferm sectional garage doors can be found on the Novoferm YouTube channel:
https://www.youtube.com/NovofermVideos
